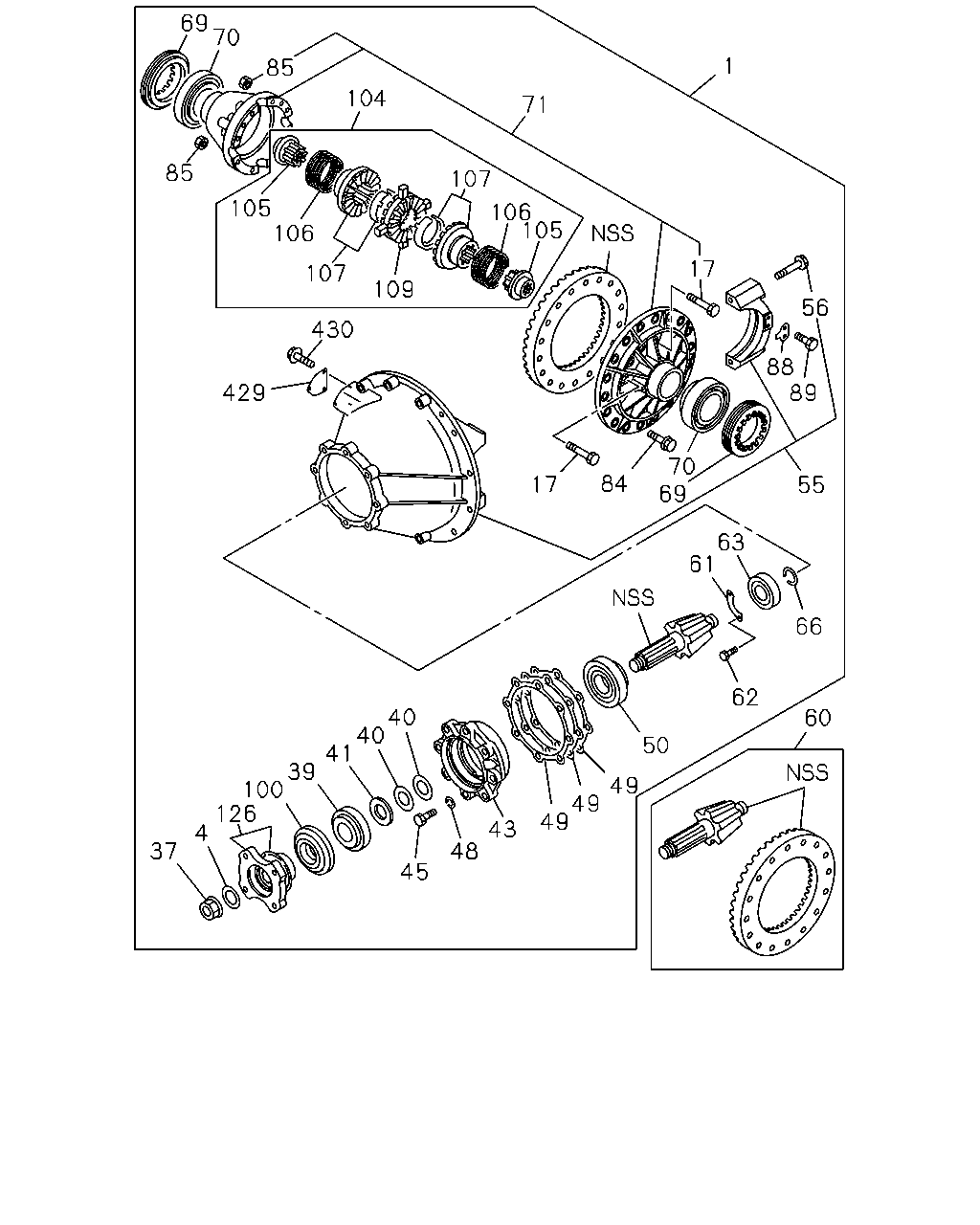

4-25 — REAR FINAL DRIVE (#10553) — 152 parça

69 70 1 85 104 71 85 107 105 106 106 105 17 107 109 56 430 88 89 429 70 69 84 17 55 63 61 66 62 40 40 41 60 50 39 100 126 4 49 49 49 43 48 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/8	1-41002-777-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41002-395-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 38/7	1-41002-775-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 38/7	1-41002-393-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 37/6	1-41002-773-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 37/6	1-41002-391-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41002-776-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41002-394-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/7	1-41002-774-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/7	1-41002-392-0	01	1	0105-					●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0105-	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-1	01	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0105-	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0105-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0105-	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	0105-	●	●	●	●	●
55	CARRIER; DIFF	1-41110-117-0	01	1	0105-	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0105-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-616-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-617-0	01	1	0105-				●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-615-0	01	1	0105-					●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0105-	●	●	●	●	●
62	BOLT; RET M8X16	0-20800-816-0	02	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	0105-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0105-	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=110 OD=170 T=38	1-09812-226-0	02	1	0105-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0105-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0105-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	0105-	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0105-	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0105-	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-047-0	01	1	0105-	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-040-0	02	1	0105-	●	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-004-0	02	1	0105-	●	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-014-0	02	1	0105-	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-023-0	01	1	0105-	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0105-	●	●	●	●	●
429	PLATE; DUMMY	1-41279-014-0	01	1	0105-	●	●	●	●	●
430	BOLT; PLATE,DUMMY M8X20 FLANGE	0-28680-820-0	03	1	0105-	●	●	●	●	●

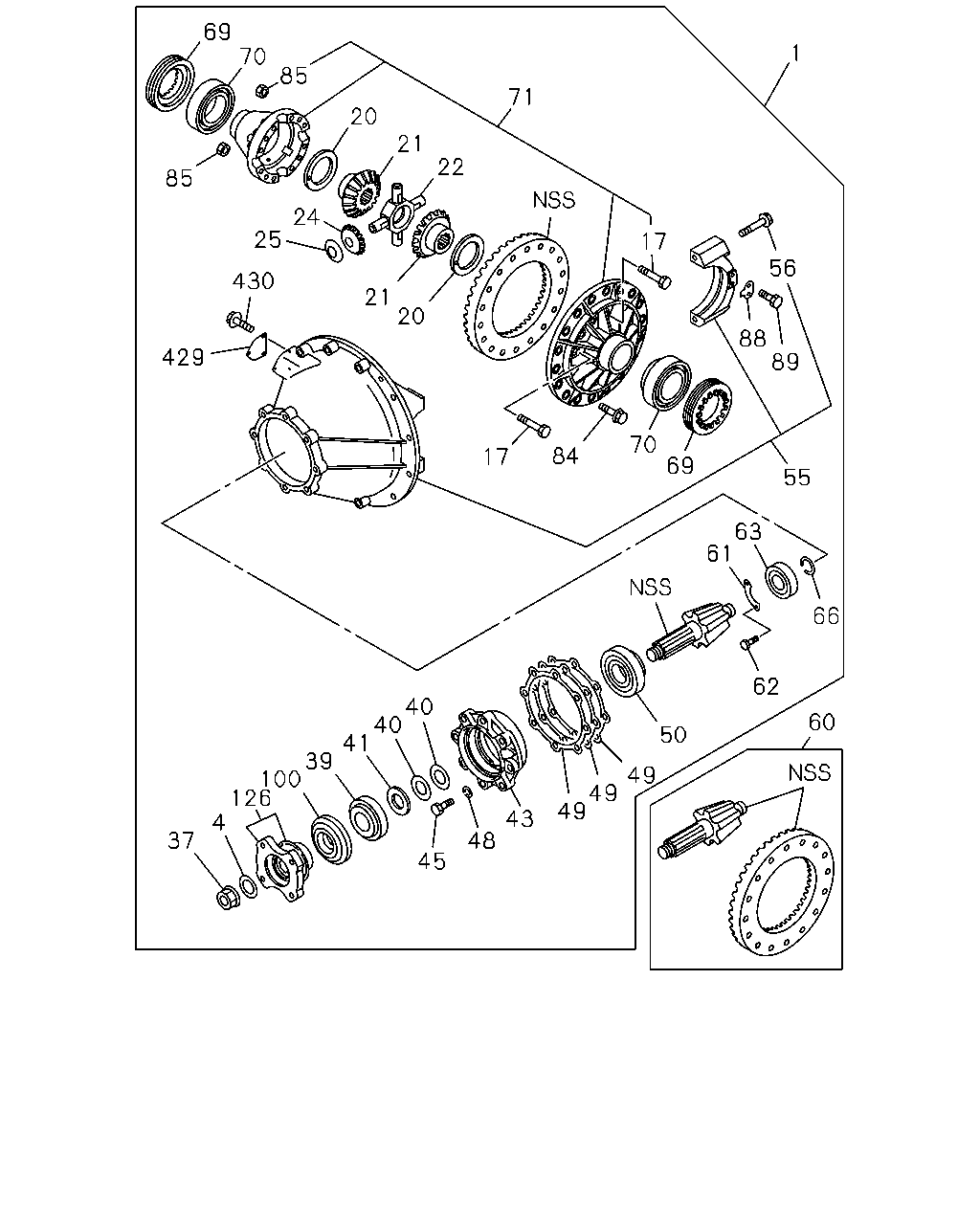

69 70 1 85 71 20 21 22 85 24 25 17 56 430 21 20 88 89 429 70 84 17 69 55 63 61 66 62 40 40 41 60 50 39 100 126 4 49 49 49 43 48 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/8	1-41002-777-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41002-395-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 38/7	1-41002-775-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 38/7	1-41002-393-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 37/6	1-41002-773-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 37/6	1-41002-391-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41002-776-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41002-394-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/7	1-41002-774-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/7	1-41002-392-0	01	1	0105-					●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0105-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.8	1-41562-270-1	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.9	1-41562-271-1	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.0	1-41562-272-1	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.1	1-41562-273-1	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.2	1-41562-274-1	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.3	1-41562-275-1	AR	1	0105-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.4	1-41562-276-1	AR	1	0105-	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-114-0	02	1	0105-	●	●	●	●	●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G86) OD=35	1-41521-052-0	01	1	0105-	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-034-0	04	1	0105-	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) T=1.6	1-41552-003-0	04	1	0105-	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0105-	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-1	01	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0105-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0105-	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0105-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0105-	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0105-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0105-	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	0105-	●	●	●	●	●
55	CARRIER; DIFF	1-41110-117-0	01	1	0105-	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0105-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-616-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-617-0	01	1	0105-				●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-615-0	01	1	0105-					●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0105-	●	●	●	●	●
62	BOLT; RET M8X16	0-20800-816-0	02	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0105-	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	0105-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0105-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0105-	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=110 OD=170 T=38	1-09812-226-0	02	1	0105-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0105-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0105-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0105-	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	0105-	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0105-	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0105-	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0105-	●	●	●	●	●
429	PLATE; DUMMY	1-41279-014-0	01	1	0105-	●	●	●	●	●
430	BOLT; PLATE,DUMMY M8X20 FLANGE	0-28680-820-0	03	1	0105-	●	●	●	●	●
