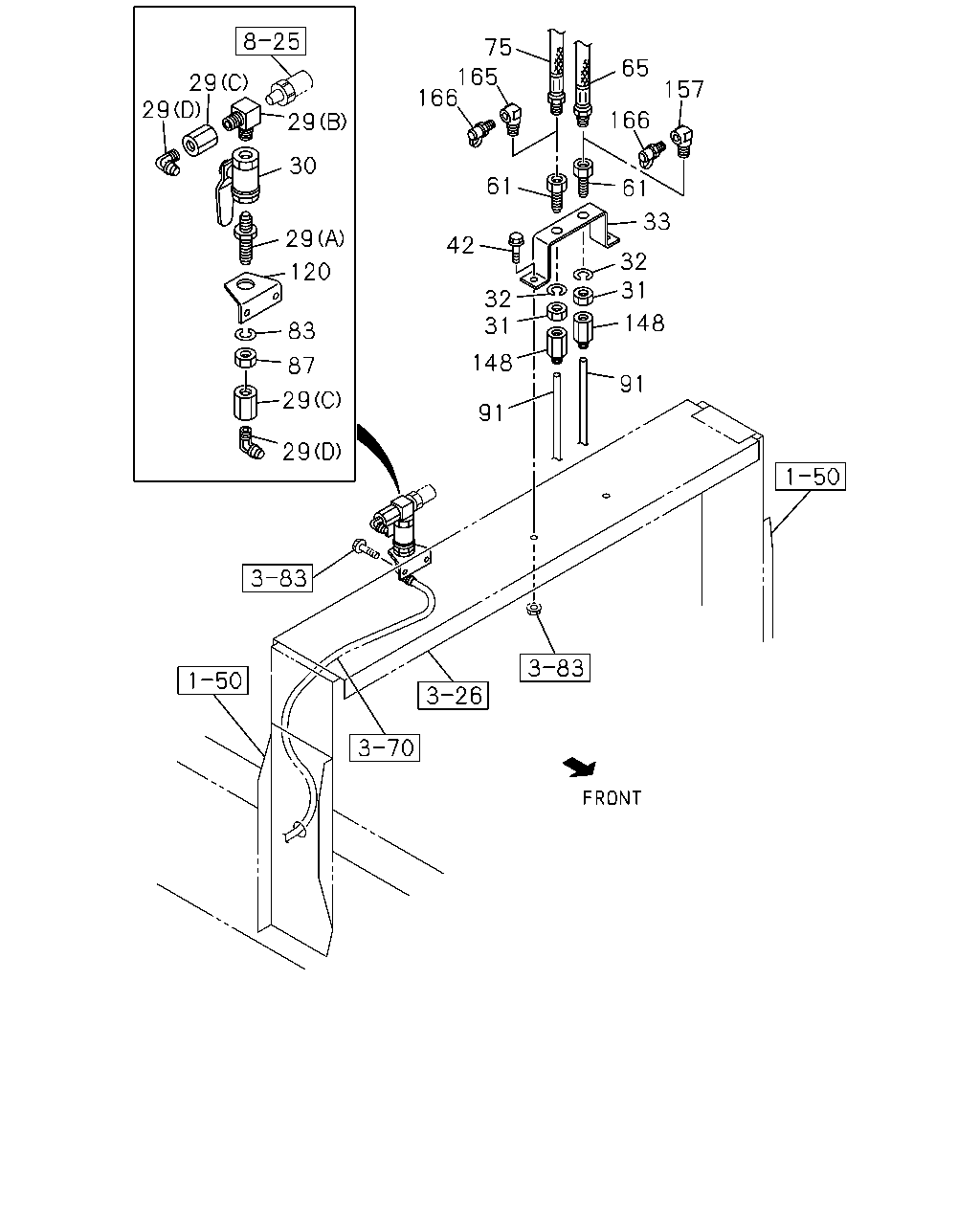

3-80 — BRAKE PIPING; TRAILER (#10547) — 28 parça
çizim 74406
75 65 165 166 29 29 157 166 29 30 61 61 33 29 42 32 31 120 32 31 148 83 148 87 91 29 91 29
BalonParca AdiParca NoAdetTipApplied Date
29 CONNECTOR; COCK
(A) M22 & PT1/2 STRAIGHT 		1-09650-220-1 01 1 0105-
29 CONNECTOR; COCK
(B) 		1-09656-332-1 01 1 0105-
29 CONNECTOR; COCK
(C) 		1-09660-884-0 02 1 0105-
29 CONNECTOR; COCK
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0105-
30 COCK; AIR HOSE
BLUE 		1-09680-092-0 01 1 0105-
31 NUT; UNION
M16 		9-99111-416-0 02 1 0105-
32 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 0105-
33 BRACKET 1-47475-388-0 01 1 0105-
42 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0105-
61 UNION; NYLON TUBE 1-09650-222-1 02 1 0105-
65 HOSE; AIR
EXC. JUMPER HOSE & CABLE DELETE<SJK> L=4136 		1-09363-148-0 01 1 0105-
75 HOSE; FLEX,TRAILER EMERGENCY
EXC. JUMPER HOSE & CABLE DELETE<SJK> L=4140 		1-09363-149-0 01 1 0105-
83 WASHER; LK,CONNECTOR
ID=22.5 		9-09150-522-0 01 1 0105-
87 NUT
M22 		9-09111-422-0 01 1 0105-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0105-
120 BRACKET; COCK 1-48499-001-1 01 1 0105-
148 ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0105-
157 ADAPTER
JUMPER HOSE & CABLE DELETE<SJK> PT1/2 & NPTF1/2 2WAY 		1-09660-695-0 01 1 0105-
165 CONNECTOR; ELBOW
JUMPER HOSE & CABLE DELETE<SJK> PT1/2 & NPTF1/2 2WAY 		1-09660-695-0 01 1 0105-
166 CONNECTOR; TEST
JUMPER HOSE & CABLE DELETE<SJK> 		1-47459-013-0 02 1 0105-

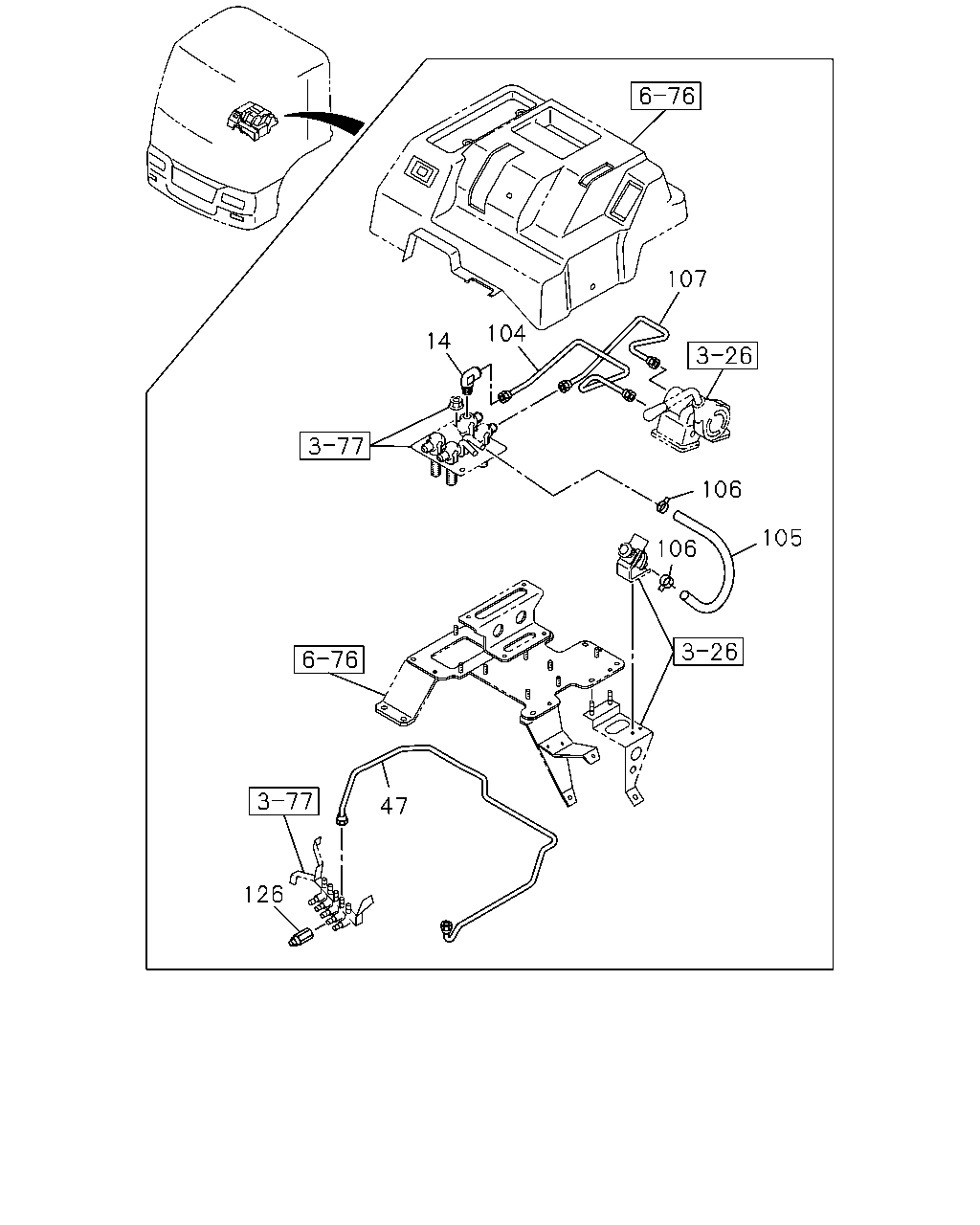

çizim 74432
107 104 14 106 105 106 47 126
BalonParca AdiParca NoAdetTipApplied Date
14 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 0105-
47 PIPE; AIR,UNION TO UNION
L=1901 SERVICED BY L=1950 		1-47426-393-0 01 1 0105-
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-643-1 01 1 0105-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-0111
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0112-
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 0105-
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49114-661-1 01 1 0105-
126 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0105-
