3-78 — FIXING PARTS; AIR PIPING (#10546) — 141 parça

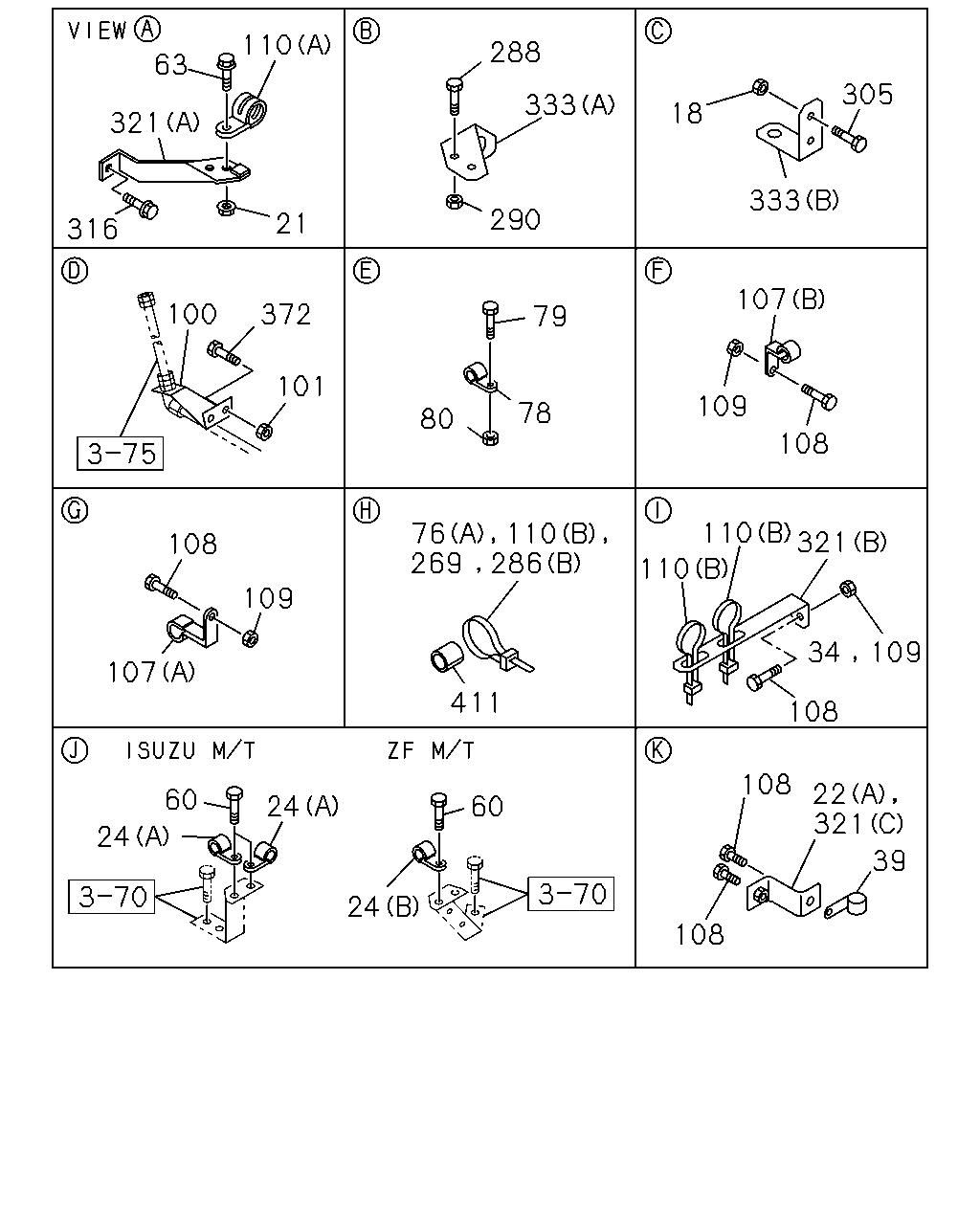

110 288 63 305 333 18 321 333 290 21 316 107 100 372 79 101 109 78 80 108 110 321 76 269 110 286 108 110 109 34 109 107 411 108 108 22 321 60 24 60 24 39 24 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
22	BRACKET; CLIP (B)	1-47477-514-3	02	1	0105-
22	BRACKET; CLIP ISUZU M/T<X9A> (A)	1-47475-689-0	01	1	0105-0106
22	BRACKET; CLIP ZF M/T<X9E> (A)	1-47477-088-1	01	1	0105-0106
22	BRACKET; CLIP (A)	1-47477-088-1	01	1	0107-
22	BRACKET; CLIP ZF M/T<X9E> (C) L=100	1-47477-645-2	01	1	0105-0106
22	BRACKET; CLIP (C) L=100	1-47477-645-2	01	1	0107-
24	CLIP; PIPE ISUZU M/T<X9A> (A) ID=16 L=20	9-09525-535-0	02	1	0105-
24	CLIP; PIPE ZF M/T<X9E> (B) ID=16 L=28	9-09525-556-0	01	1	0105-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
39	CLIP; AIR PIPE L=250	1-09707-126-0	02	1	0105-
60	BOLT; CLIP FIX ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	02	1	0105-
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	0105-
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	0105-
76	CLIP; NYLON TUBE (C) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0112
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	01	1	0201-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	0105-
76	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	0105-
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	0105-
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	0105-
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-452-0	01	1	0105-
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-481-0	01	1	0105-
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-770-0	01	1	0105-
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-365-0	01	1	0105-
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	0105-
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0105-0107
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 L=35	5-09700-293-1	01	1	0108-
107	CLIP; NYLON TUBE ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE ISUZU M/T<X9A> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE ZF M/T<X9E> (C) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=35 L=35	1-09700-895-0	01	1	0108-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	0105-0107
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	03	1	0105-0107
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	0108-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	0108-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0105-
108	BOLT; TUBE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0105-
108	BOLT; TUBE CLIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X30 FLANGE	0-28680-830-0	01	1	0105-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0105-
109	NUT; TUBE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0105-
109	NUT; TUBE CLIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	01	1	0105-
110	CLIP; BAND,NYLON TUBE (A) ID=28 L=40	1-09701-261-0	01	1	0105-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	07	1	0105-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	17	1	0105-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	10	1	0105-
110	CLIP; BAND,NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=250	1-09707-126-0	02	1	0105-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0105-0108
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0105-0108
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0109-
110	CLIP; BAND,NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250	1-09707-126-0	01	1	0109-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	01	1	0109-
110	CLIP; BAND,NYLON TUBE (B) L=250	1-09707-126-0	01	1	0109-
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	09	1	0105-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0105-0109
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	1-09707-126-0	01	1	0110-
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	05	1	0105-
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	04	1	0105-
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0105-
305	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
316	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	01	1	0105-
321	BRACKET; CLIP (B) L=150	1-47477-629-2	01	1	0105-0106
321	BRACKET; CLIP (C)	1-47477-088-1	01	1	0107-
321	BRACKET; CLIP (A)	1-47477-746-0	01	1	0105-
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (B) L=100	1-47477-645-2	01	1	0105-
333	BRACKET; BRK AIR PIPE (B)	1-47477-337-1	01	1	0105-
333	BRACKET; BRK AIR PIPE (A)	1-47477-818-0	01	1	0105-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	0105-
411	SLEEVE; RUBBER AIR DRYER<PS7> ID=29 OD=39 L=40	1-09337-013-0	01	1	0110-

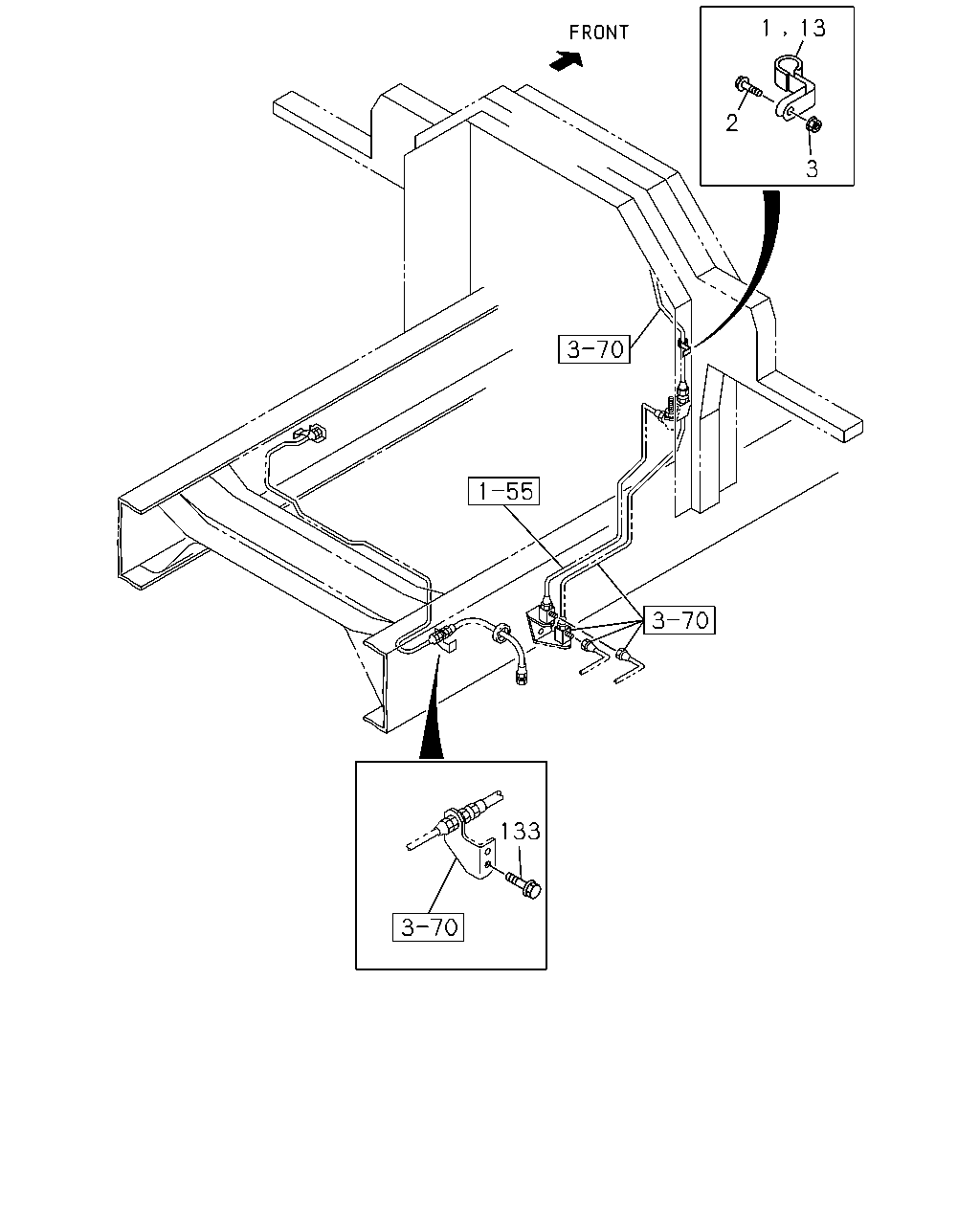

13 1 2 3 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0105-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0105-
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	0105-
133	BOLT; BRKT ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	0105-

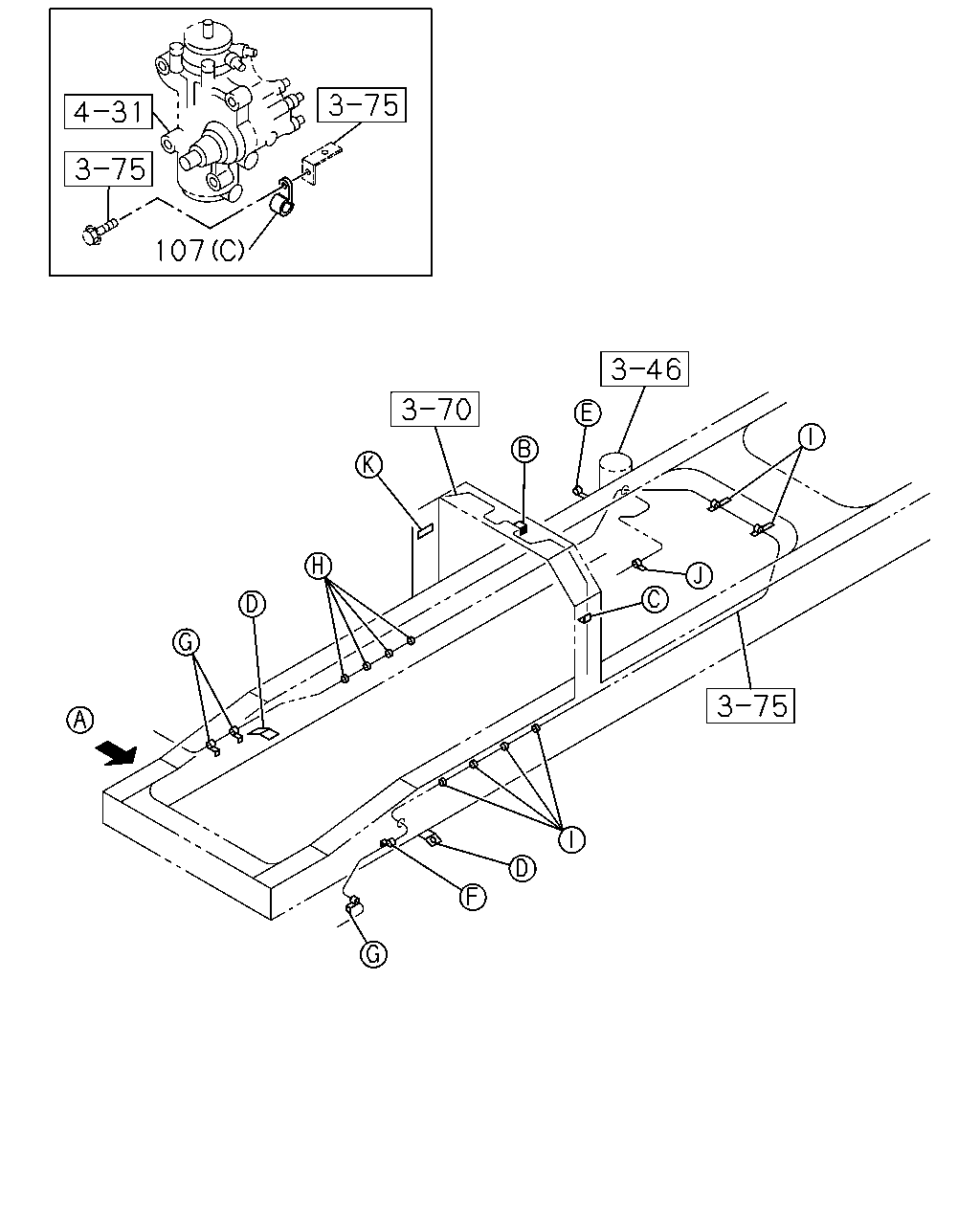

107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0105-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0105-0107
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=29 H=50 L=45.5	1-09701-027-0	02	1	0108-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 L=35	5-09700-293-1	01	1	0108-
107	CLIP; NYLON TUBE ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE ISUZU M/T<X9A> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	03	1	0105-0107
107	CLIP; NYLON TUBE ZF M/T<X9E> (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 H=45 L=33	1-09701-047-0	02	1	0108-
107	CLIP; NYLON TUBE ZF M/T<X9E> (C) ID=35 L=35	1-09700-895-0	01	1	0108-
107	CLIP; NYLON TUBE ISUZU M/T<X9A> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=35 L=35	1-09700-895-0	01	1	0108-

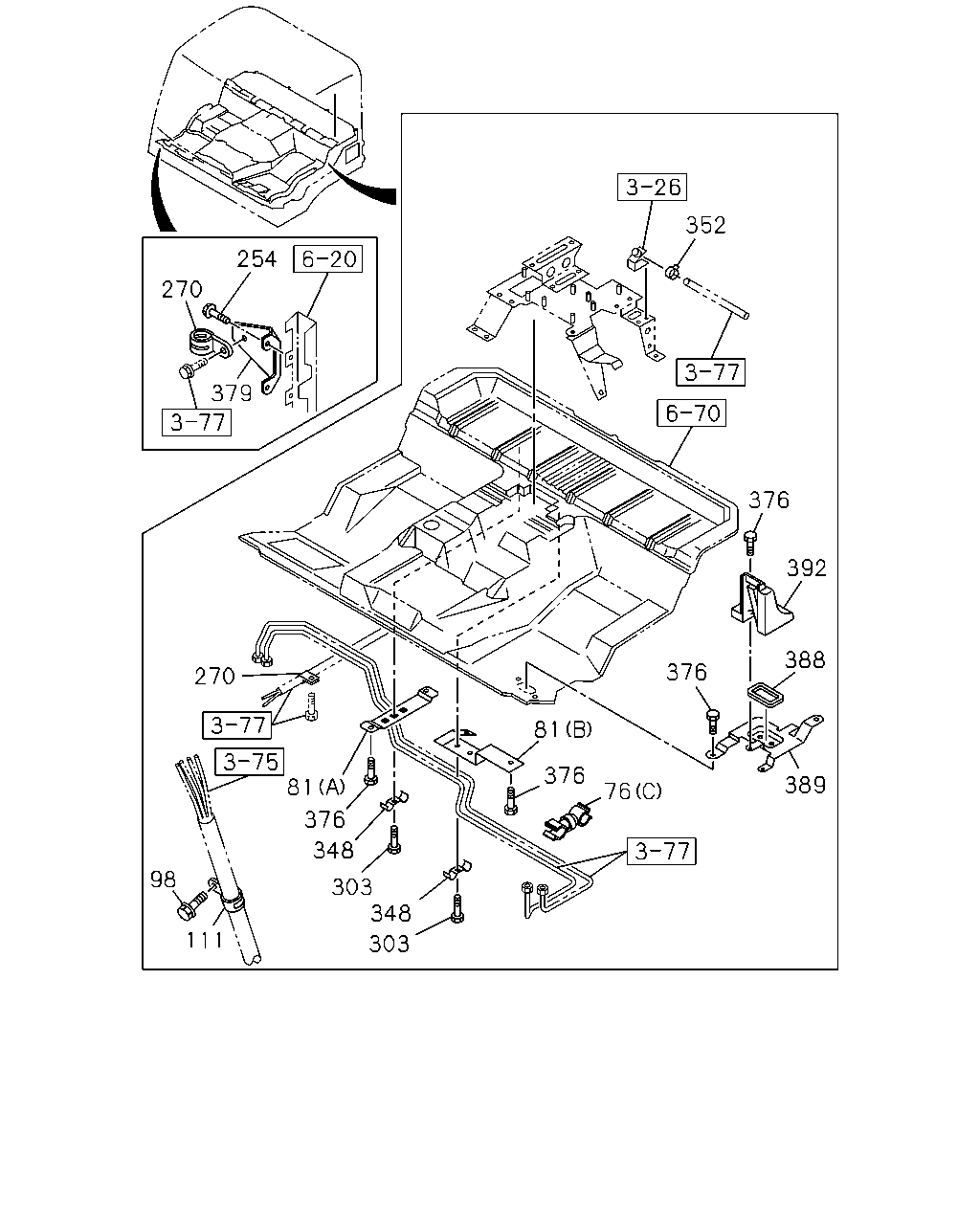

352 254 270 379 376 392 388 376 270 81 81 376 389 76 376 348 98 303 348 111 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	0105-
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	0105-
76	CLIP; NYLON TUBE (C) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0112
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	01	1	0201-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	0105-
76	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	0105-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0105-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0105-
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	0105-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
270	CLIP; NYLON TUBE ID=28 L=32	1-09701-107-1	04	1	0105-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0105-
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	0105-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0105-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	0105-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0105-
388	SEAL L=215	1-79738-794-1	01	1	0105-
389	BRACKET; UNION	1-79738-790-1	01	1	0105-
392	COVER; BRKT	1-73996-264-1	01	1	0105-

20 286 361 279 297 296 293 22 292 22 76 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0105-
22	BRACKET; CLIP (B)	1-47477-514-3	02	1	0105-
22	BRACKET; CLIP ISUZU M/T<X9A> (A)	1-47475-689-0	01	1	0105-0106
22	BRACKET; CLIP ZF M/T<X9E> (A)	1-47477-088-1	01	1	0105-0106
22	BRACKET; CLIP (A)	1-47477-088-1	01	1	0107-
22	BRACKET; CLIP ZF M/T<X9E> (C) L=100	1-47477-645-2	01	1	0105-0106
22	BRACKET; CLIP (C) L=100	1-47477-645-2	01	1	0107-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	0105-
76	CLIP; NYLON TUBE (B) L=350	8-94152-256-1	01	1	0105-
76	CLIP; NYLON TUBE (C) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0112
76	CLIP; NYLON TUBE (C) ID=6 & 8.3	8-94167-742-0	01	1	0201-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	0105-
76	CLIP; NYLON TUBE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	01	1	0105-
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0105-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	5-09707-030-1	01	1	0105-0109
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (A) L=250	1-09707-126-0	01	1	0110-
286	CLIP; NYLON TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	05	1	0105-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0105-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	0105-
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0105-
320	CLIP; BAND,FLEX FIX L=140	5-09707-031-1	01	1	0105-0105
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	0105-
