3-77 — BRAKE PIPING; AIR,REAR (#10545) — 85 parça

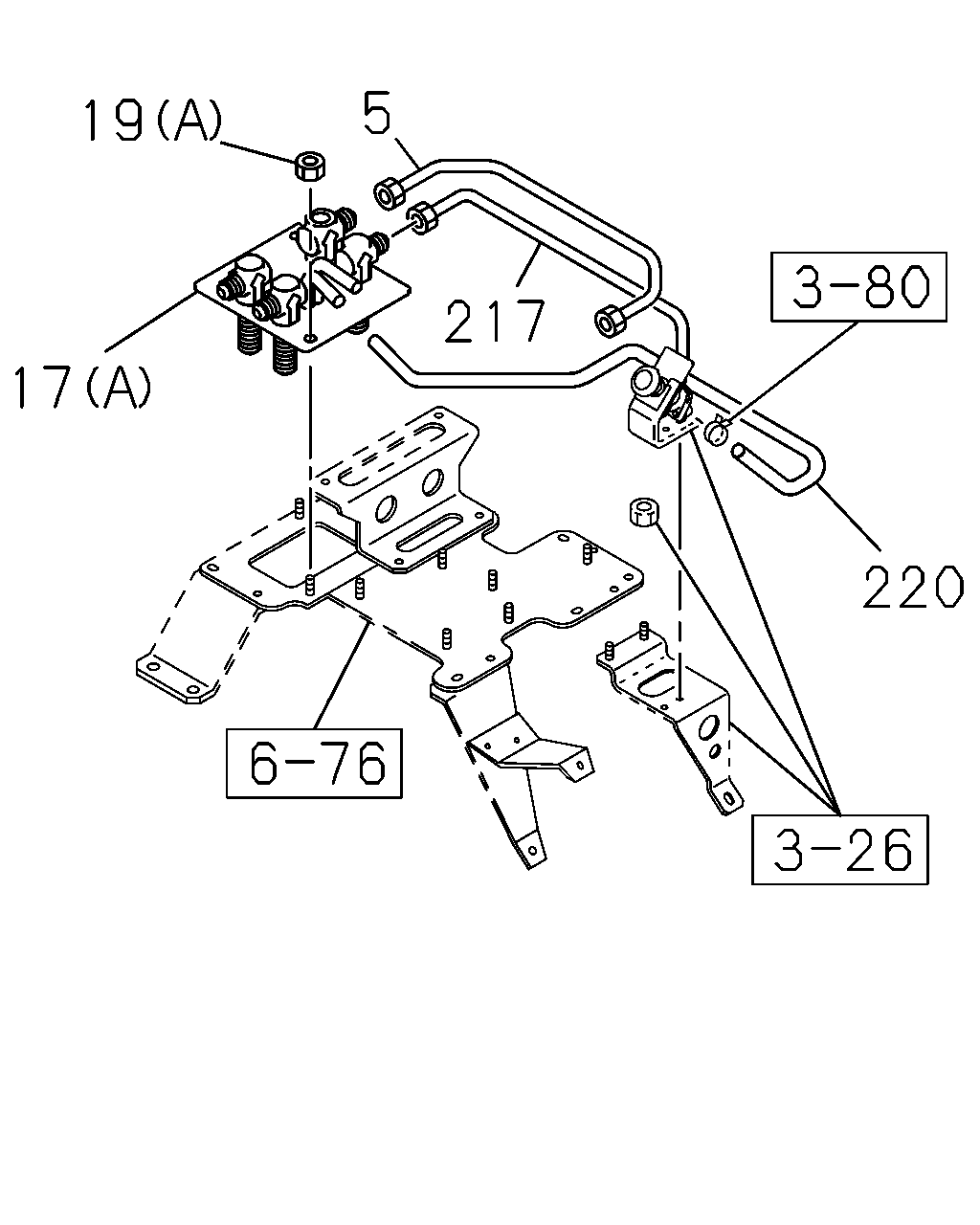

çizim 20910
5 19 217 17 220
BalonParca AdiParca NoAdetTipApplied Date
5 PIPE; AIR,UNION TO PARKING VLV 1-49114-638-1 01 1 0105-
17 UNION; AIR PIPE
(A) 		1-47470-443-2 01 1 0105-0111
17 UNION; AIR PIPE
(B) 		1-47470-469-3 01 1 0105-
17 UNION; AIR PIPE
(A) 		1-47470-443-2 01 1 0112-
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0111
19 NUT; PIPE UNION
(B) M8 		9-09110-408-0 01 1 0105-0203
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0112-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49114-639-0 01 1 0105-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-0111
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0112-

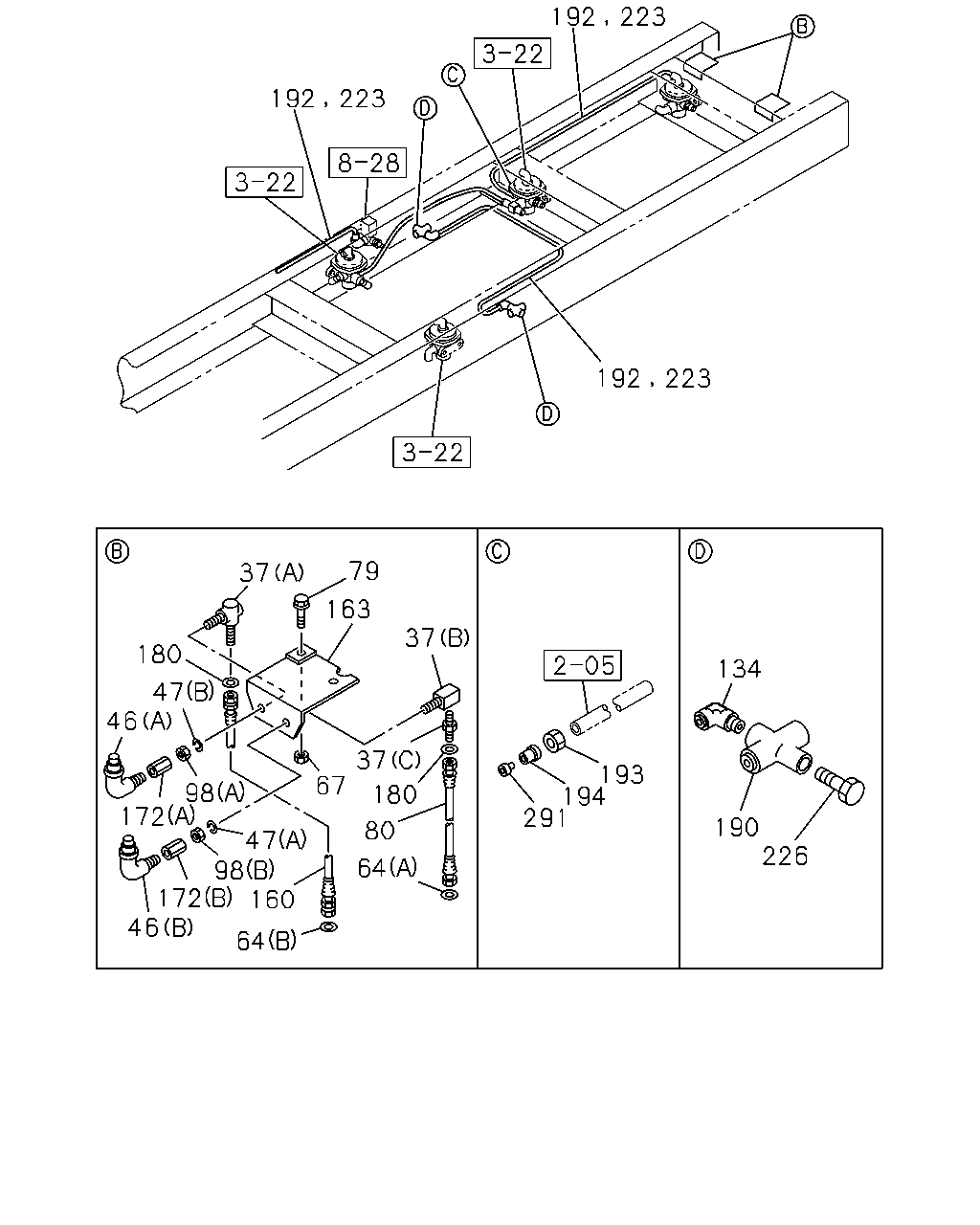

çizim 76781
79 37 163 37 180 47 46 134 37 67 193 194 291 98 180 172 190 226 80 47 98 46 64 64 192 223 192 223 192 223 172 160
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(B) 		1-09650-003-1 02 1 0105-
37 UNION; AIR PIPE
(C) 		1-09656-088-0 02 1 0105-
37 UNION; AIR PIPE
(A) 		9-09903-782-1 02 1 0105-
46 NIPPLE; AIR PIPE
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0105-
46 NIPPLE; AIR PIPE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0105-
47 WASHER; LK,HOSE BRKT
(B) ID=16.2 		9-09150-516-0 02 1 0105-
47 WASHER; LK,HOSE BRKT
(A) ID=20.2 		9-09150-520-0 02 1 0105-
64 GASKET; FLEX HOSE
(B) ID=11 OD=18 		9-09572-510-0 02 1 0105-
64 GASKET; FLEX HOSE
(A) ID=17.5 		9-09572-515-0 02 1 0105-
64 GASKET; FLEX HOSE
(A) ID=17.5 		9-09572-515-0 02 1 0105-
67 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-
79 BOLT; HOSE BRKT
M8X35 FLANGE 		0-28680-835-0 03 1 0105-
80 HOSE; FLEX,POWER CHAMBER
L=480 		0-07909-480-0 02 1 0105-
98 NUT; PIPE UNION
(A) M16 		9-99111-416-0 02 1 0105-
98 NUT; PIPE UNION
(B) M20 		9-99111-420-0 02 1 0105-
134 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
160 HOSE; FLEX,SPR CHAMBER
L=470 		0-07847-470-1 02 1 0105-
163 BRACKET; FLEX HOSE 1-47477-060-0 01 1 0105-
163 BRACKET; FLEX HOSE 1-47477-059-0 01 1 0105-
172 ADAPTER; UNION
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 02 1 0105-
172 ADAPTER; UNION
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 02 1 0105-
180 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 0105-
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0105-
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
193 NUT; SLEEVE
ZF M/T<X9E> M18 		1-09660-213-0 01 1 0105-0105
194 SLEEVE; TUBE
ZF M/T<X9E> ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0105-0105
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 0105-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-
226 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0203
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0204-
291 INSERT
ZF M/T<X9E> ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0105-0105

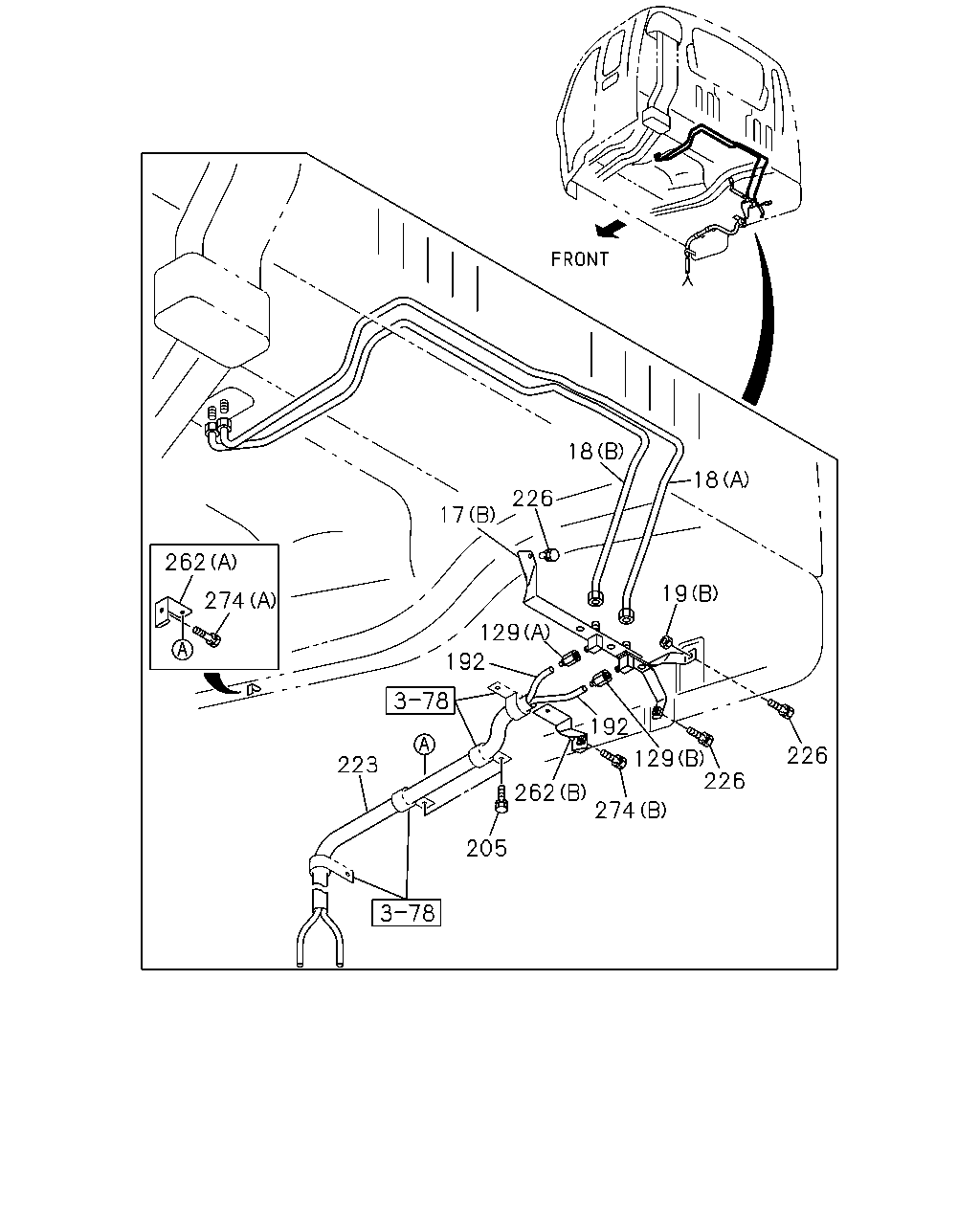

çizim 77132
18 18 226 17 262 19 274 129 192 192 226 129 226 223 262 274 205
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(A) 		1-47470-443-2 01 1 0105-0111
17 UNION; AIR PIPE
(B) 		1-47470-469-3 01 1 0105-
17 UNION; AIR PIPE
(A) 		1-47470-443-2 01 1 0112-
18 PIPE; AIR,UNION TO UNION
(B) L=1937 SERVICED BY L=1950 		1-47426-393-0 01 1 0105-
18 PIPE; AIR,UNION TO UNION
(A) L=2108 SERVICED BY L=2500 		1-47426-423-0 01 1 0105-
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0111
19 NUT; PIPE UNION
(B) M8 		9-09110-408-0 01 1 0105-0203
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0112-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0105-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0105-
205 BOLT; TUBE CLIP
M6X16 W/LK WASHER 		0-50040-616-0 01 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 0105-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-
226 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0203
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0204-
262 BRACKET
(A) 		1-79996-143-0 01 1 0105-
262 BRACKET
(B) 		1-79996-258-1 01 1 0105-
274 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0105-
274 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105-
