Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#10543) — 389 parça

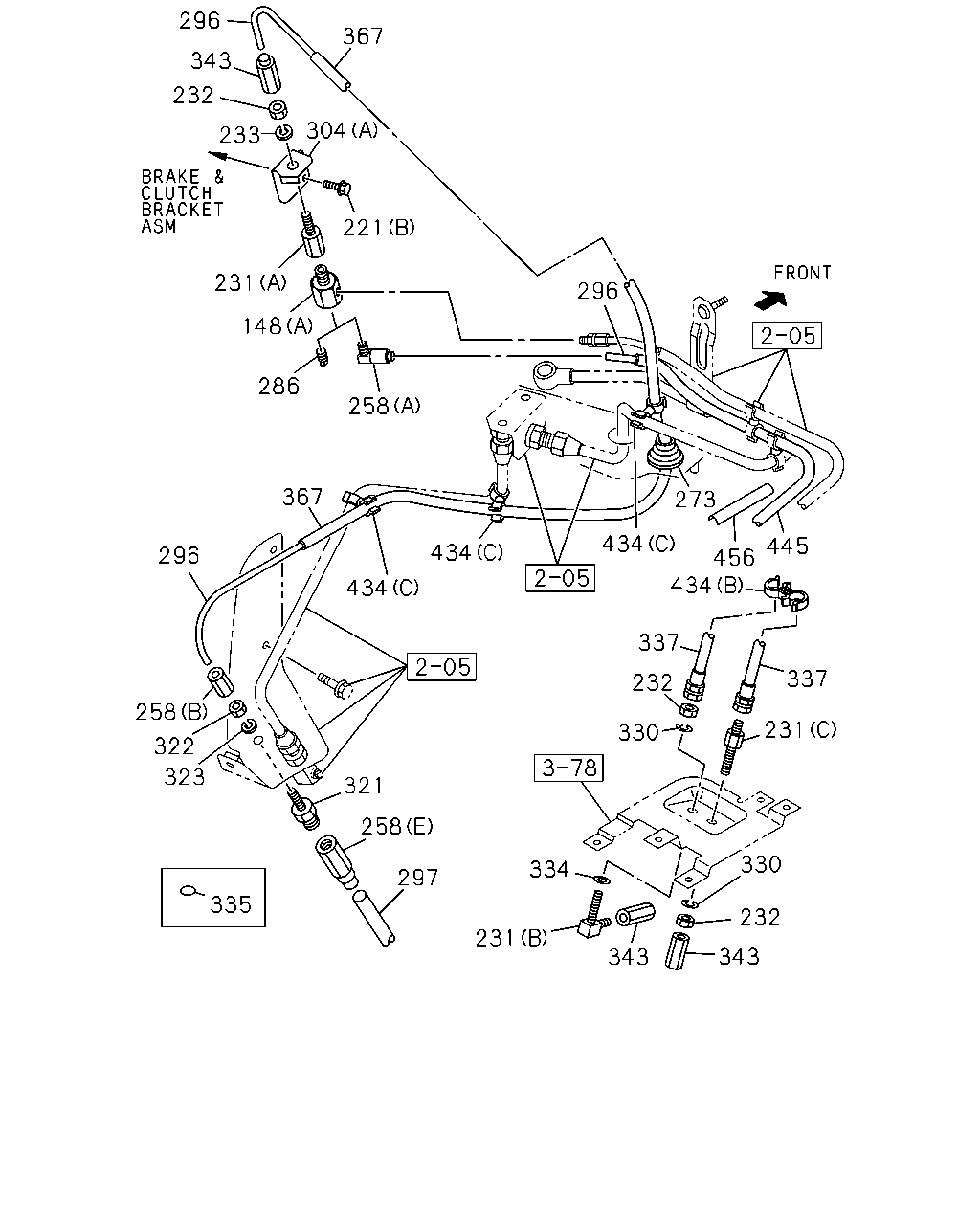

296 367 343 232 304 233 221 296 231 148 286 258 367 273 434 445 434 296 456 434 434 337 337 232 258 231 330 322 323 321 258 330 334 297 335 232 231 343 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
148	CONNECTOR; UNION (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
148	CONNECTOR; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (A)	8-94338-417-0	01	1	0105-
221	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-
221	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
231	UNION; AIR PIPE (B) M10 ELBOW	1-09654-186-2	01	1	0105-
231	UNION; AIR PIPE (C) M10 STRAIGHT	1-09654-361-0	01	1	0105-
231	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	0105-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	0105-
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	02	1	0105-
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0105-
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0105-
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
273	GROMMET TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09332-102-0	01	1	0105-
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09332-102-0	01	1	0105-
286	PLUG; AIR PIPE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	0105-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0105-
297	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	02	1	0105-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0105-
321	JOINT; FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5	9-09223-306-1	01	1	0105-
321	JOINT; FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5	9-09223-306-1	01	1	0105-
322	NUT; JOINT,FLEX HOSE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12	9-09840-280-0	01	1	0105-
322	NUT; JOINT,FLEX HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12	9-09840-280-0	01	1	0105-
323	WASHER; LK,JOINT TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2	9-09150-512-0	01	1	0105-
323	WASHER; LK,JOINT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2	9-09150-512-0	01	1	0105-
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	0105-
334	SPACER; PIPE UNION ID=10.5 OD=22 T=4	1-09503-045-0	01	1	0105-
335	SEAL; UNION ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0105-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	0105-
343	UNION; NYLON TUBE	1-09660-796-1	02	1	0105-
343	UNION; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	0105-
343	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-
434	CLIP (A) L=300	1-09707-001-1	01	1	0105-
434	CLIP (B) ID=10 & 10	1-09709-221-0	01	1	0105-
434	CLIP TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0105-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0105-
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=800	1-83129-031-1	01	1	0105-
456	SEAL; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40	1-72498-022-0	01	1	0105-

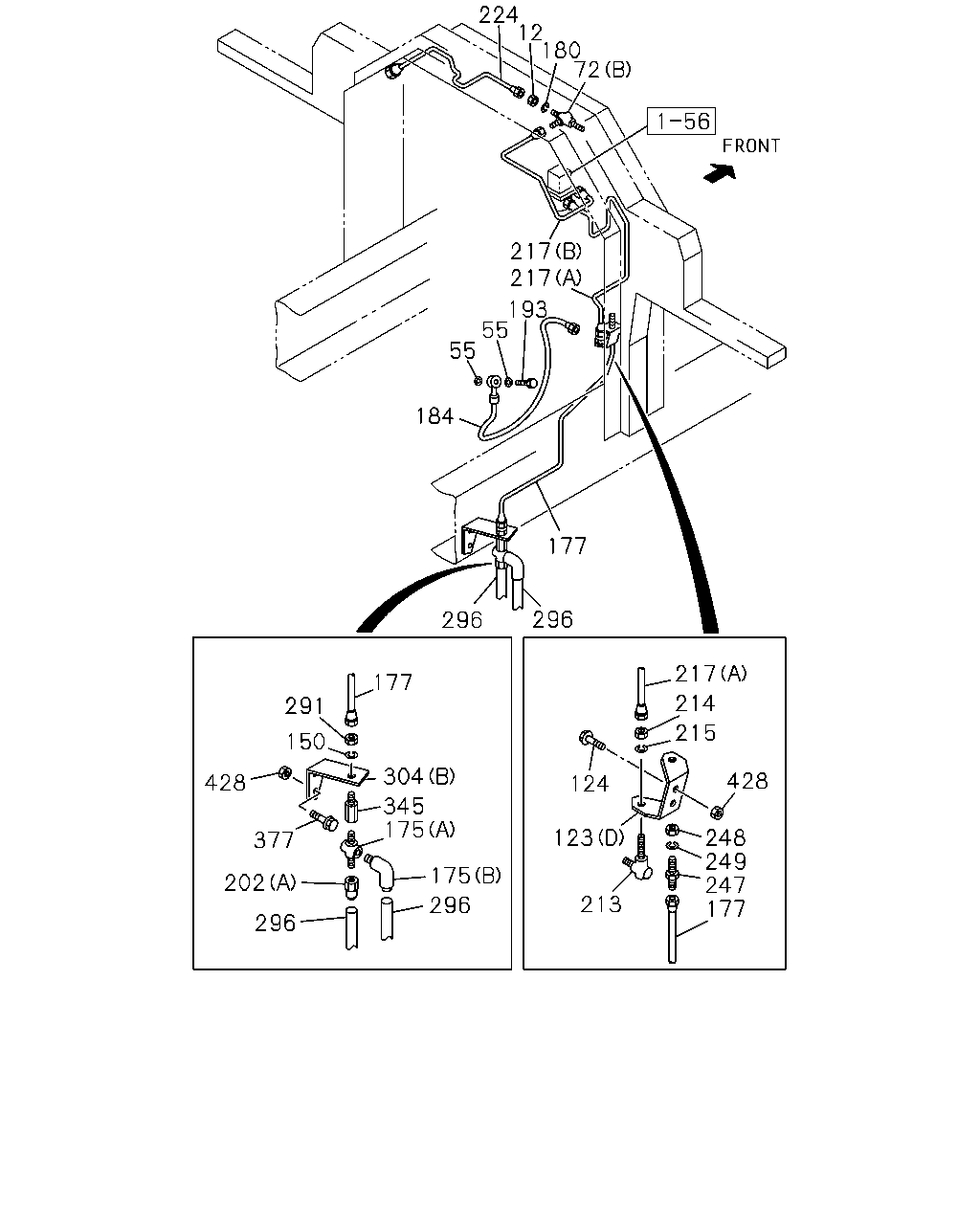

224 12 180 72 217 217 193 55 55 184 177 296 296 217 177 214 291 215 150 304 428 428 124 345 175 123 248 249 247 177 377 175 202 213 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
12	NUT; UNION ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-
55	GASKET; AIR PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION ISUZU M/T<X9A> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0105-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-
124	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
175	CONNECTOR; AIR PIPE (A)	1-09650-070-3	01	1	0105-
175	CONNECTOR; AIR PIPE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0105-
177	PIPE; AIR,UNION TO UNION L=548	1-49122-243-0	01	1	0105-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
184	HOSE; FLEX,AIR GOV L=370	0-07532-370-1	01	1	0105-
193	BOLT; EYE,FLEX HOSE,GOV LINE M14X27 FLANGE	1-09675-086-0	01	1	0105-
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0111-
202	ADAPTER ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0105-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0105-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	0105-
217	PIPE; VAC,UNION TO MAG VLV (A) L=620	1-49121-778-0	01	1	0105-
217	PIPE; VAC,UNION TO MAG VLV (B) L=552	1-49121-876-0	01	1	0105-
224	PIPE; AIR,UNION TO FLEX HOSE L=494 SERVICED BY L=500	1-47428-807-0	01	1	0105-
247	UNION; AIR PIPE M12	1-09654-087-1	01	1	0105-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0105-
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	0105-
291	NUT; UNION M12	9-09840-280-0	01	1	0105-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0105-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0105-
345	UNION; AIR PIPE	1-09654-280-1	01	1	0105-
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	0105-
377	BOLT; BRKT FIX ZF M/T<X9E> M12X16	0-28181-216-0	01	1	0105-
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
428	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-

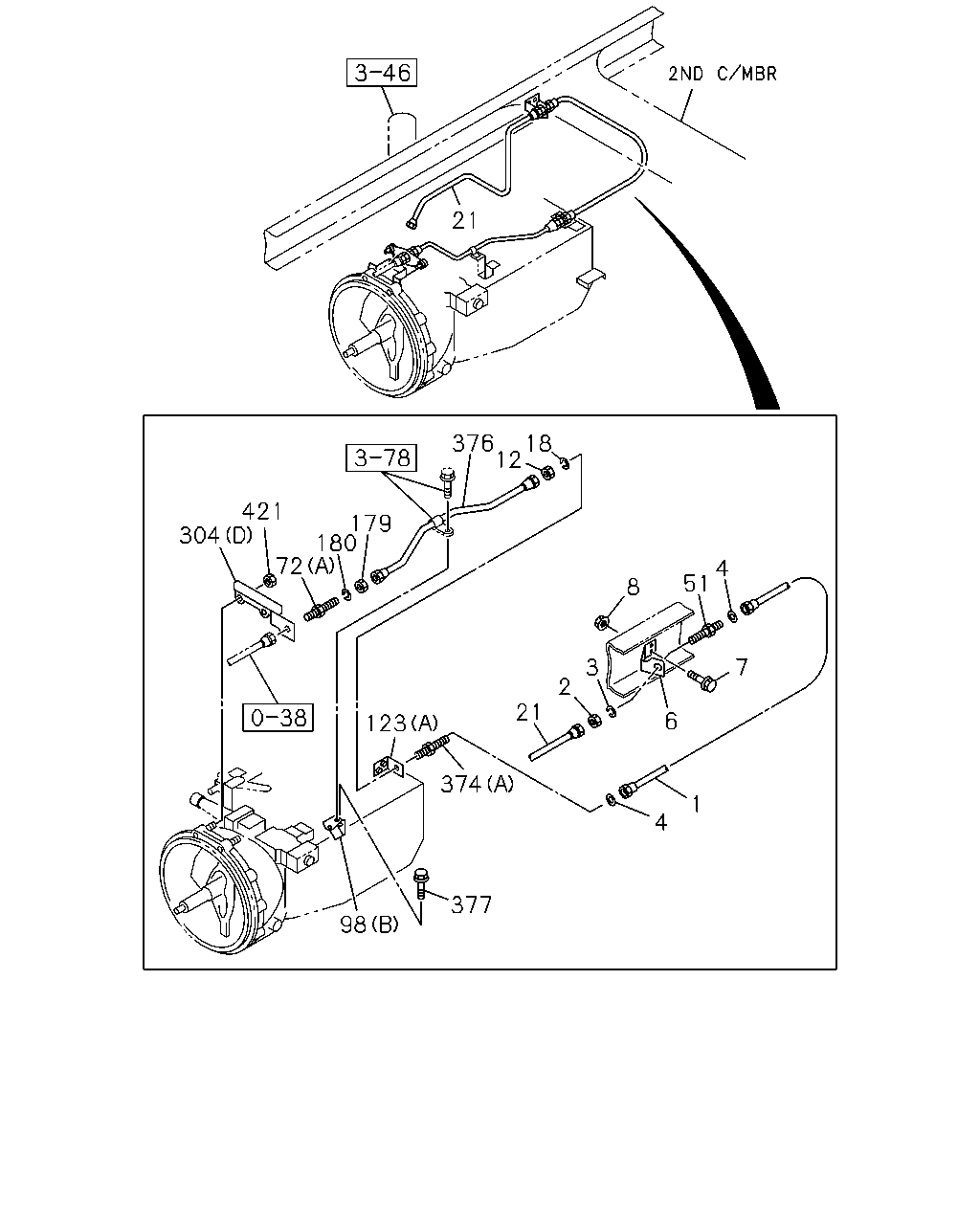

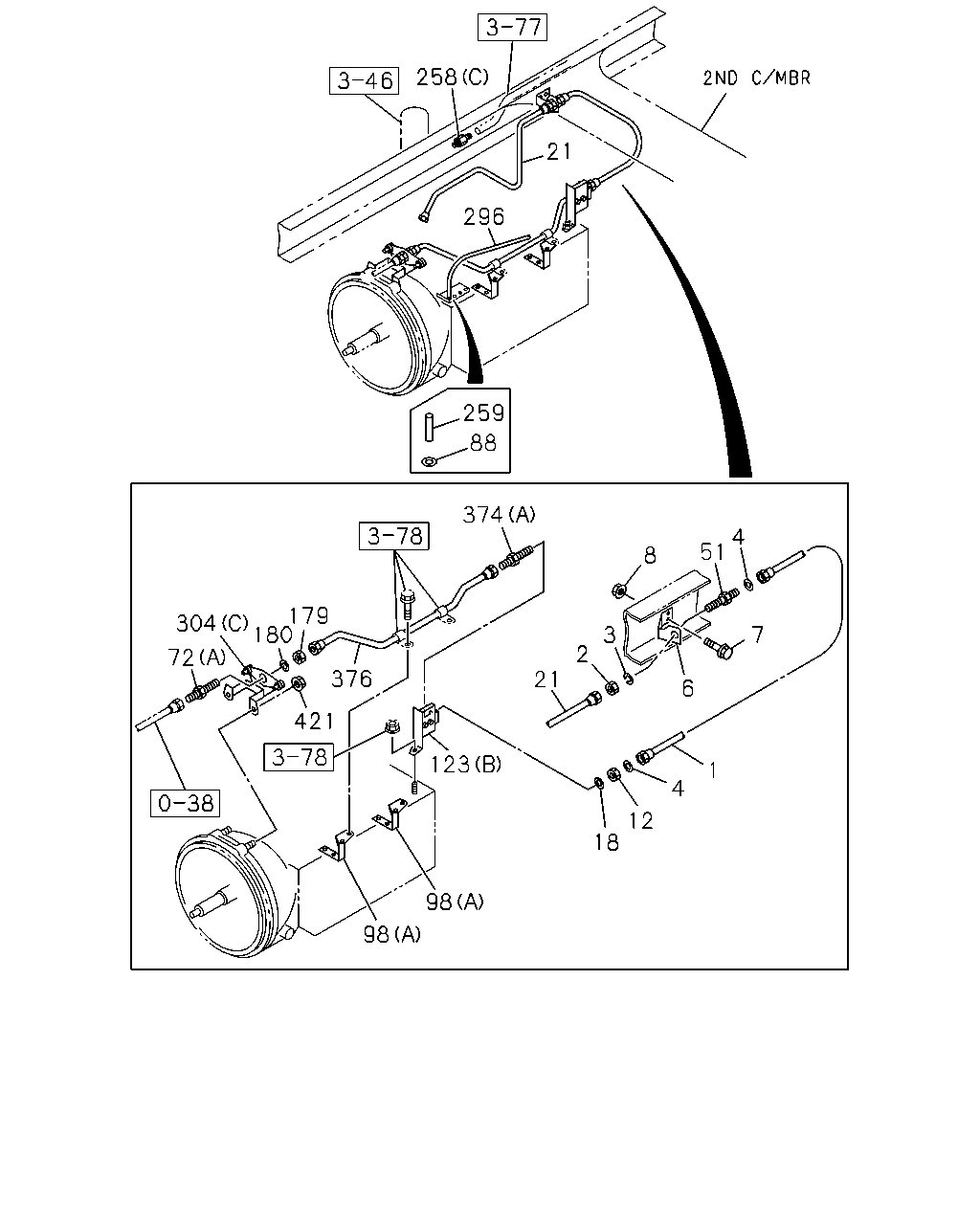

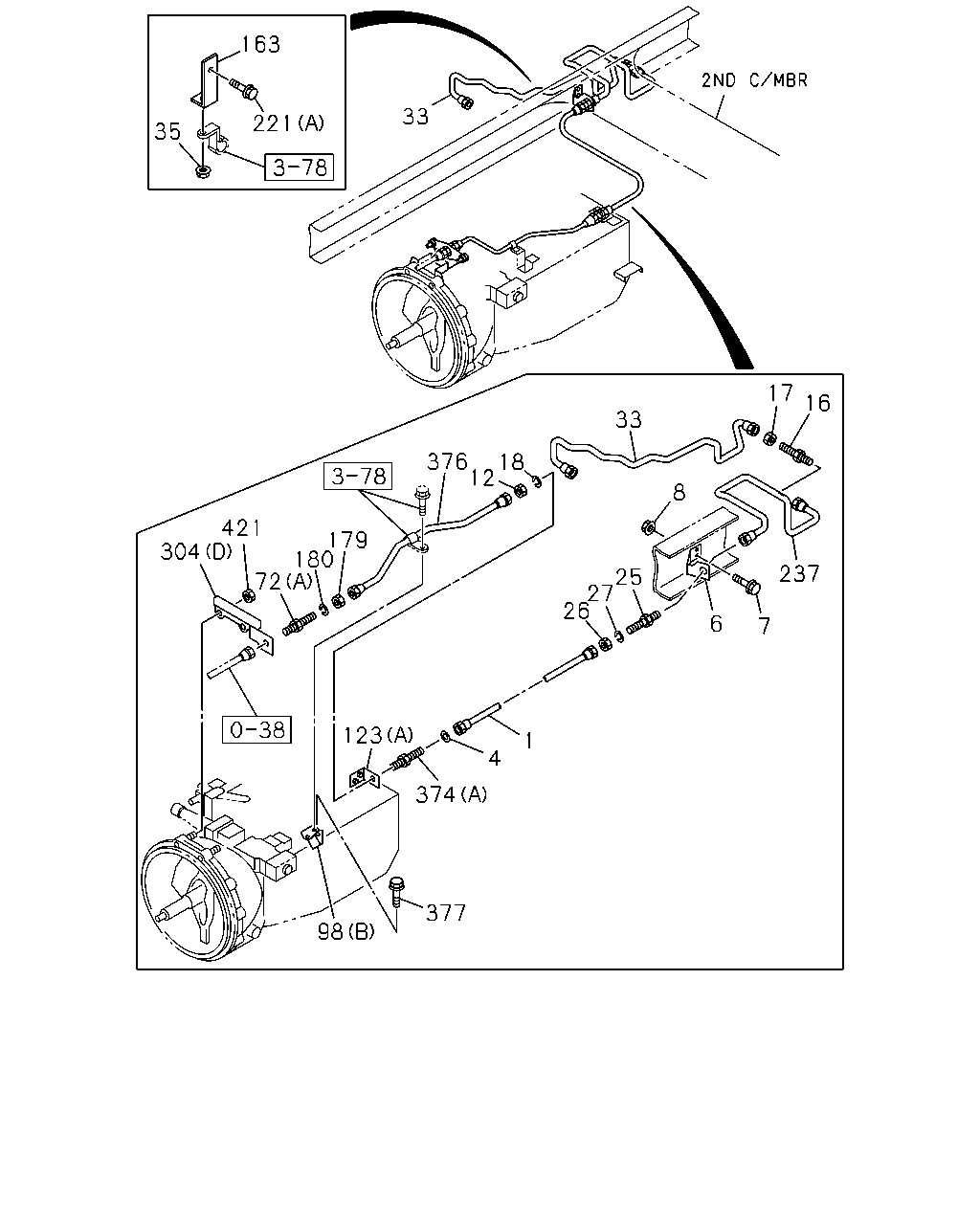

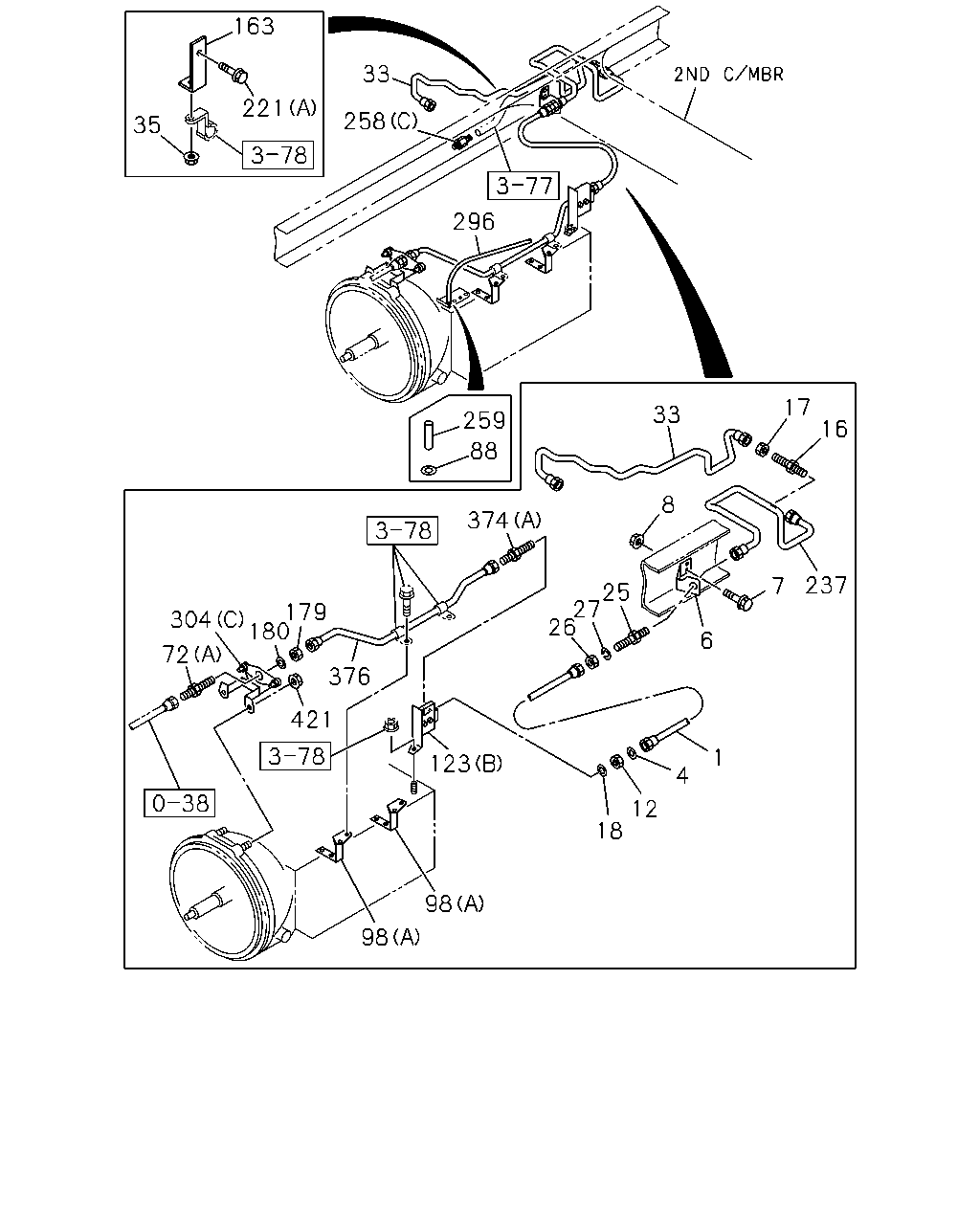

163 33 221 35 17 16 33 376 18 12 8 421 304 179 180 72 237 25 27 26 6 7 123 1 4 374 377 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=530	0-07846-530-1	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0105-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-232-0	01	1	0105-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0105-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0105-
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
12	NUT; UNION ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-
16	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	0105-
17	NUT; UNION EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	0105-
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
18	WASHER; LK,UNION ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-2	01	1	0105-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	0105-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	0105-
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49122-443-0	01	1	0105-
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (A)	1-47477-840-0	02	1	0105-
98	BRACKET; AIR PIPE ZF M/T<X9E> (B)	1-47477-902-0	01	1	0105-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION ISUZU M/T<X9A> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0105-
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=55	1-47475-304-0	01	1	0105-
179	NUT; UNION M22	9-09111-422-0	01	1	0105-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
221	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-
221	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. AIR DRYER<PS7> L=495	1-49117-170-0	01	1	0105-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0105-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-
376	PIPE; AIR,FLEX HOSE ISUZU M/T<X9A> L=639	1-49112-566-0	01	1	0105-
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	0105-
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	0105-
377	BOLT; BRKT FIX ZF M/T<X9E> M12X16	0-28181-216-0	01	1	0105-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-

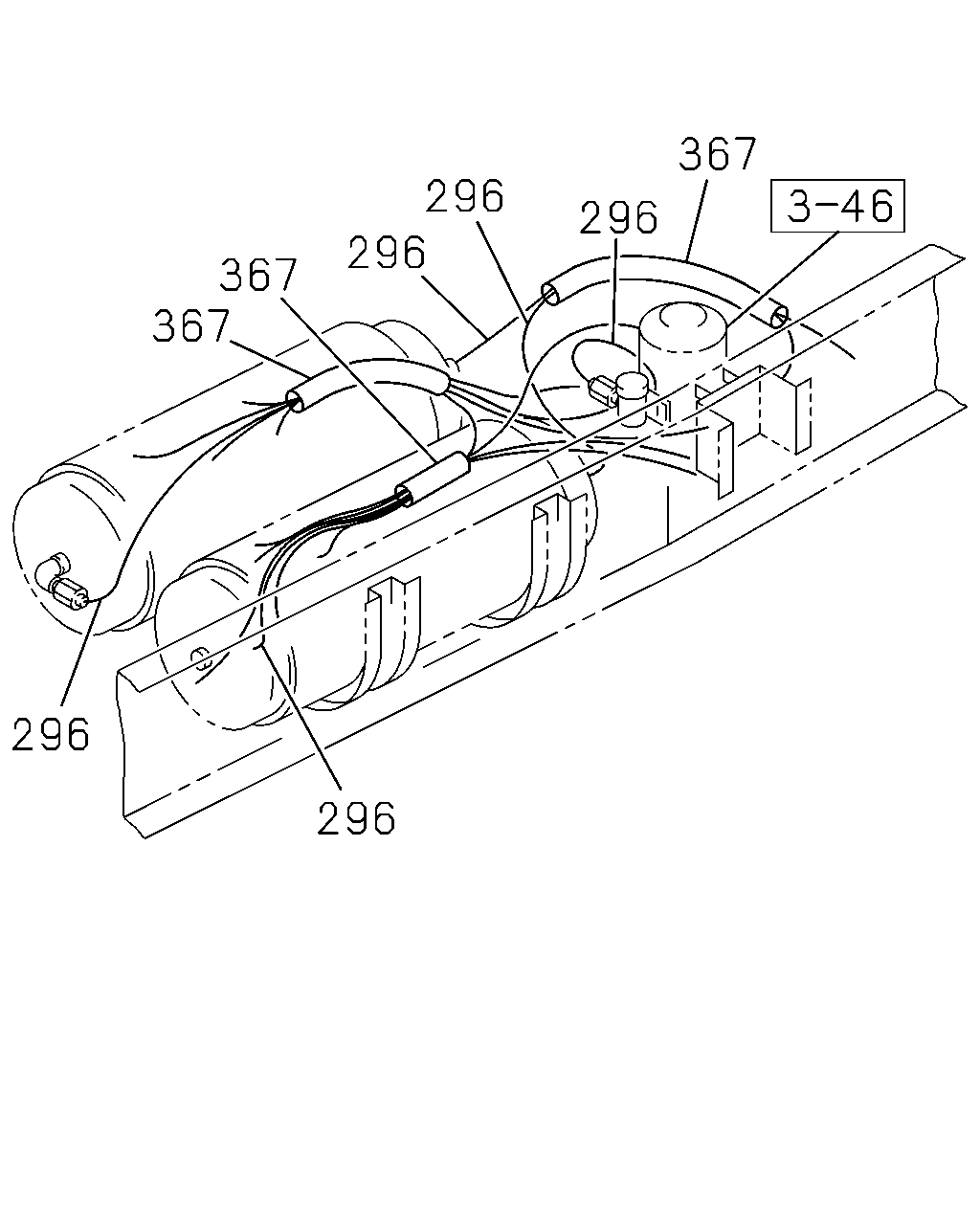

367 296 296 296 367 367 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0105-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0105-

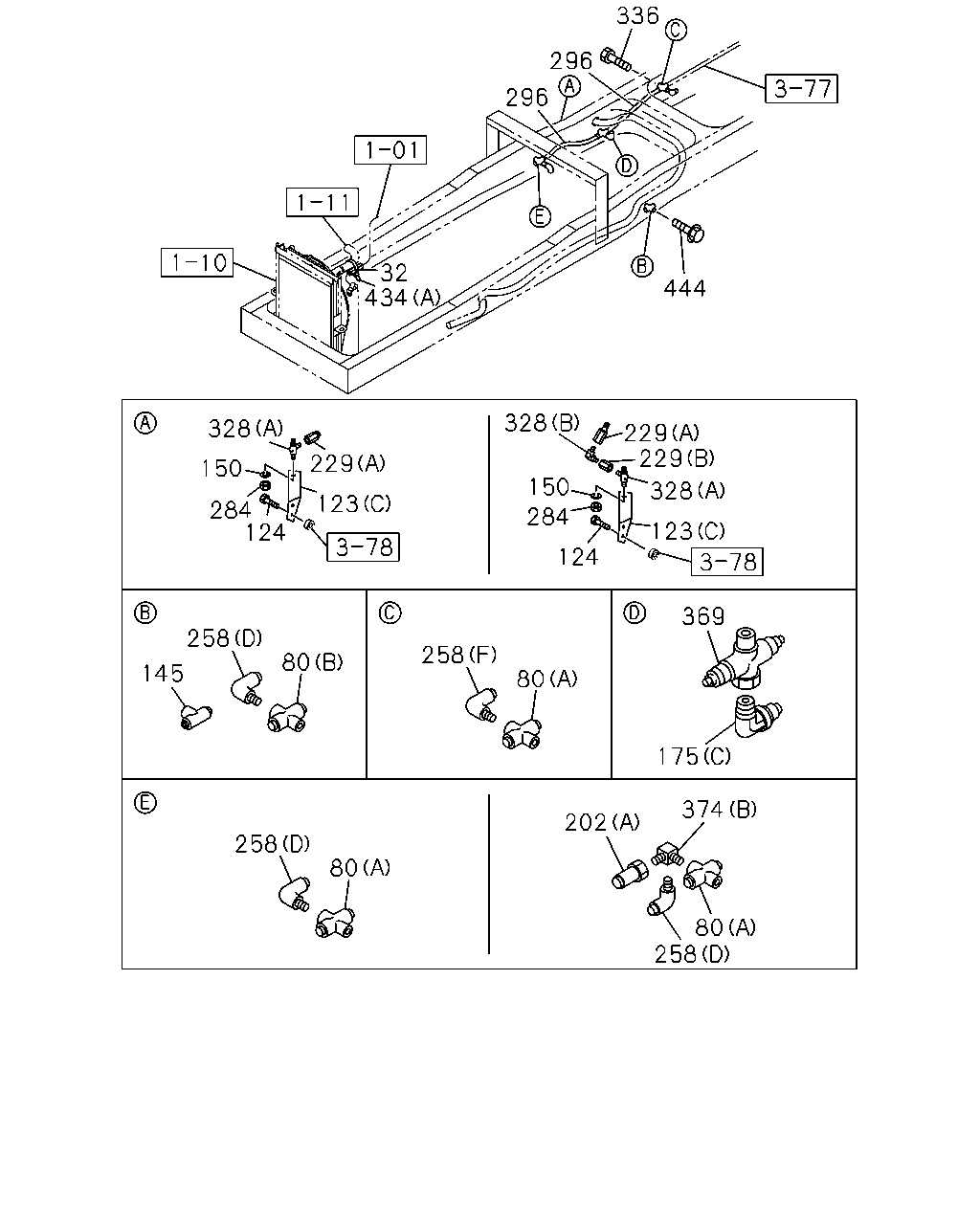

336 296 296 32 434 444 328 328 229 229 229 150 150 328 284 123 124 284 123 124 369 258 258 80 145 80 175 374 202 258 80 80 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	SLEEVE; RUBBER,AIR PIPE ID=6 OD=10 L=70	1-09376-512-0	01	1	0105-0105
32	SLEEVE; RUBBER,AIR PIPE ID=12.5 OD=15.5 L=30	9-09714-002-0	02	1	0105-0105
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0105-
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0105-
80	UNION; 3 WAY ZF M/T<X9E> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0105-0105
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION ISUZU M/T<X9A> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0105-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0105-
124	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-
145	UNION; NYLON TUBE ZF M/T<X9E>	1-09661-133-0	01	1	0106-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
175	CONNECTOR; AIR PIPE ISUZU M/T<X9A> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
175	CONNECTOR; AIR PIPE (A)	1-09650-070-3	01	1	0105-
175	CONNECTOR; AIR PIPE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0105-
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0111-
202	ADAPTER ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
229	ADAPTER; NYLON TUBE EXC. AIR DRYER<PS7> (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
284	NUT; UNION M12	9-99111-412-0	01	1	0105-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0105-
328	UNION; AIR PIPE (A) M12 2WAY	1-09654-059-2	01	1	0105-
328	UNION; AIR PIPE EXC. AIR DRYER<PS7> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
336	BOLT; PIPE UNION M8X20 FLANGE	0-28680-820-0	01	1	0105-
369	UNION; AIR PIPE ISUZU M/T<X9A> DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0105-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-
434	CLIP (A) L=300	1-09707-001-1	01	1	0105-
434	CLIP (B) ID=10 & 10	1-09709-221-0	01	1	0105-
434	CLIP TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0105-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0105-
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	0105-
444	BOLT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) M8X25 FLANGE	0-28680-825-0	01	1	0105-

21 376 18 12 421 304 179 180 72 4 51 8 3 7 2 21 6 123 374 1 4 377 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=530	0-07846-530-1	01	1	0105-
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M20	9-99111-420-0	01	1	0105-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0105-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-232-0	01	1	0105-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0105-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0105-
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
12	NUT; UNION ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
18	WASHER; LK,UNION ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-141-0	01	1	0105-
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (A)	1-47477-840-0	02	1	0105-
98	BRACKET; AIR PIPE ZF M/T<X9E> (B)	1-47477-902-0	01	1	0105-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION ISUZU M/T<X9A> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0105-
179	NUT; UNION M22	9-09111-422-0	01	1	0105-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0105-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-
376	PIPE; AIR,FLEX HOSE ISUZU M/T<X9A> L=639	1-49112-566-0	01	1	0105-
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	0105-
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	0105-
377	BOLT; BRKT FIX ZF M/T<X9E> M12X16	0-28181-216-0	01	1	0105-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-

258 21 296 259 88 374 4 51 8 179 304 180 3 7 2 72 376 21 6 421 123 1 4 12 18 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=530	0-07846-530-1	01	1	0105-
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M20	9-99111-420-0	01	1	0105-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0105-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-232-0	01	1	0105-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0105-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0105-
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
12	NUT; UNION ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
18	WASHER; LK,UNION ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49116-141-0	01	1	0105-
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-
88	GASKET; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	01	1	0105-
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (A)	1-47477-840-0	02	1	0105-
98	BRACKET; AIR PIPE ZF M/T<X9E> (B)	1-47477-902-0	01	1	0105-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION ISUZU M/T<X9A> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0105-
179	NUT; UNION M22	9-09111-422-0	01	1	0105-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> ID=23 OD=27 L=40	1-09337-015-0	02	1	0105-0108
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> L=175	1-09707-178-0	01	1	0109-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0105-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0105-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-
376	PIPE; AIR,FLEX HOSE ISUZU M/T<X9A> L=639	1-49112-566-0	01	1	0105-
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	0105-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-

163 33 221 258 35 296 17 33 259 16 88 8 374 237 7 25 27 26 179 304 180 6 72 376 421 1 123 4 12 18 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=530	0-07846-530-1	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0105-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0105-
6	BRACKET; FLEX HOSE,AIR TANK	1-47477-232-0	01	1	0105-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0105-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0105-
12	NUT; UNION M12	9-09840-280-0	01	1	0105-
12	NUT; UNION ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-
12	NUT; UNION ZF M/T<X9E> M14	9-99111-414-0	01	1	0105-
16	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	0105-
17	NUT; UNION EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	0105-
18	WASHER; LK,UNION ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-
18	WASHER; LK,UNION ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0105-
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-2	01	1	0105-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	0105-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	0105-
33	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49122-443-0	01	1	0105-
35	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0105-
72	UNION; AIR PIPE (A)	1-09654-097-1	01	1	0105-
72	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0105-
88	GASKET; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	01	1	0105-
98	BRACKET; AIR PIPE ISUZU M/T<X9A> (A)	1-47477-840-0	02	1	0105-
98	BRACKET; AIR PIPE ZF M/T<X9E> (B)	1-47477-902-0	01	1	0105-
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION ISUZU M/T<X9A> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0105-
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=55	1-47475-304-0	01	1	0105-
179	NUT; UNION M22	9-09111-422-0	01	1	0105-
180	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-
180	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
221	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-
221	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
237	PIPE; AIR,FLEX HOSE TO UNION EXC. AIR DRYER<PS7> L=495	1-49117-170-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0105-
258	CONNECTOR; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0105-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0105-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0105-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> ID=23 OD=27 L=40	1-09337-015-0	02	1	0105-0108
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> L=175	1-09707-178-0	01	1	0109-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0105-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0105-
304	BRACKET; UNION (B)	1-47476-556-0	01	1	0105-
304	BRACKET; UNION ISUZU M/T<X9A> (C)	1-47477-182-1	01	1	0105-
304	BRACKET; UNION TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0105-
304	BRACKET; UNION ZF M/T<X9E> (D)	1-47477-757-1	01	1	0105-
374	CONNECTOR ISUZU M/T<X9A> (A) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (A)	1-09654-203-1	01	1	0105-
374	CONNECTOR ZF M/T<X9E> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0105-
376	PIPE; AIR,FLEX HOSE ISUZU M/T<X9A> L=639	1-49112-566-0	01	1	0105-
376	PIPE; AIR,FLEX HOSE ZF M/T<X9E> L=552	1-49117-764-0	01	1	0105-
421	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-

123 221 202 148 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0110
123	BRACKET; UNION (D)	1-47477-045-0	01	1	0105-
123	BRACKET; UNION (C)	1-47477-654-1	01	1	0105-
123	BRACKET; UNION (E)	1-53458-742-2	01	1	0111-
123	BRACKET; UNION ISUZU M/T<X9A> (B)	1-47477-187-0	01	1	0105-
123	BRACKET; UNION ZF M/T<X9E> (A)	1-47477-588-0	01	1	0105-
148	CONNECTOR; UNION (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
148	CONNECTOR; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (A)	8-94338-417-0	01	1	0105-
202	ADAPTER (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0111-
202	ADAPTER ZF M/T<X9E> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-
221	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-
221	BOLT; BRKT EXC. AIR DRYER<PS7> (A) M8X35 FLANGE	0-28680-835-0	01	1	0105-
221	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
