Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#1054) — 236 parça

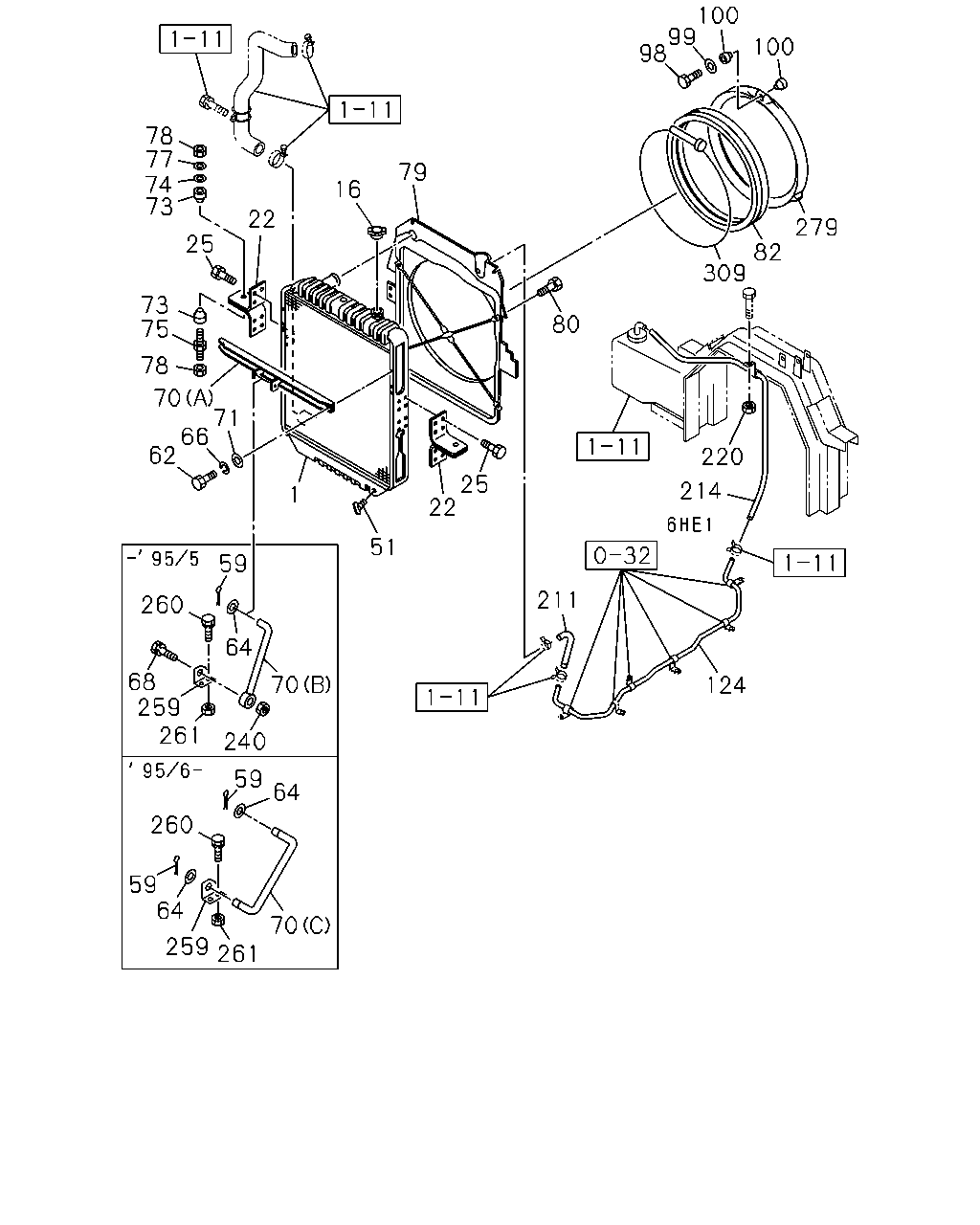

100 99 98 100 78 77 74 73 79 16 25 22 279 82 309 73 75 80 78 70 71 66 62 220 25 22 214 1 51 59 211 260 64 68 259 261 70 124 240 59 64 260 59 64 70 259 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-678-0	01	1	9202-	●
1	RADIATOR ASM	1-21410-650-1	01	1	9202-		●
1	RADIATOR ASM	1-21410-679-1	01	1	9202-			●
16	CAP; RAD	1-21450-053-1	01	1	9202-	●	●	●
22	BRACKET; RAD MTG	1-21464-315-0	01	1	9202-	●
22	BRACKET; RAD MTG	1-21464-314-0	01	1	9202-	●
22	BRACKET; RAD MTG	1-21464-308-0	01	1	9202-		●
22	BRACKET; RAD MTG	1-21464-307-0	01	1	9202-		●
22	BRACKET; RAD MTG	1-21464-317-0	01	1	9202-			●
22	BRACKET; RAD MTG	1-21464-316-0	01	1	9202-			●
25	BOLT; BRKT M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9202-	●
25	BOLT; BRKT M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9202-	●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	20	1	9202-9302		●
25	BOLT; BRKT M8X16 W/LK&PL WASHER	0-50140-816-0	20	1	9303-		●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	16	1	9202-			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9202-	●	●	●
59	PIN; SNAP,STAY	1-09987-158-1	01	1	9202-9505	●		●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9506-	●		●
62	BOLT; STAY M10X16	9-02041-016-0	02	1	9202-	●		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	01	1	9202-9505	●		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9506-	●		●
66	WASHER; LK,STAY ID=10.2	9-09150-510-0	02	1	9202-	●		●
68	BOLT; STAY TO BRKT M8X40 FLANGE	0-28080-840-0	01	1	9202-9506	●		●
70	STAY; RAD (A)	1-21522-058-0	01	1	9202-9505	●
70	STAY; RAD (C)	1-21522-067-0	01	1	9506-	●
70	STAY; RAD (B)	1-21522-040-1	01	1	9202-	●		●
70	STAY; RAD (A)	1-21522-057-0	01	1	9202-9505			●
70	STAY; RAD (C)	1-21522-068-0	01	1	9506-			●
71	WASHER; PL,STAY ID=10.5 OD=22	9-09160-610-0	02	1	9202-	●		●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	02	1	9202-	●	●	●
73	RUBBER; CUSHION,RAD MTG T=24	1-21467-011-1	02	1	9202-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9202-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-010-0	02	1	9202-	●	●	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9202-	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	5-09440-006-0	02	1	9202-	●	●	●
78	NUT; CUSHION RUBBER M12	9-99110-512-0	02	1	9202-	●	●	●
79	GUIDE; FAN,RAD	1-21551-350-1	01	1	9202-	●
79	GUIDE; FAN,RAD	1-21551-290-4	01	1	9202-		●
79	GUIDE; FAN,RAD	1-21551-349-3	01	1	9202-			●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9202-9208	●	●	●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9209-9302	●	●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9303-	●
80	BOLT; FAN GUIDE M6X14 FLANGE	0-28080-614-0	04	1	9209-9302			●
80	BOLT; FAN GUIDE M6X14 FLANGE	0-28080-614-0	04	1	9303-		●	●
82	COVER; FAN,RAD AUSTRALIA EQUIPMENT(RR3)	1-21559-211-0	01	1	9202-	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9202-		●
82	COVER; FAN,RAD EXC. AUSTRALIA EQUIPMENT(RR3)	1-21559-203-0	01	1	9202-	●
82	COVER; FAN,RAD	1-21559-157-0	01	1	9202-			●
98	BOLT; RAD FAN GUIDE AUSTRALIA EQUIPMENT(RR3) M8X45 FLANGE	0-28080-845-0	03	1	9202-	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9202-		●
98	BOLT; RAD FAN GUIDE EXC. AUSTRALIA EQUIPMENT(RR3) M8X28 FLANGE	0-28080-828-0	03	1	9202-9308	●
98	BOLT; RAD FAN GUIDE M8X28 FLANGE	0-28080-828-0	03	1	9202-9308			●
98	BOLT; RAD FAN GUIDE EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	03	1	9309-	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9309-			●
99	WASHER; PL AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26	9-09164-808-0	03	1	9202-	●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9202-		●
99	WASHER; PL EXC. AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=18	9-09164-608-0	03	1	9202-9202	●
99	WASHER; PL ID=8.4 OD=18	9-09164-608-0	03	1	9202-9202			●
99	WASHER; PL EXC. AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=18	9-09164-608-0	03	1	9203-9209	●
100	RUBBER; MTG AUSTRALIA EQUIPMENT(RR3)	1-09337-017-0	06	1	9202-	●
100	RUBBER; MTG	1-09337-017-0	06	1	9202-		●
100	RUBBER; MTG EXC. AUSTRALIA EQUIPMENT(RR3)	1-09337-006-0	06	1	9202-9307	●
100	RUBBER; MTG	1-09337-006-0	06	1	9202-9307			●
100	RUBBER; MTG EXC. AUSTRALIA EQUIPMENT(RR3)	1-09337-027-0	06	1	9308-	●
100	RUBBER; MTG	1-09337-027-0	06	1	9308-			●
124	PIPE; WATER,TANK TO RAD	8-94396-222-1	01	1	9202-			●
211	HOSE; RAD TO PIPE L=260 SERVICED BY L=3000	0-03257-300-0	01	1	9202-	●	●
211	HOSE; RAD TO PIPE L=200 SERVICED BY L=3000	0-03257-300-0	01	1	9202-			●
214	HOSE; PIPE TO RESERVE TANK L=880 SERVICED BY L=3000	0-03257-300-0	01	1	9202-9204	●
214	HOSE; PIPE TO RESERVE TANK L=840 SERVICED BY L=3000	0-03257-300-0	01	1	9205-	●
214	HOSE; PIPE TO RESERVE TANK L=740 SERVICED BY L=3000	0-03257-300-0	01	1	9202-9204		●
214	HOSE; PIPE TO RESERVE TANK L=700 SERVICED BY L=3000	0-03257-300-0	01	1	9205-		●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9202-			●
220	NUT; CLIP	9-09110-408-0	01	1	9202-9205	●
220	NUT; CLIP	9-09110-408-0	01	1	9206-	●	●
220	NUT; CLIP	9-09110-408-0	03	1	9206-			●
240	NUT; STAY	9-09110-408-0	01	1	9202-9506	●		●
259	BRACKET; RAD STAY	1-21523-007-0	01	1	9202-9505	●		●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9506-	●		●
259	BRACKET; RAD STAY	1-21464-170-2	02	1	9202-		●
260	BOLT; BRKT M8X18	0-28010-818-0	02	1	9202-9204	●		●
260	BOLT; BRKT M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●		●
260	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9208-	●		●
260	BOLT; BRKT M8X25 FLANGE	0-28010-825-0	04	1	9202-9204		●
260	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	04	1	9205-		●
261	NUT; BRKT	9-09110-408-0	02	1	9202-	●		●
261	NUT; BRKT	9-09110-408-0	04	1	9202-		●
279	BELL MOUTH AUSTRALIA EQUIPMENT(RR3)	1-21551-316-0	01	1	9202-	●
279	BELL MOUTH	1-21551-316-0	01	1	9202-		●
279	BELL MOUTH EXC. AUSTRALIA EQUIPMENT(RR3)	1-21551-268-0	01	1	9202-	●
279	BELL MOUTH	8-94397-008-1	01	1	9202-			●
309	WIRE; FAN COVER	1-09704-088-0	01	1	9202-			●

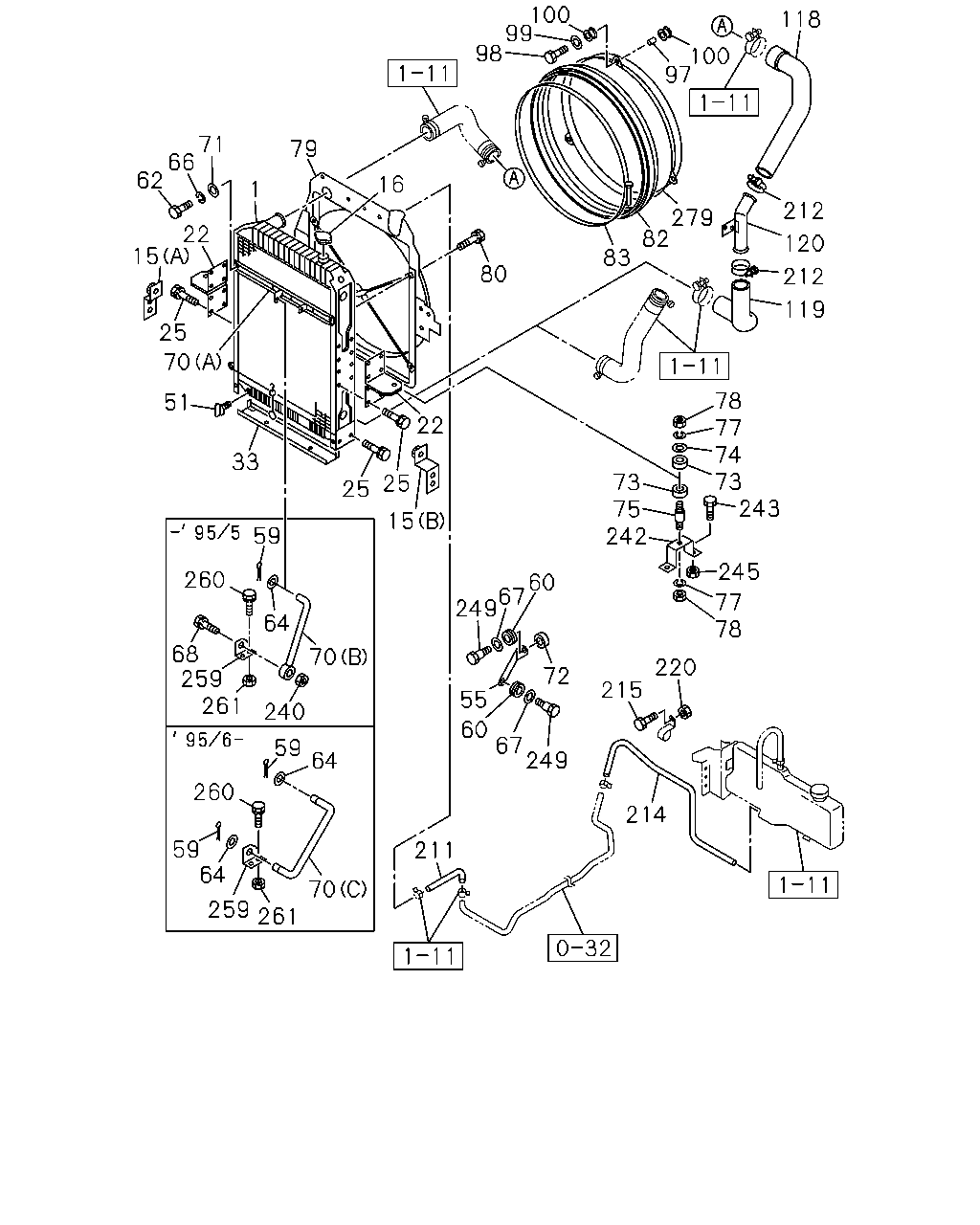

100 99 98 118 100 97 71 66 62 79 16 1 212 279 82 22 120 15 83 80 212 119 25 70 78 77 74 73 243 51 22 33 73 75 242 25 25 15 59 245 260 60 67 249 77 78 64 68 259 261 70 220 72 215 55 240 60 67 249 59 64 260 214 211 59 64 70 259 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM	1-21410-678-0	01	1	9202-	●
1	RADIATOR ASM	1-21410-650-1	01	1	9202-		●
1	RADIATOR ASM	1-21410-679-1	01	1	9202-			●
15	BRACKET; PIPE,RAD (A)	1-21464-358-0	01	1	9202-	●
15	BRACKET; PIPE,RAD (B)	1-21464-359-0	01	1	9202-	●
16	CAP; RAD	1-21450-053-1	01	1	9202-	●	●	●
22	BRACKET; RAD MTG	1-21464-315-0	01	1	9202-	●
22	BRACKET; RAD MTG	1-21464-314-0	01	1	9202-	●
22	BRACKET; RAD MTG	1-21464-308-0	01	1	9202-		●
22	BRACKET; RAD MTG	1-21464-307-0	01	1	9202-		●
22	BRACKET; RAD MTG	1-21464-317-0	01	1	9202-			●
22	BRACKET; RAD MTG	1-21464-316-0	01	1	9202-			●
25	BOLT; BRKT M8X16 W/LK&PL WASHER	9-01960-816-0	12	1	9202-	●
25	BOLT; BRKT M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9202-	●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	20	1	9202-9302		●
25	BOLT; BRKT M8X16 W/LK&PL WASHER	0-50140-816-0	20	1	9303-		●
25	BOLT; BRKT M8X16 W/LK WASHER	9-01900-816-0	16	1	9202-			●
33	PROTECTOR; RAD	1-21419-036-0	01	1	9202-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9202-	●	●	●
55	STAY; RAD TO UPR MBR	1-21464-169-2	01	1	9202-		●
55	STAY; RAD TO UPR MBR	1-21464-168-2	01	1	9202-		●
59	PIN; SNAP,STAY	1-09987-158-1	01	1	9202-9505	●		●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9506-	●		●
60	GROMMET	1-09332-117-0	04	1	9202-		●
62	BOLT; STAY M10X16	9-02041-016-0	02	1	9202-	●		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	01	1	9202-9505	●		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9506-	●		●
66	WASHER; LK,STAY ID=10.2	9-09150-510-0	02	1	9202-	●		●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9202-		●
68	BOLT; STAY TO BRKT M8X40 FLANGE	0-28080-840-0	01	1	9202-9506	●		●
70	STAY; RAD (A)	1-21522-058-0	01	1	9202-9505	●
70	STAY; RAD (C)	1-21522-067-0	01	1	9506-	●
70	STAY; RAD (B)	1-21522-040-1	01	1	9202-	●		●
70	STAY; RAD (A)	1-21522-057-0	01	1	9202-9505			●
70	STAY; RAD (C)	1-21522-068-0	01	1	9506-			●
71	WASHER; PL,STAY ID=10.5 OD=22	9-09160-610-0	02	1	9202-	●		●
72	NUT; STAY,RAD MBR	9-09110-408-0	02	1	9202-		●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	02	1	9202-	●	●	●
73	RUBBER; CUSHION,RAD MTG T=24	1-21467-011-1	02	1	9202-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9202-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-010-0	02	1	9202-	●	●	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9202-	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	5-09440-006-0	02	1	9202-	●	●	●
78	NUT; CUSHION RUBBER M12	9-99110-512-0	02	1	9202-	●	●	●
79	GUIDE; FAN,RAD	1-21551-350-1	01	1	9202-	●
79	GUIDE; FAN,RAD	1-21551-290-4	01	1	9202-		●
79	GUIDE; FAN,RAD	1-21551-349-3	01	1	9202-			●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9202-9208	●	●	●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9209-9302	●	●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9303-	●
80	BOLT; FAN GUIDE M6X14 FLANGE	0-28080-614-0	04	1	9209-9302			●
80	BOLT; FAN GUIDE M6X14 FLANGE	0-28080-614-0	04	1	9303-		●	●
82	COVER; FAN,RAD AUSTRALIA EQUIPMENT(RR3)	1-21559-211-0	01	1	9202-	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9202-		●
82	COVER; FAN,RAD EXC. AUSTRALIA EQUIPMENT(RR3)	1-21559-203-0	01	1	9202-	●
82	COVER; FAN,RAD	1-21559-157-0	01	1	9202-			●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9202-	●	●
97	TUBE; DIST,FAN GUIDE AUSTRALIA EQUIPMENT(RR3) ID=11.8 L=27	1-21559-149-0	03	1	9202-	●
97	TUBE; DIST,FAN GUIDE ID=11.8 L=27	1-21559-149-0	03	1	9202-		●
98	BOLT; RAD FAN GUIDE AUSTRALIA EQUIPMENT(RR3) M8X45 FLANGE	0-28080-845-0	03	1	9202-	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9202-		●
98	BOLT; RAD FAN GUIDE EXC. AUSTRALIA EQUIPMENT(RR3) M8X28 FLANGE	0-28080-828-0	03	1	9202-9308	●
98	BOLT; RAD FAN GUIDE M8X28 FLANGE	0-28080-828-0	03	1	9202-9308			●
98	BOLT; RAD FAN GUIDE EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	03	1	9309-	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9309-			●
99	WASHER; PL AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=26	9-09164-808-0	03	1	9202-	●
99	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9202-		●
99	WASHER; PL EXC. AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=18	9-09164-608-0	03	1	9202-9202	●
99	WASHER; PL ID=8.4 OD=18	9-09164-608-0	03	1	9202-9202			●
99	WASHER; PL EXC. AUSTRALIA EQUIPMENT(RR3) ID=8.4 OD=18	9-09164-608-0	03	1	9203-9209	●
100	RUBBER; MTG AUSTRALIA EQUIPMENT(RR3)	1-09337-017-0	06	1	9202-	●
100	RUBBER; MTG	1-09337-017-0	06	1	9202-		●
100	RUBBER; MTG EXC. AUSTRALIA EQUIPMENT(RR3)	1-09337-006-0	06	1	9202-9307	●
100	RUBBER; MTG	1-09337-006-0	06	1	9202-9307			●
100	RUBBER; MTG EXC. AUSTRALIA EQUIPMENT(RR3)	1-09337-027-0	06	1	9308-	●
100	RUBBER; MTG	1-09337-027-0	06	1	9308-			●
118	HOSE; WATER,ENG SIDE EXC. AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENT VAR E<SLK>	1-21437-255-1	01	1	9202-9205	●
118	HOSE; WATER,ENG SIDE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR E<SLK>	1-21437-255-1	01	1	9206-	●
118	HOSE; WATER,ENG SIDE EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-21437-255-1	01	1	9206-	●
119	HOSE; WATER,RAD SIDE EXC. AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENT VAR E<SLK>	1-21437-254-1	01	1	9202-9205	●
119	HOSE; WATER,RAD SIDE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR E<SLK>	1-21437-254-1	01	1	9206-	●
119	HOSE; WATER,RAD SIDE EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-21437-254-1	01	1	9206-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET EXC. AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENT VAR E<SLK>	1-21431-413-0	01	1	9202-9205	●
120	PIPE; HOSE TO HOSE,RAD OUTLET EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR E<SLK>	1-21431-413-0	01	1	9206-	●
120	PIPE; HOSE TO HOSE,RAD OUTLET EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-21431-413-0	01	1	9206-	●
211	HOSE; RAD TO PIPE L=260 SERVICED BY L=3000	0-03257-300-0	01	1	9202-	●	●
211	HOSE; RAD TO PIPE L=200 SERVICED BY L=3000	0-03257-300-0	01	1	9202-			●
212	CLIP; HOSE EXC. AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENT VAR E<SLK> ID=63	1-09704-067-0	02	1	9202-9205	●
212	CLIP; HOSE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) ANTI NOISE EQUIPMENT VAR E<SLK> ID=63	1-09704-067-0	02	1	9206-	●
212	CLIP; HOSE EXC. ANTI NOISE EQUIPMENT VAR E<SLK> ID=63	1-09704-067-0	02	1	9206-	●
214	HOSE; PIPE TO RESERVE TANK L=880 SERVICED BY L=3000	0-03257-300-0	01	1	9202-9204	●
214	HOSE; PIPE TO RESERVE TANK L=840 SERVICED BY L=3000	0-03257-300-0	01	1	9205-	●
214	HOSE; PIPE TO RESERVE TANK L=740 SERVICED BY L=3000	0-03257-300-0	01	1	9202-9204		●
214	HOSE; PIPE TO RESERVE TANK L=700 SERVICED BY L=3000	0-03257-300-0	01	1	9205-		●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9202-			●
215	BOLT; CLIP M8X18	0-28010-818-0	01	1	9202-9204	●
215	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9205-9205	●
215	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9206-	●	●
220	NUT; CLIP	9-09110-408-0	01	1	9202-9205	●
220	NUT; CLIP	9-09110-408-0	01	1	9206-	●	●
220	NUT; CLIP	9-09110-408-0	03	1	9206-			●
240	NUT; STAY	9-09110-408-0	01	1	9202-9506	●		●
242	BRACKET; RAD	1-21464-336-0	02	1	9202-		●
243	BOLT; BRKT M12X35 W/LK WASHER	0-50041-235-0	04	1	9202-		●
245	NUT; BRKT M12	9-99110-512-0	04	1	9202-		●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9202-		●
259	BRACKET; RAD STAY	1-21523-007-0	01	1	9202-9505	●		●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9506-	●		●
259	BRACKET; RAD STAY	1-21464-170-2	02	1	9202-		●
260	BOLT; BRKT M8X18	0-28010-818-0	02	1	9202-9204	●		●
260	BOLT; BRKT M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●		●
260	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9208-	●		●
260	BOLT; BRKT M8X25 FLANGE	0-28010-825-0	04	1	9202-9204		●
260	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	04	1	9205-		●
261	NUT; BRKT	9-09110-408-0	02	1	9202-	●		●
261	NUT; BRKT	9-09110-408-0	04	1	9202-		●
279	BELL MOUTH AUSTRALIA EQUIPMENT(RR3)	1-21551-316-0	01	1	9202-	●
279	BELL MOUTH	1-21551-316-0	01	1	9202-		●
279	BELL MOUTH EXC. AUSTRALIA EQUIPMENT(RR3)	1-21551-268-0	01	1	9202-	●
279	BELL MOUTH	8-94397-008-1	01	1	9202-			●

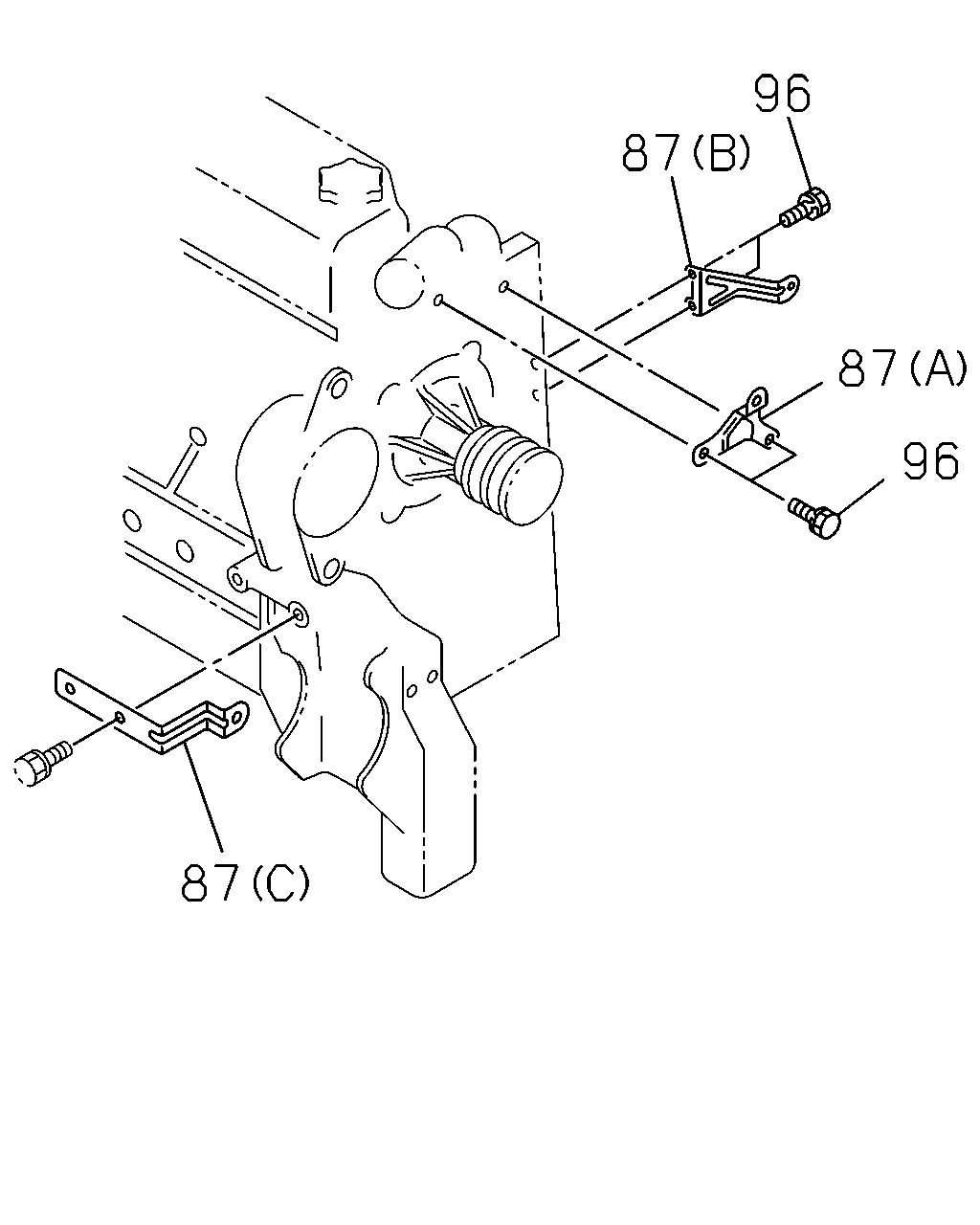

96 87 87 96 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
87	STAY; FAN GUIDE PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-21559-213-0	01	1	9202-	●
87	STAY; FAN GUIDE (A)	1-21559-213-0	01	1	9202-		●
87	STAY; FAN GUIDE PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-21559-214-0	01	1	9202-	●
87	STAY; FAN GUIDE (B)	1-21559-214-0	01	1	9202-		●
87	STAY; FAN GUIDE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (C)	1-21559-195-2	01	1	9202-	●
87	STAY; FAN GUIDE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (D)	1-21559-204-0	01	1	9202-	●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9202-			●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9202-			●
87	STAY; FAN GUIDE (C)	8-94399-434-1	01	1	9202-9410			●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9411-			●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9202-			●

87 87 114 87 87 114 92 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
87	STAY; FAN GUIDE PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-21559-213-0	01	1	9202-	●
87	STAY; FAN GUIDE (A)	1-21559-213-0	01	1	9202-		●
87	STAY; FAN GUIDE PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-21559-214-0	01	1	9202-	●
87	STAY; FAN GUIDE (B)	1-21559-214-0	01	1	9202-		●
87	STAY; FAN GUIDE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (C)	1-21559-195-2	01	1	9202-	●
87	STAY; FAN GUIDE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (D)	1-21559-204-0	01	1	9202-	●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9202-			●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9202-			●
87	STAY; FAN GUIDE (C)	8-94399-434-1	01	1	9202-9410			●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9411-			●
92	BRACKET; FAN GUIDE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-21559-202-1	01	1	9202-	●
114	BOLT; STAY EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-	●
114	BOLT; STAY M10X20 W/LK WASHER	0-50051-020-0	02	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
