3-01 — FRONT WHEEL BRAKE (#10530) — 132 parça

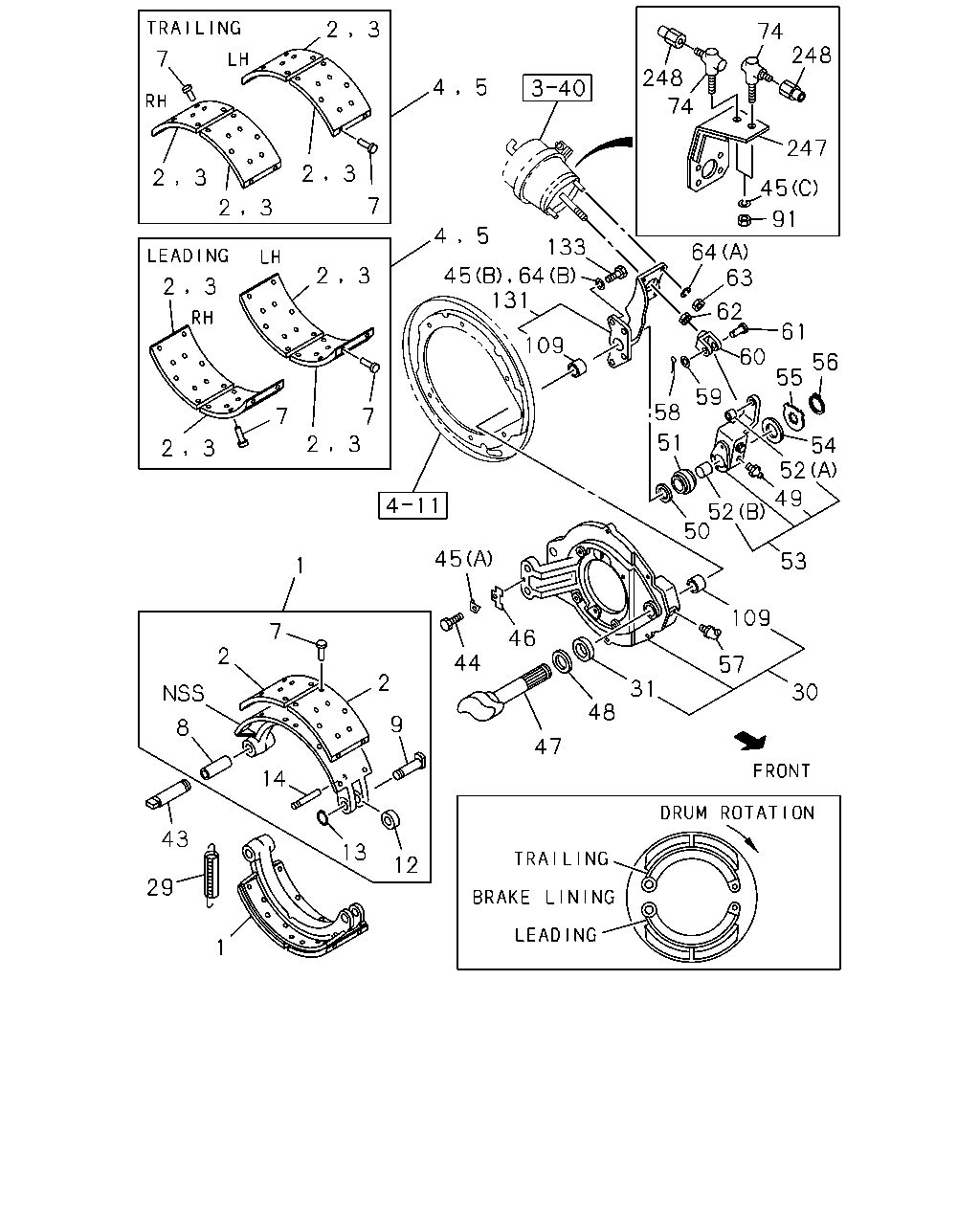

2 3 74 248 7 248 5 4 74 247 2 3 2 3 45 7 2 3 91 5 4 133 64 63 2 3 131 2 3 62 61 109 60 56 55 59 58 7 7 3 51 2 54 52 2 3 49 52 50 45 53 1 109 7 46 2 44 57 2 31 30 48 9 8 47 14 43 13 12 29 1 45 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT LEADING	1-47120-711-0	01	1	0105-
1	SHOE; BRK,FRT TRAILING	1-47120-712-0	01	1	0105-
1	SHOE; BRK,FRT LEADING	1-47120-709-0	01	1	0105-
1	SHOE; BRK,FRT TRAILING	1-47120-710-0	01	1	0105-
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47125-793-0	04	1	0105-
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47125-795-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47125-794-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47125-796-0	04	1	0105-
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-497-0	01	1	0105-
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-499-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-498-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-500-0	01	1	0105-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	0105-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	0105-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	0105-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	0105-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0105-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	0105-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	0105-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR)	1-47137-268-2	01	1	0105-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR)	1-47137-267-2	01	1	0105-
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47137-119-3	01	1	0105-
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47137-118-3	01	1	0105-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	0105-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	0105-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	0105-
45	WASHER; LK (A)	1-47133-011-0	02	1	0105-
45	WASHER; LK BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=14.2	9-09150-514-0	04	1	0105-
45	WASHER; LK BRAKE SYSTEM SPRING BRAKE(BCR) (C) ID=20.2	9-09150-520-0	04	1	0105-
46	PLATE; LOCK	1-47133-005-0	02	1	0105-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	0105-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	0105-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	0105-
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	01	1	0105-
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0105-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	0105-
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	0105-
52	BUSHING; SLACK ADJ (A)	1-09330-041-0	02	1	0105-
52	BUSHING; SLACK ADJ BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-47146-003-1	02	1	0105-
53	ADJUSTER ASM; SLACK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-078-1	01	1	0105-
53	ADJUSTER ASM; SLACK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-077-1	01	1	0105-
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-044-0	01	1	0105-
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-043-0	01	1	0105-
54	SPACER; CM/SHF	1-47143-004-0	02	1	0105-
55	PLATE; STOPPER,CM/SHF BRAKE SYSTEM SPRING BRAKE(BCR)	1-47149-053-0	02	1	0105-
55	PLATE; STOPPER,CM/SHF EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47149-021-0	02	1	0105-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	0105-
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-
57	NIPPLE; GREASE,ANCHOR BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	0105-
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0105-
60	JOINT; JAW,POWER CHAMBER	1-09768-060-1	02	1	0105-
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	0105-
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0105-
63	NUT; POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) M16	9-99110-416-0	08	1	0105-
63	NUT; POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M16	9-99110-416-0	04	1	0105-
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=14.2	9-09150-514-0	04	1	0105-
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=16.2	9-09150-516-0	08	1	0105-
64	WASHER; LK,POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=16.2	9-09150-516-0	04	1	0105-
74	CONNECTOR; FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR) EMERGENCY	1-09654-119-1	02	1	0105-
74	CONNECTOR; FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR) SERVICE	1-09654-128-1	02	1	0105-
91	NUT; CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) M20	9-99111-420-0	04	1	0105-
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	0105-
131	BRACKET; POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-152-1	01	1	0105-
131	BRACKET; POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-151-1	01	1	0105-
133	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR) M14X60	0-20801-460-0	08	1	0105-
247	BRACKET; CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR)	1-82699-859-0	01	1	0105-
247	BRACKET; CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR)	1-82699-858-0	01	1	0105-
248	ADAPTER BRAKE SYSTEM SPRING BRAKE(BCR) EMERGENCY DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	0105-
248	ADAPTER BRAKE SYSTEM SPRING BRAKE(BCR) SERVICE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0105-

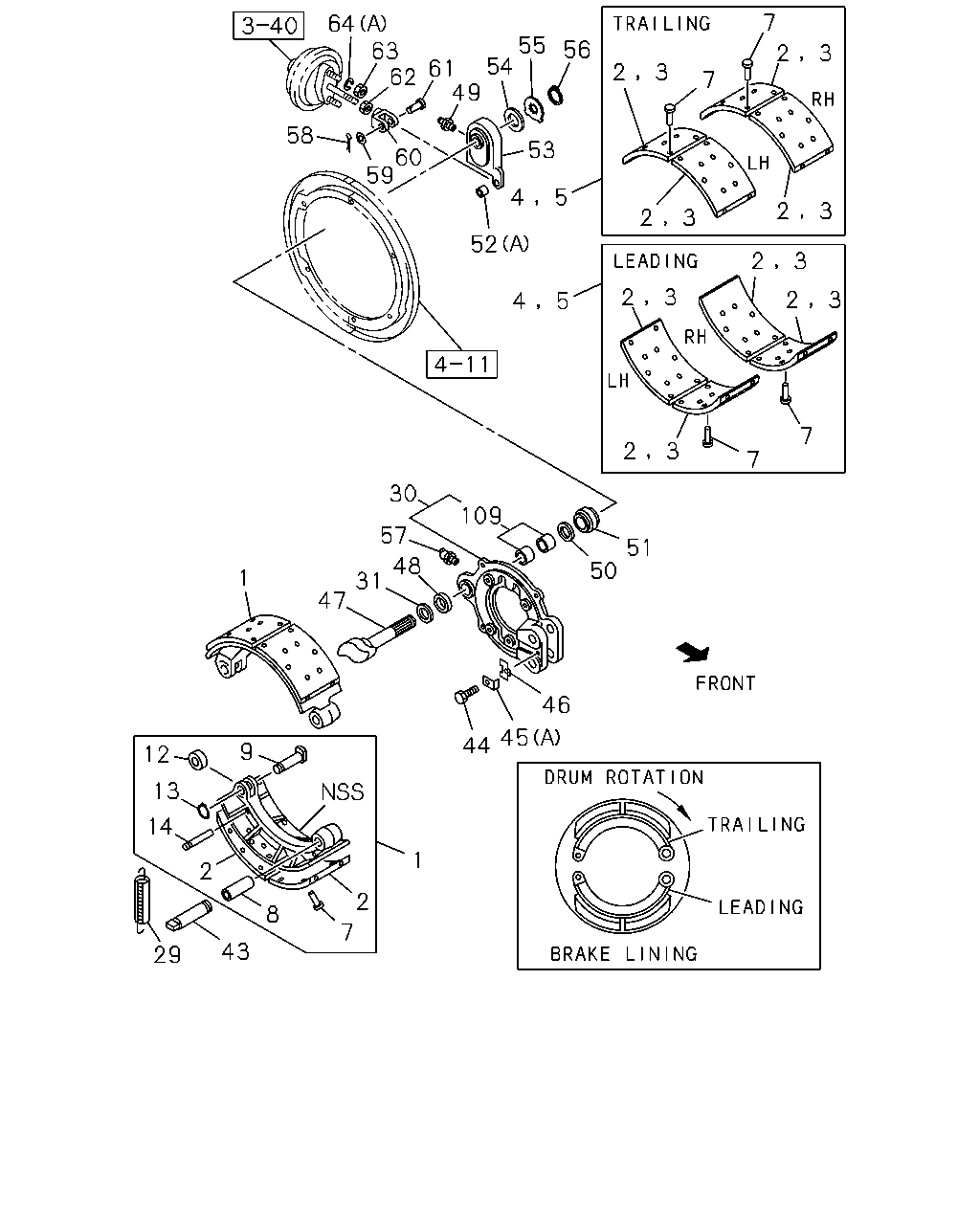

7 64 63 62 55 61 54 49 56 2 3 2 3 7 58 60 59 53 4 5 2 3 2 3 52 2 3 2 3 2 3 5 4 7 2 3 7 30 109 57 51 50 48 1 31 47 46 45 44 9 12 13 14 1 2 2 8 7 43 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT LEADING	1-47120-711-0	01	1	0105-
1	SHOE; BRK,FRT TRAILING	1-47120-712-0	01	1	0105-
1	SHOE; BRK,FRT LEADING	1-47120-709-0	01	1	0105-
1	SHOE; BRK,FRT TRAILING	1-47120-710-0	01	1	0105-
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47125-793-0	04	1	0105-
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47125-795-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47125-794-0	04	1	0105-
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47125-796-0	04	1	0105-
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-497-0	01	1	0105-
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-499-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-498-0	01	1	0105-
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-500-0	01	1	0105-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	0105-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	0105-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	0105-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	0105-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0105-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	0105-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	0105-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR)	1-47137-268-2	01	1	0105-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR)	1-47137-267-2	01	1	0105-
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47137-119-3	01	1	0105-
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47137-118-3	01	1	0105-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	0105-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	0105-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	0105-
45	WASHER; LK (A)	1-47133-011-0	02	1	0105-
45	WASHER; LK BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=14.2	9-09150-514-0	04	1	0105-
45	WASHER; LK BRAKE SYSTEM SPRING BRAKE(BCR) (C) ID=20.2	9-09150-520-0	04	1	0105-
46	PLATE; LOCK	1-47133-005-0	02	1	0105-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	0105-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	0105-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	0105-
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	01	1	0105-
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	0105-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	0105-
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	0105-
52	BUSHING; SLACK ADJ (A)	1-09330-041-0	02	1	0105-
52	BUSHING; SLACK ADJ BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-47146-003-1	02	1	0105-
53	ADJUSTER ASM; SLACK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-078-1	01	1	0105-
53	ADJUSTER ASM; SLACK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-077-1	01	1	0105-
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-044-0	01	1	0105-
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-043-0	01	1	0105-
54	SPACER; CM/SHF	1-47143-004-0	02	1	0105-
55	PLATE; STOPPER,CM/SHF BRAKE SYSTEM SPRING BRAKE(BCR)	1-47149-053-0	02	1	0105-
55	PLATE; STOPPER,CM/SHF EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47149-021-0	02	1	0105-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	0105-
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	0105-
57	NIPPLE; GREASE,ANCHOR BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	0105-
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0105-
60	JOINT; JAW,POWER CHAMBER	1-09768-060-1	02	1	0105-
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	0105-
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0105-
63	NUT; POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) M16	9-99110-416-0	08	1	0105-
63	NUT; POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M16	9-99110-416-0	04	1	0105-
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=14.2	9-09150-514-0	04	1	0105-
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=16.2	9-09150-516-0	08	1	0105-
64	WASHER; LK,POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=16.2	9-09150-516-0	04	1	0105-
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	0105-
