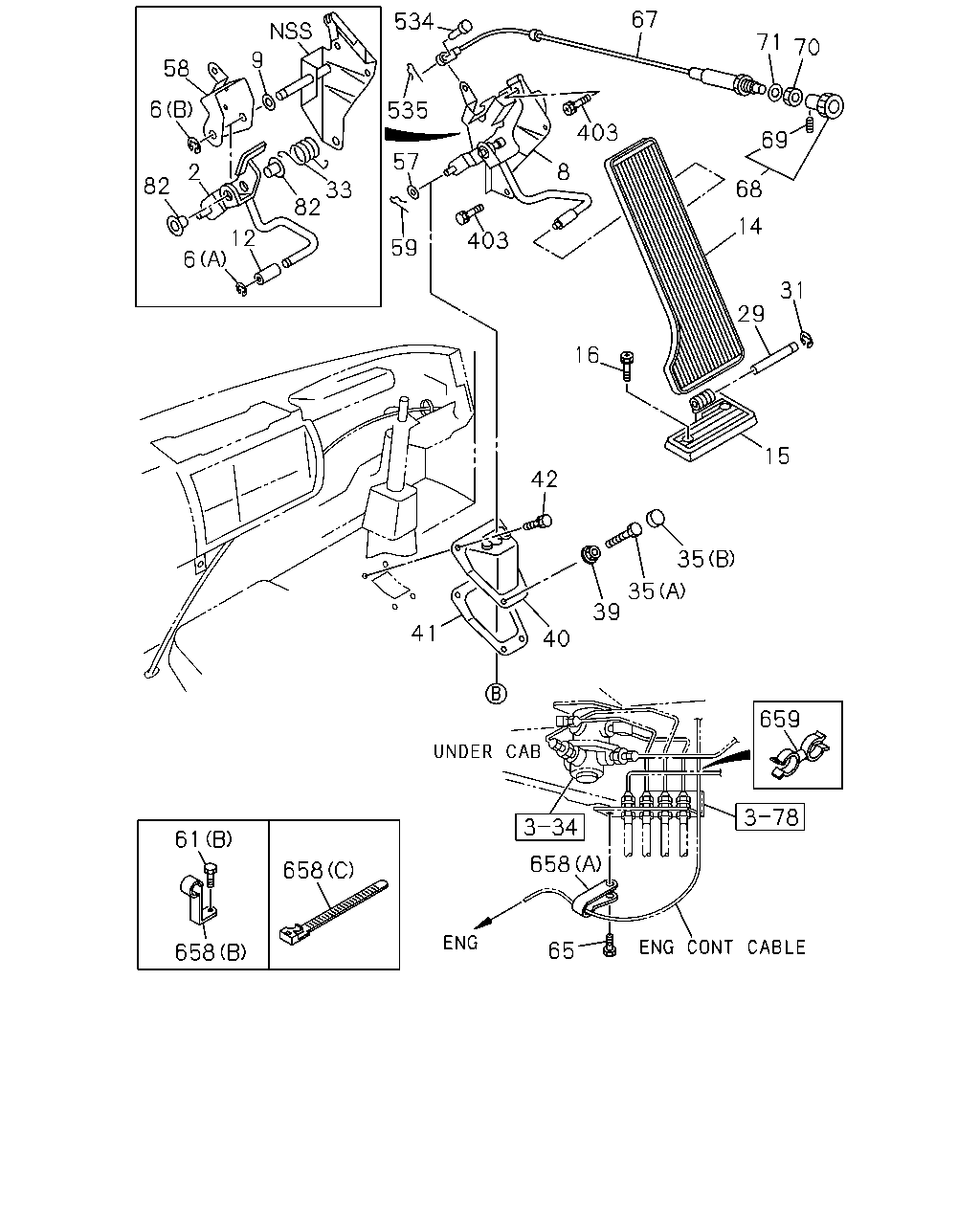

1-01 — ACCELERATOR PEDAL AND CONTROL (#1053) — 144 parça

67 534 71 70 9 58 6 535 403 69 57 8 2 82 68 33 82 14 12 403 59 6 31 29 16 15 42 35 35 39 41 40 659 61 658 658 65 658

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT	1-73997-904-1	01	1	9202-	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=6	9-09185-406-0	01	1	9202-	●	●	●
6	RING; SNAP,LINK TO LINK (B) ID=9	9-09185-409-0	01	1	9202-9306	●	●	●
6	RING; SNAP,LINK TO LINK (B) ID=8	9-09185-408-0	01	1	9307-	●	●	●
8	LINK ASM; ENG CONT	1-23240-067-2	01	1	9202-	●	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9202-	●	●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9202-	●	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9202-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-675-3	01	1	9202-9305	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9306-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9202-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9202-	●	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9202-	●	●	●
33	SPRING; IDLING CONT LEVER	1-73997-906-0	01	1	9202-	●	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9202-9307	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9308-	●	●	●
35	STOPPER; ACCEL PEDAL (B) RUBBER	1-23249-009-0	01	1	9202-	●	●	●
35	STOPPER; ACCEL PEDAL (A) M8X85	1-09980-412-0	01	1	9202-9307			●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9202-	●	●	●
40	BRACKET; ENG CONT CABLE	1-73997-632-1	01	1	9202-	●	●	●
41	SEAL; BRKT,ENG CONT CABLE	1-73998-451-0	01	1	9202-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9202-	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9202-	●	●	●
58	LEVER; IDLING CONT	1-73997-905-1	01	1	9202-	●	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9202-	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (A) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (A) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (B) M8X14 FLANGE	0-28010-814-0	01	1	9202-9204			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (B) M8X14 FLANGE	0-28080-814-0	01	1	9205-			●
65	BOLT M10X60	0-16811-060-0	01	1	9202-			●
65	BOLT M10X20 FLANGE	0-28181-020-0	01	1	9202-			●
65	BOLT M8X10 FLANGE	0-28080-810-0	02	1	9204-9206			●
67	CABLE ASM; IDLE CONT L=387	1-73998-538-1	01	1	9202-	●	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9202-	●	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9202-	●	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9202-	●	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9202-	●	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9202-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X20 W/LK&PL WASHER	1-09980-493-0	03	1	9202-	●	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9202-	●	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9202-	●	●	●
658	CLIP; ENG CONT CABLE (A) ID=11 L=20	9-09525-032-0	01	1	9202-9205	●	●	●
658	CLIP; ENG CONT CABLE (A) ID=11 L=20	9-09525-032-0	01	1	9206-	●	●
658	CLIP; ENG CONT CABLE (C) L=140	5-09707-031-0	01	1	9203-			●
658	CLIP; ENG CONT CABLE (B) ID=13	1-09700-757-0	01	1	9206-			●
659	CLIP; ACCEL CONT CABLE ID=8.3 & 10	8-94176-792-0	01	1	9202-9202	●	●	●
659	CLIP; ACCEL CONT CABLE ID=8.3 & 10	8-94176-792-0	01	1	9203-	●	●

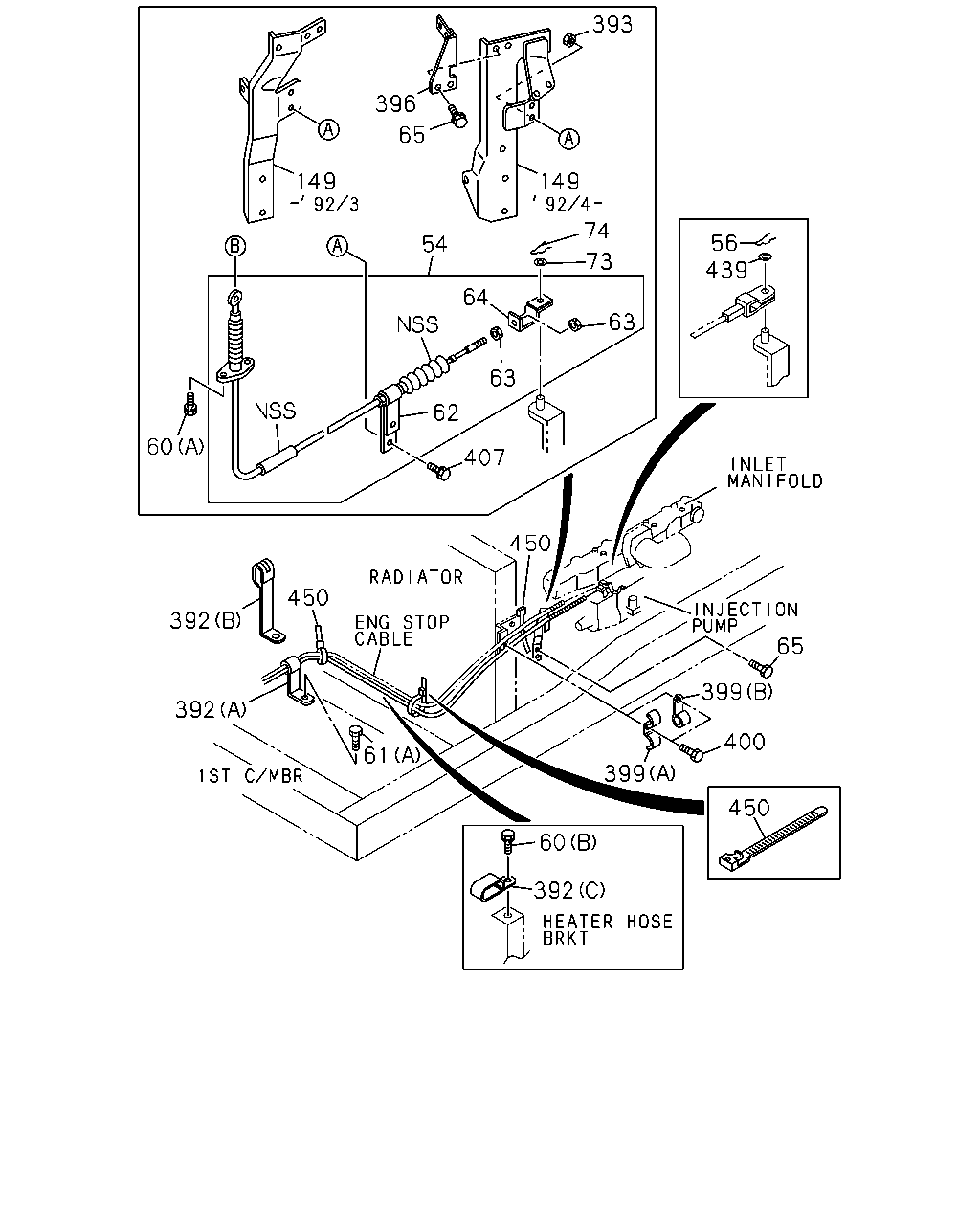

393 396 65 149 149 74 56 439 54 73 64 63 63 62 60 407 450 450 392 65 399 392 400 61 399 450 60 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=1935	1-23230-001-0	01	1	9202-9211	●
54	CABLE; ENG CONT L=1935	1-23230-001-0	01	1	9212-	●	●
54	CABLE; ENG CONT EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=1935	1-23210-745-4	01	1	9202-9211	●	●
54	CABLE; ENG CONT L=2551	1-23210-977-2	01	1	9202-			●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9206-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9202-9205	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9206-			●
60	BOLT; CABLE (A) M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9202-	●	●	●
60	BOLT; CABLE (B) M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (A) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (A) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (B) M8X14 FLANGE	0-28010-814-0	01	1	9202-9204			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (B) M8X14 FLANGE	0-28080-814-0	01	1	9205-			●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9202-	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9202-	●	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9202-	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9202-			●
65	BOLT M10X60	0-16811-060-0	01	1	9202-			●
65	BOLT M10X20 FLANGE	0-28181-020-0	01	1	9202-			●
65	BOLT M8X10 FLANGE	0-28080-810-0	02	1	9204-9206			●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9202-	●	●	●
74	PIN; SNAP,CABLE END	1-09747-005-0	01	1	9202-	●	●
74	PIN; SNAP,CABLE END	8-94157-841-0	01	1	9202-			●
149	BRACKET; ENG CONT	8-94393-339-0	01	1	9202-9203			●
149	BRACKET; ENG CONT	8-94394-516-5	01	1	9204-			●
392	CLIP; ACCEL CONT CABLE AUTO ENG SHUTOFF(KB6) (A) ID=9 H=60	1-09700-956-0	01	1	9202-9202	●	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 H=60	1-09700-956-0	01	1	9203-	●	●
392	CLIP; ACCEL CONT CABLE EXC. AUTO ENG SHUTOFF(KB6) (B) L=85	1-09701-093-0	01	1	9202-9202	●	●	●
392	CLIP; ACCEL CONT CABLE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	9203-			●
392	CLIP; ACCEL CONT CABLE (C) ID=9X2 L=16	9-09534-825-0	01	1	9202-			●
393	NUT; CLIP TO FRAME M6 FLANGE	0-91150-106-0	02	1	9411-			●
396	BRACKET; CLIP	8-94394-173-1	01	1	9204-9206			●
399	CLIP; CABLE,RAD SIDE (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9202-9205	●	●	●
399	CLIP; CABLE,RAD SIDE (B) ID=9X2 L=16	9-09534-825-0	01	1	9206-	●	●	●
400	BOLT; CLIP,RAD SIDE M8X12	0-28010-812-0	01	1	9202-9204	●	●	●
400	BOLT; CLIP,RAD SIDE M8X12 FLANGE	0-28080-812-0	01	1	9205-	●	●	●
407	BOLT; CLIP TO ENG M6X18	0-28010-618-0	02	1	9202-9204	●	●	●
407	BOLT; CLIP TO ENG M6X18 FLANGE	0-28080-618-0	02	1	9205-9207	●	●	●
407	BOLT; CLIP TO ENG M6X20 FLANGE	0-28080-620-0	02	1	9208-9404	●	●	●
407	BOLT; CLIP TO ENG M6X20 FLANGE	0-28080-620-0	02	1	9405-	●	●
407	BOLT; CLIP TO ENG M6X14 FLANGE	0-28080-614-0	02	1	9405-9410			●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9202-	●	●	●
450	CLIP; BAND L=140	5-09707-031-0	02	1	9202-9211	●	●	●
450	CLIP; BAND L=250	5-09707-030-0	02	1	9212-	●	●	●
450	CLIP; BAND EXC. AUTO ENG SHUTOFF(KB6) L=140	5-09707-031-0	01	1	9203-9205	●	●	●
450	CLIP; BAND EXC. AUTO ENG SHUTOFF(KB6) L=140	5-09707-031-0	01	1	9206-9211	●	●	●
450	CLIP; BAND L=140	5-09707-031-0	01	1	9206-9211			●
450	CLIP; BAND EXC. AUTO ENG SHUTOFF(KB6) L=250	5-09707-030-0	01	1	9212-	●	●	●
450	CLIP; BAND L=250	5-09707-030-0	01	1	9212-			●
450	CLIP; BAND L=140	5-09707-031-0	03	1	9202-9205			●

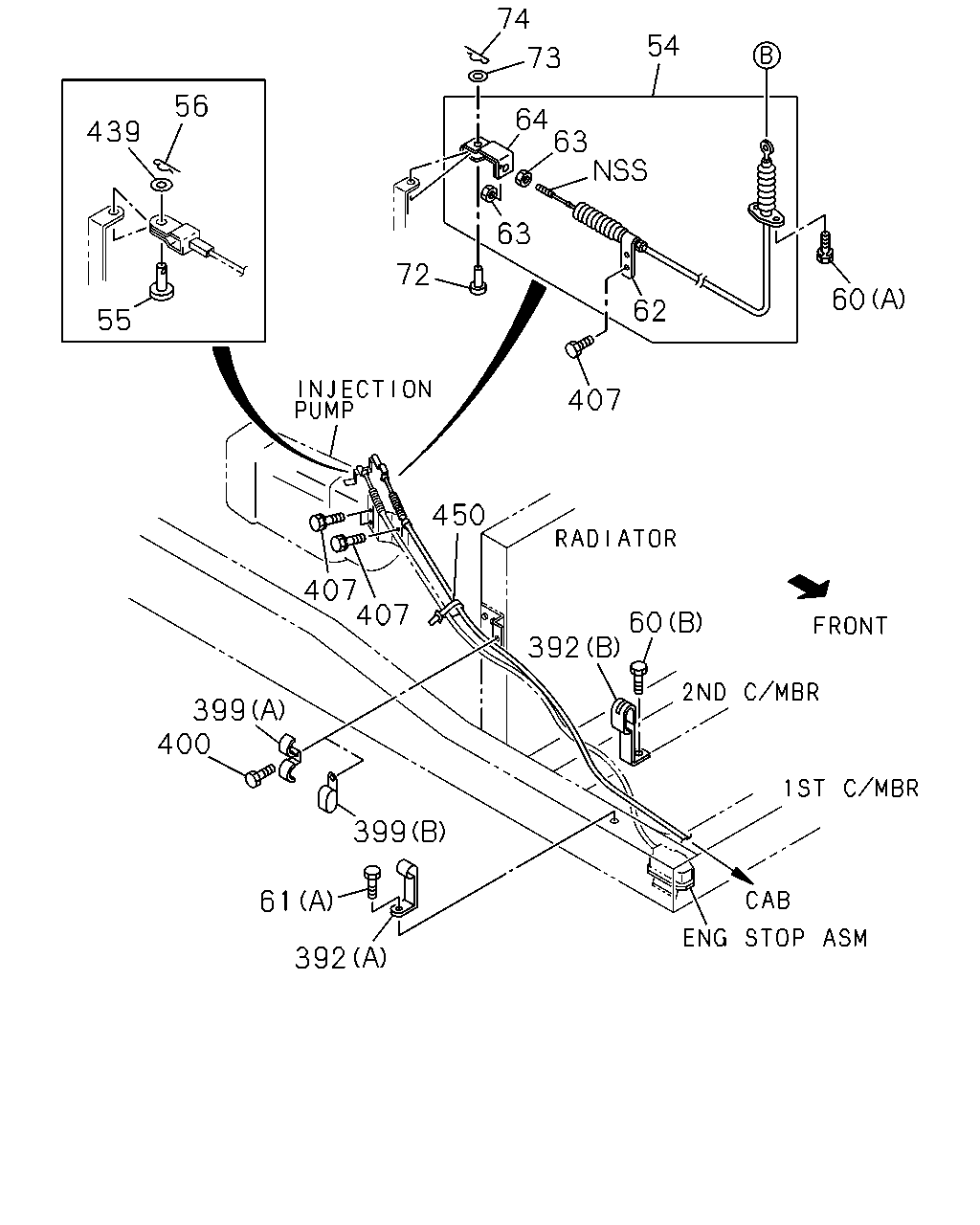

74 54 73 56 64 63 439 63 72 60 62 55 407 450 407 407 60 392 399 400 399 61 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=1935	1-23230-001-0	01	1	9202-9211	●
54	CABLE; ENG CONT L=1935	1-23230-001-0	01	1	9212-	●	●
54	CABLE; ENG CONT EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) L=1935	1-23210-745-4	01	1	9202-9211	●	●
54	CABLE; ENG CONT L=2551	1-23210-977-2	01	1	9202-			●
55	PIN; JAW JOINT	1-09744-096-1	01	1	9202-9207	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9208-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9206-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9202-9205	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9206-			●
60	BOLT; CABLE (A) M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9202-	●	●	●
60	BOLT; CABLE (B) M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (A) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (A) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (B) M8X14 FLANGE	0-28010-814-0	01	1	9202-9204			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE (B) M8X14 FLANGE	0-28080-814-0	01	1	9205-			●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9202-	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9202-	●	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9202-	●	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9202-			●
72	PIN; JAW JOINT,CABLE END	1-09744-049-1	01	1	9202-9202	●	●
72	PIN; JAW JOINT,CABLE END	1-09744-083-0	01	1	9203-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9202-	●	●	●
74	PIN; SNAP,CABLE END	1-09747-005-0	01	1	9202-	●	●
74	PIN; SNAP,CABLE END	8-94157-841-0	01	1	9202-			●
392	CLIP; ACCEL CONT CABLE AUTO ENG SHUTOFF(KB6) (A) ID=9 H=60	1-09700-956-0	01	1	9202-9202	●	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 H=60	1-09700-956-0	01	1	9203-	●	●
392	CLIP; ACCEL CONT CABLE EXC. AUTO ENG SHUTOFF(KB6) (B) L=85	1-09701-093-0	01	1	9202-9202	●	●	●
392	CLIP; ACCEL CONT CABLE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	9203-			●
392	CLIP; ACCEL CONT CABLE (C) ID=9X2 L=16	9-09534-825-0	01	1	9202-			●
399	CLIP; CABLE,RAD SIDE (A) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9202-9205	●	●	●
399	CLIP; CABLE,RAD SIDE (B) ID=9X2 L=16	9-09534-825-0	01	1	9206-	●	●	●
400	BOLT; CLIP,RAD SIDE M8X12	0-28010-812-0	01	1	9202-9204	●	●	●
400	BOLT; CLIP,RAD SIDE M8X12 FLANGE	0-28080-812-0	01	1	9205-	●	●	●
407	BOLT; CLIP TO ENG M6X18	0-28010-618-0	02	1	9202-9204	●	●	●
407	BOLT; CLIP TO ENG M6X18 FLANGE	0-28080-618-0	02	1	9205-9207	●	●	●
407	BOLT; CLIP TO ENG M6X20 FLANGE	0-28080-620-0	02	1	9208-9404	●	●	●
407	BOLT; CLIP TO ENG M6X20 FLANGE	0-28080-620-0	02	1	9405-	●	●
407	BOLT; CLIP TO ENG M6X14 FLANGE	0-28080-614-0	02	1	9405-9410			●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9202-	●	●	●
450	CLIP; BAND L=140	5-09707-031-0	02	1	9202-9211	●	●	●
450	CLIP; BAND L=250	5-09707-030-0	02	1	9212-	●	●	●
450	CLIP; BAND EXC. AUTO ENG SHUTOFF(KB6) L=140	5-09707-031-0	01	1	9203-9205	●	●	●
450	CLIP; BAND EXC. AUTO ENG SHUTOFF(KB6) L=140	5-09707-031-0	01	1	9206-9211	●	●	●
450	CLIP; BAND L=140	5-09707-031-0	01	1	9206-9211			●
450	CLIP; BAND EXC. AUTO ENG SHUTOFF(KB6) L=250	5-09707-030-0	01	1	9212-	●	●	●
450	CLIP; BAND L=250	5-09707-030-0	01	1	9212-			●
450	CLIP; BAND L=140	5-09707-031-0	03	1	9202-9205			●
