Isuzu WW
▶
BUSES
▶
MV
▶
10853 - MV123(RHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#10518) — 42 parça
◀

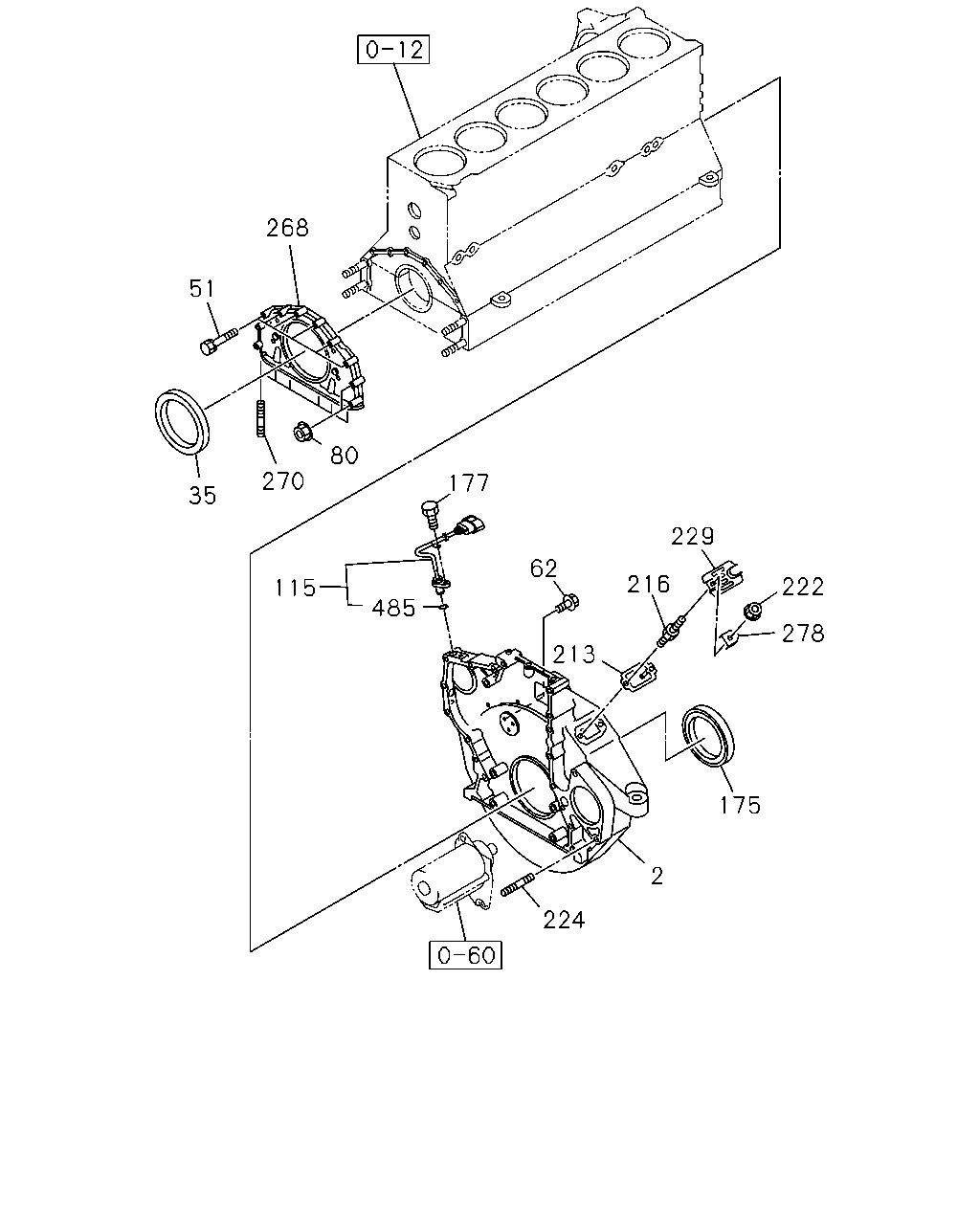

[020A] SEAL COVER AND SENSOR (22 parça)

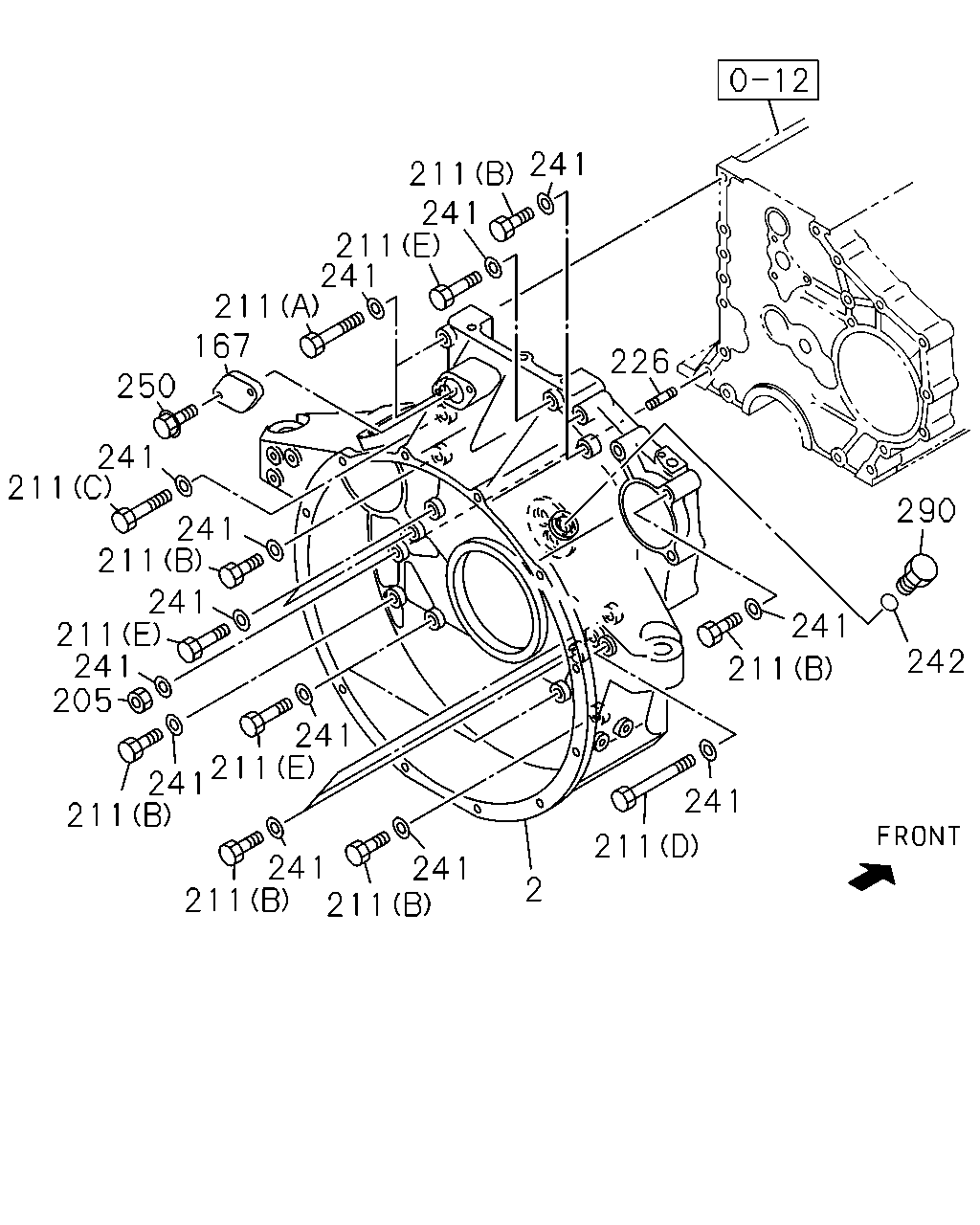

[020A] FIXING;FLYWHEEL HOUSING (20 parça)
▶
268
51
80
270
177
35
229
62
216
222
115
485
278
213
175
2
224
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
1-11341-498-5
01
1
0109-
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153
1-09625-540-3
01
1
0109-
51
BOLT; GEAR CASE COVER
M8X45 W/LK&PL WASHER
0-50140-845-0
08
1
0109-0906
51
BOLT; GEAR CASE COVER
M8X45 W/LK&PL WASHER
0-50640-845-0
08
1
0907-
62
BOLT; COVER
M8X14 FLANGE
0-28080-814-0
03
1
0109-
80
NUT; COVER
M10 FLANGE
0-91150-110-0
04
1
0109-0602
80
NUT; COVER
M10 FLANGE
0-91180-110-0
04
1
0603-
115
SENSOR; REVOLUTION,ENG SPD
1-81510-343-2
01
1
0109-
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150
1-09625-541-2
01
1
0109-
177
BOLT; SENSOR
M6X18 W/LK WASHER
0-50040-618-0
01
1
0109-0906
177
BOLT; SENSOR
M6X18 W/LK WASHER
0-50540-618-0
01
1
0907-
213
POINTER; FLYWHEEL HSG
1-11342-018-0
01
1
0109-
216
STUD; COVER,TIMING CHECK HOLE
M8X14,M8X14 L=33
1-09300-058-1
02
1
0109-
222
NUT; COVER,TIMING CHECK HOLE
M8 FLANGE
0-91150-108-0
02
1
0109-0602
222
NUT; COVER,TIMING CHECK HOLE
M8 FLANGE
0-91180-108-0
02
1
0603-
224
STUD; STARTER
M14X40 L=61
9-04411-440-0
02
1
0109-0604
224
STUD; STARTER
M14X40 L=61
0-44011-440-0
02
1
0605-
229
COVER; TIMING CHECK HOLE
1-11349-126-0
01
1
0109-
268
COVER; FRT
1-11321-085-3
01
1
0109-
270
STUD; FRT COVER
M8X20
9-04010-820-0
06
1
0109-
278
WASHER; COVER FIX
1-11349-127-0
01
1
0109-
485
GASKET; SENSOR
9-09565-212-0
01
1
0109-
241
211
241
211
241
211
167
226
250
241
211
290
241
211
241
211
241
205
241
242
211
241
211
241
211
241
211
241
241
211
211
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
1-11341-498-5
01
1
0109-
167
COVER; OIL
1-11749-103-0
01
1
0109-
205
NUT; HSG
M12
9-99110-412-0
01
1
0109-0512
205
NUT; HSG
M12
0-91110-512-0
01
1
0601-
211
BOLT; HSG
(A) M12X100
0-16806-200-0
02
1
0109-0512
211
BOLT; HSG
(A) M12X100
0-16856-200-0
02
1
0601-
211
BOLT; HSG
(B) M12X60
0-16806-260-0
09
1
0109-0512
211
BOLT; HSG
(B) M12X60
0-16856-260-0
09
1
0601-
211
BOLT; HSG
(C) M12X90
0-16806-290-0
01
1
0109-0512
211
BOLT; HSG
(C) M12X90
0-16856-290-0
01
1
0601-
211
BOLT; HSG
(D) M12X173
1-09020-057-1
01
1
0109-
211
BOLT; HSG
(E) M12X75
9-01666-275-0
05
1
0109-
226
STUD; HSG
M12X60 L=78
9-94411-260-0
01
1
0109-0604
226
STUD; HSG
M12X60 L=78
0-44011-260-0
01
1
0605-
241
WASHER; PL,HSG
ID=12.2
9-09851-933-0
19
1
0109-
242
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24
9-09571-416-0
01
1
0109-
250
BOLT; COVER,OIL
M8X16 FLANGE
0-28080-816-0
02
1
0109-0512
250
BOLT; COVER,OIL
M8X16 FLANGE
0-28050-816-0
02
1
0601-
290
PLUG; SENSOR HOLE
M16X12
9-99202-316-0
01
1
0109-0606
290
PLUG; SENSOR HOLE
M16X12
0-92002-416-0
01
1
0607-
