Isuzu WW
▶
BUSES
▶
MV
▶
10853 - MV123(RHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

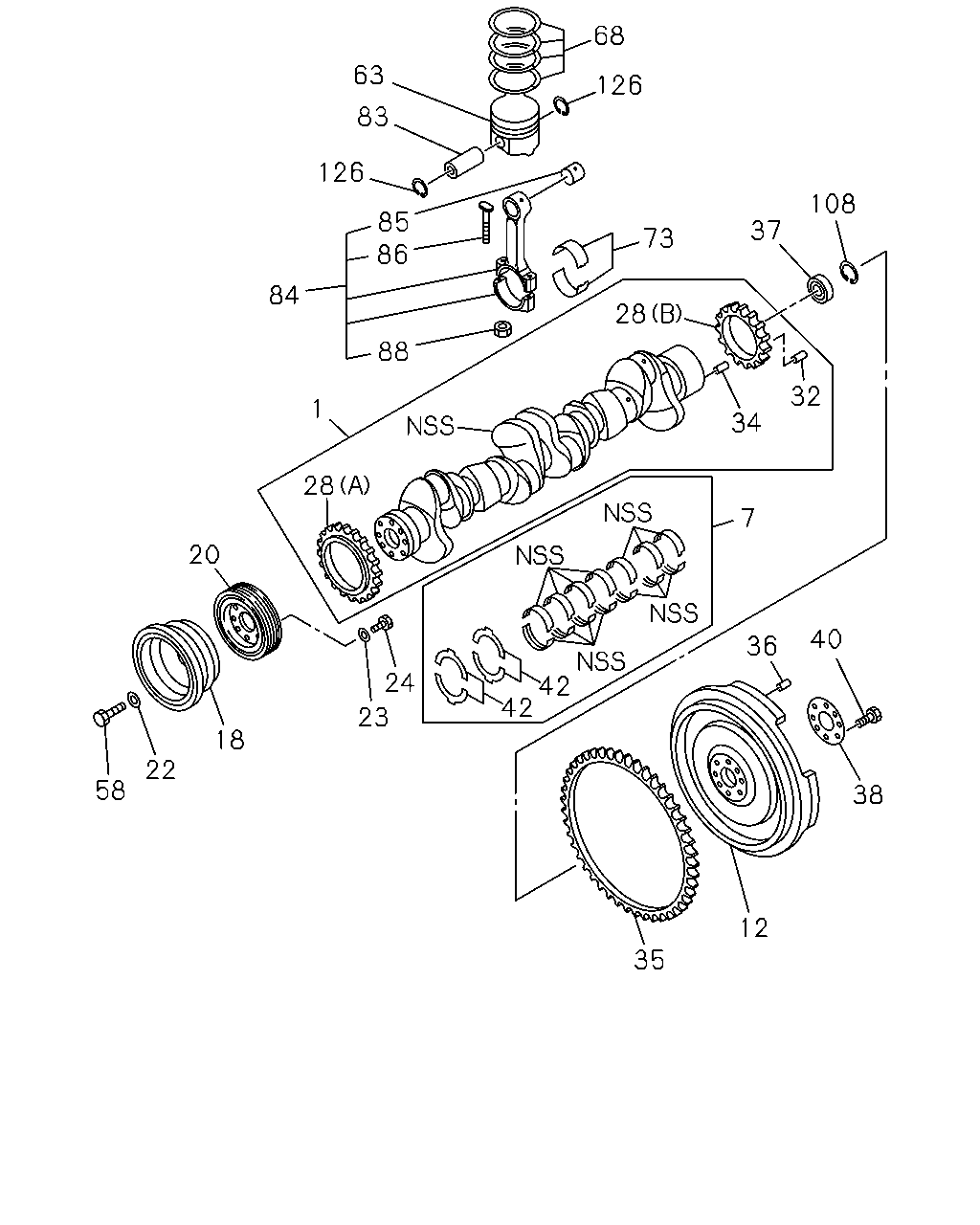

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#10517) — 33 parça
68
126
63
83
126
85
86
84
88
1
73
37
108
28
32
34
7
42
42
35
12
38
40
36
24
23
18
22
58
20
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-668-0
01
1
0109-
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-087-2
01
1
0109-
12
FLYWHEEL
1-12331-162-4
01
1
0109-
18
PULLEY; CR/SHF
3-GROOVE
1-12371-359-2
01
1
0109-
20
DAMPER; CR/SHF
1-12375-180-2
01
1
0109-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
0109-
23
WASHER; DAMPER
ID=12.5
9-09851-682-0
08
1
0109-
24
BOLT; DAMPER
9-02361-220-0
08
1
0109-
28
GEAR; CR/SHF
(A) Z=53
1-12521-027-1
01
1
0109-
28
GEAR; CR/SHF
(B) Z=46
1-12521-053-1
01
1
0109-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
0109-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
0109-
35
GEAR; RING
Z=140
1-12333-016-0
01
1
0109-0501
35
GEAR; RING
Z=140
1-12333-025-0
01
1
0502-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
0109-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-214-0
01
1
0109-
38
WASHER; FLYWHEEL
1-12336-005-1
01
1
0109-
40
BOLT; FLYWHEEL
1-09000-183-1
08
1
0109-0905
40
BOLT; FLYWHEEL
M16X62
1-09070-146-1
08
1
0906-
42
WASHER; THRUST,CR/SHF
1-11599-007-1
02
1
0109-
58
BOLT; CR/SHF PULLEY
M16X45
9-92061-645-0
04
1
0109-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX
1-12111-842-0
06
1
0109-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX
1-12111-843-0
06
1
0109-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-137-1
06
1
0109-
73
METAL SET; CONN ROD,STANDARD
1-12271-068-0
06
1
0109-0211
73
METAL SET; CONN ROD,STANDARD
1-12271-084-0
06
1
0212-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-022-0
06
1
0109-
84
ROD ASM; CONN
1-12230-097-1
06
1
0109-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-021-1
06
1
0109-
86
BOLT; CONNROD
1-12235-025-1
12
1
0109-
88
NUT; CONNROD
1-09840-003-1
12
1
0109-
108
RING; SNAP,BRG SET
OD=59.2
9-09180-155-0
01
1
0109-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-065-0
12
1
0109-
