Sayfa 0-85 - Isuzu EPC

0-85 — AUTO TIMER; INJECTION PUMP (#1051) — 162 parça

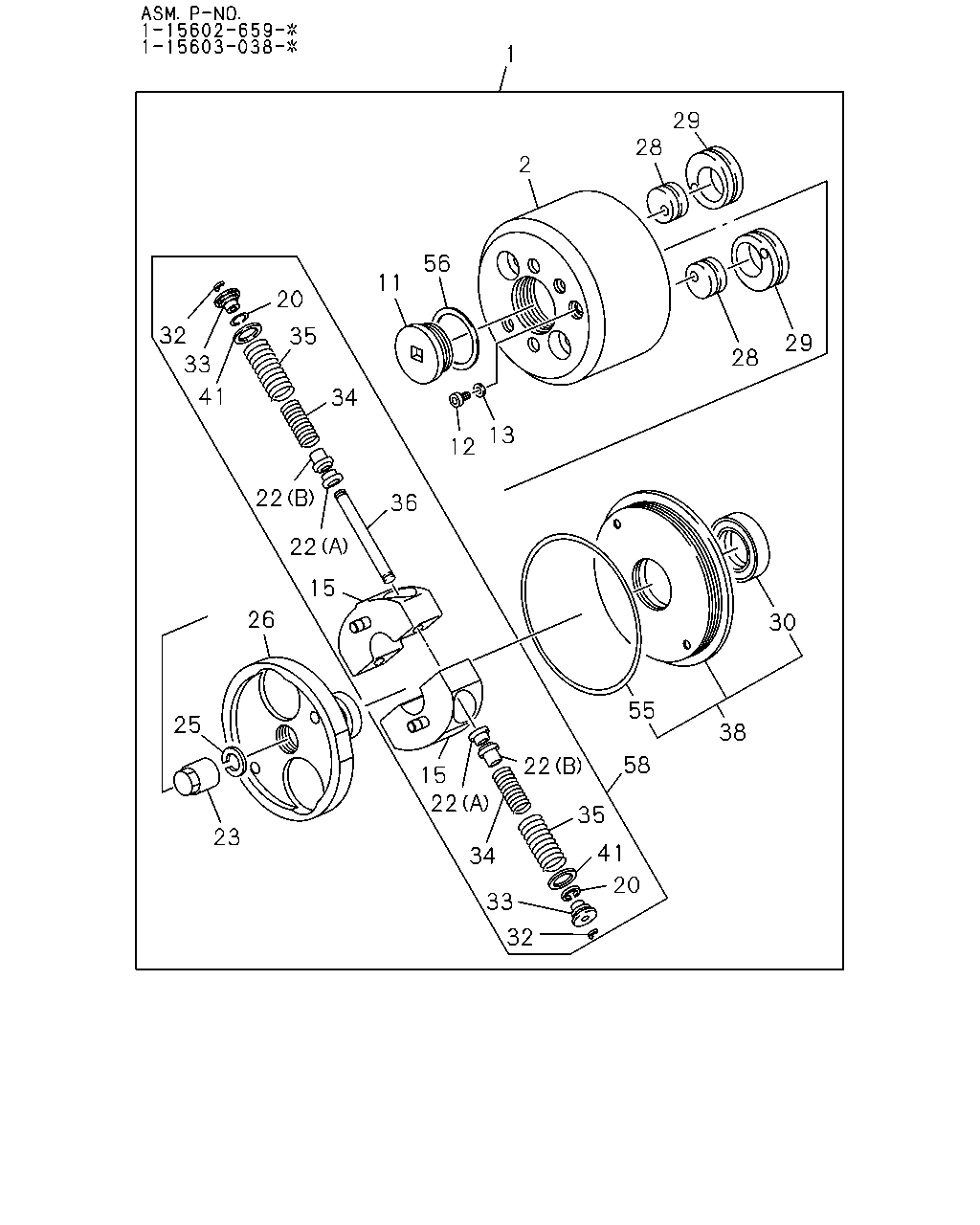

1 29 28 2 56 11 20 32 35 29 28 33 41 34 13 12 22 36 22 15 26 30 55 25 38 58 22 15 22 35 23 41 34 20 33 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-152-2, G = 1-15602-903-0	1-15740-209-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15740-383-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0	1-15740-407-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: K = 8-94393-459-2, L = 8-94393-462-3	1-15740-408-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: M = 8-94393-477-2	1-15740-411-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: C = 1-15602-759-1, H = 1-15602-904-0	1-15740-415-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15741-032-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15741-045-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0	5-15741-002-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0	1-15749-115-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-454-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-594-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-659-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0, J = 1-15603-038-0	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-452-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15719-093-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-659-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0, J = 1-15603-038-0	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0	1-15743-037-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, G = 1-15602-903-0	1-15743-044-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 1-15602-759-1, H = 1-15602-904-0	1-15743-064-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15743-097-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: K = 8-94393-459-2, L = 8-94393-462-3	1-15743-101-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: M = 8-94393-477-2	1-15743-122-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	9-81325-382-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-587-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-318-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	5-15749-051-1	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, G = 1-15602-903-0	1-15742-066-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, H = 1-15602-904-0, I = 1-15602-905-0	1-15742-081-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15742-112-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: K = 8-94393-459-2, L = 8-94393-462-3	1-15742-120-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: M = 8-94393-477-2	1-15742-121-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-151-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0	1-15749-073-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-451-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-592-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: J = 1-15603-038-0	1-15749-358-0	02	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: B = 1-15602-659-2	1-15749-358-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-354-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-673-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-642-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: B = 1-15602-659-2	1-15749-590-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: J = 1-15603-038-0	1-15749-590-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-591-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-494-0	AR	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: E = 1-15602-761-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0	5-15749-049-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	9-81345-138-0	01	1	-
56	GASKET; CAP ASM PART: B = 1-15602-659-2, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, J = 1-15603-038-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-453-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15743-114-0	01	1	-

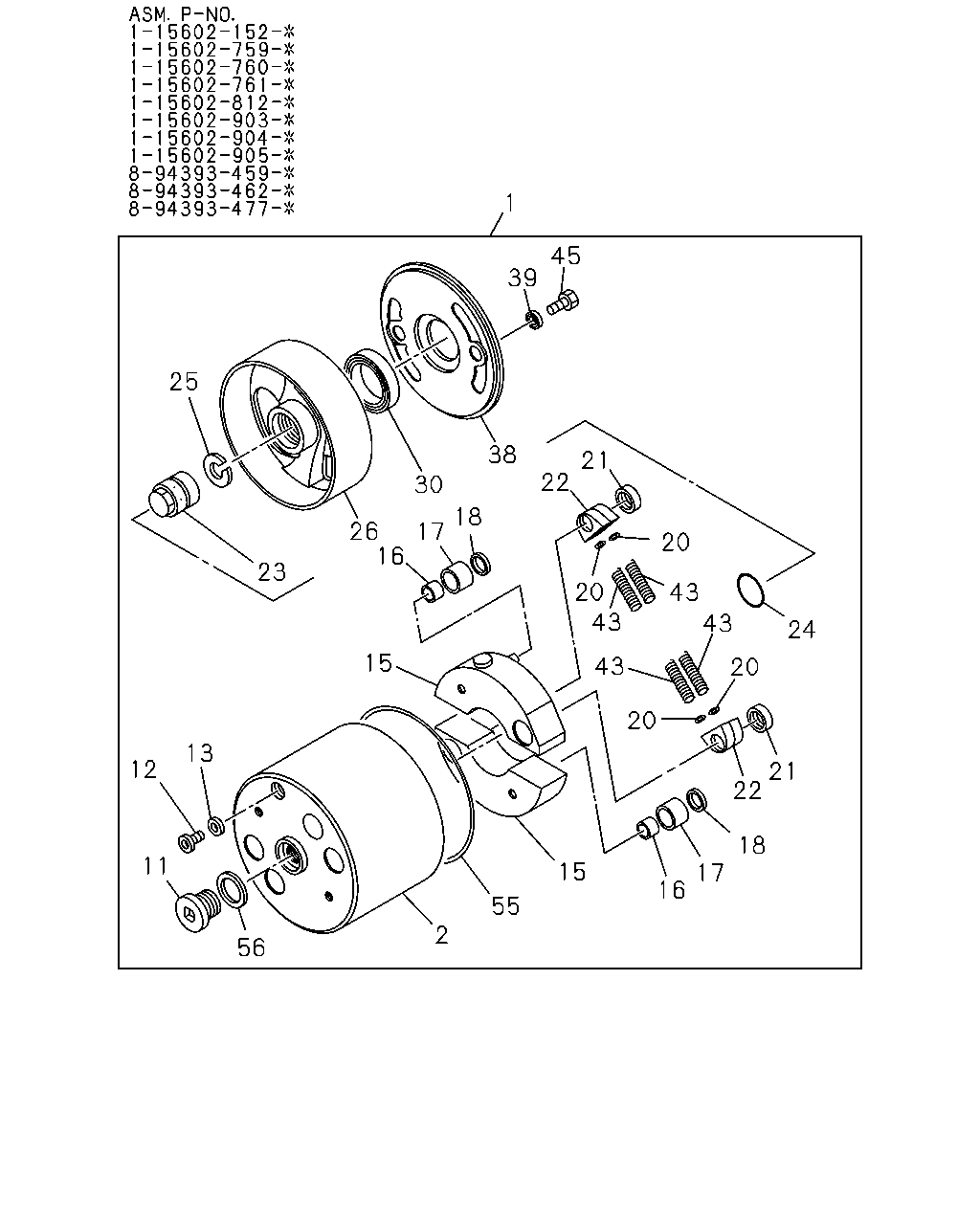

1 45 39 25 38 21 22 30 18 26 16 17 20 23 20 43 43 43 24 15 43 20 20 13 12 21 22 18 11 15 17 16 55 2 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-152-2, G = 1-15602-903-0	1-15740-209-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15740-383-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0	1-15740-407-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: K = 8-94393-459-2, L = 8-94393-462-3	1-15740-408-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: M = 8-94393-477-2	1-15740-411-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: C = 1-15602-759-1, H = 1-15602-904-0	1-15740-415-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15741-032-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15741-045-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0	5-15741-002-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0	1-15749-115-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-454-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-594-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-659-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0, J = 1-15603-038-0	1-15749-031-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-452-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15719-093-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 1-15602-152-2, B = 1-15602-659-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0, J = 1-15603-038-0	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0	1-15743-037-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, G = 1-15602-903-0	1-15743-044-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 1-15602-759-1, H = 1-15602-904-0	1-15743-064-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15743-097-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: K = 8-94393-459-2, L = 8-94393-462-3	1-15743-101-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: M = 8-94393-477-2	1-15743-122-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	5-15749-043-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	5-15749-044-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	5-15749-045-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	5-15749-046-0	01	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-496-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	9-81325-382-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-587-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-318-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	5-15749-051-1	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0	1-15749-036-0	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-455-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, G = 1-15602-903-0	1-15742-066-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, H = 1-15602-904-0, I = 1-15602-905-0	1-15742-081-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15742-112-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: K = 8-94393-459-2, L = 8-94393-462-3	1-15742-120-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: M = 8-94393-477-2	1-15742-121-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0	1-15749-073-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-451-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-592-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	1-15749-591-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15339-010-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, G = 1-15602-903-0, H = 1-15602-904-0	1-15749-028-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 1-15602-152-2, G = 1-15602-903-0	1-15749-373-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: M = 8-94393-477-2	1-15749-621-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.4 L=39 ASM PART: D = 1-15602-760-1	1-15749-694-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.4 L=39 ASM PART: E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0	1-15749-694-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2,5 L=38.5 ASM PART: E = 1-15602-761-0, F = 1-15602-812-0	1-15749-695-0	03	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2,5 L=38.5 ASM PART: D = 1-15602-760-1, I = 1-15602-905-0	1-15749-695-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.3 L=39.5 ASM PART: E = 1-15602-761-0	1-15749-696-0	03	1	-
43	SPRING; PISTON,TIMER,INJ PUMP D=2.3 L=39.5 ASM PART: D = 1-15602-760-1, F = 1-15602-812-0, I = 1-15602-905-0	1-15749-696-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: K = 8-94393-459-2, L = 8-94393-462-3	1-15749-697-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: C = 1-15602-759-1, H = 1-15602-904-0	1-15749-704-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-029-0	02	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: E = 1-15602-761-0, I = 1-15602-905-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-152-2, C = 1-15602-759-1, D = 1-15602-760-1, F = 1-15602-812-0, G = 1-15602-903-0, H = 1-15602-904-0	5-15749-049-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 1-15602-659-2, J = 1-15603-038-0	9-81345-138-0	01	1	-
56	GASKET; CAP ASM PART: B = 1-15602-659-2, D = 1-15602-760-1, E = 1-15602-761-0, F = 1-15602-812-0, I = 1-15602-905-0, J = 1-15603-038-0, K = 8-94393-459-2, L = 8-94393-462-3, M = 8-94393-477-2	1-15749-453-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
