9-01 — TOOLS (#10509) — 141 parça

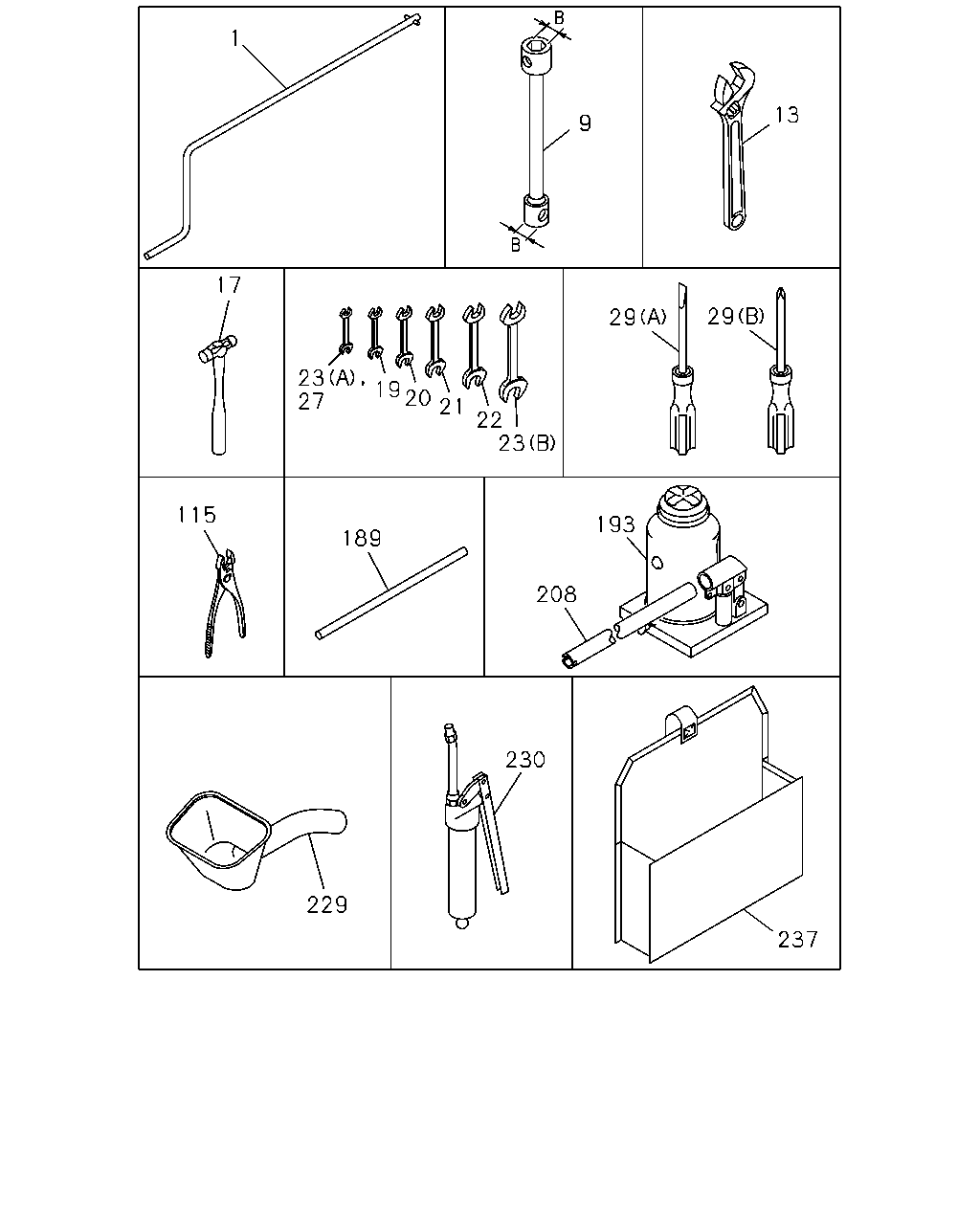

1 9 13 29 29 23 22 21 20 19 27 23 17 115 189 208 193 230 237 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER<SFB>	1-23111-004-0	01	1	0103-
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) B=33X30 L=450	1-85111-033-1	01	1	0103-0107
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. TOOL KIT DELETE(V68) B=33X30 L=450	1-85111-033-1	01	1	0108-0111
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL A KIT(SK9),TOOL B KIT(SL1) B=33X30 L=450	1-85111-033-1	01	1	0112-1601
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL A KIT(SK9),TOOL B KIT(SL1) B=33X30 L=450	8-98316-700-0	01	1	1602-
9	WRENCH; WHEEL PIN EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,TOOL KIT DELETE(V68) B=41X21 L=440	1-85113-015-1	01	1	0103-0111
9	WRENCH; WHEEL PIN TOOL A KIT(SK9),TOOL B KIT(SL1) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440	1-85113-015-1	01	1	0112-1601
9	WRENCH; WHEEL PIN TOOL A KIT(SK9),TOOL B KIT(SL1) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=445	8-98316-703-0	01	1	1602-
13	WRENCH; MONKEY EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=255	1-85117-002-1	01	1	0103-0111
13	WRENCH; MONKEY TOOL B KIT(SL1) L=255	1-85117-002-1	01	1	0112-0907
13	WRENCH; MONKEY TOOL B KIT(SL1) L=247	1-85117-006-0	01	1	0908-1407
13	WRENCH; MONKEY TOOL B KIT(SL1) L=255	8-98270-303-0	01	1	1408-
17	HAMMER EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	9-85121-406-0	01	1	0103-0111
17	HAMMER TOOL B KIT(SL1)	9-85121-406-0	01	1	0112-
19	WRENCH; 7X8 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 7X8	9-09592-107-0	01	1	0103-0111
19	WRENCH; 7X8 TOOL B KIT(SL1) 7X8	9-09592-107-0	01	1	0112-
20	WRENCH; 10X12 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 10X12	9-09592-110-0	01	1	0103-0111
20	WRENCH; 10X12 TOOL B KIT(SL1) 10X12	9-09592-110-0	01	1	0112-0607
20	WRENCH; 10X12 TOOL B KIT(SL1) 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 14X17	9-09592-114-0	01	1	0103-0111
21	WRENCH; 14X17 TOOL B KIT(SL1) 14X17	9-09592-114-0	01	1	0112-0607
21	WRENCH; 14X17 TOOL B KIT(SL1) 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 19X22	9-99592-119-0	01	1	0103-0111
22	WRENCH; 19X22 TOOL B KIT(SL1) 19X22	9-99592-119-0	01	1	0112-0607
22	WRENCH; 19X22 TOOL B KIT(SL1) 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (A) 5.5X7	9-09592-105-0	01	1	0103-0111
23	WRENCH; 24X27 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT(SL1) (A) 5.5X7	9-09592-105-0	01	1	0112-
23	WRENCH; 24X27 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (B) 24X27	9-09592-124-0	01	1	0103-0111
23	WRENCH; 24X27 TOOL B KIT(SL1) (B) 24X27	9-09592-124-0	01	1	0112-0607
23	WRENCH; 24X27 TOOL B KIT(SL1) (B) 24X27	0-95902-524-0	01	1	0608-
27	WRENCH; OPEN END 5.5X7 EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,TOOL A KIT(SK9),TOOL KIT DELETE(V68) 5.5X7	9-09592-105-0	01	1	0103-0111
27	WRENCH; OPEN END 5.5X7 TOOL B KIT(SL1) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 5.5X7	9-09592-105-0	01	1	0112-
29	DRIVER; SCREW EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (B) <+> L=205	9-09595-022-0	01	1	0103-0111
29	DRIVER; SCREW TOOL B KIT(SL1) (B) <+> L=205	9-09595-022-0	01	1	0112-
29	DRIVER; SCREW EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (B) <+> L=275	9-09595-023-0	01	1	0103-0111
29	DRIVER; SCREW TOOL B KIT(SL1) (B) <+> L=275	9-09595-023-0	01	1	0112-
29	DRIVER; SCREW EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (A) <-> L=205	9-09595-126-0	01	1	0103-0111
29	DRIVER; SCREW TOOL B KIT(SL1) (A) <-> L=205	9-09595-126-0	01	1	0112-
29	DRIVER; SCREW EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (A) <-> L=325	9-09595-129-0	01	1	0103-0111
29	DRIVER; SCREW TOOL B KIT(SL1) (A) <-> L=325	9-09595-129-0	01	1	0112-
115	PLIER EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	5-85171-001-0	01	1	0103-0111
115	PLIER TOOL B KIT(SL1)	5-85171-001-0	01	1	0112-0212
115	PLIER TOOL B KIT(SL1)	5-85171-002-0	01	1	0301-1410
115	PLIER TOOL B KIT(SL1)	8-98282-845-0	01	1	1411-
189	TUBE; AIR BREATHER EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=460	9-85291-414-0	01	1	0103-0111
189	TUBE; AIR BREATHER TOOL B KIT(SL1) L=460	9-85291-414-0	01	1	0112-
193	JACK ASM INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 15TON	1-85510-019-1	01	1	0103-0107
193	JACK ASM EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,TOOL KIT DELETE(V68) 15TON	1-85510-019-1	01	1	0103-0107
193	JACK ASM EXC. TOOL KIT DELETE(V68) 15TON	1-85510-019-1	01	1	0108-0111
193	JACK ASM TOOL A KIT(SK9),TOOL B KIT(SL1) 15TON	1-85510-019-2	01	1	0112-
208	HANDLE; JACK EXC. TOOL KIT DELETE(V68) L=600	1-85515-008-0	01	1	0103-0105
208	HANDLE; JACK EXC. TOOL KIT DELETE(V68) L=600	1-85515-009-0	01	1	0106-0111
208	HANDLE; JACK TOOL A KIT(SK9),TOOL B KIT(SL1) L=600	1-85515-009-0	01	1	0112-1107
208	HANDLE; JACK TOOL A KIT(SK9),TOOL B KIT(SL1) L=600	8-98181-437-0	01	1	1108-
229	FUNNEL; RAD EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	9-85531-110-0	01	1	0103-0111
229	FUNNEL; RAD TOOL B KIT(SL1)	9-85531-110-1	01	1	0112-
230	PUMP; GREASE EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	1-85556-007-2	01	1	0103-0111
230	PUMP; GREASE TOOL B KIT(SL1)	1-85556-007-5	01	1	0112-
237	BAG; TOOL EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	8-97130-902-0	01	1	0103-0111
237	BAG; TOOL TOOL B KIT(SL1)	8-97130-902-1	01	1	0112-

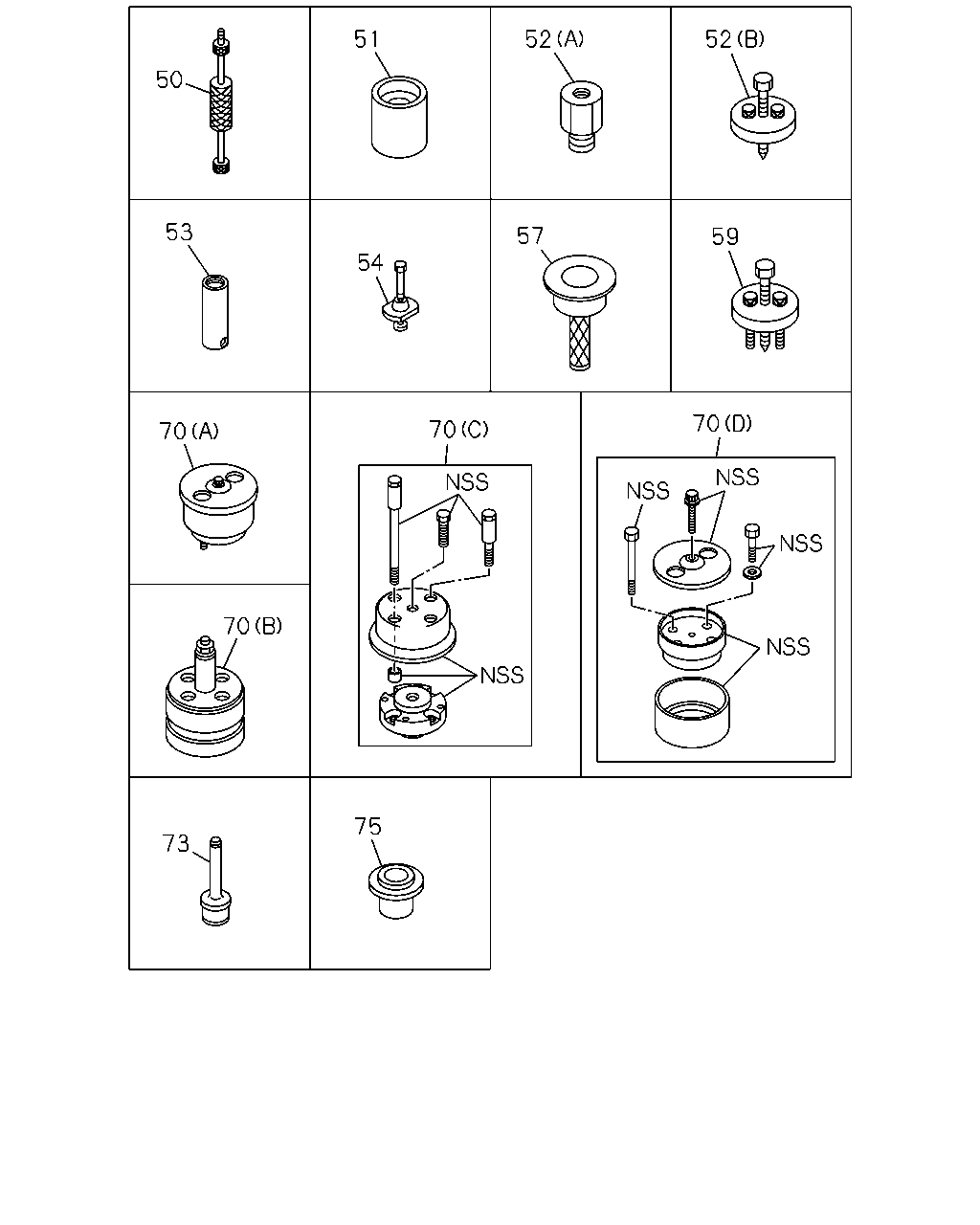

51 52 52 50 53 57 59 54 70 70 70 70 75 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	REPLACER; NOZZLE HOLDER 6WA1 TC-C(55L) L=300	1-85230-013-0	01	1	0103-
51	PULLER ASM; WATER PUMP 6WA1 TC-C(55L)	1-85220-047-0	01	1	0103-
52	REMOVER; WATER PUMP 6SD1 TC(32L) (B)	1-85210-047-0	01	1	0103-
52	REMOVER; WATER PUMP 6WA1 TC-C(55L) (A)	1-85210-062-0	01	1	0103-
53	PULLER; TAPER BUSHING 6WA1 TC-C(55L)	1-85210-063-0	01	1	0103-
54	PULLER; THERMOSTAT SEAL 6WA1 TC-C(55L)	1-85210-067-0	01	1	0103-
57	TOOL; SETTING CRANK GEAR 6SD1 TC(32L) ID=144.5	1-85221-072-0	01	1	0103-
57	TOOL; SETTING CRANK GEAR 6WA1 TC-C(55L) OD=162	1-85220-045-0	01	1	0103-
59	PULLER ASM; TIMING GEAR 6WA1 TC-C(55L)	1-85210-065-0	01	1	0103-
70	TOOL; SETTING,OIL SEAL 6SD1 TC(32L) (B)	1-85220-025-1	01	1	0103-1108
70	TOOL; SETTING,OIL SEAL 6SD1 TC(32L) (C)	8-98194-607-0	01	1	1109-
70	TOOL; SETTING,OIL SEAL 6WA1 TC-C(55L) (A)	1-85220-043-0	01	1	0103-1108
70	TOOL; SETTING,OIL SEAL 6WA1 TC-C(55L) (D)	8-98194-608-0	01	1	1109-
73	TOOL; SETTING,THERMOSTAT SEAL 6WA1 TC-C(55L)	1-85221-034-0	01	1	0103-
75	TOOL; SETTING,OIL SEAL 6WA1 TC-C(55L)	1-85220-049-0	01	1	0103-

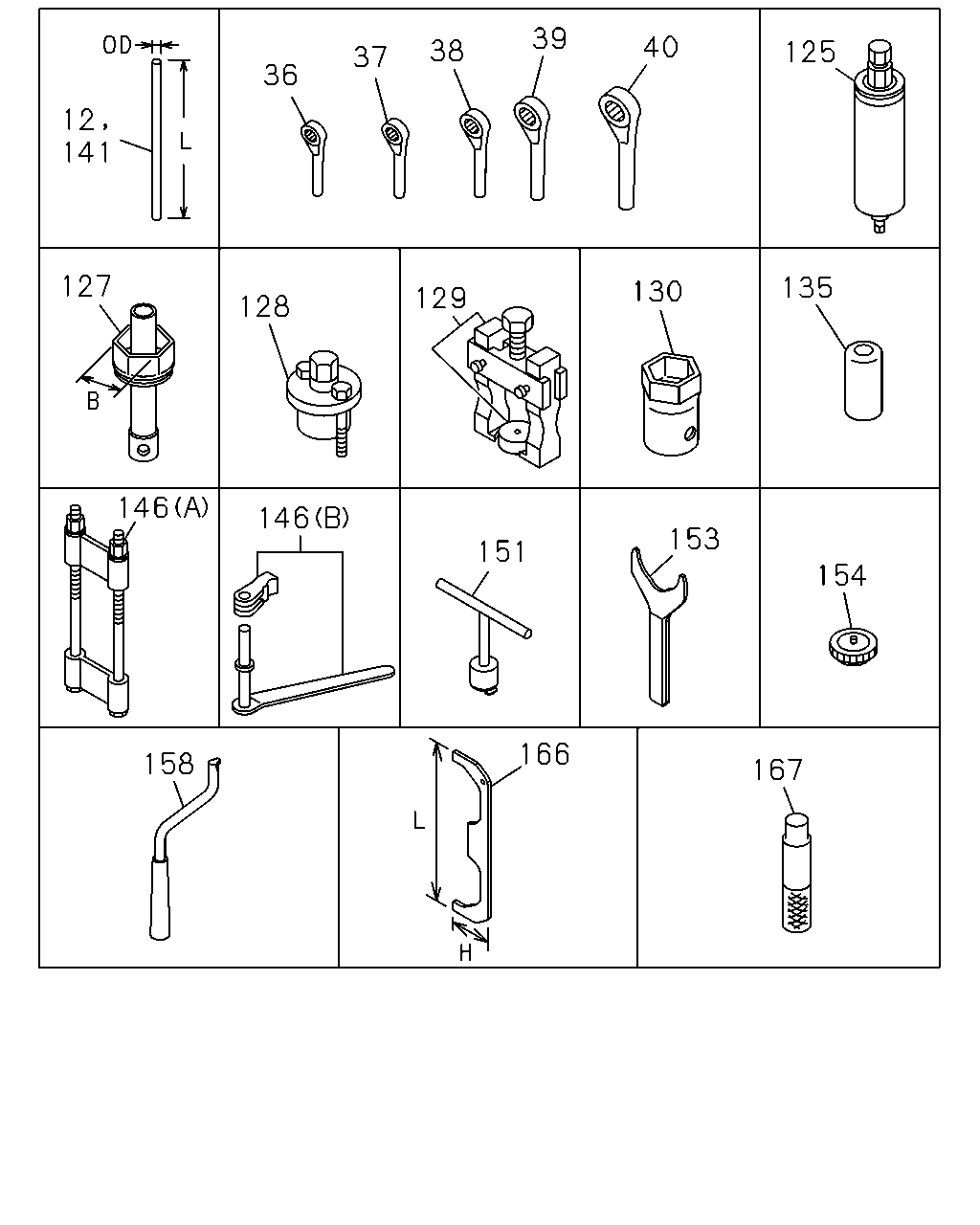

39 40 38 125 37 36 12 141 127 135 130 129 128 146 146 153 151 154 166 158 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HANDLE; WRENCH,WHEEL PIN TOOL A KIT(SK9) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OD=25 L=480	1-85116-011-0	01	1	0103-0103
12	HANDLE; WRENCH,WHEEL PIN EXC. TOOL A KIT(SK9) OD=25 L=480	1-85116-011-0	01	1	0103-0103
12	HANDLE; WRENCH,WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) OD=25 L=480	1-85116-011-0	01	1	0103-0107
12	HANDLE; WRENCH,WHEEL PIN EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,TOOL KIT DELETE(V68) OD=25 L=480	1-85116-011-0	01	1	0103-0107
12	HANDLE; WRENCH,WHEEL PIN EXC. TOOL KIT DELETE(V68) OD=25 L=480	1-85116-011-0	01	1	0108-0111
12	HANDLE; WRENCH,WHEEL PIN TOOL A KIT(SK9),TOOL B KIT(SL1) OD=25 L=480	1-85116-011-0	01	1	0112-1501
12	HANDLE; WRENCH,WHEEL PIN TOOL A KIT(SK9),TOOL B KIT(SL1) OD=25 L=480	8-98257-407-0	01	1	1502-
36	WRENCH; 24	9-85111-377-0	01	1	0103-
37	WRENCH; 27	9-85111-375-0	01	1	0103-
38	WRENCH; 32	9-85111-358-0	01	1	0103-
39	WRENCH; 36	9-85111-374-0	01	1	0103-
40	WRENCH; 41	9-85111-356-0	01	1	0103-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0103-
127	WRENCH ASM; HUB BRG NUT L=400 B=105	9-85113-509-0	01	1	0103-
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	0103-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0103-
130	WRENCH; BOX B=63	9-85111-368-0	01	1	0103-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0103-
141	HANDLE; WRENCH OD=25 L=480	1-85116-011-0	01	1	0103-1501
141	HANDLE; WRENCH OD=25 L=480	8-98257-407-0	01	1	1502-
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	0103-
146	REPLACER KIT; LEAF SPR (B)	1-85237-016-0	01	1	0103-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0103-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0103-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0103-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0103-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0103-
166	ALIGNER; CLU RELEASE LEVER L=550 H=12.5	1-85253-001-0	01	1	0103-
167	ALIGNER; CLU PILOT	9-85241-409-0	01	1	0103-

142 15 5 152 148 178 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	0103-
15	WRENCH; TOP GEAR NUT	9-85111-330-0	01	1	0103-
142	PULLER ASM; TRANS BRG	9-85210-148-0	01	1	0103-
148	PULLER; COUNTER SHAFT BRG	9-85210-195-0	01	1	0103-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0103-
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	0103-
179	PULLER; SPD METER GEAR	9-85210-091-0	01	1	0103-

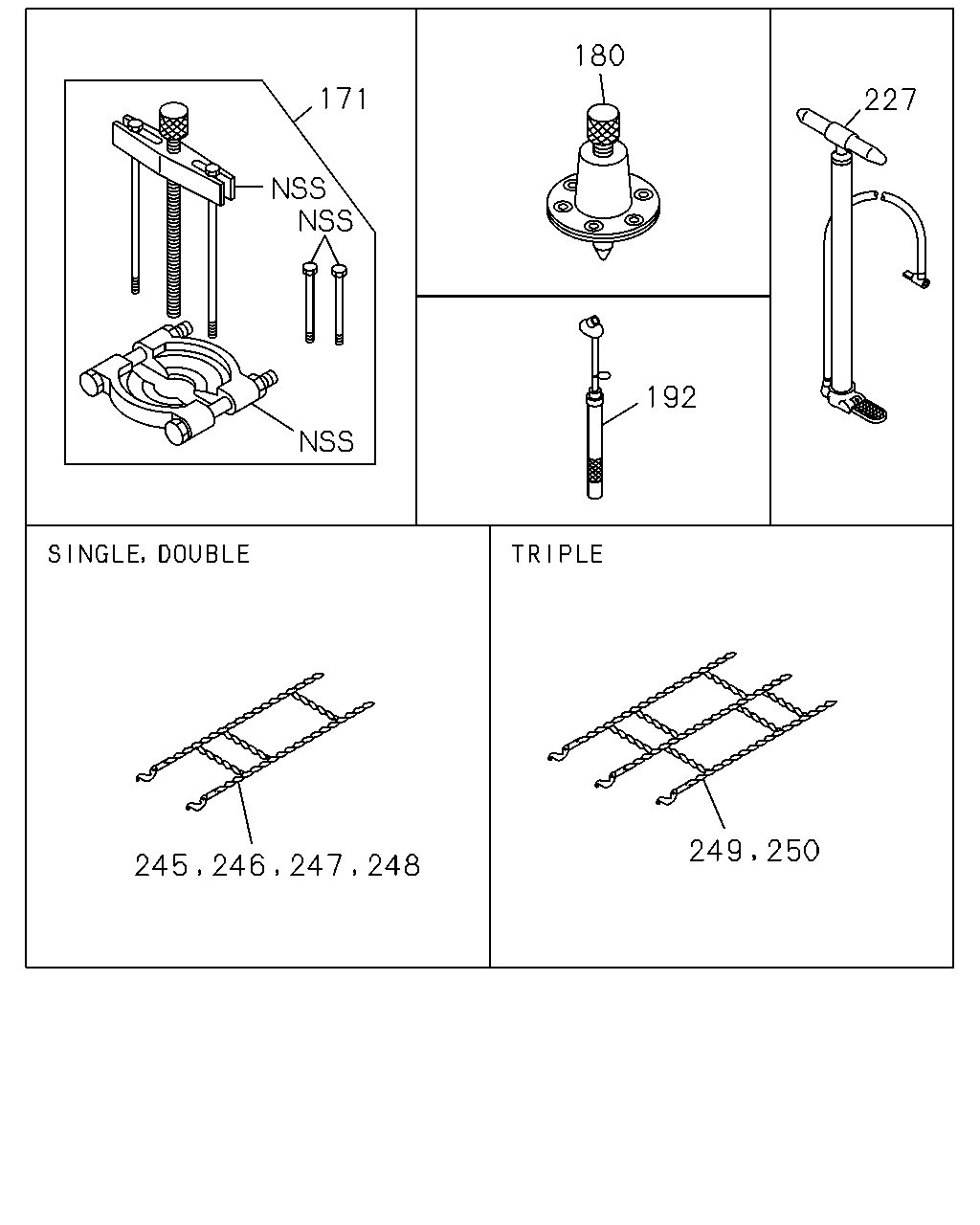

171 180 227 192 250 249 248 247 246 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0103-
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	0103-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0103-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0103-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	01	1	0103-
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	01	1	0103-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	01	1	0103-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	01	1	0103-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	01	1	0103-
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	01	1	0103-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	01	1	0103-
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	01	1	0103-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	01	1	0103-

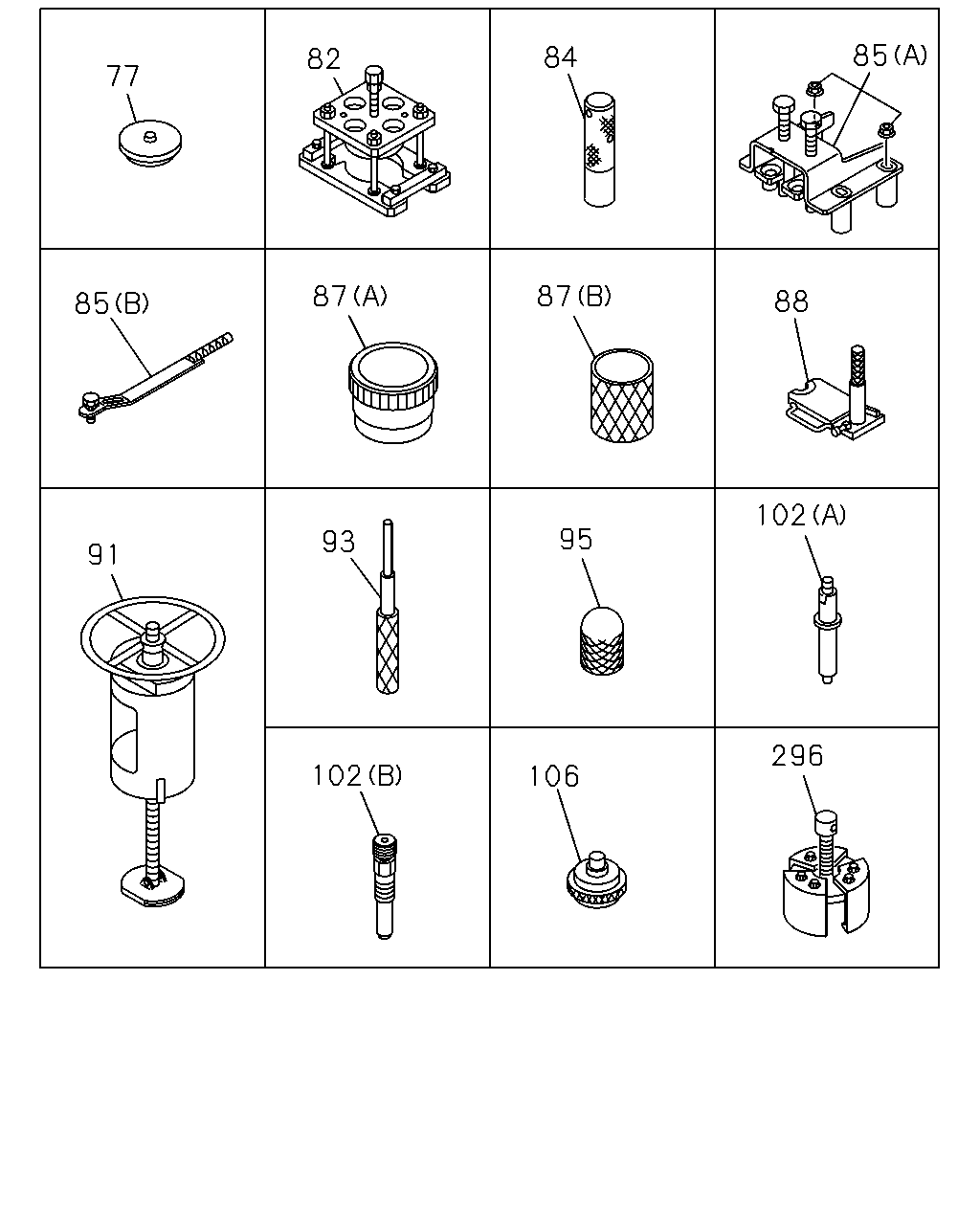

85 84 82 77 87 87 88 85 102 95 93 91 296 102 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
77	TOOL; SETTING,CYL LINER 6SD1 TC(32L)	1-85221-073-0	01	1	0103-
82	PULLER ASM; CR/SHF GEAR 6WA1 TC-C(55L)	1-85210-064-0	01	1	0103-
84	REPLACER; VALVE SEAL 6WA1 TC-C(55L) EXHAUST	1-85221-184-0	01	1	0103-
84	REPLACER; VALVE SEAL 6WA1 TC-C(55L) INLET	1-85221-187-0	01	1	0103-
85	REPLACER ASM; VALVE SPR 6SD1 TC(32L) (B)	1-85235-007-0	01	1	0103-
85	REPLACER ASM; VALVE SPR 6WA1 TC-C(55L) (A)	1-85235-013-0	01	1	0103-
87	TOOL; PISTON 6SD1 TC(32L) (B)	1-85221-082-0	01	1	0103-
87	TOOL; PISTON 6WA1 TC-C(55L) (A)	1-85220-046-0	01	1	0103-
88	TOOL; CONNROD BUSHING 6SD1 TC(32L)	1-85220-037-0	01	1	0103-
91	REPLACER ASM; CYL LINER 6SD1 TC(32L)	1-85231-021-0	01	1	0103-
93	SETTING KIT; VALVE GUIDE 6SD1 TC(32L) L=260	9-85231-202-0	01	1	0103-
93	SETTING KIT; VALVE GUIDE 6WA1 TC-C(55L) L=260	9-85231-202-0	01	1	0103-
95	SETTING TOOL; BRIDGE GUIDE 6WA1 TC-C(55L)	9-85221-324-0	01	1	0103-
102	ADAPTER; COMP GAGE 6SD1 TC(32L) (B)	5-85317-001-0	01	1	0103-
102	ADAPTER; COMP GAGE 6WA1 TC-C(55L) (A)	1-85317-019-0	01	1	0103-
106	TOOL; SETTING PILOT BRG 6WA1 TC-C(55L)	1-85221-057-0	01	1	0103-
296	REPLACER; SLINGER 6WA1 TC-C(55L)	1-85210-027-0	01	1	0103-
