8-28 — CHASSIS ELECTRICAL (#10506) — 103 parça

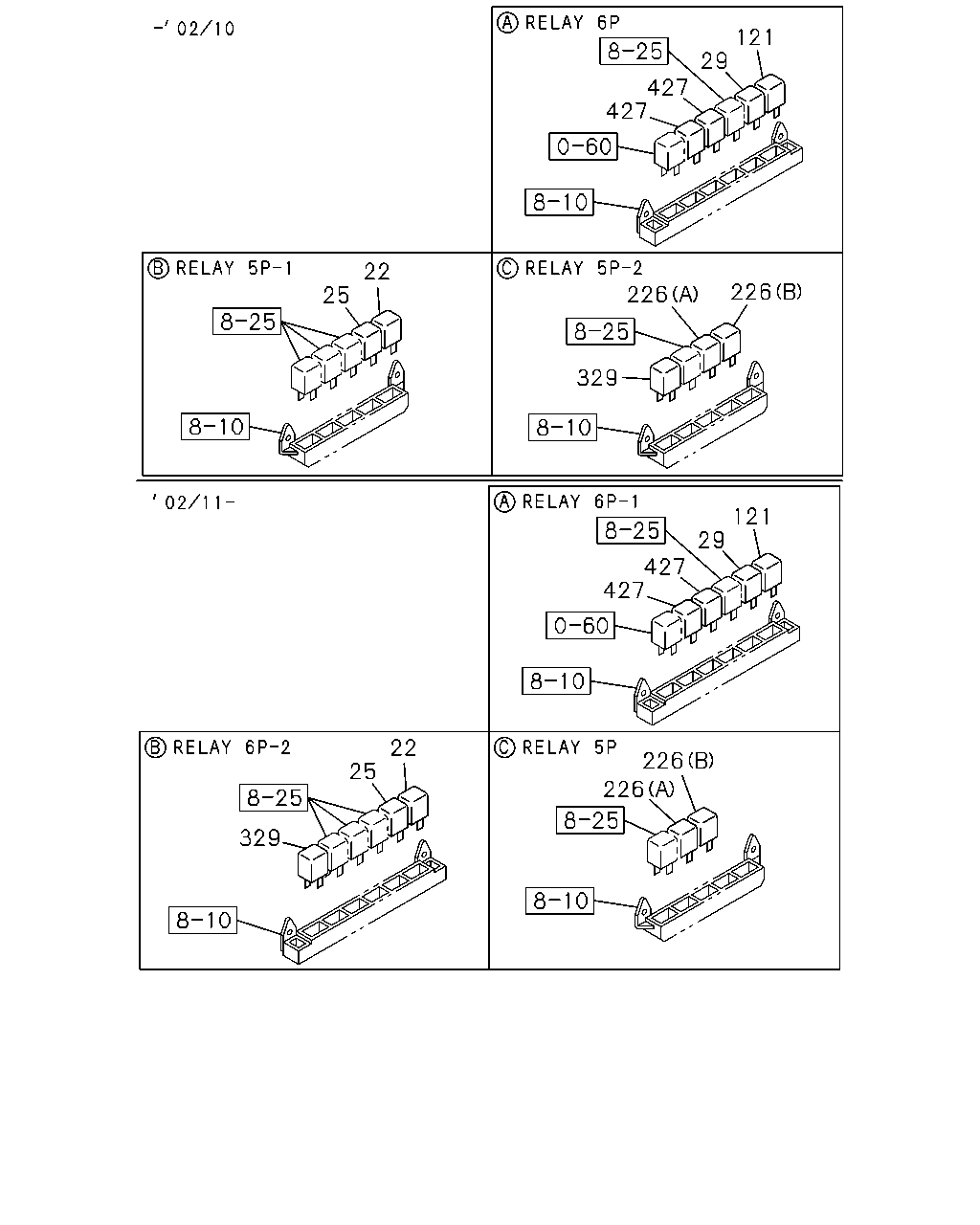

çizim 137502
121 29 427 427 226 22 226 25 329 121 29 427 427 22 226 25 226 329
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 0103-0111
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
25 RELAY; TAIL LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 0103-0111
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
29 RELAY; HORN
24V 12.5A MITUBA 		8-97062-815-1 01 1 0103-0111
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
121 RELAY; PARKING BRK
24V 12.5A MITUBA 		8-97062-815-1 01 1 0103-0111
121 RELAY; PARKING BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
226 RELAY; EXH BRK
(A) 24V 12.5A MITUBA 		8-97062-815-1 01 1 0103-0111
226 RELAY; EXH BRK
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
226 RELAY; EXH BRK
6WA1 TC-C(55L) (B) 24V 12.5A MITUBA 		1-82550-326-0 01 1 0103-
329 RELAY; BACK LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 0103-0111
329 RELAY; BACK LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
427 RELAY; RETARDER
BRAKE SYSTEM RETARDER<RE2> 24V 12.5A MITUBA 		8-97062-815-1 02 1 0103-0111
427 RELAY; RETARDER
BRAKE SYSTEM RETARDER<RE2> 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0112-
çizim 137504
12 348 232 348 2 1 344 8 1
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> TURN SIGNAL LAMP SIDE<TEL> (A) 		1-83470-052-0 01 1 0103-
1 UNIT; FLASHER
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. TURN SIGNAL LAMP SIDE<TEL> (A) 		1-83470-051-0 01 1 0103-
1 UNIT; FLASHER
TURN SIGNAL LAMP SIDE<TEL> (B) 		1-83470-058-0 01 1 0103-
1 UNIT; FLASHER
EXC. TURN SIGNAL LAMP SIDE<TEL> (B) 		1-83470-055-0 01 1 0103-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28680-616-0 01 1 0103-0512
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 0601-
8 RELAY; WIPER
WIPER MOTOR KIT<ST7> ASMO 		1-82550-169-0 01 1 0103-
12 RELAY; LAMP,FAILURE INDICATOR 1-82550-143-2 01 1 0103-
232 RELAY; WARNING BUZZER
INDICATOR WARNING BUZZER(WF9) 		1-82550-119-1 01 1 0103-
344 RELAY; LAMP
LAMPS TAIL AND STOP DELUXE<T81> 		1-82550-201-0 01 1 0103-
348 SCREW; LAMP FAILURE RELAY
M6X16 FLANGE 		0-28680-616-0 03 1 0103-0512
348 SCREW; LAMP FAILURE RELAY
M6X16 FLANGE 		0-28650-616-0 01 1 0601-
348 SCREW; LAMP FAILURE RELAY
INDICATOR WARNING BUZZER(WF9) M6X16 FLANGE 		0-28680-616-0 02 1 0202-0512
348 SCREW; LAMP FAILURE RELAY
INDICATOR WARNING BUZZER(WF9) M6X16 FLANGE 		0-28650-616-0 02 1 0601-

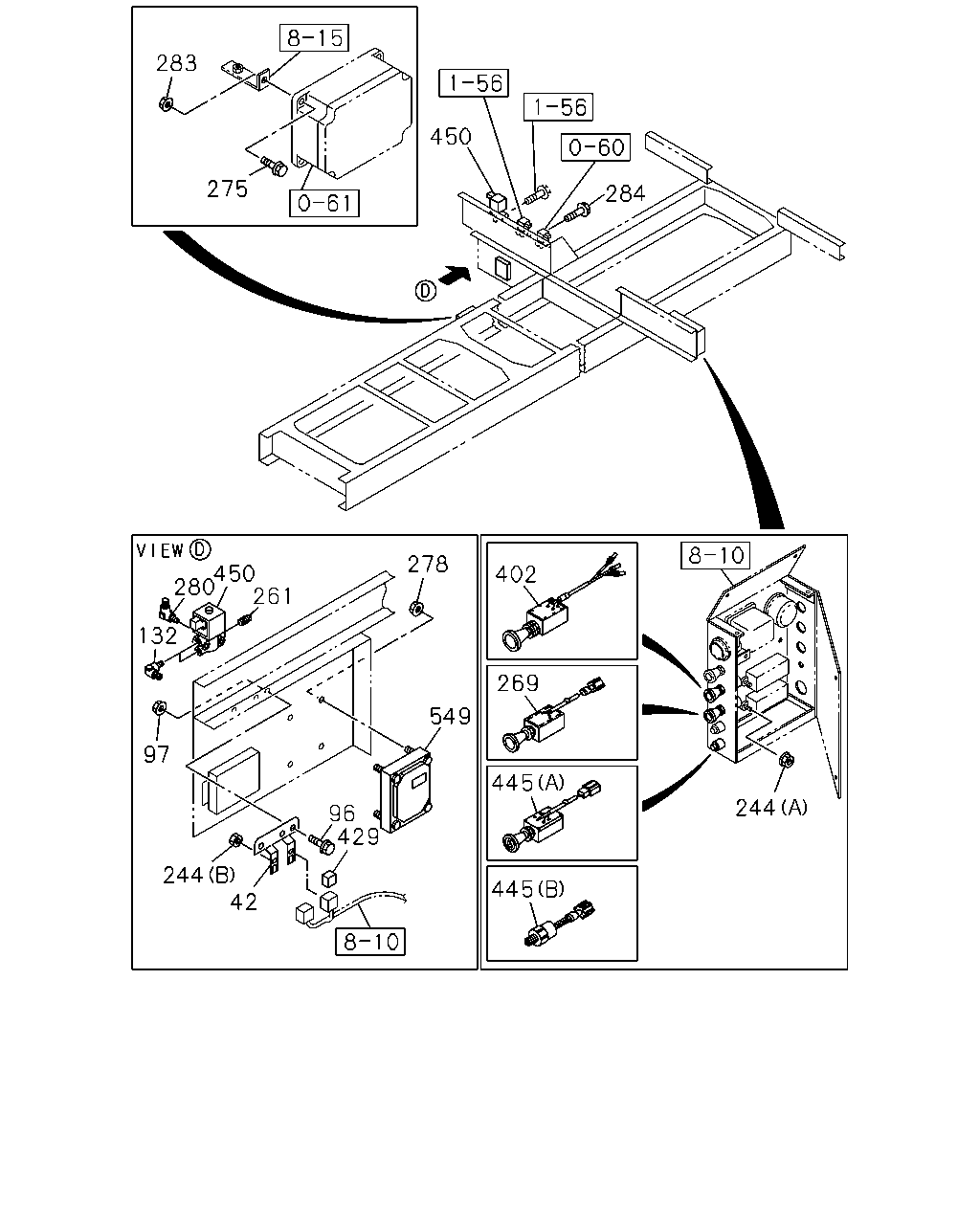

çizim 137506
283 450 275 284 450 280 261 278 402 132 269 549 97 445 244 96 429 244 42 445
BalonParca AdiParca NoAdetTipApplied Date
42 BRACKET; RELAY
6SD1 TC(32L) EURO2 SPECIFICATION(THN) 		8-97258-763-0 01 1 0103-
42 BRACKET; RELAY
6WA1 TC-C(55L) 		8-97258-763-0 01 1 0103-
96 BOLT; BRKT FIX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M6X16 FLANGE 		0-28680-616-0 02 1 0103-0512
96 BOLT; BRKT FIX
6WA1 TC-C(55L) M6X16 FLANGE 		0-28680-616-0 02 1 0103-0512
96 BOLT; BRKT FIX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M6X16 FLANGE 		0-28650-616-0 02 1 0601-
96 BOLT; BRKT FIX
6WA1 TC-C(55L) M6X16 FLANGE 		0-28650-616-0 02 1 0601-
97 NUT; BRKT FIX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M6 FLANGE 		0-91150-106-0 02 1 0103-0602
97 NUT; BRKT FIX
6WA1 TC-C(55L) M6 FLANGE 		0-91150-106-0 02 1 0103-0602
97 NUT; BRKT FIX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M6 FLANGE 		0-91180-106-0 02 1 0603-
97 NUT; BRKT FIX
6WA1 TC-C(55L) M6 FLANGE 		0-91180-106-0 02 1 0603-
132 CONNECTOR; OUTLET,MAG VLV
BRAKE SYSTEM RETARDER<RE2> M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0103-
244 NUT; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE 		0-91150-106-0 04 1 0103-0602
244 NUT; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6 FLANGE 		0-91180-106-0 04 1 0603-
244 NUT; FUSE BOX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (B) M5 		9-99110-405-0 02 1 0103-0512
244 NUT; FUSE BOX
6WA1 TC-C(55L) (B) M5 		9-99110-405-0 02 1 0103-0512
244 NUT; FUSE BOX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (B) M5 		0-91110-505-0 02 1 0601-
244 NUT; FUSE BOX
6WA1 TC-C(55L) (B) M5 		0-91110-505-0 02 1 0601-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER<RE2> PT1/4 		9-99204-513-0 01 1 0103-
269 SWITCH; BATTERY,ENG ROOM
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82340-358-1 01 1 0103-0706
269 SWITCH; BATTERY,ENG ROOM
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-398-0 01 1 0707-
275 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
275 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
278 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 04 1 0103-0602
278 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0603-1211
278 NUT; CONT UNIT
M6 		0-91111-506-0 04 1 1212-
280 CONNECTOR; IN,MAG VLV
BRAKE SYSTEM RETARDER<RE2> M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0103-
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0103-0602
283 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
284 BOLT; MAG VLV
6WA1 TC-C(55L) M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
284 BOLT; MAG VLV
6WA1 TC-C(55L) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
402 SWITCH; IGNITION SAFETY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82340-382-1 01 1 0103-0706
402 SWITCH; IGNITION SAFETY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-399-0 01 1 0707-
429 RELAY; POWER CUT
6SD1 TC(32L) EURO2 SPECIFICATION(THN) 24V 12.5A MITUBA 		8-97062-815-1 01 1 0103-0111
429 RELAY; POWER CUT
6WA1 TC-C(55L) 24V 12.5A MITUBA 		8-97062-815-1 01 1 0103-0111
429 RELAY; POWER CUT
6SD1 TC(32L) EURO2 SPECIFICATION(THN) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
429 RELAY; POWER CUT
6WA1 TC-C(55L) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
445 SWITCH; ENG STOP
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 		1-82380-107-1 01 1 0103-
445 SWITCH; ENG STOP
6WA1 TC-C(55L) (A) 		1-82340-443-0 01 1 0103-0706
445 SWITCH; ENG STOP
6WA1 TC-C(55L) (A) 		8-97621-409-0 01 1 0707-0711
445 SWITCH; ENG STOP
6WA1 TC-C(55L) (A) 		8-98106-482-0 01 1 0712-
450 VALVE; MAG
BRAKE SYSTEM RETARDER<RE2> 		1-82563-597-5 01 1 0103-
549 CONTROL UNIT; ENGINE
6SD1 TC(32L) EURO2 SPECIFICATION(THN) 		1-80110-441-0 01 1 0103-0907
549 CONTROL UNIT; ENGINE
6SD1 TC(32L) 		1-80110-441-0 01 1 0908-
549 CONTROL UNIT; ENGINE
6WA1 TC-C(55L) 		1-80110-724-0 01 1 0103-0211
549 CONTROL UNIT; ENGINE
6WA1 TC-C(55L) 		1-80111-046-0 01 1 0212-

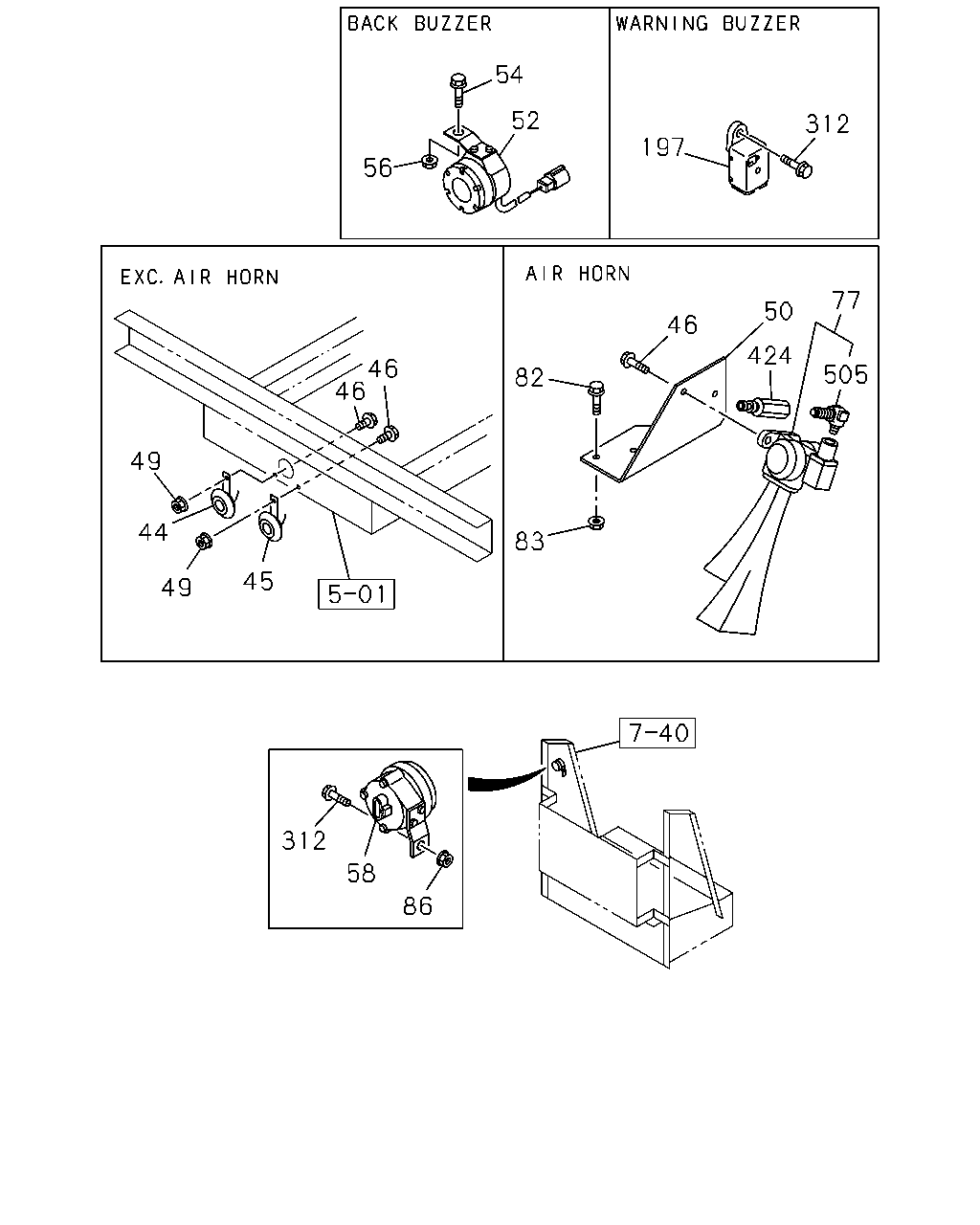

çizim 137596
54 52 312 197 56 77 50 46 424 46 46 505 82 49 44 83 45 49 312 58 86
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE
EXC. AIR HORN(WB8) 		1-83410-061-1 01 1 0103-
45 HORN; LOW NOTE
EXC. AIR HORN(WB8) 		1-83410-062-1 01 1 0103-
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0103-0602
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603-
50 BRACKET; HORN
AIR HORN(WB8) 		1-47478-948-0 01 1 0103-
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> METRO DENSO 		1-83460-088-1 01 1 0103-0612
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> METRO DENSO 		8-98069-867-0 01 1 0701-
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X30 FLANGE 		0-28681-030-0 01 1 0103-0512
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X30 FLANGE 		0-28651-030-0 01 1 0601-
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10 FLANGE 		0-91150-210-0 01 1 0103-0602
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10 FLANGE 		0-91180-210-0 01 1 0603-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-1 01 1 0103-0612
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-865-0 01 1 0701-
77 HORN ASM
AIR HORN(WB8) 		1-83430-041-2 01 1 0103-
82 BOLT; BRKT,HORN
AIR HORN(WB8) M8X30 FLANGE 		0-28680-830-0 02 1 0103-0512
82 BOLT; BRKT,HORN
AIR HORN(WB8) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
83 NUT; BRKT,HORN
AIR HORN(WB8) M8 FLANGE 		0-91150-108-0 02 1 0103-0602
83 NUT; BRKT,HORN
AIR HORN(WB8) M8 FLANGE 		0-91180-108-0 02 1 0603-
86 NUT; BUZZER
M6 FLANGE 		0-91150-106-0 01 1 0103-0602
86 NUT; BUZZER
M6 FLANGE 		0-91180-106-0 01 1 0603-
197 BUZZER; WARNING,AIR HEAT OIL BRK
INDICATOR WARNING BUZZER(WF9) 		1-83460-051-1 01 1 0103-
312 BOLT; BUZZER
M6X16 FLANGE 		0-28680-616-0 01 1 0103-0512
312 BOLT; BUZZER
INDICATOR WARNING BUZZER(WF9) M6X16 FLANGE 		0-28680-616-0 01 1 0103-0512
312 BOLT; BUZZER
M6X16 FLANGE 		0-28650-616-0 01 1 0601-
312 BOLT; BUZZER
INDICATOR WARNING BUZZER(WF9) M6X16 FLANGE 		0-28650-616-0 01 1 0601-
424 ADAPTER
AIR HORN(WB8) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0103-
505 JOINT; AIR HORN
AIR HORN(WB8) 		1-83439-006-0 01 1 0103-
