◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10852 - LV123/150-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#10501) — 307 parça
çizim 137477
38 139 169 38 386 38 38 5 178 584 423 520 542 292 27 178 292 292 313 371 47 219 294 515 340 297
BalonParca AdiParca NoAdetTipApplied Date
5 GUIDE; HARNESS
6WA1 TC-C(55L) L=360 		1-82699-476-1 01 1 0103-
27 PROTECTOR; EDGE
6SD1 TC(32L) EURO2 SPECIFICATION(THN) 		1-72497-062-1 01 1 0103-0907
27 PROTECTOR; EDGE
6SD1 TC(32L) 		1-72497-062-1 01 1 0908-
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28080-816-0 03 1 0103-0512
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(B) M6X20 FLANGE 		0-28680-620-0 02 1 0103-0512
38 BOLT; CLIP,HARNESS
(B) M6X20 FLANGE 		0-28650-620-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0103-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0103-0103
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0104-0512
38 BOLT; CLIP,HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0104-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 03 1 0103-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
38 BOLT; CLIP,HARNESS
6SD1 TC(32L) (B) M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
38 BOLT; CLIP,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
6SD1 TC(32L) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0103-0512
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) (B) M8X25 FLANGE 		0-28680-825-0 04 1 0103-0512
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) (B) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0103-0107
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) (B) M8X30 FLANGE 		0-28680-830-0 01 1 0108-0512
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X35 FLANGE 		0-28680-835-0 05 1 0103-0512
38 BOLT; CLIP,HARNESS
(B) M8X35 FLANGE 		0-28650-835-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(B) M10X20 FLANGE 		0-28781-020-0 01 1 0103-0512
38 BOLT; CLIP,HARNESS
(B) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		1-09044-079-0 01 1 0103-1105
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0103-1201
38 BOLT; CLIP,HARNESS
(A) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1202-
38 BOLT; CLIP,HARNESS
6SD1 TC(32L) (B) M8X25 FLANGE 		0-28680-825-0 05 1 0103-0512
38 BOLT; CLIP,HARNESS
6SD1 TC(32L) (B) M8X25 FLANGE 		0-28650-825-0 05 1 0601-
38 BOLT; CLIP,HARNESS
6SD1 TC(32L) (B) M8X35 FLANGE 		0-28680-835-0 01 1 0103-0512
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X35 FLANGE 		0-28680-835-0 01 1 0103-0512
38 BOLT; CLIP,HARNESS
6SD1 TC(32L) (B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (B) M8X25 FLANGE 		0-28680-825-0 03 1 0103-0512
38 BOLT; CLIP,HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (B) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) (D) M8X12 		0-20800-812-0 01 1 0103-0512
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) (D) M8X12 		0-20850-812-0 01 1 0601-
47 NUT; GEN TERMINAL
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 01 1 0103-0602
47 NUT; GEN TERMINAL
6WA1 TC-C(55L) M8 FLANGE 		0-91180-108-0 01 1 0603-
139 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0103-0202
139 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0103-0202
139 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0203-0512
139 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0103-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
139 BOLT; BRKT
6SD1 TC(32L) M8X25 FLANGE 		0-28680-825-0 03 1 0103-0512
139 BOLT; BRKT
6SD1 TC(32L) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28680-820-0 01 1 0103-0512
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
178 GROMMET; HARNESS
(A) ID=18 OD=23 T=12 		1-09332-035-0 02 1 0103-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=12 		9-09956-093-1 02 1 0103-
178 GROMMET; HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (B) 		1-82699-219-0 01 1 0103-0907
178 GROMMET; HARNESS
6SD1 TC(32L) (B) 		1-82699-219-0 01 1 0908-
219 NUT
M6 FLANGE 		0-91150-106-0 02 1 0103-0602
219 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0103-0602
219 NUT
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91150-108-0 02 1 0103-0602
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0103-0602
219 NUT
6SD1 TC(32L) M8 FLANGE 		0-91150-108-0 02 1 0103-0602
219 NUT
6WA1 TC-C(55L) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91150-108-0 02 1 0103-0602
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
6SD1 TC(32L) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
6WA1 TC-C(55L) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0103-0602
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0103-0602
219 NUT
6SD1 TC(32L) M8 FLANGE 		0-91150-108-0 04 1 0103-0602
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
6SD1 TC(32L) M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 07 1 0103-0602
219 NUT
M8 FLANGE 		0-91180-108-0 07 1 0603-
219 NUT
M10 FLANGE 		0-91150-210-0 01 1 0103-0306
219 NUT
M10 FLANGE 		0-91150-210-0 02 1 0307-0307
219 NUT
M10 FLANGE 		0-91150-210-0 01 1 0307-0602
219 NUT
M10 FLANGE 		0-91180-210-0 01 1 0603-
219 NUT
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 03 1 0103-0103
219 NUT
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M8 FLANGE 		0-91150-108-0 03 1 0103-0103
219 NUT
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M8 FLANGE 		0-91150-108-0 05 1 0104-0602
219 NUT
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M8 FLANGE 		0-91180-108-0 05 1 0603-
219 NUT
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 03 1 0104-0602
219 NUT
6WA1 TC-C(55L) M8 FLANGE 		0-91180-108-0 03 1 0603-
292 CAP; RUBBER
6SD1 TC(32L) EXC. EURO2 SPECIFICATION(THN) (A) 		1-82690-667-0 01 1 0908-
292 CAP; RUBBER
6SD1 TC(32L) EXC. EURO2 SPECIFICATION(THN) (C) 		1-82690-998-0 01 1 0908-
292 CAP; RUBBER
6WA1 TC-C(55L) (B) 		1-82690-666-0 01 1 0111-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0103-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0103-0202
294 NUT
M8 FLANGE 		0-91150-108-0 04 1 0103-0602
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-
294 NUT
M10 FLANGE 		0-91150-210-0 02 1 0103-0602
294 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603-
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91150-108-0 01 1 0103-0602
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 0603-
313 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
313 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0103-0512
313 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0103-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603-
371 BOLT; GEN HARNESS
6SD1 TC(32L) M8X12 FLANGE 		0-28080-812-0 01 1 0103-0512
371 BOLT; GEN HARNESS
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8X12 FLANGE 		0-28080-812-0 01 1 0103-0512
371 BOLT; GEN HARNESS
6SD1 TC(32L) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
371 BOLT; GEN HARNESS
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
371 BOLT; GEN HARNESS
6WA1 TC-C(55L) M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512
371 BOLT; GEN HARNESS
6WA1 TC-C(55L) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
371 BOLT; GEN HARNESS
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8X30 FLANGE 		0-28680-830-0 01 1 0103-0512
371 BOLT; GEN HARNESS
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
386 BOLT; GRAND HARNESS
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0103-1201
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0103-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0103-0602
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
515 NUT; BRKT
6SD1 TC(32L) M8 FLANGE 		0-91150-108-0 03 1 0103-0602
515 NUT; BRKT
6SD1 TC(32L) M8 FLANGE 		0-91180-108-0 03 1 0603-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0103-
542 TUBE; DISTANCE,FUEL
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-14379-101-0 01 1 0103-
584 GROMMET; WATER LEVEL
6WA1 TC-C(55L) ID=18 OD=23 T=12 		1-09332-035-0 01 1 0103-

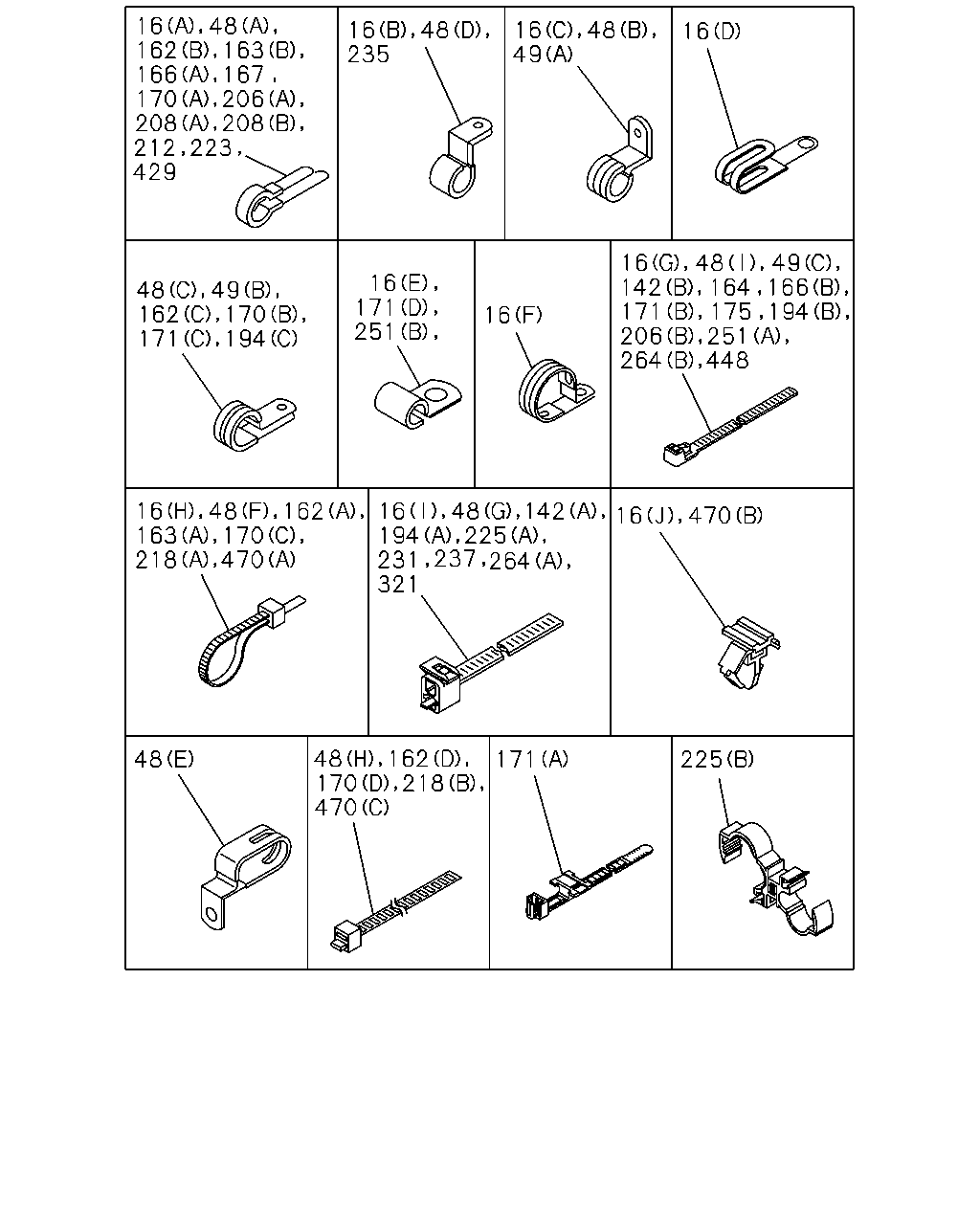

çizim 137484
16 48 16 48 16 48 16 49 235 163 162 166 167 206 170 208 208 223 212 429 48 162 171 49 170 194 251 171 16 16 16 48 49 166 164 142 171 175 194 251 206 264 448 470 16 142 48 16 162 48 16 163 170 194 225 264 237 231 321 470 218 48 48 170 470 162 218 171 225
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 07 1 0103-
16 CLIP; HARNESS
(F) ID=42.7 L=38 		1-09700-583-1 01 1 0103-0107
16 CLIP; HARNESS
(A) ID=33 L=63 		1-09700-807-0 01 1 0108-
16 CLIP; HARNESS
(C) ID=18 L=25 H=50 		1-09701-096-0 01 1 0103-
16 CLIP; HARNESS
(H) L=600 		1-09707-107-1 01 1 0103-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 0103-
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 01 1 0103-
16 CLIP; HARNESS
(J) OD=9 H=6 		1-09709-178-0 02 1 0103-
16 CLIP; HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 02 1 0103-
16 CLIP; HARNESS
(G) L=250 		5-09707-030-1 08 1 0103-
16 CLIP; HARNESS
(G) L=140 		5-09707-031-1 01 1 0103-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (G) L=140 		5-09707-031-1 01 1 0103-
16 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0103-0306
16 CLIP; HARNESS
(D) L=36 		8-94224-891-1 02 1 0307-0307
16 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0307-
16 CLIP; HARNESS
(E) ID=11 L=16 		9-09525-025-0 02 1 0103-0606
16 CLIP; HARNESS
(E) ID=11 L=16 		0-95235-025-0 02 1 0607-
16 CLIP; HARNESS
(E) ID=16 L=20 		9-09525-535-0 01 1 0103-0606
16 CLIP; HARNESS
(E) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(A) ID=18 L=48 		9-09917-429-0 04 1 0103-
16 CLIP; HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0103-
16 CLIP; HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=33 L=63 		1-09700-807-0 03 1 0103-0107
16 CLIP; HARNESS
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=33 L=63 		1-09700-807-0 02 1 0108-
16 CLIP; HARNESS
6SD1 TC(32L) (A) ID=11 L=41 		1-09700-403-0 01 1 0103-
16 CLIP; HARNESS
6SD1 TC(32L) (E) ID=18 L=38 H=23 		1-09701-147-0 01 1 0103-
16 CLIP; HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0104-
16 CLIP; HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (G) L=250 		5-09707-030-1 01 1 0104-
16 CLIP; HARNESS
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=28 L=58 		1-09700-400-0 02 1 0103-
16 CLIP; HARNESS
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=33 L=63 		1-09700-807-0 01 1 0103-0107
16 CLIP; HARNESS
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=33 L=63 		1-09700-807-0 03 1 0108-
16 CLIP; HARNESS
6WA1 TC-C(55L) (B) ID=15 H=24 L=20 		1-09700-606-0 01 1 0103-
16 CLIP; HARNESS
6WA1 TC-C(55L) (G) L=250 		5-09707-030-1 02 1 0103-
16 CLIP; HARNESS
6WA1 TC-C(55L) (E) ID=16 L=60 		9-09525-596-0 02 1 0103-0606
16 CLIP; HARNESS
6WA1 TC-C(55L) (E) ID=16 L=60 		0-95235-596-0 02 1 0607-
16 CLIP; HARNESS
6WA1 TC-C(55L) (F) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0108-0402
16 CLIP; HARNESS
6WA1 TC-C(55L) (F) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=28 L=58 		1-09700-400-0 03 1 0103-
48 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 19 1 0103-
48 CLIP; FRAME HARNESS
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0103-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0103-
48 CLIP; FRAME HARNESS
(C) ID=35 L=35 		1-09700-895-0 04 1 0103-
48 CLIP; FRAME HARNESS
(D) ID=29 H=50 L=45.5 		1-09701-027-0 01 1 0103-
48 CLIP; FRAME HARNESS
(E) ID=11 & 13 H=26 L=48 		1-09701-270-0 04 1 0103-
48 CLIP; FRAME HARNESS
(F) L=300 		1-09707-001-1 02 1 0103-0401
48 CLIP; FRAME HARNESS
(H) L=350 		1-09707-183-0 02 1 0402-
48 CLIP; FRAME HARNESS
(F) L=300 		1-09707-001-1 03 1 0103-0401
48 CLIP; FRAME HARNESS
(H) L=350 		1-09707-183-0 03 1 0402-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0103-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0103-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=18 L=48 		9-09917-429-0 02 1 0103-
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (I) L=140 		5-09707-031-1 01 1 0208-
48 CLIP; FRAME HARNESS
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (E) ID=20X2 H=25 L=45 		1-09701-252-0 01 1 0103-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0103-
48 CLIP; FRAME HARNESS
EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0103-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) (F) L=300 		1-09707-001-1 06 1 0103-0401
48 CLIP; FRAME HARNESS
6SD1 TC(32L) (H) L=350 		1-09707-183-0 06 1 0402-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) (B) ID=14 L=44 		9-09917-427-0 01 1 0103-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=14 L=44 		9-09917-427-0 01 1 0103-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) (B) ID=20 L=50 		9-09917-430-0 07 1 0103-0907
48 CLIP; FRAME HARNESS
6SD1 TC(32L) (B) ID=20 L=50 		9-09917-430-0 08 1 0908-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) (B) ID=22 L=52 		9-09917-431-0 01 1 0103-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (E) ID=20X2 H=25 L=45 		1-09701-252-0 03 1 0103-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) EXC. EURO2 SPECIFICATION(THN) (A) ID=11 L=41 		1-09700-403-0 01 1 0103-0907
48 CLIP; FRAME HARNESS
6SD1 TC(32L) EXC. EURO2 SPECIFICATION(THN) (A) ID=11 L=41 		1-09700-403-0 06 1 0103-0201
48 CLIP; FRAME HARNESS
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=28 L=78 		1-09700-858-0 02 1 0103-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0103-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0103-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0103-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0103-
48 CLIP; FRAME HARNESS
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=22 L=52 		9-09917-431-0 02 1 0103-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) (E) ID=11 & 13 H=26 L=48 		1-09701-270-0 02 1 0103-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) (F) L=300 		1-09707-001-1 10 1 0103-0401
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) (H) L=350 		1-09707-183-0 10 1 0402-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) (G) L=180 		1-09707-162-1 01 1 0103-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) (B) ID=14 L=44 		9-09917-427-0 07 1 0103-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) (B) ID=20 L=50 		9-09917-430-0 01 1 0103-0907
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=20 L=50 		9-09917-430-0 01 1 0103-0907
48 CLIP; FRAME HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (B) ID=20 L=50 		9-09917-430-0 01 1 0103-0907
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) (B) ID=20 L=50 		9-09917-430-0 01 1 0908-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=20 L=50 		9-09917-430-0 01 1 0908-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0103-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0103-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0103-
49 CLIP; GEN HARNESS
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0103-
49 CLIP; GEN HARNESS
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 0103-
49 CLIP; GEN HARNESS
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (C) L=140 		5-09707-031-1 01 1 0103-
49 CLIP; GEN HARNESS
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (B) ID=25 L=50 		1-09701-019-0 01 1 0103-
142 CLIP; HARNESS,ENG
6SD1 TC(32L) (B) L=140 		5-09707-031-1 05 1 0103-1205
142 CLIP; HARNESS,ENG
6SD1 TC(32L) (B) L=140 		8-98216-431-0 05 1 1206-
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) (A) L=180 		1-09707-162-1 01 1 0103-1207
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) (A) L=180 		8-98216-427-0 01 1 1208-
162 CLIP; SW HARNESS
(B) ID=22 L=52 		9-09917-431-0 01 1 1203-
162 CLIP; SW HARNESS
(B) ID=15 L=65 		1-09700-466-0 04 1 0103-1202
162 CLIP; SW HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 1203-
162 CLIP; SW HARNESS
(C) ID=32 L=35 		1-09701-244-0 01 1 0103-
162 CLIP; SW HARNESS
(A) L=300 		1-09707-001-1 01 1 0103-0401
162 CLIP; SW HARNESS
6WA1 TC-C(55L) EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB> (A) L=300 		1-09707-001-1 01 1 0103-0401
162 CLIP; SW HARNESS
FOOT BRAKE W/EXHAUST BRAKE<SJB> (A) L=300 		1-09707-001-1 01 1 0103-0401
162 CLIP; SW HARNESS
(D) L=350 		1-09707-183-0 01 1 0402-
162 CLIP; SW HARNESS
6WA1 TC-C(55L) EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB> (D) L=350 		1-09707-183-0 01 1 0402-
162 CLIP; SW HARNESS
FOOT BRAKE W/EXHAUST BRAKE<SJB> (D) L=350 		1-09707-183-0 01 1 0402-
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 0103-
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 0103-
164 CLIP; BAND METER HARNESS
ELECTRICAL TACHOGRAPH 15-6(PN3),TACHOGRAPH 120KM/H(WC8) L=250 		5-09707-030-1 01 1 0209-
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 04 1 0103-
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 0103-
167 CLIP; HARNESS ACCEL & STOP
ID=11 L=41 		1-09700-403-0 01 1 0103-
167 CLIP; HARNESS ACCEL & STOP
ID=14 L=44 		9-09917-427-0 01 1 0103-
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 0103-
170 CLIP; ELEC HARNESS
(A) ID=18 L=48 		9-09917-429-0 03 1 0103-
170 CLIP; ELEC HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (C) L=300 		1-09707-001-1 03 1 0103-0401
170 CLIP; ELEC HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (D) L=350 		1-09707-183-0 03 1 0402-0907
170 CLIP; ELEC HARNESS
6SD1 TC(32L) (D) L=350 		1-09707-183-0 03 1 0908-
170 CLIP; ELEC HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (A) ID=14 L=44 		9-09917-427-0 01 1 0103-0907
170 CLIP; ELEC HARNESS
6WA1 TC-C(55L) (A) ID=14 L=44 		9-09917-427-0 01 1 0103-0907
170 CLIP; ELEC HARNESS
(A) ID=14 L=44 		9-09917-427-0 01 1 0908-
170 CLIP; ELEC HARNESS
6WA1 TC-C(55L) (C) L=300 		1-09707-001-1 04 1 0103-0401
170 CLIP; ELEC HARNESS
6WA1 TC-C(55L) (D) L=350 		1-09707-183-0 04 1 0402-
171 CLIP; STARTER HARNESS
6SD1 TC(32L) EXC. EURO2 SPECIFICATION(THN) (B) L=140 		5-09707-031-1 09 1 0908-
171 CLIP; STARTER HARNESS
6SD1 TC(32L) (B) L=140 		5-09707-031-1 04 1 0103-0907
171 CLIP; STARTER HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (B) L=140 		5-09707-031-1 04 1 0908-
171 CLIP; STARTER HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (C) ID=28 L=32 		1-09701-107-1 02 1 0103-
171 CLIP; STARTER HARNESS
6SD1 TC(32L) EXC. EURO2 SPECIFICATION(THN) (D) ID=11 L=20 		9-09525-035-0 02 1 0103-0606
171 CLIP; STARTER HARNESS
6SD1 TC(32L) EXC. EURO2 SPECIFICATION(THN) (D) ID=11 L=20 		0-95235-035-0 02 1 0607-0907
171 CLIP; STARTER HARNESS
6SD1 TC(32L) EXC. EURO2 SPECIFICATION(THN) (D) ID=16 L=20 		0-95235-536-0 02 1 0908-
171 CLIP; STARTER HARNESS
6WA1 TC-C(55L) (A) L=175 		1-09707-176-1 01 1 0103-
171 CLIP; STARTER HARNESS
6WA1 TC-C(55L) (B) L=140 		5-09707-031-1 07 1 0103-0103
171 CLIP; STARTER HARNESS
6WA1 TC-C(55L) (B) L=140 		5-09707-031-1 06 1 0103-
175 CLIP; AIR TANK
DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250 		5-09707-030-1 05 1 0103-
175 CLIP; AIR TANK
EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=250 		5-09707-030-1 04 1 0103-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 05 1 0103-
194 CLIP; BAND
(B) L=140 		5-09707-031-1 02 1 0103-1202
194 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 1203-
194 CLIP; BAND
6SD1 TC(32L) (C) ID=24 L=24 		1-09701-001-1 01 1 0103-1202
194 CLIP; BAND
(C) L=300 		1-09707-001-1 02 1 1203-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0103-
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 03 1 0103-
208 CLIP; HARNESS,MAG VLV
6SD1 TC(32L) (A) ID=11 L=41 		1-09700-403-0 01 1 0103-
208 CLIP; HARNESS,MAG VLV
6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> (A) ID=11 L=41 		1-09700-403-0 01 1 0103-
208 CLIP; HARNESS,MAG VLV
6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (A) ID=11 L=41 		1-09700-403-0 02 1 0103-
208 CLIP; HARNESS,MAG VLV
6WA1 TC-C(55L) (B) ID=20 L=50 		9-09917-430-0 02 1 0103-
212 CLIP; HORN HARNESS
ID=11 L=41 		1-09700-403-0 02 1 0103-
218 CLIP; BAND,RR COMB
(A) L=300 		1-09707-001-1 06 1 0103-0103
218 CLIP; BAND,RR COMB
(A) L=300 		1-09707-001-1 02 1 0103-0401
218 CLIP; BAND,RR COMB
(B) L=350 		1-09707-183-0 02 1 0402-
223 CLIP; AIR TANK HARNESS
ID=14 L=44 		9-09917-427-0 04 1 0103-
223 CLIP; AIR TANK HARNESS
6SD1 TC(32L) ID=14 L=44 		9-09917-427-0 01 1 0103-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 02 1 0103-
225 CLIP; AIR TANK HARNESS
(B) ID=12-16 & 12-16 		1-09709-191-0 01 1 0103-
225 CLIP; AIR TANK HARNESS
6WA1 TC-C(55L) (B) ID=6-10 & 10-14 		1-09709-201-1 01 1 0103-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0103-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=13 H=29 L=30 		1-09700-001-0 01 1 0103-
237 CLIP; BAND,ACL
L=180 		1-09707-162-1 01 1 0103-
251 CLIP; WATER LEVEL HARNESS
(A) L=250 		5-09707-030-1 01 1 0103-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=50 		9-09525-085-0 02 1 0103-0606
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=50 		0-95235-085-0 02 1 0607-
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 0103-
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 0103-
321 CLIP; HARNESS LOW PRESS SW
L=180 		1-09707-162-1 01 1 0103-0107
429 CLIP; BOOST SENSOR CONNECTOR
6WA1 TC-C(55L) ID=11 L=41 		1-09700-403-0 02 1 0103-
448 CLIP; AIR SUSP HARNESS
6SD1 TC(32L) L=250 		5-09707-030-1 05 1 0103-
470 CLIP; HARNESS,LICENSE LAMP
(A) L=300 		1-09707-001-1 01 1 0103-0401
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 0402-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0103-
çizim 137485
53 312 53 53 312 211 312 335 279 53 211
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(A) L=82 B=20 		1-47478-420-0 01 1 0103-1404
53 BRACKET; HARNESS
(A) L=82 B=20 		8-98259-390-0 01 1 1405-
53 BRACKET; HARNESS
(B) 		1-47478-422-0 01 1 0103-
53 BRACKET; HARNESS
(C) 		1-82699-356-1 01 1 0103-
53 BRACKET; HARNESS
6SD1 TC(32L) (D) L=90 B=25 		1-47475-530-0 03 1 0103-
211 BRACKET; AXLE HARNESS
(B) L=68 		1-47475-525-0 02 1 0103-
211 BRACKET; AXLE HARNESS
(A) 		1-47476-393-0 02 1 0103-0202
279 STAY; HARNESS 1-82699-873-0 02 1 0103-
312 BRACKET; CLIP HARNESS
(B) 		1-47477-954-0 01 1 0103-
312 BRACKET; CLIP HARNESS
6SD1 TC(32L) (C) 		1-38329-071-0 01 1 0103-
312 BRACKET; CLIP HARNESS
6WA1 TC-C(55L) (A) L=120 		1-82699-465-0 01 1 0103-
335 BRACKET; CONNECTOR 1-82699-425-0 01 1 0103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
