◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10852 - LV123/150-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#10500) — 183 parça

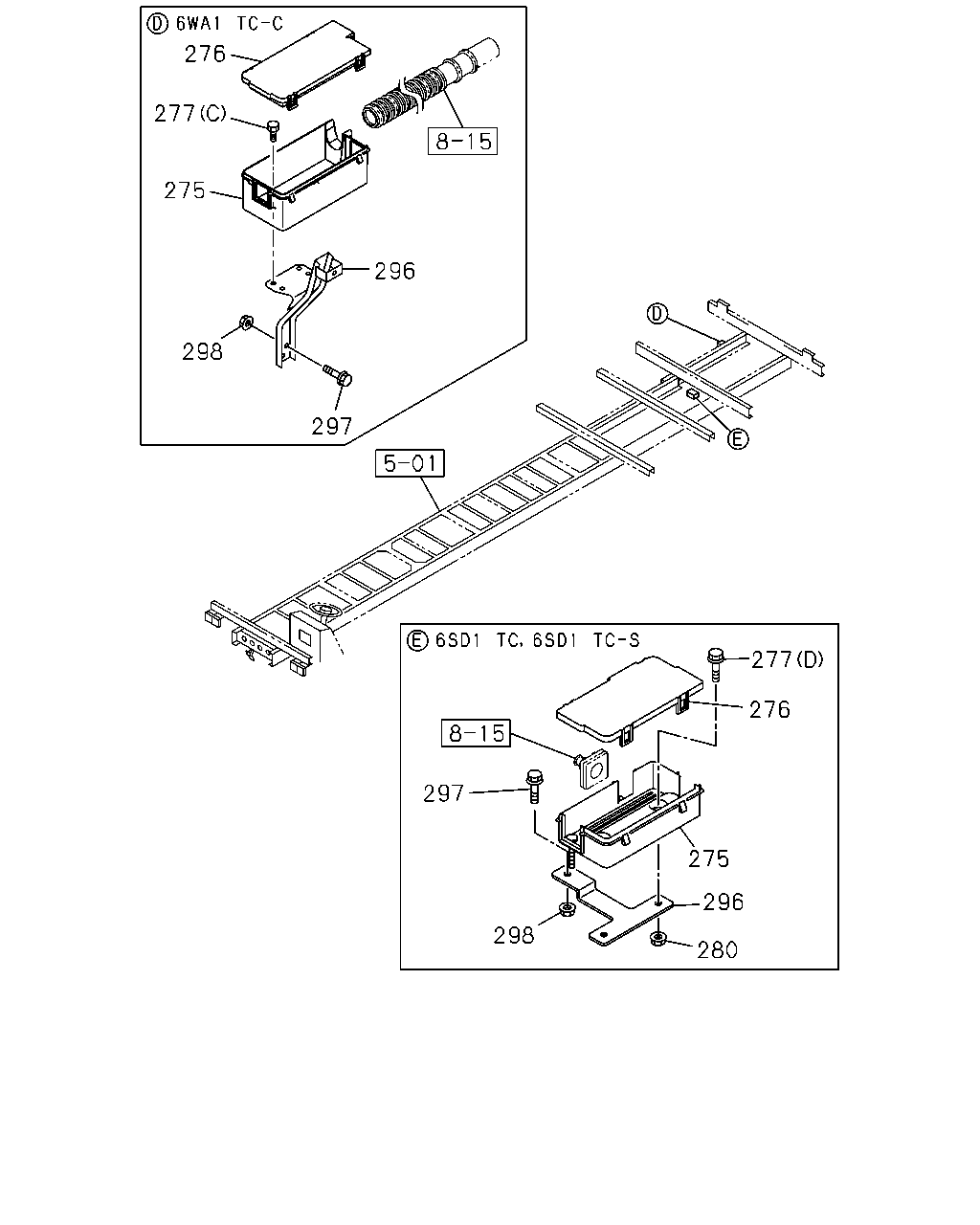

çizim 137473
276 277 275 296 298 297 277 276 297 275 296 298 280
BalonParca AdiParca NoAdetTipApplied Date
275 BOX ASM; FRAME HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) 		1-82699-147-2 01 1 0103-0907
275 BOX ASM; FRAME HARNESS
6SD1 TC(32L) 		1-82699-147-2 01 1 0908-
275 BOX ASM; FRAME HARNESS
6WA1 TC-C(55L) 		1-82699-474-2 01 1 0103-
276 COVER; BOX,FRAME HARNESS
6SD1 TC(32L) EXC. EURO2 SPECIFICATION(THN) 		1-82699-215-0 01 1 0908-
276 COVER; BOX,FRAME HARNESS
6SD1 TC(32L) EURO2 SPECIFICATION(THN) 		1-82699-151-1 01 1 0103-
276 COVER; BOX,FRAME HARNESS
6WA1 TC-C(55L) 		1-82699-475-2 01 1 0103-
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE 		0-28680-820-0 02 1 0103-0512
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE 		0-28680-830-0 04 1 0103-0512
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X12 WING 		1-09064-006-0 02 1 0103-
277 BOLT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE 		0-28680-825-0 04 1 0103-0512
277 BOLT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
277 BOLT; BOX ASM FIX
6WA1 TC-C(55L) (C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0103-0907
277 BOLT; BOX ASM FIX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0103-0907
277 BOLT; BOX ASM FIX
(C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0908-
280 NUT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91150-108-0 04 1 0103-0602
280 NUT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE 		0-91150-108-0 04 1 0103-0602
280 NUT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 04 1 0603-
280 NUT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE 		0-91180-108-0 04 1 0603-
280 NUT; BOX ASM FIX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0103-0512
280 NUT; BOX ASM FIX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M8 		0-91110-508-0 02 1 0601-0907
280 NUT; BOX ASM FIX
6SD1 TC(32L) M8 		0-91110-508-0 02 1 0908-
296 BRACKET; HARNESS BOX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) 		1-82698-227-0 01 1 0103-0907
296 BRACKET; HARNESS BOX
6SD1 TC(32L) 		1-82698-227-0 01 1 0908-
296 BRACKET; HARNESS BOX
6WA1 TC-C(55L) 		1-53441-598-1 01 1 0103-
297 BOLT; BOX BRKT
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512
297 BOLT; BOX BRKT
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0907
297 BOLT; BOX BRKT
6SD1 TC(32L) M8X25 FLANGE 		0-28650-825-0 01 1 0908-
297 BOLT; BOX BRKT
6WA1 TC-C(55L) M8X30 FLANGE 		0-28680-830-0 02 1 0103-0512
297 BOLT; BOX BRKT
6WA1 TC-C(55L) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
298 NUT; BOX BRKT
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M8 FLANGE 		0-91150-108-0 01 1 0103-0602
298 NUT; BOX BRKT
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M8 FLANGE 		0-91180-108-0 01 1 0603-0907
298 NUT; BOX BRKT
6SD1 TC(32L) M8 FLANGE 		0-91180-108-0 01 1 0908-
298 NUT; BOX BRKT
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 02 1 0103-0602
298 NUT; BOX BRKT
6WA1 TC-C(55L) M8 FLANGE 		0-91180-108-0 02 1 0603-

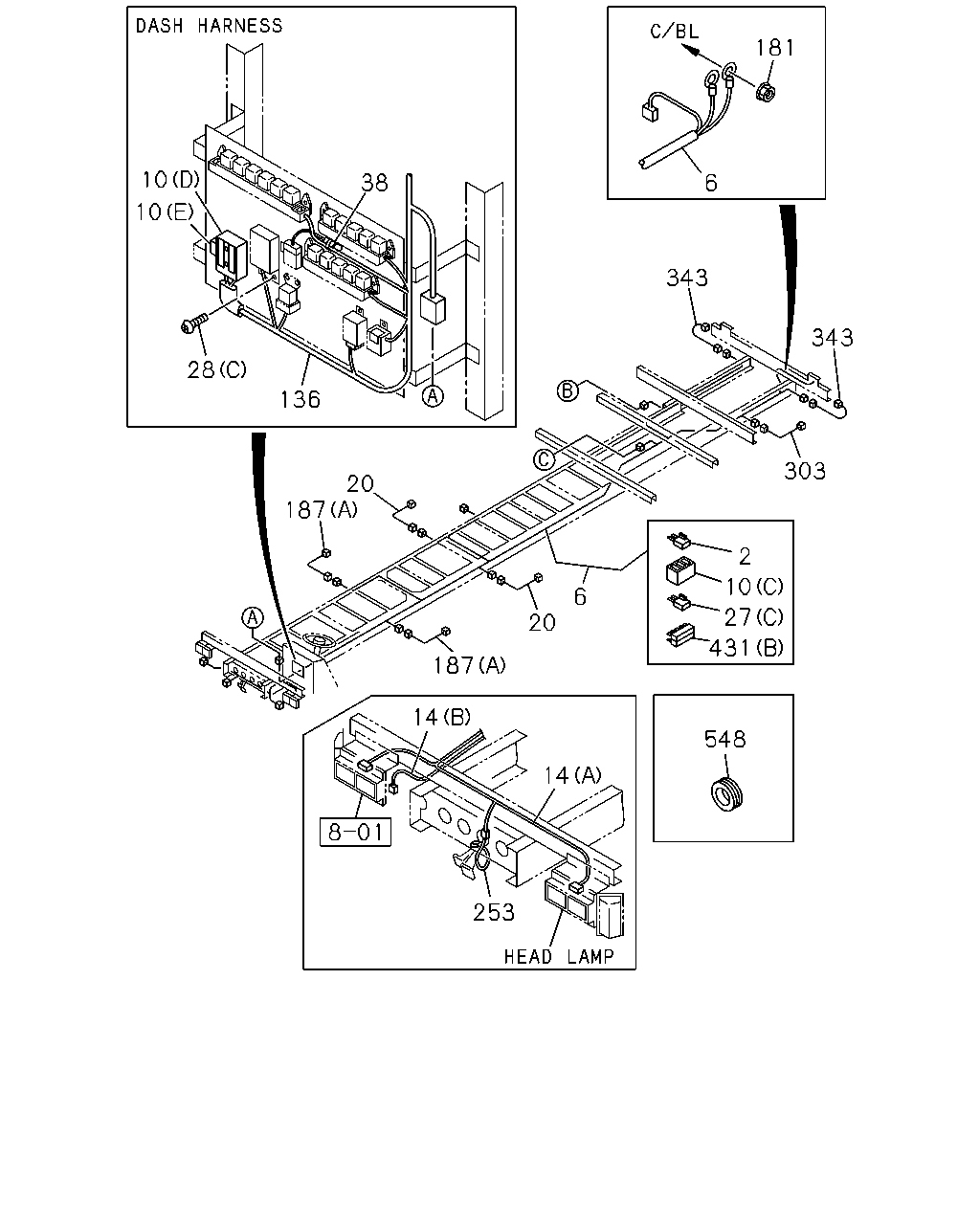

çizim 137474
181 10 38 6 10 343 343 28 136 303 20 187 2 10 6 27 20 431 187 14 548 14 253
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L) BLACK 2P-1.5A 		8-94422-639-1 01 1 0103-
6 HARNESS; FRAME
6SD1 TC(32L) EURO2 SPECIFICATION(THN) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-564-3 01 1 0103-0907
6 HARNESS; FRAME
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-564-3 01 1 0908-
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EURO2 SPECIFICATION(THN) 		1-82673-565-3 01 1 0103-0907
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-565-3 01 1 0908-
6 HARNESS; FRAME
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) EXC. EURO2 SPECIFICATION(THN) 		1-82674-041-2 01 1 0103-0907
6 HARNESS; FRAME
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT), EURO2SPECIFICATION(THN) 		1-82674-040-2 01 1 0103-0907
6 HARNESS; FRAME
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-571-3 01 1 0103-
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82673-570-3 01 1 0103-
10 BOX; FUSE,HARNESS
(E) 10AX1 25AX1 		1-82510-579-0 01 1 0103-
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A 		1-82510-234-2 01 1 0103-
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A 		1-82510-235-2 01 1 0103-
10 BOX; FUSE,HARNESS
6SD1 TC(32L) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0103-
10 BOX; FUSE,HARNESS
6SD1 TC(32L) (D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0103-
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0103-
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 0103-0105
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0103-0105
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0106-
14 HARNESS; HEADLAMP
(B) 		1-82639-071-1 02 1 0103-0103
14 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-071-2 02 1 0103-0407
14 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>, HALOGEN HEADLAMPS<TT5> (B) 		1-82639-071-2 02 1 0103-0407
14 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-071-2 02 1 0408-0409
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-072-2 02 1 0103-0407
14 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) 		1-82639-072-2 02 1 0408-0409
14 HARNESS; HEADLAMP
(B) 		1-82639-072-2 02 1 0410-
14 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) 		1-82673-574-0 02 1 0103-
20 HARNESS; SIDE FLASHER
TURN SIGNAL LAMP SIDE<TEL> 		1-82638-388-1 02 1 0103-
27 FUSE UNIT
(B) 10A RED 		5-82516-002-0 AR 1 0103-
27 FUSE UNIT
(C) 15A BLUE 		5-82516-003-0 AR 1 0103-
27 FUSE UNIT
(B) 25A CLEAR 		5-82516-005-0 AR 1 0103-
27 FUSE UNIT
(C) 7.5A BROWN 		8-94159-007-0 AR 1 0103-
27 FUSE UNIT
(B) 30A GREEN 		8-94159-008-0 AR 1 0103-
27 FUSE UNIT
(A) 100A 		9-82941-126-0 AR 1 0103-
27 FUSE UNIT
(A) 125A 		9-82941-130-1 AR 1 0103-
28 SCREW; FUSE BOX
(B) M6X42 		8-97811-324-0 02 1 0103-
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		9-03910-625-0 04 1 0103-0604
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0605-
28 SCREW; FUSE BOX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0103-
28 SCREW; FUSE BOX
6WA1 TC-C(55L) (C) M5X12 		9-93490-512-0 02 1 0103-
38 HARNESS; CHAS
ENGINE OVERRUN BUZZER<SK4> 		1-82625-451-0 01 1 0103-
136 HARNESS; DASH
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-808-3 01 1 0103-
136 HARNESS; DASH
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-806-3 01 1 0103-
136 HARNESS; DASH
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-811-3 01 1 0103-
136 HARNESS; DASH
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-810-3 01 1 0103-
181 NUT; GLOW PLUG HARNESS
INTAKE HEATER<SL2> M4 FLANGE 		5-09440-007-0 01 1 0202-
187 HARNESS; AXLE
(A) 		1-82674-557-0 02 1 0103-
187 HARNESS; AXLE
(B) 		1-82674-559-1 01 1 0103-
253 HARNESS; EXT,HORN
AIR HORN(WB8) 		1-82673-576-0 01 1 0103-
253 HARNESS; EXT,HORN
EXC. AIR HORN(WB8) 		1-82673-575-0 01 1 0103-
303 HARNESS; WATER LEVEL 1-82670-567-0 01 1 0103-
343 HARNESS; EXT,RR COMB LAMP
LAMPS TAIL AND STOP DELUXE<T81> 		1-82673-577-0 02 1 0103-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 03 1 0103-
431 CONNECTOR; JOINT
6SD1 TC(32L),6WA1 TC-C(55L) (B) 10P 		8-97077-943-0 01 1 0103-
548 GROMMET
ID=18 OD=23 T=12 		1-09332-035-0 02 1 0103-

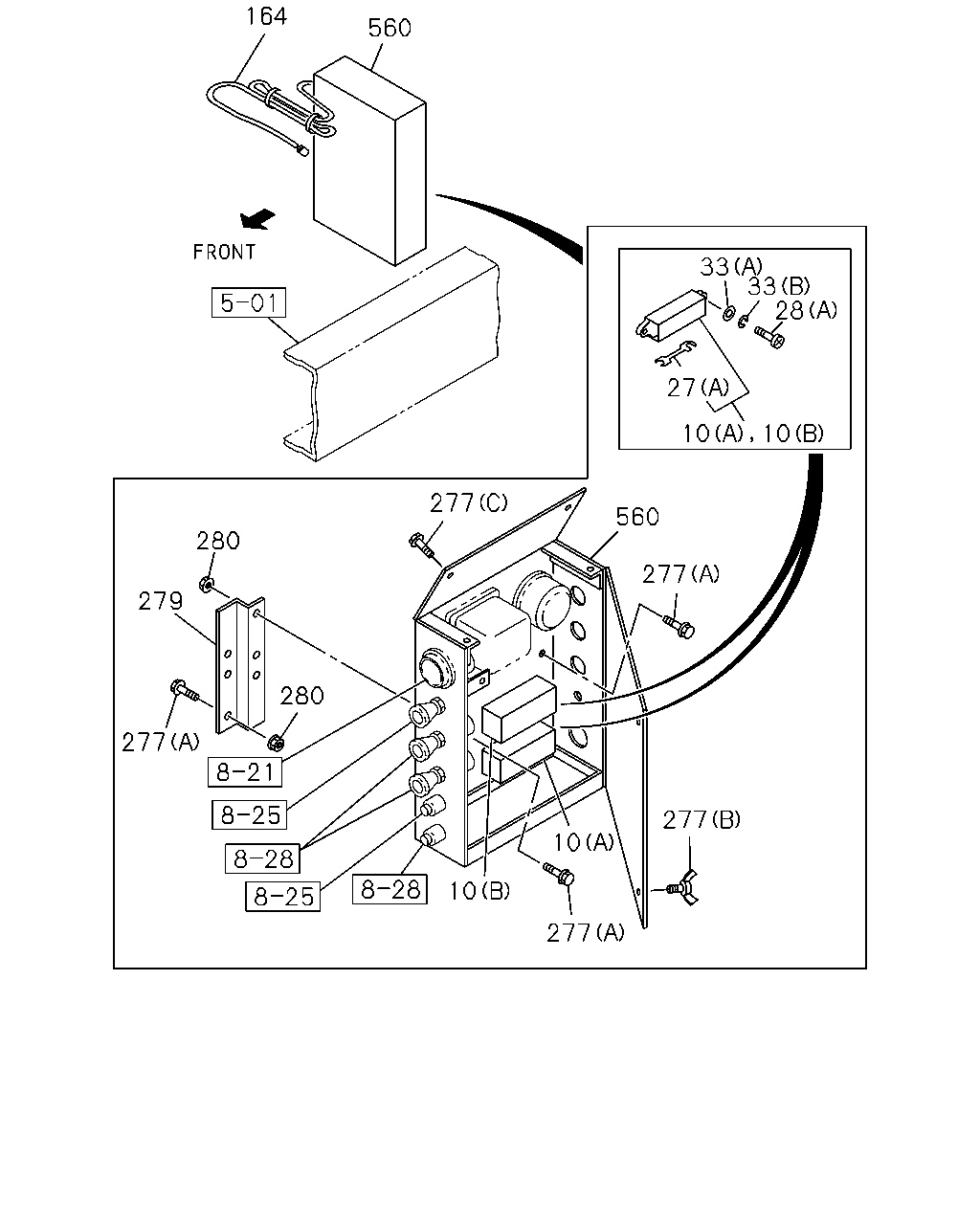

çizim 137478
164 560 33 33 28 27 10 10 277 560 280 277 279 280 277 277 10 10 277
BalonParca AdiParca NoAdetTipApplied Date
10 BOX; FUSE,HARNESS
(E) 10AX1 25AX1 		1-82510-579-0 01 1 0103-
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A 		1-82510-234-2 01 1 0103-
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A 		1-82510-235-2 01 1 0103-
10 BOX; FUSE,HARNESS
6SD1 TC(32L) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0103-
10 BOX; FUSE,HARNESS
6SD1 TC(32L) (D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0103-
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0103-
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 0103-0105
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0103-0105
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0106-
27 FUSE UNIT
(B) 10A RED 		5-82516-002-0 AR 1 0103-
27 FUSE UNIT
(C) 15A BLUE 		5-82516-003-0 AR 1 0103-
27 FUSE UNIT
(B) 25A CLEAR 		5-82516-005-0 AR 1 0103-
27 FUSE UNIT
(C) 7.5A BROWN 		8-94159-007-0 AR 1 0103-
27 FUSE UNIT
(B) 30A GREEN 		8-94159-008-0 AR 1 0103-
27 FUSE UNIT
(A) 100A 		9-82941-126-0 AR 1 0103-
27 FUSE UNIT
(A) 125A 		9-82941-130-1 AR 1 0103-
28 SCREW; FUSE BOX
(B) M6X42 		8-97811-324-0 02 1 0103-
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		9-03910-625-0 04 1 0103-0604
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0605-
28 SCREW; FUSE BOX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0103-
28 SCREW; FUSE BOX
6WA1 TC-C(55L) (C) M5X12 		9-93490-512-0 02 1 0103-
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		9-09150-506-0 02 1 0103-0603
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		0-91510-506-0 02 1 0604-
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 0103-
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1 		9-09150-506-0 04 1 0103-0603
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1 		0-91510-506-0 04 1 0604-
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=6.4 		9-09160-506-0 04 1 0103-
164 HARNESS; ELEC
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82673-754-0 01 1 0103-
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE 		0-28680-820-0 02 1 0103-0512
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE 		0-28680-830-0 04 1 0103-0512
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
277 BOLT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) M8X12 WING 		1-09064-006-0 02 1 0103-
277 BOLT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE 		0-28680-825-0 04 1 0103-0512
277 BOLT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
277 BOLT; BOX ASM FIX
6WA1 TC-C(55L) (C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0103-0907
277 BOLT; BOX ASM FIX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0103-0907
277 BOLT; BOX ASM FIX
(C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0908-
279 BRACKET; CONNECTOR BOX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-48495-200-2 02 1 0103-
280 NUT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91150-108-0 04 1 0103-0602
280 NUT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE 		0-91150-108-0 04 1 0103-0602
280 NUT; BOX ASM FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE 		0-91180-108-0 04 1 0603-
280 NUT; BOX ASM FIX
GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) M8 FLANGE 		0-91180-108-0 04 1 0603-
280 NUT; BOX ASM FIX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M8 		9-09110-408-0 02 1 0103-0512
280 NUT; BOX ASM FIX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) M8 		0-91110-508-0 02 1 0601-0907
280 NUT; BOX ASM FIX
6SD1 TC(32L) M8 		0-91110-508-0 02 1 0908-
560 BOX; ELECTRIC
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-82698-164-3 01 1 0103-

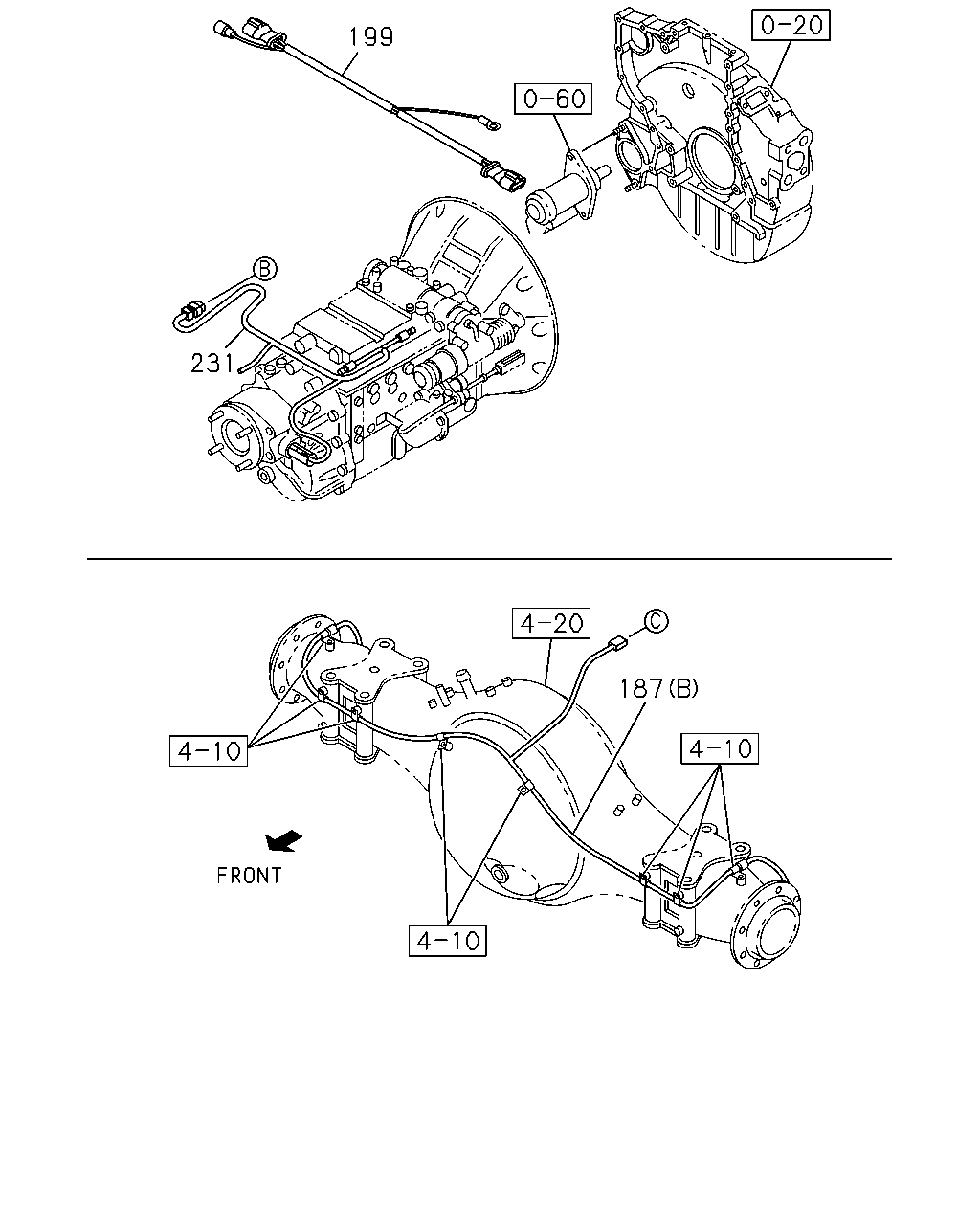

çizim 137488
199 231 187
BalonParca AdiParca NoAdetTipApplied Date
187 HARNESS; AXLE
(A) 		1-82674-557-0 02 1 0103-
187 HARNESS; AXLE
(B) 		1-82674-559-1 01 1 0103-
199 HARNESS; STARTER
6SD1 TC(32L) 		1-82641-150-2 01 1 0103-
199 HARNESS; STARTER
6WA1 TC-C(55L) 		1-82641-151-1 01 1 0103-
231 HARNESS; TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-82673-573-0 01 1 0103-
231 HARNESS; TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82673-572-0 01 1 0103-

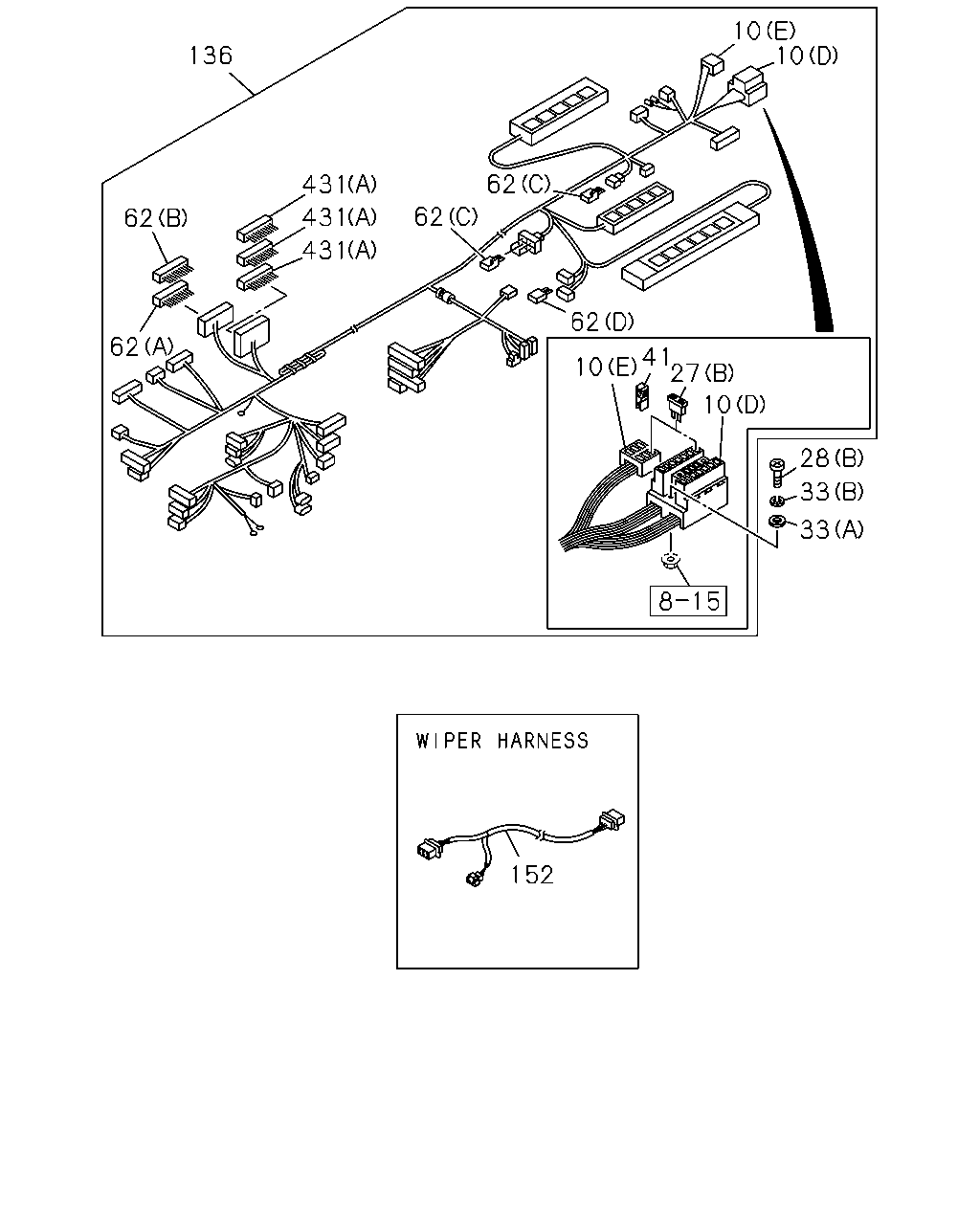

çizim 137583
10 10 136 62 431 62 431 62 431 62 62 41 10 27 10 28 33 33 152
BalonParca AdiParca NoAdetTipApplied Date
10 BOX; FUSE,HARNESS
(E) 10AX1 25AX1 		1-82510-579-0 01 1 0103-
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) 125A 		1-82510-234-2 01 1 0103-
10 BOX; FUSE,HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 100A 		1-82510-235-2 01 1 0103-
10 BOX; FUSE,HARNESS
6SD1 TC(32L) (C) 7.5AX1 15AX1 		1-82510-577-0 01 1 0103-
10 BOX; FUSE,HARNESS
6SD1 TC(32L) (D) 10AX13 15AX5 25AX2 30AX1 		1-82510-578-0 01 1 0103-
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (C) 7.5AX2 15AX1 		1-82510-584-0 01 1 0103-
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) 10AX14 15AX5 20AX1 30AX1 		1-82510-427-0 01 1 0103-0105
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0103-0105
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) (D) 10AX14 15AX5 25AX2 30AX1 		1-82510-596-0 01 1 0106-
27 FUSE UNIT
(B) 10A RED 		5-82516-002-0 AR 1 0103-
27 FUSE UNIT
(C) 15A BLUE 		5-82516-003-0 AR 1 0103-
27 FUSE UNIT
(B) 25A CLEAR 		5-82516-005-0 AR 1 0103-
27 FUSE UNIT
(C) 7.5A BROWN 		8-94159-007-0 AR 1 0103-
27 FUSE UNIT
(B) 30A GREEN 		8-94159-008-0 AR 1 0103-
27 FUSE UNIT
(A) 100A 		9-82941-126-0 AR 1 0103-
27 FUSE UNIT
(A) 125A 		9-82941-130-1 AR 1 0103-
28 SCREW; FUSE BOX
(B) M6X42 		8-97811-324-0 02 1 0103-
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		9-03910-625-0 04 1 0103-0604
28 SCREW; FUSE BOX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M6X25 W/LK WASHER 		0-36220-625-0 04 1 0605-
28 SCREW; FUSE BOX
6SD1 TC(32L) EURO2 SPECIFICATION(THN) (C) M5X12 		9-93490-512-0 02 1 0103-
28 SCREW; FUSE BOX
6WA1 TC-C(55L) (C) M5X12 		9-93490-512-0 02 1 0103-
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		9-09150-506-0 02 1 0103-0603
33 WASHER; LK,FUSE BOX FIX
(A) ID=6.1 		0-91510-506-0 02 1 0604-
33 WASHER; LK,FUSE BOX FIX
(B) ID=6.4 		9-09160-506-0 02 1 0103-
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1 		9-09150-506-0 04 1 0103-0603
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=6.1 		0-91510-506-0 04 1 0604-
33 WASHER; LK,FUSE BOX FIX
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=6.4 		9-09160-506-0 04 1 0103-
41 PULLER; FUSE
L=31.0 B=10.0 		8-94369-144-0 01 1 0103-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0103-
62 DIODE; HARNESS
(B) BLACK 11P 		1-82699-704-0 01 1 0103-
62 DIODE; HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 05 1 0103-
62 DIODE; HARNESS
6WA1 TC-C(55L) (D) BLACK 3P-1.5A 		8-94422-640-1 01 1 0103-
136 HARNESS; DASH
6SD1 TC(32L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-808-3 01 1 0103-
136 HARNESS; DASH
6SD1 TC(32L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-806-3 01 1 0103-
136 HARNESS; DASH
6WA1 TC-C(55L) GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-811-3 01 1 0103-
136 HARNESS; DASH
6WA1 TC-C(55L) EXC. GENERATOR MITSUBISHI 24V-110AX2 6KW(NHT) 		1-82629-810-3 01 1 0103-
152 HARNESS; WIPER
WIPER MOTOR KIT<ST7> 		1-82625-630-0 01 1 0103-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 03 1 0103-
431 CONNECTOR; JOINT
6SD1 TC(32L),6WA1 TC-C(55L) (B) 10P 		8-97077-943-0 01 1 0103-
çizim 137590
13
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
6WA1 TC-C(55L) 		1-82640-553-4 01 1 0103-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
