7-50 — FRONT SEAT (#10497) — 130 parça

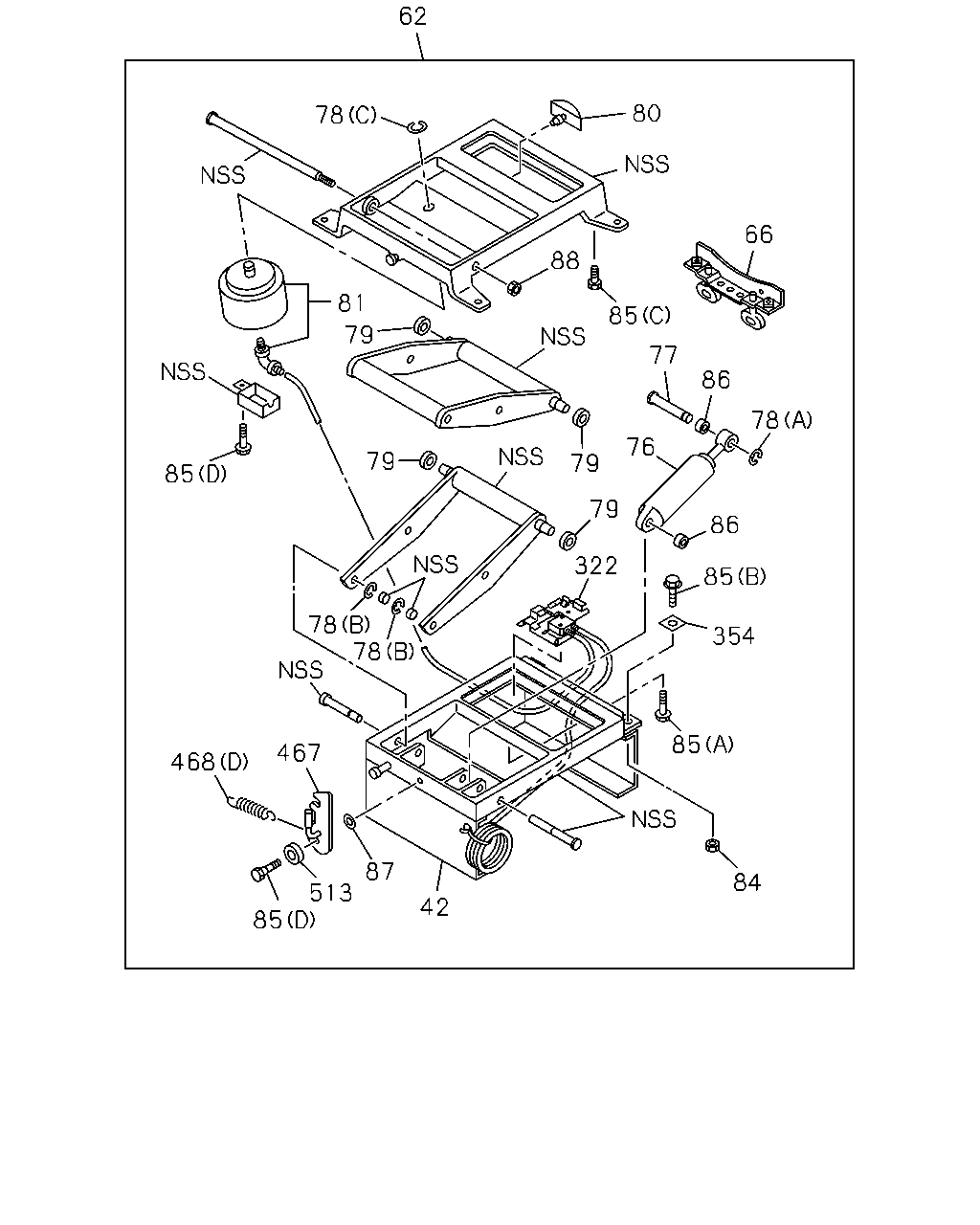

62 78 81 79 80 88 85 66 77 86 78 76 79 79 86 85 354 322 79 85 78 78 467 468 85 513 87 42 84 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	STAND; DRIVER SEAT AIR SUSP DRIVER SEAT(A56)	1-75590-021-2	02	1	0103-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	1-75530-156-8	01	1	0103-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT(A56)	1-75538-145-0	02	1	0103-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT(A56)	1-75538-139-0	01	1	0103-
77	PIN; DAMPER AIR SUSP DRIVER SEAT(A56)	1-75538-138-2	01	1	0103-
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) (A) ID=8	9-09185-408-0	01	1	0103-
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) (B) ID=10	9-09185-410-0	02	1	0103-0411
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) (C) ID=15	9-09185-415-0	01	1	0103-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT(A56)	1-75538-159-0	04	1	0103-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT(A56)	1-09987-123-0	01	1	0103-
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56)	1-75538-151-2	01	1	0103-1409
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56)	8-98242-816-0	01	1	1410-
84	NUT; AIR SUSP AIR SUSP DRIVER SEAT(A56) M8 FLANGE	5-09440-005-0	02	1	0103-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1410-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (B) M8X30 FLANGE	0-28080-830-0	04	1	0103-0903
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (B) M8X30 FLANGE	0-28050-830-0	04	1	0904-1010
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (B) M8X30 W/LK&PL WASHER	0-50140-830-0	04	1	1011-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	0103-0105
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (A) M6X12	1-75538-208-1	02	1	0106-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (D)	1-09980-577-1	01	1	0103-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (C) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0103-1409
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) (C) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1410-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT(A56) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0103-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT(A56) ID=8.2	9-09150-508-0	01	1	0103-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT(A56) M10	1-75537-273-1	01	1	0103-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT(A56)	1-75530-110-0	01	1	0103-0212
354	BRACKET; SUSPENSION DEVICE AIR SUSP DRIVER SEAT(A56)	1-75590-031-0	04	1	0103-
467	LEVER; LOCK AIR SUSP DRIVER SEAT(A56)	1-75538-134-0	01	1	0103-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (A)	1-75518-206-0	01	1	0103-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (B)	1-75518-207-0	01	1	0103-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (C)	1-75518-208-0	02	1	0103-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (D)	1-75538-132-0	01	1	0103-
513	SPACER; LEVER AIR SUSP DRIVER SEAT(A56)	1-75538-133-0	01	1	0103-

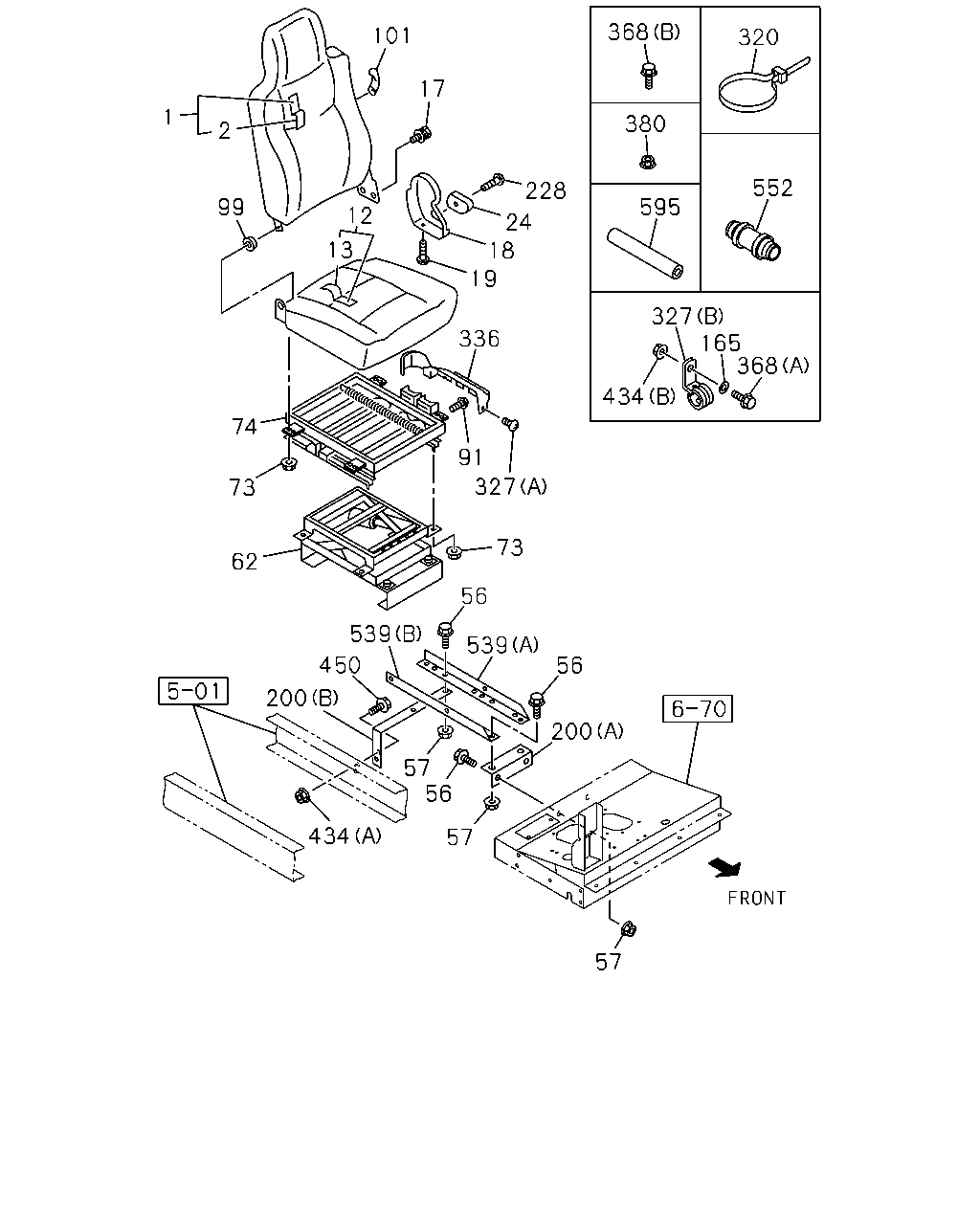

368 101 320 17 1 380 2 552 228 12 99 595 24 18 19 13 327 165 368 336 434 74 91 327 73 73 62 56 539 539 450 56 200 200 57 56 434 57 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56)	1-75207-163-0	01	1	0103-0212
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56)	1-75207-450-0	01	1	0301-0308
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56)	1-75208-073-2	01	1	0309-0903
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56)	8-98135-614-0	01	1	0904-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT(A56)	1-75116-562-0	01	1	0103-0308
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT(A56)	1-75116-708-1	01	1	0309-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56)	1-75207-149-1	01	1	0103-0308
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56)	1-75026-697-3	01	1	0309-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT(A56)	1-75116-714-0	01	1	0103-0308
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT(A56)	1-75116-685-1	01	1	0309-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56) M8X20	8-97255-906-0	02	1	0103-
18	COVER; RECLINING AIR SUSP DRIVER SEAT(A56)	1-75418-052-0	01	1	0103-0308
18	COVER; RECLINING AIR SUSP DRIVER SEAT(A56) DARK GRAY	8-97859-018-0	01	1	0309-
19	SCREW; COVER AIR SUSP DRIVER SEAT(A56) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0103-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT(A56)	1-75418-056-0	01	1	0103-0308
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT(A56) DARK GRAY	8-97859-019-0	01	1	0309-0903
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT(A56)	1-75418-067-0	01	1	0904-
56	BOLT; STAY M10X30 FLANGE	0-28681-030-0	06	1	0103-0512
56	BOLT; STAY M10X30 FLANGE	0-28651-030-0	06	1	0601-
57	NUT; STAY M10 FLANGE	0-91150-210-0	06	1	0103-0602
57	NUT; STAY M10 FLANGE	0-91180-210-0	06	1	0603-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56)	1-75530-156-8	01	1	0103-
73	NUT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) M8 FLANGE	1-75538-207-0	08	1	0103-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	1-75518-318-1	01	1	0103-0105
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	1-75518-331-0	01	1	0106-
91	SCREW; SEAT ADJ COVER AIR SUSP DRIVER SEAT(A56) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0103-
99	BUSHING; SEAT BACK AIR SUSP DRIVER SEAT(A56)	8-97854-087-0	01	1	0103-
101	LEVER ASM; LUMBAR AIR SUSP DRIVER SEAT(A56)	5-75190-138-0	01	1	0103-
165	WASHER; PL AIR SUSP DRIVER SEAT(A56) ID=10.5 OD=26	9-09160-710-0	01	1	0103-
200	BRACKET; SEAT (A)	1-75590-071-0	01	1	0103-
200	BRACKET; SEAT (B)	1-75590-072-0	01	1	0103-
228	SCREW; KNOB AIR SUSP DRIVER SEAT(A56) M4X6	8-97042-273-0	01	1	0103-0903
228	SCREW; KNOB AIR SUSP DRIVER SEAT(A56) M4	8-98062-662-0	01	1	0904-
320	CLIP; BAND,SEAT AIR SUSP DRIVER SEAT(A56) L=250	1-09707-126-0	02	1	0103-
327	CLIP; COVER AIR SUSP DRIVER SEAT(A56) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	0103-
327	CLIP; COVER AIR SUSP DRIVER SEAT(A56) (A)	1-09987-249-0	01	1	0103-0308
336	COVER; DRIVER SEAT AIR SUSP DRIVER SEAT(A56)	1-75518-194-2	01	1	0103-0308
336	COVER; DRIVER SEAT AIR SUSP DRIVER SEAT(A56)	1-75518-313-0	01	1	0309-
368	BOLT; SEAT AIR SUSP DRIVER SEAT(A56) (A) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
368	BOLT; SEAT AIR SUSP DRIVER SEAT(A56) (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
368	BOLT; SEAT AIR SUSP DRIVER SEAT(A56) (B) M10X25 FLANGE	0-28681-025-0	04	1	0103-0512
368	BOLT; SEAT AIR SUSP DRIVER SEAT(A56) (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-
380	NUT; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) M10 FLANGE	0-91150-210-0	04	1	0103-0602
380	NUT; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) M10 FLANGE	0-91180-210-0	04	1	0603-
434	NUT; BRKT (A) M10 FLANGE	0-91150-210-0	02	1	0103-0602
434	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0603-
434	NUT; BRKT AIR SUSP DRIVER SEAT(A56) (B) M8 FLANGE	0-91150-108-0	01	1	0103-0602
434	NUT; BRKT AIR SUSP DRIVER SEAT(A56) (B) M8 FLANGE	0-91180-108-0	01	1	0603-
450	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	02	1	0103-0512
450	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0601-
539	STAY; SEAT (A)	1-75590-073-1	01	1	0103-
539	STAY; SEAT (B)	1-75590-074-1	01	1	0103-
552	CONNECTOR AIR SUSP DRIVER SEAT(A56)	1-09661-310-0	01	1	0103-
595	TUBE; NYLON AIR SUSP DRIVER SEAT(A56) AIR HORN(WB8) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0103-0212
595	TUBE; NYLON AIR SUSP DRIVER SEAT(A56) AIR HORN(WB8) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0301-

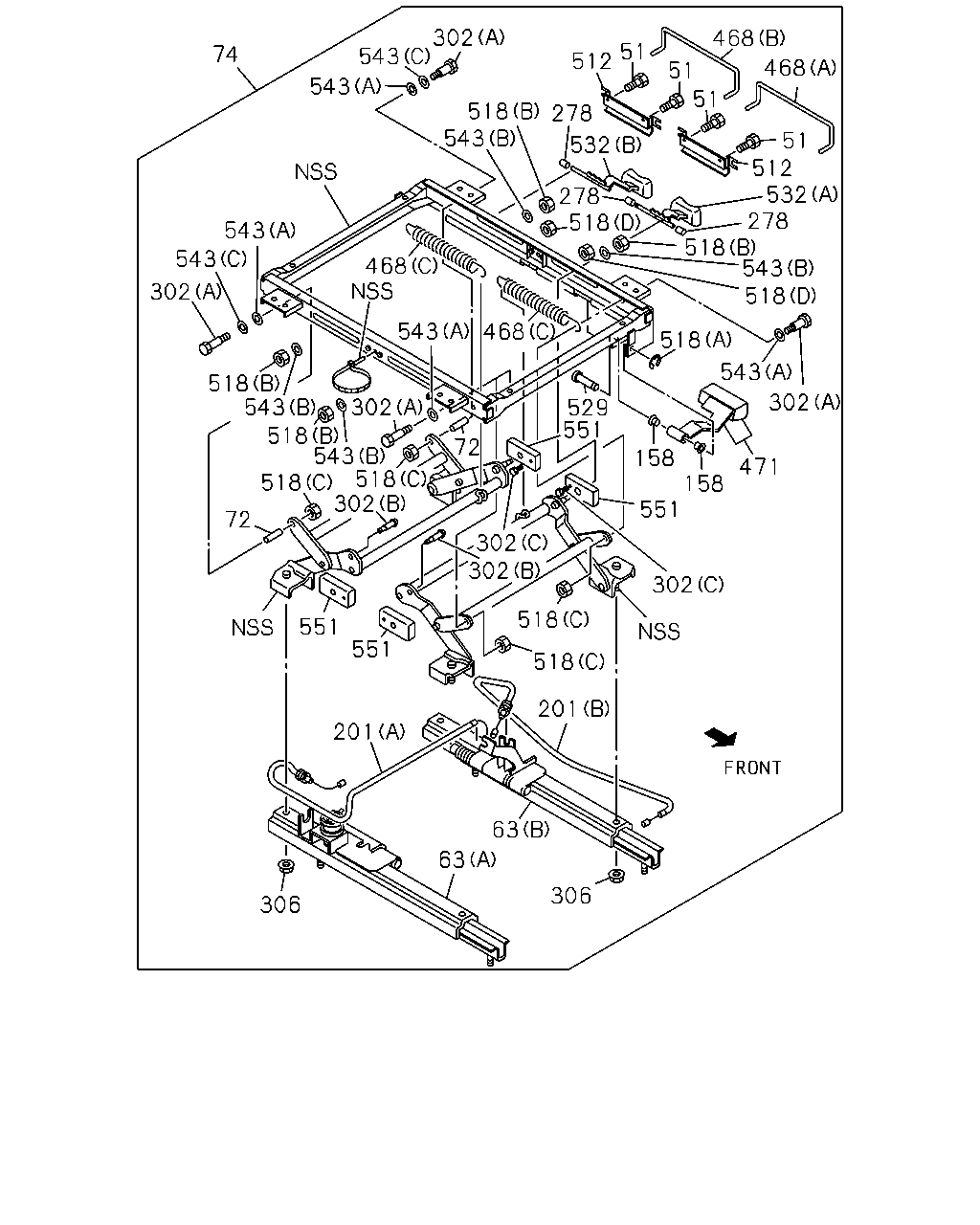

302 543 468 51 12 74 468 51 543 51 518 543 278 51 512 532 278 518 543 518 532 278 518 543 468 543 468 302 543 518 518 543 518 543 518 518 302 543 302 302 529 551 158 72 471 158 302 302 551 72 302 518 551 551 518 201 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56)	1-75207-149-1	01	1	0103-0308
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56)	1-75026-697-3	01	1	0309-
51	SCREW; COVER AIR SUSP DRIVER SEAT(A56) M6X12 W/LK WASHER	9-03910-612-0	04	1	0103-0105
51	SCREW; COVER AIR SUSP DRIVER SEAT(A56)	1-75518-325-1	04	1	0106-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) (A)	1-75518-227-1	01	1	0103-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) (B)	1-75518-324-0	01	1	0103-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT(A56)	1-75518-269-0	02	1	0103-0105
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT(A56)	1-75518-334-1	02	1	0106-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	1-75518-318-1	01	1	0103-0105
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56)	1-75518-331-0	01	1	0106-
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT(A56)	1-75518-209-0	02	1	0103-
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56) (A) L=667	1-75518-288-0	01	1	0103-
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56) (B) L=605	1-75518-289-1	01	1	0103-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT(A56)	1-75518-244-0	03	1	0103-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (B)	1-75518-266-2	02	1	0103-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (A)	1-75518-270-1	04	1	0103-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (C)	1-75518-271-1	02	1	0103-0105
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) (C)	1-75518-336-1	02	1	0106-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) M8 FLANGE	1-75538-207-0	06	1	0103-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (A)	1-75518-206-0	01	1	0103-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (B)	1-75518-207-0	01	1	0103-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (C)	1-75518-208-0	02	1	0103-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) (D)	1-75538-132-0	01	1	0103-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT(A56)	8-98107-870-0	01	1	0904-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT(A56)	1-75518-290-0	01	1	0103-0903
512	COVER; LEVER AIR SUSP DRIVER SEAT(A56)	1-75518-245-1	02	1	0103-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (A)	1-75518-263-0	01	1	0103-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (C) M8	1-75518-264-0	04	1	0103-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (D) M6 LOCK NUT	5-09984-020-0	02	1	0103-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) (B) M8 FLANGE	8-94152-886-0	04	1	0103-
529	PIN; LINK AIR SUSP DRIVER SEAT(A56)	1-75518-262-0	01	1	0103-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) (A)	1-75518-221-0	01	1	0103-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) (B)	1-75518-222-1	01	1	0103-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (B) ID=8.4	9-09160-508-0	04	1	0103-0105
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (B) ID=6.4	9-09160-506-0	04	1	0106-0212
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (B) ID=8.4	9-09160-508-0	04	1	0301-0308
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (B) ID=6.4	9-09160-506-0	04	1	0309-0602
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (B) ID=8.4	9-09160-508-0	04	1	0603-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (A) ID=10.5	9-09164-510-0	02	1	0103-0105
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (A)	1-75518-335-0	02	1	0106-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) (C)	1-75518-337-0	02	1	0106-0411
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT(A56)	1-75518-265-0	04	1	0103-
