Sayfa 6-47 - Isuzu EPC

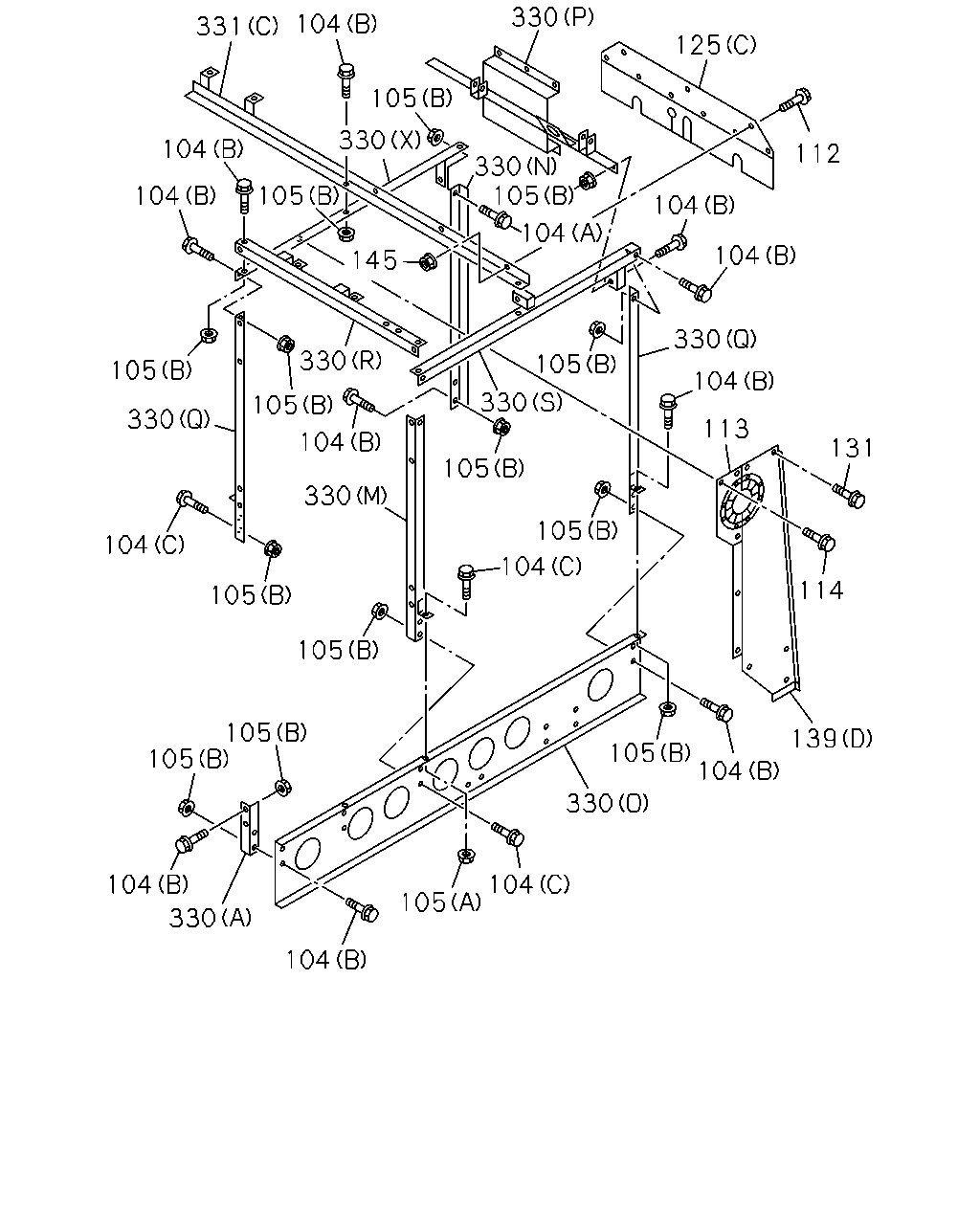

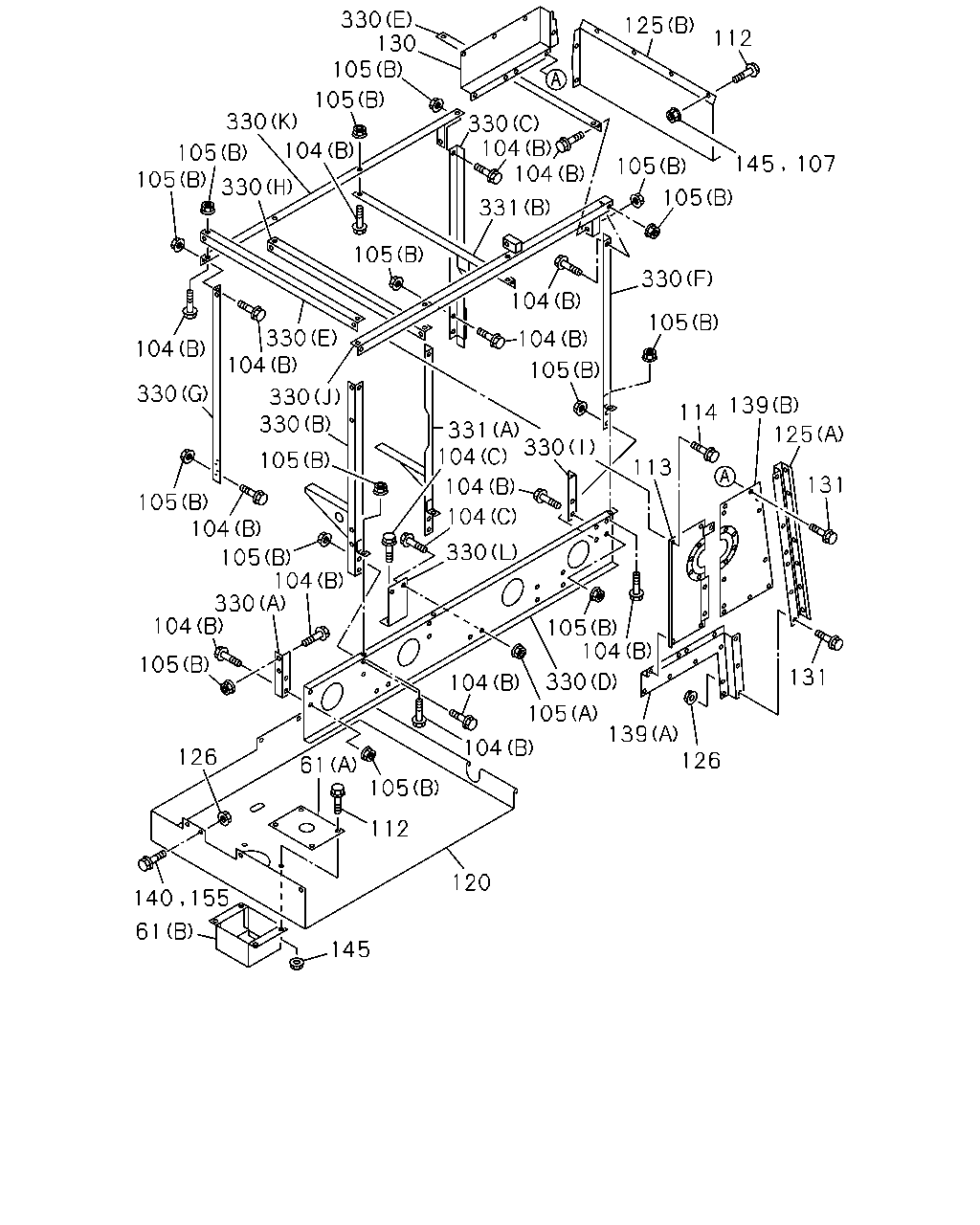

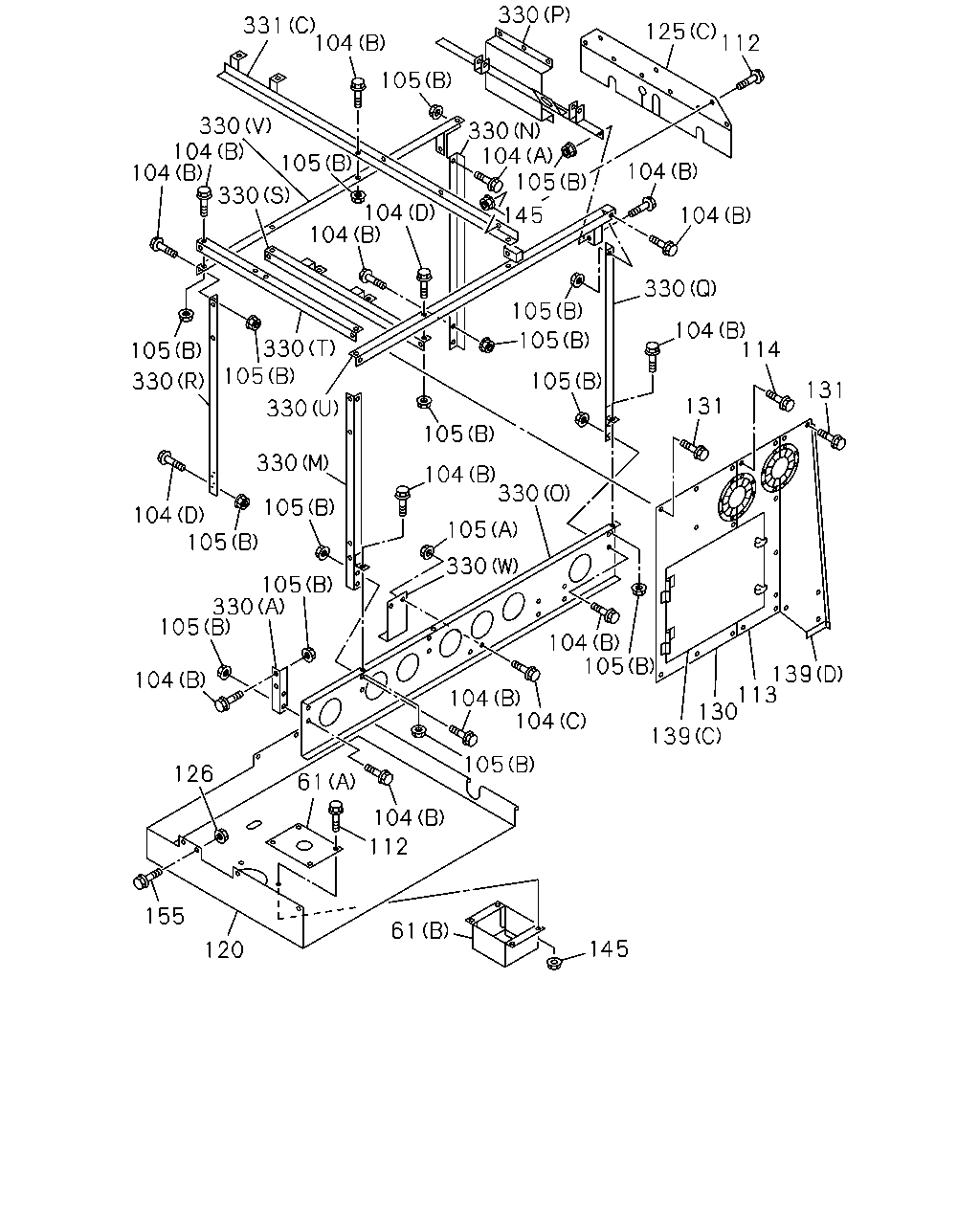

6-47 — MUD GUARD AND INSULATOR (#10489) — 445 parça

330 130 105 125 112 105 330 104 104 330 104 105 105 145 107 105 330 105 331 105 330 104 105 330 104 104 104 105 330 330 330 139 114 331 330 104 125 105 113 131 104 105 104 104 330 105 104 330 104 105 104 105 131 330 104 105 139 126 104 126 61 105 112 120 61 145 140 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BRACKET; COVER AIR DRYER<PS7> RADIATOR FAN DUCT<WF8> (A)	1-65600-674-0	01	1	0103-
61	BRACKET; COVER RADIATOR FAN DUCT<WF8> EXC. AIR DRYER<PS7> (B)	1-65600-675-0	01	1	0103-
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	12	1	0103-0512
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	12	1	0601-
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28680-825-0	04	1	0103-0512
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28080-816-0	08	1	0103-0512
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28050-816-0	08	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) (B) M10X25 FLANGE	0-28681-025-0	10	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) (B) M10X25 FLANGE	0-28651-025-0	10	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) (A) M10X30 FLANGE	0-28681-030-0	01	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) (A) M10X30 FLANGE	0-28651-030-0	01	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (D) M10X25 FLANGE	0-28681-025-0	07	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (D) M10X25 FLANGE	0-28651-025-0	07	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	06	1	0103-0512
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	06	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	21	1	0103-0112
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	19	1	0201-0512
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28651-025-0	19	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	02	1	0201-0512
104	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
105	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	14	1	0103-0602
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	14	1	0603-
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91150-108-0	04	1	0103-0602
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	04	1	0603-
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M8 FLANGE	0-91150-108-0	08	1	0103-0602
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M8 FLANGE	0-91180-108-0	08	1	0603-
105	NUT; BRKT 6SD1 TC(32L) (B) M10 FLANGE	0-91150-210-0	09	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) (B) M10 FLANGE	0-91180-210-0	09	1	0603-
105	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	05	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	05	1	0603-
105	NUT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	06	1	0103-0602
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	06	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	06	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91180-210-0	06	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	19	1	0103-0112
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	17	1	0201-0602
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91180-210-0	17	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	02	1	0201-0602
105	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	02	1	0603-
107	NUT; HEAT PROTECTOR 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	03	1	0103-0112
107	NUT; HEAT PROTECTOR 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	03	1	0201-0602
107	NUT; HEAT PROTECTOR 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	03	1	0603-
112	BOLT; BRKT RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
112	BOLT; BRKT RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	04	1	0601-
112	BOLT; BRKT 6SD1 TC(32L) M8X20 FLANGE	0-28680-820-0	03	1	0103-0112
112	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	03	1	0201-0512
112	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	03	1	0601-
112	BOLT; BRKT 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	05	1	0103-0112
112	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	05	1	0201-0512
112	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	05	1	0601-
113	PANEL; SIDE 6SD1 TC(32L) RADIATOR FAN DUCT<WF8>	1-53193-984-2	01	1	0103-
113	PANEL; SIDE 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8>	1-53193-983-1	01	1	0103-0112
113	PANEL; SIDE 6WA1 TC-C(55L)	1-53193-915-1	01	1	0103-0112
113	PANEL; SIDE 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8>	1-53193-915-1	01	1	0201-
114	BOLT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	08	1	0103-0512
114	BOLT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	08	1	0601-
114	BOLT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	04	1	0103-0112
114	BOLT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	07	1	0201-0512
114	BOLT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	07	1	0601-
114	BOLT 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	07	1	0103-0112
120	PANEL; UNDER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8>	1-53193-987-1	01	1	0103-
120	PANEL; UNDER 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8>	1-53193-917-1	01	1	0103-
125	PANEL; RR 6SD1 TC(32L) (C)	1-53193-981-1	01	1	0103-0112
125	PANEL; RR 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (C)	1-53193-981-1	01	1	0201-
125	PANEL; RR 6WA1 TC-C(55L) (A)	1-53193-912-1	01	1	0103-0112
125	PANEL; RR 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (A)	1-53193-912-1	01	1	0201-
125	PANEL; RR 6WA1 TC-C(55L) (B)	1-53193-914-1	01	1	0103-0112
125	PANEL; RR 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B)	1-53193-914-1	01	1	0201-
126	NUT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0103-0602
126	NUT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	04	1	0603-
126	NUT; PANEL 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	03	1	0103-0112
126	NUT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	03	1	0201-0602
126	NUT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	05	1	0603-
126	NUT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	05	1	0103-0602
126	NUT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	03	1	0603-
130	PANEL; SHUTTER NOISE 6SD1 TC(32L) RADIATOR FAN DUCT<WF8>	1-53193-985-1	01	1	0103-
130	PANEL; SHUTTER NOISE 6WA1 TC-C(55L)	1-53193-911-1	01	1	0103-0112
130	PANEL; SHUTTER NOISE 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8>	1-53193-911-1	01	1	0201-
131	BOLT; PANEL 6SD1 TC(32L) M8X20 FLANGE	0-28680-820-0	04	1	0103-0112
131	BOLT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	19	1	0201-0512
131	BOLT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	19	1	0601-
131	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	07	1	0103-0112
131	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	11	1	0201-0512
131	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	11	1	0601-
131	BOLT; PANEL 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	19	1	0103-0112
139	PANEL; SIDE 6SD1 TC(32L) (D)	1-53193-982-1	01	1	0103-0112
139	PANEL; SIDE 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (D)	1-53193-982-1	01	1	0201-
139	PANEL; SIDE 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (C)	1-53193-986-1	01	1	0103-
139	PANEL; SIDE 6WA1 TC-C(55L) (A)	1-53193-913-1	01	1	0103-0112
139	PANEL; SIDE 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (A)	1-53193-913-1	01	1	0201-
139	PANEL; SIDE 6WA1 TC-C(55L) (B)	1-53193-916-1	01	1	0103-0112
139	PANEL; SIDE 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B)	1-53193-916-1	01	1	0201-
140	BOLT; SIDE PANEL 6WA1 TC-C(55L) M8X25 FLANGE	0-28680-825-0	04	1	0103-0512
140	BOLT; SIDE PANEL 6WA1 TC-C(55L) M8X25 FLANGE	0-28650-825-0	04	1	0601-
145	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	03	1	0103-0112
145	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	03	1	0201-0602
145	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	03	1	0603-
145	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	04	1	0103-0112
145	NUT; BRKT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0103-0112
145	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0201-0602
145	NUT; BRKT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0201-0602
145	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	04	1	0603-
145	NUT; BRKT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	04	1	0603-
155	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	07	1	0103-0512
155	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	07	1	0601-
155	BOLT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	09	1	0103-0512
155	BOLT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	09	1	0601-
330	BRACKET; ENG COVER (A)	1-65600-544-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (Q)	1-65600-659-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (Q)	1-65600-659-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (M)	1-65600-660-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (N)	1-65600-661-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (O)	1-65600-662-3	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (P)	1-65600-663-2	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (R)	1-65600-668-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (S)	1-65600-669-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (T)	1-65600-670-6	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (U)	1-65600-671-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (V)	1-65600-672-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (W)	1-65600-673-0	02	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (R)	1-65600-665-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (S)	1-65600-666-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (X)	1-65600-667-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (J)	1-65600-612-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (D)	1-65600-637-2	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (B)	1-65600-638-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (F)	1-65600-640-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (E)	1-65600-641-0	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (E)	1-65600-641-0	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (K)	1-65600-643-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (H)	1-65600-644-0	01	1	0103-0112
330	BRACKET; ENG COVER 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (H)	1-65600-644-1	01	1	0201-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (G)	1-65600-646-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (C)	1-65600-647-2	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (I)	1-65600-648-0	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (L)	1-65600-649-0	02	1	0103-
331	BRACKET; ENG COVER BRKT 6SD1 TC(32L) (C)	1-65600-664-1	01	1	0103-
331	BRACKET; ENG COVER BRKT 6WA1 TC-C(55L) (A)	1-65600-639-2	01	1	0103-
331	BRACKET; ENG COVER BRKT 6WA1 TC-C(55L) (B)	1-65600-645-1	01	1	0103-

330 331 104 125 112 105 330 104 104 330 104 105 145 105 104 330 104 104 104 330 105 330 105 104 114 105 105 105 330 131 330 131 105 330 104 330 105 104 105 105 330 105 330 105 104 105 139 113 130 139 104 104 104 105 126 61 104 112 155 61 145 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BRACKET; COVER AIR DRYER<PS7> RADIATOR FAN DUCT<WF8> (A)	1-65600-674-0	01	1	0103-
61	BRACKET; COVER RADIATOR FAN DUCT<WF8> EXC. AIR DRYER<PS7> (B)	1-65600-675-0	01	1	0103-
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	12	1	0103-0512
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	12	1	0601-
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28680-825-0	04	1	0103-0512
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28080-816-0	08	1	0103-0512
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28050-816-0	08	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) (B) M10X25 FLANGE	0-28681-025-0	10	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) (B) M10X25 FLANGE	0-28651-025-0	10	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) (A) M10X30 FLANGE	0-28681-030-0	01	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) (A) M10X30 FLANGE	0-28651-030-0	01	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (D) M10X25 FLANGE	0-28681-025-0	07	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (D) M10X25 FLANGE	0-28651-025-0	07	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	06	1	0103-0512
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	06	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	21	1	0103-0112
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	19	1	0201-0512
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28651-025-0	19	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	02	1	0201-0512
104	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
105	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	14	1	0103-0602
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	14	1	0603-
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91150-108-0	04	1	0103-0602
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	04	1	0603-
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M8 FLANGE	0-91150-108-0	08	1	0103-0602
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M8 FLANGE	0-91180-108-0	08	1	0603-
105	NUT; BRKT 6SD1 TC(32L) (B) M10 FLANGE	0-91150-210-0	09	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) (B) M10 FLANGE	0-91180-210-0	09	1	0603-
105	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	05	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	05	1	0603-
105	NUT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	06	1	0103-0602
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	06	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	06	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91180-210-0	06	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	19	1	0103-0112
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	17	1	0201-0602
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91180-210-0	17	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	02	1	0201-0602
105	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	02	1	0603-
112	BOLT; BRKT RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
112	BOLT; BRKT RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	04	1	0601-
112	BOLT; BRKT 6SD1 TC(32L) M8X20 FLANGE	0-28680-820-0	03	1	0103-0112
112	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	03	1	0201-0512
112	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	03	1	0601-
112	BOLT; BRKT 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	05	1	0103-0112
112	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	05	1	0201-0512
112	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	05	1	0601-
113	PANEL; SIDE 6SD1 TC(32L) RADIATOR FAN DUCT<WF8>	1-53193-984-2	01	1	0103-
113	PANEL; SIDE 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8>	1-53193-983-1	01	1	0103-0112
113	PANEL; SIDE 6WA1 TC-C(55L)	1-53193-915-1	01	1	0103-0112
113	PANEL; SIDE 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8>	1-53193-915-1	01	1	0201-
114	BOLT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	08	1	0103-0512
114	BOLT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	08	1	0601-
114	BOLT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	04	1	0103-0112
114	BOLT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	07	1	0201-0512
114	BOLT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	07	1	0601-
114	BOLT 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	07	1	0103-0112
120	PANEL; UNDER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8>	1-53193-987-1	01	1	0103-
120	PANEL; UNDER 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8>	1-53193-917-1	01	1	0103-
125	PANEL; RR 6SD1 TC(32L) (C)	1-53193-981-1	01	1	0103-0112
125	PANEL; RR 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (C)	1-53193-981-1	01	1	0201-
125	PANEL; RR 6WA1 TC-C(55L) (A)	1-53193-912-1	01	1	0103-0112
125	PANEL; RR 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (A)	1-53193-912-1	01	1	0201-
125	PANEL; RR 6WA1 TC-C(55L) (B)	1-53193-914-1	01	1	0103-0112
125	PANEL; RR 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B)	1-53193-914-1	01	1	0201-
126	NUT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0103-0602
126	NUT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	04	1	0603-
126	NUT; PANEL 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	03	1	0103-0112
126	NUT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	03	1	0201-0602
126	NUT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	05	1	0603-
126	NUT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	05	1	0103-0602
126	NUT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	03	1	0603-
130	PANEL; SHUTTER NOISE 6SD1 TC(32L) RADIATOR FAN DUCT<WF8>	1-53193-985-1	01	1	0103-
130	PANEL; SHUTTER NOISE 6WA1 TC-C(55L)	1-53193-911-1	01	1	0103-0112
130	PANEL; SHUTTER NOISE 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8>	1-53193-911-1	01	1	0201-
131	BOLT; PANEL 6SD1 TC(32L) M8X20 FLANGE	0-28680-820-0	04	1	0103-0112
131	BOLT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	19	1	0201-0512
131	BOLT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	19	1	0601-
131	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	07	1	0103-0112
131	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	11	1	0201-0512
131	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	11	1	0601-
131	BOLT; PANEL 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	19	1	0103-0112
139	PANEL; SIDE 6SD1 TC(32L) (D)	1-53193-982-1	01	1	0103-0112
139	PANEL; SIDE 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (D)	1-53193-982-1	01	1	0201-
139	PANEL; SIDE 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (C)	1-53193-986-1	01	1	0103-
139	PANEL; SIDE 6WA1 TC-C(55L) (A)	1-53193-913-1	01	1	0103-0112
139	PANEL; SIDE 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (A)	1-53193-913-1	01	1	0201-
139	PANEL; SIDE 6WA1 TC-C(55L) (B)	1-53193-916-1	01	1	0103-0112
139	PANEL; SIDE 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B)	1-53193-916-1	01	1	0201-
145	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	03	1	0103-0112
145	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	03	1	0201-0602
145	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	03	1	0603-
145	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	04	1	0103-0112
145	NUT; BRKT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0103-0112
145	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0201-0602
145	NUT; BRKT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0201-0602
145	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	04	1	0603-
145	NUT; BRKT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	04	1	0603-
155	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	07	1	0103-0512
155	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	07	1	0601-
155	BOLT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	09	1	0103-0512
155	BOLT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	09	1	0601-
330	BRACKET; ENG COVER (A)	1-65600-544-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (Q)	1-65600-659-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (Q)	1-65600-659-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (M)	1-65600-660-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (N)	1-65600-661-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (O)	1-65600-662-3	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (P)	1-65600-663-2	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (R)	1-65600-668-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (S)	1-65600-669-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (T)	1-65600-670-6	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (U)	1-65600-671-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (V)	1-65600-672-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (W)	1-65600-673-0	02	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (R)	1-65600-665-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (S)	1-65600-666-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (X)	1-65600-667-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (J)	1-65600-612-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (D)	1-65600-637-2	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (B)	1-65600-638-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (F)	1-65600-640-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (E)	1-65600-641-0	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (E)	1-65600-641-0	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (K)	1-65600-643-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (H)	1-65600-644-0	01	1	0103-0112
330	BRACKET; ENG COVER 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (H)	1-65600-644-1	01	1	0201-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (G)	1-65600-646-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (C)	1-65600-647-2	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (I)	1-65600-648-0	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (L)	1-65600-649-0	02	1	0103-
331	BRACKET; ENG COVER BRKT 6SD1 TC(32L) (C)	1-65600-664-1	01	1	0103-
331	BRACKET; ENG COVER BRKT 6WA1 TC-C(55L) (A)	1-65600-639-2	01	1	0103-
331	BRACKET; ENG COVER BRKT 6WA1 TC-C(55L) (B)	1-65600-645-1	01	1	0103-

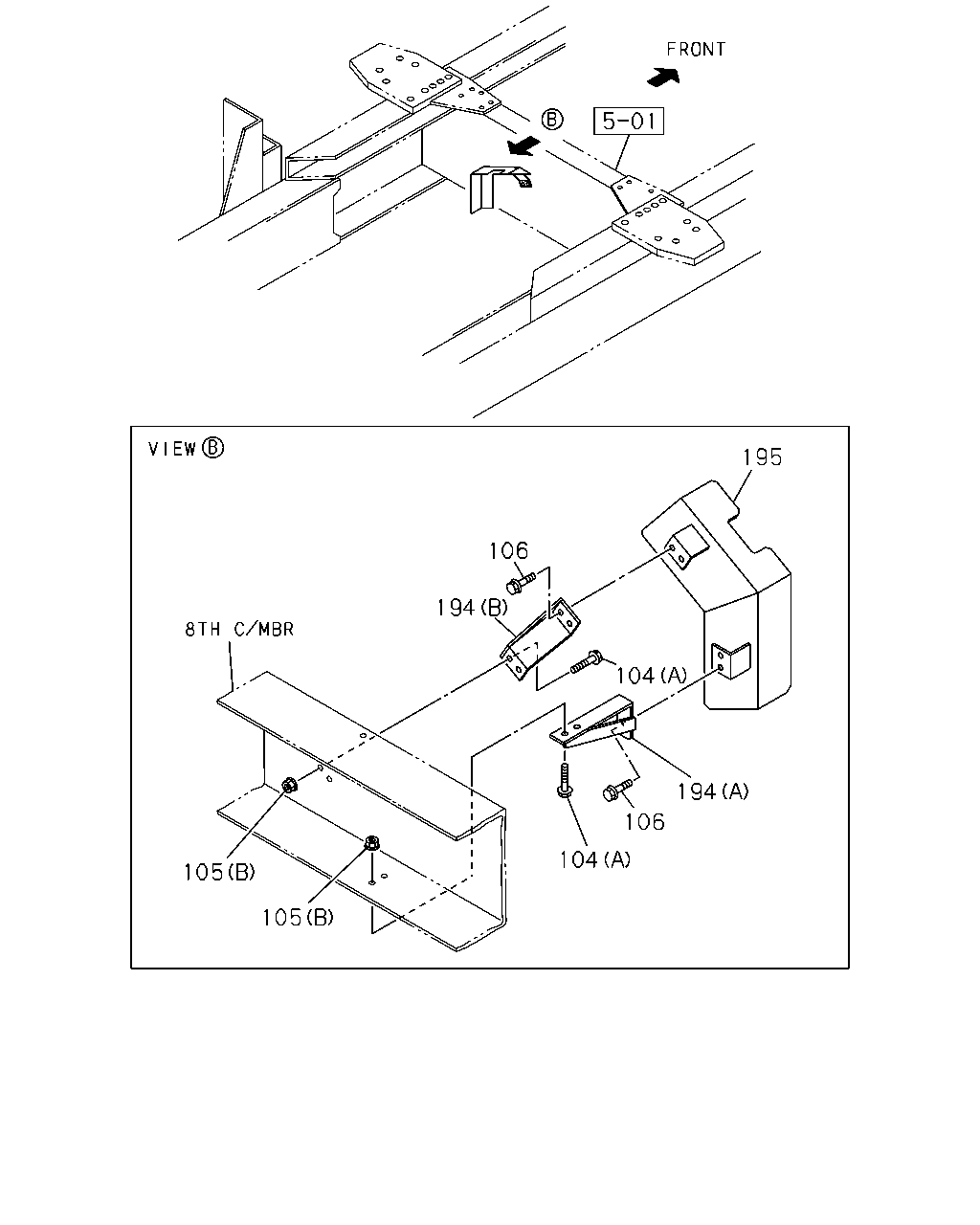

195 106 194 104 194 106 104 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	12	1	0103-0512
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	12	1	0601-
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28680-825-0	04	1	0103-0512
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28080-816-0	08	1	0103-0512
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28050-816-0	08	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) (B) M10X25 FLANGE	0-28681-025-0	10	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) (B) M10X25 FLANGE	0-28651-025-0	10	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) (A) M10X30 FLANGE	0-28681-030-0	01	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) (A) M10X30 FLANGE	0-28651-030-0	01	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (D) M10X25 FLANGE	0-28681-025-0	07	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (D) M10X25 FLANGE	0-28651-025-0	07	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	06	1	0103-0512
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	06	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	21	1	0103-0112
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	19	1	0201-0512
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28651-025-0	19	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	02	1	0201-0512
104	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
105	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	14	1	0103-0602
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	14	1	0603-
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91150-108-0	04	1	0103-0602
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	04	1	0603-
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M8 FLANGE	0-91150-108-0	08	1	0103-0602
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M8 FLANGE	0-91180-108-0	08	1	0603-
105	NUT; BRKT 6SD1 TC(32L) (B) M10 FLANGE	0-91150-210-0	09	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) (B) M10 FLANGE	0-91180-210-0	09	1	0603-
105	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	05	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	05	1	0603-
105	NUT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	06	1	0103-0602
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	06	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	06	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91180-210-0	06	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	19	1	0103-0112
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	17	1	0201-0602
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91180-210-0	17	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	02	1	0201-0602
105	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	02	1	0603-
106	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE	0-28080-816-0	04	1	0103-0512
106	BOLT; HEAT PROTECTOR BRAKE SYSTEM RETARDER<RE2> M8X16 FLANGE	0-28050-816-0	04	1	0601-
194	BRACKET; HEAT PROTECTOR BRAKE SYSTEM RETARDER<RE2> (A)	1-22159-348-0	01	1	0103-
194	BRACKET; HEAT PROTECTOR BRAKE SYSTEM RETARDER<RE2> (B)	1-22159-350-0	01	1	0103-
195	PROTECTOR; HEAT 6SD1 TC(32L) MAL6Q M/T(Y1M) BRAKE SYSTEM RETARDER<RE2>	1-22119-492-0	01	1	0103-
195	PROTECTOR; HEAT 6SD1 TC(32L) MAL7Q M/T(Y1Q) BRAKE SYSTEM RETARDER<RE2>	1-22119-491-0	01	1	0103-
195	PROTECTOR; HEAT 6WA1 TC-C(55L) MAL6U M/T(Y2R) BRAKE SYSTEM RETARDER<RE2>	1-22119-491-0	01	1	0103-

330 104 331 125 105 330 330 105 104 112 104 105 104 104 104 145 330 330 105 105 104 330 105 330 113 104 131 105 330 105 104 104 114 105 105 105 105 139 105 104 330 104 104 105 330 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	12	1	0103-0512
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	12	1	0601-
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28680-825-0	04	1	0103-0512
104	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28080-816-0	08	1	0103-0512
104	BOLT; BRKT RADIATOR FAN DUCT<WF8> (C) M8X16 FLANGE	0-28050-816-0	08	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) (B) M10X25 FLANGE	0-28681-025-0	10	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) (B) M10X25 FLANGE	0-28651-025-0	10	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) (A) M10X30 FLANGE	0-28681-030-0	01	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) (A) M10X30 FLANGE	0-28651-030-0	01	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (D) M10X25 FLANGE	0-28681-025-0	07	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (D) M10X25 FLANGE	0-28651-025-0	07	1	0601-
104	BOLT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	06	1	0103-0512
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	06	1	0103-0512
104	BOLT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	21	1	0103-0112
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	19	1	0201-0512
104	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28651-025-0	19	1	0601-
104	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28681-025-0	02	1	0201-0512
104	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
105	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	14	1	0103-0602
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	14	1	0603-
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91150-108-0	04	1	0103-0602
105	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	04	1	0603-
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M8 FLANGE	0-91150-108-0	08	1	0103-0602
105	NUT; BRKT RADIATOR FAN DUCT<WF8> (A) M8 FLANGE	0-91180-108-0	08	1	0603-
105	NUT; BRKT 6SD1 TC(32L) (B) M10 FLANGE	0-91150-210-0	09	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) (B) M10 FLANGE	0-91180-210-0	09	1	0603-
105	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	05	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	05	1	0603-
105	NUT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	06	1	0103-0602
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	06	1	0103-0602
105	NUT; BRKT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	06	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91180-210-0	06	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	19	1	0103-0112
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91150-210-0	17	1	0201-0602
105	NUT; BRKT 6WA1 TC-C(55L) (B) M10 FLANGE	0-91180-210-0	17	1	0603-
105	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91150-210-0	02	1	0201-0602
105	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B) M10 FLANGE	0-91180-210-0	02	1	0603-
112	BOLT; BRKT RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
112	BOLT; BRKT RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	04	1	0601-
112	BOLT; BRKT 6SD1 TC(32L) M8X20 FLANGE	0-28680-820-0	03	1	0103-0112
112	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	03	1	0201-0512
112	BOLT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	03	1	0601-
112	BOLT; BRKT 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	05	1	0103-0112
112	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	05	1	0201-0512
112	BOLT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	05	1	0601-
113	PANEL; SIDE 6SD1 TC(32L) RADIATOR FAN DUCT<WF8>	1-53193-984-2	01	1	0103-
113	PANEL; SIDE 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8>	1-53193-983-1	01	1	0103-0112
113	PANEL; SIDE 6WA1 TC-C(55L)	1-53193-915-1	01	1	0103-0112
113	PANEL; SIDE 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8>	1-53193-915-1	01	1	0201-
114	BOLT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	08	1	0103-0512
114	BOLT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	08	1	0601-
114	BOLT 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	04	1	0103-0112
114	BOLT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	07	1	0201-0512
114	BOLT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	07	1	0601-
114	BOLT 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	07	1	0103-0112
125	PANEL; RR 6SD1 TC(32L) (C)	1-53193-981-1	01	1	0103-0112
125	PANEL; RR 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (C)	1-53193-981-1	01	1	0201-
125	PANEL; RR 6WA1 TC-C(55L) (A)	1-53193-912-1	01	1	0103-0112
125	PANEL; RR 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (A)	1-53193-912-1	01	1	0201-
125	PANEL; RR 6WA1 TC-C(55L) (B)	1-53193-914-1	01	1	0103-0112
125	PANEL; RR 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B)	1-53193-914-1	01	1	0201-
131	BOLT; PANEL 6SD1 TC(32L) M8X20 FLANGE	0-28680-820-0	04	1	0103-0112
131	BOLT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	19	1	0201-0512
131	BOLT; PANEL 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	19	1	0601-
131	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	07	1	0103-0112
131	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28680-820-0	11	1	0201-0512
131	BOLT; PANEL 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8X20 FLANGE	0-28650-820-0	11	1	0601-
131	BOLT; PANEL 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	19	1	0103-0112
139	PANEL; SIDE 6SD1 TC(32L) (D)	1-53193-982-1	01	1	0103-0112
139	PANEL; SIDE 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (D)	1-53193-982-1	01	1	0201-
139	PANEL; SIDE 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (C)	1-53193-986-1	01	1	0103-
139	PANEL; SIDE 6WA1 TC-C(55L) (A)	1-53193-913-1	01	1	0103-0112
139	PANEL; SIDE 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (A)	1-53193-913-1	01	1	0201-
139	PANEL; SIDE 6WA1 TC-C(55L) (B)	1-53193-916-1	01	1	0103-0112
139	PANEL; SIDE 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (B)	1-53193-916-1	01	1	0201-
145	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	03	1	0103-0112
145	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	03	1	0201-0602
145	NUT; BRKT 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	03	1	0603-
145	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	04	1	0103-0112
145	NUT; BRKT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0103-0112
145	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0201-0602
145	NUT; BRKT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91150-108-0	04	1	0201-0602
145	NUT; BRKT 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	04	1	0603-
145	NUT; BRKT RADIATOR FAN DUCT<WF8> M8 FLANGE	0-91180-108-0	04	1	0603-
330	BRACKET; ENG COVER (A)	1-65600-544-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (Q)	1-65600-659-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (Q)	1-65600-659-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (M)	1-65600-660-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (N)	1-65600-661-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (O)	1-65600-662-3	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) (P)	1-65600-663-2	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (R)	1-65600-668-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (S)	1-65600-669-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (T)	1-65600-670-6	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (U)	1-65600-671-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (V)	1-65600-672-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) RADIATOR FAN DUCT<WF8> (W)	1-65600-673-0	02	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (R)	1-65600-665-1	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (S)	1-65600-666-0	01	1	0103-
330	BRACKET; ENG COVER 6SD1 TC(32L) EXC. RADIATOR FAN DUCT<WF8> (X)	1-65600-667-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (J)	1-65600-612-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (D)	1-65600-637-2	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (B)	1-65600-638-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (F)	1-65600-640-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (E)	1-65600-641-0	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (E)	1-65600-641-0	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (K)	1-65600-643-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (H)	1-65600-644-0	01	1	0103-0112
330	BRACKET; ENG COVER 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (H)	1-65600-644-1	01	1	0201-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (G)	1-65600-646-1	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (C)	1-65600-647-2	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) (I)	1-65600-648-0	01	1	0103-
330	BRACKET; ENG COVER 6WA1 TC-C(55L) RADIATOR FAN DUCT<WF8> (L)	1-65600-649-0	02	1	0103-
331	BRACKET; ENG COVER BRKT 6SD1 TC(32L) (C)	1-65600-664-1	01	1	0103-
331	BRACKET; ENG COVER BRKT 6WA1 TC-C(55L) (A)	1-65600-639-2	01	1	0103-
331	BRACKET; ENG COVER BRKT 6WA1 TC-C(55L) (B)	1-65600-645-1	01	1	0103-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
