5-01 — FRAME AND OTHER PARTS (#10484) — 148 parça

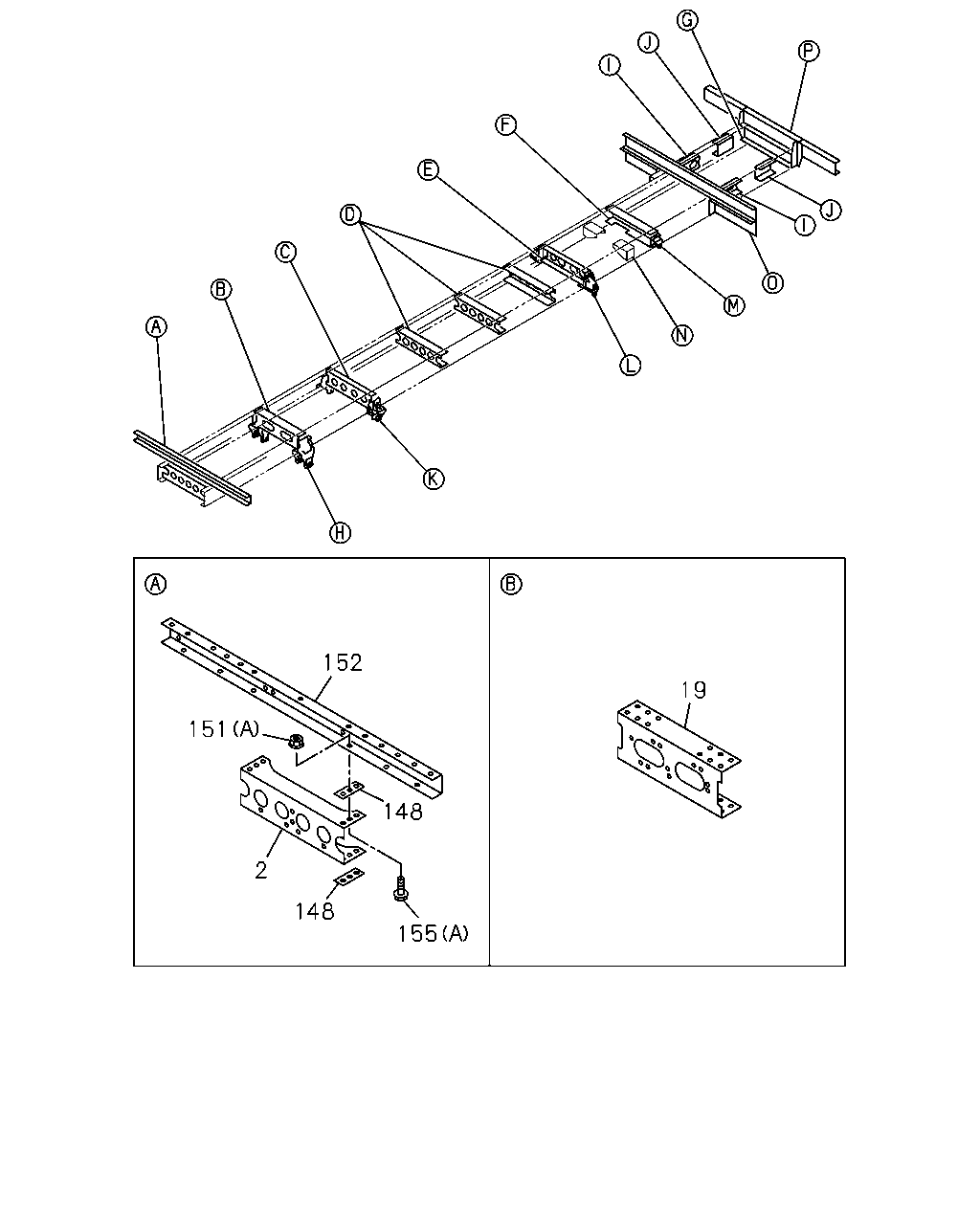

152 19 151 148 2 148 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST 6WA1 TC-C(55L)	1-53181-951-1	01	1	0103-	●
2	MEMBER; CROSS,1ST 6SD1 TC(32L)	1-53181-951-1	01	1	0103-		●
19	MEMBER; CROSS,2ND 6WA1 TC-C(55L)	1-53181-953-0	01	1	0103-	●
19	MEMBER; CROSS,2ND 6SD1 TC(32L)	1-53181-953-0	01	1	0103-		●
148	SPACER; C/MBR 6WA1 TC-C(55L) UPPER	1-53167-554-0	01	1	0103-	●
148	SPACER; C/MBR 6SD1 TC(32L) UPPER	1-53167-554-0	01	1	0103-		●
148	SPACER; C/MBR 6WA1 TC-C(55L) LOWER	1-53167-555-0	01	1	0103-	●
148	SPACER; C/MBR 6SD1 TC(32L) LOWER	1-53167-555-0	01	1	0103-		●
151	NUT; OUTRIGGER (B) M10 FLANGE	0-91150-210-0	06	1	0103-0602	●	●	●
151	NUT; OUTRIGGER (B) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●
151	NUT; OUTRIGGER (A) M12 FLANGE	0-91150-212-0	13	1	0103-0602	●	●	●
151	NUT; OUTRIGGER (A) M12 FLANGE	0-91180-212-0	13	1	0603-	●	●	●
151	NUT; OUTRIGGER (C) M14 FLANGE	0-91160-214-0	08	1	0103-0602	●	●	●
151	NUT; OUTRIGGER (C) M14 FLANGE	0-91180-214-0	08	1	0603-	●	●	●
152	OUTRIGGER	1-53456-308-2	01	1	0103-	●	●	●
155	BOLT; OUTRIGGER (B) M10X35 FLANGE	0-28681-035-0	06	1	0103-0512	●	●	●
155	BOLT; OUTRIGGER (B) M10X35 FLANGE	0-28651-035-0	06	1	0601-	●	●	●
155	BOLT; OUTRIGGER (A) M12X35 FLANGE	0-28681-235-0	02	1	0103-0107	●	●	●
155	BOLT; OUTRIGGER (A) M12X40 FLANGE	0-28681-240-0	02	1	0108-0512	●	●	●
155	BOLT; OUTRIGGER (A) M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●
155	BOLT; OUTRIGGER (D) M12X30 FLANGE	0-28691-230-0	11	1	0103-0512	●	●	●
155	BOLT; OUTRIGGER (D) M12X30 FLANGE	0-28661-230-0	11	1	0601-	●	●	●
155	BOLT; OUTRIGGER (E) M14X30 FLANGE	0-28691-430-0	08	1	0103-0512	●	●	●
155	BOLT; OUTRIGGER (E) M14X30 FLANGE	0-28661-430-0	08	1	0601-	●	●	●
155	BOLT; OUTRIGGER (C) M14X35	0-28691-435-0	08	1	0103-0210	●	●	●
155	BOLT; OUTRIGGER (C) M14X40 FLANGE	0-28691-440-0	08	1	0211-0512	●	●	●
155	BOLT; OUTRIGGER (C) M14X40 FLANGE	0-28661-440-0	08	1	0601-	●	●	●

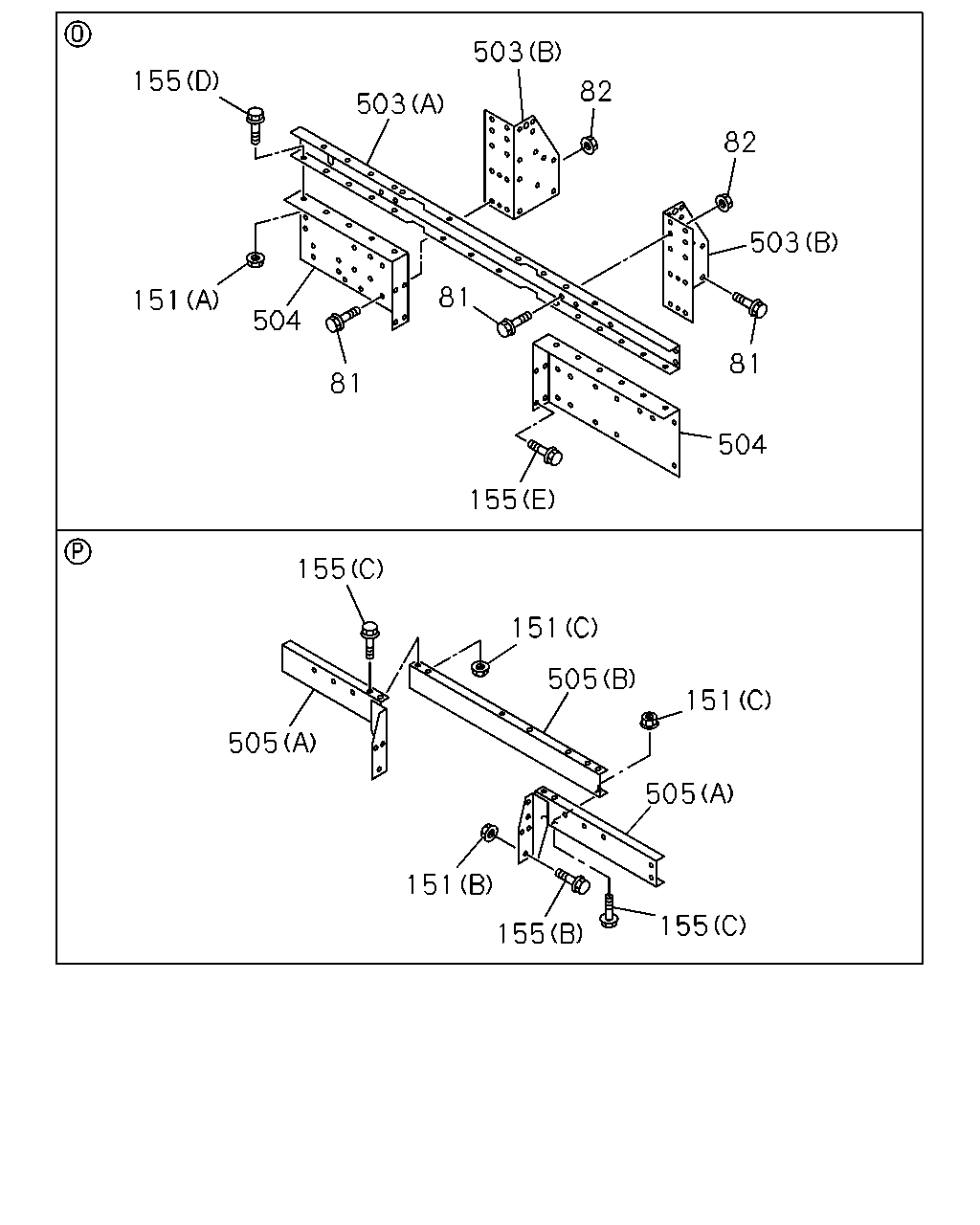

503 82 155 503 82 81 503 151 504 81 81 504 155 155 151 505 151 505 505 151 155 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
81	BOLT; BRKT M12X30 FLANGE	0-28691-230-0	30	1	0103-0512	●	●	●
81	BOLT; BRKT M12X30 FLANGE	0-28661-230-0	30	1	0601-1211	●	●	●
81	BOLT; BRKT M12X30 FLANGE	0-28661-230-0	24	1	1212-	●	●	●
82	NUT; BRKT M12 FLANGE	0-91150-212-0	20	1	0103-0602	●	●	●
82	NUT; BRKT M12 FLANGE	0-91180-212-0	20	1	0603-1211	●	●	●
82	NUT; BRKT M12 FLANGE	0-91180-212-0	14	1	1212-	●	●	●
151	NUT; OUTRIGGER (B) M10 FLANGE	0-91150-210-0	06	1	0103-0602	●	●	●
151	NUT; OUTRIGGER (B) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●
151	NUT; OUTRIGGER (A) M12 FLANGE	0-91150-212-0	13	1	0103-0602	●	●	●
151	NUT; OUTRIGGER (A) M12 FLANGE	0-91180-212-0	13	1	0603-	●	●	●
151	NUT; OUTRIGGER (C) M14 FLANGE	0-91160-214-0	08	1	0103-0602	●	●	●
151	NUT; OUTRIGGER (C) M14 FLANGE	0-91180-214-0	08	1	0603-	●	●	●
155	BOLT; OUTRIGGER (B) M10X35 FLANGE	0-28681-035-0	06	1	0103-0512	●	●	●
155	BOLT; OUTRIGGER (B) M10X35 FLANGE	0-28651-035-0	06	1	0601-	●	●	●
155	BOLT; OUTRIGGER (A) M12X35 FLANGE	0-28681-235-0	02	1	0103-0107	●	●	●
155	BOLT; OUTRIGGER (A) M12X40 FLANGE	0-28681-240-0	02	1	0108-0512	●	●	●
155	BOLT; OUTRIGGER (A) M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●	●
155	BOLT; OUTRIGGER (D) M12X30 FLANGE	0-28691-230-0	11	1	0103-0512	●	●	●
155	BOLT; OUTRIGGER (D) M12X30 FLANGE	0-28661-230-0	11	1	0601-	●	●	●
155	BOLT; OUTRIGGER (E) M14X30 FLANGE	0-28691-430-0	08	1	0103-0512	●	●	●
155	BOLT; OUTRIGGER (E) M14X30 FLANGE	0-28661-430-0	08	1	0601-	●	●	●
155	BOLT; OUTRIGGER (C) M14X35	0-28691-435-0	08	1	0103-0210	●	●	●
155	BOLT; OUTRIGGER (C) M14X40 FLANGE	0-28691-440-0	08	1	0211-0512	●	●	●
155	BOLT; OUTRIGGER (C) M14X40 FLANGE	0-28661-440-0	08	1	0601-	●	●	●
503	OUTRIGGER; ENG RR (A)	1-53456-359-6	01	1	0103-	●	●	●
503	OUTRIGGER; ENG RR (B)	1-53456-361-2	01	1	0103-	●	●	●
503	OUTRIGGER; ENG RR (B)	1-53456-360-3	01	1	0103-	●	●	●
504	OUTRIGGER; LWR	1-53456-363-3	01	1	0103-	●	●	●
504	OUTRIGGER; LWR	1-53456-362-4	01	1	0103-1211	●	●	●
504	OUTRIGGER; LWR	8-98232-002-0	01	1	1212-	●	●	●
505	OUTRIGGER; END (B)	1-53456-364-0	01	1	0103-	●	●	●
505	OUTRIGGER; END (A)	1-53456-358-1	01	1	0103-	●	●	●
505	OUTRIGGER; END (A)	1-53456-357-3	01	1	0103-	●	●	●

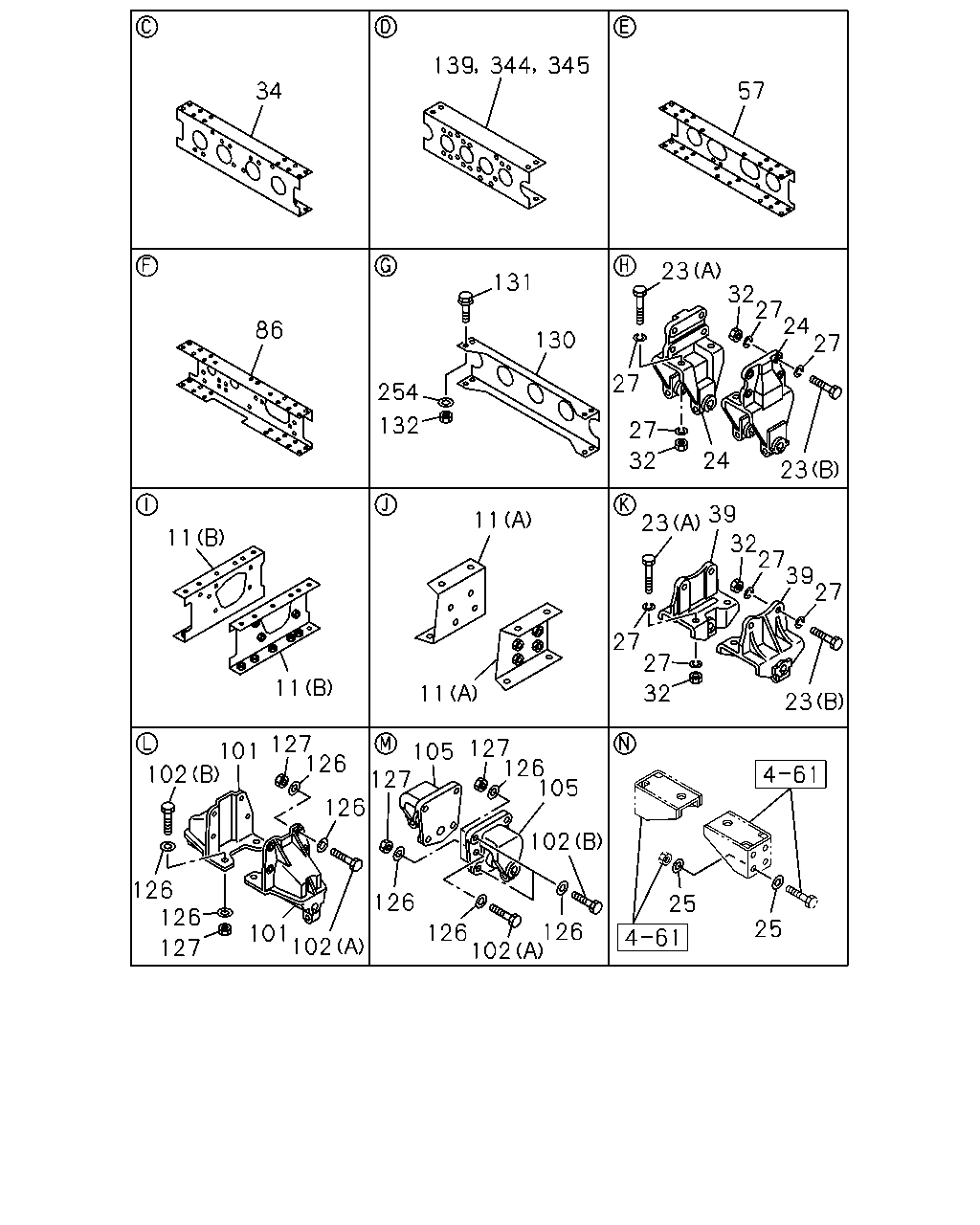

345 34 57 23 32 27 24 27 131 86 130 27 254 132 27 32 24 23 39 23 32 27 39 27 27 27 32 11 11 11 11 23 127 126 101 102 127 126 105 105 127 126 102 126 126 127 126 126 126 102 25 101 102 25 139 344

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG 6WA1 TC-C(55L) (A)	1-53211-292-0	01	1	0103-0106	●
11	BRACKET; ENG MTG 6SD1 TC(32L) (A)	1-53211-292-0	01	1	0103-0106		●
11	BRACKET; ENG MTG 6WA1 TC-C(55L) (A)	1-53211-292-0	01	1	0107-	●
11	BRACKET; ENG MTG 6WA1 TC-C(55L) (B)	1-53221-210-1	01	1	0103-0106	●
11	BRACKET; ENG MTG 6SD1 TC(32L) (B)	1-53221-210-1	01	1	0103-0106		●
11	BRACKET; ENG MTG 6WA1 TC-C(55L) (B)	1-53221-210-1	01	1	0107-	●
11	BRACKET; ENG MTG 6WA1 TC-C(55L) (A)	1-53211-293-0	01	1	0103-0106	●
11	BRACKET; ENG MTG 6SD1 TC(32L) (A)	1-53211-293-0	01	1	0103-0106		●
11	BRACKET; ENG MTG 6WA1 TC-C(55L) (A)	1-53211-293-0	01	1	0107-	●
11	BRACKET; ENG MTG 6WA1 TC-C(55L) (B)	1-53221-211-0	01	1	0103-0106	●
11	BRACKET; ENG MTG 6SD1 TC(32L) (B)	1-53221-211-0	01	1	0103-0106		●
11	BRACKET; ENG MTG 6WA1 TC-C(55L) (B)	1-53221-211-0	01	1	0107-	●
11	BRACKET; ENG MTG 6SD1 TC(32L) (A)	1-53211-290-0	01	1	0107-0211		●
11	BRACKET; ENG MTG 6SD1 TC(32L) (A)	1-53211-363-0	01	1	0212-		●
11	BRACKET; ENG MTG 6SD1 TC(32L) (B)	1-53221-222-2	01	1	0107-		●
11	BRACKET; ENG MTG 6SD1 TC(32L) (A)	1-53211-291-0	01	1	0107-0211		●
11	BRACKET; ENG MTG 6SD1 TC(32L) (A)	1-53211-364-0	01	1	0212-		●
11	BRACKET; ENG MTG 6SD1 TC(32L) (B)	1-53221-223-0	01	1	0107-		●
23	BOLT; BRKT,SPR 6WA1 TC-C(55L) (A) M16X60	9-91066-660-0	08	1	0103-0512	●
23	BOLT; BRKT,SPR 6SD1 TC(32L) (A) M16X60	9-91066-660-0	08	1	0103-0512		●
23	BOLT; BRKT,SPR 6WA1 TC-C(55L) (A) M16X60	0-10956-660-0	08	1	0601-	●
23	BOLT; BRKT,SPR 6SD1 TC(32L) (A) M16X60	0-10956-660-0	08	1	0601-		●
23	BOLT; BRKT,SPR 6WA1 TC-C(55L) (B) M16X50	9-92061-650-0	12	1	0103-0512	●
23	BOLT; BRKT,SPR 6SD1 TC(32L) (B) M16X50	9-92061-650-0	12	1	0103-0512		●
23	BOLT; BRKT,SPR 6WA1 TC-C(55L) (B) M16X50	0-20951-650-0	12	1	0601-	●
23	BOLT; BRKT,SPR 6SD1 TC(32L) (B) M16X50	0-20951-650-0	12	1	0601-		●
24	BRACKET; FRT SPR,FRT 6WA1 TC-C(55L)	1-53351-254-0	02	1	0103-	●
24	BRACKET; FRT SPR,FRT 6SD1 TC(32L)	1-53351-254-0	02	1	0103-		●
25	WASHER; PL,BRKT 6WA1 TC-C(55L) ID=15	9-09651-069-0	16	1	0103-1201	●
25	WASHER; PL,BRKT 6SD1 TC(32L) ID=15	9-09651-069-0	16	1	0103-1201		●
25	WASHER; PL,BRKT 6WA1 TC-C(55L) ID=15	8-98010-627-1	16	1	1202-	●
25	WASHER; PL,BRKT 6SD1 TC(32L) ID=15	8-98010-627-1	16	1	1202-		●
27	WASHER; LK,BRKT,FRT SPR 6WA1 TC-C(55L) ID=16.2	1-09503-223-0	40	1	0103-	●
27	WASHER; LK,BRKT,FRT SPR 6SD1 TC(32L) ID=16.2	1-09503-223-0	40	1	0103-		●
32	NUT; BRKT FIX 6WA1 TC-C(55L) M16	9-99110-516-0	20	1	0103-0512	●
32	NUT; BRKT FIX 6SD1 TC(32L) M16	9-99110-516-0	20	1	0103-0512		●
32	NUT; BRKT FIX 6WA1 TC-C(55L) M16	0-91110-516-0	20	1	0601-	●
32	NUT; BRKT FIX 6SD1 TC(32L) M16	0-91110-516-0	20	1	0601-		●
34	MEMBER; CROSS,3RD 6WA1 TC-C(55L)	1-53181-954-0	01	1	0103-	●
34	MEMBER; CROSS,3RD 6SD1 TC(32L)	1-53181-954-0	01	1	0103-		●
39	BRACKET; FRT SPR,RR 6WA1 TC-C(55L)	1-53352-181-0	02	1	0103-	●
39	BRACKET; FRT SPR,RR 6SD1 TC(32L)	1-53352-181-0	02	1	0103-		●
57	MEMBER; CROSS,RR SUSP FRT 6WA1 TC-C(55L)	1-53181-955-1	01	1	0103-	●
57	MEMBER; CROSS,RR SUSP FRT 6SD1 TC(32L)	1-53181-955-1	01	1	0103-		●
86	MEMBER; CROSS,RR SUSP RR 6WA1 TC-C(55L)	1-53181-956-4	01	1	0103-	●
86	MEMBER; CROSS,RR SUSP RR 6SD1 TC(32L)	1-53181-956-4	01	1	0103-		●
101	BRACKET; RR SPR,FRT 6WA1 TC-C(55L)	1-53353-124-0	02	1	0103-	●
101	BRACKET; RR SPR,FRT 6SD1 TC(32L)	1-53353-124-0	02	1	0103-		●
102	BOLT; BRKT,RR SPR 6WA1 TC-C(55L) (A) M16X60	9-91066-660-0	12	1	0103-0512	●
102	BOLT; BRKT,RR SPR 6SD1 TC(32L) (A) M16X60	9-91066-660-0	12	1	0103-0512		●
102	BOLT; BRKT,RR SPR 6WA1 TC-C(55L) (A) M16X60	0-10956-660-0	12	1	0601-	●
102	BOLT; BRKT,RR SPR 6SD1 TC(32L) (A) M16X60	0-10956-660-0	12	1	0601-		●
102	BOLT; BRKT,RR SPR 6WA1 TC-C(55L) (B) M16X70	9-91066-670-0	12	1	0103-0512	●
102	BOLT; BRKT,RR SPR 6SD1 TC(32L) (B) M16X70	9-91066-670-0	12	1	0103-0512		●
102	BOLT; BRKT,RR SPR 6WA1 TC-C(55L) (B) M16X70	0-10956-670-0	12	1	0601-	●
102	BOLT; BRKT,RR SPR 6SD1 TC(32L) (B) M16X70	0-10956-670-0	12	1	0601-		●
105	BRACKET; RR SPR,RR 6WA1 TC-C(55L)	1-53354-078-0	01	1	0103-1406	●
105	BRACKET; RR SPR,RR 6SD1 TC(32L)	1-53354-078-0	01	1	0103-1406		●
105	BRACKET; RR SPR,RR 6WA1 TC-C(55L)	1-53354-077-0	01	1	0103-1406	●
105	BRACKET; RR SPR,RR 6SD1 TC(32L)	1-53354-077-0	01	1	0103-1406		●
105	BRACKET; RR SPR,RR 6WA1 TC-C(55L)	8-98257-402-0	02	1	1407-	●
105	BRACKET; RR SPR,RR 6SD1 TC(32L)	8-98257-402-0	02	1	1407-		●
126	WASHER; PL,BRKT 6WA1 TC-C(55L) ID=16.2	1-09503-223-0	48	1	0103-	●
126	WASHER; PL,BRKT 6SD1 TC(32L) ID=16.2	1-09503-223-0	48	1	0103-		●
127	NUT; BRKT 6WA1 TC-C(55L) M16	9-99110-516-0	24	1	0103-0512	●
127	NUT; BRKT 6SD1 TC(32L) M16	9-99110-516-0	24	1	0103-0512		●
127	NUT; BRKT 6WA1 TC-C(55L) M16	0-91110-516-0	24	1	0601-	●
127	NUT; BRKT 6SD1 TC(32L) M16	0-91110-516-0	24	1	0601-		●
130	MEMBER; CROSS,END 6WA1 TC-C(55L)	1-53181-928-0	01	1	0103-	●
130	MEMBER; CROSS,END 6SD1 TC(32L)	1-53181-928-0	01	1	0103-		●
131	BOLT; END C/MBR 6WA1 TC-C(55L) M14X30	9-92061-430-0	08	1	0103-0512	●
131	BOLT; END C/MBR 6SD1 TC(32L) M14X30	9-92061-430-0	08	1	0103-0512		●
131	BOLT; END C/MBR 6WA1 TC-C(55L) M14X30	0-20951-430-0	08	1	0601-	●
131	BOLT; END C/MBR 6SD1 TC(32L) M14X30	0-20951-430-0	08	1	0601-		●
132	NUT; END C/MBR 6WA1 TC-C(55L) M14	9-99110-514-0	08	1	0103-0512	●
132	NUT; END C/MBR 6SD1 TC(32L) M14	9-99110-514-0	08	1	0103-0512		●
132	NUT; END C/MBR 6WA1 TC-C(55L) M14	0-91110-514-0	08	1	0601-	●
132	NUT; END C/MBR 6SD1 TC(32L) M14	0-91110-514-0	08	1	0601-		●
139	MEMBER; CROSS,6TH 6WA1 TC-C(55L)	1-53181-952-2	01	1	0103-	●
139	MEMBER; CROSS,6TH 6SD1 TC(32L)	1-53181-952-2	01	1	0103-		●
254	WASHER; PL,C/MBR 6WA1 TC-C(55L) ID=15	9-09651-069-0	08	1	0103-1201	●
254	WASHER; PL,C/MBR 6SD1 TC(32L) ID=15	9-09651-069-0	08	1	0103-1201		●
254	WASHER; PL,C/MBR 6WA1 TC-C(55L) ID=15	8-98010-627-1	08	1	1202-	●
254	WASHER; PL,C/MBR 6SD1 TC(32L) ID=15	8-98010-627-1	08	1	1202-		●
344	MEMBER; CROSS,4TH 6WA1 TC-C(55L)	1-53181-952-2	01	1	0103-	●
344	MEMBER; CROSS,4TH 6SD1 TC(32L)	1-53181-952-2	01	1	0103-		●
345	MEMBER; CROSS,5TH 6WA1 TC-C(55L)	1-53181-952-2	01	1	0103-	●
345	MEMBER; CROSS,5TH 6SD1 TC(32L)	1-53181-952-2	01	1	0103-		●
