◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10852 - LV123/150-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#10480) — 75 parça

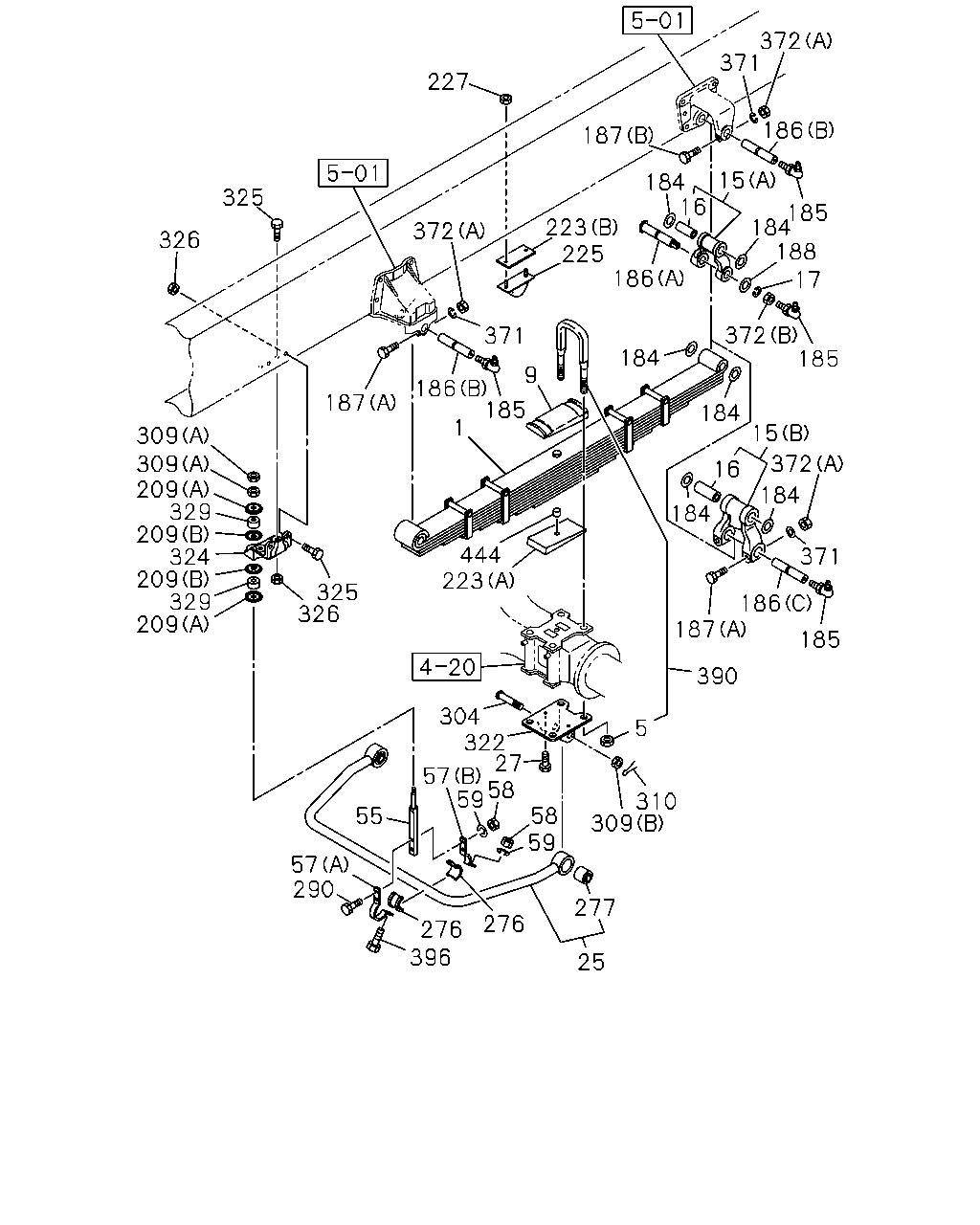

çizim 137440
372 371 186 15 185 184 188 17 185 372 184 15 372 16 184 184 371 186 185 187 390 5 187 184 16 186 184 372 227 371 9 185 444 223 304 322 27 310 309 277 25 276 59 58 58 57 59 276 396 290 57 55 326 325 187 186 325 326 309 309 209 329 209 324 209 329 209 223 225 1
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WITH SILENT LINER LEAF SPRING<C1N> 10-LEAF 		1-51410-257-0 02 1 0103-1109
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WITH SILENT LINER LEAF SPRING<C1N> 10-LEAF 		8-98200-086-0 02 1 1110-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. WITH SILENT LINER LEAF SPRING<C1N> 10-LEAF 		1-51410-256-0 02 1 0103-1109
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. WITH SILENT LINER LEAF SPRING<C1N> 10-LEAF 		8-98200-085-0 02 1 1110-
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0103-0512
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601-
9 PAD; U BOLT,RR SPR 1-51372-070-0 02 1 0103-
15 SHACKLE; RR SPR
(A) 		1-51362-051-0 02 1 0103-0911
15 SHACKLE; RR SPR
(A) 		1-51362-050-0 02 1 0912-1403
15 SHACKLE; RR SPR
(B) 		8-98245-110-0 02 1 1404-
16 BUSHING; SHACKLE,RR SPR 1-51351-024-1 02 1 0103-0911
16 BUSHING; SHACKLE,RR SPR
OD=38 		1-51351-031-0 02 1 0912-
17 WASHER; LK,SHACKLE PIN
ID=24.5 OD=52 		9-51369-012-0 02 1 0103-1403
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-174-0 01 1 0103-
27 BOLT; STAB
STABILIZER SHAFT FRT&RR<FE6> M10X16 FLANGE 		0-28081-016-0 04 1 0103-0512
27 BOLT; STAB
STABILIZER SHAFT FRT&RR<FE6> M10X16 FLANGE 		0-28051-016-0 04 1 0601-
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51773-072-2 02 1 0103-
57 CLAMP; ROD END
STABILIZER SHAFT FRT&RR<FE6> (A) 		1-51789-027-2 02 1 0103-
57 CLAMP; ROD END
STABILIZER SHAFT FRT&RR<FE6> (B) 		1-51789-028-1 02 1 0103-
58 NUT; CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> M12 		9-99110-412-0 06 1 0103-0512
58 NUT; CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> M12 		0-91110-512-0 06 1 0601-
59 WASHER; LK,CLAMP
STABILIZER SHAFT FRT&RR<FE6> ID=12.2 		9-09150-512-0 06 1 0103-0603
59 WASHER; LK,CLAMP
STABILIZER SHAFT FRT&RR<FE6> ID=12.2 		0-91510-512-0 06 1 0604-
184 WASHER; SPRING PIN 1-09503-277-0 08 1 0103-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 ELBOW 		9-09031-210-0 06 1 0103-0512
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 ELBOW 		0-90301-610-0 06 1 0601-
186 PIN; SHACKLE,RR SPR
(A) 		1-51361-025-0 02 1 0103-1403
186 PIN; SHACKLE,RR SPR
(C) 		8-98245-117-0 02 1 1404-
186 PIN; SHACKLE,RR SPR
(B) 		1-51361-026-0 04 1 0103-
187 BOLT; SPR & SHACKLE
(A) M14X70 FLANGE 		0-28881-470-0 02 1 0103-0512
187 BOLT; SPR & SHACKLE
(A) M14X70 FLANGE 		0-28851-470-0 02 1 0601-1403
187 BOLT; SPR & SHACKLE
(A) M14X70 FLANGE 		0-28851-470-0 06 1 1404-
187 BOLT; SPR & SHACKLE
(B) M14X80 FLANGE 		0-28881-480-0 02 1 0103-0512
187 BOLT; SPR & SHACKLE
(B) M14X80 FLANGE 		0-28851-480-0 02 1 0601-
188 WASHER; PL,SHACKLE PIN
ID=24 		9-09164-624-0 02 1 0103-1403
209 WASHER; PL
STABILIZER SHAFT FRT&RR<FE6> (A) ID=16.5 		9-51631-040-0 04 1 0103-
209 WASHER; PL
STABILIZER SHAFT FRT&RR<FE6> (B) ID=20.8 		9-51631-041-0 04 1 0103-
223 SPACER; U BOLT,RR SPR
(A) 		1-51377-343-2 02 1 0103-1109
223 SPACER; U BOLT,RR SPR
(A) 		8-98200-087-0 02 1 1110-
223 SPACER; U BOLT,RR SPR
(B) 		1-53157-950-0 02 1 0103-1105
225 RUBBER; CUSHION,RR SPR 1-53366-174-0 02 1 0103-
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 04 1 0103-0602
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 04 1 0603-
276 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-079-1 04 1 0103-
277 BUSHING; STAB,RR UPR
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-067-0 02 1 0103-
290 BOLT; STAB SUPPORTER
STABILIZER SHAFT FRT&RR<FE6> M12X50 		0-20801-250-0 04 1 0103-0910
290 BOLT; STAB SUPPORTER
STABILIZER SHAFT FRT&RR<FE6> M12X50 		0-20851-250-0 04 1 0911-
304 PIN; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51789-020-2 02 1 0103-
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (A) M14 		9-99111-414-0 04 1 0103-0512
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (A) M14 		0-91111-514-0 04 1 0601-
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (B) M24 		9-99116-424-0 02 1 0103-
310 PIN; SPLIT,STAB ROD
STABILIZER SHAFT FRT&RR<FE6> OD=4.6 L=45 		9-08115-045-0 02 1 0103-0606
310 PIN; SPLIT,STAB ROD
STABILIZER SHAFT FRT&RR<FE6> OD=4.6 L=45 		0-81125-045-0 02 1 0607-
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-102-0 02 1 0103-0111
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-048-4 02 1 0112-
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-134-0 01 1 0103-
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-112-0 01 1 0103-
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28891-445-0 08 1 0103-0512
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28861-445-0 08 1 0601-
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14 FLANGE 		0-91160-214-0 08 1 0103-0602
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14 FLANGE 		0-91180-214-0 08 1 0603-
329 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		9-51631-039-0 04 1 0103-
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 0103-0603
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 0604-0903
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-814-0 04 1 0904-1403
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-814-0 08 1 1404-
372 NUT; SHACKLE
(A) M14 		9-99110-514-0 04 1 0103-0512
372 NUT; SHACKLE
(A) M14 		0-91110-514-0 04 1 0601-1403
372 NUT; SHACKLE
(A) M14 		0-91110-514-0 08 1 1404-
372 NUT; SHACKLE
(B) M24 		9-99111-524-0 02 1 0103-0512
372 NUT; SHACKLE
(B) M24 		0-91111-524-0 02 1 0601-1403
390 U-BOLT SET; RR SPRING
L=430 		1-87870-095-3 04 1 0103-
396 BOLT; CLAMP
STABILIZER SHAFT FRT&RR<FE6> M12X30 		0-20801-230-0 02 1 0103-0910
396 BOLT; CLAMP
STABILIZER SHAFT FRT&RR<FE6> M12X30 		0-20851-230-0 02 1 0911-
444 PIN; CASTER PLATE 1-09740-058-0 02 1 0103-1109
