4-36 — POWER STEERING CONTROL; ENGINE SIDE (#10475) — 52 parça

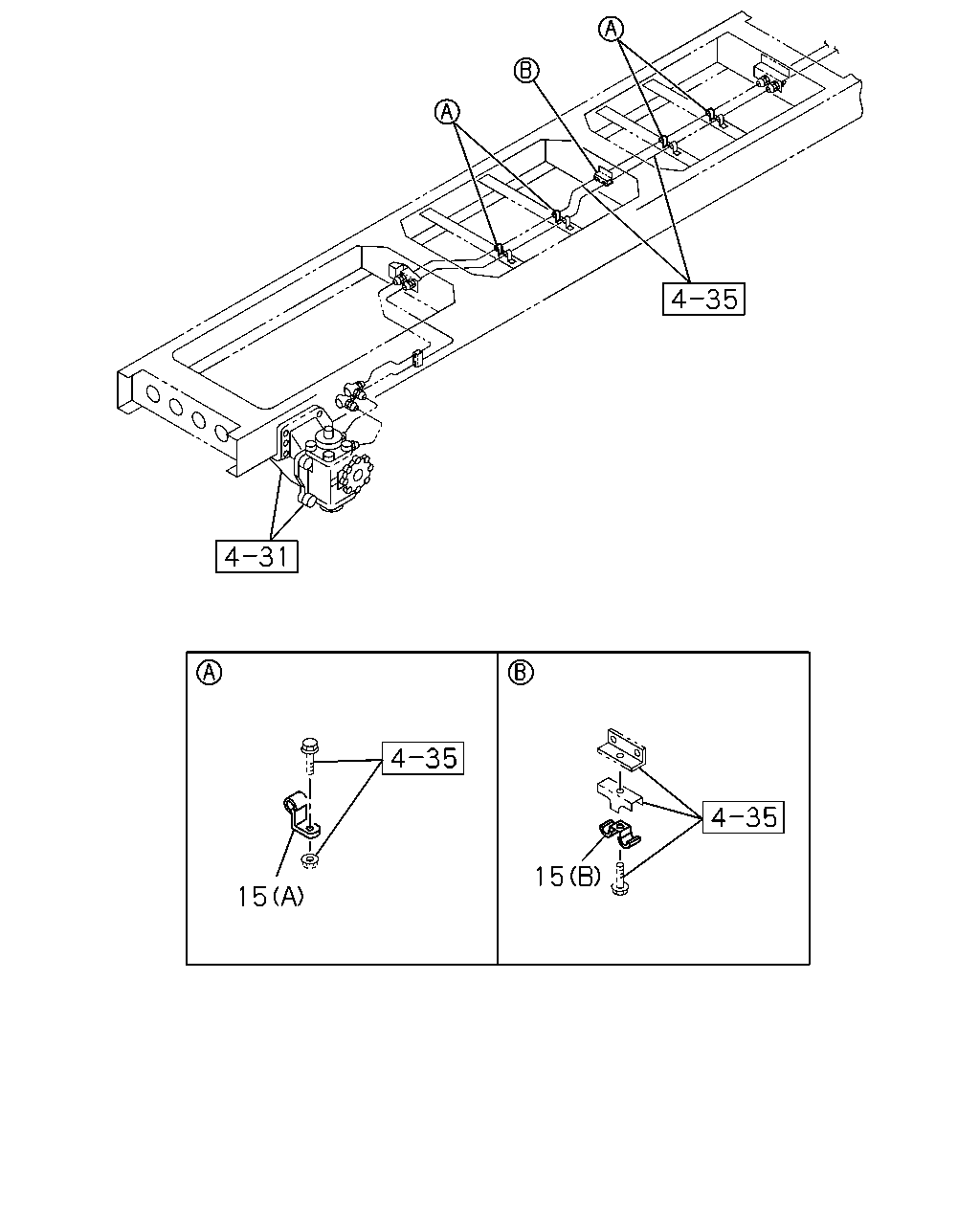

15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; OIL PIPE SUCTION (A) ID=13 H=40 L=25	1-09700-620-0	04	1	0103-
15	CLIP; OIL PIPE SUCTION (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0103-
15	CLIP; OIL PIPE SUCTION 6WA1 TC-C(55L) (C)	1-09701-195-3	02	1	0103-

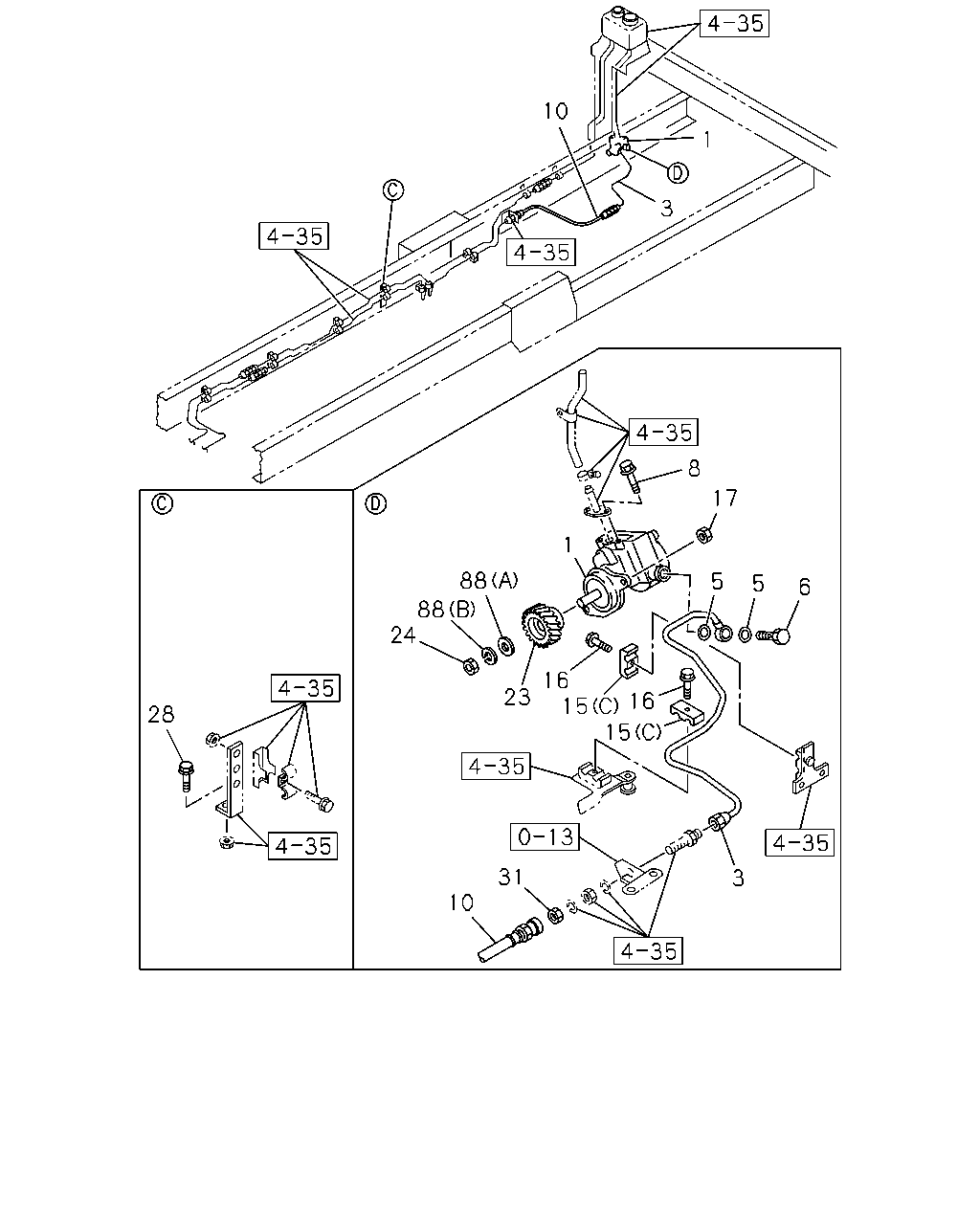

10 1 3 8 17 1 88 5 5 6 88 24 16 15 15 23 16 28 31 3 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TC(32L)	1-19500-413-2	01	1	0103-
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L)	1-19500-447-3	01	1	0103-
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-C(55L)	1-13313-637-1	01	1	0103-
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-C(55L) ID=18.2 OD=24.4	1-09630-087-0	02	1	0103-
6	BOLT; EYE,P/S PIPE 6WA1 TC-C(55L) M18X36	1-09675-174-0	01	1	0103-0306
6	BOLT; EYE,P/S PIPE 6WA1 TC-C(55L) M18X36	1-09675-205-0	01	1	0307-
8	BOLT; OIL PIPE 6WA1 TC-C(55L) M8X16 FLANGE	0-28080-816-0	02	1	0103-0512
8	BOLT; OIL PIPE 6WA1 TC-C(55L) M8X16 FLANGE	0-28050-816-0	02	1	0601-
10	HOSE; FLEX,P/S OIL PUMP,INL 6SD1 TC(32L) L=610	1-09365-121-0	01	1	0103-
10	HOSE; FLEX,P/S OIL PUMP,INL 6WA1 TC-C(55L)	0-09538-460-0	01	1	0103-0606
10	HOSE; FLEX,P/S OIL PUMP,INL 6WA1 TC-C(55L)	0-89538-460-0	01	1	0607-
15	CLIP; OIL PIPE SUCTION (A) ID=13 H=40 L=25	1-09700-620-0	04	1	0103-
15	CLIP; OIL PIPE SUCTION (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0103-
15	CLIP; OIL PIPE SUCTION 6WA1 TC-C(55L) (C)	1-09701-195-3	02	1	0103-
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-C(55L) M6X35 FLANGE	0-28680-635-0	02	1	0103-0512
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-C(55L) M6X35 FLANGE	0-28650-635-0	02	1	0601-
17	NUT; POWER STRG PUMP 6WA1 TC-C(55L) M10 FLANGE	0-91150-110-0	02	1	0103-0602
17	NUT; POWER STRG PUMP 6WA1 TC-C(55L) M10 FLANGE	0-91180-110-0	02	1	0603-
23	GEAR; OIL PUMP 6SD1 TC(32L) Z=14	1-19581-033-0	01	1	0103-
23	GEAR; OIL PUMP 6WA1 TC-C(55L) Z=20	1-19581-038-0	01	1	0103-0202
23	GEAR; OIL PUMP 6WA1 TC-C(55L) Z=20	1-19581-041-0	01	1	0203-
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0210-
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	01	1	0103-0512
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28650-830-0	01	1	0601-
31	NUT; FLEX HOSE 6WA1 TC-C(55L) M20	9-99111-420-0	01	1	0103-0512
31	NUT; FLEX HOSE 6WA1 TC-C(55L) M20	0-91111-520-0	01	1	0601-
88	WASHER; GEAR,P/S PUMP 6SD1 TC(32L) (C) ID=17	1-19519-294-0	01	1	0210-1405
88	WASHER; GEAR,P/S PUMP 6SD1 TC(32L) (C) ID=16.2	9-09851-672-2	01	1	1406-
88	WASHER; GEAR,P/S PUMP 6WA1 TC-C(55L) (A)	1-19519-293-0	01	1	0210-
88	WASHER; GEAR,P/S PUMP 6WA1 TC-C(55L) (B)	9-09150-016-0	01	1	0210-

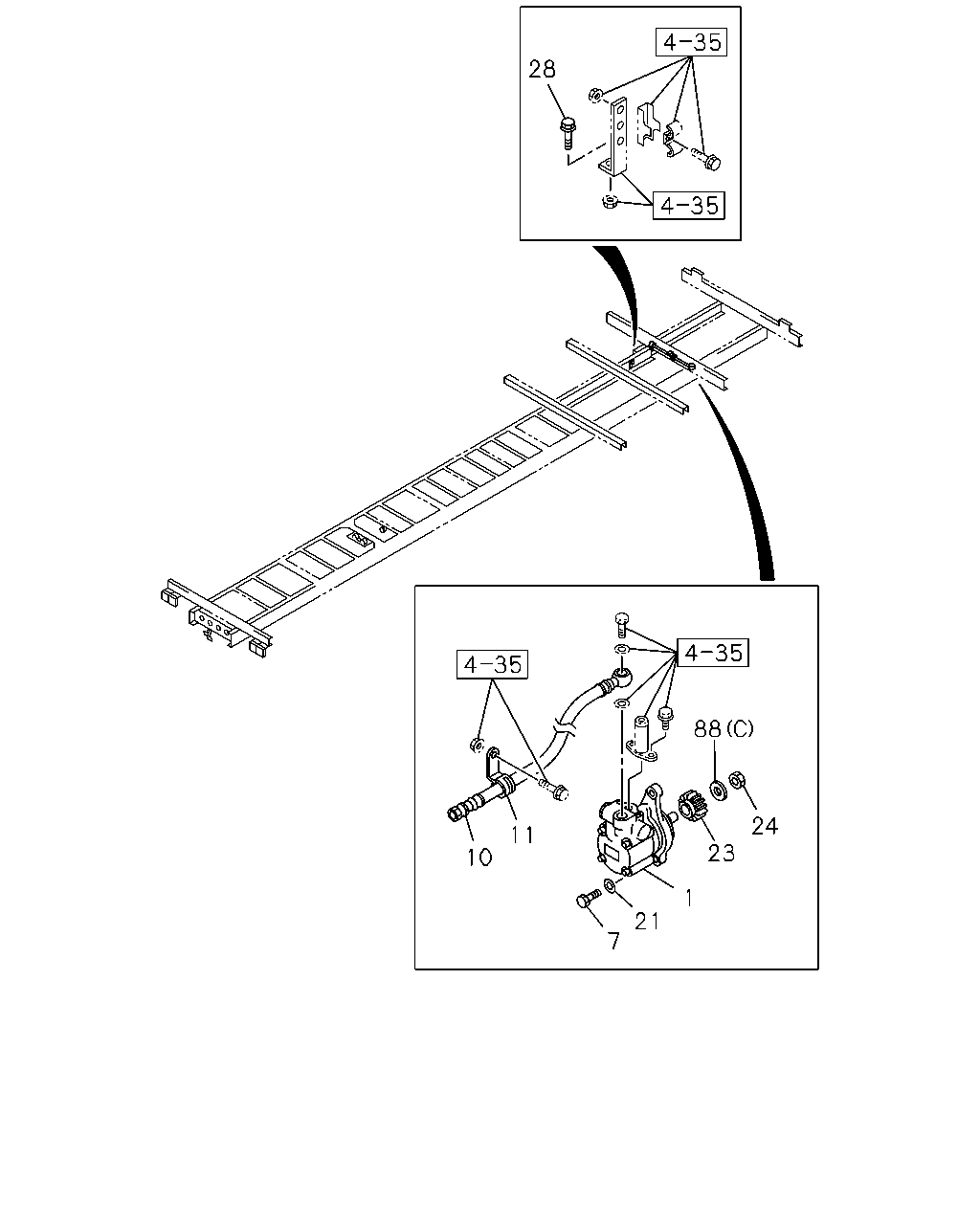

28 88 24 11 23 10 1 21 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TC(32L)	1-19500-413-2	01	1	0103-
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L)	1-19500-447-3	01	1	0103-
7	BOLT; OIL PUMP,P/S 6SD1 TC(32L) M12X75	9-01666-275-0	02	1	0103-
10	HOSE; FLEX,P/S OIL PUMP,INL 6SD1 TC(32L) L=610	1-09365-121-0	01	1	0103-
10	HOSE; FLEX,P/S OIL PUMP,INL 6WA1 TC-C(55L)	0-09538-460-0	01	1	0103-0606
10	HOSE; FLEX,P/S OIL PUMP,INL 6WA1 TC-C(55L)	0-89538-460-0	01	1	0607-
11	CLIP; FLEX HOSE 6SD1 TC(32L) ID=25 H=30 L=35	1-09700-875-0	01	1	0103-
21	WASHER; PL,P/S OIL PUMP 6SD1 TC(32L) ID=12.5	9-09160-512-0	02	1	0103-0605
21	WASHER; PL,P/S OIL PUMP 6SD1 TC(32L) ID=12.5 OD=22	0-91610-512-0	02	1	0606-
23	GEAR; OIL PUMP 6SD1 TC(32L) Z=14	1-19581-033-0	01	1	0103-
23	GEAR; OIL PUMP 6WA1 TC-C(55L) Z=20	1-19581-038-0	01	1	0103-0202
23	GEAR; OIL PUMP 6WA1 TC-C(55L) Z=20	1-19581-041-0	01	1	0203-
24	NUT; GEAR,P/S PUMP M16	9-19519-112-0	01	1	0210-
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	01	1	0103-0512
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28650-830-0	01	1	0601-
88	WASHER; GEAR,P/S PUMP 6SD1 TC(32L) (C) ID=17	1-19519-294-0	01	1	0210-1405
88	WASHER; GEAR,P/S PUMP 6SD1 TC(32L) (C) ID=16.2	9-09851-672-2	01	1	1406-
88	WASHER; GEAR,P/S PUMP 6WA1 TC-C(55L) (A)	1-19519-293-0	01	1	0210-
88	WASHER; GEAR,P/S PUMP 6WA1 TC-C(55L) (B)	9-09150-016-0	01	1	0210-
