Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#10474) — 671 parça

75 75 265 75 248 62 58 58 288 54 54 59 54 247 62 62 58 75 256 76 58 65 54 63 63 66 265 83 80 54 59 65 58 75 65 76 75 257

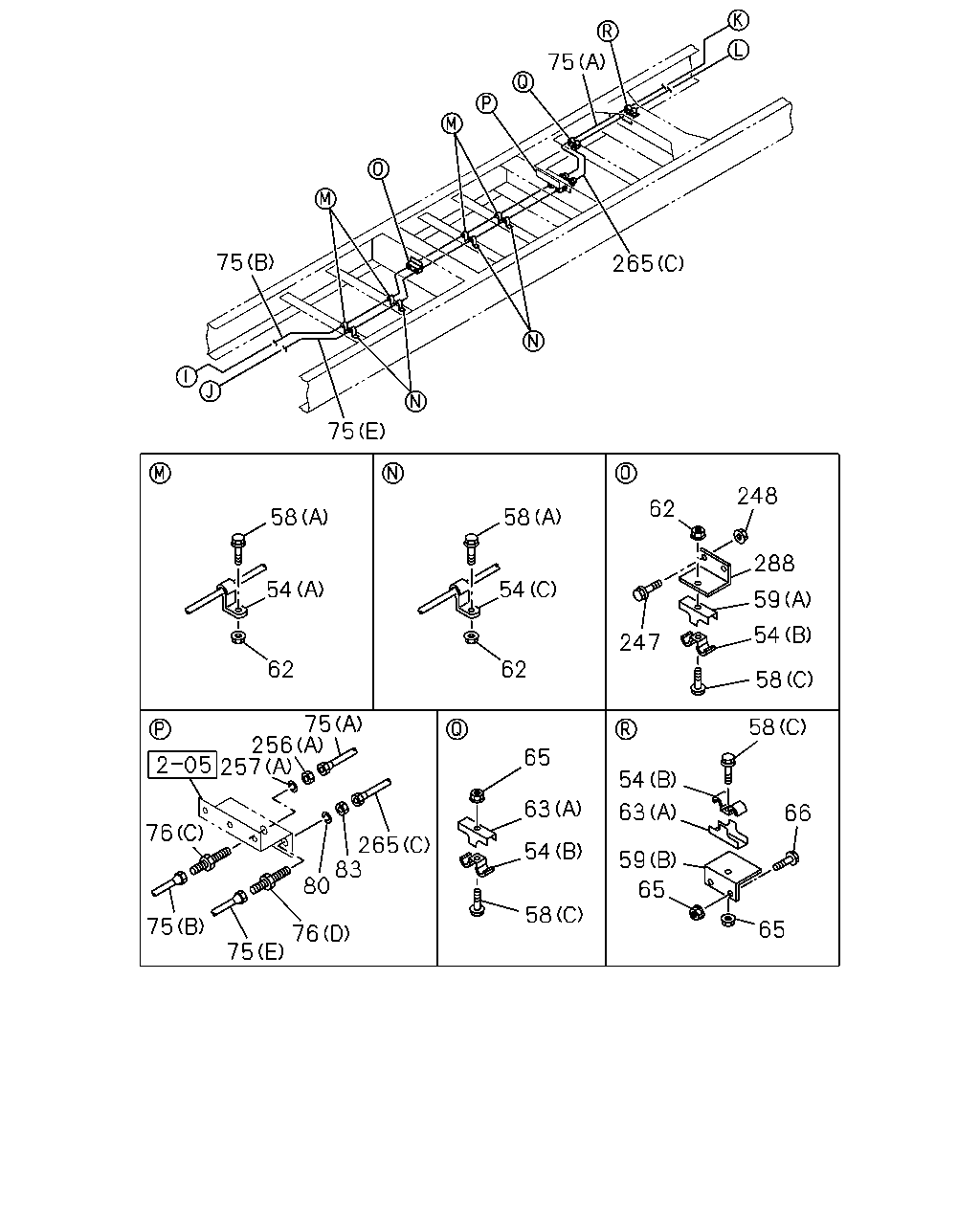

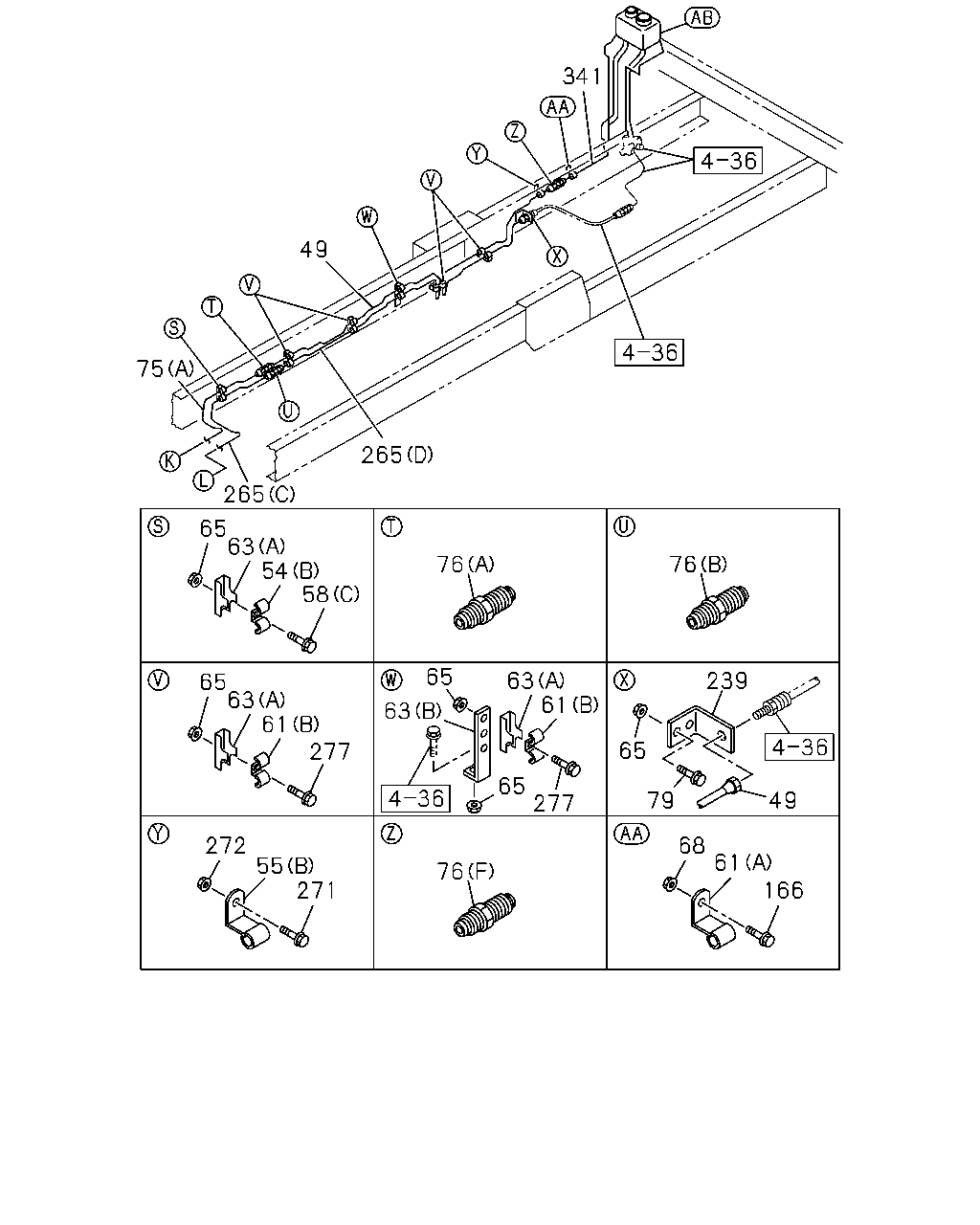

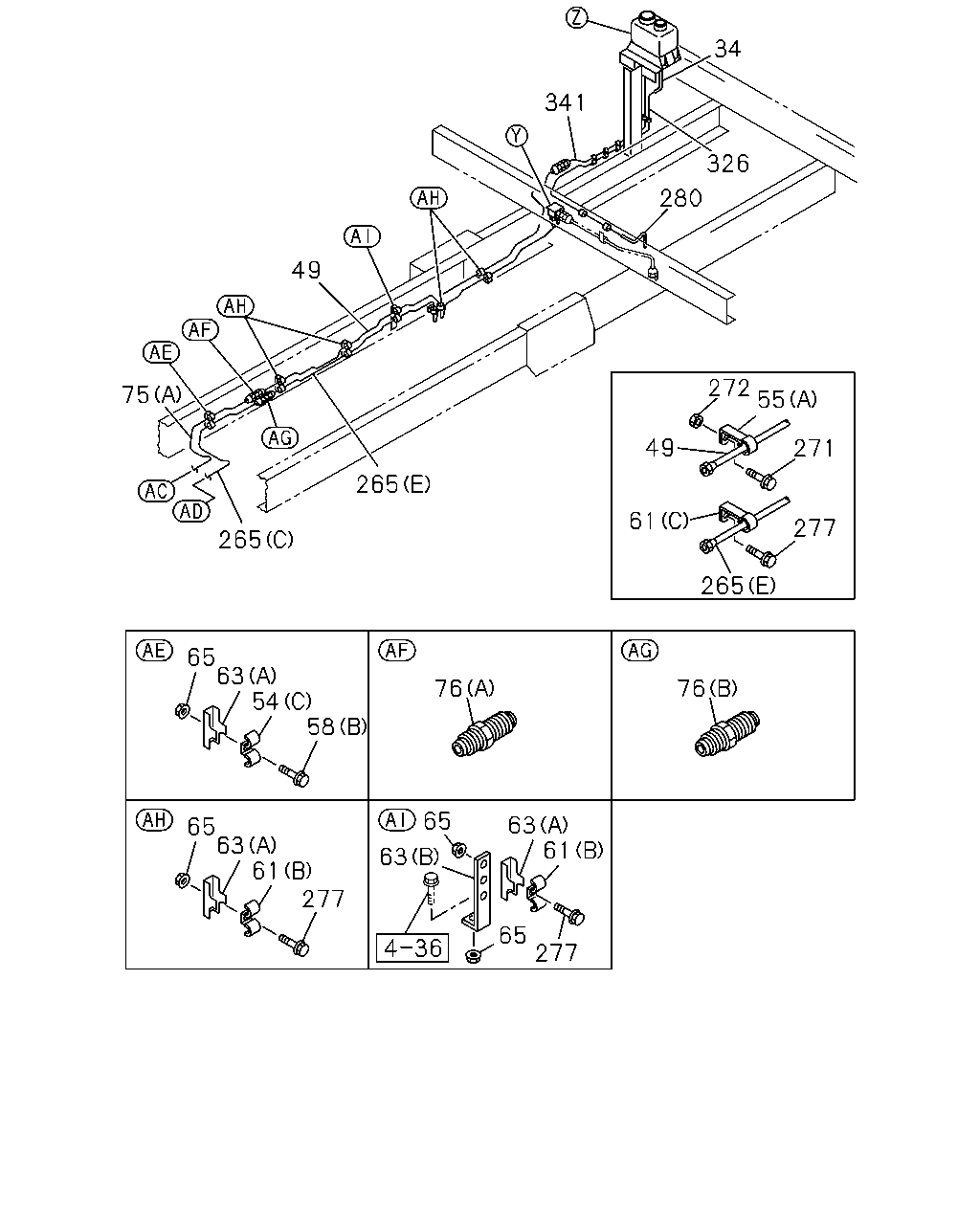

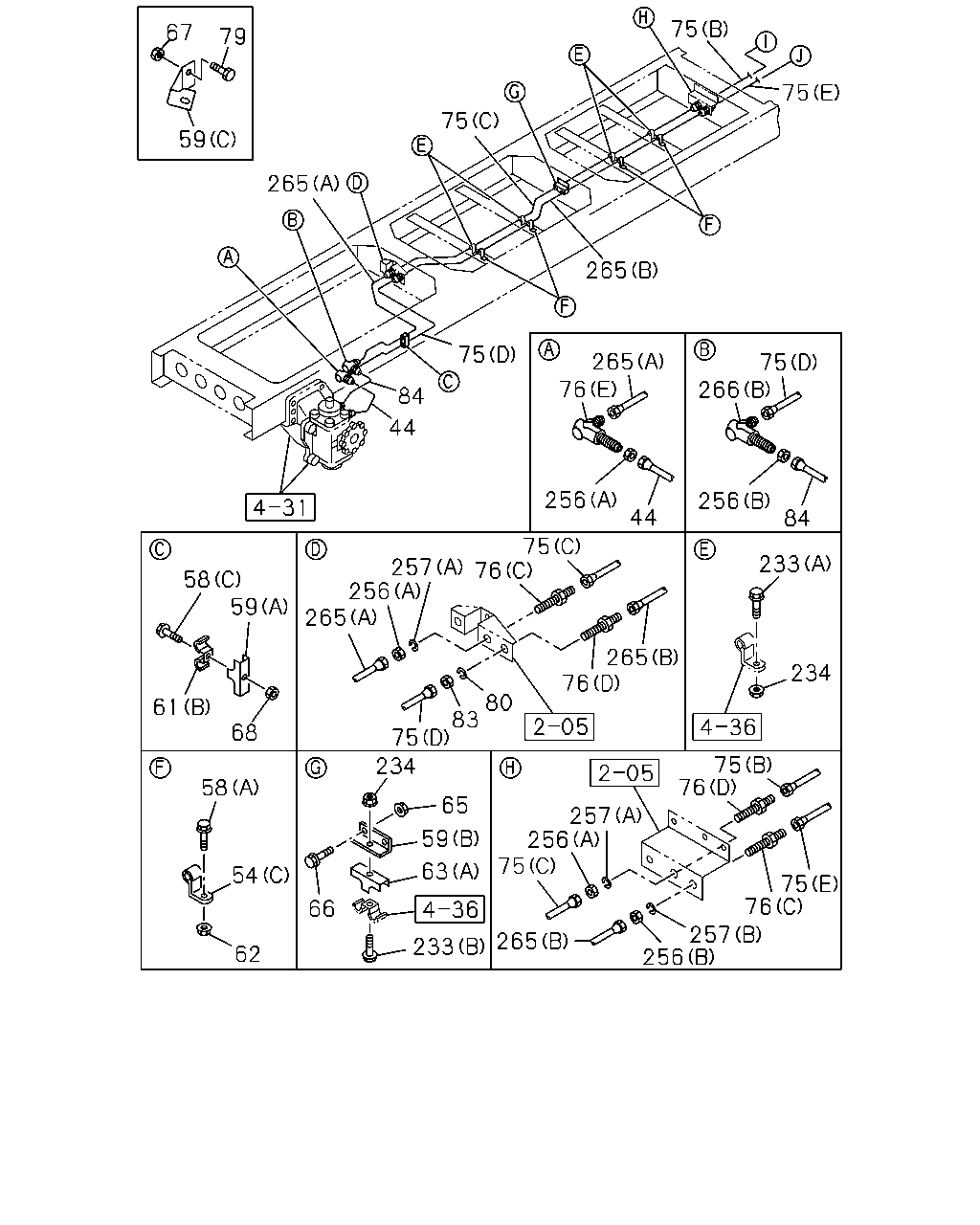

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=13 H=40 L=25	1-09700-620-0	04	1	0103-
54	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0103-
54	CLIP; OIL PIPE (C) ID=15 H=30 L=30	1-09700-832-0	04	1	0103-
54	CLIP; OIL PIPE (C) ID=15 H=30 L=30	1-09700-832-0	04	1	0103-
54	CLIP; OIL PIPE 6SD1 TC(32L) (D) D=24 L=21	1-09700-380-0	02	1	0103-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	08	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	08	1	0601-
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	05	1	0103-0512
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	0103-
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	02	1	0103-
59	BRACKET; CLIP,OIL PIPE (C)	1-47479-197-0	01	1	0103-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0103-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	09	1	0103-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	09	1	0603-
62	NUT; CLIP FIX 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	01	1	0103-0602
62	NUT; CLIP FIX 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	01	1	0603-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	01	1	0103-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	0103-
63	BRACKET; CLIP,P/S (B) L=135	1-47478-729-0	01	1	0103-
63	BRACKET; CLIP,P/S 6SD1 TC(32L) (A)	1-47475-427-1	04	1	0103-
63	BRACKET; CLIP,P/S 6WA1 TC-C(55L) (A)	1-47475-427-1	05	1	0103-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	04	1	0103-0602
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	04	1	0603-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-745-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION (C)	1-21116-751-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-758-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21117-089-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (B)	1-21116-749-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (E)	1-21116-762-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (E)	1-21117-091-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (B)	1-21116-746-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (E)	1-21116-763-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (E)	1-21117-099-0	01	1	0107-
76	UNION; OIL PIPE (F) M22	1-09654-409-0	01	1	0103-
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	01	1	0103-0607
76	UNION; OIL PIPE (A) M20 STRAIGHT	0-92123-012-0	01	1	0608-
76	UNION; OIL PIPE (B) M22	9-09233-015-1	01	1	0103-0607
76	UNION; OIL PIPE (B) M22 L=51	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE (C) M20 & M20	9-09233-312-1	03	1	0103-0607
76	UNION; OIL PIPE (C) M20 & M20	0-92123-312-0	03	1	0608-
76	UNION; OIL PIPE (D) M22	9-09233-315-1	03	1	0103-0607
76	UNION; OIL PIPE (D) M22	0-92123-315-0	03	1	0608-
76	UNION; OIL PIPE (E) M20	9-09235-212-1	01	1	0103-0607
76	UNION; OIL PIPE (E) M20	0-92135-212-0	01	1	0608-
80	WASHER; LK,UNION,OIL PIPE ID=22.5	9-09150-522-0	02	1	0103-0603
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-522-0	02	1	0604-0903
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-622-0	02	1	0904-
83	NUT; UNION,OIL PIPE M22	9-09111-422-0	02	1	0103-0512
83	NUT; UNION,OIL PIPE M22	0-91111-522-0	02	1	0601-
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-
248	NUT; BRKT,CLIP M8 FLANGE	0-91150-108-0	02	1	0103-0602
248	NUT; BRKT,CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
256	NUT; UNION (B) M22	9-09111-422-0	02	1	0103-0512
256	NUT; UNION (B) M22	0-91111-522-0	02	1	0601-
256	NUT; UNION (A) M20	9-99111-420-0	04	1	0103-0512
256	NUT; UNION (A) M20	0-91111-520-0	04	1	0601-
256	NUT; UNION 6SD1 TC(32L) (B) M22	9-09111-422-0	01	1	0103-0512
256	NUT; UNION (B) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION 6WA1 TC-C(55L) (C) M22	9-09111-522-0	01	1	0103-0512
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	01	1	0904-
257	WASHER; LK,UNION 6SD1 TC(32L) (B) ID=22.5	0-91510-622-0	01	1	0904-
257	WASHER; LK,UNION (A) ID=20.2	9-09150-520-0	03	1	0103-0603
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	03	1	0604-
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	01	1	0103-0603
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	01	1	0103-0603
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0604-0903
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0604-0903
257	WASHER; LK,UNION 6WA1 TC-C(55L) (B) ID=22.5	0-91510-522-0	01	1	0904-
265	PIPE; OIL,UNION TO UNION (A)	1-21116-753-0	01	1	0103-
265	PIPE; OIL,UNION TO UNION (B)	1-21116-760-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION (B)	1-21117-090-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-766-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION (C)	1-21117-092-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION 6SD1 TC(32L) (E)	1-21116-877-1	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION 6SD1 TC(32L) (E)	1-21117-096-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (D)	1-21116-769-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (D)	1-21117-093-0	01	1	0107-
288	BRACKET; CLIP,P/S	1-47478-408-0	01	1	0103-

1 2 7 8 20 19 1 2 25 199 301 37 301 192 41 286 58 199 198 37 65 42 31 287 65 37 58 3 12 5 19 15 280 37 67 41 125 195 341 111 111 195 195 266 257 256 81

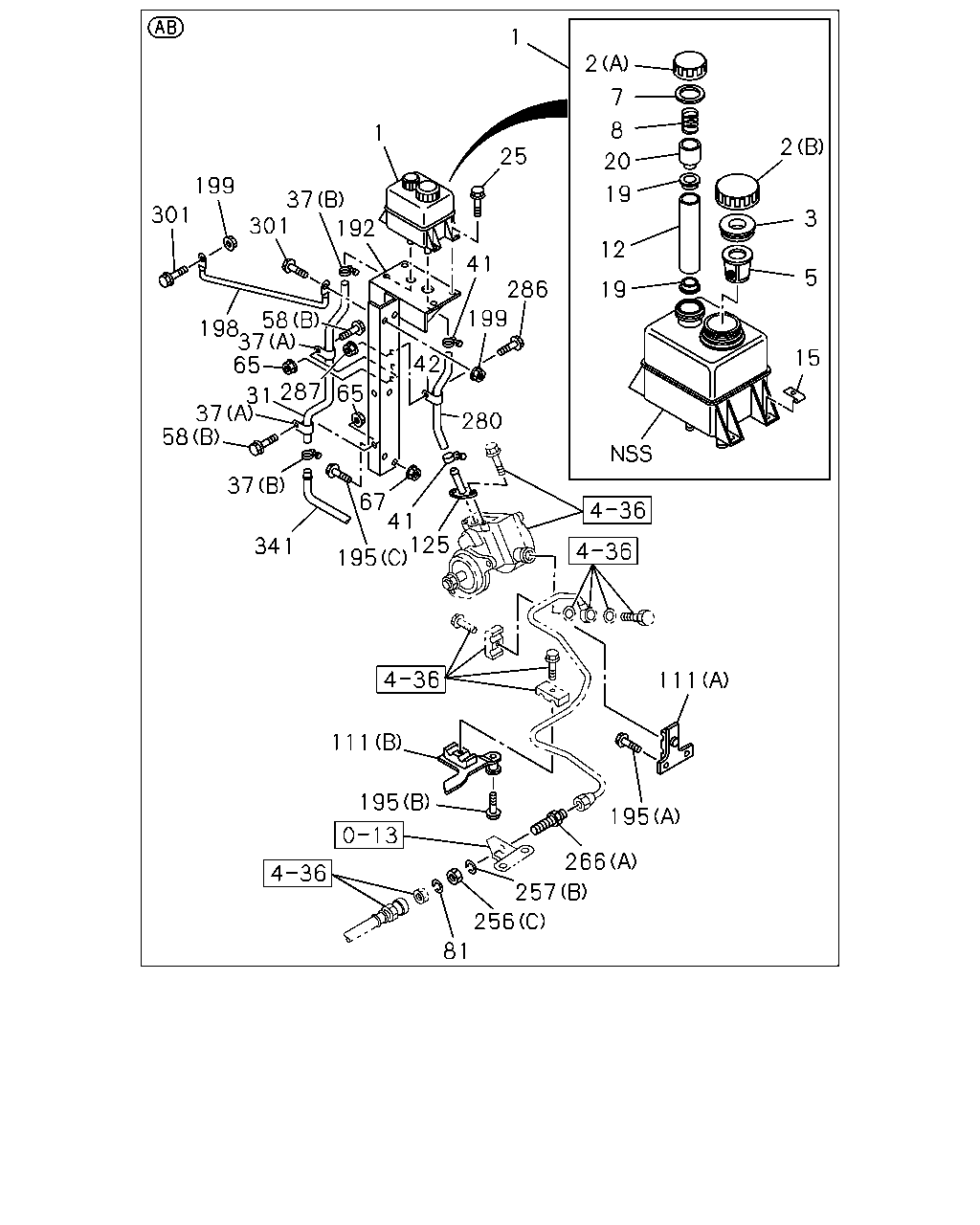

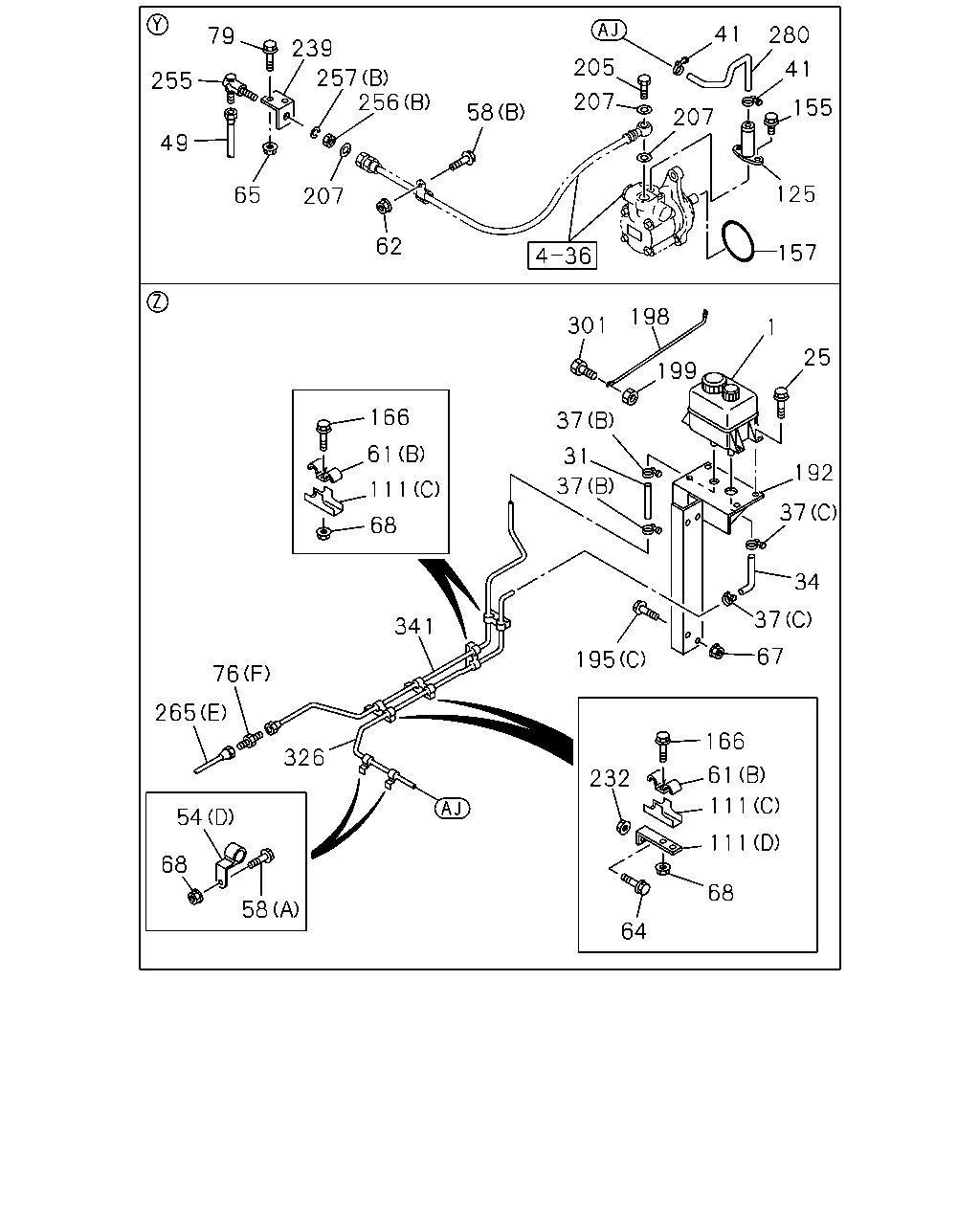

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	0103-0508
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0103-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0103-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0103-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0103-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0103-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0103-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0103-
15	PLATE; FILTER,OIL TANK	1-21249-009-0	04	1	0103-0508
15	PLATE; FILTER,OIL TANK	1-21249-017-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0103-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0103-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	0103-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL 6SD1 TC(32L)	0-09814-120-0	01	1	0103-
31	HOSE; P/S OIL TANK,INL 6WA1 TC-C(55L)	1-21116-423-0	01	1	0103-
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0103-
37	CLIP; HOSE,P/S 6SD1 TC(32L) (C) ID=38	9-09915-041-1	02	1	0103-
37	CLIP; HOSE,P/S 6WA1 TC-C(55L) (A) ID=24 L=40	1-09701-139-0	02	1	0103-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0103-
42	CLIP; HOSE,P/S 6WA1 TC-C(55L) ID=35 L=35	1-09700-684-0	01	1	0103-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	08	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	08	1	0601-
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	05	1	0103-0512
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	04	1	0103-0602
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	04	1	0603-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
67	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0103-0602
67	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
81	WASHER; LK,FLEX HOSE 6WA1 TC-C(55L) ID=20.2	9-09150-520-0	01	1	0103-0603
81	WASHER; LK,FLEX HOSE 6WA1 TC-C(55L) ID=20.2	0-91510-520-0	01	1	0604-
111	BRACKET; OIL PIPE 6SD1 TC(32L) (C)	1-47475-427-1	04	1	0103-
111	BRACKET; OIL PIPE 6SD1 TC(32L) (D)	1-47478-918-0	02	1	0103-
111	BRACKET; OIL PIPE 6WA1 TC-C(55L) (A)	1-13345-186-0	01	1	0103-
111	BRACKET; OIL PIPE 6WA1 TC-C(55L) (B)	1-13345-187-0	01	1	0103-
125	CONNECTOR; P/S PUMP	1-21122-022-0	01	1	0103-
192	BRACKET; P/S OIL TANK	1-65600-636-2	01	1	0103-
195	BOLT; BRKT (C) M10X30 FLANGE	0-28681-030-0	02	1	0103-0512
195	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-
195	BOLT; BRKT 6WA1 TC-C(55L) (A) M8X12 FLANGE	0-28080-812-0	02	1	0103-0512
195	BOLT; BRKT 6WA1 TC-C(55L) (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X35 FLANGE	0-28181-035-0	01	1	0103-0512
195	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
198	STAY; OIL TANK,POWER STEERING	1-47479-079-0	01	1	0103-0403
198	STAY; OIL TANK,POWER STEERING	1-47479-996-0	01	1	0404-
199	NUT; STAY,OIL TANK M8 FLANGE	0-91150-108-0	02	1	0103-0602
199	NUT; STAY,OIL TANK M8 FLANGE	0-91180-108-0	02	1	0603-
256	NUT; UNION (B) M22	9-09111-422-0	02	1	0103-0512
256	NUT; UNION (B) M22	0-91111-522-0	02	1	0601-
256	NUT; UNION (A) M20	9-99111-420-0	04	1	0103-0512
256	NUT; UNION (A) M20	0-91111-520-0	04	1	0601-
256	NUT; UNION 6SD1 TC(32L) (B) M22	9-09111-422-0	01	1	0103-0512
256	NUT; UNION (B) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION 6WA1 TC-C(55L) (C) M22	9-09111-522-0	01	1	0103-0512
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	01	1	0904-
257	WASHER; LK,UNION 6SD1 TC(32L) (B) ID=22.5	0-91510-622-0	01	1	0904-
257	WASHER; LK,UNION (A) ID=20.2	9-09150-520-0	03	1	0103-0603
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	03	1	0604-
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	01	1	0103-0603
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	01	1	0103-0603
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0604-0903
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0604-0903
257	WASHER; LK,UNION 6WA1 TC-C(55L) (B) ID=22.5	0-91510-522-0	01	1	0904-
266	UNION; OIL PIPE,P/S (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0103-
266	UNION; OIL PIPE,P/S 6WA1 TC-C(55L) (A) M20 & M22 STRAIGHT	1-09654-167-1	01	1	0103-
280	HOSE; P/S OIL PUMP,INL 6SD1 TC(32L)	1-21116-740-1	01	1	0103-
280	HOSE; P/S OIL PUMP,INL 6WA1 TC-C(55L)	1-21116-424-1	01	1	0103-
286	BOLT; CLIP,P/S HOSE 6WA1 TC-C(55L) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
286	BOLT; CLIP,P/S HOSE 6WA1 TC-C(55L) M8X25 FLANGE	0-28650-825-0	01	1	0601-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0103-0602
287	NUT; CLIP 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	0103-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
287	NUT; CLIP 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	01	1	0603-
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0601-
341	PIPE; OIL,UNION TO OIL TANK 6SD1 TC(32L)	1-21116-902-0	01	1	0103-0106
341	PIPE; OIL,UNION TO OIL TANK 6SD1 TC(32L)	1-21117-103-0	01	1	0107-
341	PIPE; OIL,UNION TO OIL TANK 6WA1 TC-C(55L)	1-21116-768-0	01	1	0103-0106
341	PIPE; OIL,UNION TO OIL TANK 6WA1 TC-C(55L)	1-21117-094-0	01	1	0107-

75 67 79 75 75 59 265 265 75 265 76 75 266 84 44 256 256 44 84 75 76 233 257 256 265 58 59 265 76 234 80 83 75 61 68 75 76 234 58 65 257 256 75 59 63 54 75 76 257 256 66 265 233 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE L=451	1-21116-755-0	01	1	0103-
54	CLIP; OIL PIPE (A) ID=13 H=40 L=25	1-09700-620-0	04	1	0103-
54	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0103-
54	CLIP; OIL PIPE (C) ID=15 H=30 L=30	1-09700-832-0	04	1	0103-
54	CLIP; OIL PIPE (C) ID=15 H=30 L=30	1-09700-832-0	04	1	0103-
54	CLIP; OIL PIPE 6SD1 TC(32L) (D) D=24 L=21	1-09700-380-0	02	1	0103-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	08	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	08	1	0601-
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	05	1	0103-0512
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	02	1	0103-
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	02	1	0103-
59	BRACKET; CLIP,OIL PIPE (C)	1-47479-197-0	01	1	0103-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0103-
61	CLIP; OIL PIPE (A) ID=28 L=40	1-09701-261-0	01	1	0103-
61	CLIP; OIL PIPE 6SD1 TC(32L) (C) ID=23 & 16 L=25 & 20	1-09700-613-0	04	1	0103-
61	CLIP; OIL PIPE 6SD1 TC(32L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0103-
61	CLIP; OIL PIPE 6WA1 TC-C(55L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0103-
61	CLIP; OIL PIPE 6WA1 TC-C(55L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	05	1	0103-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0103-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	09	1	0103-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	09	1	0603-
62	NUT; CLIP FIX 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	01	1	0103-0602
62	NUT; CLIP FIX 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	01	1	0603-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	01	1	0103-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	0103-
63	BRACKET; CLIP,P/S (B) L=135	1-47478-729-0	01	1	0103-
63	BRACKET; CLIP,P/S 6SD1 TC(32L) (A)	1-47475-427-1	04	1	0103-
63	BRACKET; CLIP,P/S 6WA1 TC-C(55L) (A)	1-47475-427-1	05	1	0103-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	04	1	0103-0602
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	04	1	0603-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
67	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0103-0602
67	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0103-0602
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	0103-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M6 FLANGE	0-91150-106-0	04	1	0103-0602
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M6 FLANGE	0-91180-106-0	04	1	0603-
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	02	1	0103-0602
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	02	1	0603-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-745-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION (C)	1-21116-751-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-758-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21117-089-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (B)	1-21116-749-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (E)	1-21116-762-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (E)	1-21117-091-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (B)	1-21116-746-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (E)	1-21116-763-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (E)	1-21117-099-0	01	1	0107-
76	UNION; OIL PIPE (F) M22	1-09654-409-0	01	1	0103-
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	01	1	0103-0607
76	UNION; OIL PIPE (A) M20 STRAIGHT	0-92123-012-0	01	1	0608-
76	UNION; OIL PIPE (B) M22	9-09233-015-1	01	1	0103-0607
76	UNION; OIL PIPE (B) M22 L=51	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE (C) M20 & M20	9-09233-312-1	03	1	0103-0607
76	UNION; OIL PIPE (C) M20 & M20	0-92123-312-0	03	1	0608-
76	UNION; OIL PIPE (D) M22	9-09233-315-1	03	1	0103-0607
76	UNION; OIL PIPE (D) M22	0-92123-315-0	03	1	0608-
76	UNION; OIL PIPE (E) M20	9-09235-212-1	01	1	0103-0607
76	UNION; OIL PIPE (E) M20	0-92135-212-0	01	1	0608-
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
80	WASHER; LK,UNION,OIL PIPE ID=22.5	9-09150-522-0	02	1	0103-0603
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-522-0	02	1	0604-0903
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-622-0	02	1	0904-
83	NUT; UNION,OIL PIPE M22	9-09111-422-0	02	1	0103-0512
83	NUT; UNION,OIL PIPE M22	0-91111-522-0	02	1	0601-
84	HOSE; FLEX,P/S L=520	0-09671-520-0	01	1	0103-0607
84	HOSE; FLEX,P/S L=520	0-89671-520-0	01	1	0608-0611
84	HOSE; FLEX,P/S L=520	8-98072-097-0	01	1	0612-
233	BOLT; PIPE CLIP,P/S (A) M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
233	BOLT; PIPE CLIP,P/S (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
233	BOLT; PIPE CLIP,P/S (B) M8X40 FLANGE	0-28680-840-0	01	1	0103-0512
233	BOLT; PIPE CLIP,P/S (B) M8X40 FLANGE	0-28650-840-0	01	1	0601-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	05	1	0103-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	05	1	0603-
256	NUT; UNION (B) M22	9-09111-422-0	02	1	0103-0512
256	NUT; UNION (B) M22	0-91111-522-0	02	1	0601-
256	NUT; UNION (A) M20	9-99111-420-0	04	1	0103-0512
256	NUT; UNION (A) M20	0-91111-520-0	04	1	0601-
256	NUT; UNION 6SD1 TC(32L) (B) M22	9-09111-422-0	01	1	0103-0512
256	NUT; UNION (B) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION 6WA1 TC-C(55L) (C) M22	9-09111-522-0	01	1	0103-0512
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	01	1	0904-
257	WASHER; LK,UNION 6SD1 TC(32L) (B) ID=22.5	0-91510-622-0	01	1	0904-
257	WASHER; LK,UNION (A) ID=20.2	9-09150-520-0	03	1	0103-0603
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	03	1	0604-
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	01	1	0103-0603
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	01	1	0103-0603
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0604-0903
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0604-0903
257	WASHER; LK,UNION 6WA1 TC-C(55L) (B) ID=22.5	0-91510-522-0	01	1	0904-
265	PIPE; OIL,UNION TO UNION (A)	1-21116-753-0	01	1	0103-
265	PIPE; OIL,UNION TO UNION (B)	1-21116-760-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION (B)	1-21117-090-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-766-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION (C)	1-21117-092-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION 6SD1 TC(32L) (E)	1-21116-877-1	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION 6SD1 TC(32L) (E)	1-21117-096-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (D)	1-21116-769-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (D)	1-21117-093-0	01	1	0107-
266	UNION; OIL PIPE,P/S (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0103-
266	UNION; OIL PIPE,P/S 6WA1 TC-C(55L) (A) M20 & M22 STRAIGHT	1-09654-167-1	01	1	0103-

341 49 75 265 265 65 63 54 58 76 76 65 63 61 239 65 63 61 277 63 65 65 277 79 49 272 68 61 166 55 271 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION 6SD1 TC(32L)	1-21116-876-0	01	1	0103-
49	PIPE; OIL,FLEX HOSE TO UNION 6WA1 TC-C(55L)	1-21116-741-0	01	1	0103-
54	CLIP; OIL PIPE (A) ID=13 H=40 L=25	1-09700-620-0	04	1	0103-
54	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0103-
54	CLIP; OIL PIPE (C) ID=15 H=30 L=30	1-09700-832-0	04	1	0103-
54	CLIP; OIL PIPE (C) ID=15 H=30 L=30	1-09700-832-0	04	1	0103-
54	CLIP; OIL PIPE 6SD1 TC(32L) (D) D=24 L=21	1-09700-380-0	02	1	0103-
55	CLIP; P/S RUBBER HOSE 6SD1 TC(32L) (A) ID=15 H=30 L=30	1-09700-832-0	01	1	0103-
55	CLIP; P/S RUBBER HOSE 6WA1 TC-C(55L) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0103-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	08	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	08	1	0601-
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	05	1	0103-0512
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0103-
61	CLIP; OIL PIPE (A) ID=28 L=40	1-09701-261-0	01	1	0103-
61	CLIP; OIL PIPE 6SD1 TC(32L) (C) ID=23 & 16 L=25 & 20	1-09700-613-0	04	1	0103-
61	CLIP; OIL PIPE 6SD1 TC(32L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0103-
61	CLIP; OIL PIPE 6WA1 TC-C(55L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0103-
61	CLIP; OIL PIPE 6WA1 TC-C(55L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	05	1	0103-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	01	1	0103-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	0103-
63	BRACKET; CLIP,P/S (B) L=135	1-47478-729-0	01	1	0103-
63	BRACKET; CLIP,P/S 6SD1 TC(32L) (A)	1-47475-427-1	04	1	0103-
63	BRACKET; CLIP,P/S 6WA1 TC-C(55L) (A)	1-47475-427-1	05	1	0103-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	04	1	0103-0602
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	04	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0103-0602
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	0103-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M6 FLANGE	0-91150-106-0	04	1	0103-0602
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M6 FLANGE	0-91180-106-0	04	1	0603-
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	02	1	0103-0602
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	02	1	0603-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-745-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION (C)	1-21116-751-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-758-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21117-089-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (B)	1-21116-749-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (E)	1-21116-762-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (E)	1-21117-091-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (B)	1-21116-746-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (E)	1-21116-763-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (E)	1-21117-099-0	01	1	0107-
76	UNION; OIL PIPE (F) M22	1-09654-409-0	01	1	0103-
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	01	1	0103-0607
76	UNION; OIL PIPE (A) M20 STRAIGHT	0-92123-012-0	01	1	0608-
76	UNION; OIL PIPE (B) M22	9-09233-015-1	01	1	0103-0607
76	UNION; OIL PIPE (B) M22 L=51	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE (C) M20 & M20	9-09233-312-1	03	1	0103-0607
76	UNION; OIL PIPE (C) M20 & M20	0-92123-312-0	03	1	0608-
76	UNION; OIL PIPE (D) M22	9-09233-315-1	03	1	0103-0607
76	UNION; OIL PIPE (D) M22	0-92123-315-0	03	1	0608-
76	UNION; OIL PIPE (E) M20	9-09235-212-1	01	1	0103-0607
76	UNION; OIL PIPE (E) M20	0-92135-212-0	01	1	0608-
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
166	BOLT; CLIP 6WA1 TC-C(55L) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
166	BOLT; CLIP 6WA1 TC-C(55L) M8X25 FLANGE	0-28650-825-0	01	1	0601-
166	BOLT; CLIP 6SD1 TC(32L) M6X40 FLANGE	0-28680-640-0	04	1	0103-0512
166	BOLT; CLIP 6SD1 TC(32L) M6X40 FLANGE	0-28650-640-0	04	1	0601-
239	BRACKET; FLEX HOSE 6SD1 TC(32L)	1-47478-942-0	01	1	0103-
239	BRACKET; FLEX HOSE 6WA1 TC-C(55L)	1-47478-324-0	01	1	0103-
265	PIPE; OIL,UNION TO UNION (A)	1-21116-753-0	01	1	0103-
265	PIPE; OIL,UNION TO UNION (B)	1-21116-760-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION (B)	1-21117-090-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-766-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION (C)	1-21117-092-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION 6SD1 TC(32L) (E)	1-21116-877-1	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION 6SD1 TC(32L) (E)	1-21117-096-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (D)	1-21116-769-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (D)	1-21117-093-0	01	1	0107-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	01	1	0601-
272	NUT; P/S OIL PIPE FIX 6SD1 TC(32L),6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	0103-0602
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	0603-
277	BOLT; HOSE CLIP 6SD1 TC(32L) M8X45 FLANGE	0-28080-845-0	04	1	0103-0512
277	BOLT; HOSE CLIP 6SD1 TC(32L) M8X45 FLANGE	0-28050-845-0	04	1	0601-
277	BOLT; HOSE CLIP 6WA1 TC-C(55L) M8X45 FLANGE	0-28080-845-0	05	1	0103-0512
277	BOLT; HOSE CLIP 6WA1 TC-C(55L) M8X45 FLANGE	0-28050-845-0	05	1	0601-
341	PIPE; OIL,UNION TO OIL TANK 6SD1 TC(32L)	1-21116-902-0	01	1	0103-0106
341	PIPE; OIL,UNION TO OIL TANK 6SD1 TC(32L)	1-21117-103-0	01	1	0107-
341	PIPE; OIL,UNION TO OIL TANK 6WA1 TC-C(55L)	1-21116-768-0	01	1	0103-0106
341	PIPE; OIL,UNION TO OIL TANK 6WA1 TC-C(55L)	1-21117-094-0	01	1	0107-

34 341 326 280 49 272 55 75 49 271 265 61 277 265 265 65 63 54 58 76 76 65 63 61 65 63 61 277 63 65 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	HOSE; P/S OIL TANK,OUTLET 6SD1 TC(32L)	1-21116-306-0	01	1	0103-
49	PIPE; OIL,FLEX HOSE TO UNION 6SD1 TC(32L)	1-21116-876-0	01	1	0103-
49	PIPE; OIL,FLEX HOSE TO UNION 6WA1 TC-C(55L)	1-21116-741-0	01	1	0103-
54	CLIP; OIL PIPE (A) ID=13 H=40 L=25	1-09700-620-0	04	1	0103-
54	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0103-
54	CLIP; OIL PIPE (C) ID=15 H=30 L=30	1-09700-832-0	04	1	0103-
54	CLIP; OIL PIPE (C) ID=15 H=30 L=30	1-09700-832-0	04	1	0103-
54	CLIP; OIL PIPE 6SD1 TC(32L) (D) D=24 L=21	1-09700-380-0	02	1	0103-
55	CLIP; P/S RUBBER HOSE 6SD1 TC(32L) (A) ID=15 H=30 L=30	1-09700-832-0	01	1	0103-
55	CLIP; P/S RUBBER HOSE 6WA1 TC-C(55L) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0103-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	08	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	08	1	0601-
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	05	1	0103-0512
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0103-
61	CLIP; OIL PIPE (A) ID=28 L=40	1-09701-261-0	01	1	0103-
61	CLIP; OIL PIPE 6SD1 TC(32L) (C) ID=23 & 16 L=25 & 20	1-09700-613-0	04	1	0103-
61	CLIP; OIL PIPE 6SD1 TC(32L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0103-
61	CLIP; OIL PIPE 6WA1 TC-C(55L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0103-
61	CLIP; OIL PIPE 6WA1 TC-C(55L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	05	1	0103-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	01	1	0103-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	03	1	0103-
63	BRACKET; CLIP,P/S (B) L=135	1-47478-729-0	01	1	0103-
63	BRACKET; CLIP,P/S 6SD1 TC(32L) (A)	1-47475-427-1	04	1	0103-
63	BRACKET; CLIP,P/S 6WA1 TC-C(55L) (A)	1-47475-427-1	05	1	0103-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	04	1	0103-0602
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	04	1	0603-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21116-745-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION (C)	1-21116-751-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21116-758-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION (D)	1-21117-089-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (B)	1-21116-749-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (E)	1-21116-762-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6000MM(60W) (E)	1-21117-091-0	01	1	0107-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (B)	1-21116-746-0	01	1	0103-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (E)	1-21116-763-0	01	1	0103-0106
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 6200MM(62W) (E)	1-21117-099-0	01	1	0107-
76	UNION; OIL PIPE (F) M22	1-09654-409-0	01	1	0103-
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	01	1	0103-0607
76	UNION; OIL PIPE (A) M20 STRAIGHT	0-92123-012-0	01	1	0608-
76	UNION; OIL PIPE (B) M22	9-09233-015-1	01	1	0103-0607
76	UNION; OIL PIPE (B) M22 L=51	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE (C) M20 & M20	9-09233-312-1	03	1	0103-0607
76	UNION; OIL PIPE (C) M20 & M20	0-92123-312-0	03	1	0608-
76	UNION; OIL PIPE (D) M22	9-09233-315-1	03	1	0103-0607
76	UNION; OIL PIPE (D) M22	0-92123-315-0	03	1	0608-
76	UNION; OIL PIPE (E) M20	9-09235-212-1	01	1	0103-0607
76	UNION; OIL PIPE (E) M20	0-92135-212-0	01	1	0608-
265	PIPE; OIL,UNION TO UNION (A)	1-21116-753-0	01	1	0103-
265	PIPE; OIL,UNION TO UNION (B)	1-21116-760-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION (B)	1-21117-090-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-766-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION (C)	1-21117-092-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION 6SD1 TC(32L) (E)	1-21116-877-1	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION 6SD1 TC(32L) (E)	1-21117-096-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (D)	1-21116-769-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (D)	1-21117-093-0	01	1	0107-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	01	1	0601-
272	NUT; P/S OIL PIPE FIX 6SD1 TC(32L),6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	0103-0602
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	0603-
277	BOLT; HOSE CLIP 6SD1 TC(32L) M8X45 FLANGE	0-28080-845-0	04	1	0103-0512
277	BOLT; HOSE CLIP 6SD1 TC(32L) M8X45 FLANGE	0-28050-845-0	04	1	0601-
277	BOLT; HOSE CLIP 6WA1 TC-C(55L) M8X45 FLANGE	0-28080-845-0	05	1	0103-0512
277	BOLT; HOSE CLIP 6WA1 TC-C(55L) M8X45 FLANGE	0-28050-845-0	05	1	0601-
280	HOSE; P/S OIL PUMP,INL 6SD1 TC(32L)	1-21116-740-1	01	1	0103-
280	HOSE; P/S OIL PUMP,INL 6WA1 TC-C(55L)	1-21116-424-1	01	1	0103-
326	PIPE; OIL,OIL TANK TO PUMP 6SD1 TC(32L)	1-21116-903-0	01	1	0103-
341	PIPE; OIL,UNION TO OIL TANK 6SD1 TC(32L)	1-21116-902-0	01	1	0103-0106
341	PIPE; OIL,UNION TO OIL TANK 6SD1 TC(32L)	1-21117-103-0	01	1	0107-
341	PIPE; OIL,UNION TO OIL TANK 6WA1 TC-C(55L)	1-21116-768-0	01	1	0103-0106
341	PIPE; OIL,UNION TO OIL TANK 6WA1 TC-C(55L)	1-21117-094-0	01	1	0107-

1 2 7 8 20 2 19 3 12 5 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	0103-0508
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0103-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0103-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0103-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0103-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0103-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0103-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0103-
15	PLATE; FILTER,OIL TANK	1-21249-009-0	04	1	0103-0508
15	PLATE; FILTER,OIL TANK	1-21249-017-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0103-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0103-

41 280 79 239 205 41 257 256 255 207 155 58 207 49 125 65 207 62 157 198 301 1 25 199 166 37 61 31 192 37 111 37 68 34 37 341 67 195 76 265 166 326 61 232 111 54 111 68 68 58 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-194-1	01	1	0103-0508
1	TANK ASM; OIL,P/S	1-21210-234-1	01	1	0509-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	0103-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL 6SD1 TC(32L)	0-09814-120-0	01	1	0103-
31	HOSE; P/S OIL TANK,INL 6WA1 TC-C(55L)	1-21116-423-0	01	1	0103-
34	HOSE; P/S OIL TANK,OUTLET 6SD1 TC(32L)	1-21116-306-0	01	1	0103-
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0103-
37	CLIP; HOSE,P/S 6SD1 TC(32L) (C) ID=38	9-09915-041-1	02	1	0103-
37	CLIP; HOSE,P/S 6WA1 TC-C(55L) (A) ID=24 L=40	1-09701-139-0	02	1	0103-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0103-
49	PIPE; OIL,FLEX HOSE TO UNION 6SD1 TC(32L)	1-21116-876-0	01	1	0103-
49	PIPE; OIL,FLEX HOSE TO UNION 6WA1 TC-C(55L)	1-21116-741-0	01	1	0103-
54	CLIP; OIL PIPE (A) ID=13 H=40 L=25	1-09700-620-0	04	1	0103-
54	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0103-
54	CLIP; OIL PIPE (C) ID=15 H=30 L=30	1-09700-832-0	04	1	0103-
54	CLIP; OIL PIPE (C) ID=15 H=30 L=30	1-09700-832-0	04	1	0103-
54	CLIP; OIL PIPE 6SD1 TC(32L) (D) D=24 L=21	1-09700-380-0	02	1	0103-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	08	1	0103-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	08	1	0601-
58	BOLT; CLIP (C) M8X40 FLANGE	0-28680-840-0	05	1	0103-0512
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	05	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
58	BOLT; CLIP 6SD1 TC(32L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
58	BOLT; CLIP 6WA1 TC-C(55L) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0103-
61	CLIP; OIL PIPE (A) ID=28 L=40	1-09701-261-0	01	1	0103-
61	CLIP; OIL PIPE 6SD1 TC(32L) (C) ID=23 & 16 L=25 & 20	1-09700-613-0	04	1	0103-
61	CLIP; OIL PIPE 6SD1 TC(32L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	04	1	0103-
61	CLIP; OIL PIPE 6WA1 TC-C(55L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0103-
61	CLIP; OIL PIPE 6WA1 TC-C(55L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	05	1	0103-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0103-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	09	1	0103-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	09	1	0603-
62	NUT; CLIP FIX 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	01	1	0103-0602
62	NUT; CLIP FIX 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	01	1	0603-
64	BOLT; CLIP BRKT 6SD1 TC(32L) M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
64	BOLT; CLIP BRKT 6SD1 TC(32L) M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	07	1	0103-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	07	1	0603-
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	04	1	0103-0602
65	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	04	1	0603-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
67	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0103-0602
67	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0103-0602
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	0103-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M6 FLANGE	0-91150-106-0	04	1	0103-0602
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M6 FLANGE	0-91180-106-0	04	1	0603-
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	02	1	0103-0602
68	NUT; CLIP,OIL PIPE 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	02	1	0603-
76	UNION; OIL PIPE (F) M22	1-09654-409-0	01	1	0103-
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	01	1	0103-0607
76	UNION; OIL PIPE (A) M20 STRAIGHT	0-92123-012-0	01	1	0608-
76	UNION; OIL PIPE (B) M22	9-09233-015-1	01	1	0103-0607
76	UNION; OIL PIPE (B) M22 L=51	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE (C) M20 & M20	9-09233-312-1	03	1	0103-0607
76	UNION; OIL PIPE (C) M20 & M20	0-92123-312-0	03	1	0608-
76	UNION; OIL PIPE (D) M22	9-09233-315-1	03	1	0103-0607
76	UNION; OIL PIPE (D) M22	0-92123-315-0	03	1	0608-
76	UNION; OIL PIPE (E) M20	9-09235-212-1	01	1	0103-0607
76	UNION; OIL PIPE (E) M20	0-92135-212-0	01	1	0608-
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
111	BRACKET; OIL PIPE 6SD1 TC(32L) (C)	1-47475-427-1	04	1	0103-
111	BRACKET; OIL PIPE 6SD1 TC(32L) (D)	1-47478-918-0	02	1	0103-
111	BRACKET; OIL PIPE 6WA1 TC-C(55L) (A)	1-13345-186-0	01	1	0103-
111	BRACKET; OIL PIPE 6WA1 TC-C(55L) (B)	1-13345-187-0	01	1	0103-
125	CONNECTOR; P/S PUMP	1-21122-022-0	01	1	0103-
155	BOLT; CONNECTOR 6SD1 TC(32L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0103-0906
155	BOLT; CONNECTOR 6SD1 TC(32L) M8X18 W/LK&PL WASHER	0-50640-818-0	02	1	0907-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 TC(32L) ID=77	1-09623-143-0	01	1	0210-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
166	BOLT; CLIP 6WA1 TC-C(55L) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
166	BOLT; CLIP 6WA1 TC-C(55L) M8X25 FLANGE	0-28650-825-0	01	1	0601-
166	BOLT; CLIP 6SD1 TC(32L) M6X40 FLANGE	0-28680-640-0	04	1	0103-0512
166	BOLT; CLIP 6SD1 TC(32L) M6X40 FLANGE	0-28650-640-0	04	1	0601-
192	BRACKET; P/S OIL TANK	1-65600-636-2	01	1	0103-
195	BOLT; BRKT (C) M10X30 FLANGE	0-28681-030-0	02	1	0103-0512
195	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-
195	BOLT; BRKT 6WA1 TC-C(55L) (A) M8X12 FLANGE	0-28080-812-0	02	1	0103-0512
195	BOLT; BRKT 6WA1 TC-C(55L) (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X35 FLANGE	0-28181-035-0	01	1	0103-0512
195	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
198	STAY; OIL TANK,POWER STEERING	1-47479-079-0	01	1	0103-0403
198	STAY; OIL TANK,POWER STEERING	1-47479-996-0	01	1	0404-
199	NUT; STAY,OIL TANK M8 FLANGE	0-91150-108-0	02	1	0103-0602
199	NUT; STAY,OIL TANK M8 FLANGE	0-91180-108-0	02	1	0603-
205	BOLT; EYE,FLEX HOSE,P/S 6SD1 TC(32L) M18X39	1-09675-114-0	01	1	0103-
207	GASKET; FLEX HOSE,P/S PUMP 6SD1 TC(32L) ID=18.2 OD=24.4	1-09630-087-0	02	1	0103-
232	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	02	1	0103-0602
232	NUT; BRKT 6SD1 TC(32L) M8 FLANGE	0-91180-108-0	02	1	0603-
239	BRACKET; FLEX HOSE 6SD1 TC(32L)	1-47478-942-0	01	1	0103-
239	BRACKET; FLEX HOSE 6WA1 TC-C(55L)	1-47478-324-0	01	1	0103-
255	UNION; FLEX HOSE 6SD1 TC(32L) M20 & M22 ELBOW	1-09654-154-1	01	1	0103-
256	NUT; UNION (B) M22	9-09111-422-0	02	1	0103-0512
256	NUT; UNION (B) M22	0-91111-522-0	02	1	0601-
256	NUT; UNION (A) M20	9-99111-420-0	04	1	0103-0512
256	NUT; UNION (A) M20	0-91111-520-0	04	1	0601-
256	NUT; UNION 6SD1 TC(32L) (B) M22	9-09111-422-0	01	1	0103-0512
256	NUT; UNION (B) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION 6WA1 TC-C(55L) (C) M22	9-09111-522-0	01	1	0103-0512
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	01	1	0904-
257	WASHER; LK,UNION 6SD1 TC(32L) (B) ID=22.5	0-91510-622-0	01	1	0904-
257	WASHER; LK,UNION (A) ID=20.2	9-09150-520-0	03	1	0103-0603
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	03	1	0604-
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	01	1	0103-0603
257	WASHER; LK,UNION (B) ID=22.5	9-09150-522-0	01	1	0103-0603
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0604-0903
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0604-0903
257	WASHER; LK,UNION 6WA1 TC-C(55L) (B) ID=22.5	0-91510-522-0	01	1	0904-
265	PIPE; OIL,UNION TO UNION (A)	1-21116-753-0	01	1	0103-
265	PIPE; OIL,UNION TO UNION (B)	1-21116-760-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION (B)	1-21117-090-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION (C)	1-21116-766-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION (C)	1-21117-092-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION 6SD1 TC(32L) (E)	1-21116-877-1	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION 6SD1 TC(32L) (E)	1-21117-096-0	01	1	0107-
265	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (D)	1-21116-769-0	01	1	0103-0106
265	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (D)	1-21117-093-0	01	1	0107-
280	HOSE; P/S OIL PUMP,INL 6SD1 TC(32L)	1-21116-740-1	01	1	0103-
280	HOSE; P/S OIL PUMP,INL 6WA1 TC-C(55L)	1-21116-424-1	01	1	0103-
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28680-825-0	02	1	0103-0512
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28650-825-0	02	1	0601-
326	PIPE; OIL,OIL TANK TO PUMP 6SD1 TC(32L)	1-21116-903-0	01	1	0103-
341	PIPE; OIL,UNION TO OIL TANK 6SD1 TC(32L)	1-21116-902-0	01	1	0103-0106
341	PIPE; OIL,UNION TO OIL TANK 6SD1 TC(32L)	1-21117-103-0	01	1	0107-
341	PIPE; OIL,UNION TO OIL TANK 6WA1 TC-C(55L)	1-21116-768-0	01	1	0103-0106
341	PIPE; OIL,UNION TO OIL TANK 6WA1 TC-C(55L)	1-21117-094-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
