Isuzu WW
▶
BUSES
▶
LV
▶
10852 - LV123/150-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

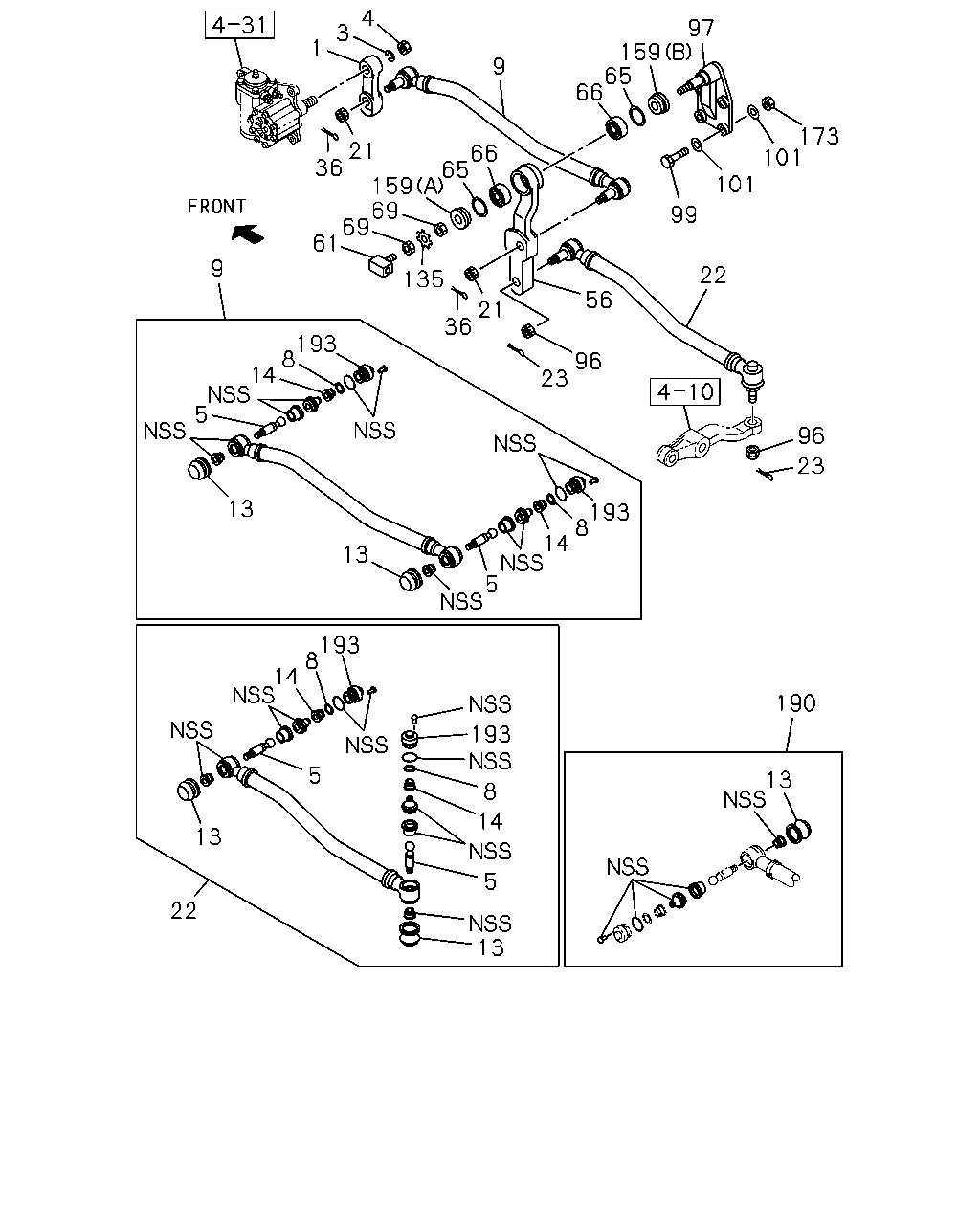

4-33 — STEERING LINKAGE
(#10473) — 42 parça
4
3
97
159
65
66
1
9
21
36
173
101
101
66
65
159
69
69
61
99
135
21
36
9
22
56
193
8
14
5
96
23
96
23
13
193
8
14
5
13
193
8
14
190
193
8
14
5
5
13
13
22
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-473-3
01
1
0103-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0103-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0103-0805
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
0103-
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
0103-
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0103-
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0103-
9
LINK; DRAG
1-44380-250-3
01
1
0103-
13
BOOT; DRAG LINK
1-43159-107-0
02
1
0103-
13
BOOT; DRAG LINK
1-43159-107-0
02
1
0103-
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0103-
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0103-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0103-0805
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
22
LINK; DRAG,2ND
1-44380-253-2
01
1
0103-
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
9-08115-035-0
02
1
0103-0606
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
0-81125-035-0
02
1
0607-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0103-0606
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
56
ARM; LINK,FRT,W/JOINT BALL
1-44345-191-0
01
1
0103-
61
NIPPLE; PIN LINK ARM
PT1/8 ELBOW
9-09031-210-0
01
1
0103-0512
61
NIPPLE; PIN LINK ARM
PT1/8 ELBOW
0-90301-610-0
01
1
0601-
65
SEAL; DUST,LINK ARM
9-44349-040-1
02
1
0103-
66
BEARING; LINK ARM
9-00030-207-0
02
1
0103-
69
NUT; LINK ARM
M24
9-09840-264-0
02
1
0103-
96
NUT; LINK ARM
M24 SLOTTED
1-09442-020-0
02
1
0103-0805
96
NUT; LINK ARM
M24
1-09442-032-0
02
1
0806-
97
BRACKET; LINK ARM
1-44348-080-0
01
1
0103-1111
97
BRACKET; LINK ARM
1-44348-078-1
01
1
1112-
99
BOLT; BRKT
M14X50
9-92061-450-0
04
1
0103-0512
99
BOLT; BRKT
M14X50
0-20951-450-0
04
1
0601-
101
WASHER; PL,BRKT
ID=14.2
1-09503-050-0
08
1
0103-
135
WASHER; LK,PIN SET,LINK ARM
9-09853-842-0
01
1
0103-
159
WASHER; LINK ARM
(A) ID=24 T=8
9-44349-039-0
01
1
0103-
159
WASHER; LINK ARM
(B) ID=35 T=9
9-44349-046-0
01
1
0103-
173
NUT; BRKT,LINK ASM
M14
0-91110-514-0
04
1
0107-
173
NUT; BRKT,LINK ASM
M14
9-99110-514-0
04
1
0103-0106
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
0103-
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
0103-
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0103-
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0103-
