4-10 — FRONT AXLE (#10467) — 155 parça

3 32 8 6 25 34 33 8 8 305 11 6 73 312 275 61 275 311

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	KING PIN SET	1-87830-738-5	02	1	0103-
6	SEAL; KING PIN	9-09926-024-0	04	1	0103-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0103-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0103-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0103-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0103-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0103-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0103-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0103-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98236-798-0	01	1	1404-
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98236-799-0	01	1	1404-
61	ROD END; TIE ROD	1-43150-804-0	01	1	0103-1403
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43150-804-0	01	1	1404-
61	ROD END; TIE ROD	1-43150-803-0	01	1	0103-1403
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43150-803-0	01	1	1404-
73	NIPPLE; GREASE,TIE ROD END EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43159-133-0	02	1	1404-
275	BOOT; ROD END,TIE EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98229-116-0	02	1	1404-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0103-1403
275	BOOT; ROD END,TIE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43159-107-0	02	1	1404-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0103-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-
311	REPAIR KIT; ROD END,TIE	1-85574-041-0	02	1	0103-1403
311	REPAIR KIT; ROD END,TIE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-85574-041-0	02	1	1404-
312	JOINT; BALL,ROD END,TIE	1-44361-105-1	02	1	0103-1403
312	JOINT; BALL,ROD END,TIE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-44361-105-1	02	1	1404-

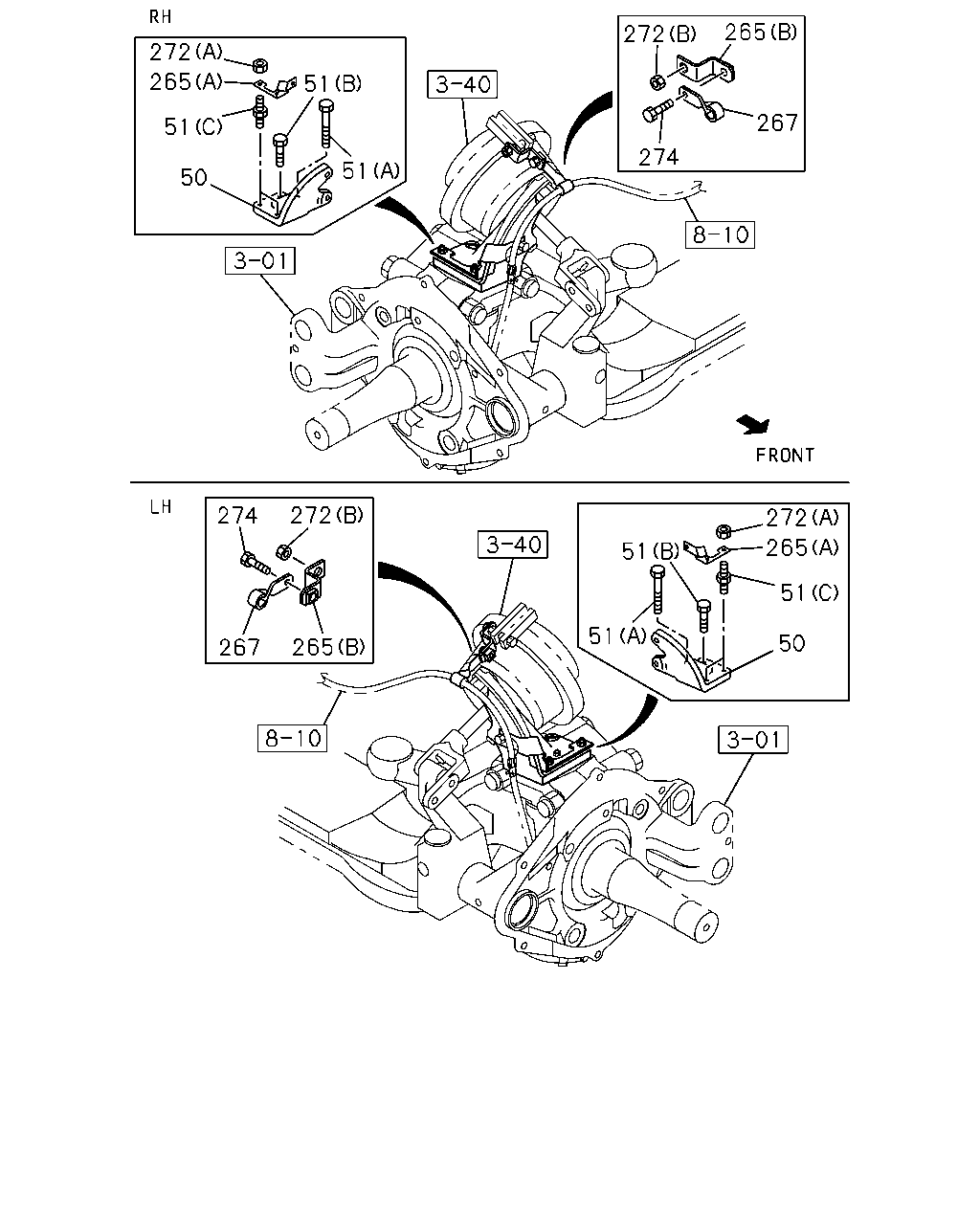

265 272 272 265 51 267 51 51 274 50 272 274 272 265 51 51 51 50 265 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0103-
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0103-
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0103-0512
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28051-260-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28681-225-0	02	1	0103-0512
51	BOLT; POWER CHAMBER BRKT (B) M12X25 FLANGE	0-28651-225-0	02	1	0601-
51	BOLT; POWER CHAMBER BRKT (C) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0103-
265	BRACKET; CLIP I BEAM (B)	1-82698-250-0	02	1	0103-
265	BRACKET; CLIP I BEAM (A)	1-82698-238-1	01	1	0103-
265	BRACKET; CLIP I BEAM (A)	1-82698-239-0	01	1	0103-
267	CLIP; HARNESS ID=11 L=58	9-09917-135-2	02	1	0103-
272	NUT; CLIP (A) M8 FLANGE	0-91150-108-0	04	1	0103-0602
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	04	1	0603-
272	NUT; CLIP (B) M10	9-09111-410-0	02	1	0103-0512
272	NUT; CLIP (B) M10	0-91111-510-0	02	1	0601-
274	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	09	1	0103-0512
274	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	09	1	0601-

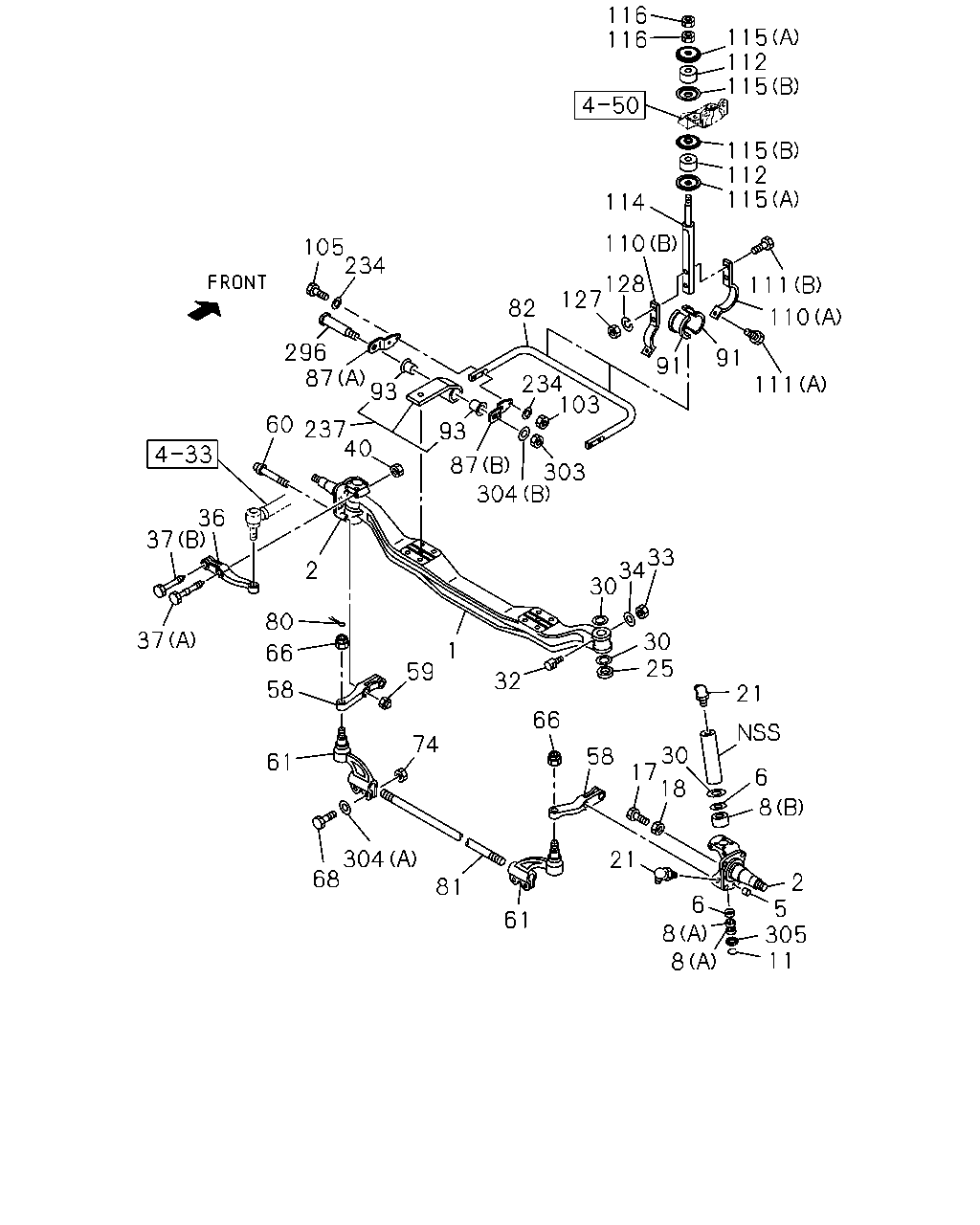

116 116 115 112 115 115 112 115 114 110 105 234 128 127 111 82 110 296 87 91 91 93 234 103 111 60 237 40 93 87 303 304 36 37 33 34 30 2 30 25 80 37 1 66 59 32 58 21 66 74 30 17 18 58 61 6 8 21 304 68 2 5 305 11 81 6 61 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-160-2	01	1	0103-1004
1	AXLE; FRT	8-98162-923-0	01	1	1005-1009
1	AXLE; FRT	1-43111-107-9	01	1	1010-
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0103-
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0103-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	04	1	0103-
6	SEAL; KING PIN	9-09926-024-0	04	1	0103-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0103-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0103-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0103-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0103-0705
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0103-0512
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0103-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0103-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0103-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0103-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0103-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0103-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0103-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-075-2	01	1	0103-
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0103-0704
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0705-
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0103-0704
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0705-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0103-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
58	ARM; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43135-042-3	01	1	0103-
58	ARM; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43134-042-3	01	1	0103-
58	ARM; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43135-048-3	01	1	0103-
58	ARM; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43134-048-3	01	1	0103-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0103-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0103-0704
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98236-798-0	01	1	1404-
61	ROD END; TIE ROD EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	8-98236-799-0	01	1	1404-
61	ROD END; TIE ROD	1-43150-804-0	01	1	0103-1403
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43150-804-0	01	1	1404-
61	ROD END; TIE ROD	1-43150-803-0	01	1	0103-1403
61	ROD END; TIE ROD WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43150-803-0	01	1	1404-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0103-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0103-0709
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0103-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0103-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
81	ROD; TIE WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43151-148-0	01	1	0103-
81	ROD; TIE EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-43151-150-0	01	1	0103-
82	BAR; STAB,FRT SUSP	1-51771-186-0	01	1	0103-
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0103-0912
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1001-
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0103-0912
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1001-
91	BUSHING; RUBBER,STAB BAR	1-51779-087-1	04	1	0103-
93	BUSHING; STABILIZER	1-51689-015-3	04	1	0103-
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	0103-0512
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	0601-
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0103-0910
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	0911-
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0103-
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0103-
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0103-0910
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0103-0910
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-
112	BUSHING; ROD	9-51631-039-0	04	1	0103-
114	ROD; STAB BAR	1-51773-083-2	02	1	0103-
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.5	9-51631-040-0	04	1	0103-
115	WASHER; CENTER,STAB TO FRAME (B) ID=20.8	9-51631-041-0	04	1	0103-
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	0103-0512
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0601-
127	NUT; CLAMP M12	9-99110-412-0	06	1	0103-0512
127	NUT; CLAMP M12	0-91110-512-0	06	1	0601-
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0103-0603
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-0912
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1001-
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0103-0910
234	WASHER; STAB ID=15	8-98010-627-1	08	1	0911-
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	0103-
296	PIN; STAB	1-51682-136-2	02	1	0103-
303	NUT; PIN M20	9-99110-520-0	02	1	0103-0512
303	NUT; PIN M20	0-91110-520-0	02	1	0601-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0103-0709
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0710-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0103-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0103-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-

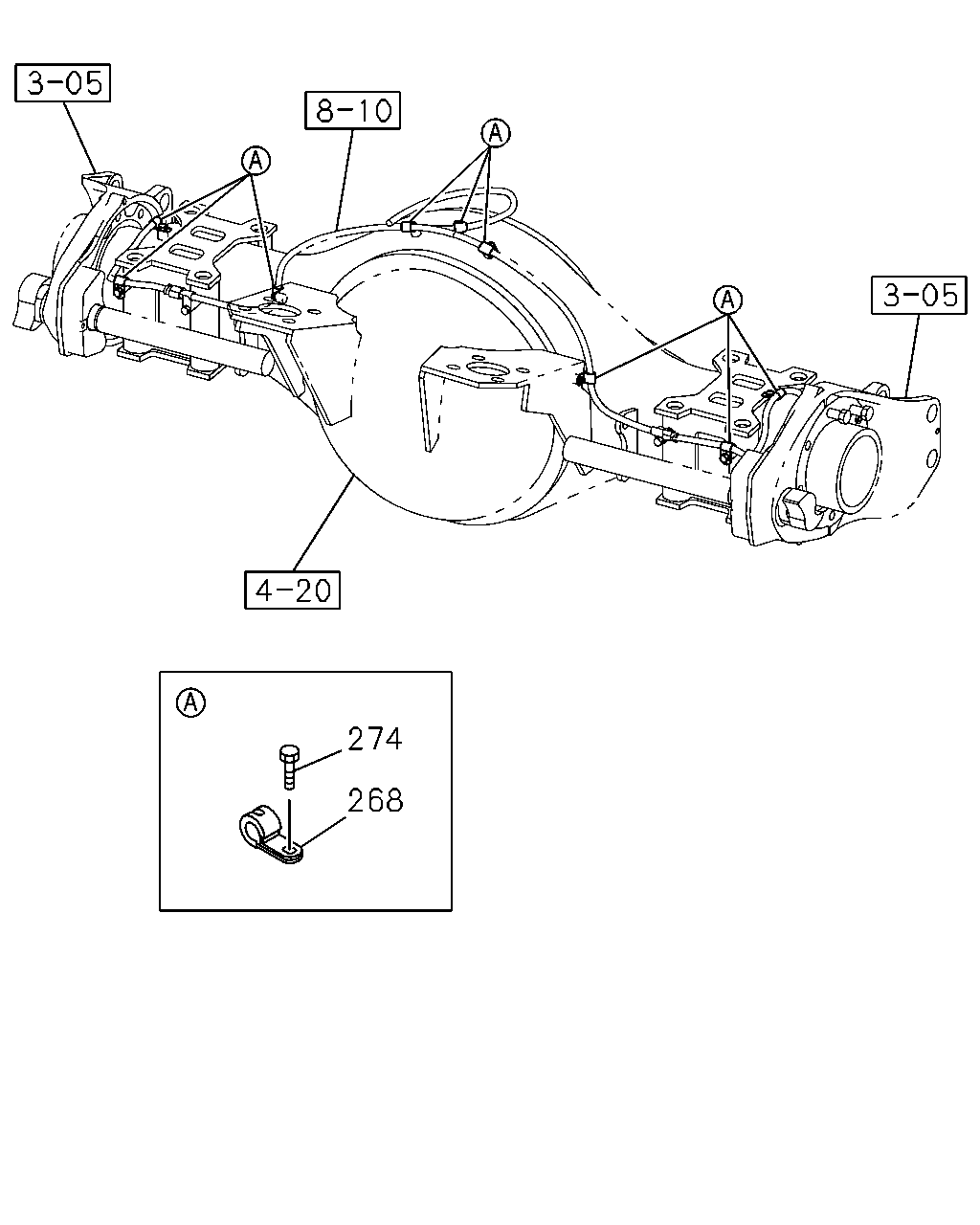

274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
268	CLIP; HARNESS ID=11 L=16	9-09525-025-0	09	1	0103-0606
268	CLIP; HARNESS ID=11 L=16	0-95235-025-0	09	1	0607-
274	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	09	1	0103-0512
274	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	09	1	0601-
