◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10852 - LV123/150-LHD ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#10465) — 110 parça

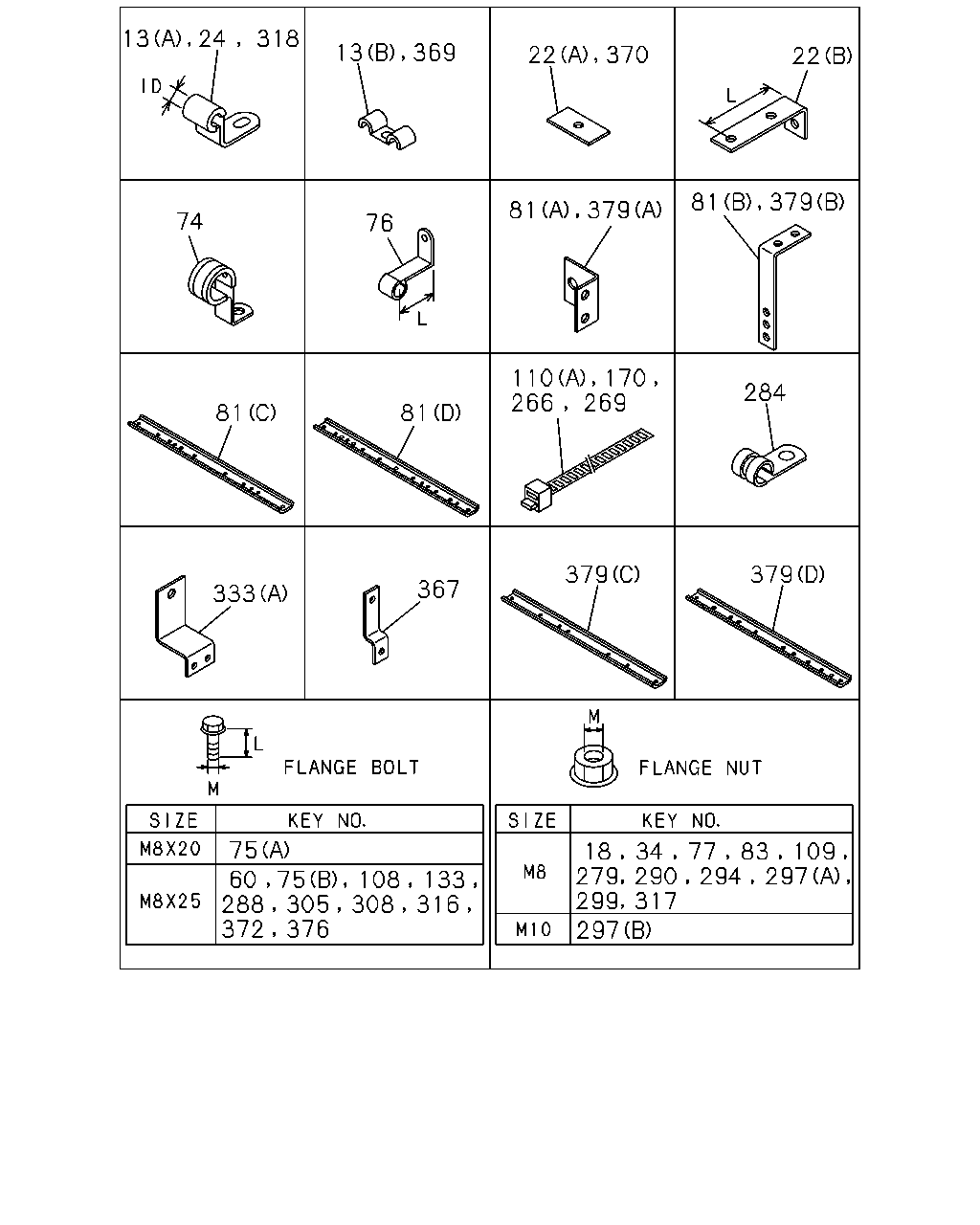

çizim 137420
13 24 318 22 370 22 81 379 74 76 110 266 170 269 284 81 81 379 379 367 333 75 109 299 297 108 372 13 369 81 379 317 279 294 297 290 83 77 34 18 316 308 376 288 133 305 75 60
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
6SD1 TC(32L) (A) ID=6 H=20 L=20 		1-09700-603-0 06 1 0103-
13 CLIP; AIR PIPE
6WA1 TC-C(55L) (A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0103-
13 CLIP; AIR PIPE
6WA1 TC-C(55L) (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0103-
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0103-0602
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
22 BRACKET; CLIP
(B) L=45 		1-47477-716-1 01 1 0103-0812
22 BRACKET; CLIP
6SD1 TC(32L) (B) L=115 H=30 		1-47477-715-3 01 1 0103-
22 BRACKET; CLIP
6WA1 TC-C(55L) (A) L=50 		1-47475-299-2 01 1 0103-
22 BRACKET; CLIP
6WA1 TC-C(55L) (B) L=100 		1-47479-237-0 01 1 0103-
24 CLIP; PIPE
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> ID=15 H=24 L=20 		1-09700-606-0 01 1 0103-
34 NUT; BRKT
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0103-0602
34 NUT; BRKT
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0603-
60 BOLT; CLIP FIX
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512
60 BOLT; CLIP FIX
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28650-825-0 01 1 0601-
74 CLIP; NYLON TUBE
ID=25 H=30 L=35 		1-09700-875-0 01 1 0103-
75 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0103-0512
75 BOLT; CLIP
6SD1 TC(32L) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0103-0512
75 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
75 BOLT; CLIP
6SD1 TC(32L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
75 BOLT; CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512
75 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
76 CLIP; NYLON TUBE
ID=13 H=40 L=25 		1-09700-620-0 01 1 0103-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 14 1 0103-0602
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 14 1 0603-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 32 1 0103-0602
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 32 1 0603-
81 BRACKET; CLIP
(A) 		1-47478-422-0 02 1 0103-
81 BRACKET; CLIP
(B) 		1-47478-903-0 06 1 0103-
81 BRACKET; CLIP
(C) 		1-47478-909-0 01 1 0103-0303
81 BRACKET; CLIP
(C) 		1-47479-557-1 01 1 0304-
81 BRACKET; CLIP
(D) 		1-47478-913-0 02 1 0103-
81 BRACKET; CLIP
6SD1 TC(32L) (E) 		1-47478-952-0 01 1 0103-
83 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0103-0602
83 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0812
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0103-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-0812
110 CLIP; BAND,NYLON TUBE
(B) ID=13 L=50 		1-09700-027-1 01 1 0901-
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 05 1 0103-0812
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 04 1 0901-
133 BOLT; BRKT
6SD1 TC(32L) M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
133 BOLT; BRKT
6SD1 TC(32L) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
170 CLIP; NYLON TUBE
L=250 		1-09707-126-0 22 1 0103-0109
170 CLIP; NYLON TUBE
L=250 		1-09707-126-0 17 1 0110-0207
170 CLIP; NYLON TUBE
L=250 		1-09707-126-0 18 1 0208-
266 CLIP; NYLON TUBE
L=250 		1-09707-126-0 21 1 0103-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 05 1 0103-0109
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 02 1 0110-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 04 1 0110-
279 NUT; BRKT
6SD1 TC(32L) M8 FLANGE 		0-91150-108-0 01 1 0103-0602
279 NUT; BRKT
6SD1 TC(32L) M8 FLANGE 		0-91180-108-0 01 1 0603-
284 CLIP; FLEX HOSE
ID=14.5 L=20 		1-09701-012-0 04 1 0103-
288 BOLT; CLIP,AIR PIPE
6SD1 TC(32L) M8X25 FLANGE 		0-28680-825-0 06 1 0103-0512
288 BOLT; CLIP,AIR PIPE
6SD1 TC(32L) M8X25 FLANGE 		0-28650-825-0 06 1 0601-
288 BOLT; CLIP,AIR PIPE
6WA1 TC-C(55L) M8X25 FLANGE 		0-28680-825-0 03 1 0103-0512
288 BOLT; CLIP,AIR PIPE
6WA1 TC-C(55L) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
290 NUT; CLIP,AIR PIPE
6SD1 TC(32L) M8 FLANGE 		0-91150-108-0 06 1 0103-0602
290 NUT; CLIP,AIR PIPE
6SD1 TC(32L) M8 FLANGE 		0-91180-108-0 06 1 0603-
290 NUT; CLIP,AIR PIPE
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 03 1 0103-0602
290 NUT; CLIP,AIR PIPE
6WA1 TC-C(55L) M8 FLANGE 		0-91180-108-0 03 1 0603-
294 NUT; CLIP,AIR PIPE
AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0103-0602
294 NUT; CLIP,AIR PIPE
AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0603-
297 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 36 1 0103-0602
297 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 36 1 0603-
297 NUT; BRKT
6WA1 TC-C(55L) (B) M10 FLANGE 		0-91150-210-0 02 1 0103-0602
297 NUT; BRKT
6WA1 TC-C(55L) (B) M10 FLANGE 		0-91180-210-0 02 1 0603-
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0103-0602
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
305 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
305 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
308 BOLT; CLIP,AIR PIPE
AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512
308 BOLT; CLIP,AIR PIPE
AIR DRYER<PS7> M8X25 FLANGE 		0-28650-825-0 01 1 0601-
316 BOLT; CLIP
6WA1 TC-C(55L) M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
316 BOLT; CLIP
6WA1 TC-C(55L) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
317 NUT; CLIP
6SD1 TC(32L) M8 FLANGE 		0-91150-108-0 01 1 0103-0602
317 NUT; CLIP
6SD1 TC(32L) M8 FLANGE 		0-91180-108-0 01 1 0603-
317 NUT; CLIP
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 02 1 0103-0602
317 NUT; CLIP
6WA1 TC-C(55L) M8 FLANGE 		0-91180-108-0 02 1 0603-
318 CLIP; AIR PIPE
6WA1 TC-C(55L) ID=6 H=20 L=20 		1-09700-603-0 02 1 0103-
333 BRACKET; BRK AIR PIPE
6SD1 TC(32L) (B) 		1-47478-951-0 01 1 0103-
333 BRACKET; BRK AIR PIPE
6WA1 TC-C(55L) (A) 		1-47478-733-0 01 1 0103-
367 BRACKET ASM
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> 		1-47478-539-0 01 1 0103-
369 CLIP; AIR PIPE
AIR DRYER<PS7> ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 0103-
370 BRACKET; PIPE CLIP
AIR DRYER<PS7> L=50 		1-47475-299-2 01 1 0103-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 82 1 0103-0512
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 82 1 0601-
376 BOLT; BRKT
6SD1 TC(32L) M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512
376 BOLT; BRKT
6SD1 TC(32L) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
379 BRACKET; NYLON TUBE
(A) 		1-47478-422-0 01 1 0103-
379 BRACKET; NYLON TUBE
(B) 		1-47478-903-0 04 1 0103-
379 BRACKET; NYLON TUBE
(C) 		1-47478-904-0 01 1 0103-0303
379 BRACKET; NYLON TUBE
(C) 		1-47479-555-0 01 1 0304-
379 BRACKET; NYLON TUBE
(D) 		1-47478-906-0 01 1 0103-0303
379 BRACKET; NYLON TUBE
(D) 		1-47479-556-0 01 1 0304-
çizim 137567
81 273 333 27 110 63
BalonParca AdiParca NoAdetTipApplied Date
27 CLIP; FLEX HOSE
6SD1 TC(32L) ID=19 L=28 		9-09525-855-0 01 1 0103-0606
27 CLIP; FLEX HOSE
6SD1 TC(32L) ID=19 L=28 		0-95235-855-0 01 1 0607-
63 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0901-
81 BRACKET; CLIP
(A) 		1-47478-422-0 02 1 0103-
81 BRACKET; CLIP
(B) 		1-47478-903-0 06 1 0103-
81 BRACKET; CLIP
(C) 		1-47478-909-0 01 1 0103-0303
81 BRACKET; CLIP
(C) 		1-47479-557-1 01 1 0304-
81 BRACKET; CLIP
(D) 		1-47478-913-0 02 1 0103-
81 BRACKET; CLIP
6SD1 TC(32L) (E) 		1-47478-952-0 01 1 0103-
110 CLIP; BAND,NYLON TUBE
(B) ID=13 L=50 		1-09700-027-1 01 1 0901-
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 05 1 0103-0812
110 CLIP; BAND,NYLON TUBE
(A) L=250 		1-09707-126-0 04 1 0901-
273 BRACKET; CLIP
6SD1 TC(32L) 		1-47479-081-1 01 1 0103-
333 BRACKET; BRK AIR PIPE
6SD1 TC(32L) (B) 		1-47478-951-0 01 1 0103-
333 BRACKET; BRK AIR PIPE
6WA1 TC-C(55L) (A) 		1-47478-733-0 01 1 0103-
