3-70 — BRAKE PIPING; AIR,AIR MASTER (#10462) — 171 parça

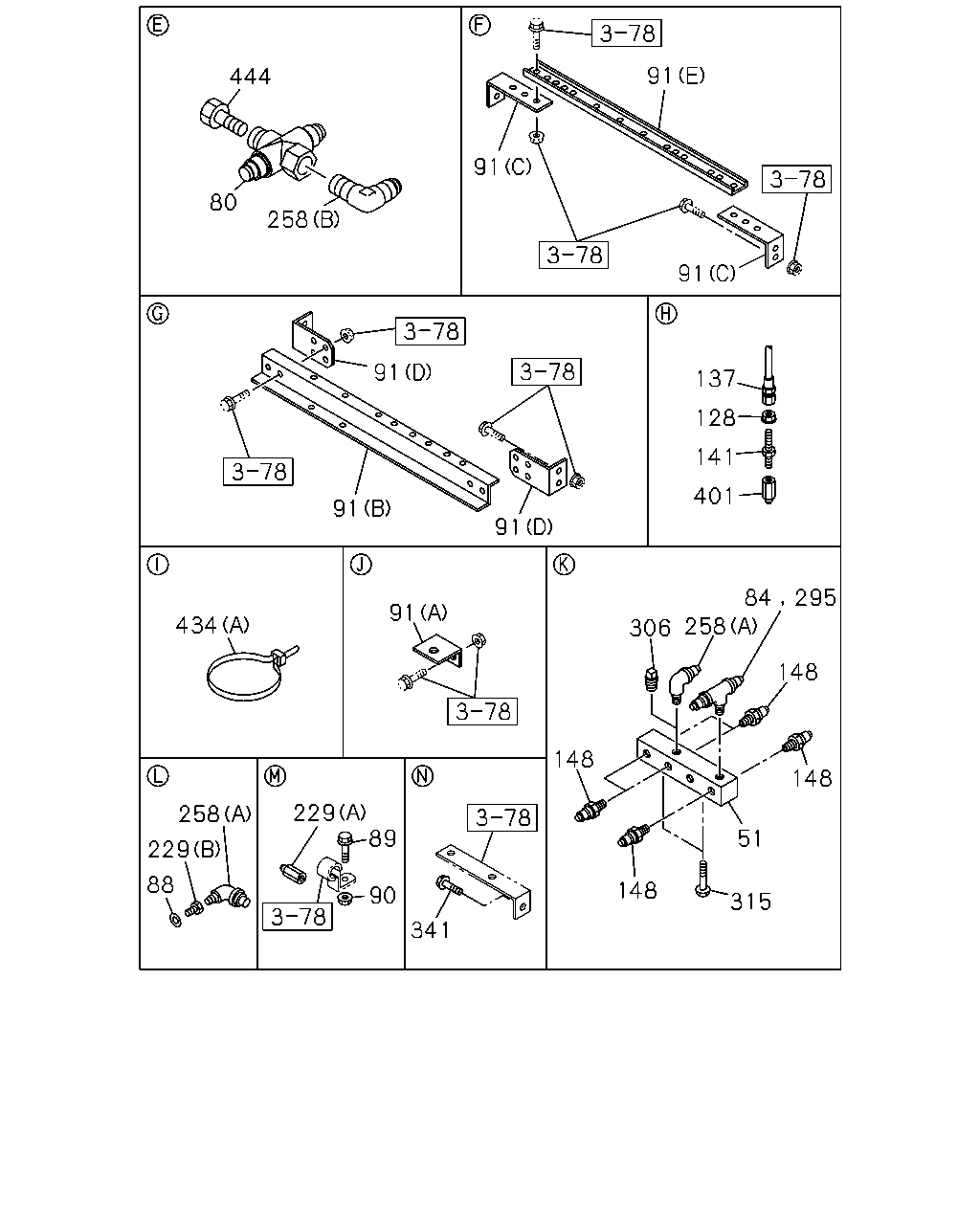

çizim 137411
91 444 91 80 258 91 91 137 128 141 401 91 91 91 434 258 306 148 148 148 229 89 258 51 229 88 148 90 315 341 84 295
BalonParca AdiParca NoAdetTipApplied Date
51 UNION 1-09661-346-0 01 1 0103-
80 UNION; 3 WAY
AIR SUSP DRIVER SEAT(A56) AIR HORN(WB8) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0103-
84 UNION; NYLON TUBE
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT(A56) 		1-09660-788-0 01 1 0103-0306
84 UNION; NYLON TUBE
AIR HORN(WB8) EXC. AIR SUSP DRIVER SEAT(A56) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0307-
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0103-
89 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512
89 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
90 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0103-0602
90 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
91 BRACKET; TUBE CLIP
(A) 		1-47478-422-0 03 1 0103-
91 BRACKET; TUBE CLIP
(C) 		1-47478-903-0 08 1 0103-
91 BRACKET; TUBE CLIP
(D) 		1-47478-910-0 04 1 0103-
91 BRACKET; TUBE CLIP
(B) 		1-47478-914-1 02 1 0103-
91 BRACKET; TUBE CLIP
(E) 		1-47478-913-0 02 1 0103-
91 BRACKET; TUBE CLIP
(E) 		1-47478-913-0 02 1 0103-
128 NUT; PIPE UNION
M10 FLANGE 		0-91150-210-0 02 1 0103-0602
128 NUT; PIPE UNION
M10 FLANGE 		0-91180-210-0 02 1 0603-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-07210-810-0 02 1 0103-0605
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 02 1 0606-
141 UNION; FLEX HOSE
M10 & M12 STRAIGHT 		1-09650-270-1 02 1 0103-
148 CONNECTOR; UNION
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 06 1 0307-
229 ADAPTER; NYLON TUBE
(A) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 0103-
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0103-0206
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0207-
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0103-0306
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0103-0306
258 CONNECTOR; NYLON TUBE
AIR HORN(WB8) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0307-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (B) DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 0103-
295 CONNECTOR; NYLON TUBE 1-09660-771-1 01 1 0103-0306
295 CONNECTOR; NYLON TUBE
DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0307-
306 PLUG; NYLON TUBE
EXC. AIR SUSP DRIVER SEAT(A56),AIR HORN(WB8) PT1/4 		9-99204-513-0 01 1 0103-
315 BOLT; CONNECTOR
M8X12 FLANGE 		0-28080-812-0 03 1 0103-0512
315 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 03 1 0601-
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0103-
434 CLIP
AIR HORN(WB8) (A) L=250 		1-09707-126-0 04 1 0103-
434 CLIP
6SD1 TC(32L) (B) ID=23 H=30 L=35 		1-09700-743-0 01 1 0103-
444 BOLT; UNION
AIR HORN(WB8) M8X12 FLANGE 		0-28080-812-0 01 1 0103-0512
444 BOLT; UNION
AIR HORN(WB8) M8X12 FLANGE 		0-28050-812-0 01 1 0601-

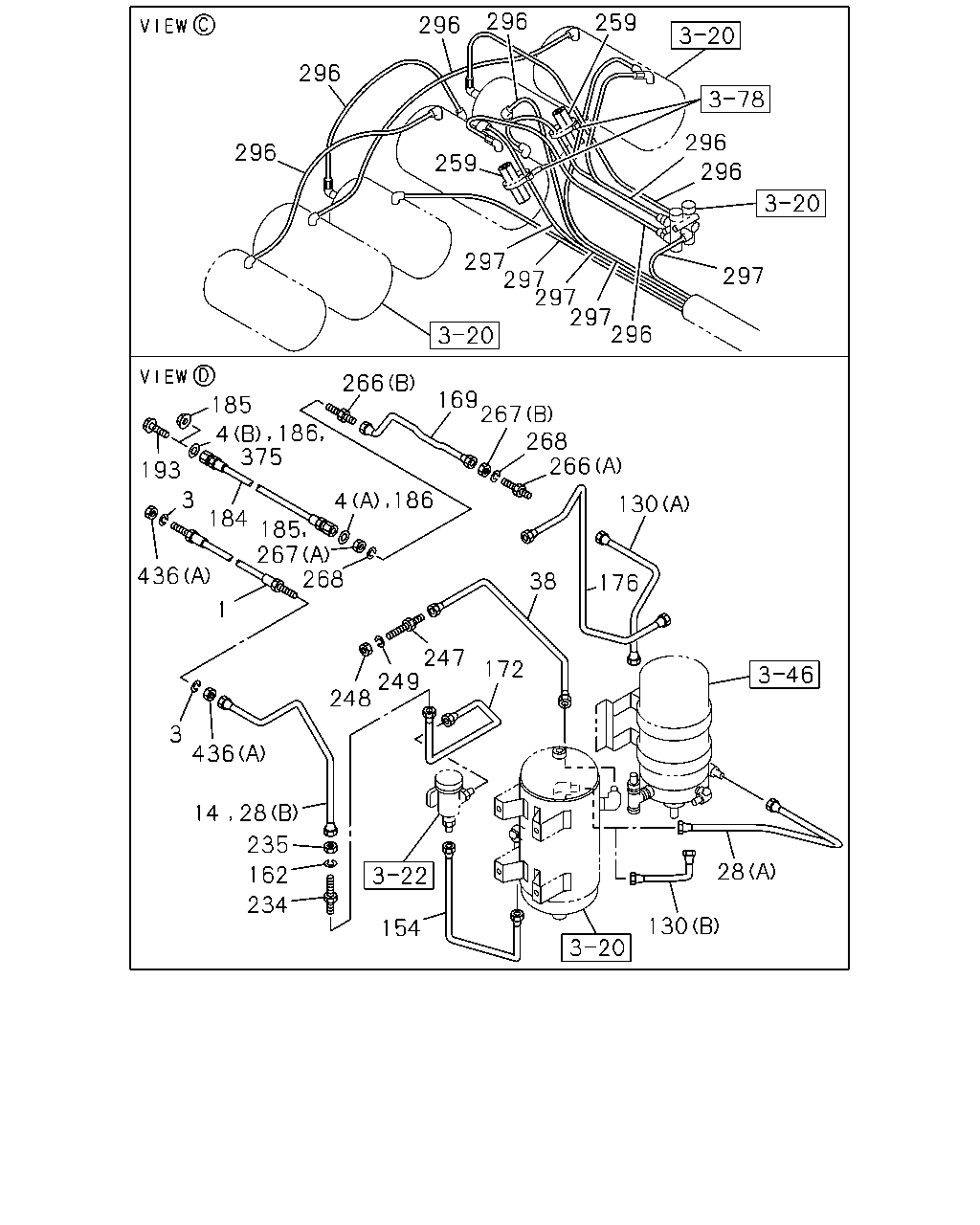

çizim 137413
296 259 296 296 296 296 259 296 297 297 297 297 296 297 266 169 267 268 266 185 4 186 375 193 3 186 4 130 184 185 267 268 436 38 176 1 247 249 248 172 3 436 235 28 162 234 130 154 14 28
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
6SD1 TC(32L) 		1-09363-863-0 01 1 0103-
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L) L=430 		0-07816-430-1 01 1 0103-0605
1 HOSE; FLEX,AIR TANK
6WA1 TC-C(55L) L=430 		0-57816-430-1 01 1 0606-
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC(32L) ID=22.5 		9-09150-522-0 02 1 0103-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC(32L) ID=22.5 		0-91510-522-0 02 1 0604-0903
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TC(32L) ID=22.5 		0-91510-622-0 02 1 0904-
3 WASHER; LK,FLEX HOSE,AIR TANK
6WA1 TC-C(55L) ID=22.5 		9-09150-522-0 01 1 0103-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
6WA1 TC-C(55L) ID=22.5 		0-91510-522-0 01 1 0604-0903
3 WASHER; LK,FLEX HOSE,AIR TANK
6WA1 TC-C(55L) ID=22.5 		0-91510-622-0 01 1 0904-
4 GASKET; FLEX HOSE
6SD1 TC(32L) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0103-1312
4 GASKET; FLEX HOSE
6SD1 TC(32L) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
4 GASKET; FLEX HOSE
6SD1 TC(32L) (B) ID=11 OD=18 		9-09572-510-0 01 1 0103-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6SD1 TC(32L) EXC. AIR DRYER<PS7> 		1-49122-718-0 01 1 0103-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> 		1-49122-720-0 01 1 0103-
28 PIPE; AIR,AIR DRYER
AIR DRYER<PS7> (A) 		1-49122-301-0 01 1 0103-
28 PIPE; AIR,AIR DRYER
6SD1 TC(32L) AIR DRYER<PS7> (B) 		1-49122-567-0 01 1 0103-
28 PIPE; AIR,AIR DRYER
6WA1 TC-C(55L) AIR DRYER<PS7> (B) L=775 		1-49165-842-0 01 1 0103-
38 PIPE; AIR,MAIN TANK TO UNION 1-49122-302-0 01 1 0103-
130 PIPE; AIR,UNION TO UNION
AIR DRYER<PS7> (A) 		1-49122-582-0 01 1 0103-
130 PIPE; AIR,UNION TO UNION
EXC. AIR DRYER<PS7> (B) 		1-49122-719-0 01 1 0103-
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-297-0 01 1 0103-
162 WASHER; LK,NIPPLE
ID=12.2 		9-09150-512-0 01 1 0103-0603
162 WASHER; LK,NIPPLE
ID=12.2 		0-91510-512-0 01 1 0604-
169 PIPE; AIR,UNION TO FLEX HOSE
6WA1 TC-C(55L) 		1-49122-585-0 01 1 0103-
172 PIPE; AIR,GOV TO UNION 1-49121-796-0 01 1 0103-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49122-298-0 01 1 0103-
184 HOSE; FLEX,AIR GOV
6SD1 TC(32L) L=730 		0-07532-730-1 01 1 0103-0605
184 HOSE; FLEX,AIR GOV
6SD1 TC(32L) L=730 		0-57532-730-1 01 1 0606-
184 HOSE; FLEX,AIR GOV
6WA1 TC-C(55L) L=300 		1-09363-608-0 01 1 0103-
185 NUT; FLEX HOSE,AIR GOV
6WA1 TC-C(55L) M12 		9-09840-280-0 01 1 0103-
186 WASHER; LK,FLEX HOSE,AIR GOV
6WA1 TC-C(55L) ID=12.2 		9-09150-512-0 01 1 0103-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
6WA1 TC-C(55L) ID=12.2 		0-91510-512-0 01 1 0604-
193 BOLT; EYE,FLEX HOSE,GOV LINE
6SD1 TC(32L) M14X27 FLANGE 		1-09675-086-0 01 1 0103-
234 UNION; AIR PIPE
AIR DRYER<PS7> M12 3WAY 		9-09228-906-1 01 1 0103-0607
234 UNION; AIR PIPE
AIR DRYER<PS7> M12 3WAY 		0-92138-906-0 01 1 0608-
234 UNION; AIR PIPE
EXC. AIR DRYER<PS7> M12 L=66.5 		9-09223-306-1 01 1 0103-0607
234 UNION; AIR PIPE
EXC. AIR DRYER<PS7> M12 L=66.5 		0-92113-306-0 01 1 0608-
235 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0103-
247 UNION; AIR PIPE
M22 		9-09235-215-1 01 1 0103-0607
247 UNION; AIR PIPE
M22X2 ELBOW 		0-92135-215-0 01 1 0608-
248 NUT; PIPE UNION
M22 		9-09111-422-0 01 1 0103-0512
248 NUT; PIPE UNION
M22 		0-91111-522-0 01 1 0601-
249 WASHER; LK,PIPE UNION
ID=22.5 		9-09150-522-0 01 1 0103-0603
249 WASHER; LK,PIPE UNION
ID=22.5 		0-91510-522-0 01 1 0604-0903
249 WASHER; LK,PIPE UNION
ID=22.5 		0-91510-622-0 01 1 0904-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0103-
266 UNION; AIR PIPE
6SD1 TC(32L) (A) 		1-09654-185-1 01 1 0103-
266 UNION; AIR PIPE
6WA1 TC-C(55L) (A) M12 2WAY 		1-09654-234-2 01 1 0103-
266 UNION; AIR PIPE
6WA1 TC-C(55L) (B) M12 L=56.5 		9-09223-106-1 01 1 0103-0607
266 UNION; AIR PIPE
6WA1 TC-C(55L) (B) M12 L=56.5 		0-92113-106-0 01 1 0608-
267 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0103-
267 NUT; UNION
6WA1 TC-C(55L) (A) M12 		9-99111-412-0 01 1 0103-0512
267 NUT; UNION
6WA1 TC-C(55L) (A) M12 		0-91111-512-0 01 1 0601-
268 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0103-0603
268 WASHER; LK,UNION
6WA1 TC-C(55L) ID=12.2 		9-09150-512-0 01 1 0103-0603
268 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604-
268 WASHER; LK,UNION
6WA1 TC-C(55L) ID=12.2 		0-91510-512-0 01 1 0604-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0103-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0103-0906
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0103-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0103-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0907-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0907-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0103-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0103-
375 GASKET
6WA1 TC-C(55L) ID=11 OD=18 		9-09572-510-0 01 1 0103-
436 NUT; CLIP
6SD1 TC(32L) (B) M8 FLANGE 		0-91150-108-0 01 1 0103-0602
436 NUT; CLIP
6SD1 TC(32L) (B) M8 FLANGE 		0-91180-108-0 01 1 0603-
436 NUT; CLIP
6SD1 TC(32L) (A) M22 		9-09111-422-0 02 1 0103-0512
436 NUT; CLIP
6SD1 TC(32L) (A) M22 		0-91111-522-0 02 1 0601-
436 NUT; CLIP
6WA1 TC-C(55L) (A) M22 		9-09111-422-0 01 1 0103-0512
436 NUT; CLIP
6WA1 TC-C(55L) (A) M22 		0-91111-522-0 01 1 0601-

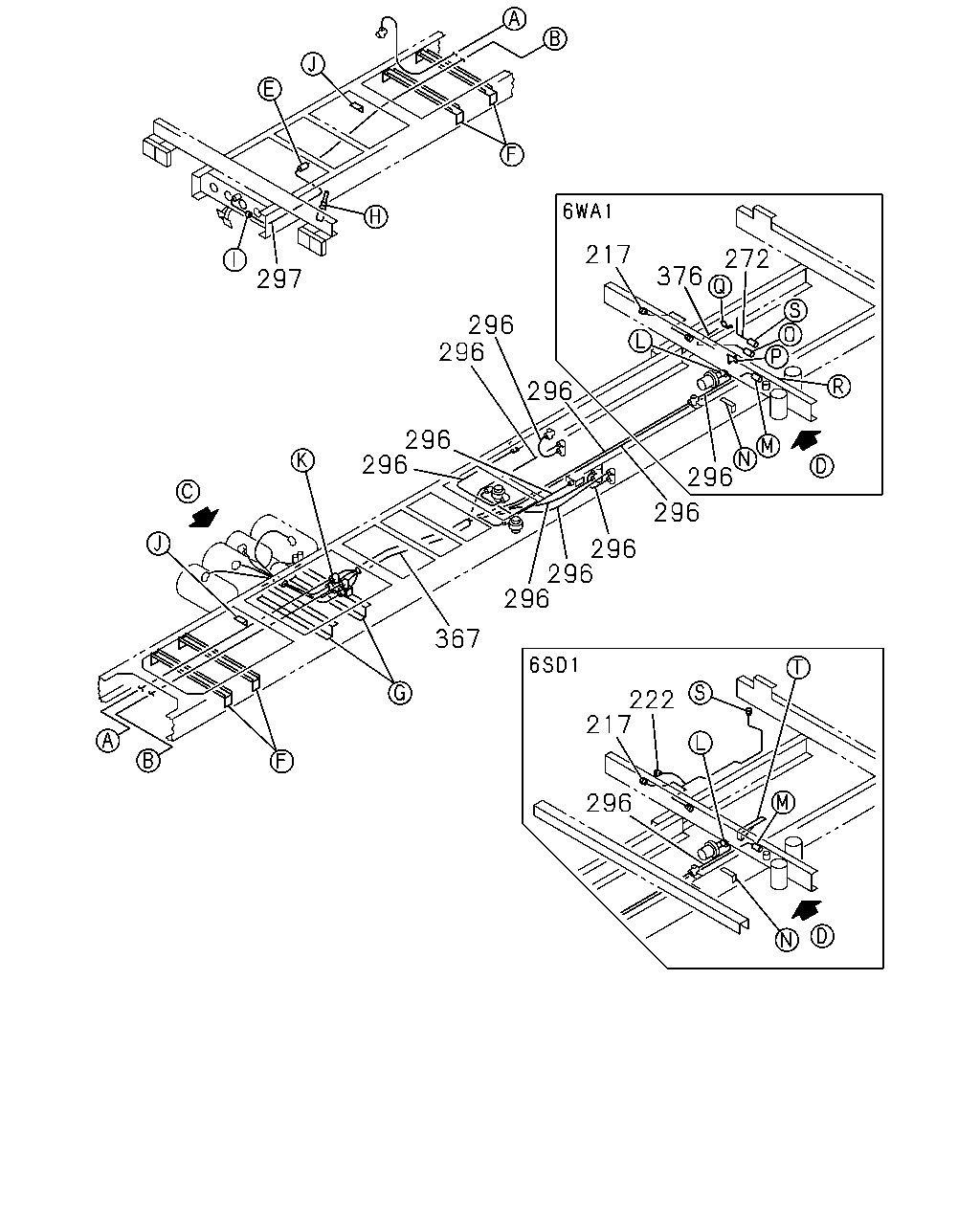

çizim 137427
272 217 297 376 296 296 296 296 296 296 296 296 296 296 367 222 217 296
BalonParca AdiParca NoAdetTipApplied Date
217 PIPE; VAC,UNION TO MAG VLV
6SD1 TC(32L) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-49122-748-0 01 1 0103-
217 PIPE; VAC,UNION TO MAG VLV
6WA1 TC-C(55L) EXC. BRAKE SYSTEM RETARDER<RE2> 		1-49122-595-0 01 1 0103-
217 PIPE; VAC,UNION TO MAG VLV
BRAKE SYSTEM RETARDER<RE2> 		1-49122-595-0 01 1 0103-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
6SD1 TC(32L) 		1-49122-596-0 01 1 0103-
272 PIPE; AIR,MAG VLV TO UNION
6WA1 TC-C(55L) 		1-49122-307-0 01 1 0103-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0103-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0103-0906
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0103-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0103-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0907-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0907-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0103-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0103-
367 TUBE; CORRUGATE
WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0907-
367 TUBE; CORRUGATE
WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 0907-
367 TUBE; CORRUGATE
WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=28 		1-87411-033-0 02 1 0907-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 02 1 0103-0906
367 TUBE; CORRUGATE
WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=28 		1-87410-098-0 02 1 0907-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0103-0906
367 TUBE; CORRUGATE
WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=25 		1-87410-100-0 01 1 0907-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 01 1 0103-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0209-0906
367 TUBE; CORRUGATE
WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=13 		1-87410-091-0 01 1 0907-
376 PIPE; AIR,FLEX HOSE
6WA1 TC-C(55L) 		1-49122-303-1 01 1 0103-

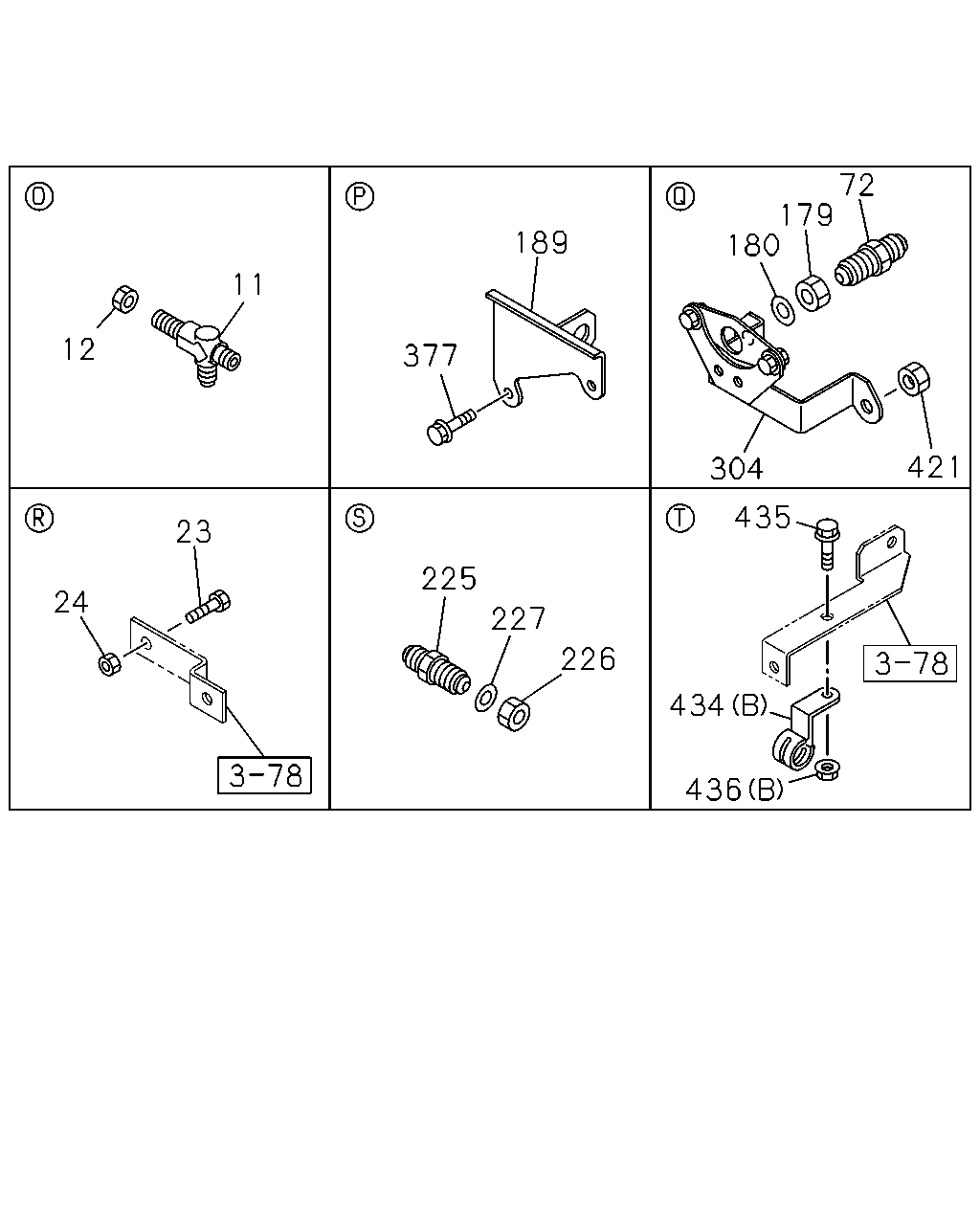

çizim 137430
11 12 23 24 225 226 227 377 189 304 180 179 72 421 435 434 436
BalonParca AdiParca NoAdetTipApplied Date
11 UNION; AIR PIPE
6WA1 TC-C(55L) 		1-09654-203-1 01 1 0103-
12 NUT; UNION
6WA1 TC-C(55L) M14 		9-99111-414-0 01 1 0103-0512
12 NUT; UNION
6WA1 TC-C(55L) M14 		0-91111-514-0 01 1 0601-
23 BOLT; BRKT,AIR PIPE
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512
23 BOLT; BRKT,AIR PIPE
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28650-825-0 01 1 0601-
24 NUT; BRKT,AIR PIPE
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 0103-0602
24 NUT; BRKT,AIR PIPE
6WA1 TC-C(55L) EXC. AIR DRYER<PS7> M8 FLANGE 		0-91180-108-0 01 1 0603-
72 UNION; AIR PIPE
6WA1 TC-C(55L) M20 & M22 STRAIGHT 		1-09654-097-1 01 1 0103-
179 NUT; UNION
6WA1 TC-C(55L) M22 		9-09111-422-0 01 1 0103-0512
179 NUT; UNION
6WA1 TC-C(55L) M22 		0-91111-522-0 01 1 0601-
180 WASHER; LK,UNION
6WA1 TC-C(55L) ID=22.5 		9-09150-522-0 01 1 0103-0603
180 WASHER; LK,UNION
6WA1 TC-C(55L) ID=22.5 		0-91510-522-0 01 1 0604-0903
180 WASHER; LK,UNION
6WA1 TC-C(55L) ID=22.5 		0-91510-622-0 01 1 0904-
189 BRACKET; FLEX HOSE
6WA1 TC-C(55L) 		1-47478-731-2 01 1 0103-
225 UNION; AIR PIPE
6SD1 TC(32L) 		1-09654-185-1 01 1 0103-
225 UNION; AIR PIPE
6WA1 TC-C(55L) M12 L=66.5 		9-09223-306-1 01 1 0103-0607
225 UNION; AIR PIPE
6WA1 TC-C(55L) M12 L=66.5 		0-92113-306-0 01 1 0608-
226 NUT; UNION
M12 		9-09840-280-0 01 1 0103-
227 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0103-0603
227 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604-
304 BRACKET; UNION
6WA1 TC-C(55L) 		1-47478-536-1 01 1 0103-
377 BOLT; BRKT FIX
6WA1 TC-C(55L) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
421 NUT; BRKT
6WA1 TC-C(55L) M10 FLANGE 		0-91150-210-0 02 1 0103-0602
421 NUT; BRKT
6WA1 TC-C(55L) M10 FLANGE 		0-91180-210-0 02 1 0603-
434 CLIP
AIR HORN(WB8) (A) L=250 		1-09707-126-0 04 1 0103-
434 CLIP
6SD1 TC(32L) (B) ID=23 H=30 L=35 		1-09700-743-0 01 1 0103-
435 BOLT; CLIP
6SD1 TC(32L) M8X20 FLANGE 		0-28680-820-0 01 1 0103-0512
435 BOLT; CLIP
6SD1 TC(32L) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
436 NUT; CLIP
6SD1 TC(32L) (B) M8 FLANGE 		0-91150-108-0 01 1 0103-0602
436 NUT; CLIP
6SD1 TC(32L) (B) M8 FLANGE 		0-91180-108-0 01 1 0603-
436 NUT; CLIP
6SD1 TC(32L) (A) M22 		9-09111-422-0 02 1 0103-0512
436 NUT; CLIP
6SD1 TC(32L) (A) M22 		0-91111-522-0 02 1 0601-
436 NUT; CLIP
6WA1 TC-C(55L) (A) M22 		9-09111-422-0 01 1 0103-0512
436 NUT; CLIP
6WA1 TC-C(55L) (A) M22 		0-91111-522-0 01 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
