Isuzu WW
▶
BUSES
▶
LV
▶
10852 - LV123/150-LHD
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#10461) — 38 parça
◀
[346A] AIR DRYER AND OTHER PARTS (16 parça)

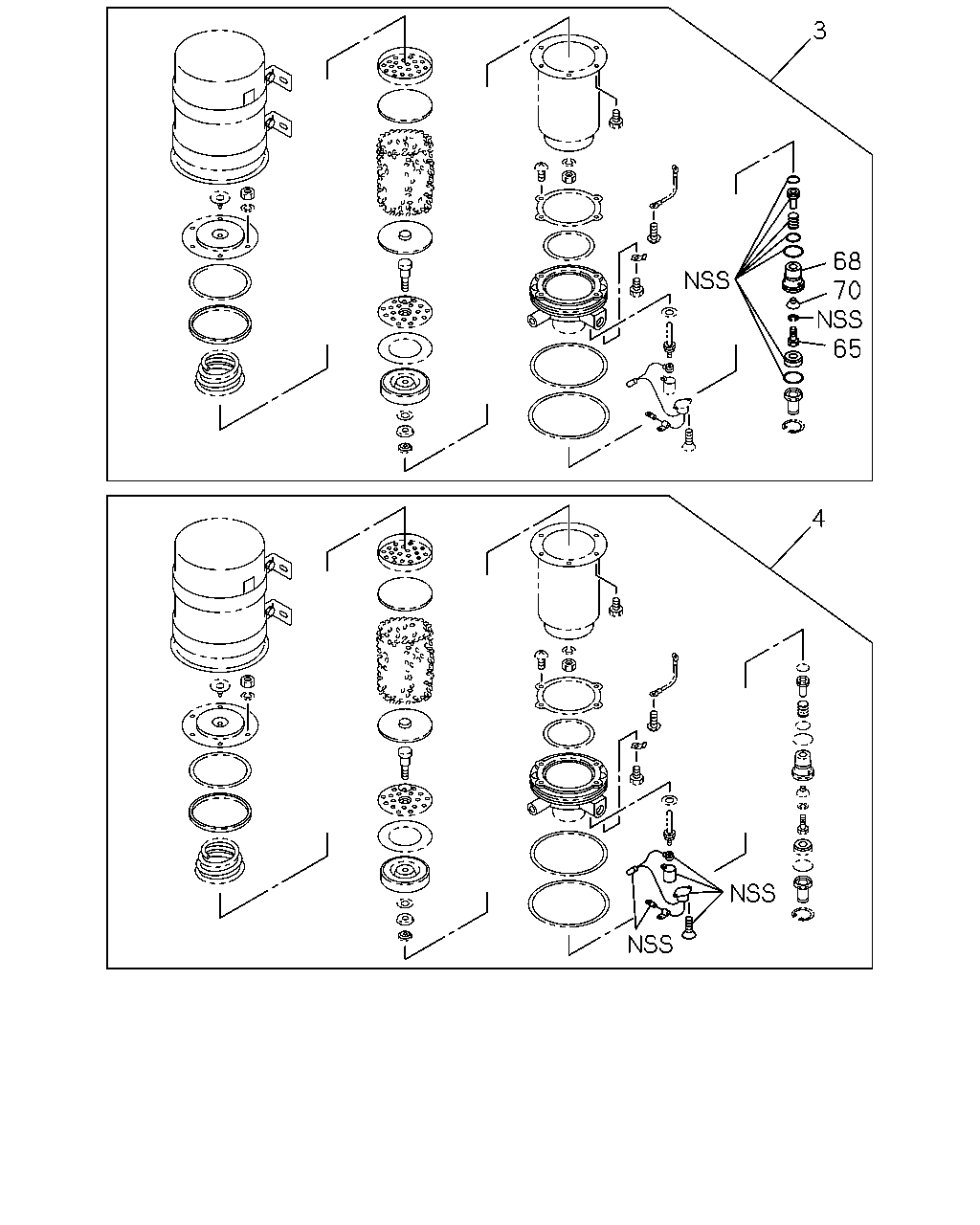

[346A] PISTON,THERMOSTAT KIT (5 parça)

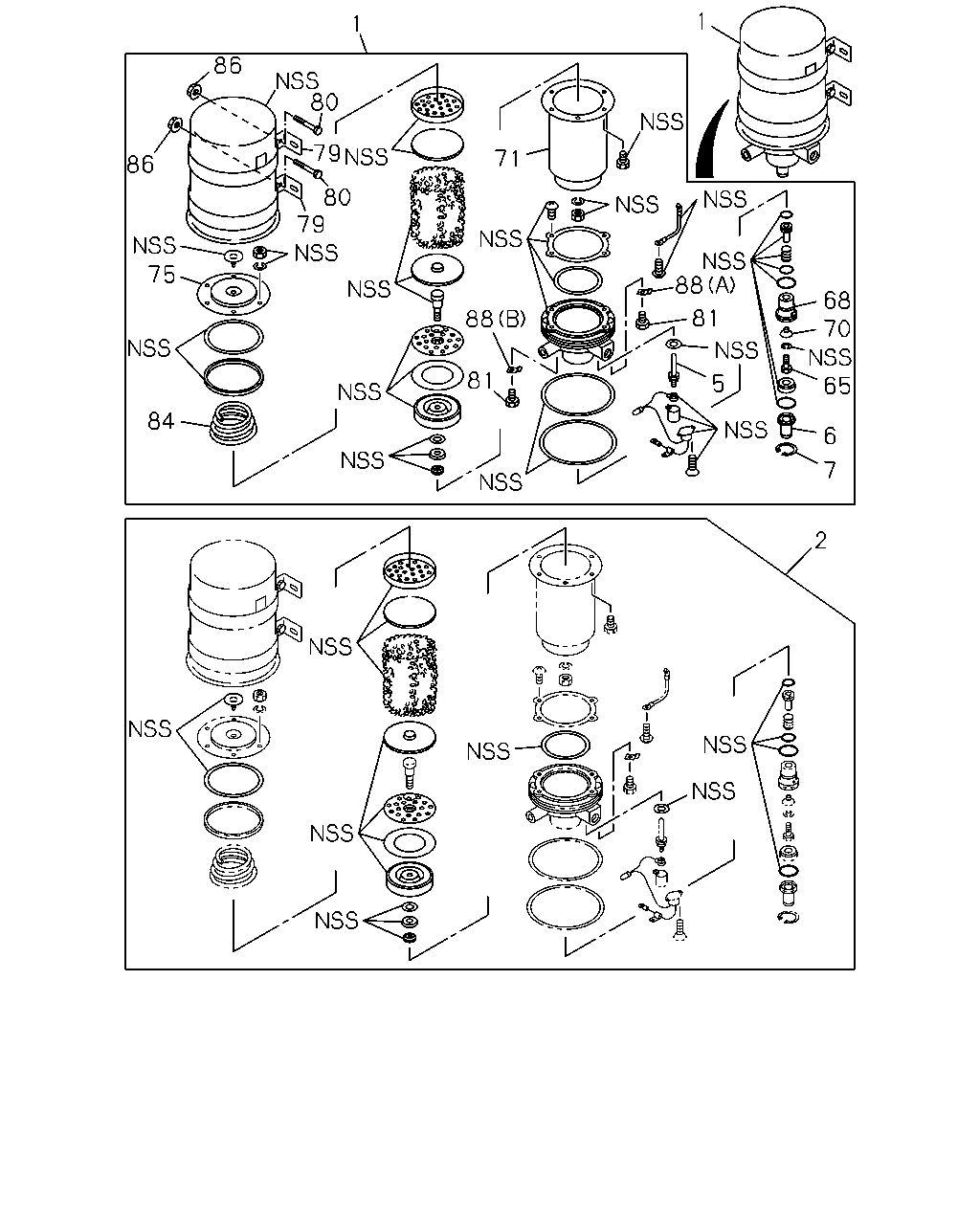

[346A] COMPONENT AND REPAIR KIT (17 parça)
▶
1
12
16
1
9
10
11
9
13
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-277-1
01
1
0103-
8
CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7>
1-48320-041-0
01
1
0103-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0103-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW
1-09650-444-0
01
1
0103-0607
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW
0-92134-315-0
01
1
0608-
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE
0-28681-030-0
04
1
0103-0512
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 FLANGE
0-28651-030-0
04
1
0601-
11
BRACKET; AIR DRYER
AIR DRYER<PS7>
1-48317-876-0
01
1
0103-
12
BOLT; BRKT
AIR DRYER<PS7> M10X35 FLANGE
0-28681-035-0
04
1
0103-0512
12
BOLT; BRKT
AIR DRYER<PS7> M10X35 FLANGE
0-28651-035-0
04
1
0601-
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
04
1
0103-0602
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
04
1
0603-
16
NUT; BRKT
6SD1 TC(32L) AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
02
1
0103-0602
16
NUT; BRKT
6SD1 TC(32L) AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
02
1
0603-
16
NUT; BRKT
6WA1 TC-C(55L) AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
04
1
0103-0602
16
NUT; BRKT
6WA1 TC-C(55L) AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
04
1
0603-
3
68
70
65
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-057-1
01
1
0103-
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-254-0
01
1
0103-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
0103-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
0103-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0103-
1
1
86
80
79
71
86
80
79
75
88
68
70
65
81
88
81
5
84
6
7
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-277-1
01
1
0103-
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-226-0
01
1
0103-
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-085-0
02
1
0103-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-101-0
01
1
0103-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-154-0
01
1
0103-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
0103-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-216-0
01
1
0103-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0103-
71
CASE; INNER,AIR DRYER
AIR DRYER<PS7>
1-48199-156-1
01
1
0103-
75
COVER; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-167-0
01
1
0103-
79
BRACKET; AIR DRYER
AIR DRYER<PS7>
1-48199-189-0
02
1
0103-
80
BOLT; BRKT
AIR DRYER<PS7>
1-48199-190-0
02
1
0103-
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-177-0
02
1
0103-
84
SPRING; AIR DRYER
AIR DRYER<PS7>
1-48199-166-0
01
1
0103-
86
NUT; BRKT
AIR DRYER<PS7>
1-48199-320-0
02
1
0103-
88
PLATE; STOPPER
AIR DRYER<PS7> (A)
1-48199-178-0
01
1
0103-
88
PLATE; STOPPER
AIR DRYER<PS7> (B)
1-48199-179-0
01
1
0103-
