3-22 — AIR CONTROL PARTS (#10457) — 163 parça

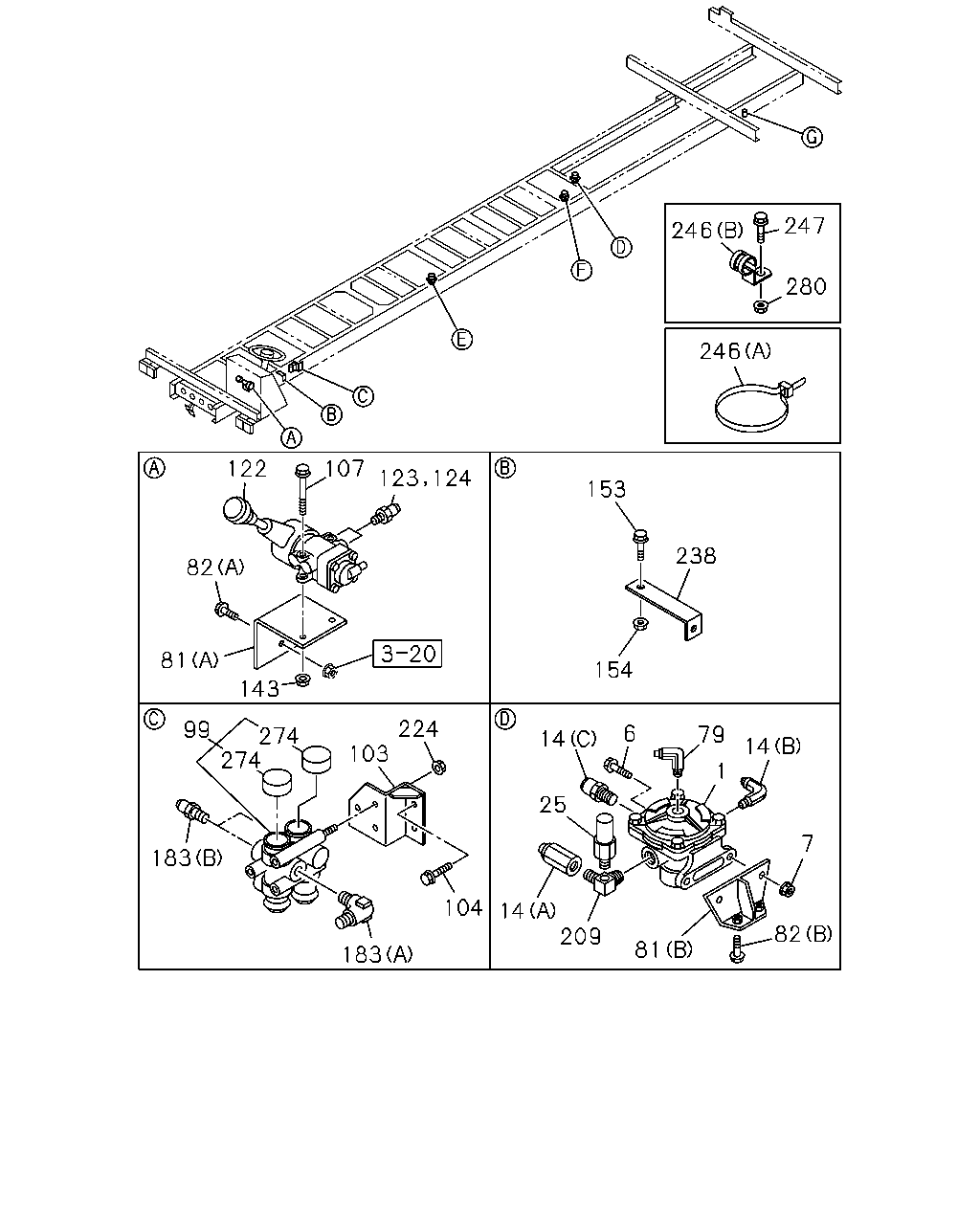

çizim 137408
247 246 280 246 122 107 153 238 82 81 154 143 224 103 99 6 79 274 274 14 14 1 25 7 183 104 14 209 82 81 183 123 124
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48210-278-0 01 1 0103-
6 BOLT; VLV
M10X40 FLANGE 		0-28681-040-0 02 1 0103-0512
6 BOLT; VLV
M10X40 FLANGE 		0-28651-040-0 02 1 0601-
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 0103-0602
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0603-
14 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 0103-0306
14 CONNECTOR; RELAY VLV
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0307-
14 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 01 1 0103-0306
14 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0307-
14 CONNECTOR; RELAY VLV
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0103-
25 SWITCH; PRESSURE 1-82410-163-1 01 1 0103-
79 CONNECTOR; RELAY VLV
DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0103-0306
79 CONNECTOR; RELAY VLV
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
81 BRACKET; RELAY VLV,PARKING BRK
(B) 		1-48219-145-0 01 1 0103-
81 BRACKET; RELAY VLV,PARKING BRK
(A) 		1-48495-222-0 01 1 0103-
82 BOLT; BRKT,RELAY VLV
(A) M10X30 FLANGE 		0-28681-030-0 02 1 0103-0512
82 BOLT; BRKT,RELAY VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
82 BOLT; BRKT,RELAY VLV
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0103-0512
82 BOLT; BRKT,RELAY VLV
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
99 VALVE; PROTECTION 1-48110-103-5 01 1 0103-
103 BRACKET; PROTECTION VALVE 1-47478-544-0 01 1 0103-
104 BOLT; BRKT,VALVE
M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
104 BOLT; BRKT,VALVE
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
107 BOLT; VLV
M8X70 FLANGE 		0-28080-870-0 02 1 0103-0512
107 BOLT; VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0601-
122 VALVE ASM; CONT,WHEEL PARKING 1-48460-319-0 01 1 0103-
123 CONNECTOR; PARKING VLV
DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0103-0306
123 CONNECTOR; PARKING VLV
DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307-
124 CONNECTOR; PARKING VLV
DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0103-0306
124 CONNECTOR; PARKING VLV
DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0307-
143 NUT; VLV
M8 FLANGE 		0-91150-108-0 02 1 0103-0602
143 NUT; VLV
M8 FLANGE 		0-91180-108-0 02 1 0603-
153 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512
153 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-1111
154 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0103-0602
154 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-1111
183 CONNECTOR; PROTECTION VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0103-0306
183 CONNECTOR; PROTECTION VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307-
183 CONNECTOR; PROTECTION VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 04 1 0103-0306
183 CONNECTOR; PROTECTION VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 04 1 0307-
209 CONNECTOR; 3WAY,DEL 1-09656-673-0 01 1 0103-
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91150-108-0 03 1 0103-0602
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91180-108-0 03 1 0603-
238 BRACKET; CLIP 1-47478-899-0 01 1 0103-1111
246 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1112-
246 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 04 1 0103-1111
246 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 01 1 1112-
247 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1112-
274 COVER; DUST 1-48119-450-0 02 1 0103-
280 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1112-

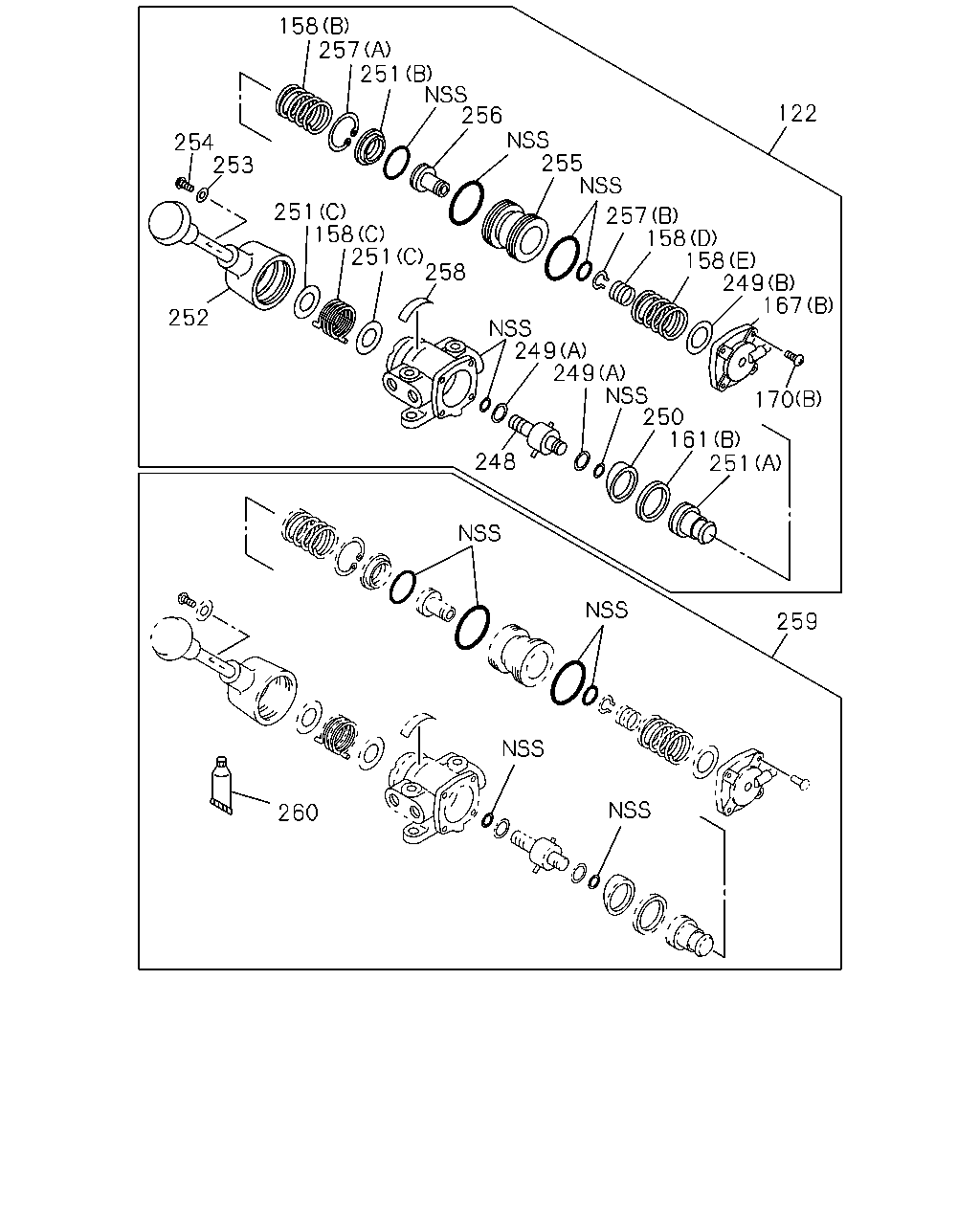

çizim 137409
158 257 251 256 255 122 254 253 251 158 251 258 257 158 158 249 167 252 249 249 250 161 251 248 259 260 170
BalonParca AdiParca NoAdetTipApplied Date
122 VALVE ASM; CONT,WHEEL PARKING 1-48460-319-0 01 1 0103-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0103-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0103-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0103-
158 SPRING; VALVE
(C) 		1-48469-059-0 01 1 0103-
158 SPRING; VALVE
(B) 		1-48469-063-0 01 1 0103-
158 SPRING; VALVE
(D) 		1-48469-070-0 01 1 0103-
158 SPRING; VALVE
(E) 		1-48469-089-0 01 1 0103-
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0103-
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0103-
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0103-
161 GUIDE; VALVE
(B) 		1-48469-058-0 01 1 0103-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0103-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0103-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0103-
167 COVER; VALVE
(B) 		1-48469-090-0 01 1 0103-
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0103-
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0103-
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0103-
170 SCREW; COVER TO BODY
(B) 		1-48469-118-0 04 1 0103-
248 HOLDER; VALVE 1-48469-054-0 01 1 0103-
249 SHIM; VALVE
(A) 		1-48469-055-0 AR 1 0103-
249 SHIM; VALVE
(B) 		1-48469-072-0 AR 1 0103-
250 RING; VALVE 1-48469-056-0 01 1 0103-
251 SEAT; VALVE
(A) 		1-48469-057-0 01 1 0103-
251 SEAT; VALVE
(B) 		1-48469-066-0 01 1 0103-
251 SEAT; VALVE
(C) 		1-48469-082-0 02 1 0103-
252 HANDLE ASM; VALVE 1-48469-126-0 01 1 0103-
253 WASHER; VALVE 1-48469-061-0 01 1 0103-
254 SCREW; VALVE 1-48469-062-0 01 1 0103-
255 PISTON; VALVE 1-48469-064-0 01 1 0103-
256 VALVE; FEED 1-48469-065-0 01 1 0103-
257 RING; SNAP
(A) 		1-48469-067-0 01 1 0103-
257 RING; SNAP
(B) 		1-48469-068-0 01 1 0103-
258 PLATE; CAUTION 1-48469-093-0 01 1 0103-
259 REPAIR KIT; VALVE
W/GREASE 		1-48469-096-0 01 1 0103-
260 GREASE; VALVE 1-48469-084-0 01 1 0103-

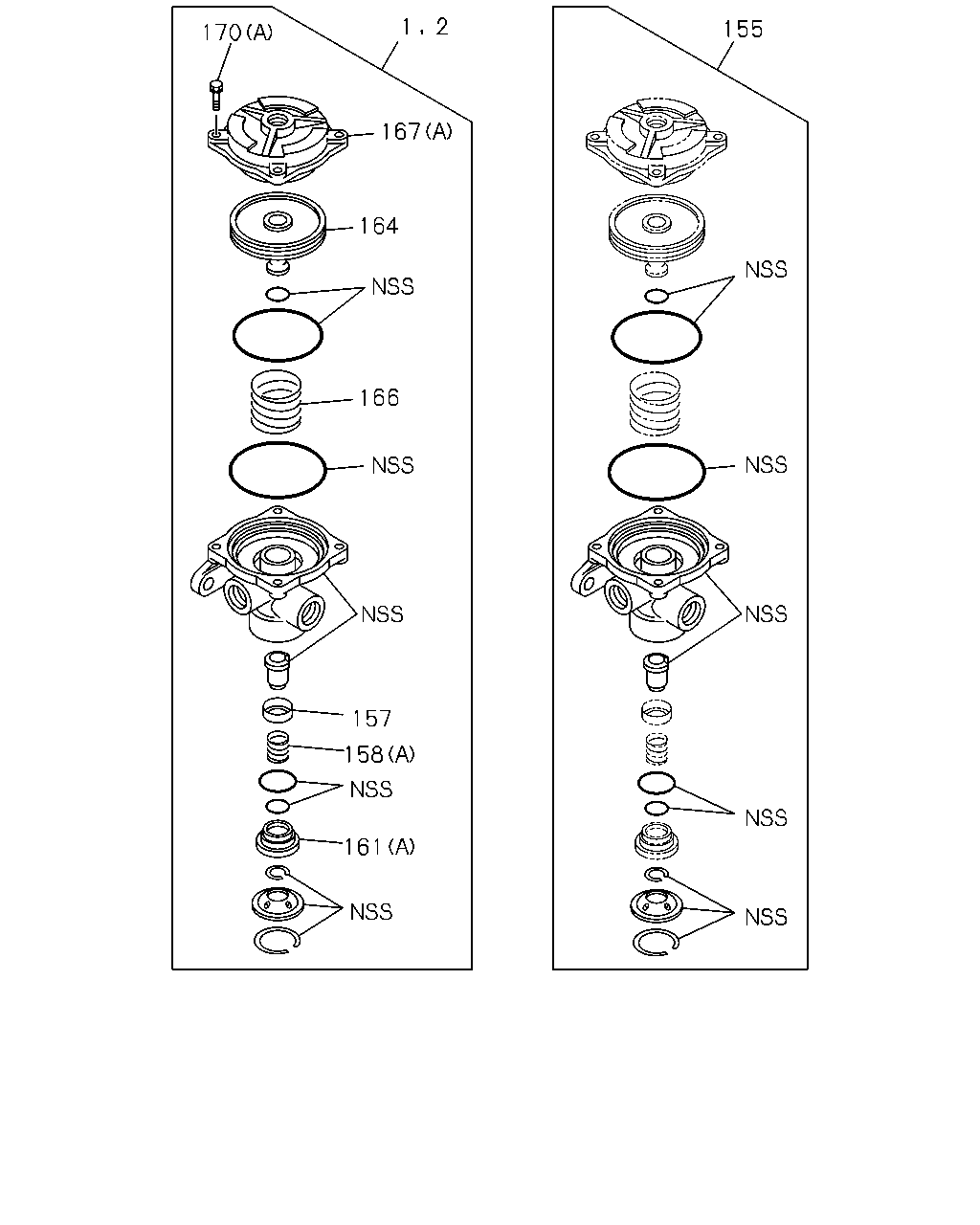

çizim 137414
2 1 155 170 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48210-278-0 01 1 0103-
2 VALVE; RELAY 1-48210-278-0 01 1 0103-
2 VALVE; RELAY 1-48210-278-0 01 1 0103-
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0103-
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0103-
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0103-
157 RETAINER; VALVE 1-48213-002-0 01 1 0103-
157 RETAINER; VALVE 1-48213-002-0 01 1 0103-
157 RETAINER; VALVE 1-48213-002-0 01 1 0103-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0103-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0103-
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0103-
158 SPRING; VALVE
(C) 		1-48469-059-0 01 1 0103-
158 SPRING; VALVE
(B) 		1-48469-063-0 01 1 0103-
158 SPRING; VALVE
(D) 		1-48469-070-0 01 1 0103-
158 SPRING; VALVE
(E) 		1-48469-089-0 01 1 0103-
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0103-
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0103-
161 GUIDE; VALVE
(A) 		1-48129-014-0 01 1 0103-
161 GUIDE; VALVE
(B) 		1-48469-058-0 01 1 0103-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0103-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0103-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0103-
166 SPRING; PISTON 1-47819-090-0 01 1 0103-
166 SPRING; PISTON 1-47819-090-0 01 1 0103-
166 SPRING; PISTON 1-47819-090-0 01 1 0103-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0103-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0103-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 0103-
167 COVER; VALVE
(B) 		1-48469-090-0 01 1 0103-
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0103-
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0103-
170 SCREW; COVER TO BODY
(A) 		1-48219-039-0 04 1 0103-
170 SCREW; COVER TO BODY
(B) 		1-48469-118-0 04 1 0103-

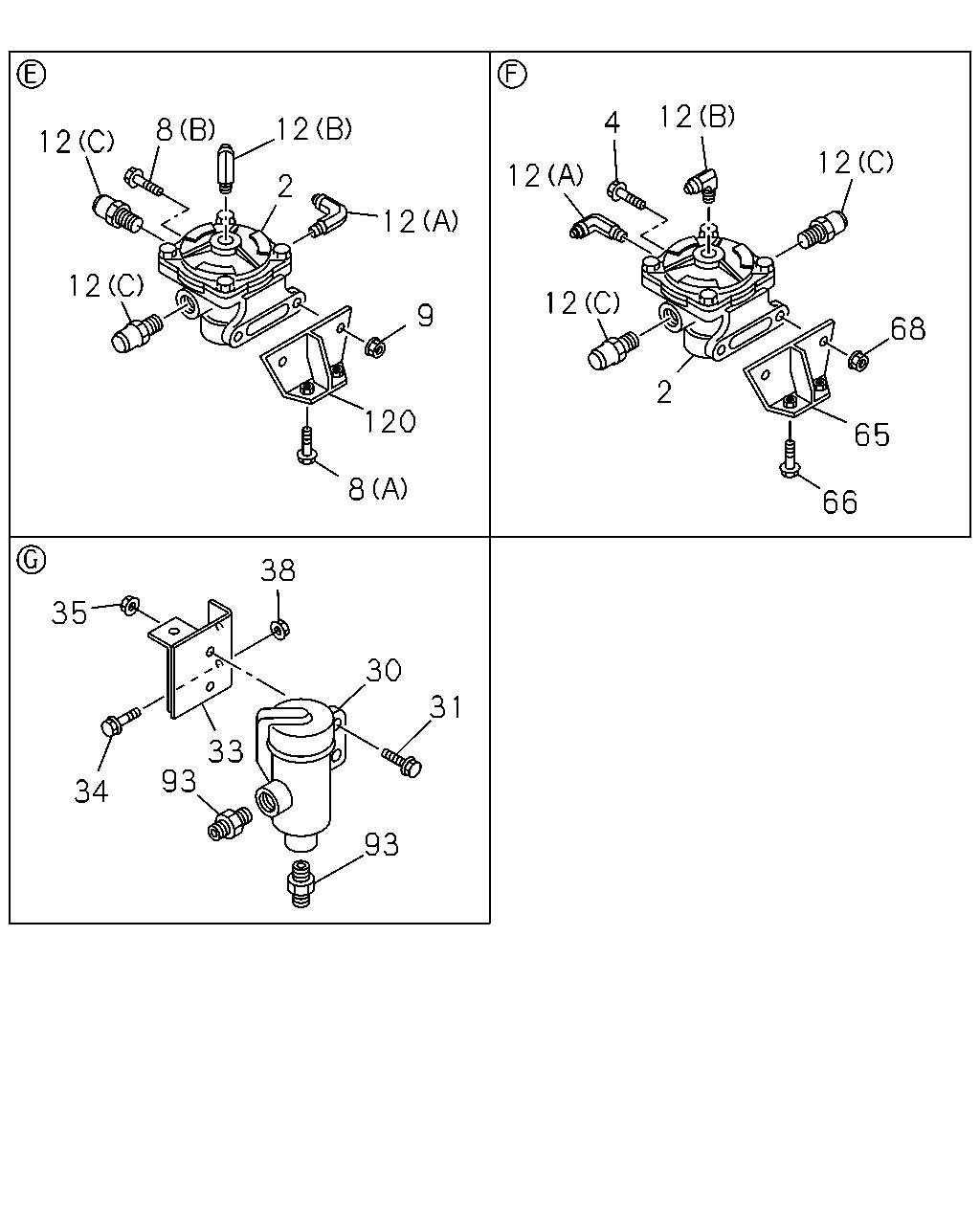

çizim 137415
12 4 12 8 12 12 12 2 12 12 12 9 68 2 120 65 8 66 38 35 30 31 33 93 34 93
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-278-0 01 1 0103-
2 VALVE; RELAY 1-48210-278-0 01 1 0103-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0103-0512
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
8 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 02 1 0103-0512
8 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 02 1 0601-
8 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0103-0512
8 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 0103-0602
9 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0103-0306
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0103-0306
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307-
12 CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0307-
12 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 0103-0306
12 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW 		1-09660-654-1 01 1 0103-0306
12 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0307-
12 CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0307-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 02 1 0103-0306
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-670-1 02 1 0103-0306
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 0307-
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 02 1 0307-
30 GOVERNOR; AIR CONT 1-48350-063-2 01 1 0103-
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
33 BRACKET; GOV,AIR CONT 1-48317-877-0 01 1 0103-
34 BOLT; BRKT,GOV
M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512
34 BOLT; BRKT,GOV
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0103-0602
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
38 NUT; BRKT,GOV
M8 FLANGE 		0-91150-108-0 02 1 0103-0602
38 NUT; BRKT,GOV
M8 FLANGE 		0-91180-108-0 02 1 0603-
65 BRACKET; RELAY VLV RR 1-48219-145-0 01 1 0103-
66 BOLT; BRKT,RELAY VLV RR
M10X35 FLANGE 		0-28681-035-0 02 1 0103-0512
66 BOLT; BRKT,RELAY VLV RR
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0103-0602
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
93 CONNECTOR; GOV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0103-
120 BRACKET; VLV 1-48219-145-0 01 1 0103-

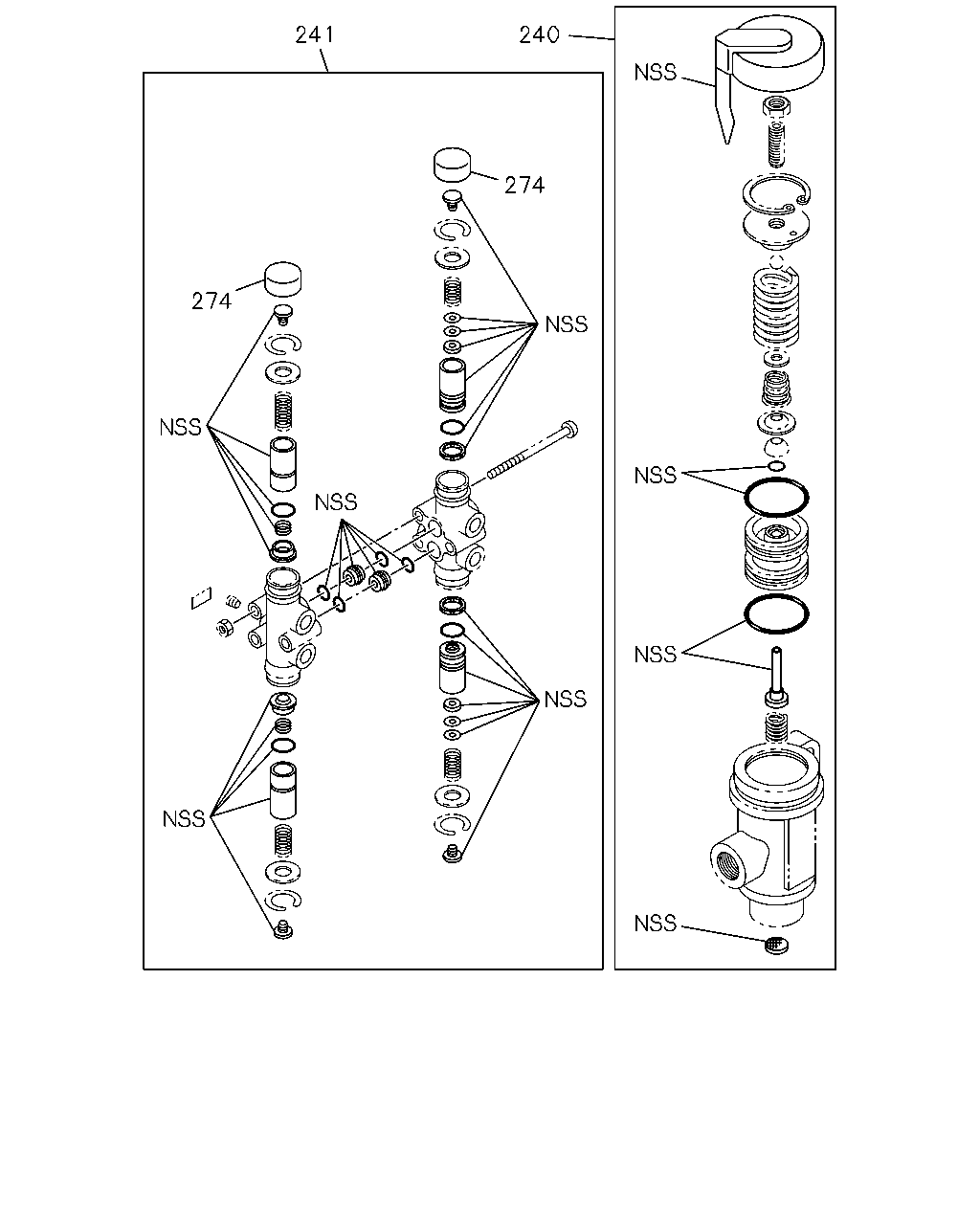

çizim 137422
241 240 274 274
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 0103-
241 REPAIR KIT; PROTECTION VALVE 1-85576-224-0 01 1 0103-
274 COVER; DUST 1-48119-450-0 02 1 0103-
