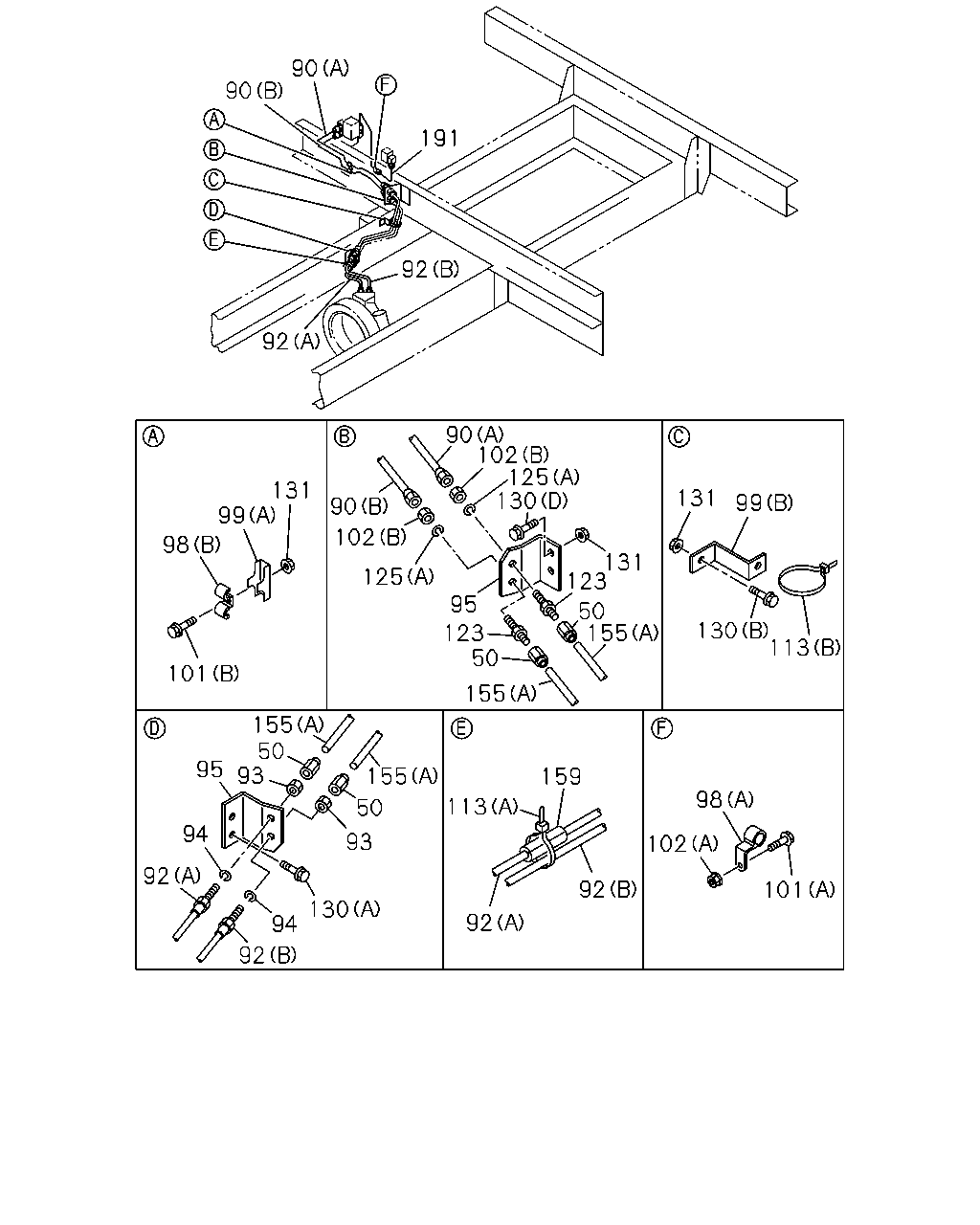

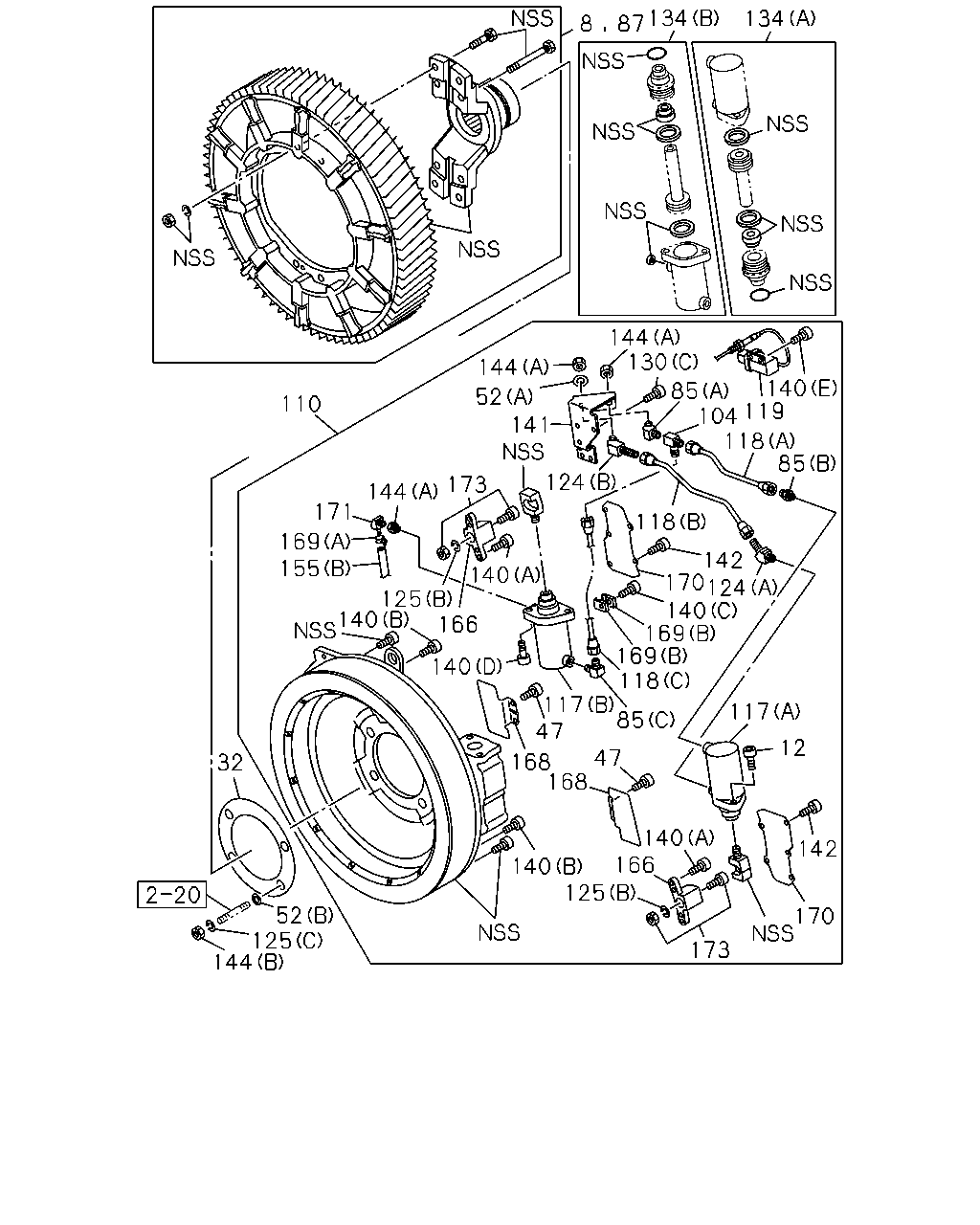

3-08 — PARKING BRAKE (#10454) — 111 parça

90 90 191 92 92 90 102 125 130 131 131 99 90 99 102 98 131 123 125 95 50 155 130 113 123 50 101 155 155 50 93 95 155 159 98 113 50 94 93 102 92 92 101 130 92 94 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
50	ADAPTER; PARK BRK BRAKE SYSTEM RETARDER<RE2> DIN8 & M12 STRAIGHT	1-09660-873-0	04	1	0103-	●	●	●
90	PIPE; AIR,MAG VLV TO FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) L=495 SERVICED BY L=500	1-47428-807-0	01	1	0103-	●	●	●
90	PIPE; AIR,MAG VLV TO FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B) L=505 SERVICED BY L=550	1-47428-808-0	01	1	0103-	●	●	●
92	HOSE; FLEX,RETARDER 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (B) L=230	1-09363-666-0	01	1	0103-	●
92	HOSE; FLEX,RETARDER 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (A) L=250	1-09363-667-0	01	1	0103-	●
92	HOSE; FLEX,RETARDER 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> (A) L=340	1-09363-622-0	01	1	0103-			●
92	HOSE; FLEX,RETARDER 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2> (B) L=350	1-09363-624-0	01	1	0103-			●
92	HOSE; FLEX,RETARDER 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (A) L=300	1-09363-608-0	01	1	0103-		●
92	HOSE; FLEX,RETARDER 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (B) L=320	1-09363-656-0	01	1	0103-		●
93	NUT; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	02	1	0103-	●	●	●
94	WASHER; LK,FLEX HOSE 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> ID=12.2	9-09150-512-0	02	1	0103-0603	●	●	●
94	WASHER; LK,FLEX HOSE 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> ID=12.2	0-91510-512-0	02	1	0604-	●	●	●
95	BRACKET; FLEX HOSE,RETARDER BRAKE SYSTEM RETARDER<RE2>	1-47478-905-0	02	1	0103-	●	●	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2> (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0103-	●	●	●
98	CLIP; AIR PIPE 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0103-	●	●	●
99	BRACKET; CLIP BRAKE SYSTEM RETARDER<RE2> (A)	1-47475-427-1	01	1	0103-	●	●	●
99	BRACKET; CLIP BRAKE SYSTEM RETARDER<RE2> (B)	1-47478-917-0	01	1	0103-	●	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M8X40 FLANGE	0-28680-840-0	01	1	0103-0512	●	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M8X40 FLANGE	0-28650-840-0	01	1	0601-	●	●	●
101	BOLT; CLIP 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512	●	●	●
101	BOLT; CLIP 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER<RE2> (B) M12	9-09840-280-0	02	1	0103-	●	●	●
102	NUT; CLIP,AIR PIPE 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
102	NUT; CLIP,AIR PIPE 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> (B) L=250	1-09707-126-0	01	1	0103-	●	●	●
113	CLIP; HOSE 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (A) L=140	5-09707-031-1	01	1	0103-	●	●	●
123	UNION BRAKE SYSTEM RETARDER<RE2> M12 L=66.5	9-09223-306-1	02	1	0103-0607	●	●	●
123	UNION BRAKE SYSTEM RETARDER<RE2> M12 L=66.5	0-92113-306-0	02	1	0608-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=6.1	9-09150-506-0	02	1	0103-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=6.1	0-91510-506-0	02	1	0604-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	9-09150-512-0	02	1	0103-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	0-91510-512-0	02	1	0604-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=16.2	9-09150-516-0	04	1	0103-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=16.2	0-91510-516-0	04	1	0604-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X45 FLANGE	0-28080-845-0	02	1	0103-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (D) M8X30 FLANGE	0-28680-830-0	02	1	0103-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (D) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (C) M6X14 HEX SOCKET	1-48629-145-0	03	1	0103-	●	●	●
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	04	1	0103-0602	●	●	●
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-092-0	01	1	0103-	●	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0103-	●	●	●
159	SLEEVE 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> ID=14 OD=18 L=60	1-09337-030-0	01	1	0103-	●	●	●
191	PIPE; AIR,MAG VLV TO MAG VLV 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> L=633	1-49122-601-0	01	1	0103-	●	●	●
191	PIPE; AIR,MAG VLV TO MAG VLV 6WA1 TC-C(55L) BRAKE SYSTEM RETARDER<RE2>	1-49122-310-0	01	1	0103-	●	●	●

110 171 144 169 155 140 125 166 140 140 32 52 125 144 140 125 166 140 173 170 142 12 117 47 168 168 47 117 85 118 169 169 140 170 124 142 118 124 118 85 104 119 140 85 130 144 144 52 141 173 8 87 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	FLANGE; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-264-3	01	1	0103-1204		●	●
8	FLANGE; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	8-98213-323-0	01	1	1205-		●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2>	1-48629-170-0	02	1	0103-	●	●	●
32	PLATE; SUPPORT,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48629-293-0	01	1	0103-0412	●	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	02	1	0103-	●	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=17	9-09164-516-0	04	1	0501-1011	●	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1012-	●	●	●
52	WASHER; PL 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	02	1	0103-0605	●
52	WASHER; PL 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	02	1	0606-	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	9-09160-612-0	01	1	0103-0605		●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	01	1	0606-		●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-267-0	01	1	0103-	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	9-09221-806-1	01	1	0103-0607	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	0-92111-806-0	01	1	0608-	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/8	9-09224-306-2	01	1	0103-0607	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/8	0-92124-306-0	01	1	0608-	●	●	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	8-98213-322-0	01	1	1205-	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	01	1	0103-	●	●	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-431-6	01	1	0103-0909	●	●	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	8-98134-962-0	01	1	0910-	●	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A) MAIN	1-48629-286-0	01	1	0103-	●	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B) SUB	1-48629-287-0	01	1	0103-	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-271-0	01	1	0103-	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-272-0	01	1	0103-	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-273-0	01	1	0103-	●	●	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	0103-	●	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-267-0	01	1	0103-	●	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-268-0	01	1	0103-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=6.1	9-09150-506-0	02	1	0103-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=6.1	0-91510-506-0	02	1	0604-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	9-09150-512-0	02	1	0103-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=12.2	0-91510-512-0	02	1	0604-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=16.2	9-09150-516-0	04	1	0103-0603	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=16.2	0-91510-516-0	04	1	0604-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X45 FLANGE	0-28080-845-0	02	1	0103-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (D) M8X30 FLANGE	0-28680-830-0	02	1	0103-0512	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (D) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (C) M6X14 HEX SOCKET	1-48629-145-0	03	1	0103-	●	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-284-0	01	1	0103-	●	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-285-0	01	1	0103-	●	●	●
140	BOLT 6SD1 TC(32L) BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-170-0	01	1	0103-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M6X10 HEX SOCKET	1-48629-133-0	02	1	0103-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-182-0	08	1	0103-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M8X12	1-48629-205-0	02	1	0103-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M6X20 HEX SOCKET	1-48629-270-0	01	1	0103-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-170-0	02	1	0103-		●	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-266-0	01	1	0103-	●	●	●
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	10	1	0103-	●	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	03	1	0103-	●	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	9-99110-516-0	04	1	0103-0512	●	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	0601-	●	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-092-0	01	1	0103-	●	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0103-	●	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-261-0	02	1	0103-	●	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	0103-	●	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-126-0	01	1	0103-	●	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-249-0	02	1	0103-	●	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2>	1-48629-260-0	02	1	0103-	●	●	●
171	BREATHER BRAKE SYSTEM RETARDER<RE2>	1-48629-144-0	01	1	0103-	●	●	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	0103-	●	●	●
