3-05 — REAR WHEEL BRAKE (#10453) — 110 parça

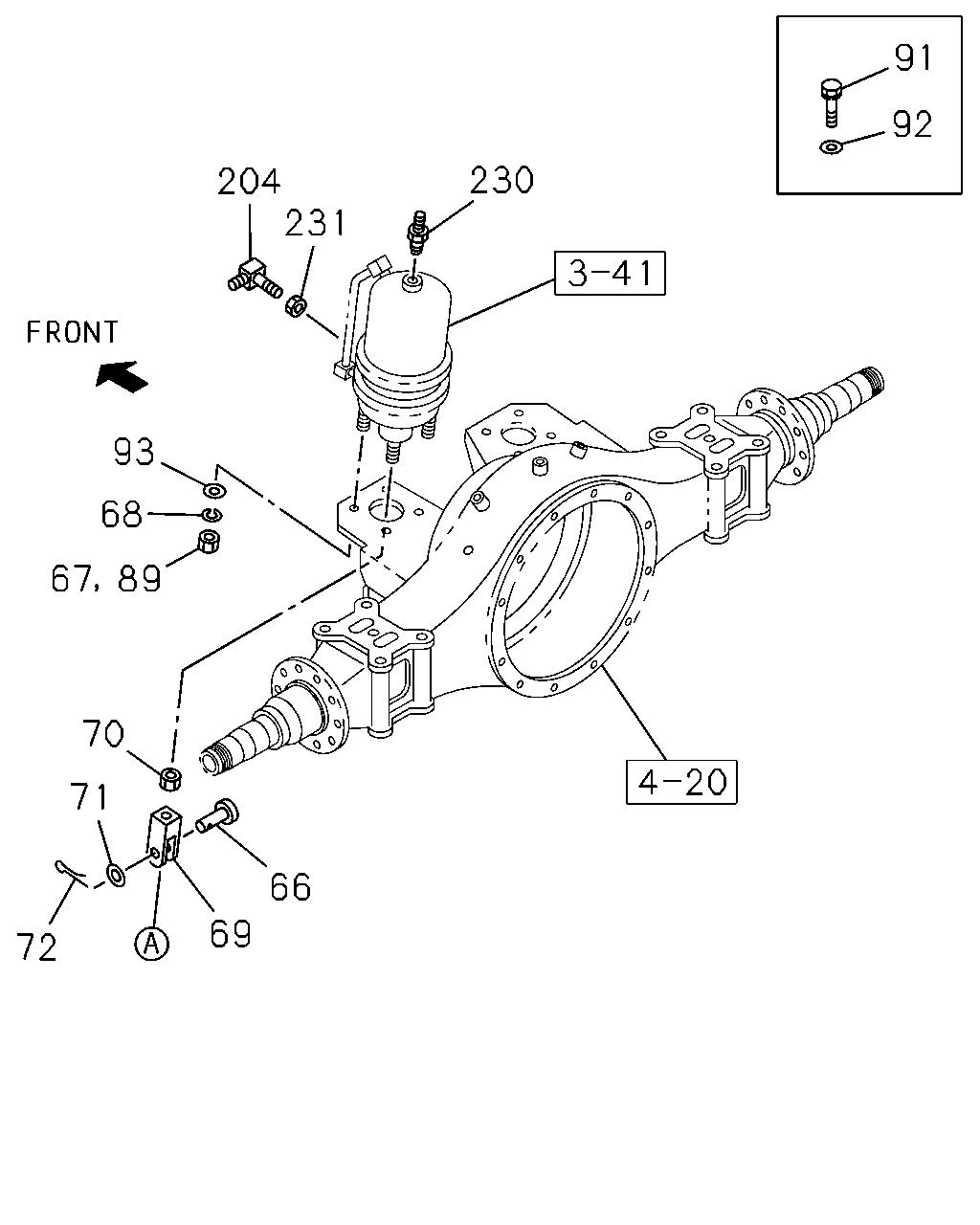

91 92 230 204 231 93 68 70 71 66 69 72 67 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	PIN; JAW JOINT EXC. AUTO ADJUSTER BRAKE<BCU>	1-09744-088-0	02	1	0103-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0103-0512
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0103-0603
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0604-0802
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-
69	JOINT; JAW EXC. AUTO ADJUSTER BRAKE<BCU>	1-09768-060-1	02	1	0103-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0103-0512
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-
71	WASHER; PL,JAW JOINT EXC. AUTO ADJUSTER BRAKE<BCU> ID=17 OD=32	9-09160-616-0	02	1	0103-
72	PIN; SPLIT EXC. AUTO ADJUSTER BRAKE<BCU> OD=3.7 L=28	9-08114-028-0	02	1	0103-0606
72	PIN; SPLIT EXC. AUTO ADJUSTER BRAKE<BCU> OD=3.7 L=28	0-81124-028-0	02	1	0607-
89	NUT; CHAMBER M20	9-99111-420-0	02	1	0103-0512
89	NUT; CHAMBER M20	0-91111-520-0	02	1	0601-
91	BOLT; CHAMBER M8X12 W/LK WASHER	0-50040-812-0	02	1	0103-0512
91	BOLT; CHAMBER M8X12 W/LK WASHER	0-50540-812-0	02	1	0601-
92	WASHER; LK,CHAMBER ID=8.2	9-09150-508-0	02	1	0103-0603
92	WASHER; LK,CHAMBER ID=8.2	0-91510-508-0	02	1	0604-
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	0103-
204	CONNECTOR; SPR CHAMBER PT3/8 & M27 ELBOW	1-09650-118-1	02	1	0103-
204	CONNECTOR; SPR CHAMBER M20 & PT3/8 ELBOW	1-09660-686-0	02	1	0103-
230	NIPPLE; SPR CHAMBER M20 & PT1/4	9-09902-386-0	02	1	0103-
231	NUT; CONNECTOR M27	9-09840-286-0	02	1	0103-

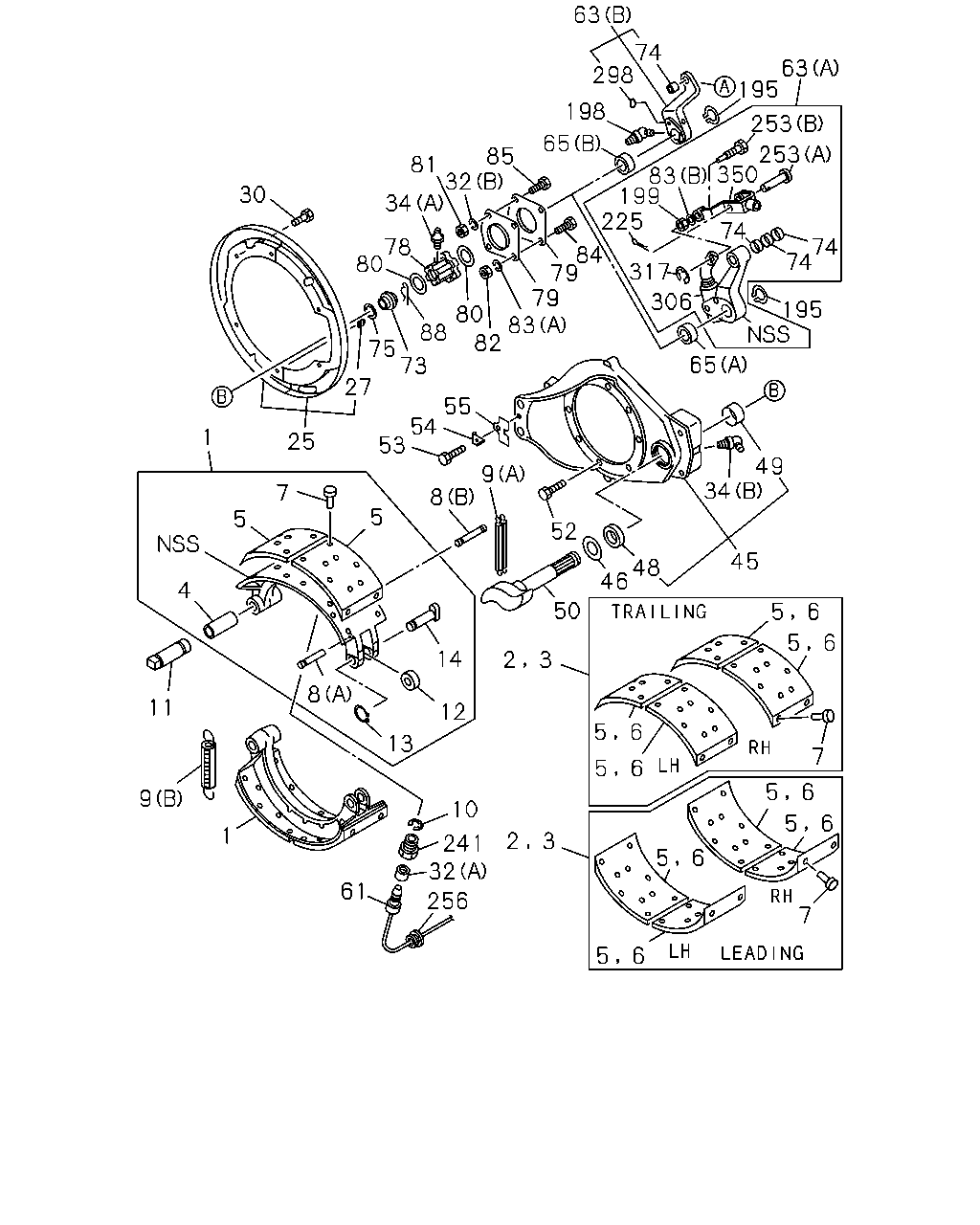

63 74 298 63 195 198 253 65 253 199 225 74 85 32 81 30 34 78 80 74 74 84 79 79 83 82 317 306 195 80 88 75 73 65 27 55 54 53 1 25 49 34 9 8 7 5 5 52 45 48 46 4 50 5 6 5 6 14 2 3 8 11 12 5 6 13 7 5 6 5 6 9 10 5 6 1 2 3 241 32 6 5 61 7 256 5 6 350 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47170-204-0	01	1	0103-
1	SHOE; BRK,RR TRAILING	1-47170-205-0	01	1	0103-
1	SHOE; BRK,RR LEADING	1-47170-202-0	01	1	0103-
1	SHOE; BRK,RR TRAILING	1-47170-203-0	01	1	0103-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-393-0	01	1	0103-
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-823-0	01	1	0103-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-394-0	01	1	0103-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-824-0	01	1	0103-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0103-
5	LINING; RR BRK SHOE,STANDARD TRAILING T=16	1-47125-563-0	04	1	0103-
5	LINING; RR BRK SHOE,STANDARD LEADING WO/INDICATOR HOLE	1-47126-084-0	04	1	0103-
5	LINING; RR BRK SHOE,STANDARD LEADING W/INDICATOR HOLE	1-47126-088-0	04	1	0103-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING T=17	1-47125-564-0	04	1	0103-
6	LINING; RR BRK SHOE,OVER SIZE LEADING WO/INDICATOR HOLE	1-47126-085-0	04	1	0103-
6	LINING; RR BRK SHOE,OVER SIZE LEADING W/INDICATOR HOLE	1-47126-089-0	04	1	0103-
7	RIVET; LINING,RR BRK L=19.5	1-09732-035-0	AR	1	0103-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-09744-074-0	04	1	0103-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-029-0	04	1	0103-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-210-0	02	1	0103-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-277-2	02	1	0103-
10	RING; SNAP,SPR PIN ID=7	9-09185-407-0	02	1	0103-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0103-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0103-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0103-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0103-
25	COVER SET; RR BRK DRUM	1-47151-610-1	01	1	0103-
25	COVER SET; RR BRK DRUM	1-47151-608-1	01	1	0103-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0103-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0103-
32	WASHER; LK (A)	1-47119-050-0	02	1	0103-
32	WASHER; LK (B) ID=10.2	9-09150-510-0	04	1	0103-0603
32	WASHER; LK (B) ID=10.2	0-91510-510-0	04	1	0604-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	0103-0512
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0103-0512
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-128-1	02	1	0103-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0103-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0103-
49	BUSHING; CM/SHF,RR BRK	1-47146-009-0	02	1	0103-
50	CAMSHAFT; BRK,RR BRK AUTO ADJUSTER BRAKE<BCU>	1-47141-129-0	01	1	0103-
50	CAMSHAFT; BRK,RR BRK AUTO ADJUSTER BRAKE<BCU>	1-47141-128-0	01	1	0103-
50	CAMSHAFT; BRK,RR BRK EXC. AUTO ADJUSTER BRAKE<BCU>	1-47141-134-0	01	1	0103-
50	CAMSHAFT; BRK,RR BRK EXC. AUTO ADJUSTER BRAKE<BCU>	1-47141-133-0	01	1	0103-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0103-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0103-0512
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0103-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0103-
61	INDICATOR; WEAR,RR BRK SHOE	1-82480-174-0	02	1	0103-
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> (A)	1-48270-098-0	01	1	0103-
63	ADJUSTER ASM; SLACK,RR BRK AUTO ADJUSTER BRAKE<BCU> (A)	1-48270-097-0	01	1	0103-
63	ADJUSTER ASM; SLACK,RR BRK EXC. AUTO ADJUSTER BRAKE<BCU> (B)	1-48270-078-1	01	1	0103-
63	ADJUSTER ASM; SLACK,RR BRK EXC. AUTO ADJUSTER BRAKE<BCU> (B)	1-48270-077-1	01	1	0103-
65	SPACER; SLACK ADJ,BRK AUTO ADJUSTER BRAKE<BCU> (A)	1-47143-011-0	02	1	0103-
65	SPACER; SLACK ADJ,BRK EXC. AUTO ADJUSTER BRAKE<BCU> (B)	1-47143-014-0	02	1	0103-
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0103-
74	BUSHING; SLACK ADJ AUTO ADJUSTER BRAKE<BCU>	1-48279-078-0	06	1	0103-
74	BUSHING; SLACK ADJ EXC. AUTO ADJUSTER BRAKE<BCU>	1-09330-041-0	02	1	0103-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0103-
78	BUSHING; BRKT	1-47146-008-0	02	1	0103-
79	BRACKET; CM/SHF	9-47145-013-0	04	1	0103-
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	0103-
81	NUT M10	9-09110-410-0	04	1	0103-0512
81	NUT M10	0-91110-510-0	04	1	0601-
82	NUT M16	9-99110-516-0	04	1	0103-0512
82	NUT M16	0-91110-516-0	04	1	0601-
83	WASHER; PL AUTO ADJUSTER BRAKE<BCU> (B)	1-48279-033-0	02	1	0103-
83	WASHER; PL (A) ID=16.2	9-09851-672-2	08	1	0103-
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	0103-0512
84	BOLT; BRKT TO CASE M16X40	0-20951-640-0	04	1	0601-
85	BOLT; CM/SHF BRKT M10X20	0-20801-020-0	04	1	0103-0512
85	BOLT; CM/SHF BRKT M10X20	0-20851-020-0	04	1	0601-
88	CLIP; BRKT	1-09589-018-0	02	1	0103-
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	0103-
198	NIPPLE; GREASE,SLACK ADJ EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0103-0512
198	NIPPLE; GREASE,SLACK ADJ EXC. AUTO ADJUSTER BRAKE<BCU> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
199	NUT AUTO ADJUSTER BRAKE<BCU>	1-48279-034-0	02	1	0103-
225	PIN; SPLIT AUTO ADJUSTER BRAKE<BCU>	1-48279-031-0	02	1	0103-
241	HOLDER	1-47119-096-0	02	1	0103-
253	PIN; CLEVIS AUTO ADJUSTER BRAKE<BCU> (A)	1-48279-029-0	02	1	0103-
253	PIN; CLEVIS AUTO ADJUSTER BRAKE<BCU> (B)	1-48279-030-0	02	1	0103-
256	COVER; INDICATOR	1-09333-147-0	02	1	0103-
298	GASKET EXC. AUTO ADJUSTER BRAKE<BCU> ID=23.3	9-09561-223-0	02	1	0103-
306	BOOT; SLACK ADJ AUTO ADJUSTER BRAKE<BCU>	1-48279-044-0	02	1	0103-
317	RING; RETAINER AUTO ADJUSTER BRAKE<BCU>	1-48279-032-0	02	1	0103-
350	CLEVIS; SLACK ADJ AUTO ADJUSTER BRAKE<BCU>	1-48279-060-0	02	1	0103-
