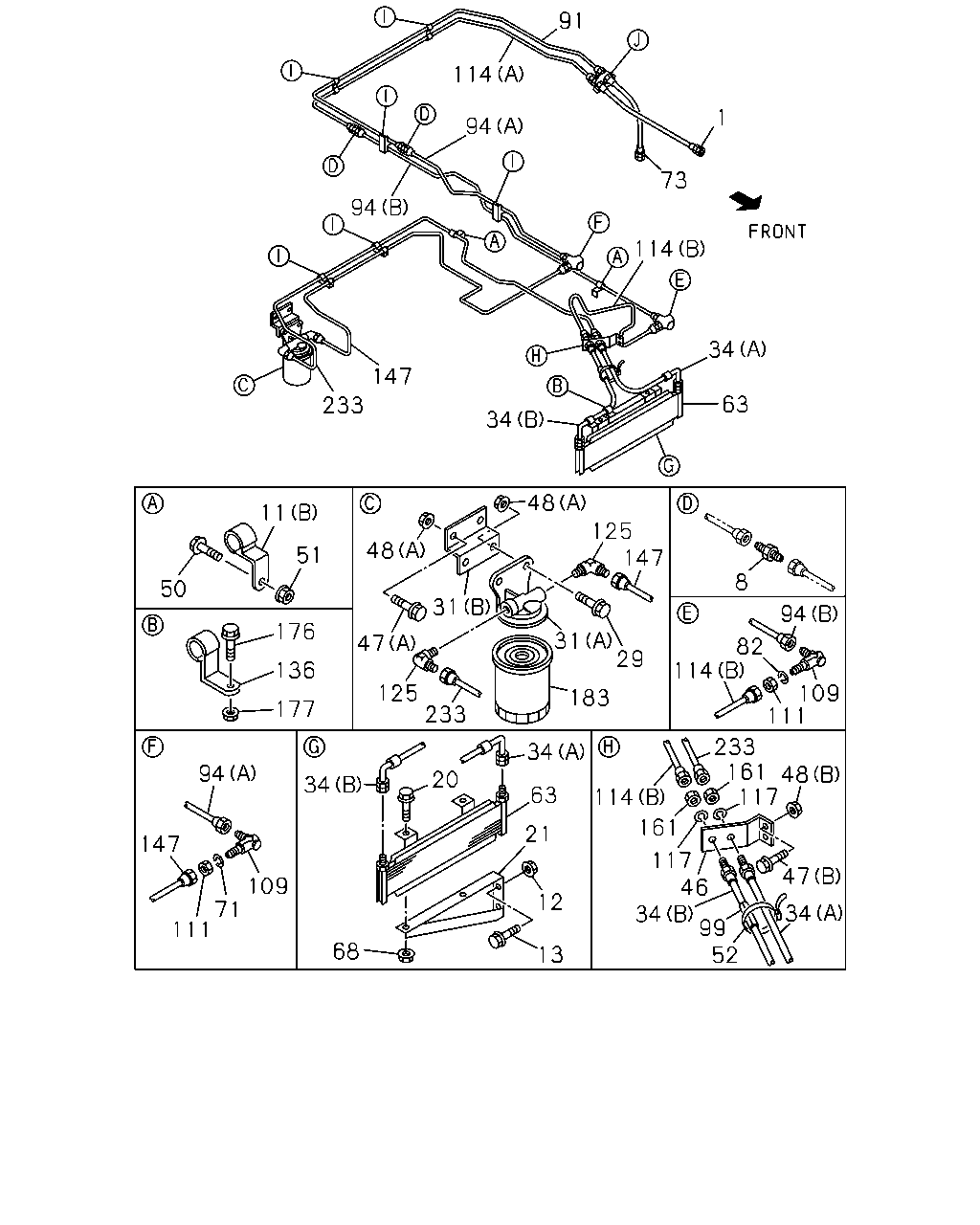

2-53 — TRANSMISSION OIL COOLER SYSTEM (#10451) — 107 parça

50 11 24 95 92 1 48 117 116 114 91 76 77 179 19 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> L=385	1-09364-873-0	01	1	0103-	●	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	05	1	0103-	●	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	02	1	0103-0707	●	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0708-	●	●	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C>	1-47479-089-0	01	1	0103-	●	●	●
24	CLIP; OIL PIPE TRANSMISSION OIL COOLER<C2C> ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0103-	●	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE	0-91150-108-0	04	1	0103-0602	●	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M10 FLANGE	0-91150-210-0	04	1	0103-0602	●	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28080-840-0	02	1	0103-0512	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28050-840-0	02	1	0601-	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28080-845-0	01	1	0103-0512	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	02	1	0103-0512	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28680-840-0	03	1	0103-0512	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28650-840-0	03	1	0601-	●	●	●
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> L=385	1-09364-873-0	01	1	0103-	●	●	●
76	NUT; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	9-99111-416-0	01	1	0103-0512	●	●	●
76	NUT; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	0-91111-516-0	01	1	0601-	●	●	●
77	WASHER; LK TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	01	1	0103-0603	●	●	●
77	WASHER; LK TRANSMISSION OIL COOLER<C2C> ID=16.2	0-91510-516-0	01	1	0604-	●	●	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> SERVICED BY L=1550	1-47428-879-0	01	1	0103-	●	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	07	1	0103-0602	●	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	07	1	0603-	●	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-427-1	06	1	0103-	●	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	0103-	●	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B) L=561	1-49164-403-0	01	1	0103-	●	●	●
116	NUT; BRKT,FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	9-99111-416-0	01	1	0103-0512	●	●	●
116	NUT; BRKT,FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	0-91111-516-0	01	1	0601-	●	●	●
117	WASHER; LK,FLEX HOSE TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	03	1	0103-0603	●	●	●
117	WASHER; LK,FLEX HOSE TRANSMISSION OIL COOLER<C2C> ID=16.2	0-91510-516-0	03	1	0604-	●	●	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	0103-0512	●	●	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●	●

1 91 114 94 73 114 34 63 34 94 147 233 11 51 50 176 136 177 233 125 47 31 48 48 125 147 31 29 183 8 94 82 114 109 111 233 161 48 117 47 34 52 99 34 46 117 161 114 34 63 21 12 13 68 20 34 94 147 111 71 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> L=385	1-09364-873-0	01	1	0103-	●	●	●
8	UNION TRANSMISSION OIL COOLER<C2C> M16 L=42	9-09233-010-1	02	1	0103-0607	●	●	●
8	UNION TRANSMISSION OIL COOLER<C2C> M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-	●	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	05	1	0103-	●	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	02	1	0103-0707	●	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	8-98033-780-0	02	1	0708-	●	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91150-210-0	02	1	0103-0602	●	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE	0-28681-030-0	02	1	0103-0512	●	●	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28681-025-0	02	1	0103-0512	●	●	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●	●
21	BRACKET; COOLER TRANSMISSION OIL COOLER<C2C>	1-53497-640-0	01	1	0103-0706	●	●	●
21	BRACKET; COOLER TRANSMISSION OIL COOLER<C2C>	8-98090-657-1	01	1	0707-	●	●	●
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE	0-28681-035-0	02	1	0103-0512	●	●	●
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●	●
31	BRACKET; OIL FILTER TRANSMISSION OIL COOLER<C2C> (B)	1-32569-081-0	01	1	0103-	●	●	●
31	BRACKET; OIL FILTER TRANSMISSION OIL COOLER<C2C> (A)	1-33119-222-0	01	1	0103-	●	●	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE TRANSMISSION OIL COOLER<C2C> (A) L=420	1-09364-991-0	01	1	0103-	●	●	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE TRANSMISSION OIL COOLER<C2C> (B)	1-09365-083-0	01	1	0103-	●	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-47478-516-1	01	1	0103-	●	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION OIL COOLER<C2C> (B) M8X25 FLANGE	0-28680-825-0	02	1	0103-0512	●	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION OIL COOLER<C2C> (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION OIL COOLER<C2C> (A) M10X25 FLANGE	0-28681-025-0	02	1	0103-0512	●	●	●
47	BOLT; BRKT TO FRAME TRANSMISSION OIL COOLER<C2C> (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE	0-91150-108-0	04	1	0103-0602	●	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M10 FLANGE	0-91150-210-0	04	1	0103-0602	●	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28080-840-0	02	1	0103-0512	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28050-840-0	02	1	0601-	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28080-845-0	01	1	0103-0512	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28050-845-0	01	1	0601-	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	02	1	0103-0512	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28680-840-0	03	1	0103-0512	●	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28650-840-0	03	1	0601-	●	●	●
51	NUT; CLIP TO BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
51	NUT; CLIP TO BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
52	CLIP; FLEX HOSE,A/T TRANSMISSION OIL COOLER<C2C> L=140	5-09707-031-1	01	1	0103-	●	●	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	0103-0609	●	●	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-394-0	01	1	0610-1405	●	●	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	8-98269-766-0	01	1	1406-	●	●	●
68	NUT; COOLER TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91150-210-0	02	1	0103-0602	●	●	●
68	NUT; COOLER TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
71	WASHER; CLIP TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	01	1	0103-0603	●	●	●
71	WASHER; CLIP TRANSMISSION OIL COOLER<C2C> ID=16.2	0-91510-516-0	01	1	0604-	●	●	●
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> L=385	1-09364-873-0	01	1	0103-	●	●	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	01	1	0103-0603	●	●	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=16.2	0-91510-516-0	01	1	0604-	●	●	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> SERVICED BY L=1550	1-47428-879-0	01	1	0103-	●	●	●
94	PIPE; OIL,UNION TO UNION TRANSMISSION OIL COOLER<C2C> (B) L=1290 SERVICED BY L=1370	1-47428-818-0	01	1	0103-	●	●	●
94	PIPE; OIL,UNION TO UNION TRANSMISSION OIL COOLER<C2C> (A) L=792 SERVICED BY L=800	1-47428-872-0	01	1	0103-	●	●	●
99	SLEEVE; RUBBER,FLEX HOSE TRANSMISSION OIL COOLER<C2C> ID=17 OD=21 L=40	1-09337-012-0	01	1	0103-	●	●	●
109	UNION TRANSMISSION OIL COOLER<C2C> M16 ELBOW	9-09235-210-1	02	1	0103-0607	●	●	●
109	UNION TRANSMISSION OIL COOLER<C2C> M16 ELBOW	0-92135-210-0	02	1	0608-	●	●	●
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M16	9-99111-416-0	02	1	0103-0512	●	●	●
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M16	0-91111-516-0	02	1	0601-	●	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A) L=1349 SERVICED BY L=1400	1-47428-878-0	01	1	0103-	●	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B) L=561	1-49164-403-0	01	1	0103-	●	●	●
117	WASHER; LK,FLEX HOSE TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	03	1	0103-0603	●	●	●
117	WASHER; LK,FLEX HOSE TRANSMISSION OIL COOLER<C2C> ID=16.2	0-91510-516-0	03	1	0604-	●	●	●
125	CONNECTOR; OIL FILTER TRANSMISSION OIL COOLER<C2C> M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0103-0607	●	●	●
125	CONNECTOR; OIL FILTER TRANSMISSION OIL COOLER<C2C> M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-	●	●	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> ID=18 L=38 H=23	1-09701-147-0	01	1	0906-	●	●	●
147	PIPE; OIL,UNION TO FILTER TRANSMISSION OIL COOLER<C2C>	1-49165-949-0	01	1	0103-	●	●	●
161	NUT; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	9-99111-416-0	02	1	0103-0512	●	●	●
161	NUT; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	0-91111-516-0	02	1	0601-	●	●	●
176	BOLT; HOSE CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28650-820-0	01	1	0906-	●	●	●
177	NUT; HOSE CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0906-	●	●	●
183	CARTRIDGE; OIL FILTER TRANSMISSION OIL COOLER<C2C>	8-94459-700-1	01	1	0103-	●	●	●
233	PIPE; OIL,FILTER TO HOSE TRANSMISSION OIL COOLER<C2C> L=1548	1-49165-950-0	01	1	0103-	●	●	●
