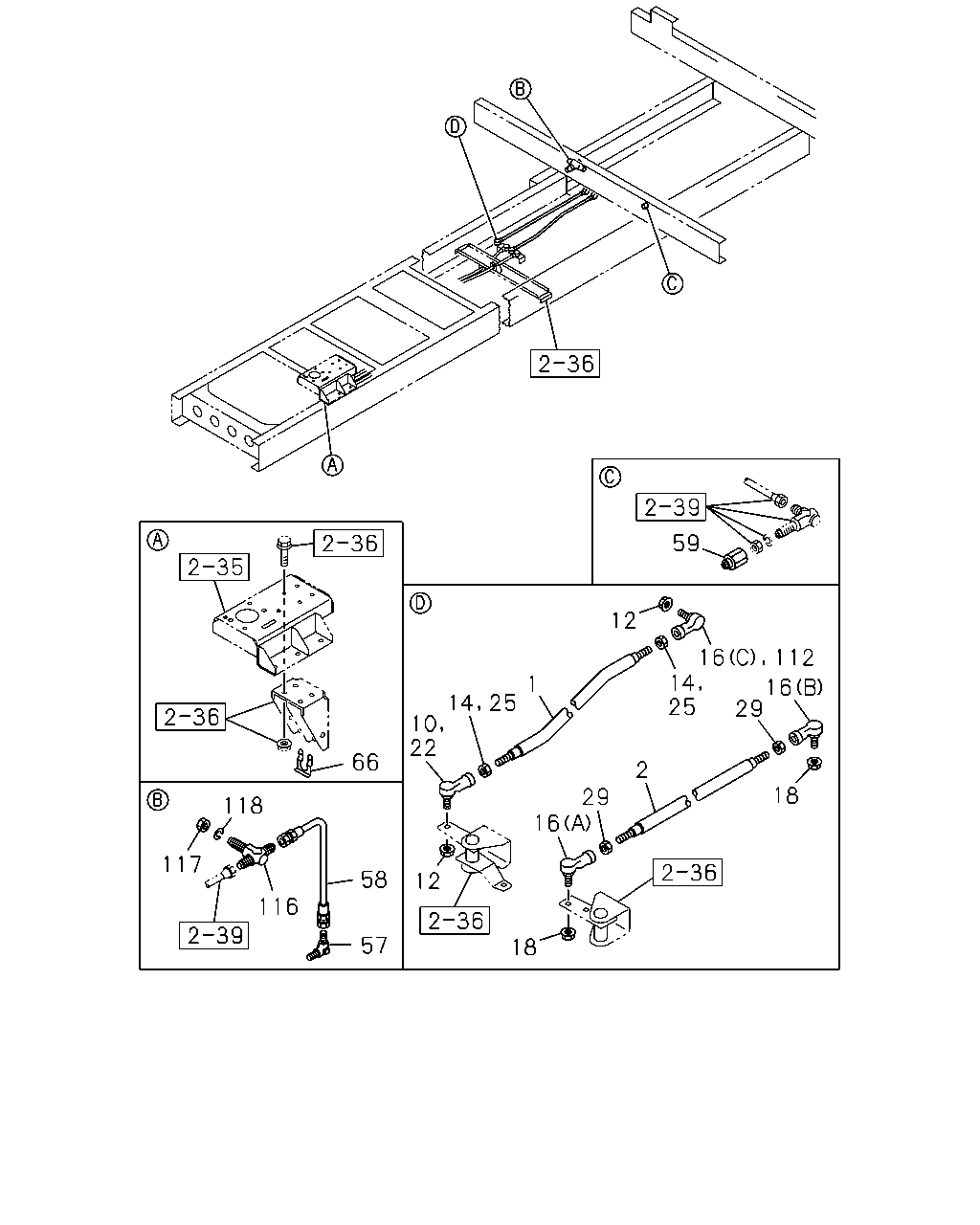

1 |
ROD; LINK,1ST SHIFT
L=788
|
1-33652-963-0 |
01 |
1 |
0103- |
● |
● |
|
| |
1 |
ROD; LINK,1ST SHIFT
L=683
|
1-33652-956-0 |
01 |
1 |
0103- |
|
|
● |
| |
2 |
ROD; LINK,1ST SELECT
|
1-33652-973-0 |
01 |
1 |
0103- |
● |
● |
|
| |
2 |
ROD; LINK,1ST SELECT
|
1-33652-974-0 |
01 |
1 |
0103- |
|
|
● |
| |
10 |
JOINT ASM; BALL,SELECT ROD
|
1-09760-125-0 |
01 |
1 |
0103- |
|
|
● |
| |
12 |
NUT; 1ST LINK ROD,SHIFT
M10 FLANGE
|
1-09440-061-0 |
02 |
1 |
0103- |
● |
● |
● |
| |
14 |
NUT; LK,RIGHT SCREW,LINK ROD
M12
|
9-99111-412-0 |
02 |
1 |
0103-0512 |
|
|
● |
| |
14 |
NUT; LK,RIGHT SCREW,LINK ROD
M12
|
0-91111-512-0 |
02 |
1 |
0601- |
|
|
● |
| |
16 |
JOINT ASM; BALL,CONT ROD
(A)
LH THREAD
|
1-09760-058-0 |
01 |
1 |
0103-1008 |
● |
● |
● |
| |
16 |
JOINT ASM; BALL,CONT ROD
(A)
LH THREAD
|
8-98095-878-0 |
01 |
1 |
1009- |
● |
● |
● |
| |
16 |
JOINT ASM; BALL,CONT ROD
(B) RH THREAD
|
1-09760-108-0 |
01 |
1 |
0103- |
● |
● |
● |
| |
16 |
JOINT ASM; BALL,CONT ROD
(C)
|
1-33670-413-1 |
01 |
1 |
0103- |
|
|
● |
| |
18 |
NUT; 1ST LINK ROD
M8 FLANGE
|
1-09440-062-1 |
02 |
1 |
0103- |
● |
● |
● |
| |
22 |
JOINT; BALL,SCREW,LINK ROD
|
1-09760-125-0 |
01 |
1 |
0103- |
● |
● |
|
| |
25 |
NUT; LK,RIGHT SCREW,LINK ROD
M12
|
9-99111-412-0 |
02 |
1 |
0103-0512 |
● |
● |
|
| |
25 |
NUT; LK,RIGHT SCREW,LINK ROD
M12
|
0-91111-512-0 |
02 |
1 |
0601- |
● |
● |
|
| |
29 |
NUT; LK,RIGHT SCREW,LINK ROD
M8 LH THREAD
|
1-09400-002-0 |
01 |
1 |
0103- |
● |
● |
● |
| |
29 |
NUT; LK,RIGHT SCREW,LINK ROD
RH THREAD
M8
|
9-09111-408-0 |
01 |
1 |
0103-0512 |
● |
● |
● |
| |
29 |
NUT; LK,RIGHT SCREW,LINK ROD
RH THREAD
M8
|
0-91111-508-0 |
01 |
1 |
0601- |
● |
● |
● |
| |
57 |
NIPPLE; POWER ASSISTOR
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
0103- |
● |
● |
● |
| |
58 |
HOSE; FLEX,POWER ASSISTOR
L=240
|
1-09363-671-0 |
01 |
1 |
0103- |
● |
● |
|
| |
58 |
HOSE; FLEX,POWER ASSISTOR
L=310
|
1-09363-713-0 |
01 |
1 |
0103- |
|
|
● |
| |
59 |
CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
DIN8 & M12 STRAIGHT
|
1-09660-873-0 |
01 |
1 |
0103- |
● |
● |
● |
| |
66 |
CLIP; SELECT BRKT
ID=22.2
|
1-09701-209-1 |
01 |
1 |
0103- |
● |
● |
● |
| |
112 |
JOINT; RUBBER
|
1-33670-413-1 |
01 |
1 |
0103- |
● |
● |
|
| |
116 |
UNION; AIR PIPE
M12
|
9-09228-306-1 |
01 |
1 |
0103-0607 |
● |
● |
|
| |
116 |
UNION; AIR PIPE
M12
|
0-92138-306-0 |
01 |
1 |
0608- |
● |
● |
|
| |
116 |
UNION; AIR PIPE
M12 3WAY
|
9-09228-606-1 |
01 |
1 |
0103-0607 |
|
|
● |
| |
116 |
UNION; AIR PIPE
M12 3WAY
|
0-92138-606-0 |
01 |
1 |
0608- |
|
|
● |
| |
117 |
NUT; UNION,AIR PIPE
M12
|
9-99111-412-0 |
01 |
1 |
0103-0512 |
● |
● |
|
| |
117 |
NUT; UNION,AIR PIPE
M12
|
0-91111-512-0 |
01 |
1 |
0601- |
● |
● |
|
| |
117 |
NUT; UNION,AIR PIPE
M12
|
9-09840-280-0 |
01 |
1 |
0103- |
|
|
● |
| |
118 |
WASHER; LK,UNION
ID=12.2
|
9-09150-512-0 |
01 |
1 |
0103-0603 |
● |
● |
● |
| |
118 |
WASHER; LK,UNION
ID=12.2
|
0-91510-512-0 |
01 |
1 |
0604- |
● |
● |
● |
