2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#10448) — 130 parça

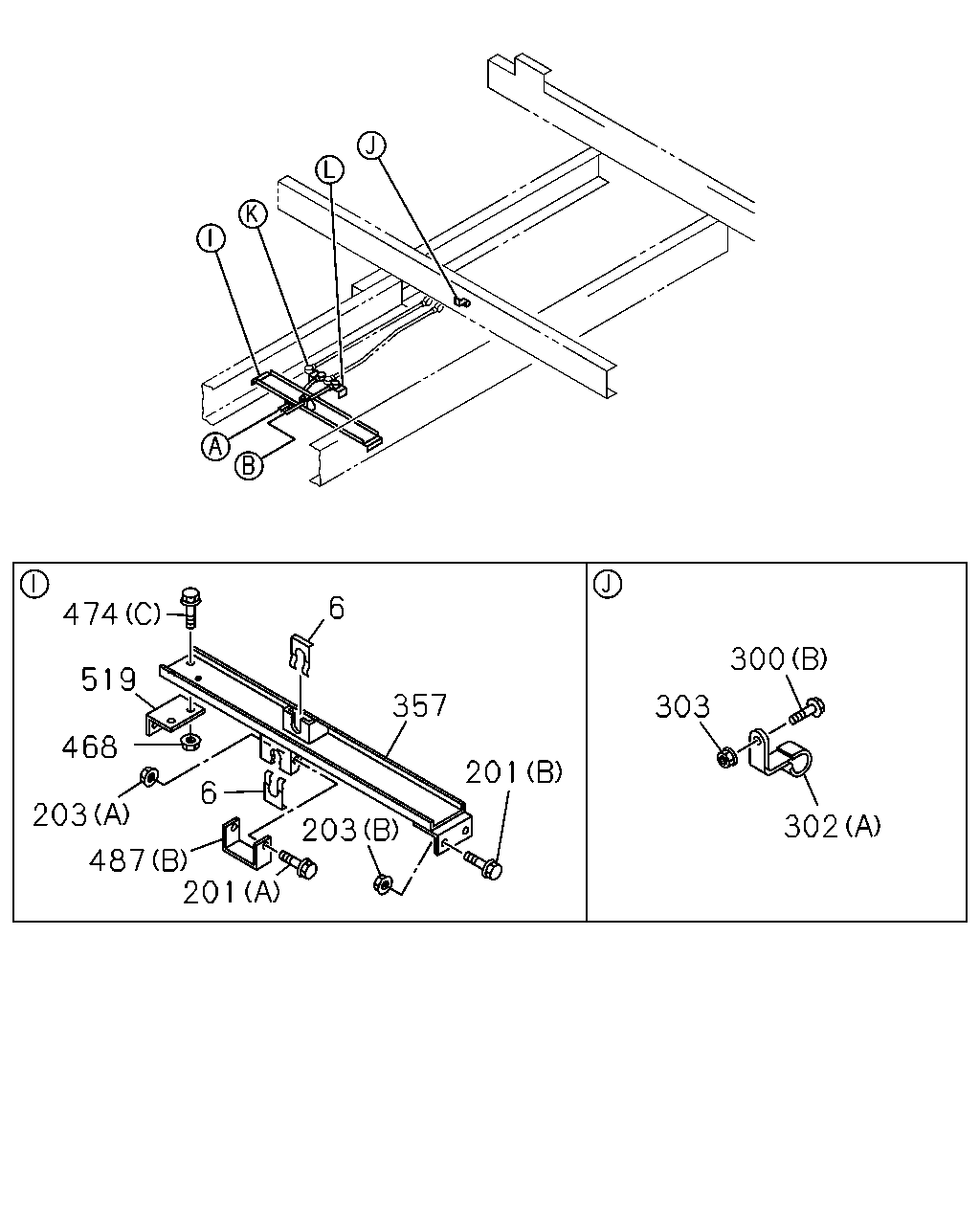

çizim 137380
6 474 300 519 357 303 468 6 201 203 487 201 203 302
BalonParca AdiParca NoAdetTipApplied Date A B C
6 CLIP; CABLE
ID=22.2 		1-09701-209-1 02 1 0103- ● ● ●
201 BOLT; BRKT
(A) M6X20 FLANGE 		0-28050-620-0 01 1 1212- ● ● ●
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 06 1 0103-0512 ● ● ●
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0601-1211 ● ● ●
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1212- ● ● ●
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0103-0512 ● ● ●
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ●
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91150-108-0 06 1 0103-0602 ● ● ●
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 06 1 0603-1211 ● ● ●
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1212- ● ● ●
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91150-210-0 04 1 0103-0602 ● ● ●
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
300 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 10 1 0103-0512 ● ● ●
300 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 10 1 0601- ● ● ●
300 BOLT; CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512 ● ● ●
300 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
302 CLIP; BAND
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0103- ● ● ●
302 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0103- ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 07 1 0103-0602 ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 07 1 0603- ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 10 1 0103-0602 ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 10 1 0603- ● ● ●
357 BRACKET; RELAY LEVER 1-33657-788-0 01 1 0103-1211 ● ● ●
357 BRACKET; RELAY LEVER 8-98230-475-0 01 1 1212- ● ● ●
468 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0103-0602 ● ● ●
468 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
474 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0103-0512 ● ● ●
474 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 12 1 0103-0512 ● ● ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 12 1 0601- ● ● ●
474 BOLT; BRKT
(C) M10X35 FLANGE 		0-28681-035-0 02 1 0103-0512 ● ● ●
474 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ● ●
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0103- ● ● ●
487 BRACKET; CONT CABLE
(B) 		1-33657-783-0 01 1 0103-1211 ● ● ●
519 BRACKET; FRAME 1-33657-782-0 01 1 0103- ● ● ●

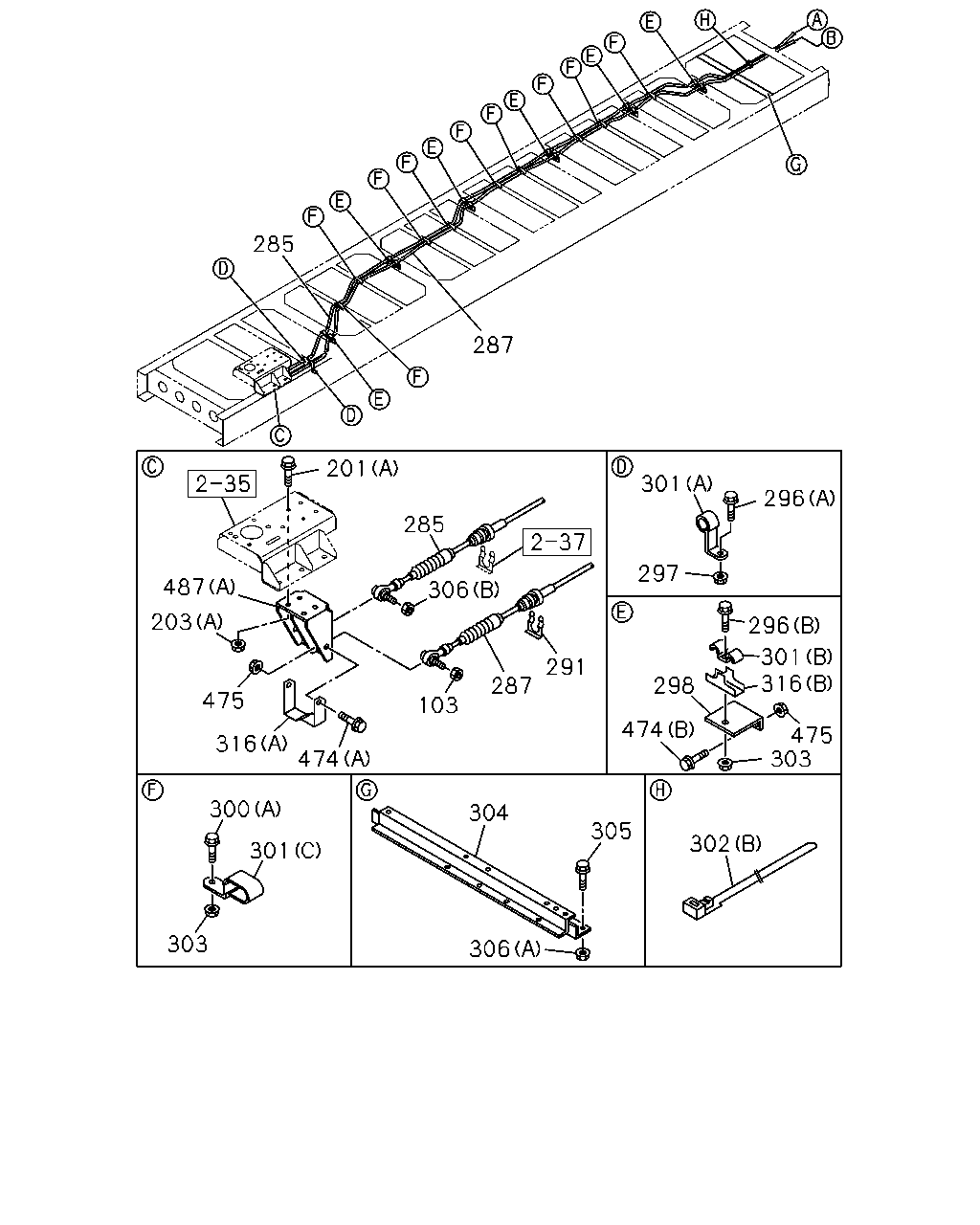

çizim 137385
285 287 301 201 487 296 285 297 306 203 296 301 316 291 287 298 475 103 474 475 303 316 474 300 304 305 302 301 303 306
BalonParca AdiParca NoAdetTipApplied Date A B C
103 NUT
M8 FLANGE 		1-09440-062-1 01 1 0103- ● ● ●
201 BOLT; BRKT
(A) M6X20 FLANGE 		0-28050-620-0 01 1 1212- ● ● ●
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 06 1 0103-0512 ● ● ●
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0601-1211 ● ● ●
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1212- ● ● ●
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0103-0512 ● ● ●
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ●
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91150-108-0 06 1 0103-0602 ● ● ●
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 06 1 0603-1211 ● ● ●
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1212- ● ● ●
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91150-210-0 04 1 0103-0602 ● ● ●
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
285 WIRE; SHIFT,TRANS CONT
WHEEL BASE 6000MM(60W) 		1-33671-529-2 01 1 0103- ● ● ●
285 WIRE; SHIFT,TRANS CONT
WHEEL BASE 6200MM(62W) L=8449 		1-33671-713-1 01 1 0103- ● ● ●
287 WIRE; SELECT,TRANS CONT
WHEEL BASE 6000MM(60W) 		1-33671-530-1 01 1 0103- ● ● ●
287 WIRE; SELECT,TRANS CONT
WHEEL BASE 6200MM(62W) L=8392 		1-33671-712-0 01 1 0103- ● ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ID=22.2 		1-09701-209-1 01 1 0103- ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
(B) M8X40 FLANGE 		0-28680-840-0 06 1 0103-0512 ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
(B) M8X40 FLANGE 		0-28650-840-0 06 1 0601- ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
(A) M10X20 FLANGE 		0-28681-020-0 02 1 0103-0512 ● ● ●
296 BOLT; CLIP,SHIFT & SELECT
(A) M10X20 FLANGE 		0-28651-020-0 02 1 0601- ● ● ●
297 NUT; CLIP
M10 FLANGE 		0-91150-210-0 02 1 0103-0602 ● ● ●
297 NUT; CLIP
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
298 BRACKET 1-47478-408-0 06 1 0103- ● ● ●
300 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 10 1 0103-0512 ● ● ●
300 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 10 1 0601- ● ● ●
300 BOLT; CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0103-0512 ● ● ●
300 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
301 CLIP; WIRE
(A) ID=13 H=29 L=30 		1-09700-001-0 02 1 0103- ● ● ●
301 CLIP; WIRE
(B) ID=13 & 13 L=21.5 & 21.5 		1-09700-689-0 06 1 0103- ● ● ●
301 CLIP; WIRE
(C) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 10 1 0103-0906 ● ● ●
301 CLIP; WIRE
(C) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 10 1 0907- ● ● ●
302 CLIP; BAND
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0103- ● ● ●
302 CLIP; BAND
(B) L=140 		5-09707-031-1 01 1 0103- ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 07 1 0103-0602 ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 07 1 0603- ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 10 1 0103-0602 ● ● ●
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 10 1 0603- ● ● ●
304 BRACKET; WIRE,TRANS CONT 1-47478-902-2 01 1 0103- ● ● ●
305 BOLT; WIRE BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0103-0512 ● ● ●
305 BOLT; WIRE BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601- ● ● ●
306 NUT; WIRE BRKT
(A) M8 FLANGE 		0-91150-108-0 04 1 0103-0602 ● ● ●
306 NUT; WIRE BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
306 NUT; WIRE BRKT
(B) M10 FLANGE 		1-09440-061-0 01 1 0103- ● ● ●
316 BRACKET; CLIP
(A) 		1-33657-736-0 01 1 0103- ● ● ●
316 BRACKET; CLIP
(B) 		1-47475-427-1 06 1 0103- ● ● ●
474 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0103-0512 ● ● ●
474 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 12 1 0103-0512 ● ● ●
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 12 1 0601- ● ● ●
474 BOLT; BRKT
(C) M10X35 FLANGE 		0-28681-035-0 02 1 0103-0512 ● ● ●
474 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ● ● ●
475 NUT; BRKT
M8 FLANGE 		0-91150-108-0 14 1 0103-0602 ● ● ●
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 14 1 0603- ● ● ●
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0103- ● ● ●
487 BRACKET; CONT CABLE
(B) 		1-33657-783-0 01 1 0103-1211 ● ● ●

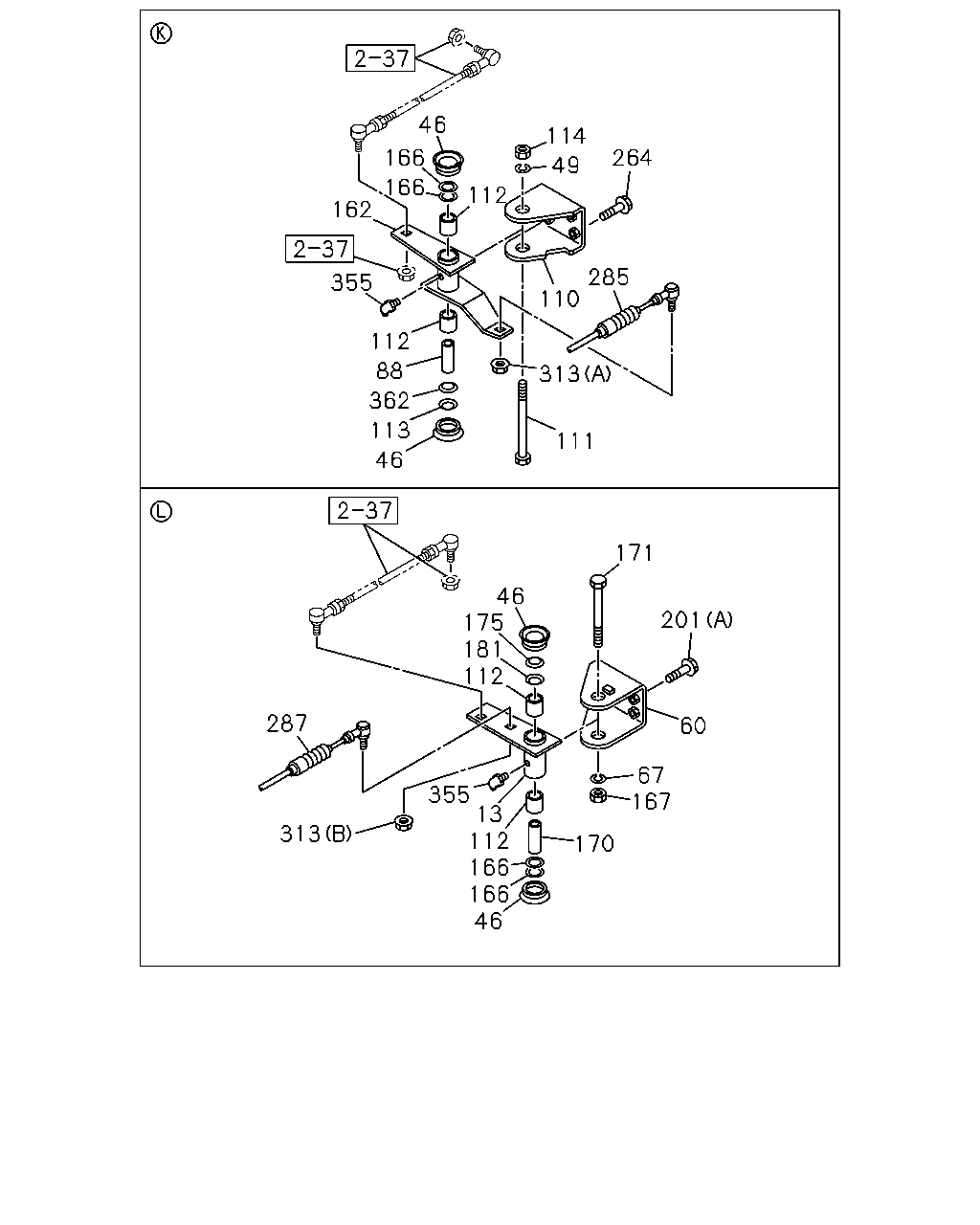

çizim 137603
46 166 166 162 114 49 264 112 285 110 313 355 112 88 362 113 46 111 171 46 175 181 112 201 287 60 67 167 355 13 112 166 166 46 313 170
BalonParca AdiParca NoAdetTipApplied Date A B C
13 LEVER; RELAY,1ST SELECT INNER 1-33651-787-0 01 1 0103- ● ● ●
46 SEAL; DUST,RELAY LEVER 1-33659-113-0 04 1 0103- ● ● ●
49 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0103-0603 ● ● ●
49 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ●
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-543-0 01 1 0103- ● ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		9-09150-514-0 01 1 0103-0603 ● ● ●
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		0-91510-514-0 01 1 0604- ● ● ●
88 COLLAR; RELAY LEVER 1-33659-146-0 01 1 0103- ● ● ●
110 BRACKET; RELAY LEVER,1ST 1-33657-786-0 01 1 0103- ● ● ●
111 SHAFT; RELAY LEVER,1ST 1-33619-210-0 01 1 0103- ● ● ●
112 BUSHING; RELAY LEVER
ID=22 OD=25 L=18 		1-09330-050-0 04 1 0103- ● ● ●
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 0103- ● ● ●
114 NUT; RELAY LEVER
M14 		9-99111-514-0 01 1 0103-0512 ● ● ●
114 NUT; RELAY LEVER
M14 		0-91111-514-0 01 1 0601- ● ● ●
162 LEVER; RELAY 1-33651-788-0 01 1 0103- ● ● ●
166 WASHER; NYLON,RELAY LEVER 1-09503-187-0 04 1 0103- ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		9-99111-514-0 01 1 0103-0512 ● ● ●
167 NUT; RELAY LEVER,SELECT ROD
M14 		0-91111-514-0 01 1 0601- ● ● ●
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 0103- ● ● ●
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 0103- ● ● ●
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 0103- ● ● ●
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 0103- ● ● ●
201 BOLT; BRKT
(A) M6X20 FLANGE 		0-28050-620-0 01 1 1212- ● ● ●
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 06 1 0103-0512 ● ● ●
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0601-1211 ● ● ●
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1212- ● ● ●
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0103-0512 ● ● ●
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 FLANGE 		0-28680-825-0 08 1 0103-0512 ● ● ●
264 BOLT; BRKT,RELAY LEVER
M8X25 FLANGE 		0-28650-825-0 08 1 0601- ● ● ●
285 WIRE; SHIFT,TRANS CONT
WHEEL BASE 6000MM(60W) 		1-33671-529-2 01 1 0103- ● ● ●
285 WIRE; SHIFT,TRANS CONT
WHEEL BASE 6200MM(62W) L=8449 		1-33671-713-1 01 1 0103- ● ● ●
287 WIRE; SELECT,TRANS CONT
WHEEL BASE 6000MM(60W) 		1-33671-530-1 01 1 0103- ● ● ●
287 WIRE; SELECT,TRANS CONT
WHEEL BASE 6200MM(62W) L=8392 		1-33671-712-0 01 1 0103- ● ● ●
313 NUT; CLIP BRKT
(A) M10 FLANGE 		1-09440-061-0 01 1 0103- ● ● ●
313 NUT; CLIP BRKT
(B) M8 FLANGE 		1-09440-062-1 01 1 0103- ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		9-09031-210-0 02 1 0103-0512 ● ● ●
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ●
362 SHIM 1-33659-092-0 01 1 0103- ● ● ●
