2-30 — GEAR SHIFTER AND QUADRANT BOX (#10446) — 200 parça

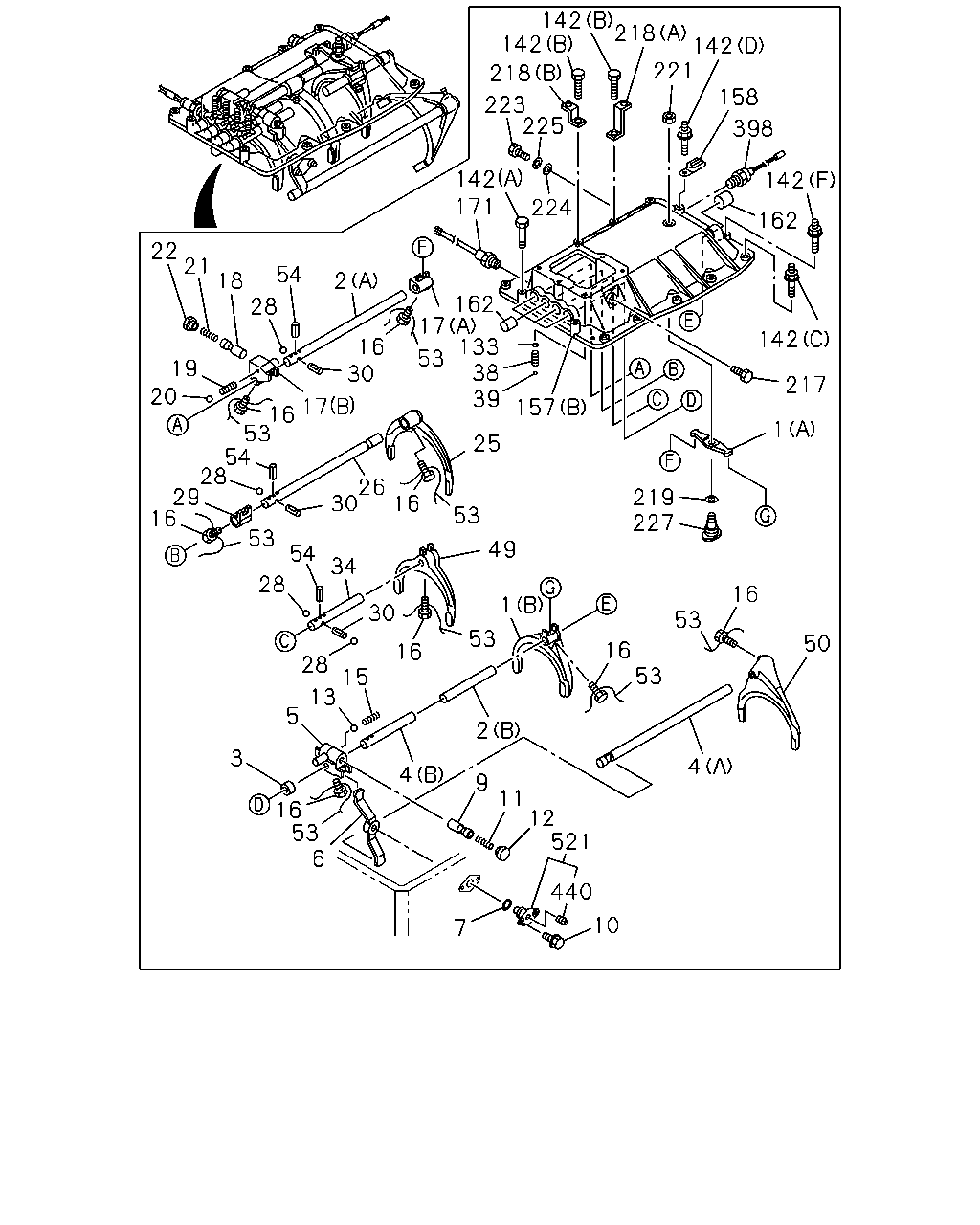

142 218 142 142 221 218 158 223 225 398 142 171 142 224 162 22 21 162 17 133 38 39 54 18 28 2 142 16 30 53 19 20 217 17 157 16 53 54 28 29 16 1 25 26 30 219 227 16 53 53 49 54 34 28 1 16 30 53 53 50 16 53 16 28 15 13 5 2 3 4 9 4 16 53 6 11 12 521 440 10 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	0103-	●	●	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	0103-	●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	0103-	●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-415-1	01	1	0103-	●	●	●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	0103-	●		●
4	ROD; SHIFT,6TH (A)	1-33531-407-1	01	1	0103-	●		●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	0103-	●	●	●
4	ROD; SHIFT,6TH (A)	1-33531-406-1	01	1	0103-		●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	0103-	●		●
5	BLOCK; SHIFT,6TH	1-33511-374-2	01	1	0103-		●
6	LEVER; RELAY	9-33511-402-1	01	1	0103-	●		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0103-	●	●	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	0103-	●	●	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0103-	●		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0103-1510	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE	8-98294-206-0	01	1	1511-	●	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0103-	●		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0103-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0103-	●	●	●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	0103-	●	●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	0103-	●	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	0103-	●	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	0103-	●	●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0103-	●	●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	0103-	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0103-	●	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	0103-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0103-	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	0103-	●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	0103-	●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0103-	●	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0103-	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0103-	●	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-402-1	01	1	0103-	●	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	0103-	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0103-	●	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	0103-	●	●	●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	0103-	●		●
50	ARM; SHIFT,6TH	1-33511-340-1	01	1	0103-		●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	0103-	●	●	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	0103-	●	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0103-	●	●	●
133	SEAT; SPR	1-33549-072-0	04	1	0103-	●	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-	●	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	11	1	0806-	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-	●	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	1-09049-016-0	01	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-	●	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	0103-	●		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	0103-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-367-2	01	1	0103-		●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0103-	●	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	0103-	●	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0103-0702	●	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1109	●	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0103-	●		●
217	SCREW; SET,6TH SHIFT BLOCK	1-09070-091-0	01	1	0103-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0103-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0103-	●	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0103-	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0103-0602	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0103-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0103-0605	●	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0103-0603	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0103-	●	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	0103-	●	●	●
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	0103-	●
521	SPINDLE; 6TH	1-33119-255-0	01	1	0103-	●
521	SPINDLE; 6TH 6WA1 TC-C(55L)	1-33519-008-1	01	1	0103-			●

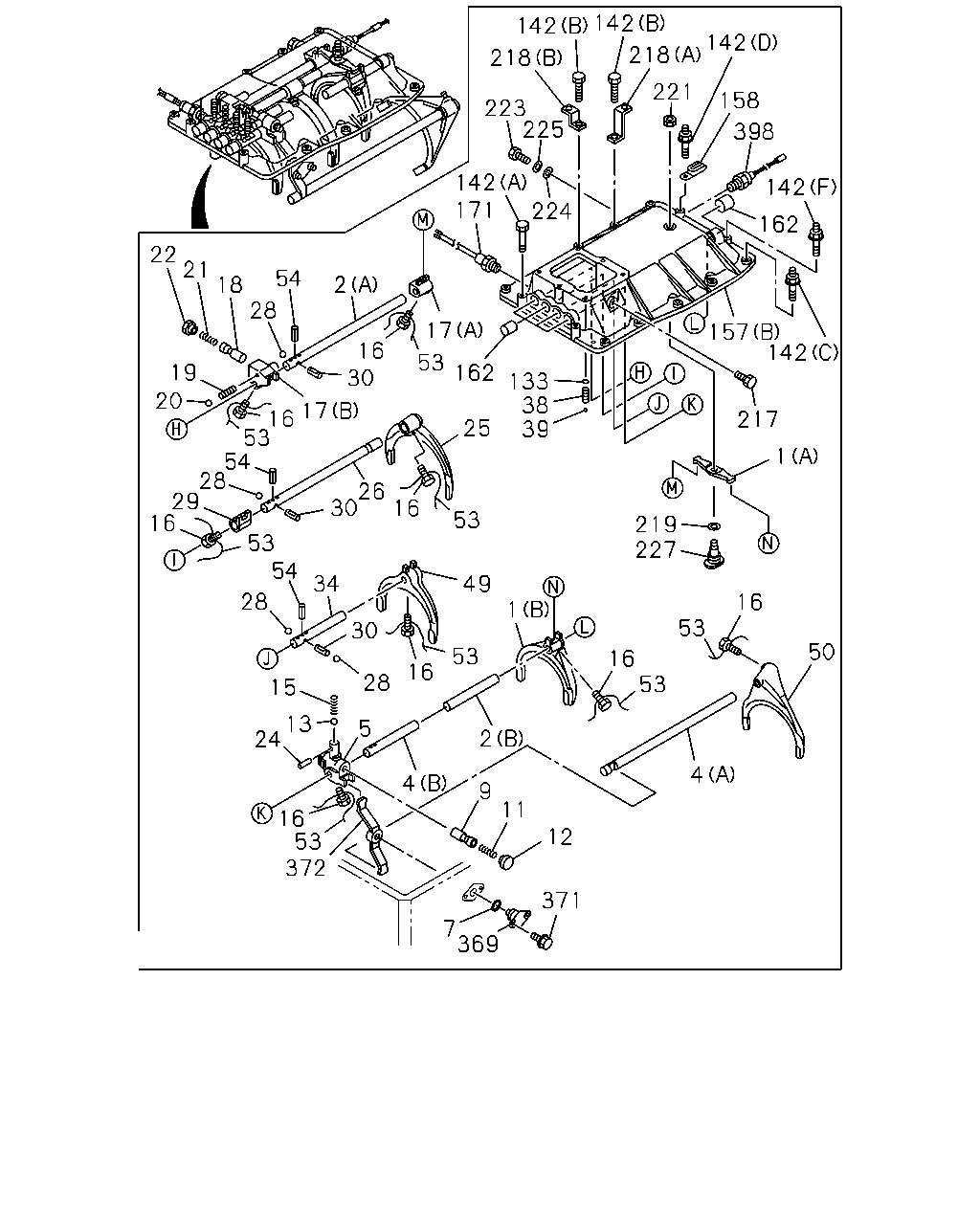

142 142 142 218 218 221 158 223 225 398 142 171 142 224 162 22 21 54 18 28 2 17 157 142 16 30 53 19 162 133 38 39 20 17 16 53 54 28 29 16 217 25 1 26 30 16 53 219 227 53 54 34 49 1 28 16 53 30 50 53 16 53 16 28 15 13 24 5 2 4 9 4 11 16 53 372 12 371 7 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	0103-	●	●	●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	0103-	●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	0103-	●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-415-1	01	1	0103-	●	●	●
4	ROD; SHIFT,6TH (A)	1-33531-407-1	01	1	0103-	●		●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	0103-	●	●	●
4	ROD; SHIFT,6TH (A)	1-33531-406-1	01	1	0103-		●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	0103-	●		●
5	BLOCK; SHIFT,6TH	1-33511-374-2	01	1	0103-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0103-	●	●	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	0103-	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0103-1510	●	●	●
11	SPRING; RETURN,SHIFT SLEEVE	8-98294-206-0	01	1	1511-	●	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0103-	●		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0103-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0103-	●	●	●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	0103-	●	●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	0103-	●	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	0103-	●	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	0103-	●	●	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0103-	●	●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	0103-	●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0103-	●	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	0103-	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0103-	●	●	●
24	PIN; SPR,6TH & 7TH	1-09748-006-0	01	1	0103-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	0103-	●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	0103-	●	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	0103-	●	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0103-	●	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0103-	●	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-402-1	01	1	0103-	●	●	●
38	SPRING; DETENT	1-09580-379-0	04	1	0103-	●	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0103-	●	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	0103-	●	●	●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	0103-	●		●
50	ARM; SHIFT,6TH	1-33511-340-1	01	1	0103-		●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	0103-	●	●	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	0103-	●	●	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0103-	●	●	●
133	SEAT; SPR	1-33549-072-0	04	1	0103-	●	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-	●	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	11	1	0806-	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-	●	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	1-09049-016-0	01	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-	●	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	0103-	●		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	0103-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-367-2	01	1	0103-		●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0103-	●	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	0103-	●	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0103-0702	●	●	●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801	●	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1109	●	●	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0103-	●		●
217	SCREW; SET,6TH SHIFT BLOCK	1-09070-091-0	01	1	0103-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0103-	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0103-	●	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0103-	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0103-0602	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0103-	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0103-0605	●	●	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0103-0603	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0103-	●	●	●
369	SPINDLE; 6TH,SHIFT ARM	1-33519-008-1	01	1	0103-		●
371	BOLT; 6 & 7TH SPINDLE M14X20	1-09044-078-0	02	1	0103-		●
372	LEVER; RELAY,6TH	9-33511-402-1	01	1	0103-		●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	0103-	●	●	●

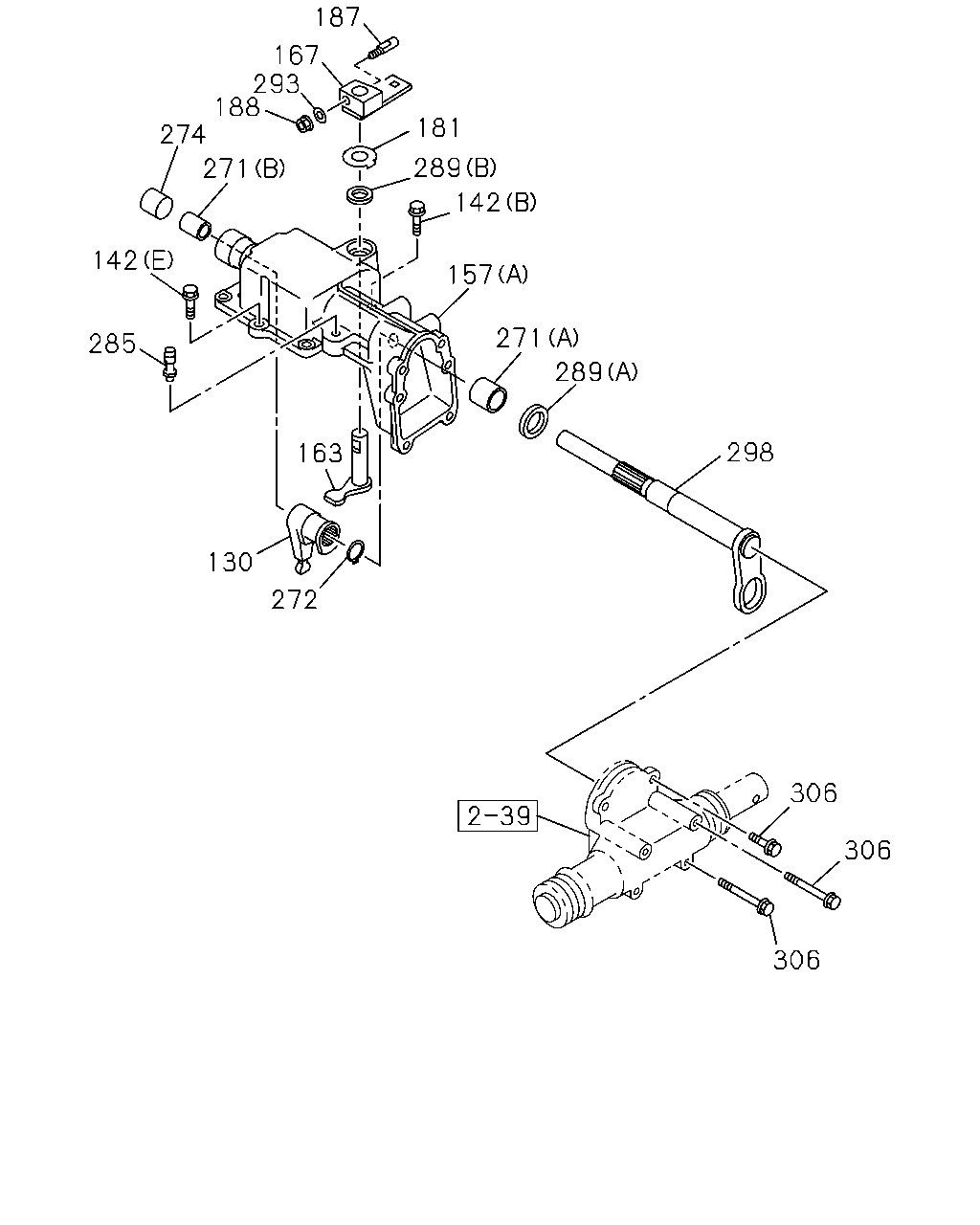

187 167 293 188 274 181 289 271 142 142 157 271 285 289 298 163 130 272 306 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	0103-	●	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-	●	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	11	1	0806-	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-	●	●	●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-	●	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	1-09049-016-0	01	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (F) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-	●	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0103-0805	●	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	0103-	●		●
157	BOX; QUAD,TRANS (A)	1-33541-388-1	01	1	0103-	●	●	●
157	BOX; QUAD,TRANS (B)	1-33541-367-2	01	1	0103-		●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0103-	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-150-1	01	1	0103-	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0103-	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0103-	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0103-	●	●	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	0103-	●	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	0103-	●	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0103-	●	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0103-	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0103-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0103-0307	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0103-	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0103-0605	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-113-0	01	1	0103-0307	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-179-0	01	1	0308-	●	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0103-0512	●	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-	●	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	0103-0512	●	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28151-080-0	04	1	0601-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
