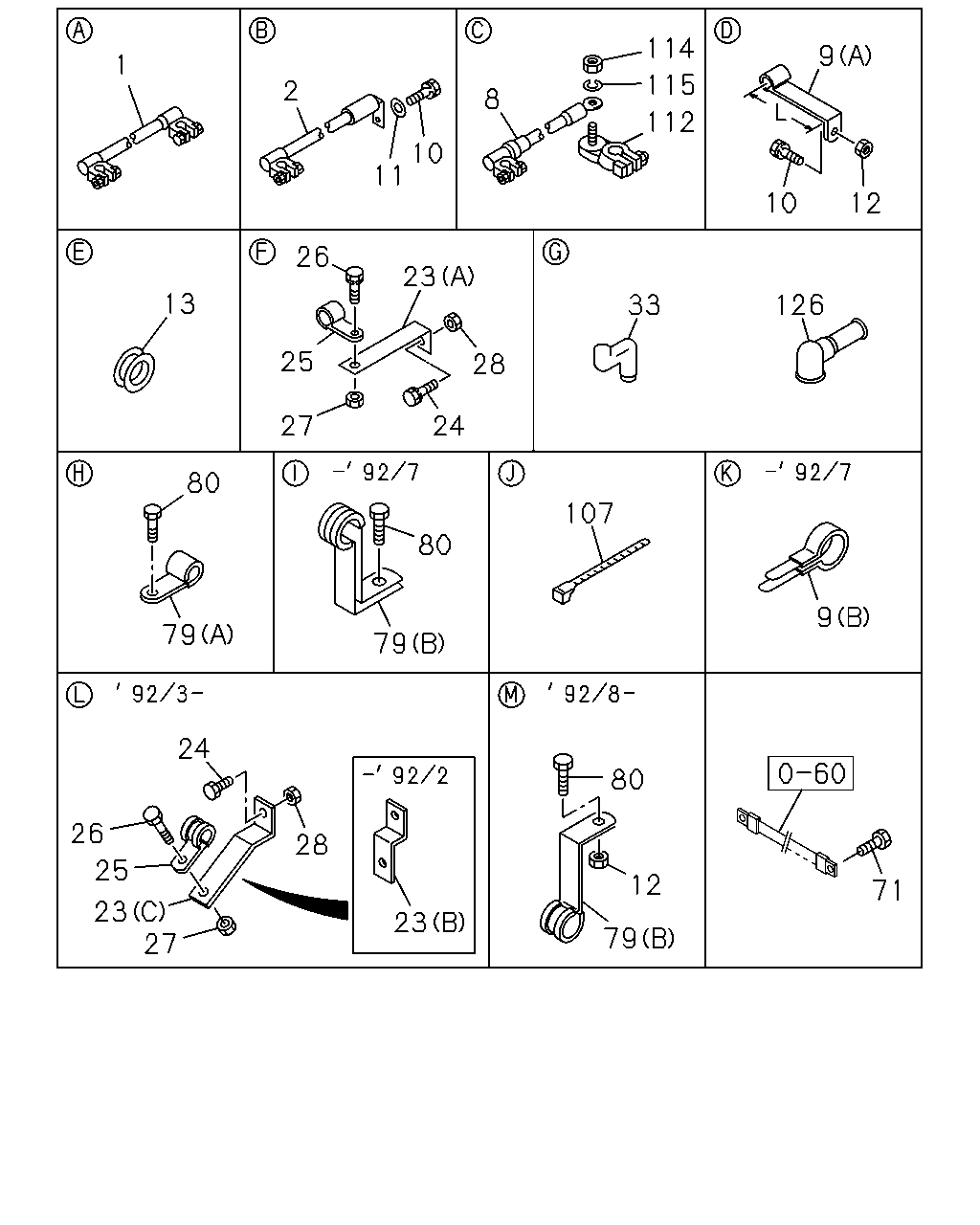

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#1044) — 106 parça

114 9 1 115 2 8 112 10 11 10 12 26 23 13 33 126 25 28 27 24 80 107 80 9 79 79 24 80 26 28 2 12 71 23 27 23 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=450	9-82932-417-1	01	1	9202-	●	●	●
1	CABLE; BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=180	9-82932-233-1	01	1	9202-9407	●	●	●
1	CABLE; BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=180	1-82650-265-0	01	1	9408-	●	●	●
2	CABLE; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=380	9-82932-713-2	01	1	9202-	●	●	●
2	CABLE; BATTERY EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=185	1-82650-067-2	01	1	9202-	●	●	●
8	CABLE; BATTERY,STARTER BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1700	1-82650-209-0	01	1	9202-9202	●
8	CABLE; BATTERY,STARTER BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1700	1-82650-209-1	01	1	9203-	●	●
8	CABLE; BATTERY,STARTER EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1100	1-82650-251-0	01	1	9202-9207	●
8	CABLE; BATTERY,STARTER EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1100	1-82650-251-1	01	1	9208-	●	●
8	CABLE; BATTERY,STARTER BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1950	1-82650-211-0	01	1	9202-9202		●
8	CABLE; BATTERY,STARTER EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1350	1-82650-210-0	01	1	9202-9202		●
8	CABLE; BATTERY,STARTER EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1200	1-82650-220-0	01	1	9203-9207		●
8	CABLE; BATTERY,STARTER BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=1450	1-82650-217-1	01	1	9202-			●
8	CABLE; BATTERY,STARTER EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=950	1-82650-207-0	01	1	9202-9202			●
8	CABLE; BATTERY,STARTER EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=850	1-82650-219-1	01	1	9203-			●
9	CLIP; BATTERY CABLE (A) ID=16 T=1.6	1-09700-981-0	01	1	9202-9205	●
9	CLIP; BATTERY CABLE BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) ID=16 L=50 H=25	1-09700-838-0	03	1	9202-9205		●
9	CLIP; BATTERY CABLE BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) ID=16 L=50 H=25	1-09700-838-0	03	1	9206-9207	●	●
9	CLIP; BATTERY CABLE BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) ID=16 T=1.6	1-09700-981-0	01	1	9208-9211	●	●
9	CLIP; BATTERY CABLE (A) ID=9 H=80 L=23	1-09701-061-0	01	1	9212-	●	●
9	CLIP; BATTERY CABLE EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) ID=16 L=50 H=25	1-09700-838-0	02	1	9202-9205		●
9	CLIP; BATTERY CABLE BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (B) ID=14 L=44	9-09917-427-0	01	1	9202-9207			●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X25 W/LK WASHER	9-01901-025-0	01	1	9202-9204	●
10	BOLT; BATTERY CABLE CLIP EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9205	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X25 W/LK WASHER	0-50041-025-0	01	1	9206-	●		●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9206-		●
10	BOLT; BATTERY CABLE CLIP M10X35	9-01901-035-0	01	1	9202-9204	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35	9-01901-035-0	01	1	9202-9204			●
10	BOLT; BATTERY CABLE CLIP M10X35 W/LK WASHER	0-50041-035-0	01	1	9205-	●	●	●
10	BOLT; BATTERY CABLE CLIP EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 W/LK WASHER	9-01900-825-0	02	1	9202-9204		●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 W/LK WASHER	0-50040-825-0	03	1	9205-9207		●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28080-825-0	01	1	9208-9211	●	●
10	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 W/LK WASHER	9-01900-825-0	03	1	9202-9204		●	●
10	BOLT; BATTERY CABLE CLIP EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9205		●
10	BOLT; BATTERY CABLE CLIP M8X25 W/LK WASHER	0-50040-825-0	01	1	9206-9207	●	●
10	BOLT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 W/LK WASHER	0-50040-825-0	03	1	9208-9208		●
10	BOLT; BATTERY CABLE CLIP MIDDLE CHASSIS(FVR5MF) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 W/LK WASHER	0-50040-825-0	03	1	9209-		●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22	9-09160-610-0	01	1	9202-	●	●	●
12	NUT; BATTERY CABLE CLIP EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 FLANGE	5-09440-006-0	01	1	9202-9205	●
12	NUT; BATTERY CABLE CLIP EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-09110-408-0	01	1	9202-9205		●
12	NUT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-09110-408-0	03	1	9206-9207			●
12	NUT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-09110-408-0	03	1	9202-9205		●	●
12	NUT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-09110-408-0	01	1	9206-9207	●	●
12	NUT; BATTERY CABLE CLIP BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-09110-408-0	01	1	9208-9211	●	●
12	NUT; BATTERY CABLE CLIP	9-09110-408-0	01	1	9208-9211			●
12	NUT; BATTERY CABLE CLIP	9-09110-408-0	01	1	9212-	●	●	●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=25	1-09332-011-1	01	1	9202-	●	●	●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=112	1-47475-694-1	01	1	9202-9207	●	●
23	BRACKET; CABLE CLIP TO FRAME (C)	1-82699-584-0	01	1	9212-			●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (B)	1-47465-518-0	01	1	9202-9202			●
23	BRACKET; CABLE CLIP TO FRAME (C)	1-82699-584-0	01	1	9203-9207			●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=55	1-47475-304-0	01	1	9202-9207			●
23	BRACKET; CABLE CLIP TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> (A) L=95	1-82699-085-0	01	1	9208-	●	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X30 W/LK WASHER	9-01900-830-0	02	1	9202-9204	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9205	●
24	BOLT; BRKT TO FRAME M8X25 W/LK WASHER	0-50040-825-0	01	1	9206-9207	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	01	1	9202-9202			●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	02	1	9203-9207			●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	01	1	9208-9211	●	●	●
24	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●	●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	01	1	9212-			●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	01	1	9202-9202	●		●
25	CLIP; BATTERY CABLE TO BRKT ID=16 L=28	1-09700-872-0	01	1	9202-9202		●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	02	1	9203-9205	●		●
25	CLIP; BATTERY CABLE TO BRKT ID=16 L=28	1-09700-872-0	01	1	9206-9211	●	●	●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	01	1	9212-	●	●	●
25	CLIP; BATTERY CABLE TO BRKT ID=16 L=28	1-09700-872-0	01	1	9212-			●
25	CLIP; BATTERY CABLE TO BRKT ID=16 L=28	1-09700-872-0	01	1	9203-9205		●
25	CLIP; BATTERY CABLE TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=16 L=28	1-09700-872-0	02	1	9206-9207			●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28080-825-0	01	1	9208-9211	●	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28080-825-0	01	1	9212-	●	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28080-825-0	01	1	9212-			●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28010-822-0	01	1	9202-9204	●		●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	02	1	9203-9204	●		●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	03	1	9205-9205	●		●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X22 FLANGE	0-28080-822-0	01	1	9206-9207	●	●	●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	01	1	9206-9207	●		●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	01	1	9208-	●		●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X22 FLANGE	0-28080-822-0	02	1	9206-9207			●
26	BOLT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X25 FLANGE	0-28080-825-0	02	1	9208-9208			●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-09110-408-0	01	1	9202-9202	●		●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-09110-408-0	02	1	9203-9205	●		●
27	NUT; BATTERY CABLE CLIP TO BRKT	9-09110-408-0	01	1	9206-9211	●	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-09110-408-0	01	1	9212-	●	●	●
27	NUT; BATTERY CABLE CLIP TO BRKT	9-09110-408-0	01	1	9212-			●
27	NUT; BATTERY CABLE CLIP TO BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-09110-408-0	02	1	9206-9207			●
28	NUT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-09110-408-0	01	1	9202-9205	●		●
28	NUT; BRKT TO FRAME	9-09110-408-0	01	1	9206-9211	●	●	●
28	NUT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-09110-408-0	01	1	9212-	●	●	●
28	NUT; BRKT TO FRAME	9-09110-408-0	01	1	9212-			●
33	CAP; INSULATOR	1-82699-431-0	01	1	9202-	●	●	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9202-			●
79	CLIP; BATTERY CABLE (A) ID=16 L=28	1-09700-872-0	01	1	9202-	●	●
79	CLIP; BATTERY CABLE (B) ID=16 H=30 L=30	1-09701-080-0	01	1	9202-			●
80	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9202-9204	●	●	●
80	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9207	●	●	●
80	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9208-9209	●	●	●
80	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9210-	●	●
80	BOLT; BATTERY CABLE CLIP M8X14 FLANGE	0-28080-814-0	01	1	9210-			●
107	CLIP; BAND BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> L=140	5-09707-031-0	01	1	9202-	●	●	●
112	TERMINAL; BATTERY <+>	1-82695-003-0	01	1	9202-	●	●	●
114	NUT; CABLE,BATTERY TERMINAL M10	9-09110-510-0	01	1	9202-	●	●	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	9202-	●	●	●
126	CAP; TERMINAL,AC GEN	9-82951-331-0	01	1	9202-9204	●	●	●
