2-05 — CLUTCH PIPING (#10439) — 359 parça

109 109 109 153 109 110 24 47 110 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	0103-	●	●	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0103-	●	●
47	HOSE; FLEX,CLU CONT L=330	1-09364-665-0	01	1	0103-			●
109	PIPE; AIR,UNION TO UNION (A) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION (B) L=1230 SERVICED BY L=1250	1-47428-764-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION (C) L=2672 SERVICED BY L=2700	1-47428-772-0	01	1	0103-0112	●	●	●
109	PIPE; AIR,UNION TO UNION (C) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0201-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (E) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6000MM(60W) (D) L=2607 SERVICED BY L=2700	1-47428-772-0	01	1	0103-	●	●	●
110	PIPE; OIL,UNION TO UNION (B) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0103-	●	●	●
110	PIPE; OIL,UNION TO UNION (C) L=1856	1-49165-799-0	01	1	0103-	●	●
110	PIPE; OIL,UNION TO UNION (A) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	0103-			●
153	PIPE ASM; CLU,UNION TO FLEX	1-49165-478-0	01	1	0103-	●	●	●

29 86 74 92 24 109 87 24 86 29 147 85 154 100 109 106 29 109 106 34 28 33 93 107 107 31 93 30 32 26 109 109 35 110 106 33 37 109 34 34 106 31 33 30 38 38 38 32 107 93 107 109 93 109 36 32 35 35 37 32 37 34 110 31 111 33 153 32 87 110 110 35 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	0103-	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0103-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0103-0602	●	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0103-	●	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0103-	●	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0103-	●	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0103-	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0103-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	04	1	0103-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0103-	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0103-0606	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0103-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	09	1	0103-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	09	1	0603-	●	●	●
36	BRACKET; CLIP (C) L=135	1-47478-729-0	01	1	0103-	●	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0103-	●	●	●
36	BRACKET; CLIP 6SD1 TC(32L) (A) L=40	1-47478-410-0	01	1	0103-	●	●	●
36	BRACKET; CLIP (D)	1-47478-924-0	01	1	0103-			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	0103-0602	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602			●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
74	CLIP; CLU OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0103-	●	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0103-	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0103-	●	●	●
87	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0103-0607	●	●	●
87	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0103-0607	●	●	●
87	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
87	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0103-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0103-	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	01	1	0103-0603	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0103-0603	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	03	1	0604-0903	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	03	1	0904-	●	●	●
100	NUT; BRK PIPE,RR AXLE M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
100	NUT; BRK PIPE,RR AXLE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
106	UNION; OIL PIPE (A) M14	9-09223-308-1	03	1	0103-0607	●	●	●
106	UNION; OIL PIPE (A) M14	0-92113-308-0	03	1	0608-	●	●	●
106	UNION; OIL PIPE (B) M14	9-09225-208-1	01	1	0103-0607	●	●	●
106	UNION; OIL PIPE (B) M14 ELBOW	0-92125-208-0	01	1	0608-	●	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	01	1	0103-0512	●	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0601-	●	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0103-0512	●	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	03	1	0601-	●	●	●
109	PIPE; AIR,UNION TO UNION (A) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION (B) L=1230 SERVICED BY L=1250	1-47428-764-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION (C) L=2672 SERVICED BY L=2700	1-47428-772-0	01	1	0103-0112	●	●	●
109	PIPE; AIR,UNION TO UNION (C) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0201-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (E) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6000MM(60W) (D) L=2607 SERVICED BY L=2700	1-47428-772-0	01	1	0103-	●	●	●
110	PIPE; OIL,UNION TO UNION (B) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0103-	●	●	●
110	PIPE; OIL,UNION TO UNION (C) L=1856	1-49165-799-0	01	1	0103-	●	●
110	PIPE; OIL,UNION TO UNION (A) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	0103-			●
111	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0103-0607	●	●	●
111	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0103-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX	1-49165-478-0	01	1	0103-	●	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0103-	●	●	●

37 153 115 92 34 33 147 116 29 36 38 36 35 47 48 54 9 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0103-0602	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0103-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	04	1	0103-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0103-	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0103-0606	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0103-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	09	1	0103-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	09	1	0603-	●	●	●
36	BRACKET; CLIP (C) L=135	1-47478-729-0	01	1	0103-	●	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0103-	●	●	●
36	BRACKET; CLIP 6SD1 TC(32L) (A) L=40	1-47478-410-0	01	1	0103-	●	●	●
36	BRACKET; CLIP (D)	1-47478-924-0	01	1	0103-			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	0103-0602	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602			●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0103-	●	●
47	HOSE; FLEX,CLU CONT L=330	1-09364-665-0	01	1	0103-			●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0103-	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0103-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0103-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0103-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0103-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0103-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0103-0603	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0103-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX	1-49165-478-0	01	1	0103-	●	●	●

109 109 109 109 24 109 106 29 86 109 87 24 24 74 92 86 107 85 29 147 93 154 109 100 109 29 34 34 106 28 33 31 93 107 33 32 31 30 32 26 35 109 35 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	0103-	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0103-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0103-0602	●	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0103-	●	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0103-	●	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0103-	●	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0103-	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0103-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	04	1	0103-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0103-	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0103-0606	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0103-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	09	1	0103-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	09	1	0603-	●	●	●
74	CLIP; CLU OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0103-	●	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0103-	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0103-	●	●	●
87	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0103-0607	●	●	●
87	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0103-0607	●	●	●
87	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
87	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0103-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0103-	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	01	1	0103-0603	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0103-0603	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	03	1	0604-0903	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	03	1	0904-	●	●	●
100	NUT; BRK PIPE,RR AXLE M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
100	NUT; BRK PIPE,RR AXLE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
106	UNION; OIL PIPE (A) M14	9-09223-308-1	03	1	0103-0607	●	●	●
106	UNION; OIL PIPE (A) M14	0-92113-308-0	03	1	0608-	●	●	●
106	UNION; OIL PIPE (B) M14	9-09225-208-1	01	1	0103-0607	●	●	●
106	UNION; OIL PIPE (B) M14 ELBOW	0-92125-208-0	01	1	0608-	●	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	01	1	0103-0512	●	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0601-	●	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0103-0512	●	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	03	1	0601-	●	●	●
109	PIPE; AIR,UNION TO UNION (A) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION (B) L=1230 SERVICED BY L=1250	1-47428-764-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION (C) L=2672 SERVICED BY L=2700	1-47428-772-0	01	1	0103-0112	●	●	●
109	PIPE; AIR,UNION TO UNION (C) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0201-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (E) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6000MM(60W) (D) L=2607 SERVICED BY L=2700	1-47428-772-0	01	1	0103-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0103-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0103-	●	●	●

37 153 115 116 29 38 36 147 36 47 92 48 54 9 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0103-0602	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
36	BRACKET; CLIP (C) L=135	1-47478-729-0	01	1	0103-	●	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0103-	●	●	●
36	BRACKET; CLIP 6SD1 TC(32L) (A) L=40	1-47478-410-0	01	1	0103-	●	●	●
36	BRACKET; CLIP (D)	1-47478-924-0	01	1	0103-			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	0103-0602	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602			●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0103-	●	●
47	HOSE; FLEX,CLU CONT L=330	1-09364-665-0	01	1	0103-			●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0103-	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0103-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0103-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0103-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0103-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0103-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0103-0603	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	04	1	0103-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX	1-49165-478-0	01	1	0103-	●	●	●

110 153 153 87 110 110 109 109 31 34 33 34 33 30 107 106 38 32 93 109 35 35 32 37 110 34 37 34 33 110 111 38 35 36 106 93 107 109 33 38 35 110 32 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0103-0602	●	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0103-	●	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0103-	●	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0103-	●	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0103-	●	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0103-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	04	1	0103-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0103-	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0103-0606	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0103-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	09	1	0103-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	09	1	0603-	●	●	●
36	BRACKET; CLIP (C) L=135	1-47478-729-0	01	1	0103-	●	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0103-	●	●	●
36	BRACKET; CLIP 6SD1 TC(32L) (A) L=40	1-47478-410-0	01	1	0103-	●	●	●
36	BRACKET; CLIP (D)	1-47478-924-0	01	1	0103-			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0103-0512			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	0103-0602	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0103-0602			●
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-			●
87	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0103-0607	●	●	●
87	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0103-0607	●	●	●
87	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
87	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	01	1	0103-0603	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0103-0603	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	03	1	0604-0903	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	03	1	0904-	●	●	●
106	UNION; OIL PIPE (A) M14	9-09223-308-1	03	1	0103-0607	●	●	●
106	UNION; OIL PIPE (A) M14	0-92113-308-0	03	1	0608-	●	●	●
106	UNION; OIL PIPE (B) M14	9-09225-208-1	01	1	0103-0607	●	●	●
106	UNION; OIL PIPE (B) M14 ELBOW	0-92125-208-0	01	1	0608-	●	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	01	1	0103-0512	●	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0601-	●	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0103-0512	●	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	03	1	0601-	●	●	●
109	PIPE; AIR,UNION TO UNION (A) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION (B) L=1230 SERVICED BY L=1250	1-47428-764-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION (C) L=2672 SERVICED BY L=2700	1-47428-772-0	01	1	0103-0112	●	●	●
109	PIPE; AIR,UNION TO UNION (C) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0201-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (E) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0103-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6000MM(60W) (D) L=2607 SERVICED BY L=2700	1-47428-772-0	01	1	0103-	●	●	●
110	PIPE; OIL,UNION TO UNION (B) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0103-	●	●	●
110	PIPE; OIL,UNION TO UNION (C) L=1856	1-49165-799-0	01	1	0103-	●	●
110	PIPE; OIL,UNION TO UNION (A) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	0103-			●
111	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0103-0607	●	●	●
111	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX	1-49165-478-0	01	1	0103-	●	●	●

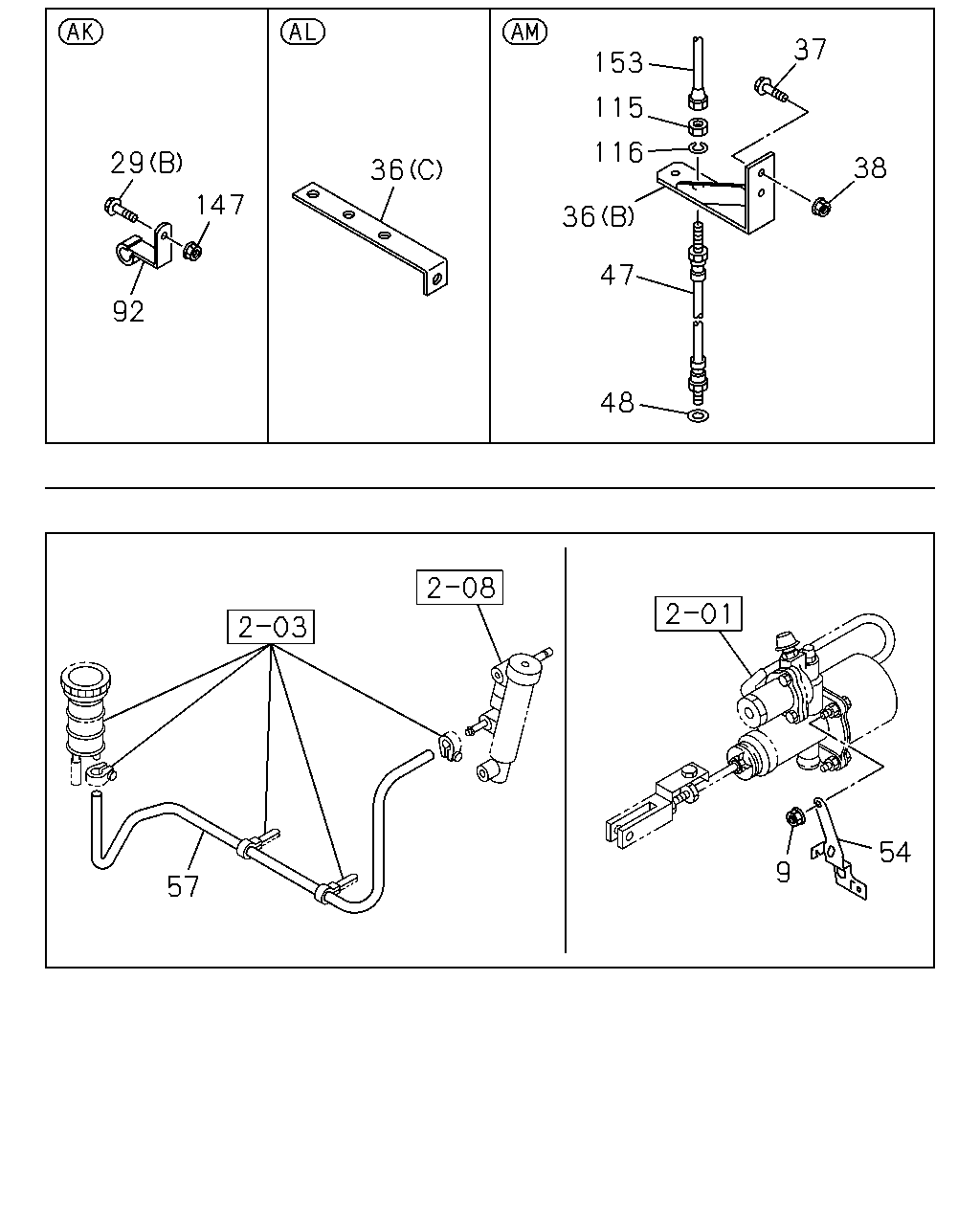

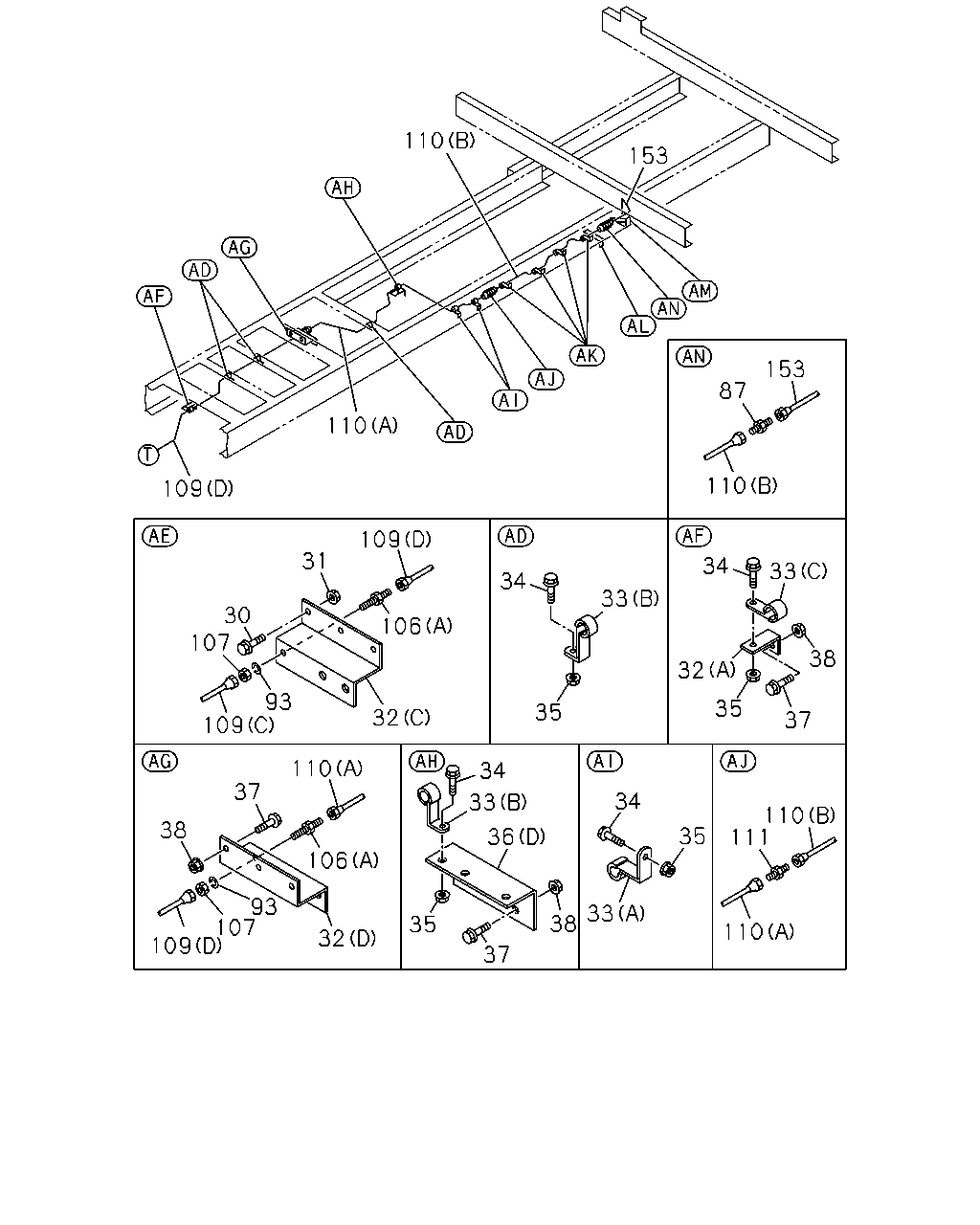

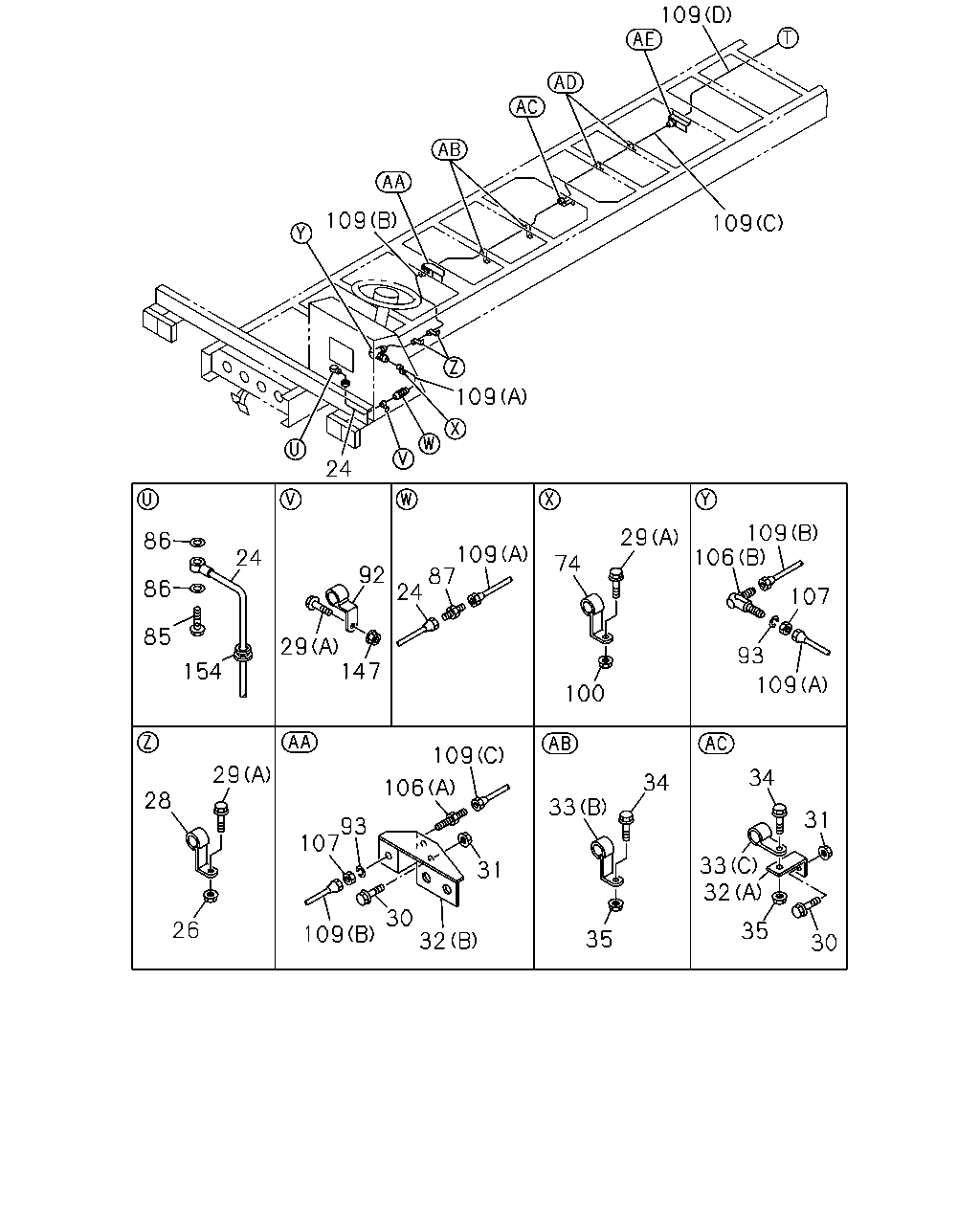

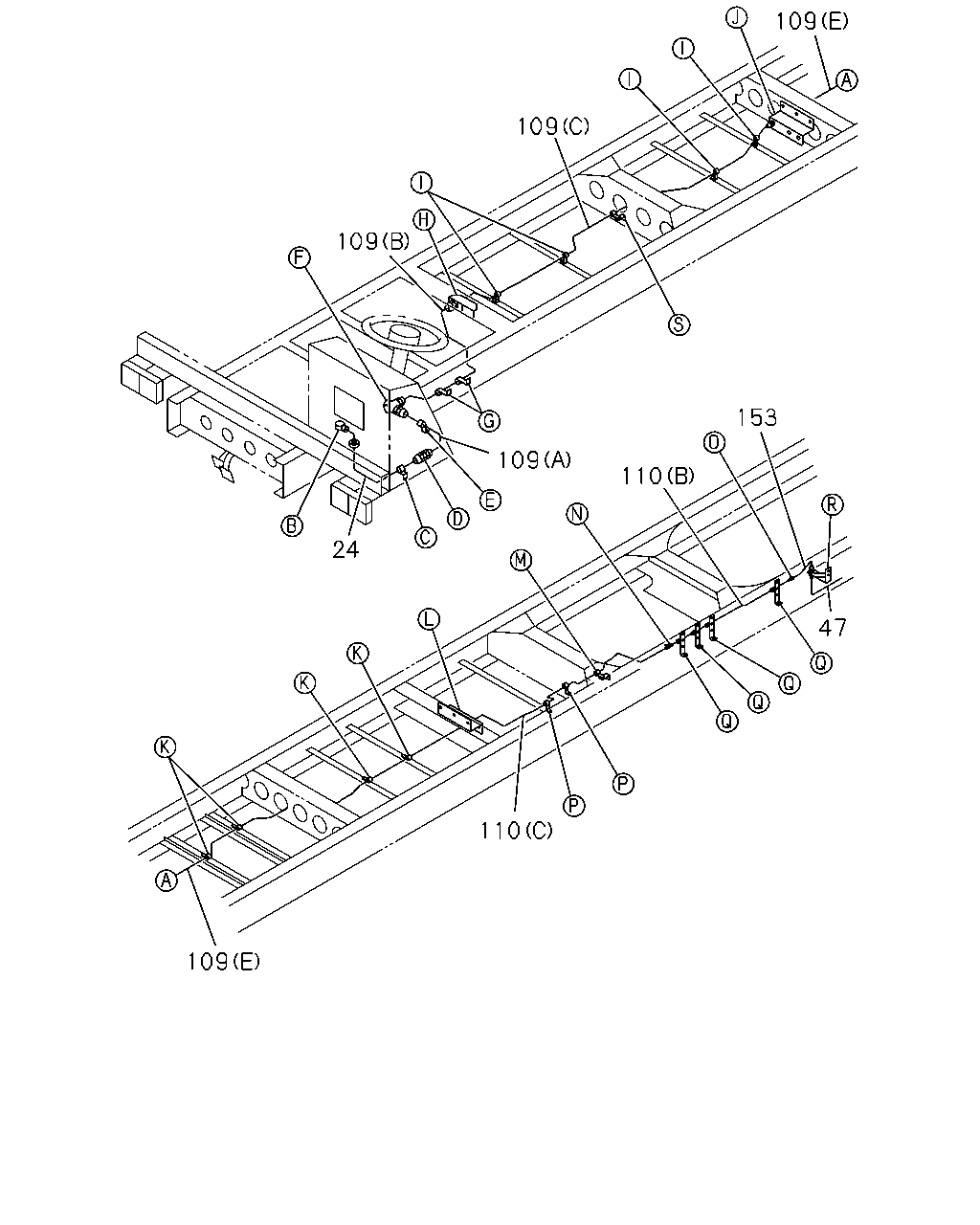

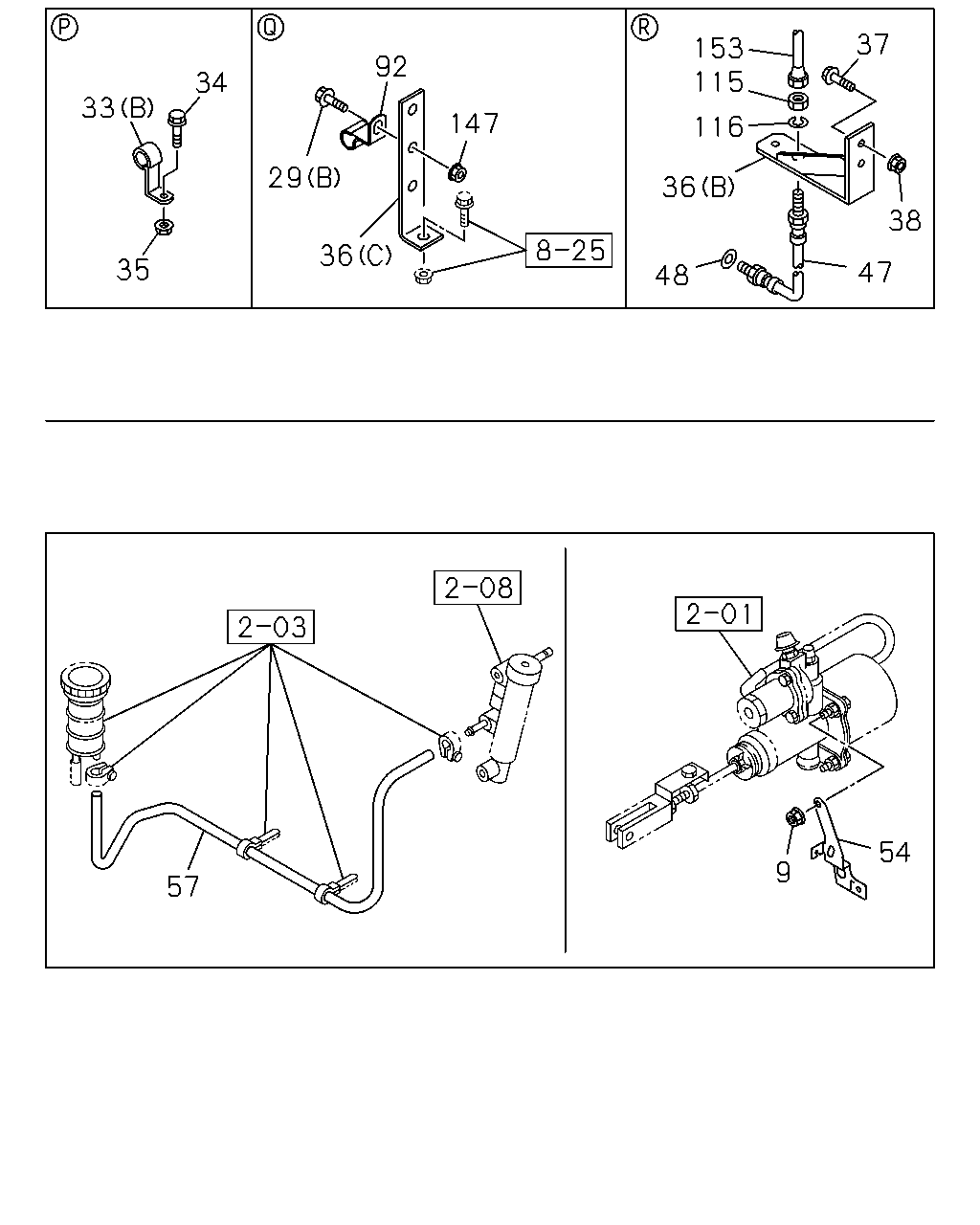

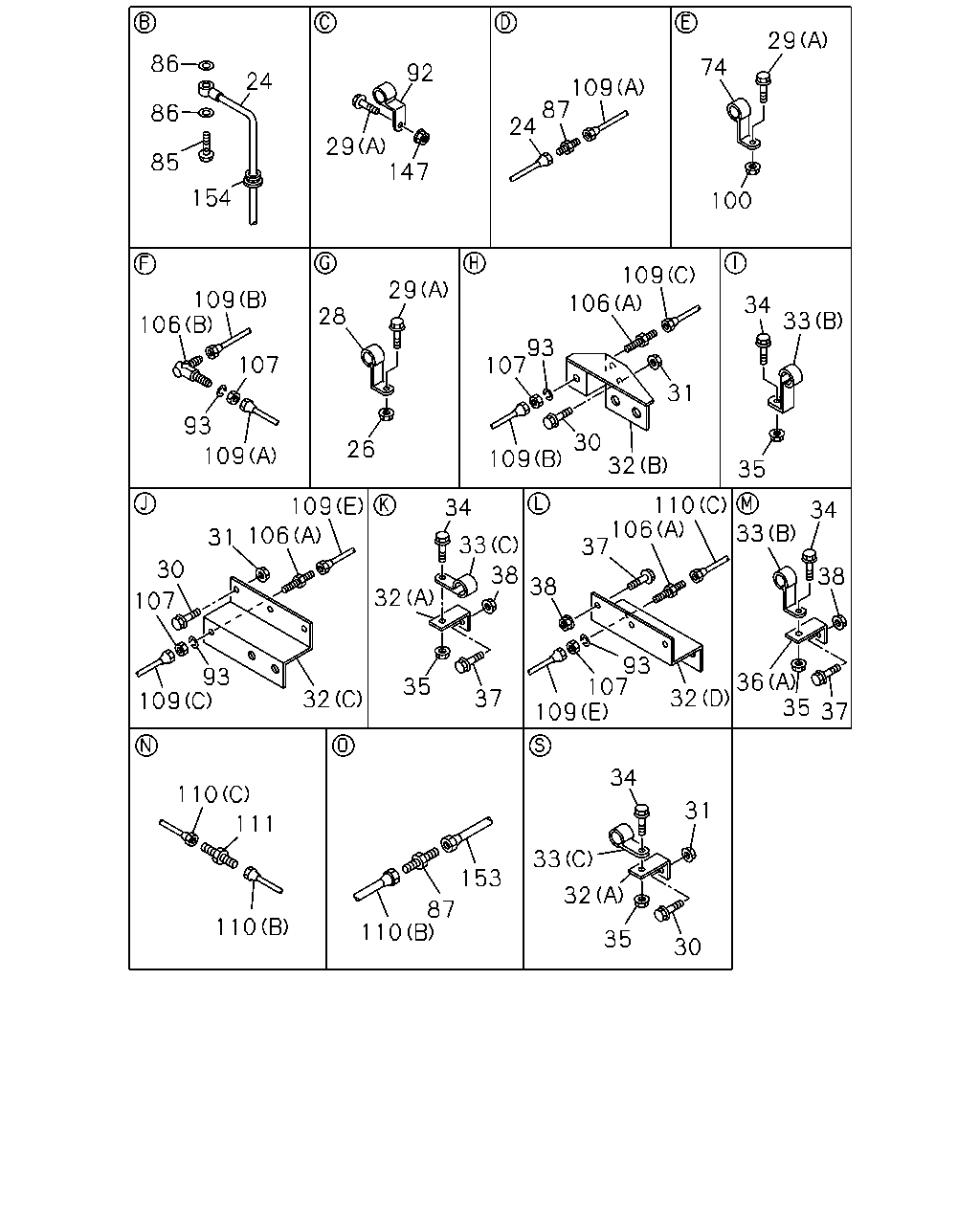

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
