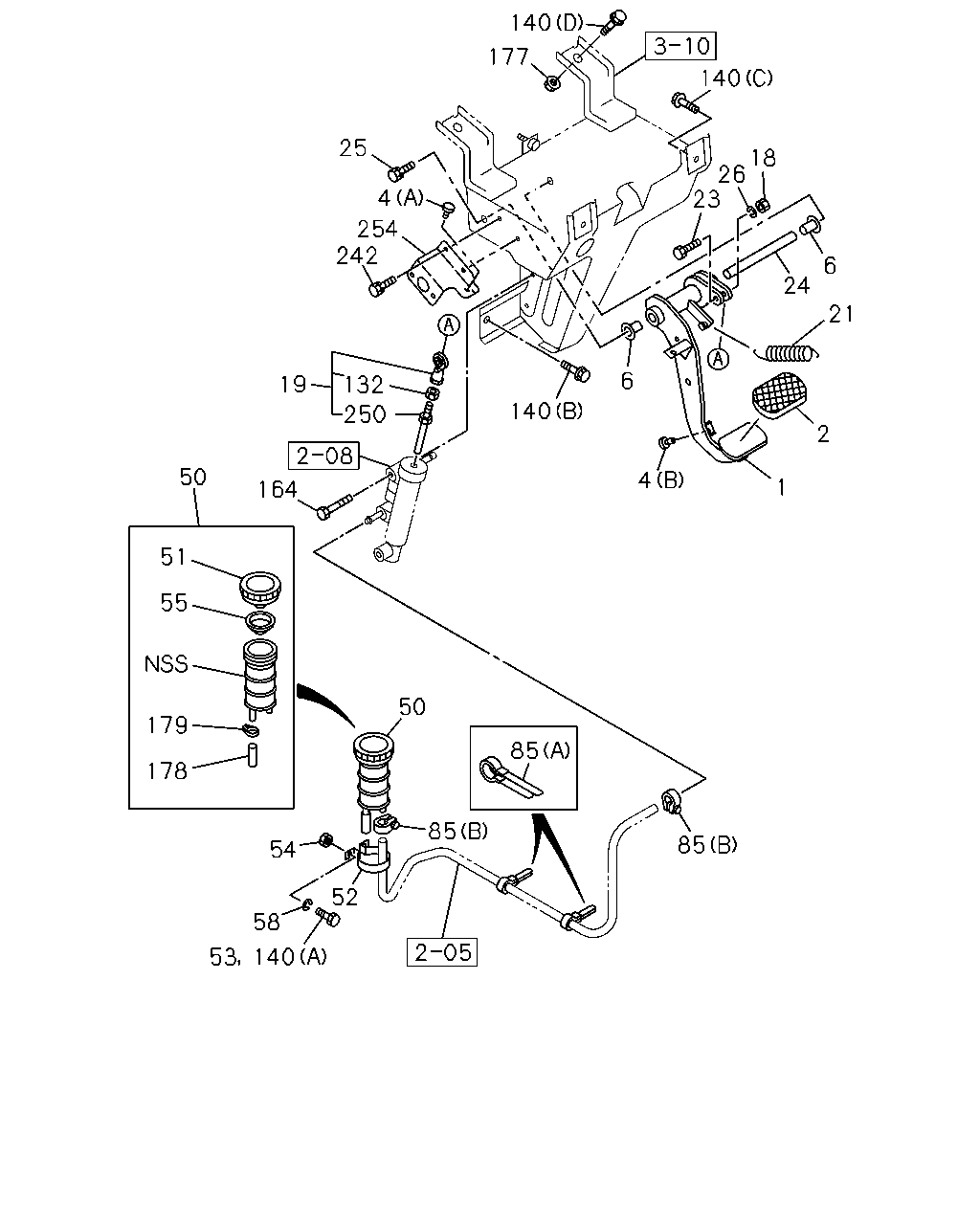

1 |
PEDAL; CLU
|
1-73908-171-3 |
01 |
1 |
0103- |
| |
2 |
COVER; CLU PEDAL
|
8-94204-810-0 |
01 |
1 |
0103-0106 |
| |
2 |
COVER; CLU PEDAL
|
8-97893-618-1 |
01 |
1 |
0107- |
| |
4 |
STOPPER; CLU PEDAL
(A)
|
1-47319-014-1 |
04 |
1 |
0103- |
| |
4 |
STOPPER; CLU PEDAL
(B)
|
5-31419-003-0 |
01 |
1 |
0103-0106 |
| |
6 |
BUSHING; CLU PEDAL
|
1-09330-045-0 |
02 |
1 |
0103- |
| |
18 |
NUT; PUSH ROD
M8
|
9-09110-508-0 |
01 |
1 |
0103-0106 |
| |
18 |
NUT; PUSH ROD
M8
|
0-91110-508-0 |
01 |
1 |
0107- |
| |
19 |
ROD ASM; PUSH,CLU
|
1-73908-332-0 |
01 |
1 |
0103-0106 |
| |
19 |
ROD ASM; PUSH,CLU
|
1-73996-144-1 |
01 |
1 |
0107- |
| |
21 |
SPRING; RETURN,CLU PEDAL
|
1-73908-265-0 |
01 |
1 |
0103- |
| |
23 |
BOLT; PUSH ROD
M8X43.7
|
1-73908-333-0 |
01 |
1 |
0103-0106 |
| |
23 |
BOLT; PUSH ROD
M8X35
|
0-10960-835-0 |
01 |
1 |
0107- |
| |
24 |
SHAFT; CLU PEDAL
|
1-73998-936-1 |
01 |
1 |
0103- |
| |
25 |
BOLT; PEDAL
M10X25 W/LK WASHER
|
0-50051-025-0 |
02 |
1 |
0103- |
| |
26 |
WASHER; LK,PUSH ROD
ID=8.2
|
9-09150-608-0 |
01 |
1 |
0103-0106 |
| |
26 |
WASHER; LK,PUSH ROD
ID=8.2
|
0-91510-608-0 |
01 |
1 |
0107- |
| |
50 |
TANK; OIL,CLU
|
1-47530-183-1 |
01 |
1 |
0103- |
| |
51 |
CAP; OIL TANK,CLU
|
9-47525-032-1 |
01 |
1 |
0103- |
| |
52 |
BRACKET; OIL TANK,CLU M/CYL
|
9-47537-023-1 |
01 |
1 |
0103- |
| |
53 |
BOLT; BRKT,OIL TANK,CLU M/CYL
M5X16
|
0-20800-516-0 |
01 |
1 |
0103- |
| |
54 |
NUT; BRKT,OIL TANK,CLU M/CYL
M5
|
9-99110-405-0 |
03 |
1 |
0103-0512 |
| |
54 |
NUT; BRKT,OIL TANK,CLU M/CYL
M5
|
0-91110-505-0 |
03 |
1 |
0601- |
| |
55 |
BAFFLE; RUBBER,CLU M/CYL
|
9-47529-031-0 |
01 |
1 |
0103- |
| |
58 |
WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ID=5.3
|
9-09160-505-0 |
02 |
1 |
0103-0605 |
| |
58 |
WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ID=5.3
|
0-91610-505-0 |
02 |
1 |
0606- |
| |
85 |
CLIP; HOSE TO M/CYL
(A)
ID=15 L=65
|
1-09700-466-0 |
02 |
1 |
0103-0607 |
| |
85 |
CLIP; HOSE TO M/CYL
(A)
ID=14 L=44
|
9-09917-427-0 |
02 |
1 |
0608- |
| |
85 |
CLIP; HOSE TO M/CYL
(B)
ID=15
|
9-09715-098-0 |
02 |
1 |
0103- |
| |
132 |
NUT; LK,PUSH ROD
M8
|
9-09110-408-0 |
01 |
1 |
0103-0106 |
| |
132 |
NUT; LK,PUSH ROD
M8
|
0-91110-508-0 |
01 |
1 |
0107- |
| |
140 |
BOLT; BRKT
(A)
M5X16
|
0-20800-516-0 |
02 |
1 |
0103- |
| |
140 |
BOLT; BRKT
(B)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0103-0512 |
| |
140 |
BOLT; BRKT
(B)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
140 |
BOLT; BRKT
(C)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0103-0512 |
| |
140 |
BOLT; BRKT
(C)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
| |
140 |
BOLT; BRKT
(D)
M10X25 FLANGE
|
0-28681-025-0 |
02 |
1 |
0103-0512 |
| |
140 |
BOLT; BRKT
(D)
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0601- |
| |
164 |
BOLT; CLU M/CYL
M10X70 FLANGE
|
0-28081-070-0 |
02 |
1 |
0103-0512 |
| |
164 |
BOLT; CLU M/CYL
M10X70 FLANGE
|
0-28051-070-0 |
02 |
1 |
0601- |
| |
177 |
NUT; BRKT
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0103-0602 |
| |
177 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
178 |
CAP; OIL TANK HOSE
|
1-47539-005-0 |
01 |
1 |
0103- |
| |
179 |
CLIP; CAP TO OIL TANK
ID=15
|
9-09715-098-0 |
01 |
1 |
0103- |
| |
242 |
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
|
0-50040-616-0 |
02 |
1 |
0103-0106 |
| |
242 |
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
|
0-50540-616-0 |
02 |
1 |
0107- |
| |
250 |
ROD; PUSH,CLU
|
1-73996-219-0 |
01 |
1 |
0103- |
| |
254 |
BRACKET; CLU SENSOR
|
1-73998-979-5 |
01 |
1 |
0103- |
