◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10852 - LV123/150-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#10436) — 12 parça

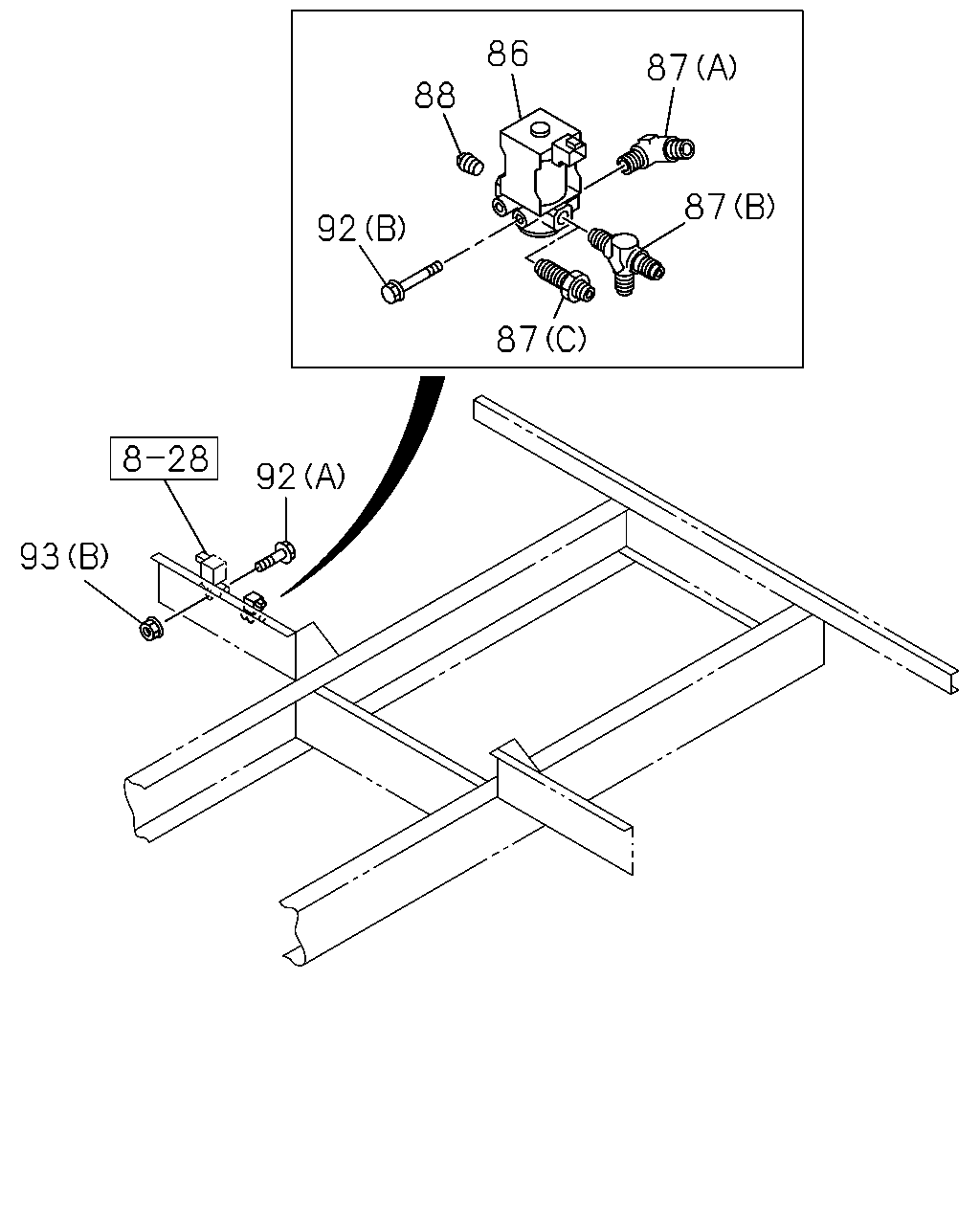

çizim 137684
86 87 88 87 92 87 92 93
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK 1-82563-600-5 01 1 0103- ● ●
87 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0103- ●
87 CONNECTOR
(B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0103- ●
87 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0103- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0103- ● ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0103- ● ●
92 BOLT; MAG VLV
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512 ● ●
92 BOLT; MAG VLV
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) M8X60 FLANGE 		0-28080-860-0 02 1 0103-0512 ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (A) M8X60 FLANGE 		0-28050-860-0 02 1 0601- ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE 		0-91150-108-0 02 1 0103-0602 ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
