1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#10435) — 175 parça

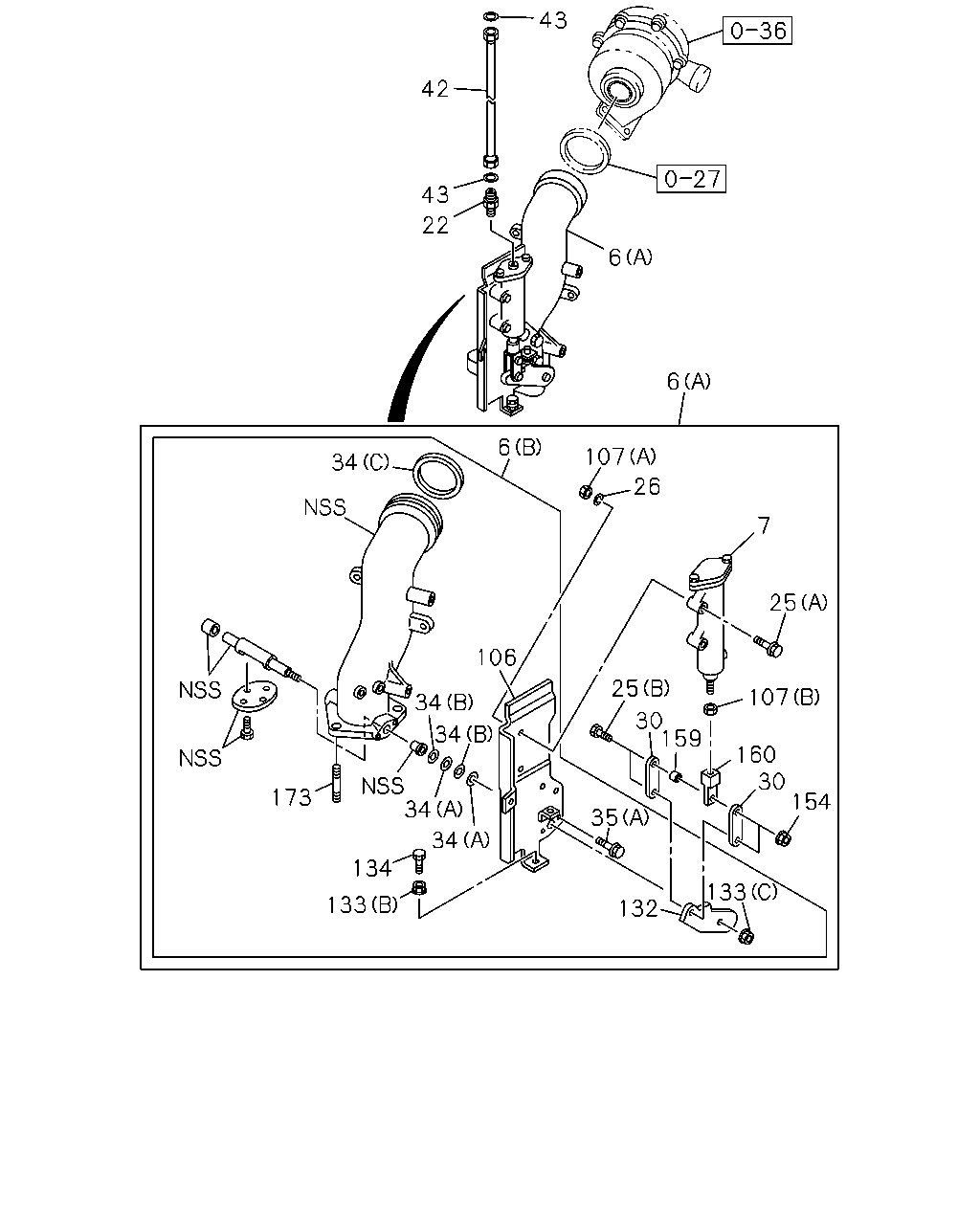

çizim 137374
43 42 43 22 6 6 6 107 34 26 7 25 106 25 34 107 30 159 34 160 30 154 34 173 35 34 134 133 133 132
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-14144-636-2 01 1 0103- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 0103- ●
6 VALVE; EXH BRAKE
(C) 		1-14144-603-4 01 1 0103- ●
6 VALVE; EXH BRAKE
(D) 		1-14144-616-0 01 1 0103- ●
7 CYLINDER ASM; CONT 1-22190-650-1 01 1 0103- ●
7 CYLINDER ASM; CONT 1-22190-592-1 01 1 0103- ●
22 CONNECTOR; CONT CYL
M20 & PT1/4 		9-09902-386-0 01 1 0103- ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		1-22199-160-0 02 1 1302- ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0103-0206 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0207-1301 ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 1302- ●
25 BOLT; CONT CYL
(B) 		1-33739-200-0 02 1 0103-1301 ●
25 BOLT; CONT CYL
(B) 		1-22199-211-0 02 1 1302- ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		1-22199-160-0 02 1 0103-0206 ●
26 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 02 1 0103-0206 ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 0103- ●
30 ROD; LINK,CONT CYL 1-22199-165-0 02 1 0103- ●
34 RING; SEAL
(C) 		1-14149-207-0 02 1 0103- ●
34 RING; SEAL
(B) 		1-22189-272-0 02 1 0103- ●
34 RING; SEAL
(A) 		1-22189-273-0 02 1 0103- ●
34 RING; SEAL
(E) ID=21 		1-22189-158-0 01 1 0103- ●
34 RING; SEAL
(D) ID=18.8 		1-22189-159-0 02 1 0103- ●
35 BOLT; PLATE FIX
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0103-0206 ●
35 BOLT; PLATE FIX
(A) 		1-22189-308-0 04 1 0207- ●
35 BOLT; PLATE FIX
(B) M10X20 		0-28021-020-0 03 1 0103- ●
42 HOSE; FLEX,EXH BRK
L=460 		1-09363-676-0 01 1 0103- ●
42 HOSE; FLEX,EXH BRK
L=350 		1-09363-624-0 01 1 0103- ●
43 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 0103- ●
106 BRACKET; CONT CYL 1-22186-141-0 01 1 0103- ●
106 BRACKET; CONT CYL 1-22186-138-0 01 1 0103- ●
107 NUT; CONT CYL
(A) 		1-89966-509-1 02 1 1302- ●
107 NUT; CONT CYL
(B) M8 		9-09110-508-0 01 1 1302- ●
107 NUT; CONT CYL
(A) 		9-83315-080-0 02 1 0103-0206 ● ●
107 NUT; CONT CYL
(A) M10 FLANGE 		0-91150-110-0 02 1 0207-1301 ● ●
107 NUT; CONT CYL
(A) M10 FLANGE 		0-91150-110-0 02 1 1302- ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 01 1 0103-1301 ● ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 01 1 1302- ●
132 LEVER; BRK VLV 1-22196-347-1 01 1 0103- ●
132 LEVER; BRK VLV 1-22196-346-0 01 1 0103- ●
133 NUT; LK
(C) M8 W/LK WASHER 		8-94279-050-0 01 1 0103- ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 02 1 0103- ● ●
133 NUT; LK
(A) M10 FLANGE 		0-91150-110-0 01 1 0103- ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0103- ● ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 0103- ● ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 0103- ● ●
160 JOINT; CONT CYL 1-22199-163-0 01 1 0103- ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 0103- ●
173 STUD; EXH BRK VLV
M12X40 L=64 		9-94321-240-0 03 1 0103- ●

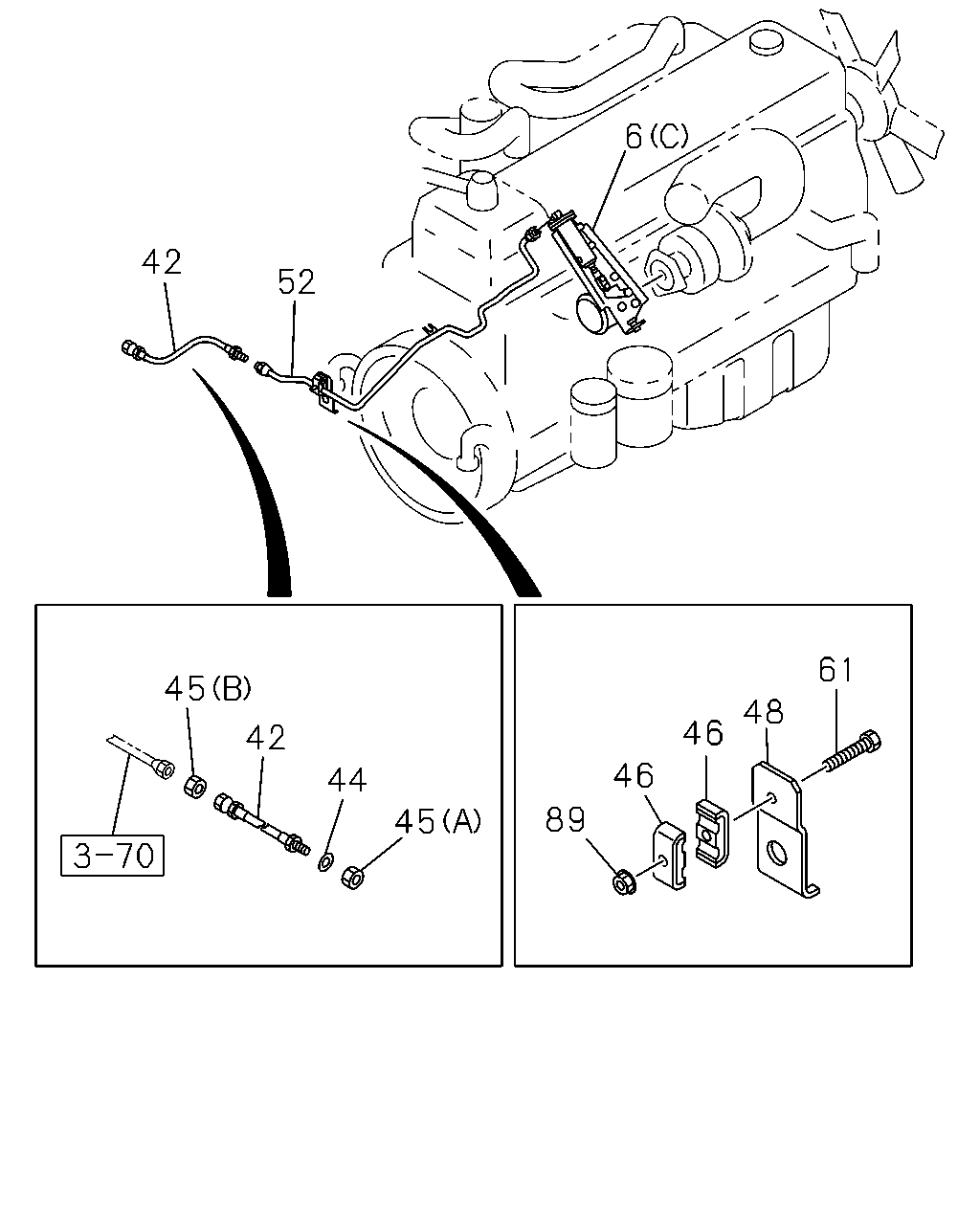

çizim 137578
6 42 52 61 45 48 46 42 46 44 89 45
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-14144-636-2 01 1 0103- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 0103- ●
6 VALVE; EXH BRAKE
(C) 		1-14144-603-4 01 1 0103- ●
6 VALVE; EXH BRAKE
(D) 		1-14144-616-0 01 1 0103- ●
42 HOSE; FLEX,EXH BRK
L=460 		1-09363-676-0 01 1 0103- ●
42 HOSE; FLEX,EXH BRK
L=350 		1-09363-624-0 01 1 0103- ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0103-0603 ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604- ●
45 NUT; FLEX HOSE
(B) M8 FLANGE 		0-91150-108-0 01 1 0103-0602 ●
45 NUT; FLEX HOSE
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
45 NUT; FLEX HOSE
(A) M12 		9-09840-280-0 01 1 0103- ●
46 CLIP; AIR PIPE 1-09701-132-1 02 1 0103-1208 ●
46 CLIP; AIR PIPE 1-09701-240-0 02 1 1209- ●
48 BRACKET; AIR PIPE 1-47477-407-0 01 1 0103- ●
52 PIPE ASM; AIR FLEX HOSE 1-19192-904-0 01 1 0103- ●
61 BOLT; BRKT AIR PIPE
M14X20 FLANGE 		0-28981-420-0 01 1 0103-0512 ●
61 BOLT; BRKT AIR PIPE
M14X20 FLANGE 		0-28951-420-0 01 1 0601- ●
89 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0103-0602 ●
89 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ●

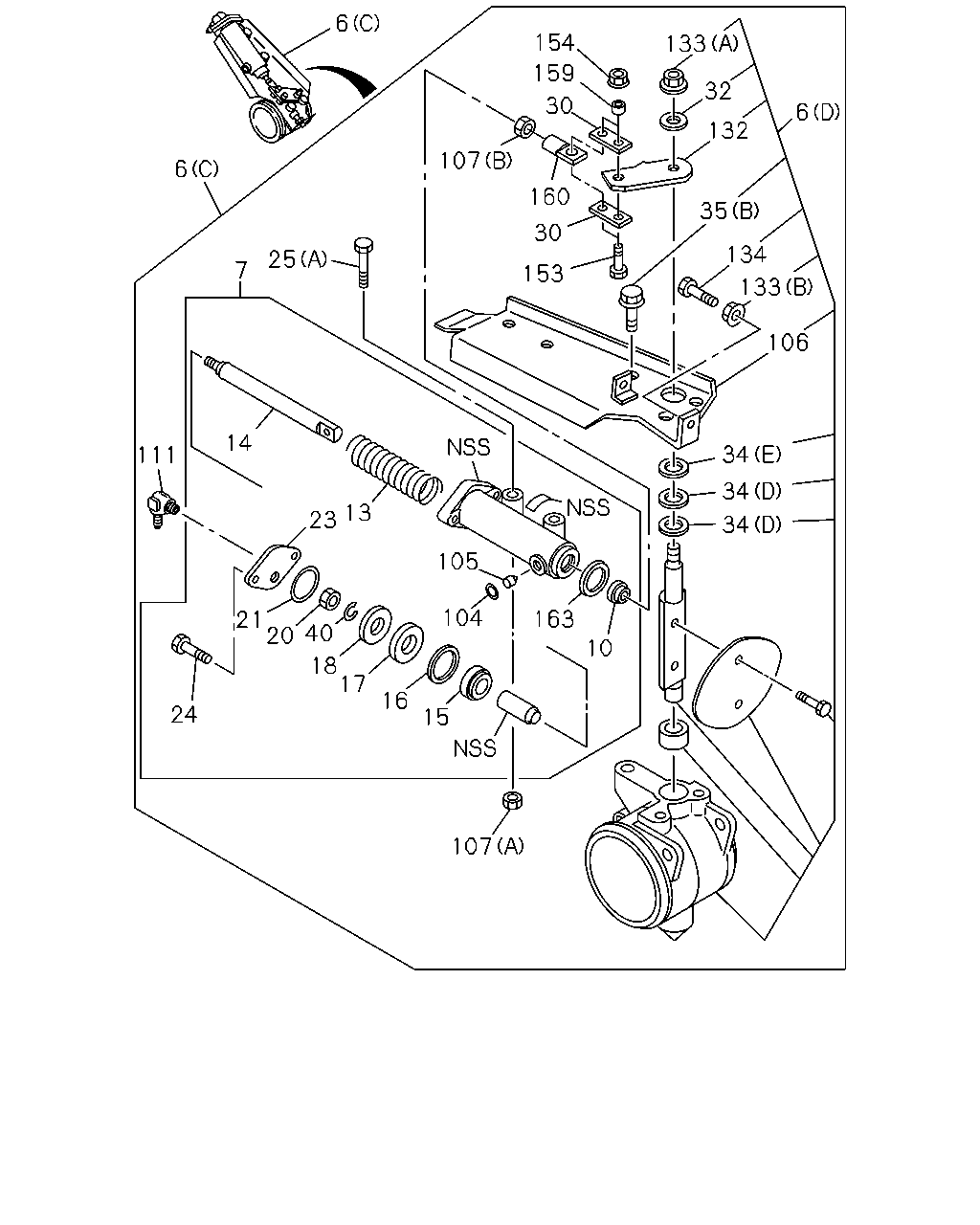

çizim 137581
6 154 133 159 32 30 6 132 107 6 160 35 30 134 25 7 153 133 106 14 34 111 34 13 23 34 105 104 163 21 20 40 10 18 17 16 24 15 107
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-14144-636-2 01 1 0103- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-141-0 01 1 0103- ●
6 VALVE; EXH BRAKE
(C) 		1-14144-603-4 01 1 0103- ●
6 VALVE; EXH BRAKE
(D) 		1-14144-616-0 01 1 0103- ●
7 CYLINDER ASM; CONT 1-22190-650-1 01 1 0103- ●
7 CYLINDER ASM; CONT 1-22190-592-1 01 1 0103- ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0103-0206 ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0207- ● ●
10 SEAL; DUST,CONT 1-22189-016-0 01 1 0103-0206 ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 0103- ● ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0103-0206 ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0207- ● ●
14 SHAFT; CONT CYL 1-22199-142-0 01 1 0103-0206 ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 0103-0206 ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 0207- ● ●
15 PLATE; CONT CYL 1-22199-096-0 01 1 0103-0206 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 0103-0206 ● ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 0207- ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 0103-0206 ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 0207- ● ●
17 GASKET; CONT CYL 1-22189-160-0 01 1 0103-0206 ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 0103-0206 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 0103-0206 ● ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 0207- ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0103-0206 ●
21 GASKET; COVER 1-22199-072-0 01 1 0207- ● ●
21 GASKET; COVER 9-88510-372-0 01 1 0103-0206 ●
23 COVER; CONT CYL 1-22199-066-0 01 1 0103- ● ●
24 BOLT; COVER 1-22199-155-0 02 1 0103-0206 ● ●
24 BOLT; COVER 1-22199-217-0 02 1 0207- ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		1-22199-160-0 02 1 1302- ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0103-0206 ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 0207-1301 ● ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		0-28081-060-0 02 1 1302- ●
25 BOLT; CONT CYL
(B) 		1-33739-200-0 02 1 0103-1301 ●
25 BOLT; CONT CYL
(B) 		1-22199-211-0 02 1 1302- ●
25 BOLT; CONT CYL
(A) M10X60 FLANGE 		1-22199-160-0 02 1 0103-0206 ●
30 ROD; LINK,CONT CYL 1-22199-162-0 02 1 0103- ●
30 ROD; LINK,CONT CYL 1-22199-165-0 02 1 0103- ●
32 WASHER; LK
ID=10.5 OD=26 		9-09164-710-0 01 1 0103- ●
34 RING; SEAL
(C) 		1-14149-207-0 02 1 0103- ●
34 RING; SEAL
(B) 		1-22189-272-0 02 1 0103- ●
34 RING; SEAL
(A) 		1-22189-273-0 02 1 0103- ●
34 RING; SEAL
(E) ID=21 		1-22189-158-0 01 1 0103- ●
34 RING; SEAL
(D) ID=18.8 		1-22189-159-0 02 1 0103- ●
35 BOLT; PLATE FIX
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0103-0206 ●
35 BOLT; PLATE FIX
(A) 		1-22189-308-0 04 1 0207- ●
35 BOLT; PLATE FIX
(B) M10X20 		0-28021-020-0 03 1 0103- ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 0103-0206 ● ●
104 RING; RET 9-88510-331-0 01 1 0103- ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0103- ● ●
106 BRACKET; CONT CYL 1-22186-141-0 01 1 0103- ●
106 BRACKET; CONT CYL 1-22186-138-0 01 1 0103- ●
107 NUT; CONT CYL
(A) 		1-89966-509-1 02 1 1302- ●
107 NUT; CONT CYL
(B) M8 		9-09110-508-0 01 1 1302- ●
107 NUT; CONT CYL
(A) 		9-83315-080-0 02 1 0103-0206 ● ●
107 NUT; CONT CYL
(A) M10 FLANGE 		0-91150-110-0 02 1 0207-1301 ● ●
107 NUT; CONT CYL
(A) M10 FLANGE 		0-91150-110-0 02 1 1302- ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 01 1 0103-1301 ● ●
107 NUT; CONT CYL
(B) 		9-83315-085-0 01 1 1302- ●
111 ELBOW; CONT CYL
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 0103- ●
132 LEVER; BRK VLV 1-22196-347-1 01 1 0103- ●
132 LEVER; BRK VLV 1-22196-346-0 01 1 0103- ●
133 NUT; LK
(C) M8 W/LK WASHER 		8-94279-050-0 01 1 0103- ●
133 NUT; LK
(B) M8 FLANGE 		0-91150-108-0 02 1 0103- ● ●
133 NUT; LK
(A) M10 FLANGE 		0-91150-110-0 01 1 0103- ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0103- ● ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 0103-0206 ●
153 BOLT; CLEVIS,CONT CYL
M8X25 FLANGE 		0-28080-825-0 02 1 0207- ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 0103- ● ●
159 COLLAR; CONT CYL 1-22199-151-0 02 1 0103- ● ●
160 JOINT; CONT CYL 1-22199-163-0 01 1 0103- ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 0103- ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0103-0206 ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0207- ● ●
çizim 137680
7 24 7 23 21 20 40 18 17 15 16 13 161 14 104 105 162 163 10
BalonParca AdiParca NoAdetTipApplied Date A B
7 CYLINDER ASM; CONT 1-22190-650-1 01 1 0103- ●
7 CYLINDER ASM; CONT 1-22190-592-1 01 1 0103- ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0103-0206 ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0207- ● ●
10 SEAL; DUST,CONT 1-22189-016-0 01 1 0103-0206 ●
13 SPRING; CONT CYL 1-22199-077-0 01 1 0103- ● ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0103-0206 ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0207- ● ●
14 SHAFT; CONT CYL 1-22199-142-0 01 1 0103-0206 ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 0103-0206 ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 0207- ● ●
15 PLATE; CONT CYL 1-22199-096-0 01 1 0103-0206 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 0103-0206 ● ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 0207- ● ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 0103-0206 ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 0207- ● ●
17 GASKET; CONT CYL 1-22189-160-0 01 1 0103-0206 ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 0103-0206 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 0103-0206 ● ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 0207- ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0103-0206 ●
21 GASKET; COVER 1-22199-072-0 01 1 0207- ● ●
21 GASKET; COVER 9-88510-372-0 01 1 0103-0206 ●
23 COVER; CONT CYL 1-22199-066-0 01 1 0103- ● ●
24 BOLT; COVER 1-22199-155-0 02 1 0103-0206 ● ●
24 BOLT; COVER 1-22199-217-0 02 1 0207- ● ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 0103-0206 ● ●
104 RING; RET 9-88510-331-0 01 1 0103- ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0103- ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0103- ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0103- ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0103-0206 ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0207- ● ●
