1-50 — EXHAUST PIPE AND SILENCER (#10434) — 125 parça

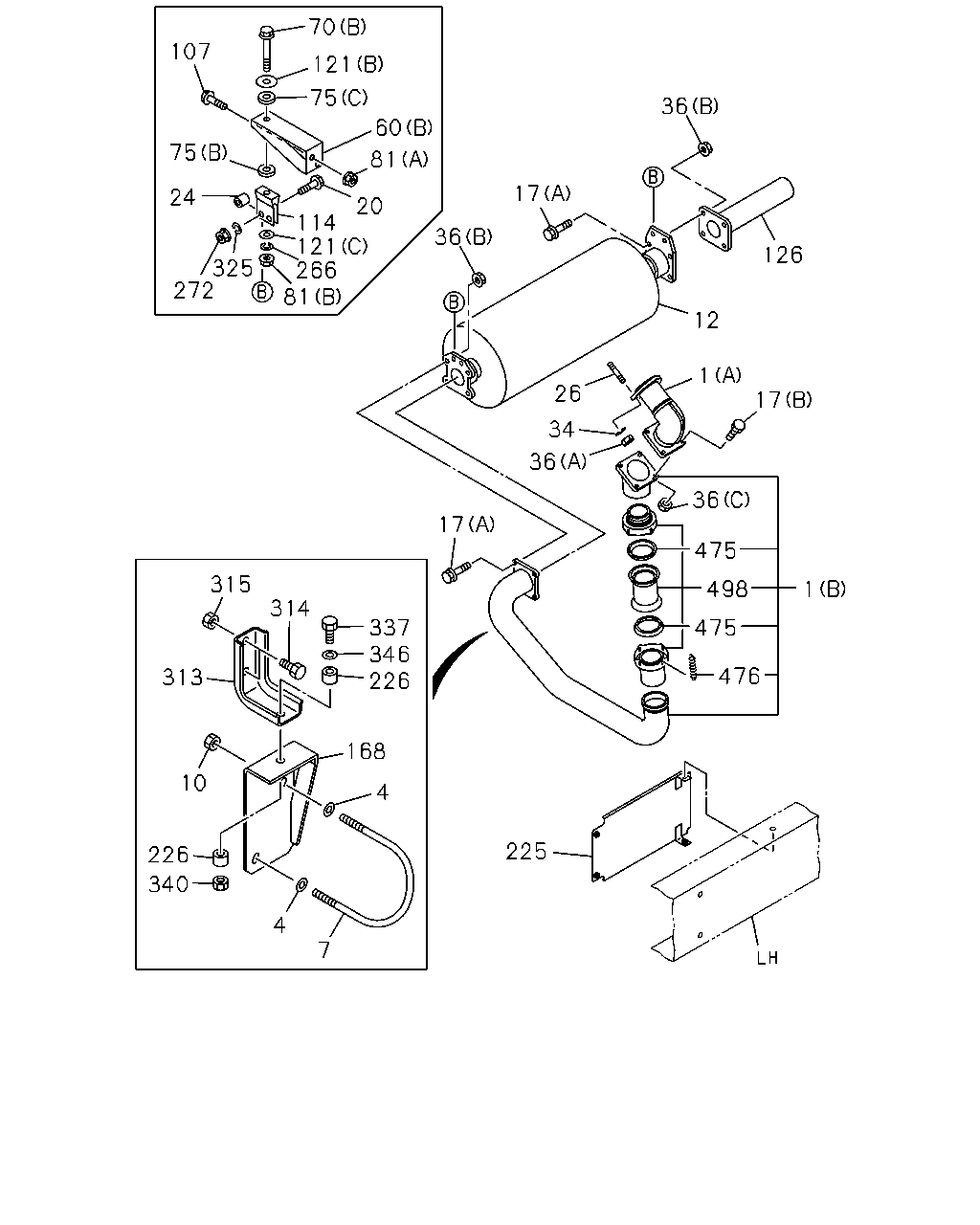

çizim 137566
70 107 121 75 36 60 75 81 17 24 20 114 121 266 81 36 126 325 272 12 1 26 17 34 36 36 17 475 315 498 1 314 337 346 226 475 476 313 168 10 4 225 226 340 4 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		1-22123-238-1 01 1 0103- ●
1 PIPE; EXH
(A) 		1-22122-227-1 01 1 0103- ●
1 PIPE; EXH
(B) 		1-22123-272-0 01 1 0103- ●
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		9-09160-708-0 02 1 0103-0605 ●
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		0-91610-708-0 02 1 0606- ●
7 U-BOLT; EXH PIPE,FRT 1-22113-079-0 01 1 0103- ●
10 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 02 1 0103-0602 ●
10 NUT; U BOLT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
12 SILENCER ASM; EXH 1-22140-938-0 01 1 0103- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28781-235-0 08 1 0103-0512 ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28751-235-0 08 1 0601- ● ●
17 BOLT; EXH PIPE
(B) M12X25 FLANGE 		1-09000-604-0 04 1 0103- ●
20 BOLT; FLANGE,EXH PIPE
M10X50 FLANGE 		0-28081-050-0 04 1 0103-0106 ● ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 0107-0512 ● ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28651-040-0 04 1 0601- ● ●
24 COLLAR; DIST,CLAMP
L=8.5 		1-22139-057-0 04 1 0103- ● ●
26 STUD; EXH MANIF
M12X140 L=160 		1-09302-163-0 03 1 0103- ●
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 03 1 0103- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0103-0303 ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 03 1 0304- ● ●
36 NUT; EXH PIPE
(B) M12 		1-09400-012-0 08 1 0103- ● ●
36 NUT; EXH PIPE
(C) M12 		9-99110-512-0 04 1 0103-0512 ●
36 NUT; EXH PIPE
(C) M12 		0-91110-512-0 04 1 0601- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-839-0 01 1 0103- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-840-1 02 1 0103- ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0103-0512 ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
(B) M10X53 		1-09009-171-0 02 1 0103- ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0103- ●
75 RUBBER; SUPPORT,BRKT
(B) 		1-22159-135-0 02 1 0103- ● ●
75 RUBBER; SUPPORT,BRKT
(C) 		1-22159-136-0 02 1 0103- ● ●
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0103-0603 ●
81 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0103-0602 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
81 NUT; BRKT
(B) M10 		9-09111-510-0 02 1 0103-0512 ● ●
81 NUT; BRKT
(B) M10 		0-91111-510-0 02 1 0601- ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0103-0512 ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
114 BRACKET; EXH SILENCER 1-22139-123-0 02 1 0103- ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 0103-0605 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
(B) ID=15 OD=52 		9-09164-814-0 02 1 0103- ● ●
121 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		9-09160-510-0 02 1 0208-0605 ● ●
121 WASHER; PL,BRKT
(C) ID=10.5 		0-91610-510-0 02 1 0606- ● ●
126 PIPE; EXH,RR 1-22123-377-0 01 1 0103- ● ●
168 BRACKET; EXH PIPE,FRT 1-47478-525-0 01 1 0103- ●
225 PROTECTOR; HEAT 1-22119-493-0 01 1 0103- ●
226 RUBBER; CUSHION
OD=30 		1-22159-106-1 02 1 0103- ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0103-0603 ● ●
266 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 02 1 0604- ● ●
272 NUT; FLANGE
M10 		9-09110-410-0 04 1 0103-0512 ● ●
272 NUT; FLANGE
M10 		0-91110-510-0 04 1 0601- ● ●
313 BRACKET; BRKT TO FRAME,EXH PIPE,FRT 1-22151-433-1 01 1 0103- ●
314 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0103-0512 ●
314 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
315 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0103-0602 ●
315 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		9-09150-510-0 04 1 0103-0603 ● ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		0-91510-510-0 04 1 0604- ● ●
337 BOLT; RUBBER,SUPPORT
M10X50 FLANGE 		0-28081-050-0 01 1 0103-0512 ●
337 BOLT; RUBBER,SUPPORT
M10X50 FLANGE 		0-28051-050-0 01 1 0601- ●
340 NUT; RUBBER,SUPPORT
M10 LOCK NUT 		9-09131-510-0 01 1 0103-0603 ●
340 NUT; RUBBER,SUPPORT
M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
346 WASHER; PL,SUPPORT RUBBER
ID=10.5 OD=32 		9-09164-810-0 01 1 0103-0605 ●
346 WASHER; PL,SUPPORT RUBBER
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=122 		1-22119-297-0 02 1 0103- ●
476 SPRING; VIBNON,EXH PIPE 1-09583-298-0 04 1 0103- ●
498 PIPE ASM 1-22123-311-0 01 1 0103- ●

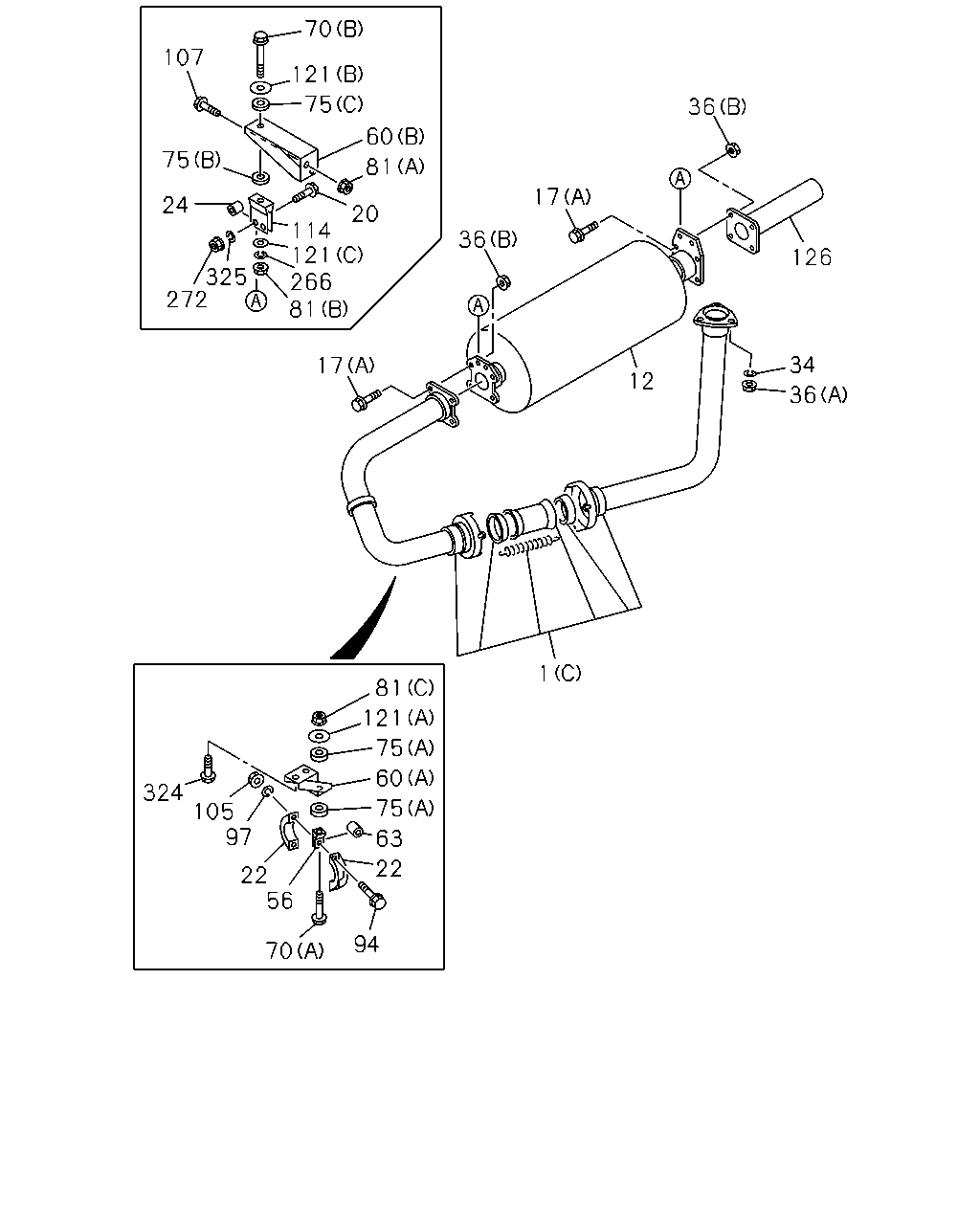

çizim 137681
70 107 121 75 36 60 75 81 17 24 20 114 121 266 81 36 126 325 272 34 17 12 36 1 81 121 75 60 324 75 105 97 63 22 22 56 94 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		1-22123-238-1 01 1 0103- ●
1 PIPE; EXH
(A) 		1-22122-227-1 01 1 0103- ●
1 PIPE; EXH
(B) 		1-22123-272-0 01 1 0103- ●
12 SILENCER ASM; EXH 1-22140-938-0 01 1 0103- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28781-235-0 08 1 0103-0512 ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28751-235-0 08 1 0601- ● ●
17 BOLT; EXH PIPE
(B) M12X25 FLANGE 		1-09000-604-0 04 1 0103- ●
20 BOLT; FLANGE,EXH PIPE
M10X50 FLANGE 		0-28081-050-0 04 1 0103-0106 ● ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 0107-0512 ● ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28651-040-0 04 1 0601- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0103- ●
24 COLLAR; DIST,CLAMP
L=8.5 		1-22139-057-0 04 1 0103- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 03 1 0103- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0103-0303 ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 03 1 0304- ● ●
36 NUT; EXH PIPE
(B) M12 		1-09400-012-0 08 1 0103- ● ●
36 NUT; EXH PIPE
(C) M12 		9-99110-512-0 04 1 0103-0512 ●
36 NUT; EXH PIPE
(C) M12 		0-91110-512-0 04 1 0601- ●
56 BRACKET; CLAMP,EXH PIPE
L=40 B=50 H=74 		1-22139-045-0 01 1 0103- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-839-0 01 1 0103- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-840-1 02 1 0103- ● ●
63 TUBE; DIST,BRKT
L=12.5 		1-22139-022-0 01 1 0103- ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0103-0512 ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0601- ●
70 BOLT; BRKT
(B) M10X53 		1-09009-171-0 02 1 0103- ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0103- ●
75 RUBBER; SUPPORT,BRKT
(B) 		1-22159-135-0 02 1 0103- ● ●
75 RUBBER; SUPPORT,BRKT
(C) 		1-22159-136-0 02 1 0103- ● ●
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0103-0603 ●
81 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0103-0602 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
81 NUT; BRKT
(B) M10 		9-09111-510-0 02 1 0103-0512 ● ●
81 NUT; BRKT
(B) M10 		0-91111-510-0 02 1 0601- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 0103-0512 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0103- ●
105 NUT; CLAMP
M10 		9-09111-410-0 02 1 0103-0512 ●
105 NUT; CLAMP
M10 		0-91111-510-0 02 1 0601- ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0103-0512 ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
114 BRACKET; EXH SILENCER 1-22139-123-0 02 1 0103- ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 0103-0605 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
(B) ID=15 OD=52 		9-09164-814-0 02 1 0103- ● ●
121 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		9-09160-510-0 02 1 0208-0605 ● ●
121 WASHER; PL,BRKT
(C) ID=10.5 		0-91610-510-0 02 1 0606- ● ●
126 PIPE; EXH,RR 1-22123-377-0 01 1 0103- ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0103-0603 ● ●
266 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 02 1 0604- ● ●
272 NUT; FLANGE
M10 		9-09110-410-0 04 1 0103-0512 ● ●
272 NUT; FLANGE
M10 		0-91110-510-0 04 1 0601- ● ●
324 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0103-0512 ●
324 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		9-09150-510-0 04 1 0103-0603 ● ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		0-91510-510-0 04 1 0604- ● ●
