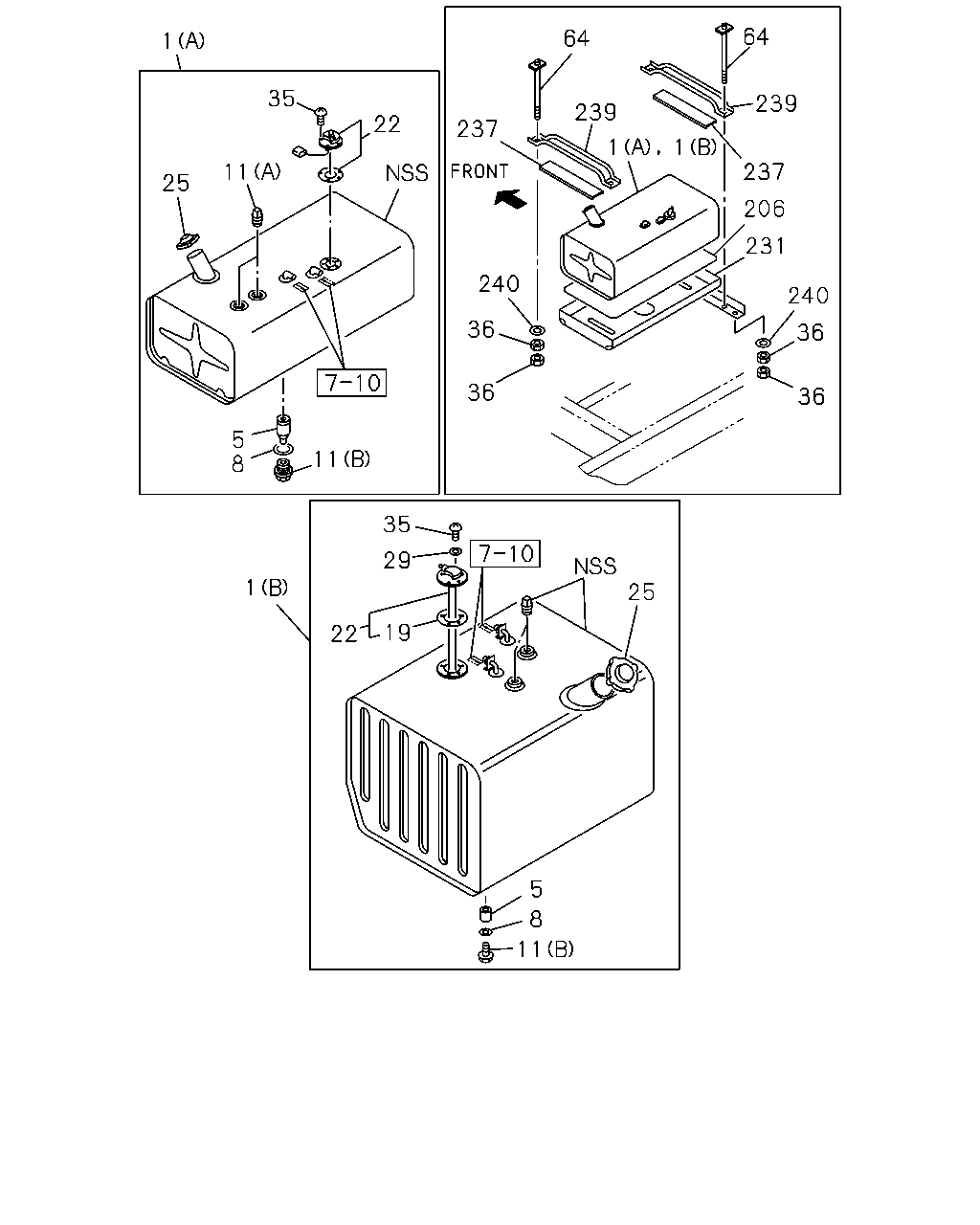

1-40 — FUEL TANK (#10431) — 30 parça

64 64 1 35 239 239 22 237 1 1 237 11 25 206 231 240 240 36 36 36 36 5 8 11 35 29 1 25 19 22 5 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 280L<RF4> (B) 840X649X549 278L	1-22401-086-1	01	1	0103-	●	●
1	TANK; FUEL EXC. FUEL TANK 280L<RF4> (A) 1260X532X322 200L	1-22401-087-2	01	1	0103-	●	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	0103-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	0103-0509	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	8-98030-375-0	01	1	0510-	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0103-	●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 280L<RF4> (A) PT1/4	9-99204-513-0	02	1	0103-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 280L<RF4> ID=45 OD=67	1-83149-003-0	01	1	0103-	●	●
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	1-83141-118-0	01	1	0103-	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 280L<RF4>	1-83141-106-0	01	1	0103-	●	●
25	CAP; FILLER,FUEL TANK	1-22440-023-1	01	1	0103-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 280L<RF4> ID=4.3	9-09160-504-0	01	1	0103-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/LK&PL WASHER	9-03920-410-0	05	1	0103-0604	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/LK&PL WASHER	0-36230-410-0	05	1	0605-	●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 280L<RF4>	1-22419-012-0	05	1	0103-	●	●
36	NUT; SPACER,FUEL TANK UPPER M12	9-99110-512-0	04	1	0103-0509	●	●
36	NUT; SPACER,FUEL TANK M12	9-99110-512-0	08	1	0510-0512	●	●
36	NUT; SPACER,FUEL TANK M12	0-91110-512-0	08	1	0601-	●	●
36	NUT; SPACER,FUEL TANK LOWER M12	9-99111-412-0	04	1	0103-0509	●	●
64	BOLT; FUEL TANK FUEL TANK 280L<RF4> M12X594	1-22559-003-1	04	1	0103-	●	●
64	BOLT; FUEL TANK EXC. FUEL TANK 280L<RF4> M12X359	9-22559-030-2	04	1	0103-	●	●
206	SLEEPER; FUEL TANK FUEL TANK 280L<RF4>	1-22554-002-0	01	1	0103-	●	●
206	SLEEPER; FUEL TANK EXC. FUEL TANK 280L<RF4>	1-22555-018-0	01	1	0103-	●	●
231	COVER; UNDER,FUEL TANK FUEL TANK 280L<RF4>	1-22557-003-0	01	1	0103-	●	●
231	COVER; UNDER,FUEL TANK EXC. FUEL TANK 280L<RF4>	1-22557-040-0	01	1	0103-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 280L<RF4> L=580	1-22553-003-0	04	1	0103-	●	●
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 280L<RF4> L=540	1-22553-006-0	02	1	0103-	●	●
239	SUPPORT; FUEL TANK FUEL TANK 280L<RF4>	1-22555-004-0	02	1	0103-	●	●
239	SUPPORT; FUEL TANK EXC. FUEL TANK 280L<RF4>	9-22555-005-0	02	1	0103-	●	●
240	WASHER; PL,FUEL TANK ID=12.5 OD=26	9-09164-612-0	04	1	0103-	●	●
