1-35 — CHARGE AIR COOLER (#10430) — 100 parça

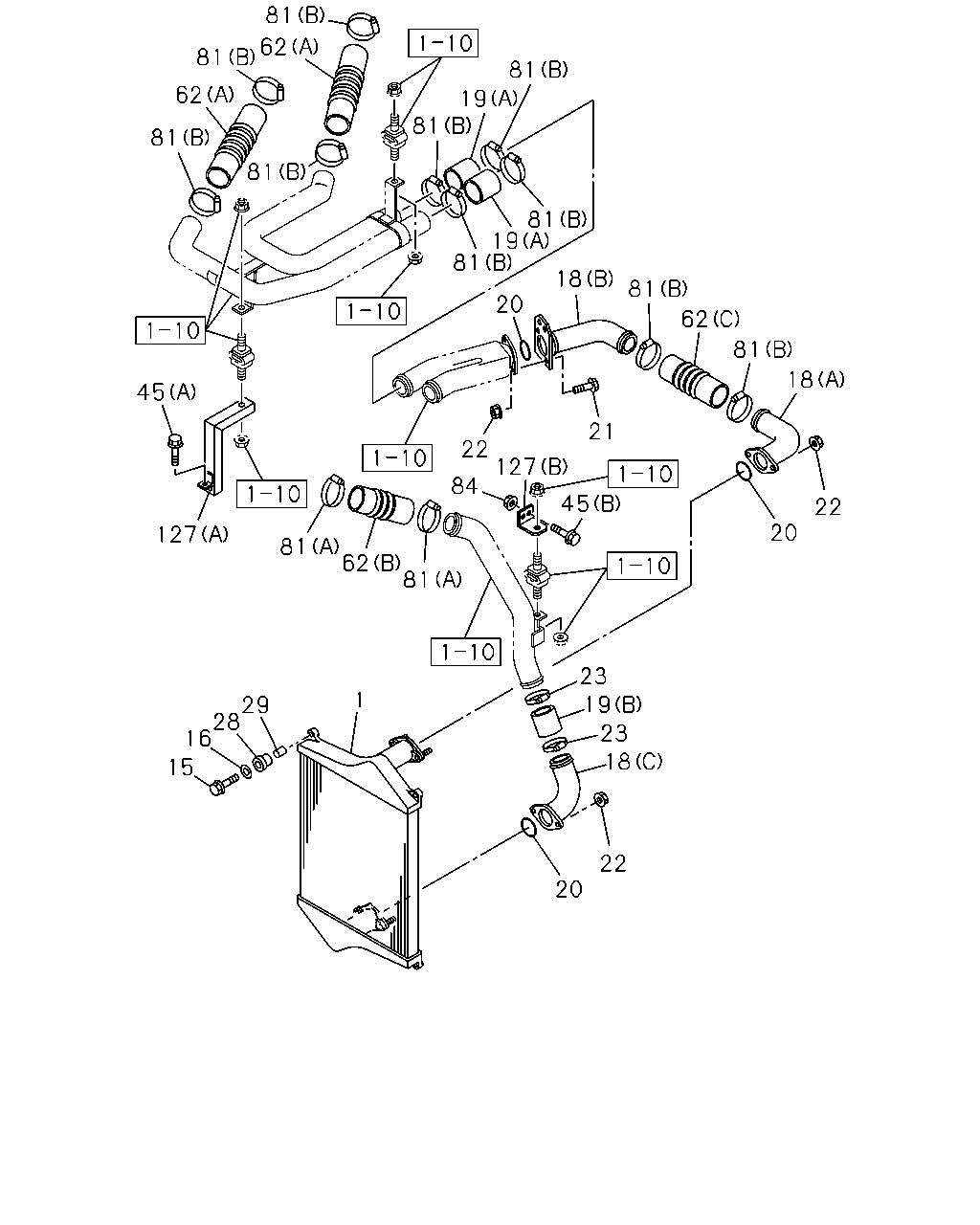

çizim 137576
81 62 81 81 19 81 62 81 81 81 19 81 18 81 20 62 81 18 45 21 22 127 84 45 22 20 127 81 62 81 23 19 23 18 1 29 28 16 15 22 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR 1-14431-042-1 01 1 0103- ●
1 COOLER; CHARGE AIR 1-14431-054-2 01 1 0103- ●
15 BOLT; CHARGE AIR COOLER
M8X50 FLANGE 		0-28080-850-0 04 1 0103- ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 0303-1205 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		0-91614-810-0 04 1 1206-1207 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		0-91614-810-0 04 1 1208- ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 0103-0302 ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 08 1 0303-1207 ●
18 ADAPTER
(D) 		1-14112-684-0 01 1 0103- ●
18 ADAPTER
(E) 		1-14112-685-0 01 1 0103- ●
18 ADAPTER
(A) 		1-14112-733-0 01 1 0103- ●
18 ADAPTER
(B) 		1-14112-734-0 01 1 0103- ●
18 ADAPTER
(C) 		1-14112-735-0 01 1 0103- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(C) ID=62 L=70 		1-09360-797-1 02 1 0103-1408 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(C) ID=62 L=70 		8-98245-240-0 02 1 1409- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(D) 		1-09360-911-0 01 1 0103-0212 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(D) 		1-09361-118-0 01 1 0301- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(E) 		8-94395-023-1 01 1 0103- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		1-09361-047-0 02 1 0103- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		1-09361-048-0 01 1 0103- ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 0103- ●
20 GASKET
ID=84.6 		1-09623-431-0 03 1 0103- ●
21 BOLT
M10X35 FLANGE 		0-28681-035-0 02 1 0103-0512 ●
21 BOLT
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 0103-0602 ●
22 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
22 NUT
M10 FLANGE 		0-91150-210-0 06 1 0103-0602 ●
22 NUT
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
23 CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 12 1 1002- ●
23 CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 06 1 1002- ●
23 CLIP; HOSE
ID=58-79 		8-94126-771-0 12 1 0103-0306 ●
23 CLIP; HOSE
ID=58-76 		1-09707-203-0 12 1 0307-0811 ●
23 CLIP; HOSE
ID=55-75 		8-98133-349-0 12 1 0812-1001 ●
23 CLIP; HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 12 1 1002- ●
23 CLIP; HOSE
ID=68-85 		8-94320-428-0 06 1 0103-0306 ●
23 CLIP; HOSE
ID=68-85 		1-09707-202-0 06 1 0307-0810 ●
23 CLIP; HOSE
ID=65-85 		8-98133-350-0 06 1 0811-1001 ●
23 CLIP; HOSE
KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 06 1 1002- ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-018-0 08 1 0103- ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 0103- ● ●
45 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0103-0512 ●
45 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
45 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0103-0512 ●
45 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
62 HOSE; CHARGE AIR COOLER TO INL DUCT
(A) L=270 		1-09360-914-2 02 1 0103- ●
62 HOSE; CHARGE AIR COOLER TO INL DUCT
(B) 		1-09361-045-0 01 1 0103- ●
62 HOSE; CHARGE AIR COOLER TO INL DUCT
(C) 		1-09361-046-0 01 1 0103- ●
81 CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> (A) ID=77-99 		1-09707-141-0 04 1 1002- ●
81 CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85 		8-98096-592-0 10 1 1002- ●
81 CLIP; HOSE
(A) ID=77-95 		1-09707-114-0 04 1 0103-0306 ●
81 CLIP; HOSE
(A) ID=77-95 		1-09707-198-0 04 1 0307-0810 ●
81 CLIP; HOSE
(A) ID=75-95 		8-98133-357-0 04 1 0811-1001 ●
81 CLIP; HOSE
KD PREPARATORY PACK<6HF> (A) ID=75-95 		8-98133-357-0 04 1 1002- ●
81 CLIP; HOSE
(B) ID=68-85 		8-94320-428-0 10 1 0103-0306 ●
81 CLIP; HOSE
(B) ID=68-85 		1-09707-202-0 10 1 0307-0810 ●
81 CLIP; HOSE
(B) ID=65-85 		8-98133-350-0 10 1 0811-1001 ●
81 CLIP; HOSE
KD PREPARATORY PACK<6HF> (B) ID=65-85 		8-98133-350-0 10 1 1002- ●
84 NUT; BRKT
M8 FLANGE 		0-91150-208-0 04 1 0103-0602 ●
84 NUT; BRKT
M8 FLANGE 		0-91180-208-0 04 1 0603- ●
127 BRACKET; DUCT
(A) 		1-21439-115-0 01 1 0103-1208 ●
127 BRACKET; DUCT
(A) 		8-98185-269-0 01 1 1209- ●
127 BRACKET; DUCT
(B) 		1-47478-710-0 01 1 0103- ●

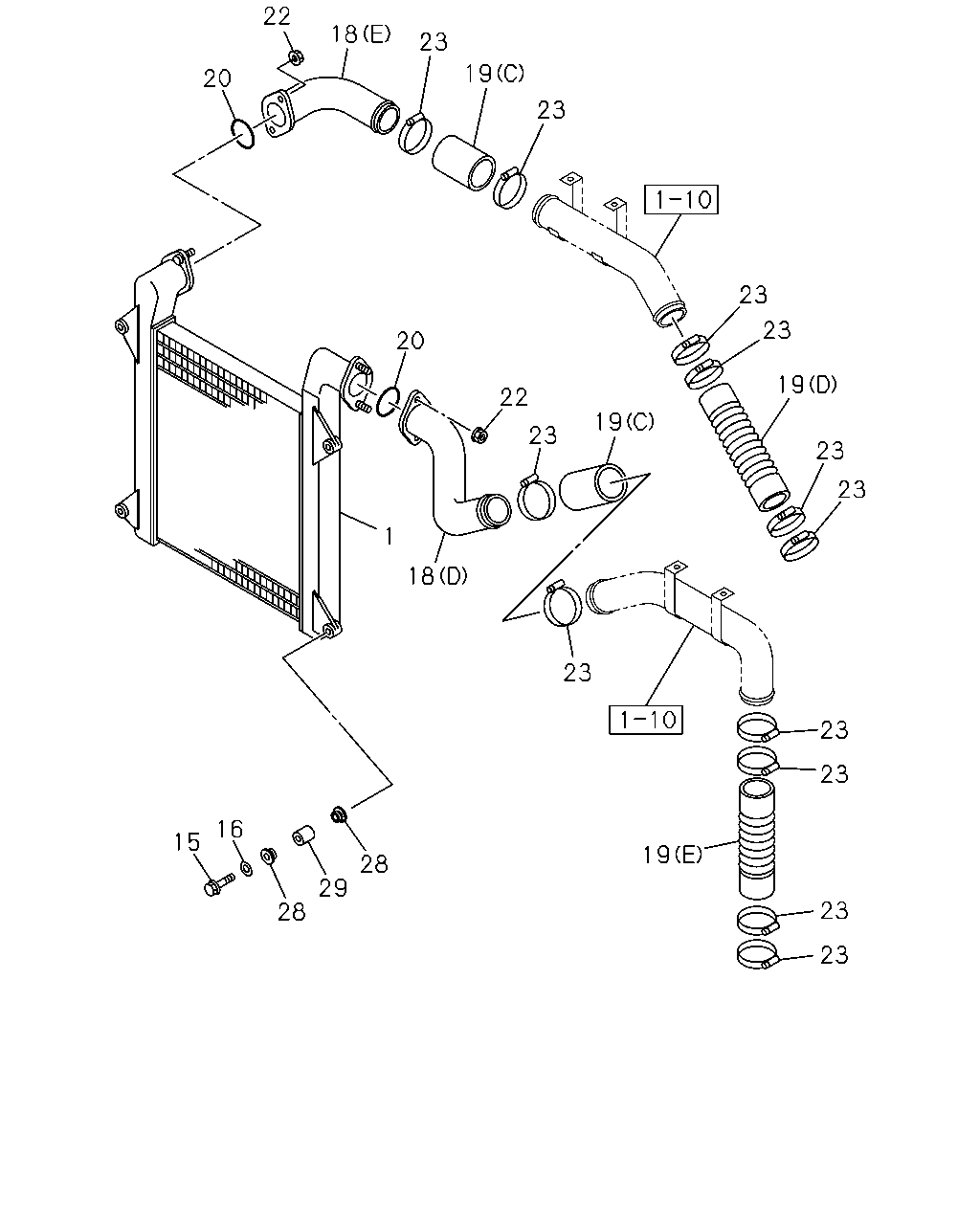

çizim 137677
22 18 23 19 20 23 23 23 20 19 22 19 23 23 23 1 18 23 23 23 16 15 19 28 29 23 28 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR 1-14431-042-1 01 1 0103- ●
1 COOLER; CHARGE AIR 1-14431-054-2 01 1 0103- ●
15 BOLT; CHARGE AIR COOLER
M8X50 FLANGE 		0-28080-850-0 04 1 0103- ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 0303-1205 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		0-91614-810-0 04 1 1206-1207 ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		0-91614-810-0 04 1 1208- ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 04 1 0103-0302 ● ●
16 WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32 		9-09164-810-0 08 1 0303-1207 ●
18 ADAPTER
(D) 		1-14112-684-0 01 1 0103- ●
18 ADAPTER
(E) 		1-14112-685-0 01 1 0103- ●
18 ADAPTER
(A) 		1-14112-733-0 01 1 0103- ●
18 ADAPTER
(B) 		1-14112-734-0 01 1 0103- ●
18 ADAPTER
(C) 		1-14112-735-0 01 1 0103- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(C) ID=62 L=70 		1-09360-797-1 02 1 0103-1408 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(C) ID=62 L=70 		8-98245-240-0 02 1 1409- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(D) 		1-09360-911-0 01 1 0103-0212 ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(D) 		1-09361-118-0 01 1 0301- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(E) 		8-94395-023-1 01 1 0103- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) 		1-09361-047-0 02 1 0103- ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) 		1-09361-048-0 01 1 0103- ●
20 GASKET
ID=84.6 		1-09623-431-0 02 1 0103- ●
20 GASKET
ID=84.6 		1-09623-431-0 03 1 0103- ●
22 NUT
M10 FLANGE 		0-91150-210-0 04 1 0103-0602 ●
22 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
22 NUT
M10 FLANGE 		0-91150-210-0 06 1 0103-0602 ●
22 NUT
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
23 CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 12 1 1002- ●
23 CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 06 1 1002- ●
23 CLIP; HOSE
ID=58-79 		8-94126-771-0 12 1 0103-0306 ●
23 CLIP; HOSE
ID=58-76 		1-09707-203-0 12 1 0307-0811 ●
23 CLIP; HOSE
ID=55-75 		8-98133-349-0 12 1 0812-1001 ●
23 CLIP; HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 12 1 1002- ●
23 CLIP; HOSE
ID=68-85 		8-94320-428-0 06 1 0103-0306 ●
23 CLIP; HOSE
ID=68-85 		1-09707-202-0 06 1 0307-0810 ●
23 CLIP; HOSE
ID=65-85 		8-98133-350-0 06 1 0811-1001 ●
23 CLIP; HOSE
KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 06 1 1002- ●
28 RUBBER; MTG,CHARGE AIR COOLER 1-21467-018-0 08 1 0103- ● ●
29 COLLAR; MTG RUBBER,CAC BRKT 1-21469-100-0 04 1 0103- ● ●
