◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10630 - FVR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#1043) — 110 parça

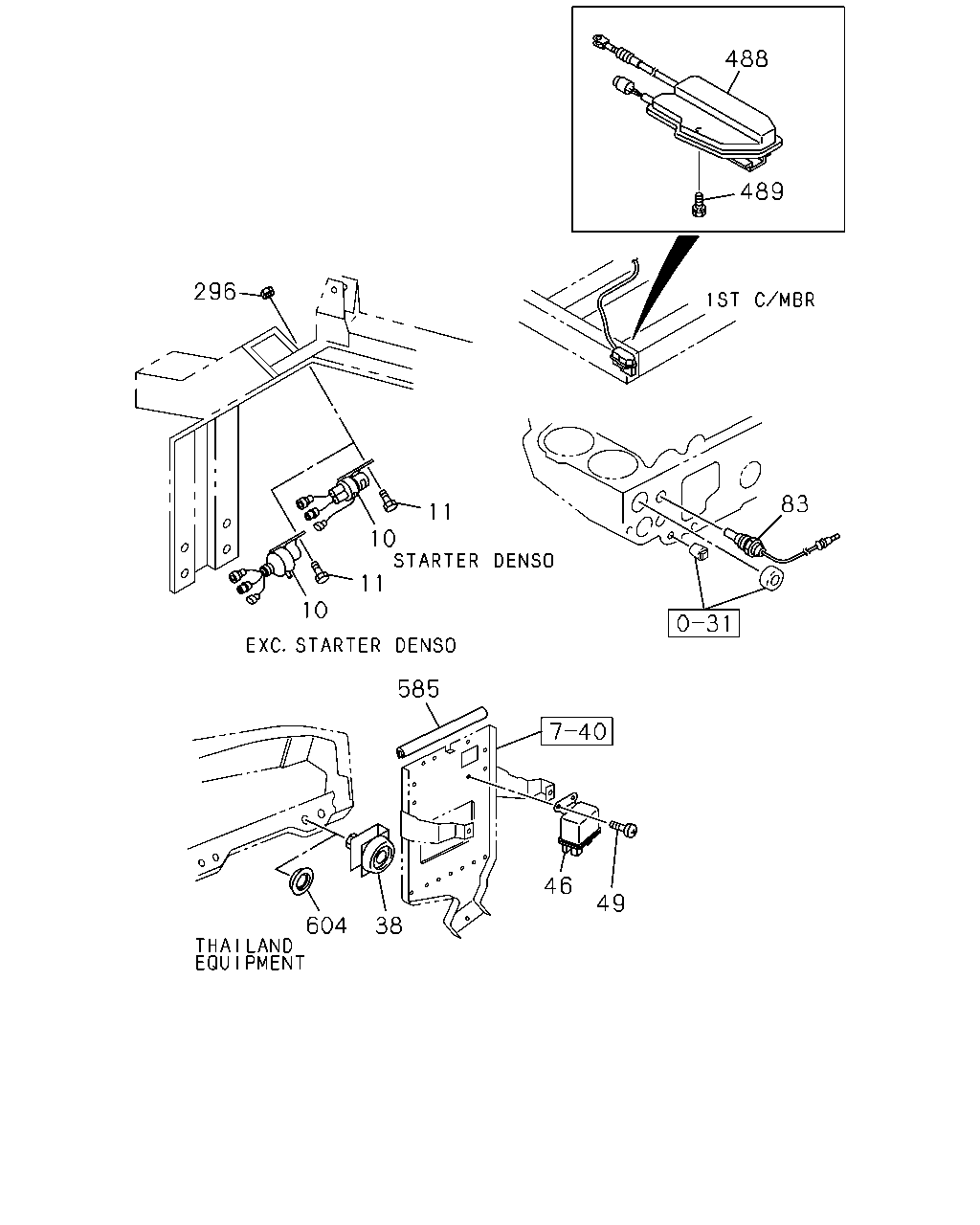

çizim 92420
488 489 296 83 11 10 11 10 585 46 49 604 38
BalonParca AdiParca NoAdetTipApplied Date A B C
10 RELAY; STARTER
STARTER DENSO(RC6) DENSO 		1-81171-070-0 01 1 9202- ● ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-067-0 01 1 9202- ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28080-820-0 02 1 9202- ● ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9202-9407 ● ● ●
38 RESISTOR; CONT,GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 		1-81402-008-0 01 1 9408- ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 9202-9407 ● ● ●
46 RELAY; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 		8-94258-014-0 01 1 9408- ● ● ●
49 SCREW; GLOW PLUG RELAY
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202-9407 ● ● ●
49 SCREW; GLOW PLUG RELAY
EXC. THAILAND EQUIPMENT(PM9) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9408- ● ● ●
83 THERMOMETER UNIT 1-83161-019-1 01 1 9202- ● ● ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9202- ● ● ●
488 STOPPER; ENG
AUTO ENG SHUTOFF(KB6) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-82840-084-0 01 1 9202-9211 ● ●
488 STOPPER; ENG
AUTO ENG SHUTOFF(KB6) 		1-82840-084-2 01 1 9212- ● ●
488 STOPPER; ENG
AUTO ENG SHUTOFF(KB6) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-82840-065-0 01 1 9202-9211 ● ●
488 STOPPER; ENG
AUTO ENG SHUTOFF(KB6) 		1-82840-064-2 01 1 9202- ●
489 BOLT; ENG STOPPER
AUTO ENG SHUTOFF(KB6) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9202-9204 ● ●
489 BOLT; ENG STOPPER
AUTO ENG SHUTOFF(KB6) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ●
489 BOLT; ENG STOPPER
AUTO ENG SHUTOFF(KB6) M8X20 FLANGE 		0-28080-820-0 02 1 9206- ● ●
585 FINISHER; QOS
L=2040 		1-71997-513-1 01 1 9202- ● ● ●
604 GROMMET; CONT RESISTANCE
THAILAND EQUIPMENT(PM9) OD=30 		8-94107-655-0 01 1 9408- ● ● ●

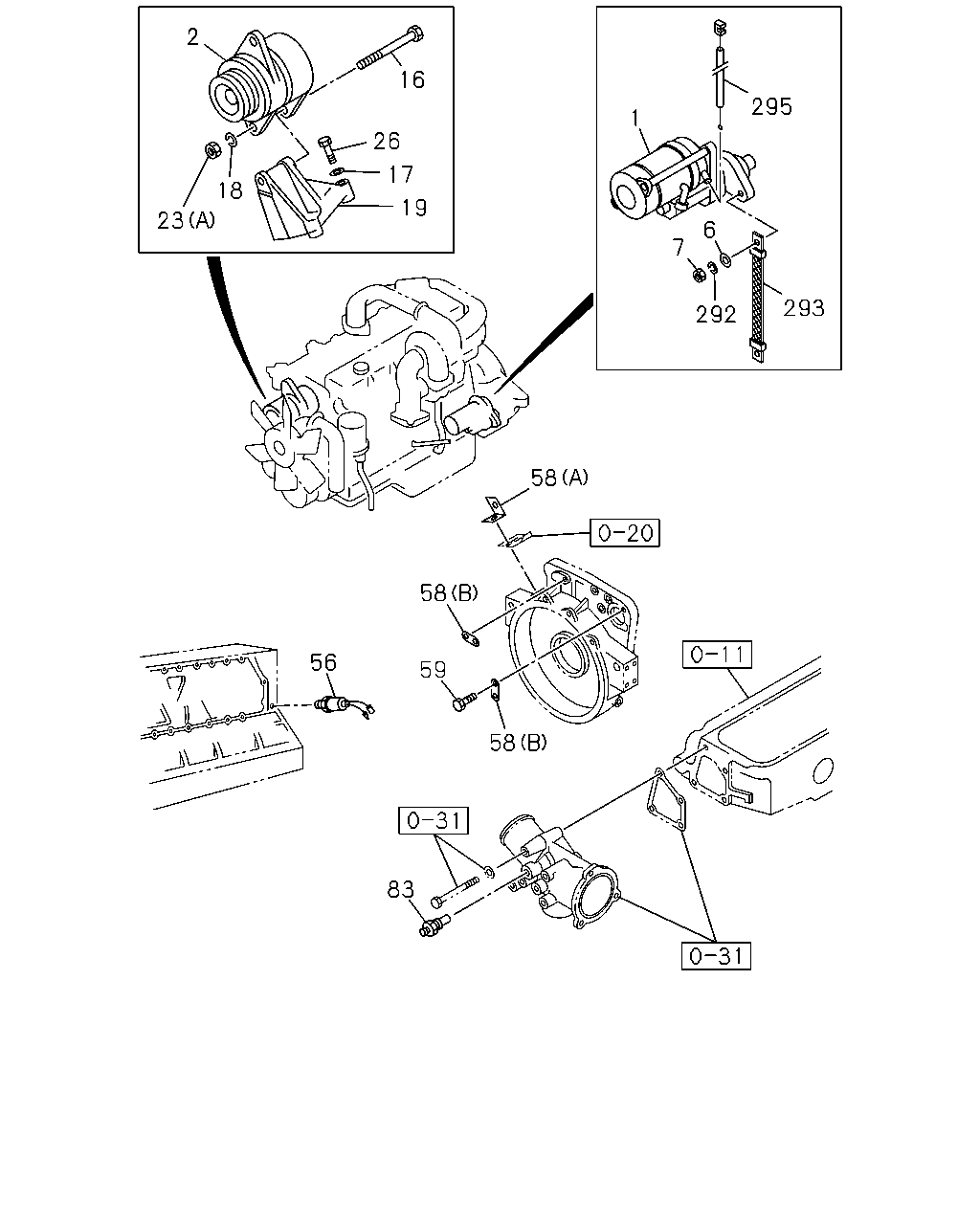

çizim 92824
2 16 295 1 26 17 18 19 23 6 7 293 292 58 58 56 59 58 83
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-230-1 01 1 9202- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-295-0 01 1 9202- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A 1KW 		1-81200-320-4 01 1 9202- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 30A DENSO 		1-81200-321-4 01 1 9202- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) 24V 30A DENSO 		1-81200-321-4 01 1 9202- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-40A 1KW(SC5) 24V 40A NIKKO 		1-81200-416-3 01 1 9202- ●
6 WASHER; PL,STARTER
ID=15 		9-09160-514-0 02 1 9202- ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9202-9303 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9304- ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 9202-9303 ●
16 BOLT; GEN
M14X128 		9-09801-203-0 01 1 9202- ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9202- ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 02 1 9202- ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9202- ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9202- ● ●
19 BRACKET; GEN 1-19711-033-2 01 1 9202- ● ●
19 BRACKET; GEN
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A) 		8-94396-297-0 01 1 9202-9407 ●
19 BRACKET; GEN
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A) 		8-94396-297-0 01 1 9408- ●
19 BRACKET; GEN
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B) 		8-94397-438-1 01 1 9202-9412 ●
19 BRACKET; GEN
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B) 		8-94395-470-2 01 1 9501- ●
23 NUT; GEN
(A) M14 		9-99110-414-0 01 1 9202-9307 ● ●
23 NUT; GEN
(A) M14 		9-99110-414-0 01 1 9308- ● ● ●
23 NUT; GEN
(A) M14 FLANGE 		0-91150-114-0 01 1 9202-9307 ●
23 NUT; GEN
(B) M14 W/BRKT 		1-19711-029-0 01 1 9202-9506 ●
26 BOLT; GEN BRKT
M10X45 W/LK&PL WASHER 		0-50151-045-0 03 1 9202- ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9202- ●
26 BOLT; GEN BRKT
EXC. AIR CON MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 9202-9407 ●
26 BOLT; GEN BRKT
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X40 FLANGE 		0-28181-040-0 01 1 9408- ●
26 BOLT; GEN BRKT
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X40 FLANGE 		0-28181-040-0 02 1 9202- ●
56 SWITCH; OIL PRESSURE WARNING
PARTIAL OIL FILTER CARTRIDGE<KC2> PT1/8 		8-94178-003-1 01 1 9202- ●
56 SWITCH; OIL PRESSURE WARNING
PT1/8 		8-94178-003-1 01 1 9202- ●
56 SWITCH; OIL PRESSURE WARNING
EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> PT1/8 		1-82410-091-2 01 1 9202-9502 ●
56 SWITCH; OIL PRESSURE WARNING
PT1/8 		1-82410-091-2 01 1 9202-9502 ●
56 SWITCH; OIL PRESSURE WARNING
EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> PT1/8 		1-82410-160-0 01 1 9503- ●
56 SWITCH; OIL PRESSURE WARNING
PT1/8 		1-82410-160-0 01 1 9503- ●
58 BRACKET; CLIP
(A) L=55 		1-47475-304-0 01 1 9202- ● ●
58 BRACKET; CLIP
(B) L=52 		1-82699-178-0 01 1 9202- ● ●
58 BRACKET; CLIP
(B) L=62 		1-82699-179-0 01 1 9202- ● ●
59 BOLT; BRKT,HARNESS CLIP
EXC. CAB BACK OIL FILLER<E2J> M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9202- ● ●
83 THERMOMETER UNIT 1-83161-019-1 01 1 9202- ● ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9202-9303 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9304- ● ● ●
293 CABLE; STARTER EARTH
L=550 		1-82650-239-0 01 1 9202- ● ●
293 CABLE; STARTER EARTH
L=360 		1-82650-230-1 01 1 9202- ●
295 HARNESS; STARTER 1-82640-527-0 01 1 9202- ● ● ●

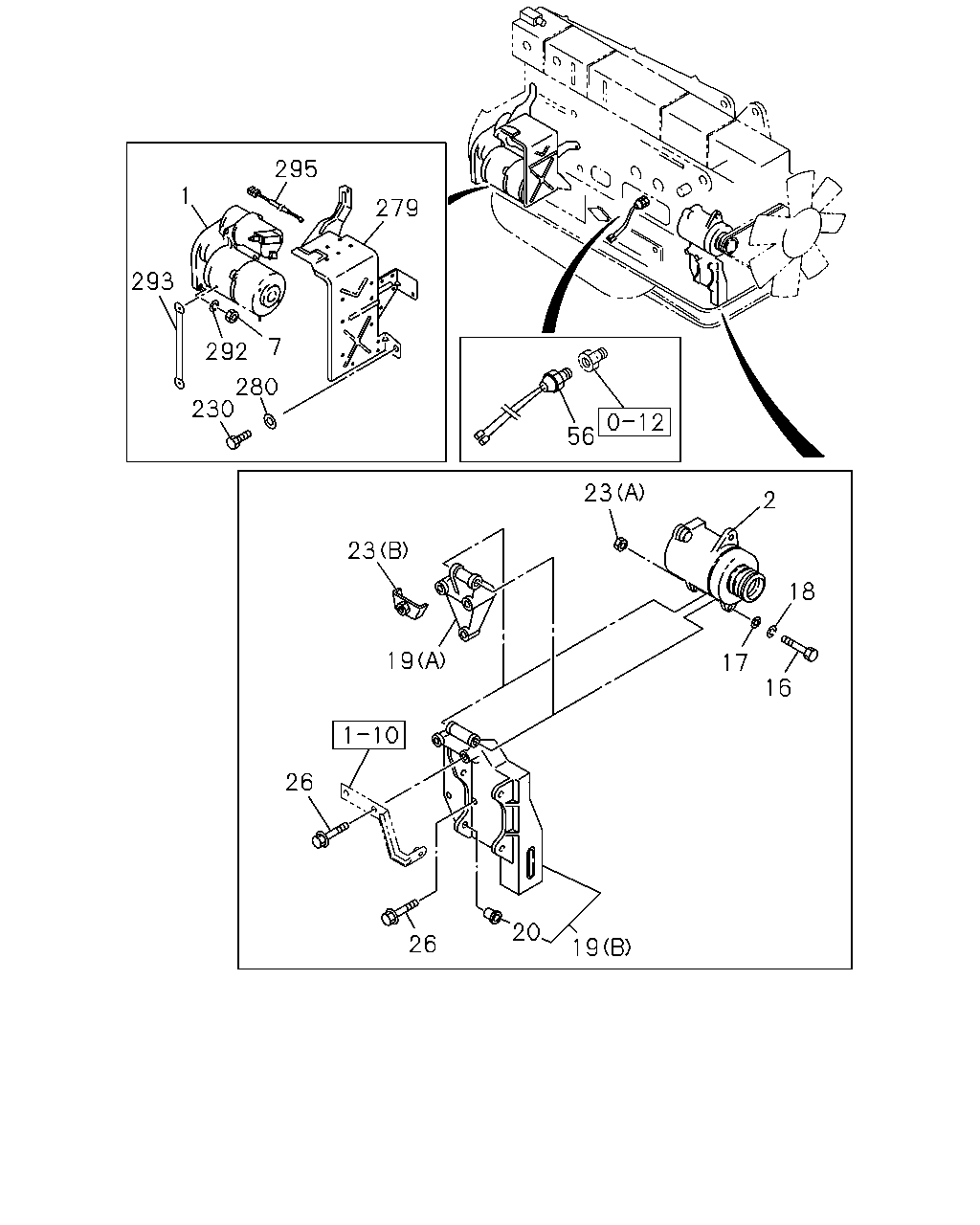

çizim 92856
295 1 279 293 7 292 280 230 56 23 2 23 18 19 17 16 26 20 26 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-230-1 01 1 9202- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-295-0 01 1 9202- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A 1KW 		1-81200-320-4 01 1 9202- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 30A DENSO 		1-81200-321-4 01 1 9202- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR NIKKO 24V-40A 1KW(SC5) 24V 30A DENSO 		1-81200-321-4 01 1 9202- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-40A 1KW(SC5) 24V 40A NIKKO 		1-81200-416-3 01 1 9202- ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9202-9303 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9304- ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 9202-9303 ●
16 BOLT; GEN
M14X128 		9-09801-203-0 01 1 9202- ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9202- ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 02 1 9202- ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9202- ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9202- ● ●
19 BRACKET; GEN 1-19711-033-2 01 1 9202- ● ●
19 BRACKET; GEN
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A) 		8-94396-297-0 01 1 9202-9407 ●
19 BRACKET; GEN
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A) 		8-94396-297-0 01 1 9408- ●
19 BRACKET; GEN
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B) 		8-94397-438-1 01 1 9202-9412 ●
19 BRACKET; GEN
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B) 		8-94395-470-2 01 1 9501- ●
20 COLLAR; BRKT,GEN
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		8-94399-959-0 02 1 9202-9412 ●
20 COLLAR; BRKT,GEN
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		8-94201-057-1 02 1 9501- ●
23 NUT; GEN
(A) M14 		9-99110-414-0 01 1 9202-9307 ● ●
23 NUT; GEN
(A) M14 		9-99110-414-0 01 1 9308- ● ● ●
23 NUT; GEN
(A) M14 FLANGE 		0-91150-114-0 01 1 9202-9307 ●
23 NUT; GEN
(B) M14 W/BRKT 		1-19711-029-0 01 1 9202-9506 ●
26 BOLT; GEN BRKT
M10X45 W/LK&PL WASHER 		0-50151-045-0 03 1 9202- ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9202- ●
26 BOLT; GEN BRKT
EXC. AIR CON MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 01 1 9202-9407 ●
26 BOLT; GEN BRKT
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X40 FLANGE 		0-28181-040-0 01 1 9408- ●
26 BOLT; GEN BRKT
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X40 FLANGE 		0-28181-040-0 02 1 9202- ●
56 SWITCH; OIL PRESSURE WARNING
PARTIAL OIL FILTER CARTRIDGE<KC2> PT1/8 		8-94178-003-1 01 1 9202- ●
56 SWITCH; OIL PRESSURE WARNING
PT1/8 		8-94178-003-1 01 1 9202- ●
56 SWITCH; OIL PRESSURE WARNING
EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> PT1/8 		1-82410-091-2 01 1 9202-9502 ●
56 SWITCH; OIL PRESSURE WARNING
PT1/8 		1-82410-091-2 01 1 9202-9502 ●
56 SWITCH; OIL PRESSURE WARNING
EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> PT1/8 		1-82410-160-0 01 1 9503- ●
56 SWITCH; OIL PRESSURE WARNING
PT1/8 		1-82410-160-0 01 1 9503- ●
230 BOLT; HEAT PROTECTOR
M8X14 FLANGE 		0-28080-814-0 03 1 9202-9307 ●
230 BOLT; HEAT PROTECTOR
M8X14 		0-20800-814-0 03 1 9308- ●
279 PROTECTOR; STARTER 8-94394-435-2 01 1 9202- ●
280 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=18 		9-09160-608-0 03 1 9202- ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9202-9303 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9304- ● ● ●
293 CABLE; STARTER EARTH
L=550 		1-82650-239-0 01 1 9202- ● ●
293 CABLE; STARTER EARTH
L=360 		1-82650-230-1 01 1 9202- ●
295 HARNESS; STARTER 1-82640-527-0 01 1 9202- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
