Isuzu WW
▶
BUSES
▶
LV
▶
10852 - LV123/150-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶

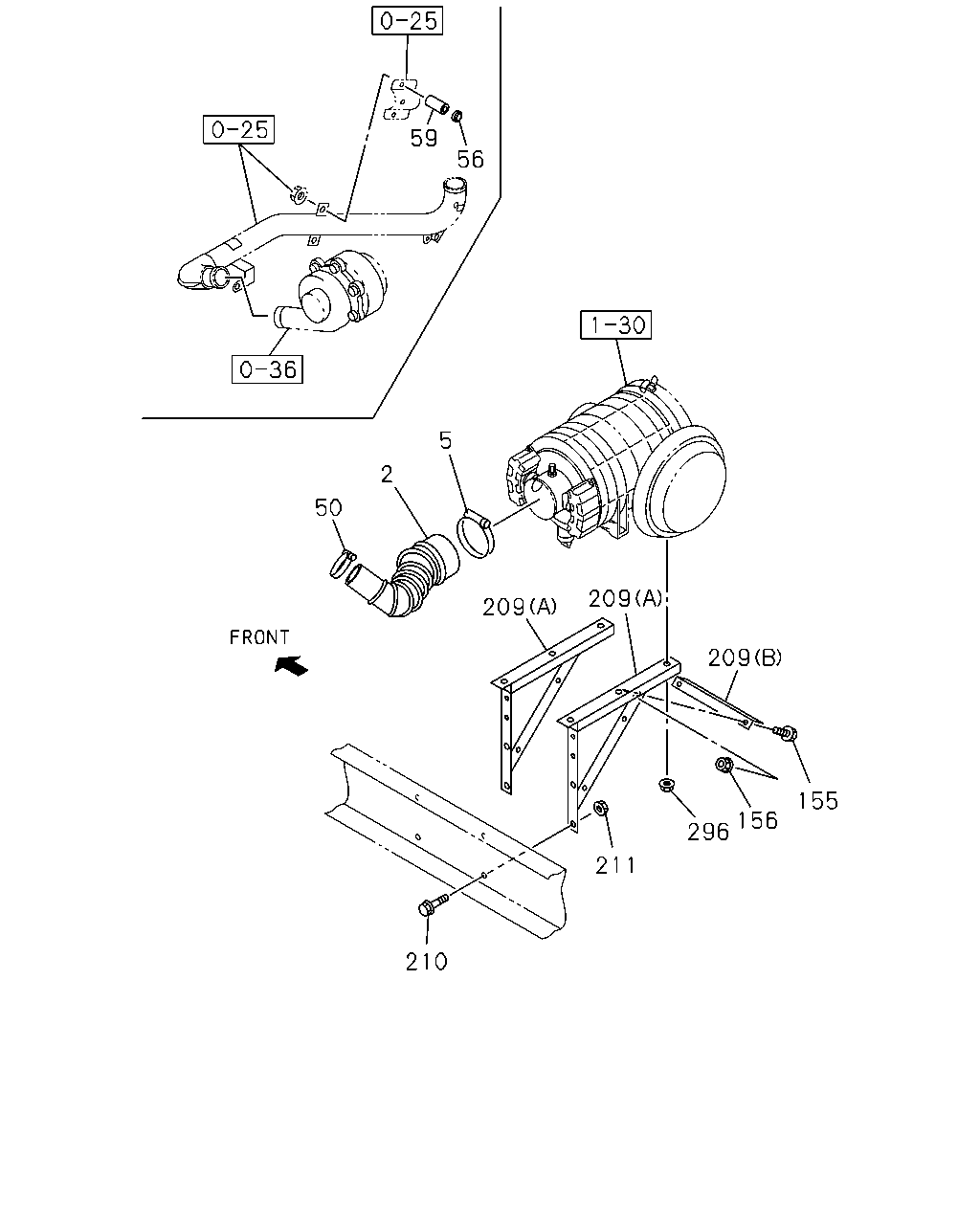

1-31 — AIR DUCT
(#10429) — 25 parça
Tümü
A - 6SD1 TC
B - 6WA1 TC-C
59
56
5
2
50
209
209
209
155
156
296
211
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
HOSE; ACL
1-14232-107-0
01
1
0103-
●
2
HOSE; ACL
1-14232-117-0
01
1
0103-
●
5
CLIP; AIR DUCT
ID=155-184
1-09707-182-0
01
1
0103-
●
●
50
CLIP; JOINT HOSE
EXC. KD PREPARATORY PACK<6HF> ID=77-99
1-09707-141-0
01
1
1002-
●
50
CLIP; JOINT HOSE
ID=77-95
1-09707-114-0
01
1
0103-0306
●
50
CLIP; JOINT HOSE
ID=77-95
1-09707-198-0
01
1
0307-0810
●
50
CLIP; JOINT HOSE
ID=75-95
8-98133-357-0
01
1
0811-1001
●
50
CLIP; JOINT HOSE
KD PREPARATORY PACK<6HF> ID=75-95
8-98133-357-0
01
1
1002-
●
50
CLIP; JOINT HOSE
ID=155-184
1-09707-182-0
01
1
0103-
●
56
WASHER; LK,AIR INT DUCT
T=5.5
1-14149-042-0
02
1
0103-
●
59
TUBE; DIST,AIR INT DUCT
L=43
1-14149-048-1
02
1
0103-
●
59
TUBE; DIST,AIR INT DUCT
L=55
1-14149-166-0
02
1
0103-
●
155
BOLT; BRKT
M12X30 FLANGE
0-28681-230-0
02
1
0103-0512
●
155
BOLT; BRKT
M12X30 FLANGE
0-28651-230-0
02
1
0601-
●
156
NUT; BRKT
M12 FLANGE
0-91150-212-0
02
1
0103-0602
●
156
NUT; BRKT
M12 FLANGE
0-91180-212-0
02
1
0603-
●
209
BRACKET; ACL
(A) WO/SIDE BRACKET
1-53419-364-1
01
1
0103-
●
209
BRACKET; ACL
(B)
1-53419-365-0
01
1
0103-
●
209
BRACKET; ACL
(A) W/SIDE BRACKET
1-53419-376-2
01
1
0103-
●
210
BOLT; ACL BRKT
M12X35 FLANGE
0-28681-235-0
04
1
0103-0512
●
210
BOLT; ACL BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0601-
●
211
NUT; BRKT
M12 FLANGE
0-91150-212-0
02
1
0103-0602
●
211
NUT; BRKT
M12 FLANGE
0-91180-212-0
02
1
0603-
●
296
NUT; ACL
M8 FLANGE
0-91150-208-0
04
1
0103-0602
●
●
296
NUT; ACL
M8 FLANGE
0-91180-208-0
04
1
0603-
●
●
