1-15 — SWING ARM AND IDLE PULLEY (#10427) — 79 parça

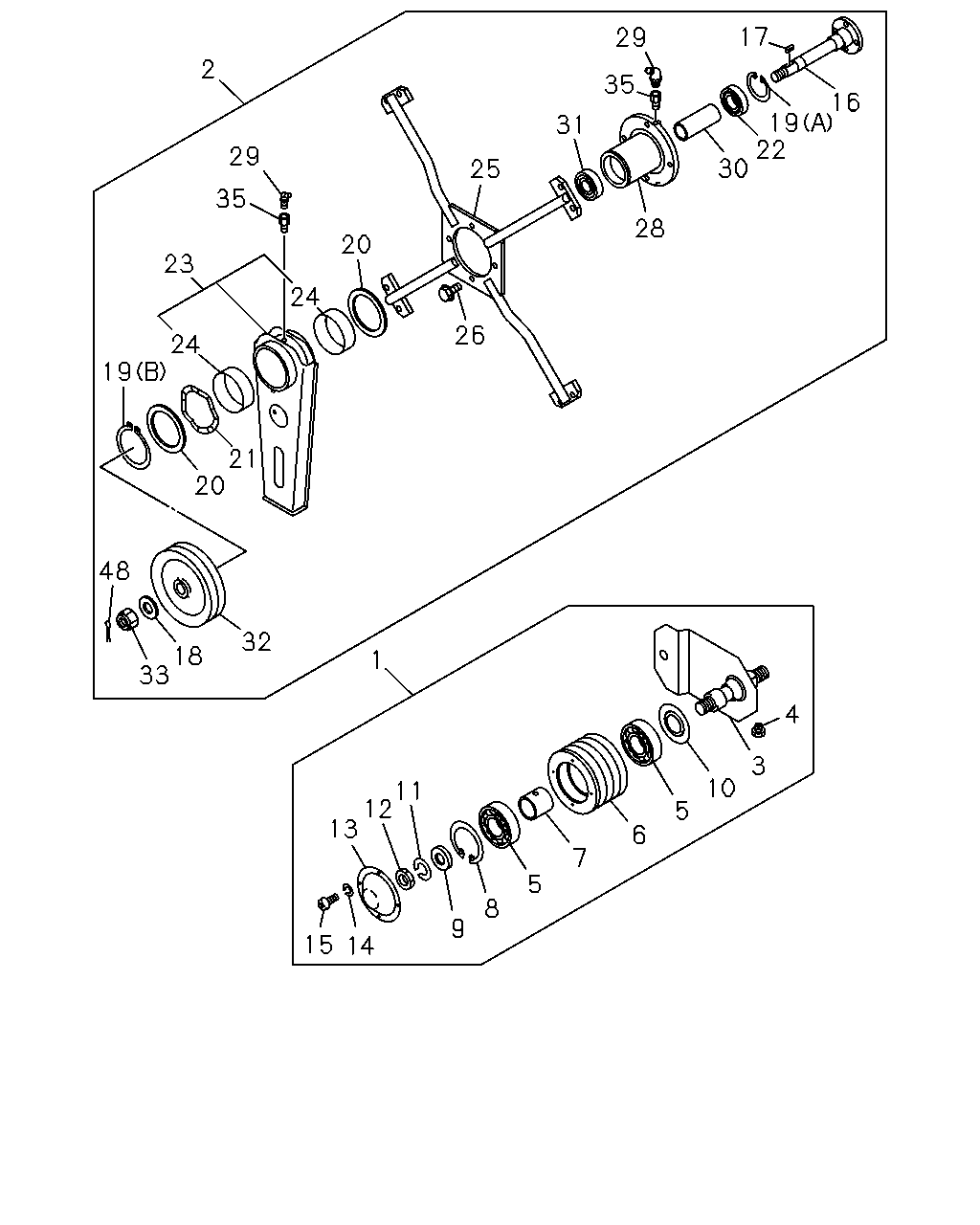

çizim 137671
17 29 2 35 16 19 22 30 31 29 25 35 28 20 23 24 26 24 19 21 20 48 32 18 33 1 4 3 10 11 12 13 5 6 7 5 8 9 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-218-0 01 1 0103- ●
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-239-0 01 1 0103- ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-234-2 01 1 0103-0304 ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-256-0 01 1 0305- ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-240-2 01 1 0103-0304 ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-257-0 01 1 0305-1503 ●
2 PULLEY ASM; FAN DRIVE,COOLING 8-98299-103-0 01 1 1504- ●
3 SPINDLE ASM; IDLE PULLEY,COOLING FAN 1-21611-051-0 01 1 0103- ●
3 SPINDLE ASM; IDLE PULLEY,COOLING FAN 1-21611-058-0 01 1 0103- ●
4 NIPPLE; GREASE,IDLE PULLEY
H=20.0 		9-83765-012-0 01 1 0103- ● ●
5 BEARING; IDLE PULLEY,COOLING FAN 1-09800-024-0 02 1 0103- ● ●
6 PULLEY; IDLE,COOLING FAN DRIVE 1-13663-093-0 01 1 0103- ● ●
7 SPACER; IDLE PULLEY BRG 1-21616-004-0 01 1 0103- ●
7 SPACER; IDLE PULLEY BRG 1-21616-013-0 01 1 0103- ●
8 RING; SNAP,IDLE PULLEY BRG
OD=95.5 		9-09180-590-0 01 1 0103- ● ●
9 WASHER; IDLE PULLEY,COOLING FAN 1-21619-003-0 01 1 0103- ● ●
10 PLATE; SEAL,IDLE PULLEY 1-21622-003-0 01 1 0103- ● ●
11 WASHER; LK,IDLE PULLEY
ID=24.5 		9-09150-524-0 01 1 0103-0603 ● ●
11 WASHER; LK,IDLE PULLEY
ID=24.5 		0-91510-524-0 01 1 0604- ● ●
12 NUT; IDLE PULLEY TO SPINDLE
M24 		9-09840-264-0 01 1 0103- ● ●
13 COVER; DUST,IDLE PULLEY,COOLING FAN 1-21622-002-0 01 1 0103- ●
13 COVER; DUST,IDLE PULLEY,COOLING FAN 1-21622-007-0 01 1 0103- ●
14 WASHER; LK,DUST COVER,IDLE PULLEY
ID=4.1 		9-09150-504-0 04 1 0103-0603 ● ●
14 WASHER; LK,DUST COVER,IDLE PULLEY
ID=4.1 		0-91510-504-0 04 1 0604- ● ●
15 SCREW; DUST COVER,IDLE PULLEY
M4X6 		9-93490-406-0 04 1 0103- ● ●
16 SHAFT; SWING ARM,COOLING FAN DRIVE 1-21611-054-0 01 1 0103- ● ●
17 KEY; FAN PULLEY 9-08000-720-0 01 1 0103- ● ●
18 WASHER; PL,FAN PULLEY
ID=21 		9-09164-520-0 01 1 0103- ● ●
19 RING; SNAP,FAN PULLEY BRG
(B) ID=74.5 		9-09180-480-0 01 1 0103- ● ●
19 RING; SNAP,FAN PULLEY BRG
(A) ID=57.9 		9-09180-562-0 01 1 0103- ● ●
20 WASHER; SWING ARM,COOLING FAN DRIVE 1-09503-041-0 02 1 0103- ● ●
21 WASHER; WAVE,SWING ARM,COOLING FAN DRI 1-09550-004-0 01 1 0103- ● ●
22 BEARING; FAN SIDE,COOLING FAN DRIVE 1-09800-039-0 01 1 0103- ● ●
23 ARM ASM; SWING,COOLING FAN DRIVE PULLE 8-98299-043-0 01 1 1504- ●
23 ARM ASM; SWING,COOLING FAN DRIVE PULLE 1-21625-069-0 01 1 0103-1503 ● ●
23 ARM ASM; SWING,COOLING FAN DRIVE PULLE 1-21625-069-0 01 1 1504- ●
24 BUSHING; SWING ARM 1-09330-005-0 02 1 0103- ● ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-071-1 01 1 0103-0203 ● ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-085-0 01 1 0204-0304 ● ●
25 STAY; DRIVE SHAFT CASE,FAN PULLEY 1-21625-087-0 01 1 0305- ● ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X25 FLANGE 		0-28781-025-0 04 1 0103-0304 ● ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X30 FLANGE 		0-28781-030-0 04 1 0305-0512 ● ●
26 BOLT; STAY TO CASE,COOLING FAN DRIVE
M10X30 FLANGE 		0-28751-030-0 04 1 0601- ● ●
28 CASE; DRIVE SHAFT,COOLING FAN 1-21621-004-0 01 1 0103- ● ●
29 NIPPLE; GREASE,FAN PULLEY CAGE
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 03 1 0103-0512 ● ●
29 NIPPLE; GREASE,FAN PULLEY CAGE
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0601- ● ●
30 PIECE; DIST,COOLING FAN DRIVE 1-21616-008-0 01 1 0103- ● ●
31 BEARING; PULLEY SIDE,FAN DRIVE 1-09800-038-0 01 1 0103- ● ●
32 PULLEY; COOLING FAN DRIVE 1-13663-095-1 01 1 0103- ●
32 PULLEY; COOLING FAN DRIVE 1-13663-094-1 01 1 0103- ●
33 NUT; LK,FAN PULLEY
M20 SLOTTED 		9-99116-420-0 01 1 0103- ● ●
35 ADAPTER; FAN DRIVE
PT1/8 STRAIGHT 		9-09902-238-0 02 1 0103- ● ●
48 PIN; SPLIT,FAN PULLEY 9-08114-040-0 01 1 0103-0607 ● ●
48 PIN; SPLIT,FAN PULLEY 0-81124-040-0 01 1 0608- ● ●

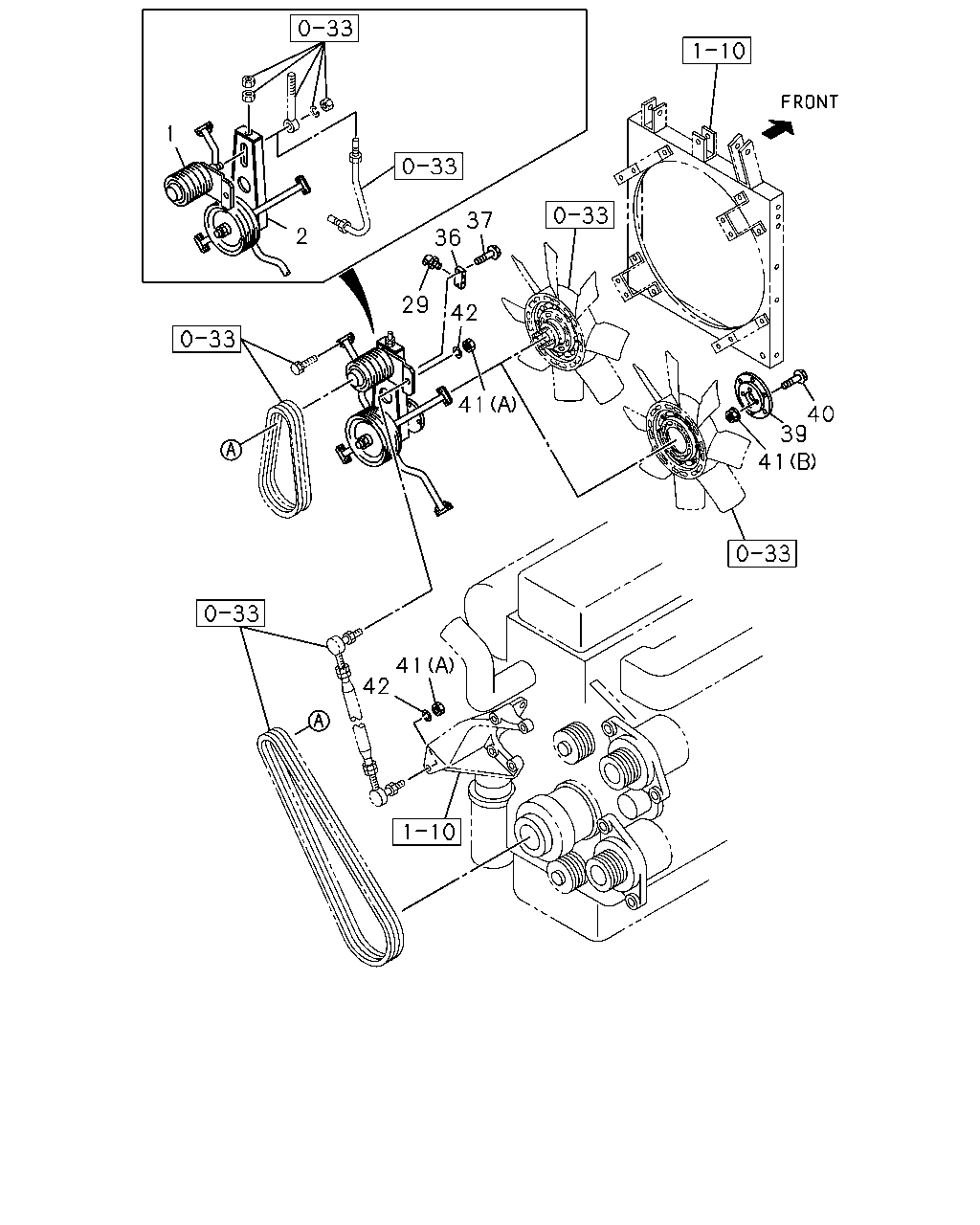

çizim 137674
1 37 36 2 29 42 41 40 39 41 41 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-218-0 01 1 0103- ●
1 PULLEY ASM; IDLE,COOLING FAN DRIVE 1-21610-239-0 01 1 0103- ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-234-2 01 1 0103-0304 ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-256-0 01 1 0305- ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-240-2 01 1 0103-0304 ●
2 PULLEY ASM; FAN DRIVE,COOLING 1-21610-257-0 01 1 0305-1503 ●
2 PULLEY ASM; FAN DRIVE,COOLING 8-98299-103-0 01 1 1504- ●
29 NIPPLE; GREASE,FAN PULLEY CAGE
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 03 1 0103-0512 ● ●
29 NIPPLE; GREASE,FAN PULLEY CAGE
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0601- ● ●
36 HOLDER; GREASE NIPPLE 8-98298-363-0 01 1 1504- ●
36 HOLDER; GREASE NIPPLE 1-59469-003-0 01 1 0103-1503 ● ●
36 HOLDER; GREASE NIPPLE 1-59469-003-0 01 1 1504- ●
37 BOLT; NIPPLE HOLDER
M6X25 FLANGE 		0-28680-625-0 02 1 0103-0512 ● ●
37 BOLT; NIPPLE HOLDER
M6X25 FLANGE 		0-28650-625-0 02 1 0601-1503 ● ●
37 BOLT; NIPPLE HOLDER
M6X25 FLANGE 		0-28650-625-0 02 1 1504- ●
39 FLANGE; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> 		1-21631-004-0 01 1 0103- ● ●
40 BOLT; FLANGE
EXC. FLUID DRIVE FAN<KA3> M10X70 FLANGE 		0-28081-070-0 04 1 0103-0512 ● ●
40 BOLT; FLANGE
EXC. FLUID DRIVE FAN<KA3> M10X70 FLANGE 		0-28051-070-0 04 1 0601- ● ●
41 NUT; FLANGE
(A) M14 		9-99110-414-0 02 1 0103-0512 ● ●
41 NUT; FLANGE
(A) M14 		0-91110-514-0 02 1 0601- ● ●
41 NUT; FLANGE
EXC. FLUID DRIVE FAN<KA3> (B) M10 FLANGE 		0-91150-210-0 04 1 0103-0602 ● ●
41 NUT; FLANGE
EXC. FLUID DRIVE FAN<KA3> (B) M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
42 WASHER; LK,FLANGE
ID=14.2 		9-09150-514-0 02 1 0103-0603 ● ●
42 WASHER; LK,FLANGE
ID=14.2 		0-91510-514-0 02 1 0604-0903 ● ●
42 WASHER; LK,FLANGE
ID=14.2 		0-91510-814-0 02 1 0904- ● ●
