1-01 — ACCELERATOR PEDAL AND CONTROL (#10424) — 195 parça

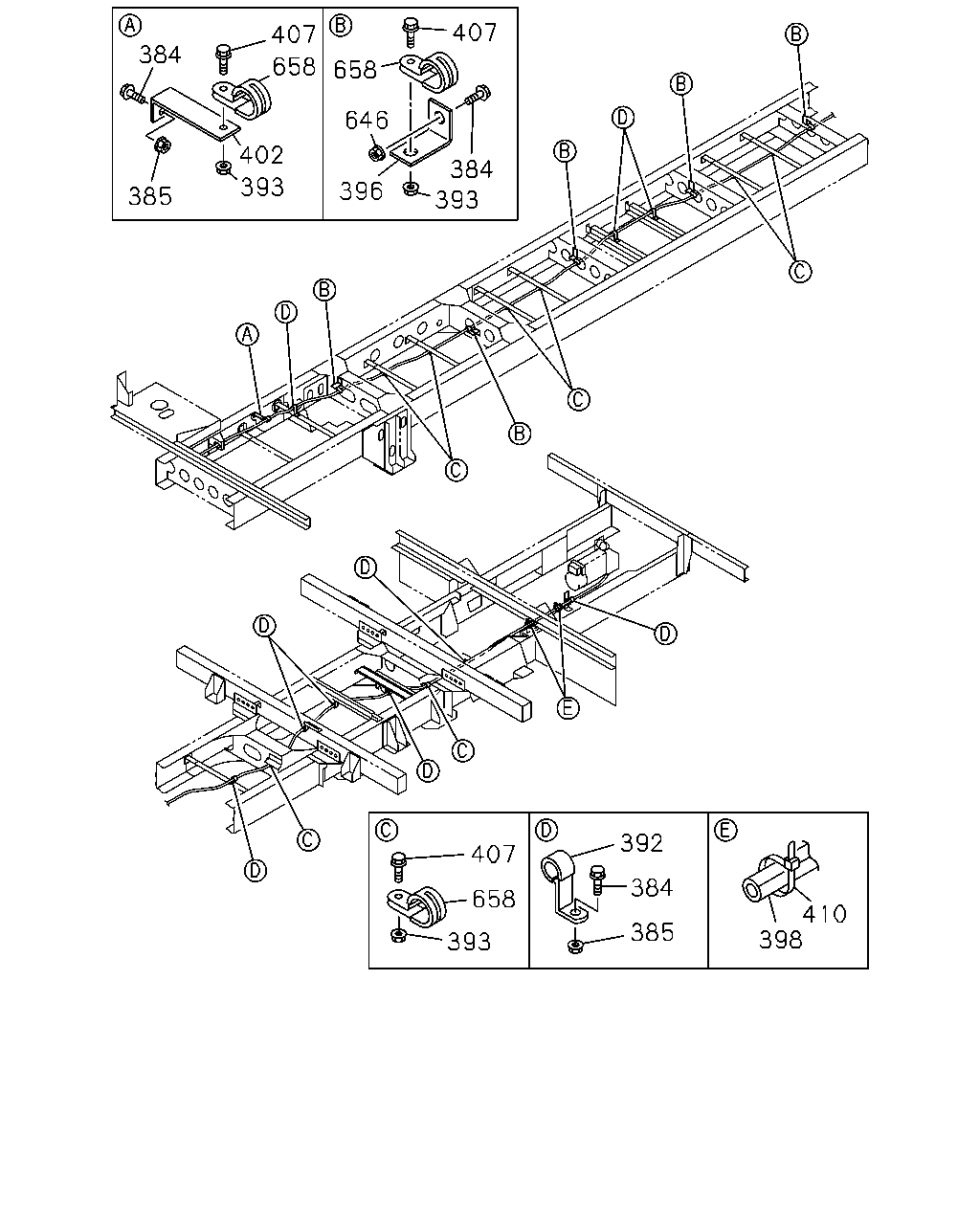

çizim 137559
407 407 384 658 658 646 402 384 393 396 385 393 392 407 384 658 410 398 385 393
BalonParca AdiParca NoAdetTipApplied Date A B
384 BOLT; CLIP,CONT CABLE
M8X25 FLANGE 		0-28680-825-0 17 1 0103-0512 ●
384 BOLT; CLIP,CONT CABLE
M8X25 FLANGE 		0-28650-825-0 17 1 0601-0910 ●
384 BOLT; CLIP,CONT CABLE
M8X25 FLANGE 		0-28650-825-0 16 1 0911- ●
385 NUT; CLIP
M8 FLANGE 		0-91150-108-0 17 1 0103-0602 ●
385 NUT; CLIP
M8 FLANGE 		0-91180-108-0 17 1 0603-0910 ●
385 NUT; CLIP
M8 FLANGE 		0-91180-108-0 16 1 0911- ●
392 CLIP; ACCEL CONT CABLE
ID=9 H=20 L=50 		1-09700-084-0 02 1 0103- ●
392 CLIP; ACCEL CONT CABLE
ID=9 H=20 L=25 		1-09701-073-0 08 1 0103-0910 ●
392 CLIP; ACCEL CONT CABLE
ID=9 H=20 L=25 		1-09701-073-0 07 1 0911- ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-108-0 14 1 0103-0602 ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91180-108-0 14 1 0603-0910 ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91180-108-0 15 1 0911- ●
396 BRACKET; CLIP
L=40 		1-47478-410-0 06 1 0103- ●
398 SLEEVE; RUBBER,CABLE
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0103- ●
402 BRACKET; CABLE CLIP 1-47478-409-0 01 1 0103- ●
407 BOLT; CLIP TO ENG
M8X20 FLANGE 		0-28680-820-0 14 1 0103-0512 ●
407 BOLT; CLIP TO ENG
M8X20 FLANGE 		0-28650-820-0 14 1 0601-0910 ●
407 BOLT; CLIP TO ENG
M8X20 FLANGE 		0-28650-820-0 15 1 0911- ●
410 CLIP; BAND
L=140 		5-09707-031-1 02 1 0103- ●
410 CLIP; BAND
L=140 		5-09707-031-1 03 1 0103- ●
646 NUT; BRKT,LEVER
M10 FLANGE 		0-91150-210-0 04 1 0103-0602 ●
646 NUT; BRKT,LEVER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
658 CLIP; ENG CONT CABLE
ID=9 L=20 		9-09524-835-0 14 1 0103-0606 ●
658 CLIP; ENG CONT CABLE
ID=9 L=20 		0-95234-835-0 14 1 0607-0910 ●
658 CLIP; ENG CONT CABLE
ID=9 L=20 		0-95234-835-0 15 1 0911- ●

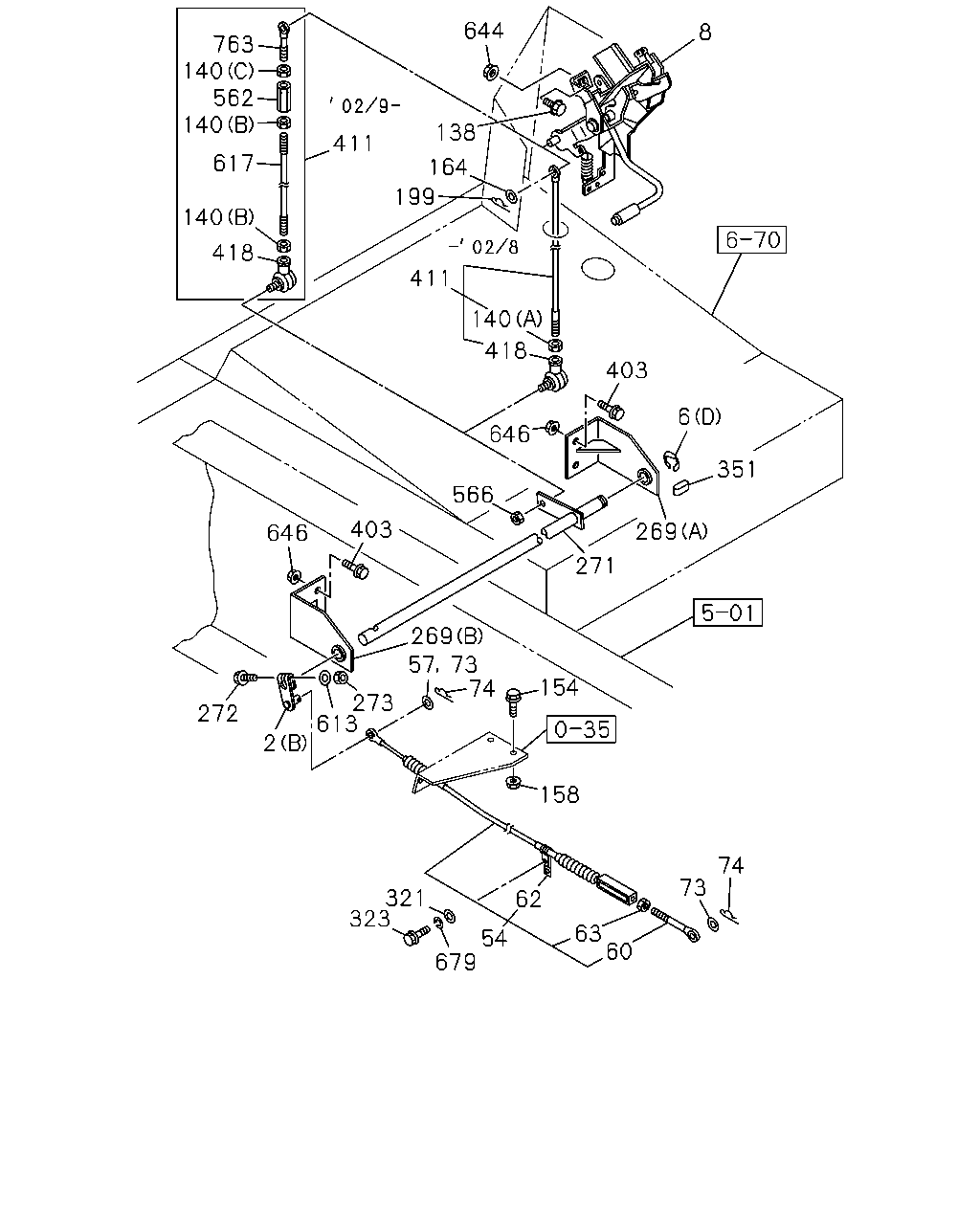

çizim 137570
644 8 763 140 562 140 138 411 617 164 199 140 418 411 140 418 403 6 646 351 566 403 269 646 271 269 57 73 74 154 273 613 272 2 158 74 73 62 321 323 63 60 54 679
BalonParca AdiParca NoAdetTipApplied Date A B
2 LEVER; ENG CONT
(A) 		1-23310-585-0 01 1 0103- ●
2 LEVER; ENG CONT
(B) 		1-23311-366-0 01 1 0103- ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 0103-0604 ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		0-91805-504-0 02 1 0605- ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 0103-0604 ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		0-91805-506-0 01 1 0605- ●
6 RING; SNAP,LINK TO LINK
(C) ID=8 		9-09185-408-0 01 1 0103-0604 ●
6 RING; SNAP,LINK TO LINK
(C) ID=8 		0-91805-508-0 01 1 0605- ●
6 RING; SNAP,LINK TO LINK
(D) ID=9 		9-09185-409-0 01 1 0103-0604 ●
6 RING; SNAP,LINK TO LINK
(D) ID=9 		0-91805-509-0 01 1 0605- ●
8 LINK ASM; ENG CONT 1-23240-106-0 01 1 0103- ●
8 LINK ASM; ENG CONT 1-23240-104-2 01 1 0103- ●
54 CABLE; ENG CONT
L=11270 		1-23230-268-3 01 1 0103- ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0103- ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0103-0605 ●
57 WASHER; ENG CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ●
60 BOLT; CABLE 1-23219-118-0 01 1 0103- ●
62 CLIP; ENG CONT CABLE 1-09701-289-0 01 1 0103- ●
63 NUT; LOCK,BRKT
M6 		9-09111-406-0 01 1 0103- ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0103-0605 ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 02 1 0103- ●
138 BOLT; LINK ROD
M6X16 FLANGE 		0-28080-616-0 03 1 0103-0512 ●
138 BOLT; LINK ROD
M6X16 FLANGE 		0-28050-616-0 03 1 0601- ●
140 NUT; BALL JOINT
(A) M6 		9-09110-406-0 01 1 0103-0208 ●
140 NUT; BALL JOINT
(B) 		1-09400-162-0 02 1 0209- ●
140 NUT; BALL JOINT
(C) 		1-09400-163-0 01 1 0209- ●
154 BOLT; CABLE BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0103-0512 ●
154 BOLT; CABLE BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
158 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0103-0602 ●
158 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
164 WASHER; PL
ID=8.4 		9-09160-508-0 01 1 0103-0605 ●
164 WASHER; PL
ID=8.4 OD=16 		0-91610-508-0 01 1 0606- ●
199 PIN; SNAP
L=27.7 		1-09747-005-0 01 1 0103- ●
269 BRACKET; RELAY LEVER
(B) 		1-23335-533-0 01 1 0103- ●
269 BRACKET; RELAY LEVER
(A) 		1-23335-534-0 01 1 0103- ●
271 SHAFT; ENG CONT 1-23331-132-0 01 1 0103- ●
272 BOLT; LEVER
M6X35 W/LK&PL WASHER 		0-50140-635-0 01 1 0103-0512 ●
272 BOLT; LEVER
M6X35 W/LK&PL WASHER 		0-50640-635-0 01 1 0601- ●
273 NUT; LEVER
M6 		9-09110-406-0 01 1 0103-0512 ●
273 NUT; LEVER
M6 		0-91110-506-0 01 1 0601- ●
273 NUT; LEVER
M12 		9-99111-412-0 01 1 0103-0512 ●
273 NUT; LEVER
M12 		0-91111-512-0 01 1 0601- ●
321 WASHER; PL,CLIP FIX
ID=6.4 OD=14 		9-09164-606-0 02 1 0103- ●
323 BOLT; CLIP
M6X30 FLANGE 		0-28680-630-0 02 1 0103-0512 ●
323 BOLT; CLIP
M6X30 FLANGE 		0-28650-630-0 02 1 0601- ●
351 KEY; SHAFT,ENG CONT 9-08030-410-0 01 1 0103- ●
403 BOLT; BRKT,ACCEL PEDAL
M10X30 FLANGE 		0-28681-030-0 04 1 0103-0512 ●
403 BOLT; BRKT,ACCEL PEDAL
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
411 WIRE; ENG CONT 1-23230-258-0 01 1 0103-0208 ●
411 WIRE; ENG CONT 1-23230-418-0 01 1 0209- ●
418 JOINT; BALL,ENG CONT 1-09760-004-0 01 1 0103-0208 ●
418 JOINT; BALL,ENG CONT 1-09760-141-0 01 1 0209- ●
562 JOINT; LINK ROD 1-09765-313-0 01 1 0209- ●
566 NUT; LK,JOINT
M6 FLANGE 		0-91150-106-0 01 1 0103-0602 ●
566 NUT; LK,JOINT
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
613 WASHER; PL,SPACER
ID=6.4 		9-09160-506-0 01 1 0103- ●
617 ROD; LINK,ENG CONT 1-09765-312-0 01 1 0209- ●
644 NUT; LINK,ENG CONT
M6 FLANGE 		0-91150-106-0 03 1 0103-0602 ●
644 NUT; LINK,ENG CONT
M6 FLANGE 		0-91180-106-0 03 1 0603- ●
644 NUT; LINK,ENG CONT
M8 FLANGE 		0-91150-108-0 02 1 0103-0602 ●
644 NUT; LINK,ENG CONT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
646 NUT; BRKT,LEVER
M10 FLANGE 		0-91150-210-0 04 1 0103-0602 ●
646 NUT; BRKT,LEVER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
679 WASHER; LK,CLIP
ID=6.1 		9-09150-506-0 02 1 0103-0603 ●
679 WASHER; LK,CLIP
ID=6.1 		0-91510-506-0 02 1 0604- ●
763 END; EYE 1-33653-139-0 01 1 0209- ●

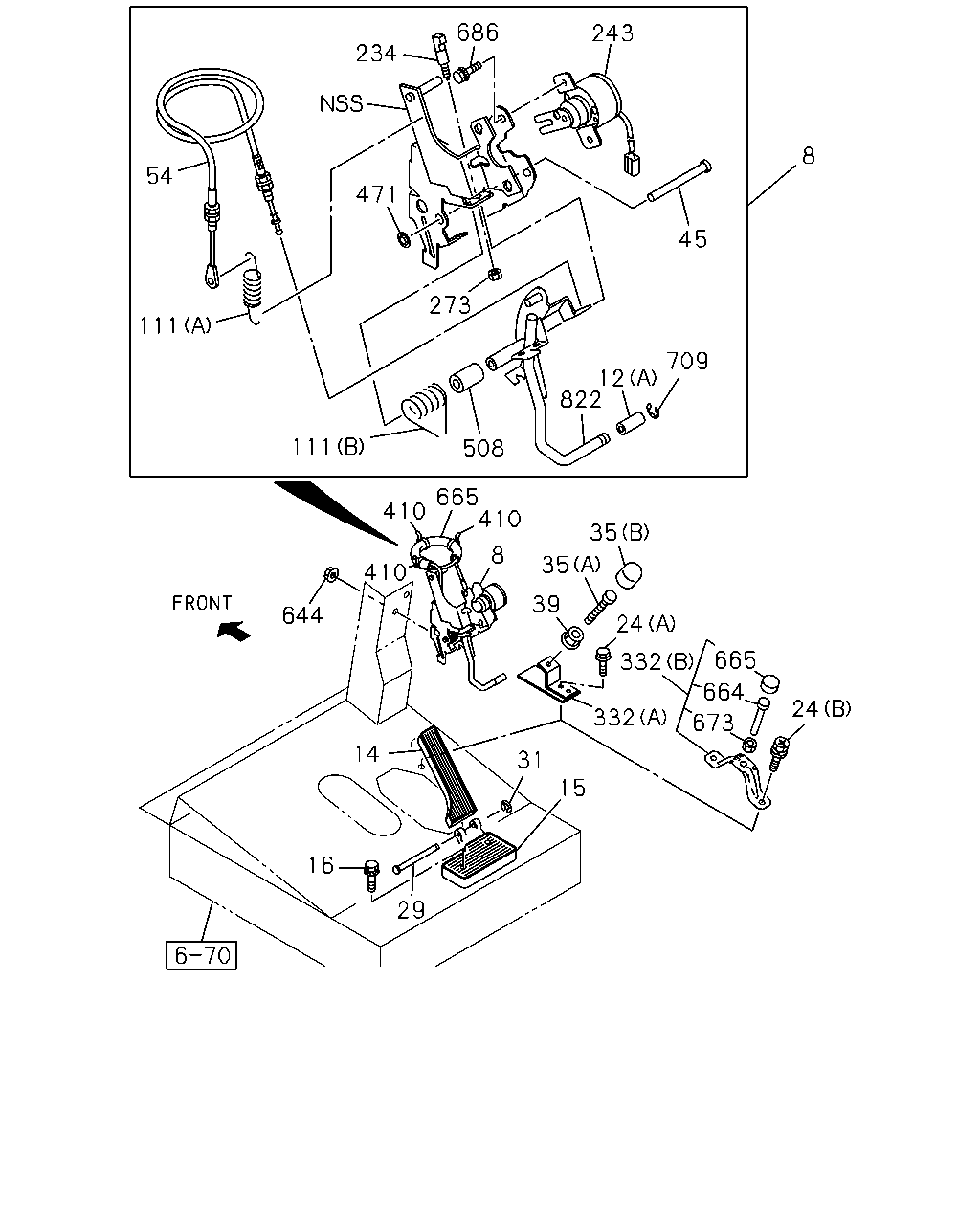

çizim 137577
8 45 243 686 234 471 273 709 12 822 508 111 111 54 665 410 8 410 35 35 39 24 332 665 24 664 673 332 410 644 14 31 15 29 16
BalonParca AdiParca NoAdetTipApplied Date A B
8 LINK ASM; ENG CONT 1-23240-106-0 01 1 0103- ●
8 LINK ASM; ENG CONT 1-23240-104-2 01 1 0103- ●
12 ROLLER; ENG CONT LEVER
(B) 		1-09989-010-0 01 1 0103- ●
12 ROLLER; ENG CONT LEVER
(A) 		1-09989-007-0 01 1 0103-1101 ● ●
12 ROLLER; ENG CONT LEVER
(A) 		1-09989-007-0 01 1 1102- ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0103- ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0103- ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0103- ● ●
24 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0103-0512 ● ●
24 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-1302 ● ●
24 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303- ● ●
29 SHAFT; ACCEL PEDAL
OD=8 L=74 		1-09987-206-0 01 1 0103- ● ●
31 RING; SNAP,ACCEL PEDAL
ID=6 		9-09185-406-0 01 1 0103-0604 ● ●
31 RING; SNAP,ACCEL PEDAL
ID=6 		0-91805-506-0 01 1 0605- ● ●
35 STOPPER; ACCEL PEDAL
(A) M8X45 		0-20800-845-0 01 1 0103-1302 ● ●
35 STOPPER; ACCEL PEDAL
(B) RUBBER 		1-23249-009-0 01 1 0103-1302 ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 FLANGE 		0-91150-108-0 01 1 0103-0602 ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 FLANGE 		0-91180-108-0 01 1 0603-1302 ● ●
45 PIN; ACCEL CONT PEDAL
OD=8.0 L=69 		1-71907-298-0 01 1 0103- ●
54 CABLE; ENG CONT
L=11270 		1-23230-268-3 01 1 0103- ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0103- ●
111 SPRING; RETURN
(A) 		1-71907-268-0 01 1 0103-0303 ●
111 SPRING; RETURN
(A) 		8-97997-917-0 01 1 0304- ●
111 SPRING; RETURN
(B) 		8-97853-205-1 01 1 0103- ●
234 SWITCH; ACCEL 1-82380-131-2 01 1 0103- ●
243 SENSOR; ACCEL 1-81534-003-2 01 1 0103- ●
273 NUT; LEVER
M6 		9-09110-406-0 01 1 0103-0512 ●
273 NUT; LEVER
M6 		0-91110-506-0 01 1 0601- ●
273 NUT; LEVER
M12 		9-99111-412-0 01 1 0103-0512 ●
273 NUT; LEVER
M12 		0-91111-512-0 01 1 0601- ●
332 BRACKET; ACCEL PEDAL STOPPER
(A) 		1-23335-521-0 01 1 0103-1302 ● ●
332 BRACKET; ACCEL PEDAL STOPPER
(B) 		1-73998-937-1 01 1 1303- ● ●
410 CLIP; BAND
L=140 		5-09707-031-1 02 1 0103- ●
410 CLIP; BAND
L=140 		5-09707-031-1 03 1 0103- ●
471 NUT; LEVER
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0103- ●
508 BUSHING; LINK ROD
L=31.5 		1-53459-627-0 01 1 0103- ●
644 NUT; LINK,ENG CONT
M6 FLANGE 		0-91150-106-0 03 1 0103-0602 ●
644 NUT; LINK,ENG CONT
M6 FLANGE 		0-91180-106-0 03 1 0603- ●
644 NUT; LINK,ENG CONT
M8 FLANGE 		0-91150-108-0 02 1 0103-0602 ●
644 NUT; LINK,ENG CONT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 1303- ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 1303- ● ●
665 COVER; STOPPER
L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 0103- ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 1303- ● ●
686 BOLT; MICRO SWITCH
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0103-0303 ●
686 BOLT; MICRO SWITCH
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0304- ●
709 RING; SNAP
ID=6 		9-09185-406-0 01 1 0103-0604 ●
709 RING; SNAP
ID=6 		0-91805-506-0 01 1 0605-1101 ●
822 LEVER ASM; ENG CONT 1-23240-085-3 01 1 0103- ●

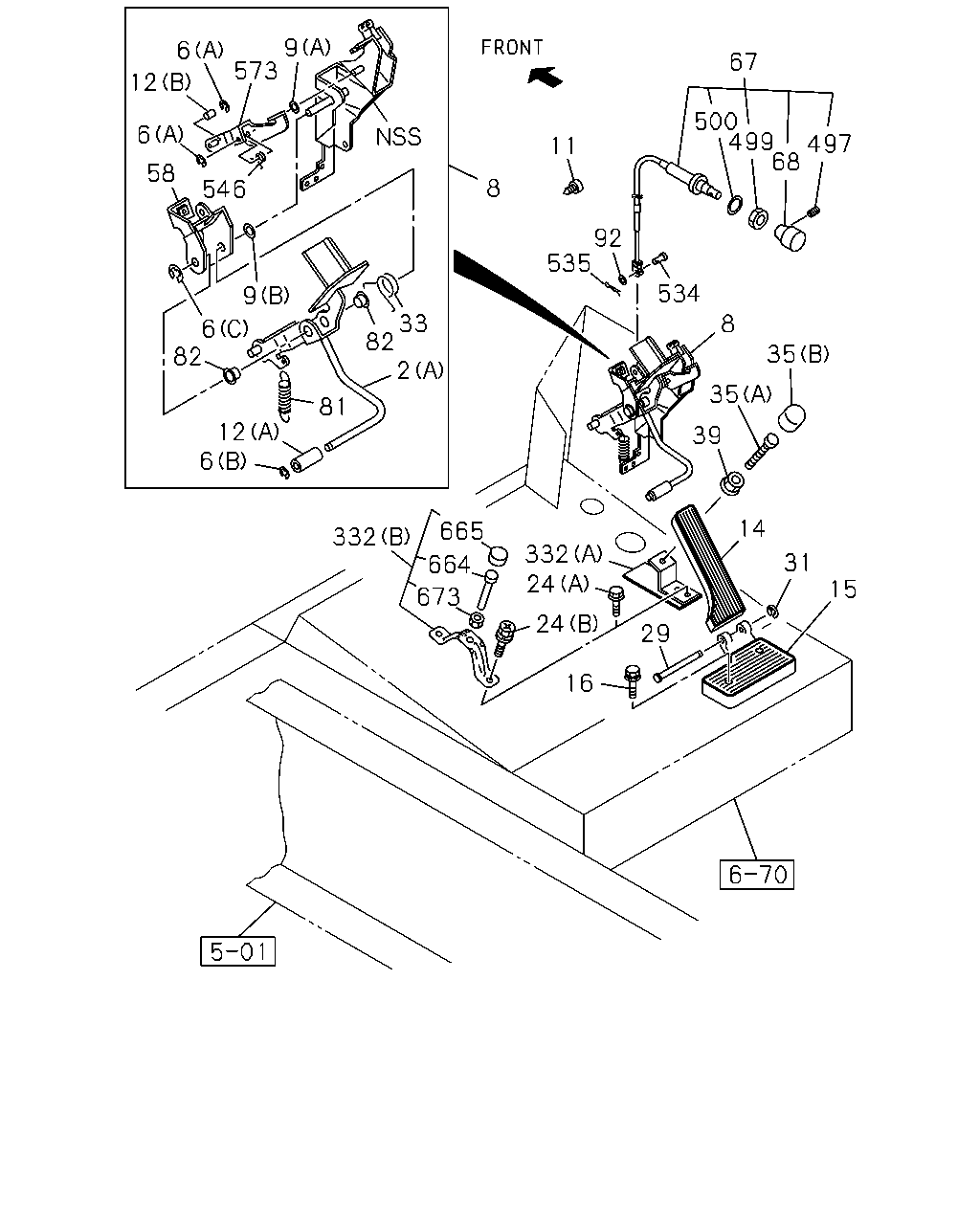

çizim 137669
9 573 6 12 6 58 546 9 6 82 6 12 81 2 82 33 8 11 67 497 68 499 500 92 535 534 8 35 35 39 14 31 15 16 29 24 24 332 673 664 665 332
BalonParca AdiParca NoAdetTipApplied Date A B
2 LEVER; ENG CONT
(A) 		1-23310-585-0 01 1 0103- ●
2 LEVER; ENG CONT
(B) 		1-23311-366-0 01 1 0103- ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 0103-0604 ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		0-91805-504-0 02 1 0605- ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 0103-0604 ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		0-91805-506-0 01 1 0605- ●
6 RING; SNAP,LINK TO LINK
(C) ID=8 		9-09185-408-0 01 1 0103-0604 ●
6 RING; SNAP,LINK TO LINK
(C) ID=8 		0-91805-508-0 01 1 0605- ●
6 RING; SNAP,LINK TO LINK
(D) ID=9 		9-09185-409-0 01 1 0103-0604 ●
6 RING; SNAP,LINK TO LINK
(D) ID=9 		0-91805-509-0 01 1 0605- ●
8 LINK ASM; ENG CONT 1-23240-106-0 01 1 0103- ●
8 LINK ASM; ENG CONT 1-23240-104-2 01 1 0103- ●
9 WASHER; PL,CONT LINK
(A) ID=6.5 OD=14 		1-09985-140-0 01 1 0103- ●
9 WASHER; PL,CONT LINK
(B) ID=10.5 OD=16 		9-09855-178-0 01 1 0103- ●
11 SCREW; IDLE CONT CABLE
EXC. ELECTRONIC GOV RED3(KG5) M5X12 W/LK&PL WASHER 		9-03920-512-0 01 1 0103-0206 ● ●
11 SCREW; IDLE CONT CABLE
EXC. ELECTRONIC GOV RED3(KG5) M5X14 W/LK&PL WASHER 		9-03920-514-0 01 1 0207-0604 ● ●
11 SCREW; IDLE CONT CABLE
EXC. ELECTRONIC GOV RED3(KG5) M5X14 W/LK&PL WASHER 		0-36230-514-0 01 1 0605- ● ●
12 ROLLER; ENG CONT LEVER
(B) 		1-09989-010-0 01 1 0103- ●
12 ROLLER; ENG CONT LEVER
(A) 		1-09989-007-0 01 1 0103-1101 ● ●
12 ROLLER; ENG CONT LEVER
(A) 		1-09989-007-0 01 1 1102- ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0103- ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0103- ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0103- ● ●
24 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0103-0512 ● ●
24 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-1302 ● ●
24 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1303- ● ●
29 SHAFT; ACCEL PEDAL
OD=8 L=74 		1-09987-206-0 01 1 0103- ● ●
31 RING; SNAP,ACCEL PEDAL
ID=6 		9-09185-406-0 01 1 0103-0604 ● ●
31 RING; SNAP,ACCEL PEDAL
ID=6 		0-91805-506-0 01 1 0605- ● ●
33 SPRING; IDLING CONT LEVER 1-73997-906-0 01 1 0103- ●
35 STOPPER; ACCEL PEDAL
(A) M8X45 		0-20800-845-0 01 1 0103-1302 ● ●
35 STOPPER; ACCEL PEDAL
(B) RUBBER 		1-23249-009-0 01 1 0103-1302 ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 FLANGE 		0-91150-108-0 01 1 0103-0602 ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 FLANGE 		0-91180-108-0 01 1 0603-1302 ● ●
58 LEVER; IDLING CONT 1-73997-905-1 01 1 0103- ●
67 CABLE ASM; IDLE CONT
EXC. ELECTRONIC GOV RED3(KG5) L=407 		1-23230-072-0 01 1 0103- ● ●
68 KNOB; IDLE CONT
EXC. ELECTRONIC GOV RED3(KG5) 		5-23210-008-1 01 1 0103- ● ●
81 SPRING; RETURN,ENG CONT LEVER 8-94414-815-0 01 1 0103- ●
82 BUSHING; ENG CONT LVR 8-94206-569-0 02 1 0103- ●
92 WASHER; PL,IDLE CONT CABLE
EXC. ELECTRONIC GOV RED3(KG5) ID=5.3 		9-09160-505-0 01 1 0103-0605 ● ●
92 WASHER; PL,IDLE CONT CABLE
EXC. ELECTRONIC GOV RED3(KG5) ID=5.3 		0-91610-505-0 01 1 0606- ● ●
332 BRACKET; ACCEL PEDAL STOPPER
(A) 		1-23335-521-0 01 1 0103-1302 ● ●
332 BRACKET; ACCEL PEDAL STOPPER
(B) 		1-73998-937-1 01 1 1303- ● ●
497 SCREW; SET,KNOB,IDLE CONT CABLE
EXC. ELECTRONIC GOV RED3(KG5) 		5-09120-004-0 01 1 0103- ● ●
499 NUT; IDLE CONT CABLE
EXC. ELECTRONIC GOV RED3(KG5) M18 RING NUT 		5-09409-004-1 01 1 0103- ● ●
500 WASHER; IDLE CONT CABLE
EXC. ELECTRONIC GOV RED3(KG5) ID=18.5 		5-09550-005-0 01 1 0103- ● ●
534 PIN; JAW JOINT,IDLING CONT CABLE
EXC. ELECTRONIC GOV RED3(KG5) 		1-09987-034-1 01 1 0103- ● ●
535 PIN; SNAP,IDLING CONT CABLE
EXC. ELECTRONIC GOV RED3(KG5) L=17.9 		1-09747-002-0 01 1 0103- ● ●
546 SPRING; CONT LEVER,ACCEL SW 1-09985-143-2 01 1 0103- ●
573 LEVER; ACCEL SW 1-73997-731-2 01 1 0103- ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 1303- ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 1303- ● ●
665 COVER; STOPPER
L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 0103- ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 1303- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
