0-87 — COUPLING; INJECTION PUMP (#10423) — 44 parça

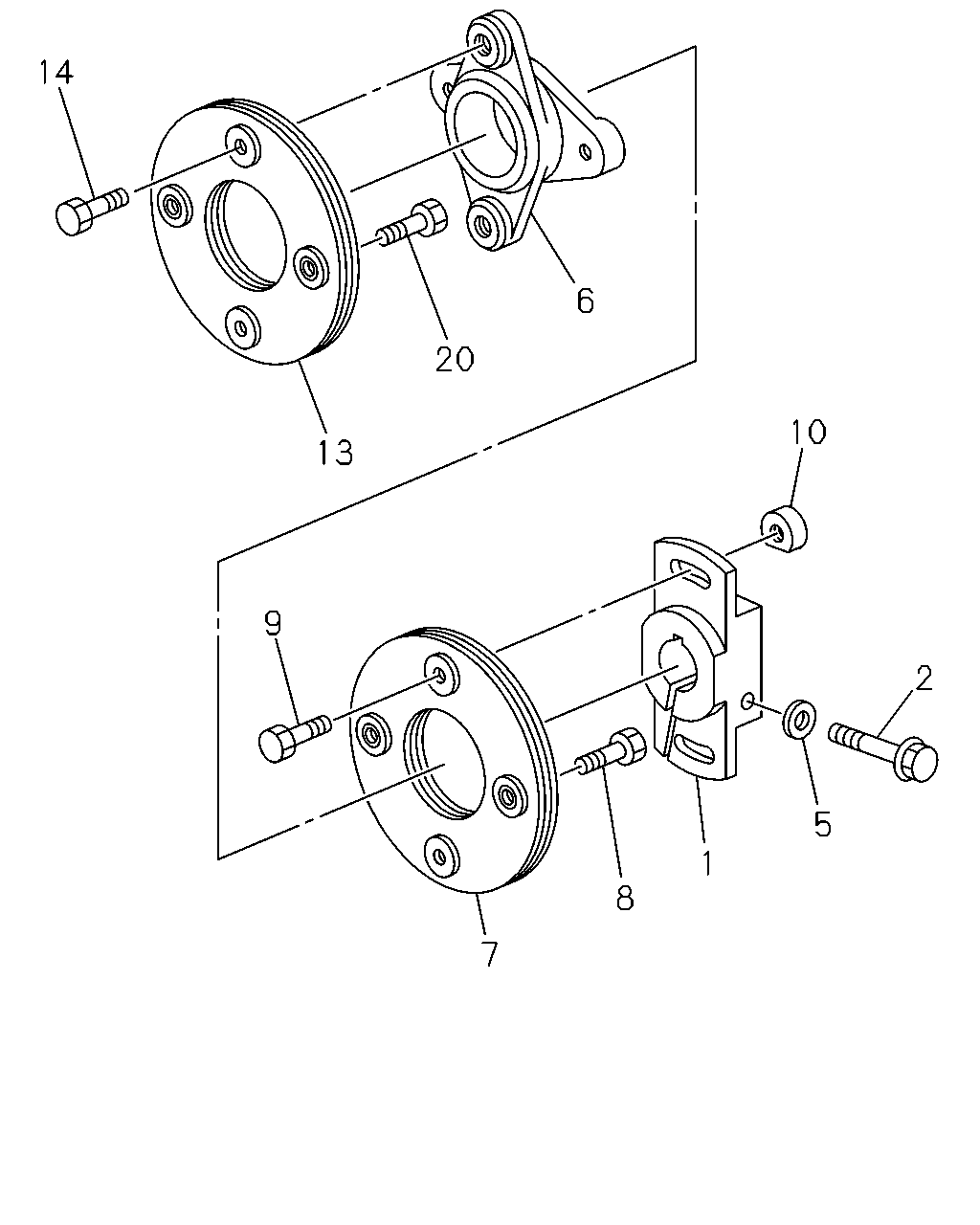

çizim 137665
14 6 20 10 13 9 2 5 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN) 		1-15781-048-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-039-0 01 1 0103-0612 ●
1 COUPLING; INJ PUMP DRIVE
EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15781-039-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-15781-039-0 01 1 0701- ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 0103- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0103- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 0103- ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 0103- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15789-221-0 01 1 0103- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN) 		1-15789-221-0 01 1 0103- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15789-161-0 01 1 0103- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-15789-161-0 01 1 0103- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 0103- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 0103- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 0103- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0103- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 0103- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 0103- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 0103- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 0103- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 0103- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0103- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 0103- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0103- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 0103- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0103- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 0103- ●

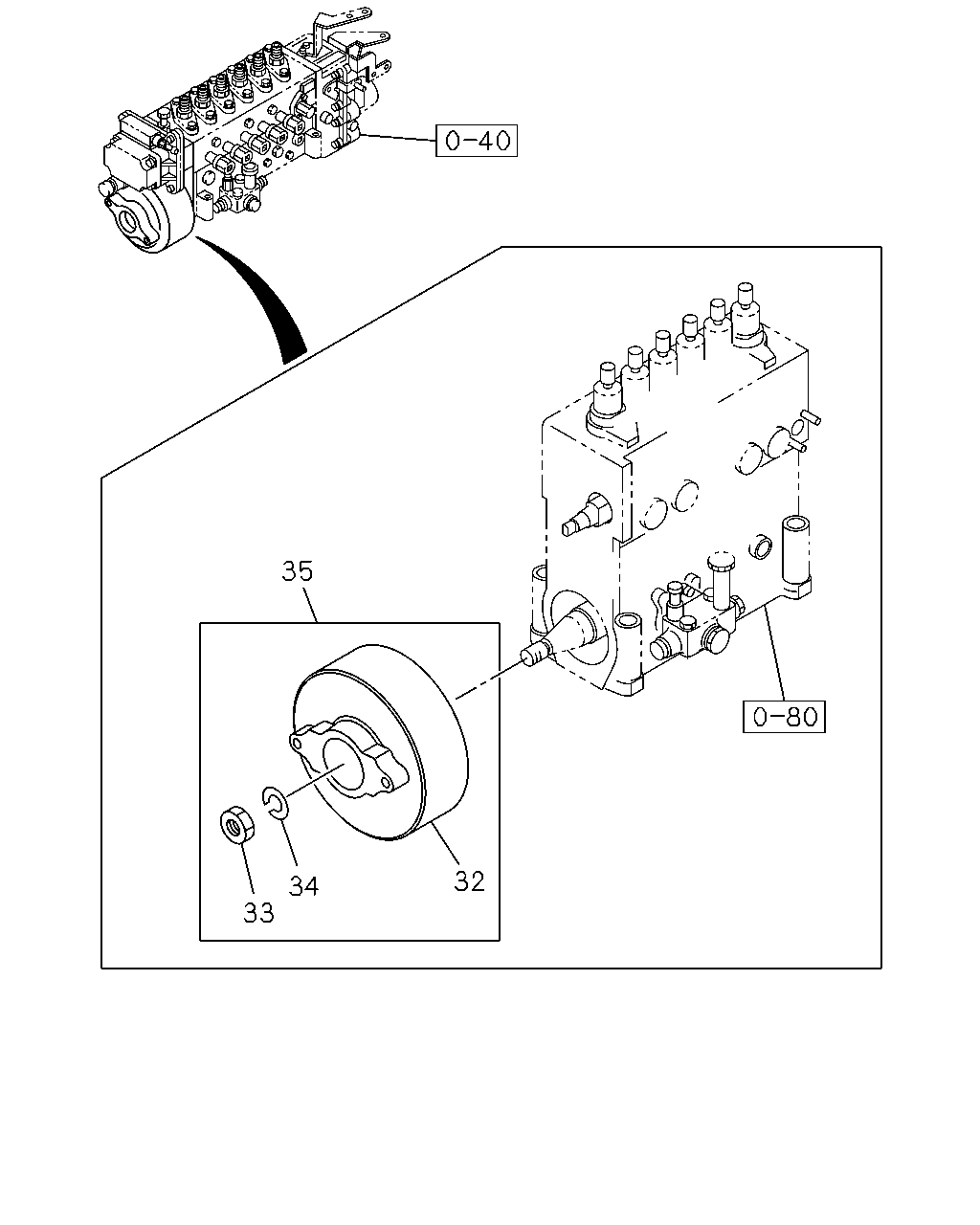

çizim 137666
35 32 34 33
BalonParca AdiParca NoAdetTipApplied Date A B
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-15744-008-1 01 1 0103-0410 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-15744-024-0 01 1 0103-0410 ●
32 DAMPER; INJ PUMP
OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN) 		1-15744-024-0 01 1 0103-0410 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION(THN) 		1-15744-024-0 01 1 0411- ●
32 DAMPER; INJ PUMP 1-15744-005-1 01 1 0103-0410 ●
32 DAMPER; INJ PUMP 1-15744-015-0 01 1 0411- ●
33 NUT; DAMPER
EURO2 SPECIFICATION(THN) 		1-19179-020-0 01 1 0103- ●
33 NUT; DAMPER 1-19179-020-0 01 1 0103- ●
34 WASHER; DAMPER
EURO2 SPECIFICATION(THN) 		1-19179-002-0 01 1 0103- ●
34 WASHER; DAMPER 1-19179-002-0 01 1 0103- ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> 		1-15744-014-1 01 1 0103-0410 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),TAMPER PROOFINJ PUMP SET<W44> 		1-15744-026-0 01 1 0103-0410 ●
35 DAMPER ASM; INJ PUMP
TAMPER PROOF INJ PUMP SET<W44> EURO2 SPECIFICATION(THN) 		1-15744-026-0 01 1 0103-0410 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION(THN) 		1-15744-026-0 01 1 0411- ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 0103-0410 ●
35 DAMPER ASM; INJ PUMP 1-15744-017-0 01 1 0411- ●
