0-84 — FEED PUMP; INJECTION PUMP (#10421) — 75 parça

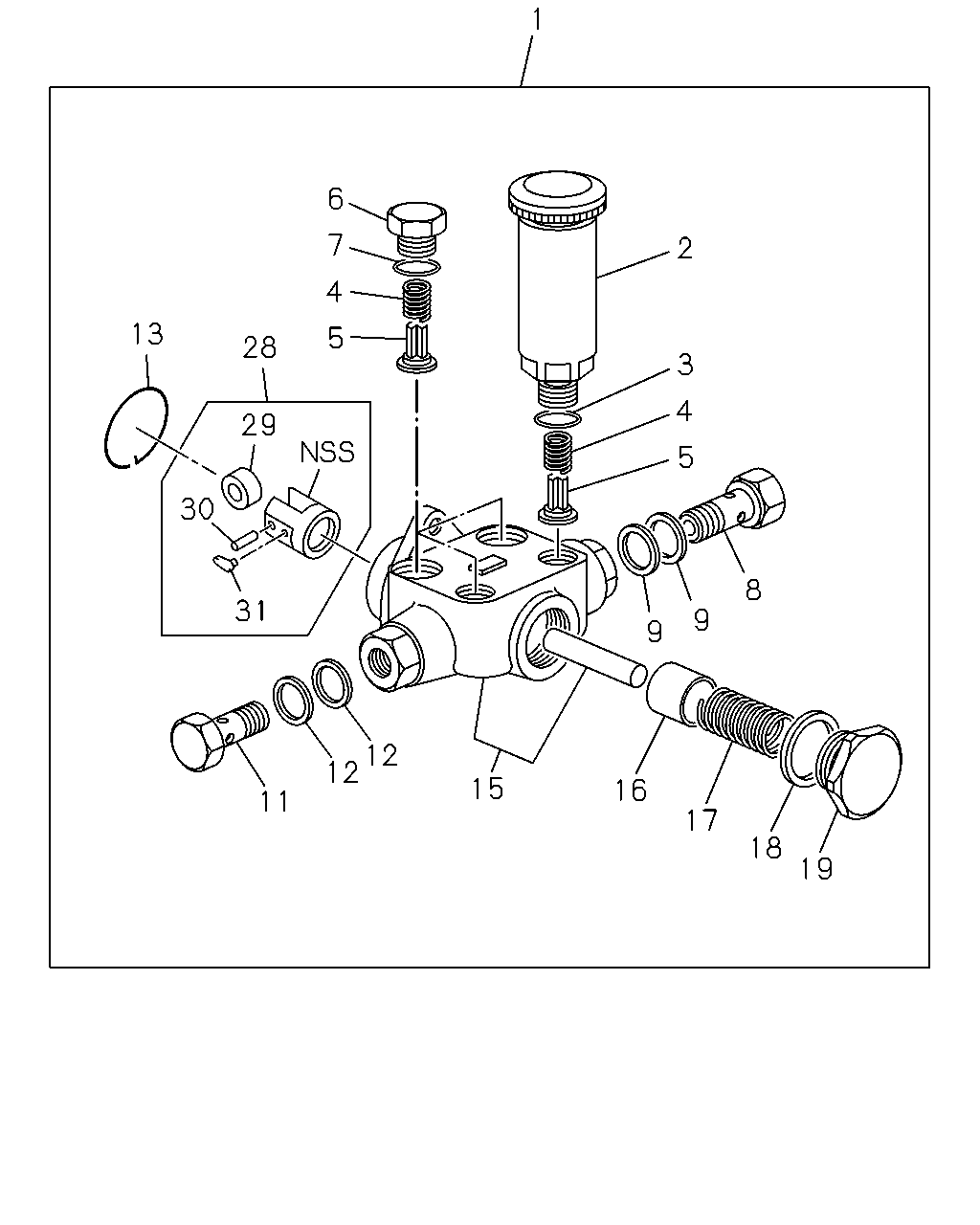

1 6 7 2 4 13 5 28 3 4 29 5 30 8 31 9 9 12 12 15 16 11 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-360-2, F = 1-15603-409-2	1-15750-152-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15750-158-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5	1-15750-190-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	1-15761-006-1	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, E = 1-15603-408-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15603-360-2, F = 1-15603-409-2	9-81351-602-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, D = 1-15603-360-2, F = 1-15603-409-2	1-15759-009-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, D = 1-15603-360-2, F = 1-15603-409-2	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP M14X30 ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	1-09630-085-0	02	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15751-022-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-265-5	1-15759-029-0	01	1	-0511
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: D = 1-15603-360-2, F = 1-15603-409-2	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: B = 1-15603-268-5	8-97203-957-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: A = 1-15603-265-5	8-97203-957-0	01	1	0512-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	1-09630-085-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-360-2, F = 1-15603-409-2	1-15751-031-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5	1-15751-046-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15754-005-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, D = 1-15603-360-2, F = 1-15603-409-2	1-15754-006-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5	1-15759-055-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	9-81355-059-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5	1-15759-056-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	9-81355-060-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5	1-15759-057-0	02	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15759-078-0	02	1	-

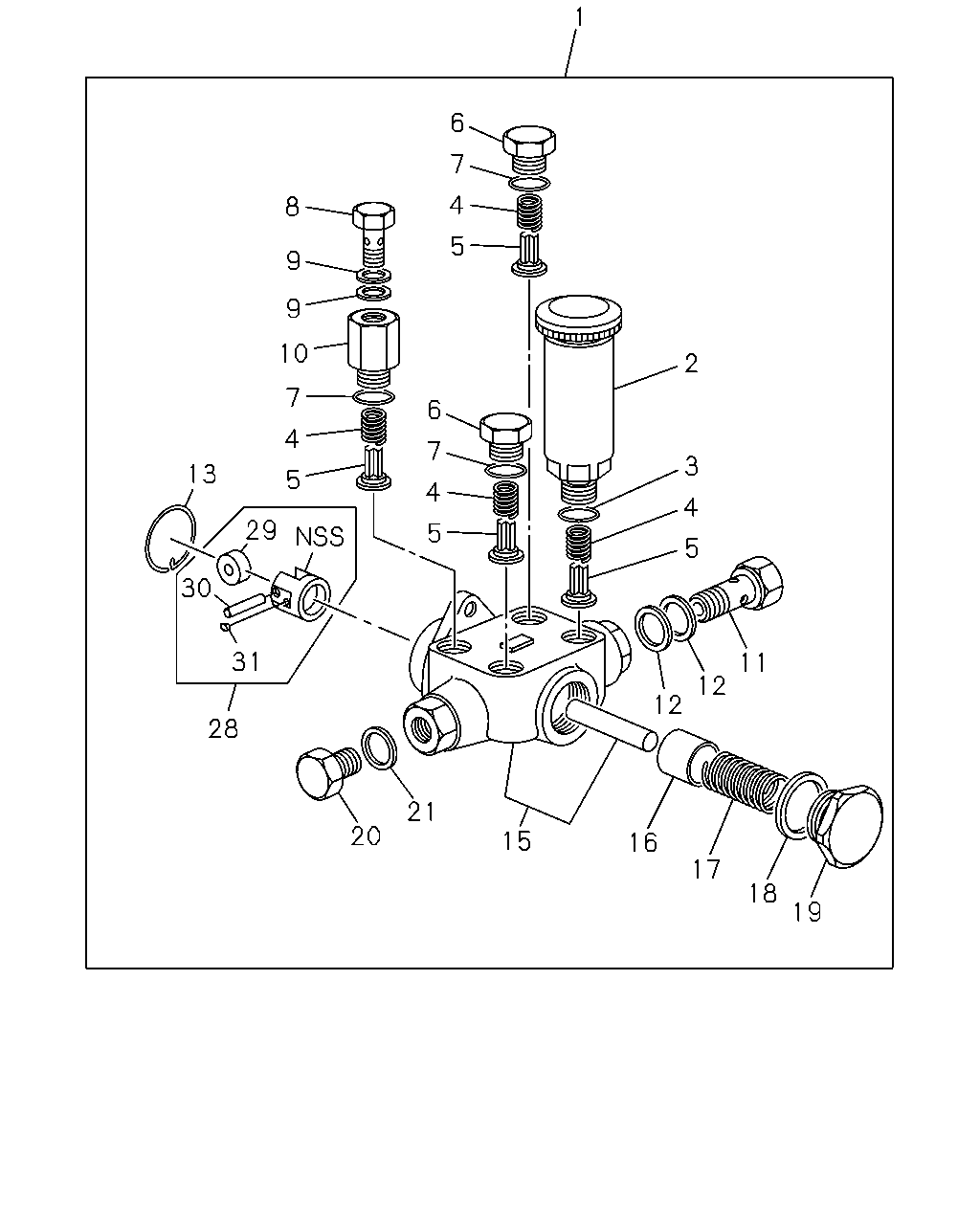

1 6 7 4 8 5 9 9 10 2 7 6 4 7 3 13 5 4 4 29 5 5 30 31 11 12 12 28 21 20 15 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-360-2, F = 1-15603-409-2	1-15750-152-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15750-158-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5	1-15750-190-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	1-15761-006-1	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, E = 1-15603-408-0	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15603-360-2, F = 1-15603-409-2	9-81351-602-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, D = 1-15603-360-2, F = 1-15603-409-2	1-15759-009-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, D = 1-15603-360-2, F = 1-15603-409-2	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP M14X30 ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	1-09630-085-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, D = 1-15603-360-2, F = 1-15603-409-2	1-15759-052-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15751-022-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-265-5	1-15759-029-0	01	1	-0511
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: D = 1-15603-360-2, F = 1-15603-409-2	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: B = 1-15603-268-5	8-97203-957-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: A = 1-15603-265-5	8-97203-957-0	01	1	0512-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	1-09630-085-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-360-2, F = 1-15603-409-2	1-15751-031-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5	1-15751-046-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, C = 1-15603-359-0, D = 1-15603-360-2, E = 1-15603-408-0, F = 1-15603-409-2	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: D = 1-15603-360-2, F = 1-15603-409-2	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: D = 1-15603-360-2, F = 1-15603-409-2	1-09630-085-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15754-005-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5, D = 1-15603-360-2, F = 1-15603-409-2	1-15754-006-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5	1-15759-055-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	9-81355-059-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5	1-15759-056-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	9-81355-060-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-265-5, B = 1-15603-268-5	1-15759-057-0	02	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: C = 1-15603-359-0, E = 1-15603-408-0	1-15759-078-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
