0-66 — GENERATOR (#10417) — 38 parça

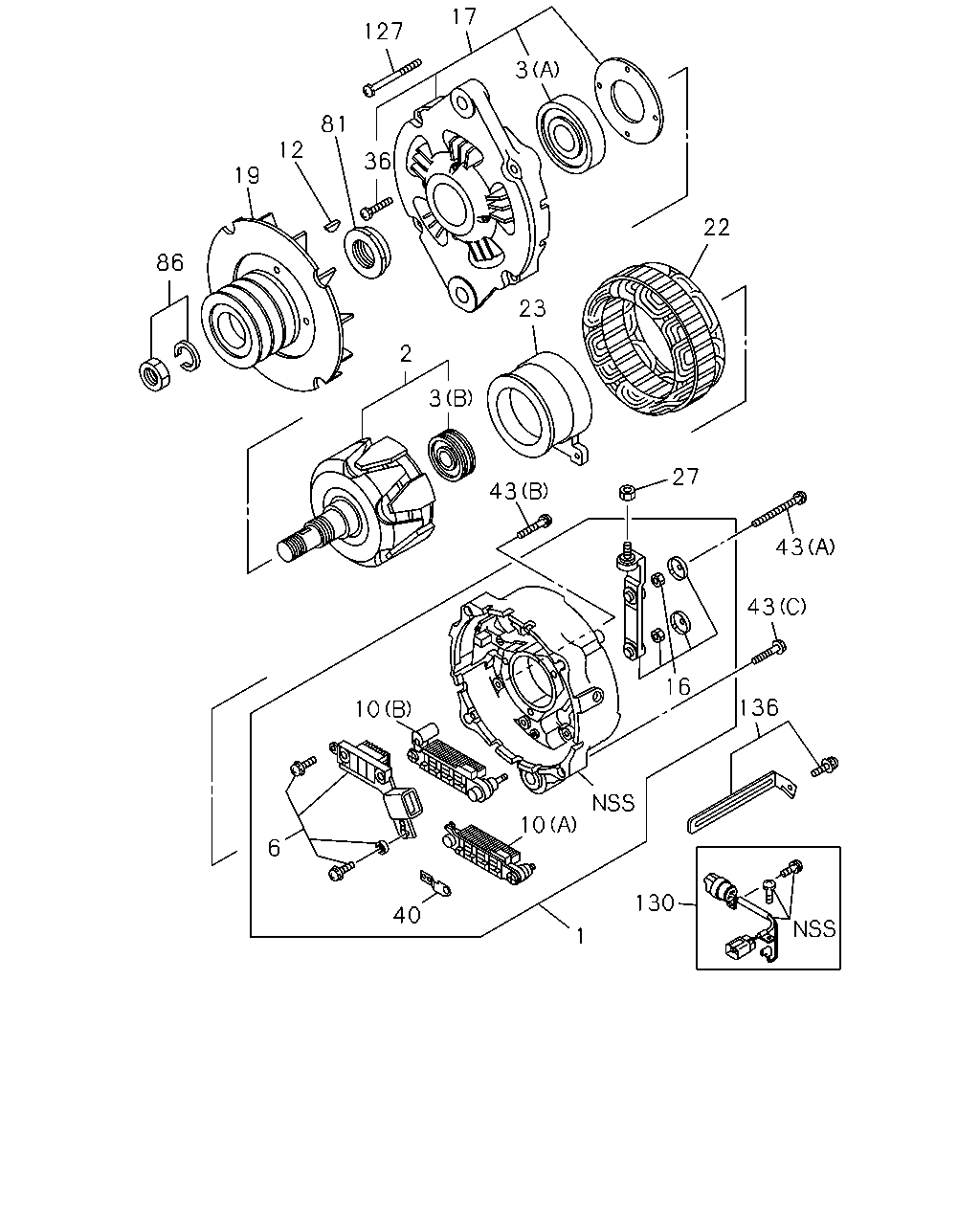

çizim 137661
17 127 3 81 12 36 19 22 86 23 2 3 27 43 43 43 16 136 10 10 6 130 40 1
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: B = 1-81200-561-3, E = 1-81200-632-2 		1-81214-364-2 01 1 -
1 COVER ASM; RR,GEN
ASM PART: A = 1-81200-542-3, D = 1-81200-628-1 		1-81214-365-2 01 1 -
1 COVER ASM; RR,GEN
ASM PART: C = 1-81200-575-3, F = 1-81200-650-3 		1-81214-375-2 01 1 -
2 ROTOR; GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81221-106-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81229-815-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81229-816-0 01 1 -
6 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81260-018-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: C = 1-81200-575-3, F = 1-81200-650-3 		1-81219-128-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: B = 1-81200-561-3, E = 1-81200-632-2 		1-81219-133-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: B = 1-81200-561-3, E = 1-81200-632-2 		1-81219-134-0 01 1 -
10 RECTIFIER; GEN
(A) ASM PART: A = 1-81200-542-3, D = 1-81200-628-1 		1-81219-135-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: A = 1-81200-542-3, D = 1-81200-628-1 		1-81219-136-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: C = 1-81200-575-3, F = 1-81200-650-3 		1-81219-140-0 01 1 -
12 KEY; ROTOR,GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81229-822-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: F = 1-81200-650-3 		1-81229-806-0 01 1 0701-
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: B = 1-81200-561-3, E = 1-81200-632-2 		1-81229-826-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: A = 1-81200-542-3, D = 1-81200-628-1 		1-81229-827-0 01 1 -
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: F = 1-81200-650-3 		1-81229-888-0 01 1 -0612
16 TERMINAL ASM; RECTIFIER,GEN
ASM PART: C = 1-81200-575-3 		1-81229-888-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, D = 1-81200-628-1, E = 1-81200-632-2 		1-81213-110-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: C = 1-81200-575-3, F = 1-81200-650-3 		1-81213-115-1 01 1 -
19 PULLEY; GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81222-151-3 01 1 -
22 STATOR; GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81211-132-1 01 1 -
23 COIL; ROTOR GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, D = 1-81200-628-1, E = 1-81200-632-2 		1-81212-020-1 01 1 -
23 COIL; ROTOR GEN
ASM PART: C = 1-81200-575-3, F = 1-81200-650-3 		1-81212-026-1 01 1 -
27 NUT; RECTIFIER,GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81229-821-0 01 1 -
36 SCREW; FRT COVER
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81229-814-0 01 1 -
40 PLATE; RR COVER
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, D = 1-81200-628-1, E = 1-81200-632-2 		1-81222-148-0 01 1 -
40 PLATE; RR COVER
ASM PART: C = 1-81200-575-3, F = 1-81200-650-3 		1-81222-163-0 01 1 -
43 SCREW; RR END COVER
(B) ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81229-774-0 01 1 -
43 SCREW; RR END COVER
(A) ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81229-817-0 01 1 -
43 SCREW; RR END COVER
(C) ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, D = 1-81200-628-1, E = 1-81200-632-2 		1-81229-925-0 01 1 -
81 SPACER; ROTOR,GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81229-813-0 01 1 -
86 NUT SET; PULLEY,GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		8-97178-134-0 01 1 -
127 BOLT SET; GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, C = 1-81200-575-3, D = 1-81200-628-1, E = 1-81200-632-2, F = 1-81200-650-3 		1-81229-812-0 01 1 -
130 CONNECTOR; GEN
ASM PART: A = 1-81200-542-3, B = 1-81200-561-3, D = 1-81200-628-1, E = 1-81200-632-2 		1-81229-829-0 01 1 -
130 CONNECTOR; GEN
ASM PART: C = 1-81200-575-3, F = 1-81200-650-3 		1-81229-892-0 01 1 -
136 CLAMP; GENERATOR
ASM PART: C = 1-81200-575-3, F = 1-81200-650-3 		1-81229-775-0 01 1 -
