0-65 — STARTER (#10416) — 91 parça

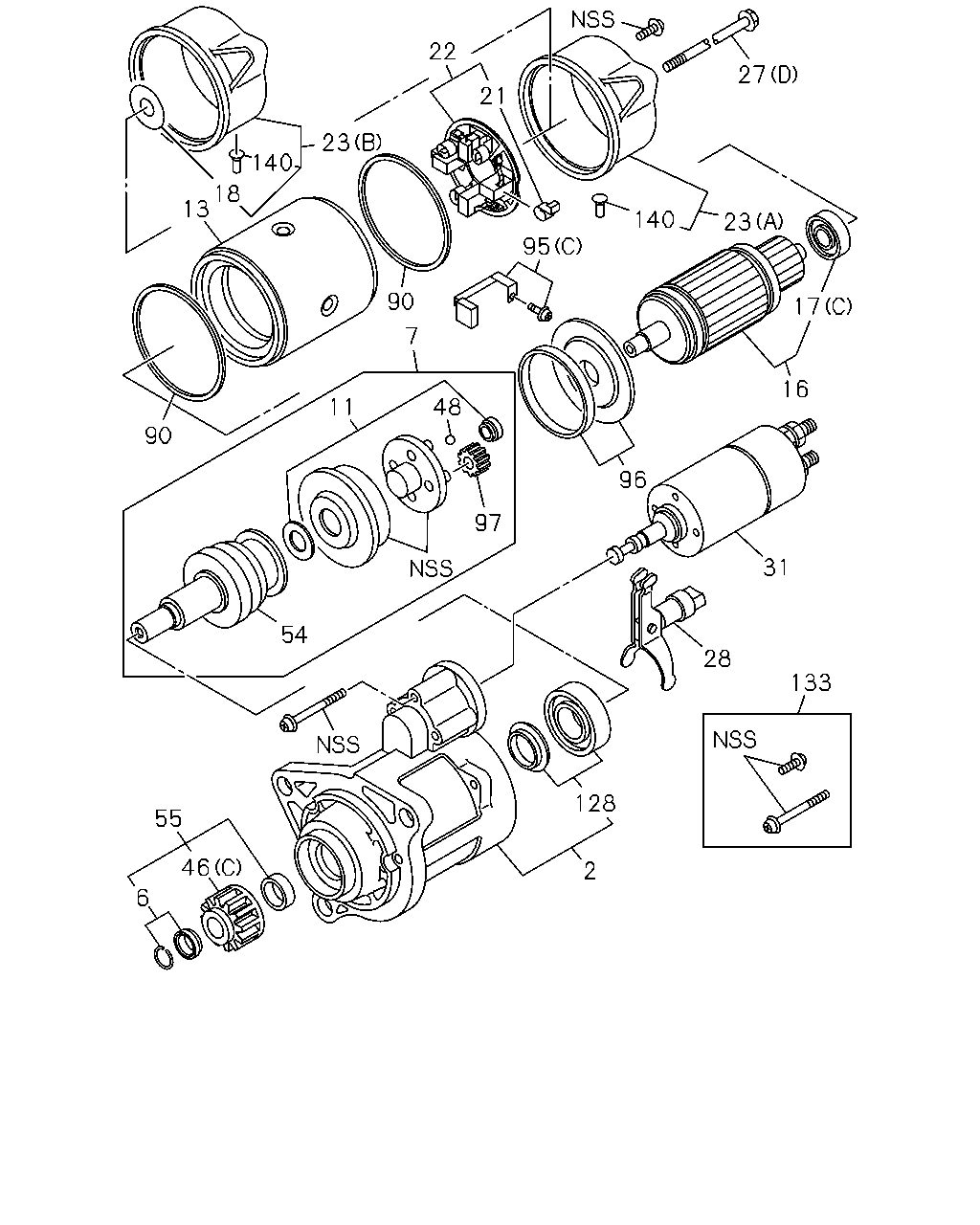

13 18 140 23 22 21 27 140 23 95 90 7 11 90 48 97 54 96 16 17 31 28 133 128 2 46 6 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 1-81100-246-3	1-81114-035-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-341-6	1-81123-065-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: B = 1-81100-341-6	1-81129-785-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 1-81100-341-6	1-81129-794-0	01	1	-
11	WASHER; GEAR SHAFT STARTER ASM PART: B = 1-81100-341-6	1-81129-781-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-246-3	1-81111-004-0	01	1	-
13	YOKE; STARTER ASM PART: B = 1-81100-341-6	1-81129-840-1	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-246-3	1-81121-044-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 1-81100-341-6	1-81121-067-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-246-3	1-81129-495-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: B = 1-81100-341-6	1-81129-790-0	01	1	-0206
17	BEARING; ARMATURE,STARTER (C) ASM PART: B = 1-81100-341-6	1-81129-952-0	01	1	0207-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-246-3	5-09800-081-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: B = 1-81100-341-6	8-98237-580-0	01	1	1306-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 1-81100-341-6	1-81129-828-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-246-3	1-81118-043-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-341-6	1-81121-071-0	01	1	-
23	COVER; RR COVER STARTER (B) ASM PART: A = 1-81100-246-3	1-81115-198-0	01	1	-
23	COVER; RR COVER STARTER (A) ASM PART: B = 1-81100-341-6	1-81115-233-0	01	1	-1305
23	COVER; RR COVER STARTER (A) ASM PART: B = 1-81100-341-6	8-98237-570-0	01	1	1306-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 1-81100-246-3	1-81129-483-0	03	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-246-3	1-81129-675-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-246-3	1-81129-676-0	01	1	-
27	BOLT; THROUGH,STARTER (D) ASM PART: B = 1-81100-341-6	1-81129-769-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 1-81100-341-6	1-81129-783-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-246-3	1-81151-079-1	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-341-6	1-81151-115-0	01	1	-0206
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-341-6	1-81151-129-0	01	1	0207-
46	GEAR; CLU STARTER (A) ASM PART: A = 1-81100-246-3	1-81123-034-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: A = 1-81100-246-3	1-81123-035-0	01	1	-
46	GEAR; CLU STARTER (C) ASM PART: B = 1-81100-341-6	1-81123-061-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-246-3	5-81129-092-0	01	1	-
48	BALL; PINION,STARTER ASM PART: B = 1-81100-341-6	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-246-3	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-341-6	1-81129-782-0	01	1	-
55	PINION; CLU,STARTER ASM PART: B = 1-81100-341-6	1-81129-784-0	01	1	-1209
55	PINION; CLU,STARTER ASM PART: B = 1-81100-341-6	8-98222-732-0	01	1	1210-
90	GASKET; ARMATURE ASM PART: B = 1-81100-341-6	1-81129-827-0	02	1	-
95	BRUSH ASM; STARTER (A) ASM PART: A = 1-81100-246-3	1-81116-048-0	02	1	-
95	BRUSH ASM; STARTER (B) ASM PART: A = 1-81100-246-3	1-81116-049-0	02	1	-
95	BRUSH ASM; STARTER (C) ASM PART: B = 1-81100-341-6	1-81116-067-0	01	1	-
96	GASKET; FRT CASE ASM PART: B = 1-81100-341-6	1-81129-796-0	01	1	-
97	GEAR; STARTER ASM PART: B = 1-81100-341-6	1-81123-056-0	04	1	-
128	BEARING; STARTER ASM PART: B = 1-81100-341-6	1-81129-780-0	01	1	-
133	SCREW SET; STARTER ASM PART: B = 1-81100-341-6	1-81129-787-0	01	1	-
140	GROMMET; RR COVER ASM PART: B = 1-81100-341-6	8-97376-389-0	01	1	-

27 23 38 13 32 27 114 115 7 95 95 58 46 16 17 22 43 44 43 46 14 2 115 114 31 47 48 54 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 1-81100-246-3	1-81114-035-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-341-6	1-81123-065-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 1-81100-341-6	1-81129-794-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-246-3	1-81111-004-0	01	1	-
13	YOKE; STARTER ASM PART: B = 1-81100-341-6	1-81129-840-1	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 1-81100-246-3	1-81129-502-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-246-3	1-81121-044-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 1-81100-341-6	1-81121-067-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-246-3	1-81129-495-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: B = 1-81100-341-6	1-81129-790-0	01	1	-0206
17	BEARING; ARMATURE,STARTER (C) ASM PART: B = 1-81100-341-6	1-81129-952-0	01	1	0207-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-246-3	5-09800-081-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-246-3	1-81118-043-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-341-6	1-81121-071-0	01	1	-
23	COVER; RR COVER STARTER (B) ASM PART: A = 1-81100-246-3	1-81115-198-0	01	1	-
23	COVER; RR COVER STARTER (A) ASM PART: B = 1-81100-341-6	1-81115-233-0	01	1	-1305
23	COVER; RR COVER STARTER (A) ASM PART: B = 1-81100-341-6	8-98237-570-0	01	1	1306-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 1-81100-246-3	1-81129-483-0	03	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-246-3	1-81129-675-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-246-3	1-81129-676-0	01	1	-
27	BOLT; THROUGH,STARTER (D) ASM PART: B = 1-81100-341-6	1-81129-769-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-246-3	1-81151-079-1	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-341-6	1-81151-115-0	01	1	-0206
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-341-6	1-81151-129-0	01	1	0207-
32	COVER; RUBBER,STARTER ASM PART: A = 1-81100-246-3	1-81129-504-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 1-81100-246-3	1-81129-502-0	01	1	-
43	RETAINER; PINION STARTER (A) ASM PART: A = 1-81100-246-3	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) ASM PART: A = 1-81100-246-3	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: A = 1-81100-246-3	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER (A) ASM PART: A = 1-81100-246-3	1-81123-034-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: A = 1-81100-246-3	1-81123-035-0	01	1	-
46	GEAR; CLU STARTER (C) ASM PART: B = 1-81100-341-6	1-81123-061-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 1-81100-246-3	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-246-3	5-81129-092-0	01	1	-
48	BALL; PINION,STARTER ASM PART: B = 1-81100-341-6	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-246-3	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-341-6	1-81129-782-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: A = 1-81100-246-3	1-81129-479-0	01	1	-0203
58	PIPE; DRAIN RR COVER STARTER ASM PART: A = 1-81100-246-3	1-81129-668-0	01	1	0204-
95	BRUSH ASM; STARTER (A) ASM PART: A = 1-81100-246-3	1-81116-048-0	02	1	-
95	BRUSH ASM; STARTER (B) ASM PART: A = 1-81100-246-3	1-81116-049-0	02	1	-
95	BRUSH ASM; STARTER (C) ASM PART: B = 1-81100-341-6	1-81116-067-0	01	1	-
114	NUT; TERMINAL ASM PART: A = 1-81100-246-3	5-81129-126-0	02	1	-
115	WASHER; TERMINAL (A) ASM PART: A = 1-81100-246-3	5-81129-129-0	01	1	-
115	WASHER; TERMINAL (B) ASM PART: A = 1-81100-246-3	5-81129-134-0	01	1	-
