0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#10415) — 172 parça

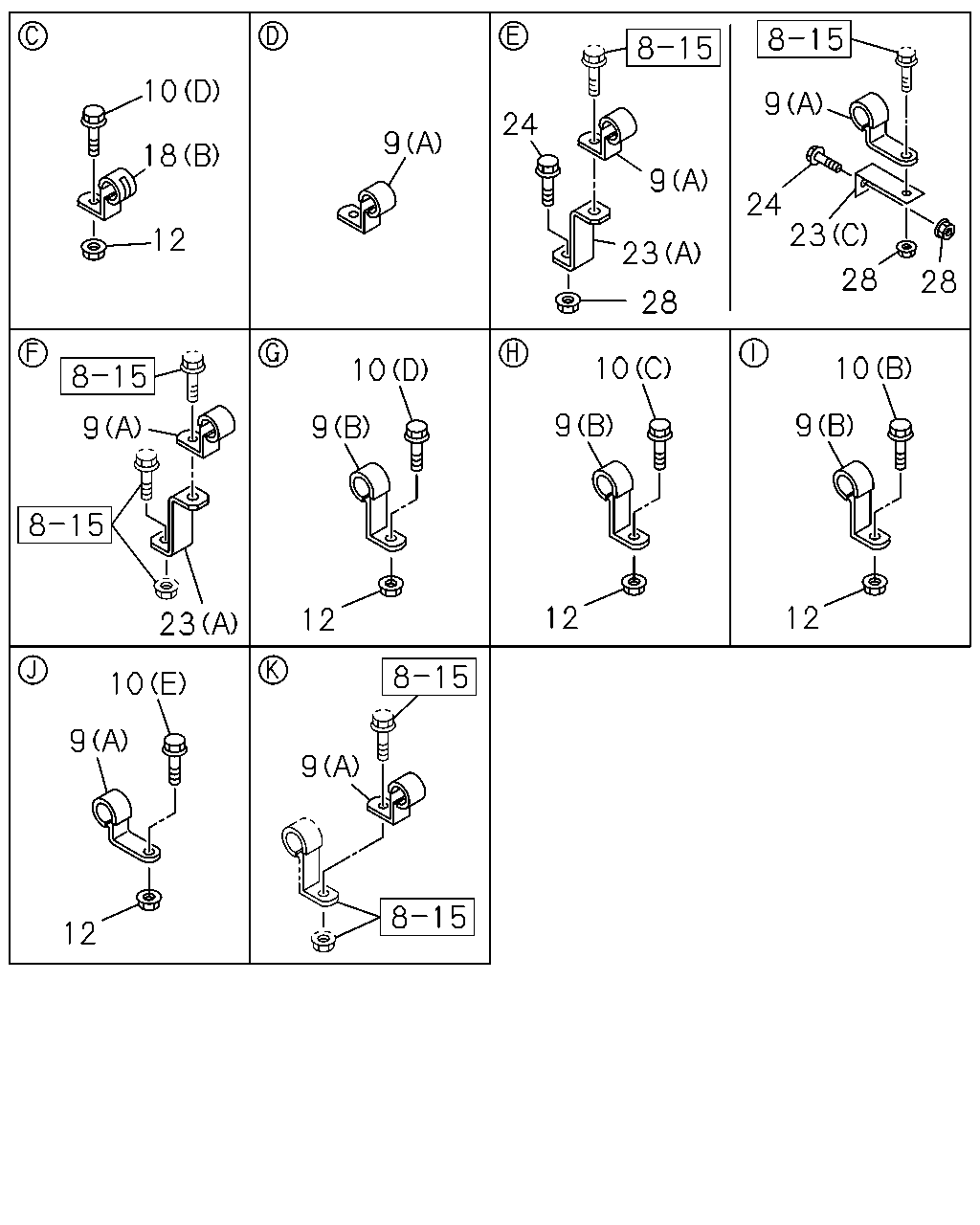

21 18 76 18 21 73 10 9 10 9 18 9 23 28 12 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	05	1	0103-	●
9	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	01	1	0103-	●
9	CLIP; BATTERY CABLE ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	11	1	0103-	●	●
9	CLIP; BATTERY CABLE EXC. EURO2 SPECIFICATION(THN) (B) ID=20 H=23 L=27	1-09700-861-0	03	1	0103-	●	●
9	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	06	1	0103-		●
10	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP (C) M8X30 FLANGE	0-28680-830-0	01	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP (D) M8X35 FLANGE	0-28680-835-0	03	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP (D) M8X35 FLANGE	0-28680-835-0	03	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP (D) M8X35 FLANGE	0-28650-835-0	03	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP (D) M8X35 FLANGE	0-28650-835-0	03	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (E) M8X25 FLANGE	0-28680-825-0	03	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (E) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP EXC. EURO2 SPECIFICATION(THN) (A) M8X25 FLANGE	0-28680-825-0	03	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP EXC. EURO2 SPECIFICATION(THN) (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28080-825-0	01	1	0103-0201		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-0608	●	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0603-0608	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	05	1	0609-	●	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0609-	●	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0609-	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	0103-0602	●	●
12	NUT; BATTERY CABLE CLIP EXC. EURO2 SPECIFICATION(THN) M8 FLANGE	0-91150-108-0	03	1	0103-0602	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
12	NUT; BATTERY CABLE CLIP EXC. EURO2 SPECIFICATION(THN) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	05	1	0103-0602	●	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0103-0602	●	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0103-0602	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0603-0608	●
18	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	01	1	0103-0103	●
18	CLIP; BATTERY CABLE (B) ID=21 L=24	8-94176-807-1	01	1	0103-	●
18	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	03	1	0103-	●	●
18	CLIP; BATTERY CABLE (A) ID=22 L=32	1-09700-126-1	01	1	0103-		●
18	CLIP; BATTERY CABLE (C) ID=19 L=28	9-09525-856-0	01	1	0103-0606		●
18	CLIP; BATTERY CABLE (C) ID=19 L=28	0-95235-856-0	01	1	0607-		●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	02	1	0103-0512		●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
23	BRACKET; CABLE CLIP TO FRAME (B) L=82 B=20	1-47478-420-0	01	1	0103-1404	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=82 B=20	8-98259-390-0	01	1	1405-	●
23	BRACKET; CABLE CLIP TO FRAME ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-47476-200-0	02	1	0103-	●	●
24	BOLT; BRKT TO FRAME ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X35 FLANGE	0-28680-835-0	01	1	0103-0512	●	●
24	BOLT; BRKT TO FRAME M8X35 FLANGE	0-28680-835-0	01	1	0103-0512	●
24	BOLT; BRKT TO FRAME ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●
24	BOLT; BRKT TO FRAME M8X35 FLANGE	0-28650-835-0	01	1	0601-	●
28	NUT; BRKT TO FRAME ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	01	1	0103-0602	●
28	NUT; BRKT TO FRAME ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0603-	●
73	BRACKET; BATTERY CABLE	1-82699-493-0	01	1	0103-		●
76	NUT; BATTERY CABLE M10 FLANGE	0-91150-210-0	02	1	0103-0602		●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	02	1	0603-		●

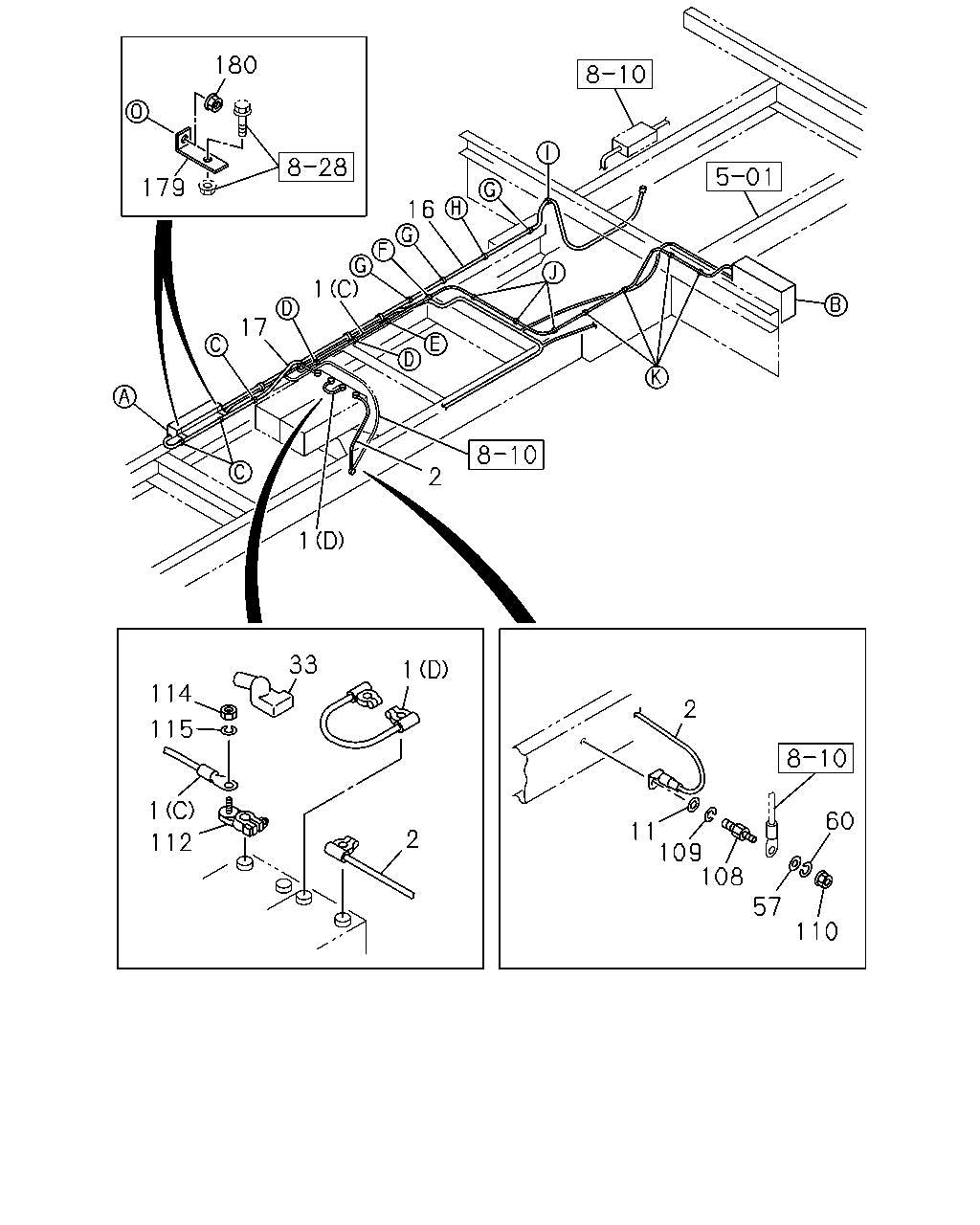

180 179 16 1 17 2 1 33 1 114 2 115 1 60 11 109 108 57 2 112 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY (D) L=450	1-82650-281-2	01	1	0103-0711	●	●
1	CABLE; BATTERY (D) L=500	8-97623-077-0	01	1	0712-	●	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=350	1-82650-275-1	01	1	0103-	●	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) L=550	1-82650-276-1	01	1	0103-	●	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) L=4100	1-82650-372-0	01	1	0103-	●	●
2	CABLE; BATTERY L=1400	1-82650-273-0	01	1	0103-0711	●	●
2	CABLE; BATTERY L=1400	1-82650-408-0	01	1	0712-	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	0103-0605	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0606-	●	●
16	CABLE; STARTER TO RELAY L=5290	1-82650-370-1	01	1	0103-0108	●
16	CABLE; STARTER TO RELAY L=5080	1-82652-768-0	01	1	0109-	●
16	CABLE; STARTER TO RELAY L=4640	1-82650-371-0	01	1	0103-		●
17	CABLE; BATTERY (+) TO RELAY L=1700	1-82650-366-1	01	1	0103-	●	●
33	CAP; INSULATOR BLACK	1-82699-106-0	01	1	0103-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0106-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	9-09150-606-0	01	1	0106-0603	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0604-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0103-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	0103-0603	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0604-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0103-	●	●
112	TERMINAL; BATTERY <+>	1-82695-069-1	01	1	0103-0403	●	●
112	TERMINAL; BATTERY <+>	1-82695-175-0	01	1	0404-	●	●
114	NUT; CABLE,BATTERY TERMINAL M10	9-09110-510-0	01	1	0103-0512	●	●
114	NUT; CABLE,BATTERY TERMINAL M10	0-91110-510-0	01	1	0601-	●	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	0103-0603	●	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	0-91510-510-0	01	1	0604-	●	●
179	BRACKET; COVER L=68	1-47475-525-0	02	1	0103-	●	●
180	NUT; COVER M8 FLANGE	0-91150-108-0	04	1	0103-0602	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	0603-	●	●

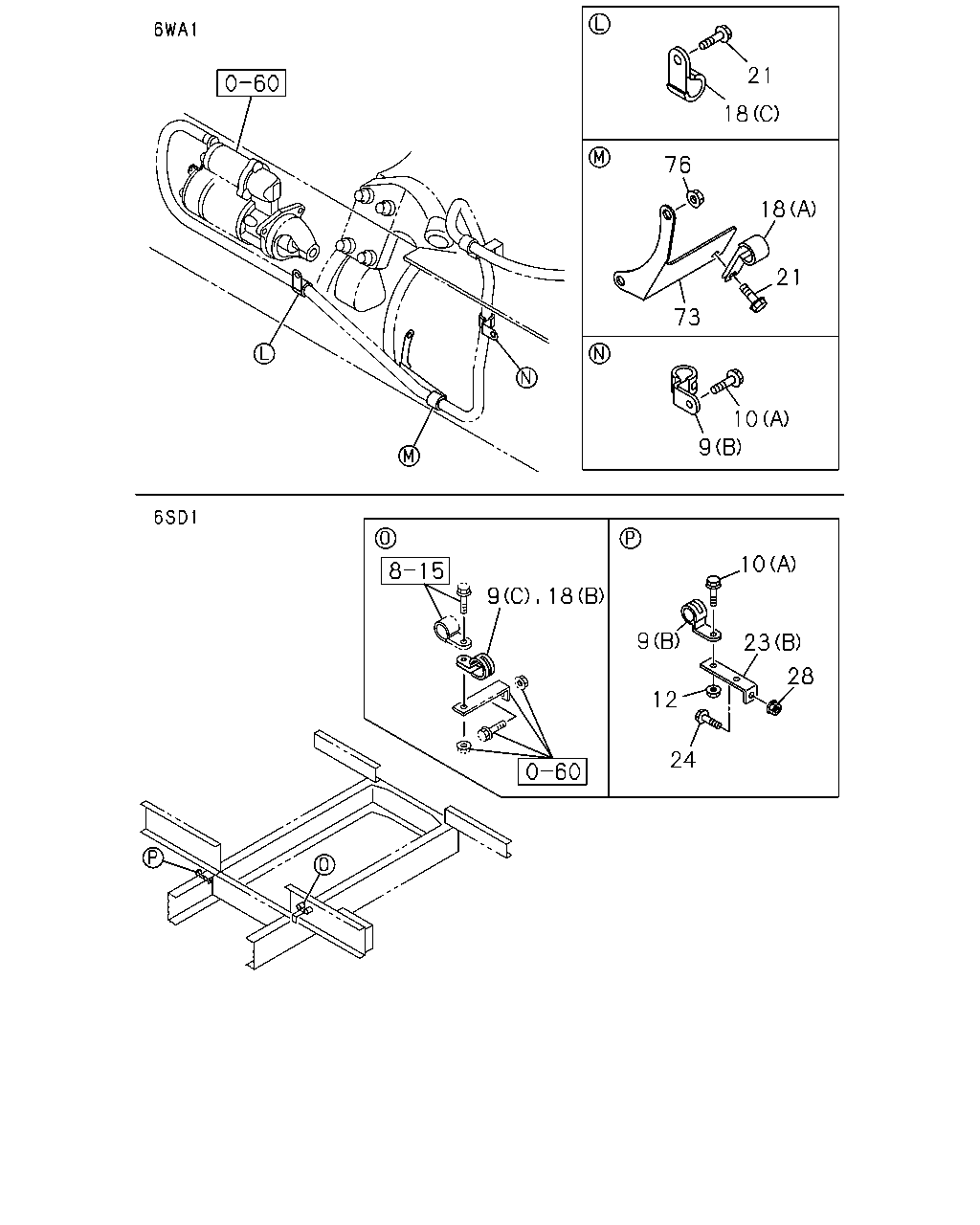

10 18 12 24 9 23 24 28 28 23 10 10 9 10 9 23 12 10 9 12 9 12 12 9 28 9 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	05	1	0103-	●
9	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	01	1	0103-	●
9	CLIP; BATTERY CABLE ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) ID=14.5 H=23 L=30	1-09700-859-0	11	1	0103-	●	●
9	CLIP; BATTERY CABLE EXC. EURO2 SPECIFICATION(THN) (B) ID=20 H=23 L=27	1-09700-861-0	03	1	0103-	●	●
9	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	06	1	0103-		●
10	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP (C) M8X30 FLANGE	0-28680-830-0	01	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP (D) M8X35 FLANGE	0-28680-835-0	03	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP (D) M8X35 FLANGE	0-28680-835-0	03	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP (D) M8X35 FLANGE	0-28650-835-0	03	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP (D) M8X35 FLANGE	0-28650-835-0	03	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (E) M8X25 FLANGE	0-28680-825-0	03	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (E) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP EXC. EURO2 SPECIFICATION(THN) (A) M8X25 FLANGE	0-28680-825-0	03	1	0103-0512	●	●
10	BOLT; BATTERY CABLE CLIP EXC. EURO2 SPECIFICATION(THN) (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28080-825-0	01	1	0103-0201		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-0608	●	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0603-0608	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	05	1	0609-	●	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0609-	●	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	05	1	0609-	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	0103-0602	●	●
12	NUT; BATTERY CABLE CLIP EXC. EURO2 SPECIFICATION(THN) M8 FLANGE	0-91150-108-0	03	1	0103-0602	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
12	NUT; BATTERY CABLE CLIP EXC. EURO2 SPECIFICATION(THN) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	05	1	0103-0602	●	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0103-0602	●	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0103-0602	●
12	NUT; BATTERY CABLE CLIP ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	05	1	0603-0608	●
18	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	01	1	0103-0103	●
18	CLIP; BATTERY CABLE (B) ID=21 L=24	8-94176-807-1	01	1	0103-	●
18	CLIP; BATTERY CABLE (B) ID=20 H=23 L=27	1-09700-861-0	03	1	0103-	●	●
18	CLIP; BATTERY CABLE (A) ID=22 L=32	1-09700-126-1	01	1	0103-		●
18	CLIP; BATTERY CABLE (C) ID=19 L=28	9-09525-856-0	01	1	0103-0606		●
18	CLIP; BATTERY CABLE (C) ID=19 L=28	0-95235-856-0	01	1	0607-		●
23	BRACKET; CABLE CLIP TO FRAME (B) L=82 B=20	1-47478-420-0	01	1	0103-1404	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=82 B=20	8-98259-390-0	01	1	1405-	●
23	BRACKET; CABLE CLIP TO FRAME ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-47476-200-0	02	1	0103-	●	●
24	BOLT; BRKT TO FRAME ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X35 FLANGE	0-28680-835-0	01	1	0103-0512	●	●
24	BOLT; BRKT TO FRAME M8X35 FLANGE	0-28680-835-0	01	1	0103-0512	●
24	BOLT; BRKT TO FRAME ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●
24	BOLT; BRKT TO FRAME M8X35 FLANGE	0-28650-835-0	01	1	0601-	●
28	NUT; BRKT TO FRAME ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	01	1	0103-0602	●
28	NUT; BRKT TO FRAME ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0603-	●

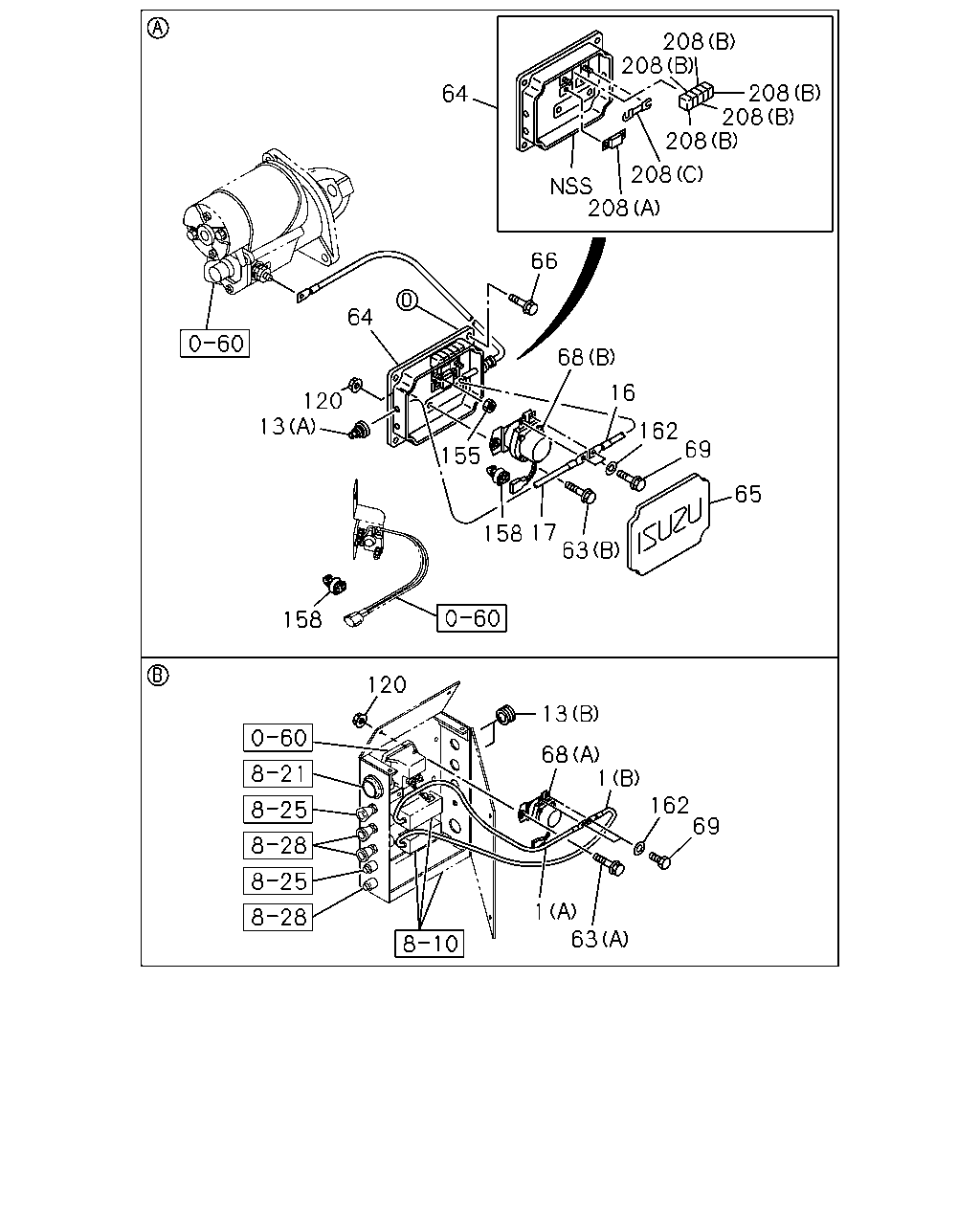

208 208 208 208 208 208 208 64 66 64 68 120 13 16 162 69 155 65 63 158 120 13 68 1 162 69 1 63 158 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY (D) L=450	1-82650-281-2	01	1	0103-0711	●	●
1	CABLE; BATTERY (D) L=500	8-97623-077-0	01	1	0712-	●	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=350	1-82650-275-1	01	1	0103-	●	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) L=550	1-82650-276-1	01	1	0103-	●	●
1	CABLE; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (C) L=4100	1-82650-372-0	01	1	0103-	●	●
13	GROMMET; BATTERY CABLE (A) ID=26	1-09333-140-0	01	1	0103-	●	●
13	GROMMET; BATTERY CABLE ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=26	1-09333-140-0	02	1	0103-	●	●
16	CABLE; STARTER TO RELAY L=5290	1-82650-370-1	01	1	0103-0108	●
16	CABLE; STARTER TO RELAY L=5080	1-82652-768-0	01	1	0109-	●
16	CABLE; STARTER TO RELAY L=4640	1-82650-371-0	01	1	0103-		●
17	CABLE; BATTERY (+) TO RELAY L=1700	1-82650-366-1	01	1	0103-	●	●
63	BOLT; RELAY BATTERY (B) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0103-0512	●	●
63	BOLT; RELAY BATTERY (B) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-	●	●
63	BOLT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	0103-	●	●
64	BOX; BATTERY RELAY ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-82510-565-1	01	1	0103-	●	●
64	BOX; BATTERY RELAY EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK>	1-82510-509-4	01	1	0103-	●	●
65	COVER; BATTERY RELAY	1-82510-505-2	01	1	0103-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0103-0106	●	●
66	BOLT; COVER,BATTERY RELAY M8X35 W/LK&PL WASHER	0-50140-835-0	04	1	0107-0512	●	●
66	BOLT; COVER,BATTERY RELAY M8X35 W/LK&PL WASHER	0-50640-835-0	04	1	0601-	●	●
68	RELAY; BATTERY (B)	1-82550-313-0	01	1	0103-	●	●
68	RELAY; BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A)	1-82550-282-0	01	1	0103-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0103-0512	●	●
69	BOLT; CABLE BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0103-0512	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-	●	●
69	BOLT; CABLE BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●
120	NUT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91150-108-0	02	1	0103-0602	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
120	NUT; RELAY BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91150-108-0	01	1	0103-0602	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	01	1	0103-	●	●
158	CLIP; RELAY EXC. ELECTRIC SWITCH BOX ENGINE ROOM<TEK> OD=7 H=1.2	8-94364-750-0	01	1	0103-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	0103-0605	●	●
162	WASHER; PL,CABLE,BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=8.4 OD=18	9-09164-608-0	02	1	0103-0605	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0606-	●	●
162	WASHER; PL,CABLE,BATTERY ELECTRIC SWITCH BOX ENGINE ROOM<TEK> ID=8.4 OD=18	0-91614-608-0	02	1	0606-	●	●
208	FUSE (A) 80A	1-82516-031-0	01	1	0103-	●	●
208	FUSE (B) 40A GREEN	8-94468-662-0	05	1	0103-	●	●
208	FUSE (C) 125A	9-82941-130-1	01	1	0103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
